2006 FORD MONDEO Owners Manual

Downloaded from www.Manualslib.com manuals search engine SAFETY PRECAUTIONS
WARNINGS
To avoid fuel spillage that couldbe hazardous to other roadusers, always stop refuelling after thefuel nozzle stops the second time.Additional fuel will fill the expansionspace in the fuel tank which couldlead to fuel overflowing.
The fuel system is underpressure. There is a risk of injuryif the fuel system is leaking. Do notuse any kind of flames or heat nearthe fuel system.
FUEL QUALITY
Use only high quality fuel without anysupplemental additives or otherengine treatments.
Vehicles with a petrolengine
Use unleaded petrol according tospecification EN 228 or equivalentwith minimum 95 octane. Leadedfuel or fuel/additives containing othermetallic compounds (e.g.manganese-based) may damagethe emission system.
Vehicles with a dieselengine
Use diesel fuel according tospecification EN 590 or equivalent.Do not mix it with any oil, petrol orother liquids. Diesel fuels whichcontain a mix of up to 5 % RME (biodiesel) are acceptable.
Prolonged use of supplementaladditives to prevent fuel waxing is notrecommended. Do not addkerosene, paraffin or petrol to dieselfuels.
CATALYTIC CONVERTER
Driving with a catalyticconverter
Avoid running out of fuel.
Avoid unnecessarily long enginecranking periods.
Do not run the engine with adisconnected spark plug.
Do not push-start or tow-starting thevehicle; use booster cables. SeeUsing booster cables (page 158).
Never switch off the ignition whiledriving.
Parking
WARNING
It is important to avoid parking,idling or operating the vehicle ondry leaves or dry grass. Even whenthe engine is switched off, theexhaust will continue to radiate aconsiderable amount of heat for ashort period creating a potential firehazard.
103
Fuel and refuelling

Downloaded from www.Manualslib.com manuals search engine FUEL FILLER FLAP
Pull up the remote release leverbeside the driver’s seat. Open thefiller flap and turn the capanticlockwise.
When the filler cap is removed, ahissing noise may be heard. This isnormal and should be disregarded.
To refit the cap, turn clockwise untilit clicks.
REFUELLING
WARNING
If you fill your vehicle withincorrect fuel or additives, donot attempt to start the engine. Thismay lead to engine damage.
TECHNICAL SPECIFICATIONS
Fuel consumption
4-door and 5-door
Fuel consumption figures
CO2emissionsCombinedExtra-urbanUrban
Variant
g/kml/100 km(mpg)l/100 km(mpg)l/100 km(mpg)
1797.5 (37.7)5.6 (50.4)10.9 (25.9)1.8 l Duratec-HE 81 kW(110 PS), Stage IIIemissions
1827.6 (37.2)5.6 (50.4)11.2 (25.2)1.8 l Duratec-HE 81 kW(110 PS), Stage IVemissions
1827.6 (37.2)5.6 (50.4)11.0 (25.7)1.8 l Duratec-HE 92 kW(125 PS), Stage IIIemissions
104
Fuel and refuellingE72501

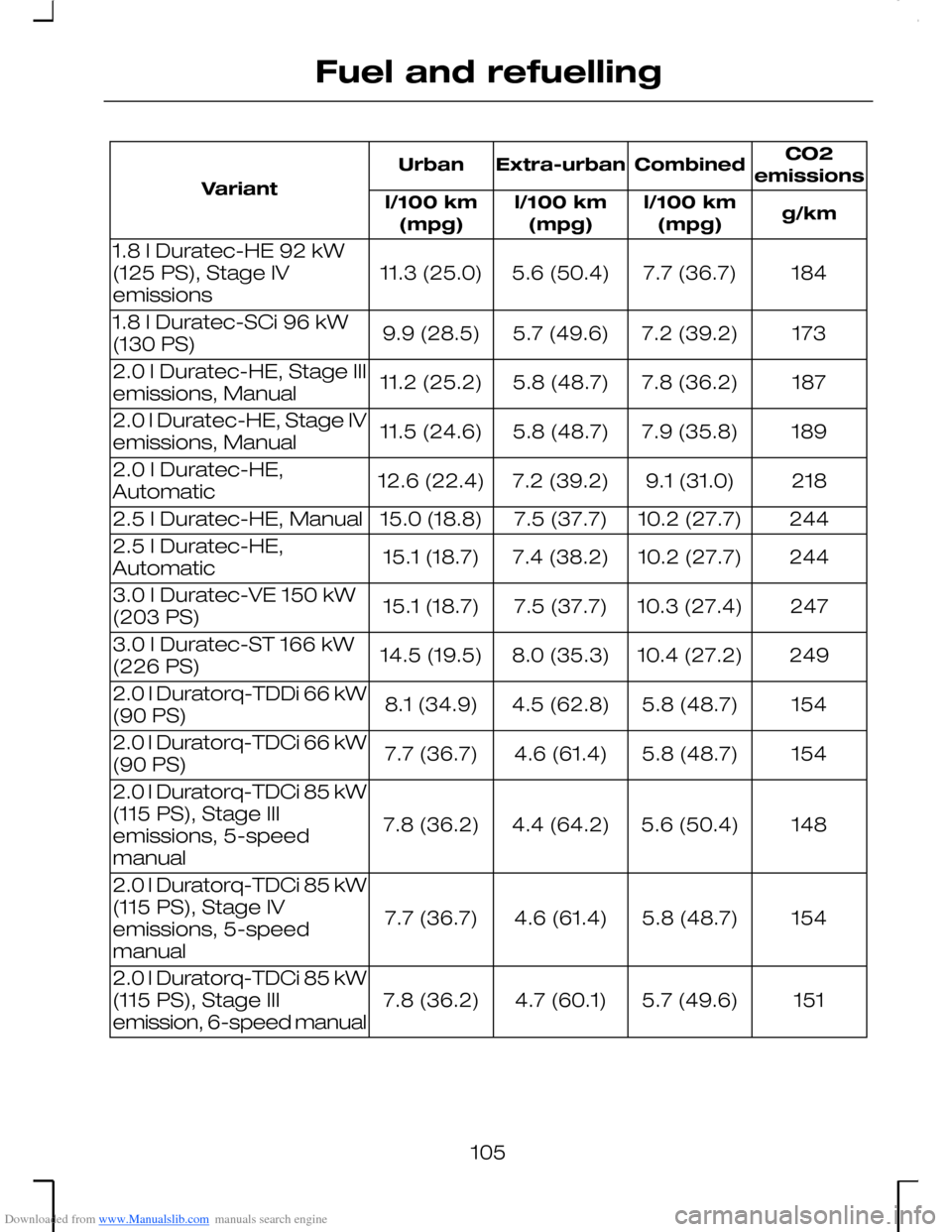

Downloaded from www.Manualslib.com manuals search engine CO2emissionsCombinedExtra-urbanUrban
Variant
g/kml/100 km(mpg)l/100 km(mpg)l/100 km(mpg)
1847.7 (36.7)5.6 (50.4)11.3 (25.0)1.8 l Duratec-HE 92 kW(125 PS), Stage IVemissions
1737.2 (39.2)5.7 (49.6)9.9 (28.5)1.8 l Duratec-SCi 96 kW(130 PS)
1877.8 (36.2)5.8 (48.7)11.2 (25.2)2.0 l Duratec-HE, Stage IIIemissions, Manual
1897.9 (35.8)5.8 (48.7)11.5 (24.6)2.0 l Duratec-HE, Stage IVemissions, Manual
2189.1 (31.0)7.2 (39.2)12.6 (22.4)2.0 l Duratec-HE,Automatic
24410.2 (27.7)7.5 (37.7)15.0 (18.8)2.5 l Duratec-HE, Manual
24410.2 (27.7)7.4 (38.2)15.1 (18.7)2.5 l Duratec-HE,Automatic
24710.3 (27.4)7.5 (37.7)15.1 (18.7)3.0 l Duratec-VE 150 kW(203 PS)
24910.4 (27.2)8.0 (35.3)14.5 (19.5)3.0 l Duratec-ST 166 kW(226 PS)
1545.8 (48.7)4.5 (62.8)8.1 (34.9)2.0 l Duratorq-TDDi 66 kW(90 PS)
1545.8 (48.7)4.6 (61.4)7.7 (36.7)2.0 l Duratorq-TDCi 66 kW(90 PS)
1485.6 (50.4)4.4 (64.2)7.8 (36.2)
2.0 l Duratorq-TDCi 85 kW(115 PS), Stage IIIemissions, 5-speedmanual
1545.8 (48.7)4.6 (61.4)7.7 (36.7)
2.0 l Duratorq-TDCi 85 kW(115 PS), Stage IVemissions, 5-speedmanual
1515.7 (49.6)4.7 (60.1)7.8 (36.2)2.0 l Duratorq-TDCi 85 kW(115 PS), Stage IIIemission, 6-speed manual
105
Fuel and refuelling

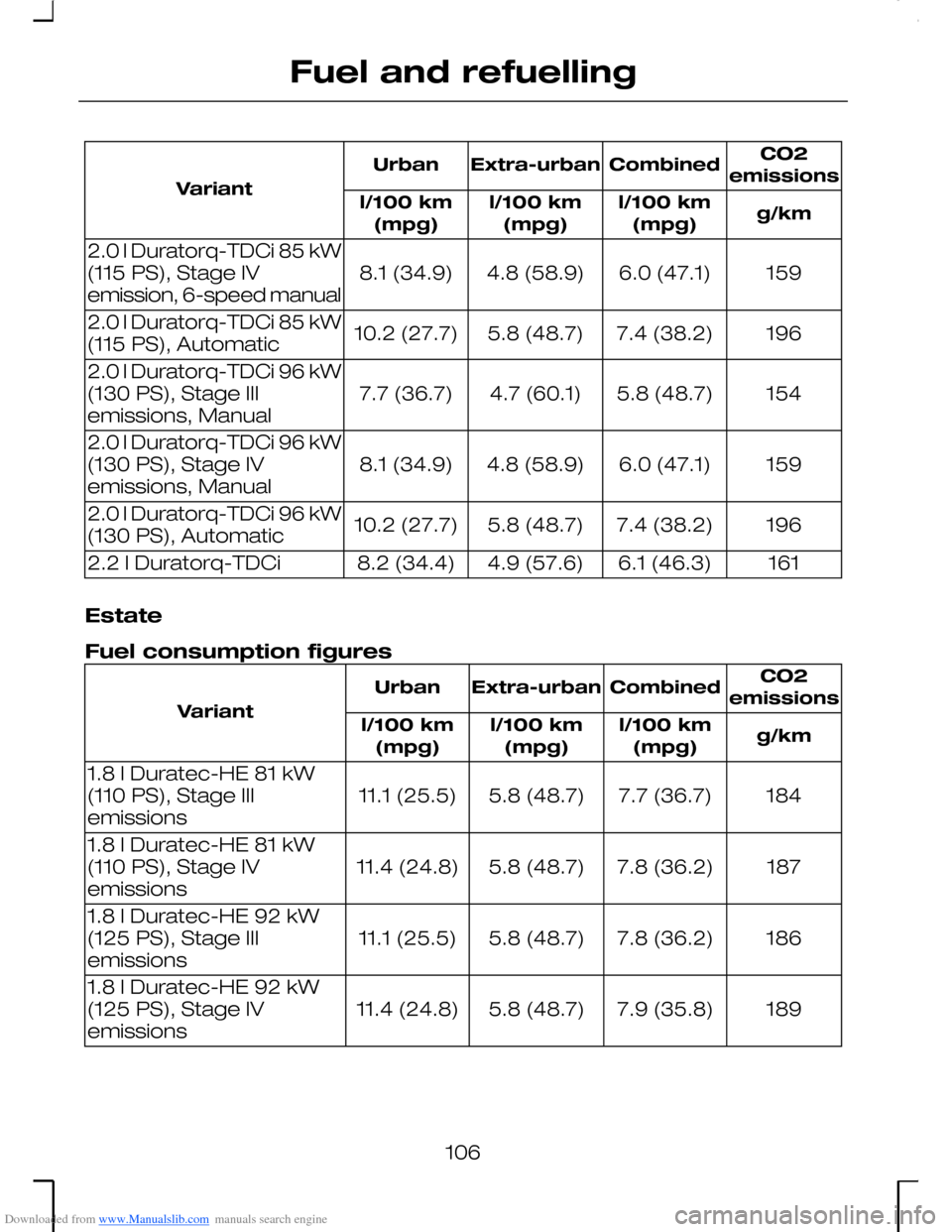

Downloaded from www.Manualslib.com manuals search engine CO2emissionsCombinedExtra-urbanUrban
Variant
g/kml/100 km(mpg)l/100 km(mpg)l/100 km(mpg)
1596.0 (47.1)4.8 (58.9)8.1 (34.9)2.0 l Duratorq-TDCi 85 kW(115 PS), Stage IVemission, 6-speed manual
1967.4 (38.2)5.8 (48.7)10.2 (27.7)2.0 l Duratorq-TDCi 85 kW(115 PS), Automatic
1545.8 (48.7)4.7 (60.1)7.7 (36.7)2.0 l Duratorq-TDCi 96 kW(130 PS), Stage IIIemissions, Manual
1596.0 (47.1)4.8 (58.9)8.1 (34.9)2.0 l Duratorq-TDCi 96 kW(130 PS), Stage IVemissions, Manual
1967.4 (38.2)5.8 (48.7)10.2 (27.7)2.0 l Duratorq-TDCi 96 kW(130 PS), Automatic
1616.1 (46.3)4.9 (57.6)8.2 (34.4)2.2 l Duratorq-TDCi
Estate
Fuel consumption figures
CO2emissionsCombinedExtra-urbanUrban
Variant
g/kml/100 km(mpg)l/100 km(mpg)l/100 km(mpg)
1847.7 (36.7)5.8 (48.7)11.1 (25.5)1.8 l Duratec-HE 81 kW(110 PS), Stage IIIemissions
1877.8 (36.2)5.8 (48.7)11.4 (24.8)1.8 l Duratec-HE 81 kW(110 PS), Stage IVemissions
1867.8 (36.2)5.8 (48.7)11.1 (25.5)1.8 l Duratec-HE 92 kW(125 PS), Stage IIIemissions
1897.9 (35.8)5.8 (48.7)11.4 (24.8)1.8 l Duratec-HE 92 kW(125 PS), Stage IVemissions
106
Fuel and refuelling

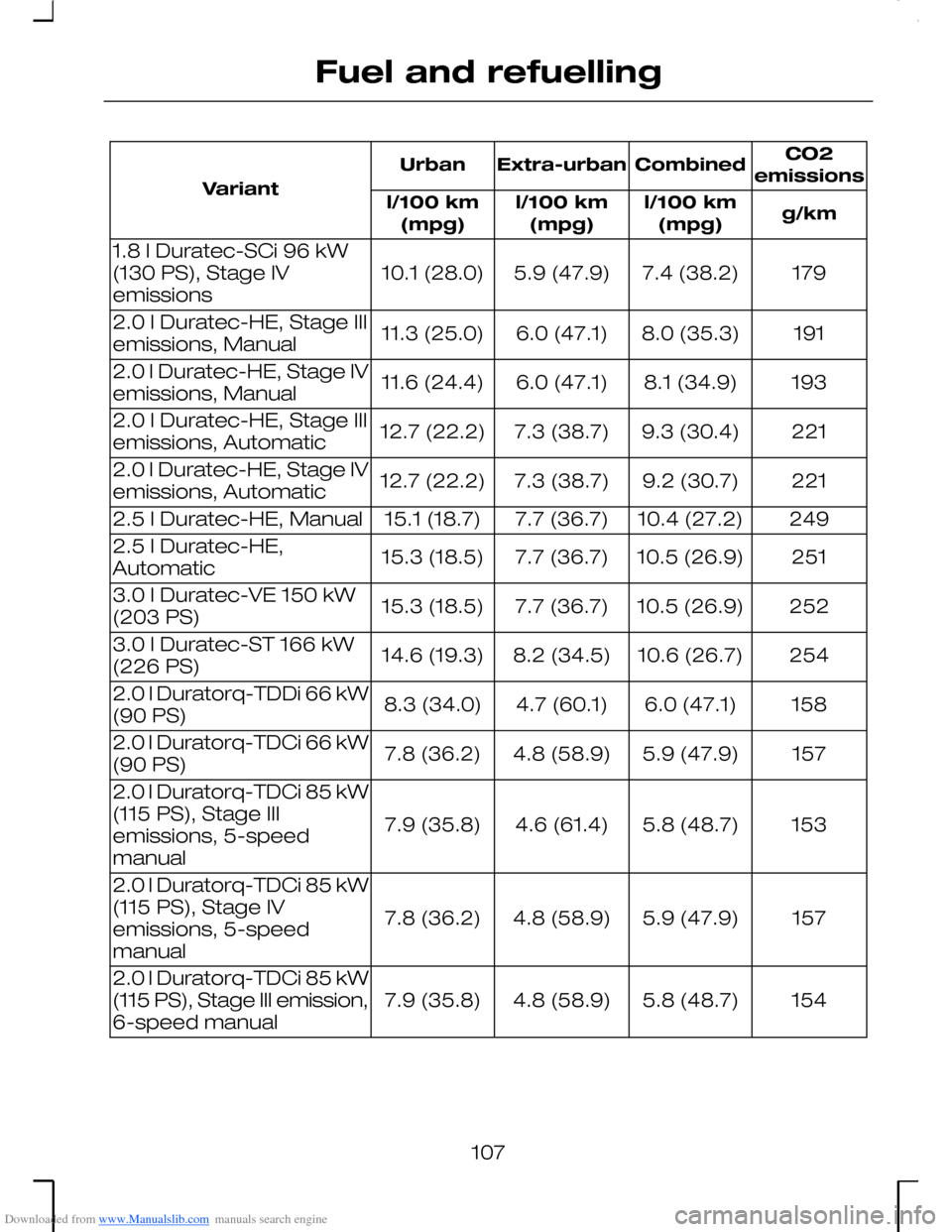

Downloaded from www.Manualslib.com manuals search engine CO2emissionsCombinedExtra-urbanUrban
Variant
g/kml/100 km(mpg)l/100 km(mpg)l/100 km(mpg)
1797.4 (38.2)5.9 (47.9)10.1 (28.0)1.8 l Duratec-SCi 96 kW(130 PS), Stage IVemissions
1918.0 (35.3)6.0 (47.1)11.3 (25.0)2.0 l Duratec-HE, Stage IIIemissions, Manual
1938.1 (34.9)6.0 (47.1)11.6 (24.4)2.0 l Duratec-HE, Stage IVemissions, Manual
2219.3 (30.4)7.3 (38.7)12.7 (22.2)2.0 l Duratec-HE, Stage IIIemissions, Automatic
2219.2 (30.7)7.3 (38.7)12.7 (22.2)2.0 l Duratec-HE, Stage IVemissions, Automatic
24910.4 (27.2)7.7 (36.7)15.1 (18.7)2.5 l Duratec-HE, Manual
25110.5 (26.9)7.7 (36.7)15.3 (18.5)2.5 l Duratec-HE,Automatic
25210.5 (26.9)7.7 (36.7)15.3 (18.5)3.0 l Duratec-VE 150 kW(203 PS)
25410.6 (26.7)8.2 (34.5)14.6 (19.3)3.0 l Duratec-ST 166 kW(226 PS)
1586.0 (47.1)4.7 (60.1)8.3 (34.0)2.0 l Duratorq-TDDi 66 kW(90 PS)
1575.9 (47.9)4.8 (58.9)7.8 (36.2)2.0 l Duratorq-TDCi 66 kW(90 PS)
1535.8 (48.7)4.6 (61.4)7.9 (35.8)
2.0 l Duratorq-TDCi 85 kW(115 PS), Stage IIIemissions, 5-speedmanual
1575.9 (47.9)4.8 (58.9)7.8 (36.2)
2.0 l Duratorq-TDCi 85 kW(115 PS), Stage IVemissions, 5-speedmanual
1545.8 (48.7)4.8 (58.9)7.9 (35.8)2.0 l Duratorq-TDCi 85 kW(115 PS), Stage III emission,6-speed manual
107
Fuel and refuelling

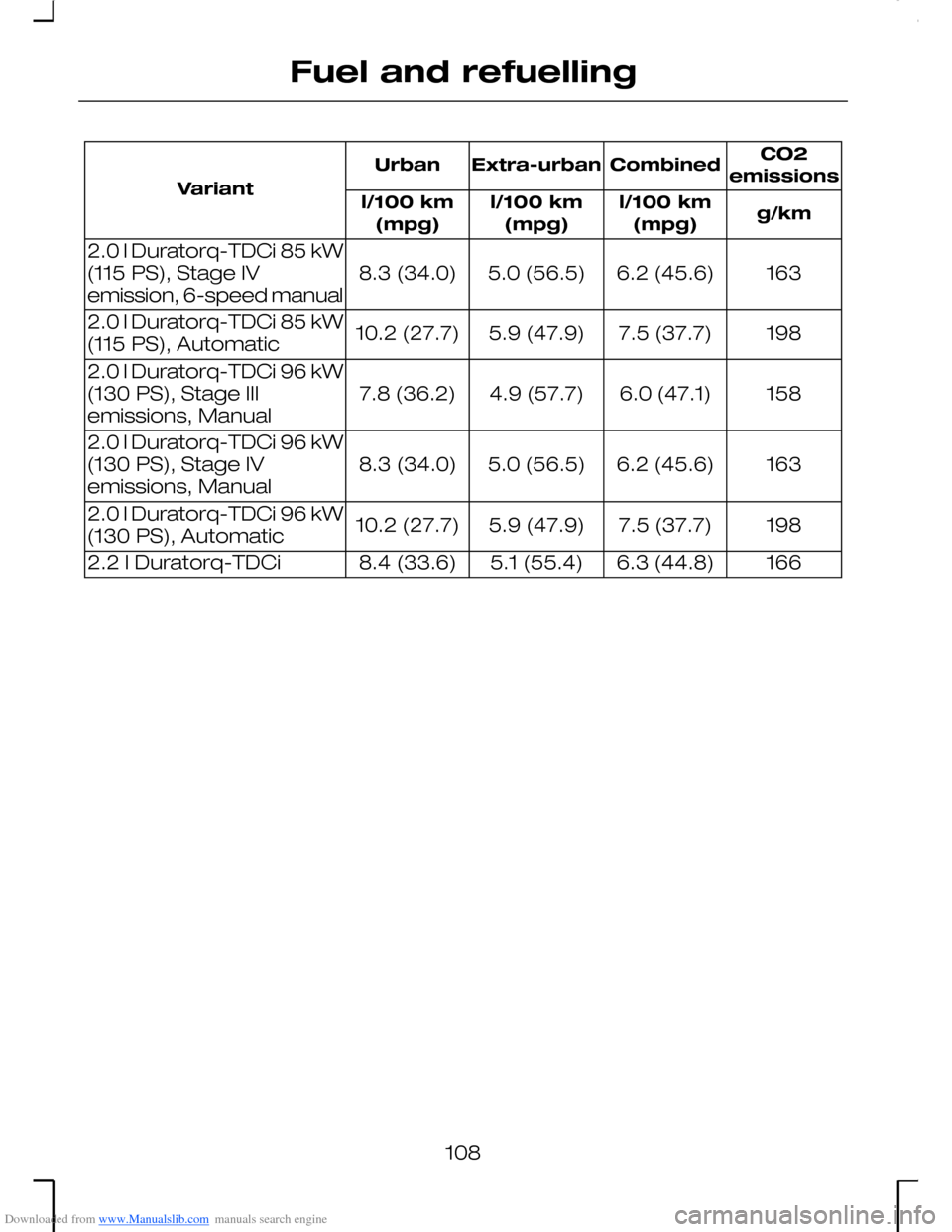

Downloaded from www.Manualslib.com manuals search engine CO2emissionsCombinedExtra-urbanUrban
Variant
g/kml/100 km(mpg)l/100 km(mpg)l/100 km(mpg)
1636.2 (45.6)5.0 (56.5)8.3 (34.0)2.0 l Duratorq-TDCi 85 kW(115 PS), Stage IVemission, 6-speed manual
1987.5 (37.7)5.9 (47.9)10.2 (27.7)2.0 l Duratorq-TDCi 85 kW(115 PS), Automatic
1586.0 (47.1)4.9 (57.7)7.8 (36.2)2.0 l Duratorq-TDCi 96 kW(130 PS), Stage IIIemissions, Manual
1636.2 (45.6)5.0 (56.5)8.3 (34.0)2.0 l Duratorq-TDCi 96 kW(130 PS), Stage IVemissions, Manual
1987.5 (37.7)5.9 (47.9)10.2 (27.7)2.0 l Duratorq-TDCi 96 kW(130 PS), Automatic
1666.3 (44.8)5.1 (55.4)8.4 (33.6)2.2 l Duratorq-TDCi
108
Fuel and refuelling

Downloaded from www.Manualslib.com manuals search engine MANUAL TRANSMISSION
WARNINGS
Engage reverse gear only whenthe vehicle is stationary.
Do not apply any undue lateralforce to the gear lever whenchanging from 5th to 4th gear as thiscould lead to the inadvertentselection of 2nd gear.
To avoid shifting noises whenengaging the reverse gear, waitapproximately three seconds withthe clutch depressed when thevehicle is stationary.
Vehicles with 1.8 l Duratec-SCi enginereach the maximum speed only infifth gear.
Reverse gear − 5-speedtransmission
To select the reverse gear, shift thelever into the neutral position andthen press the lever fully to the rightagainst a spring pressure, beforepulling rearwards.
Reverse gear − 6-speedtransmission
1.Lift the locking ring.
2.Move the gear lever towards theleft and forwards.
109
TransmissionE72455 E72456

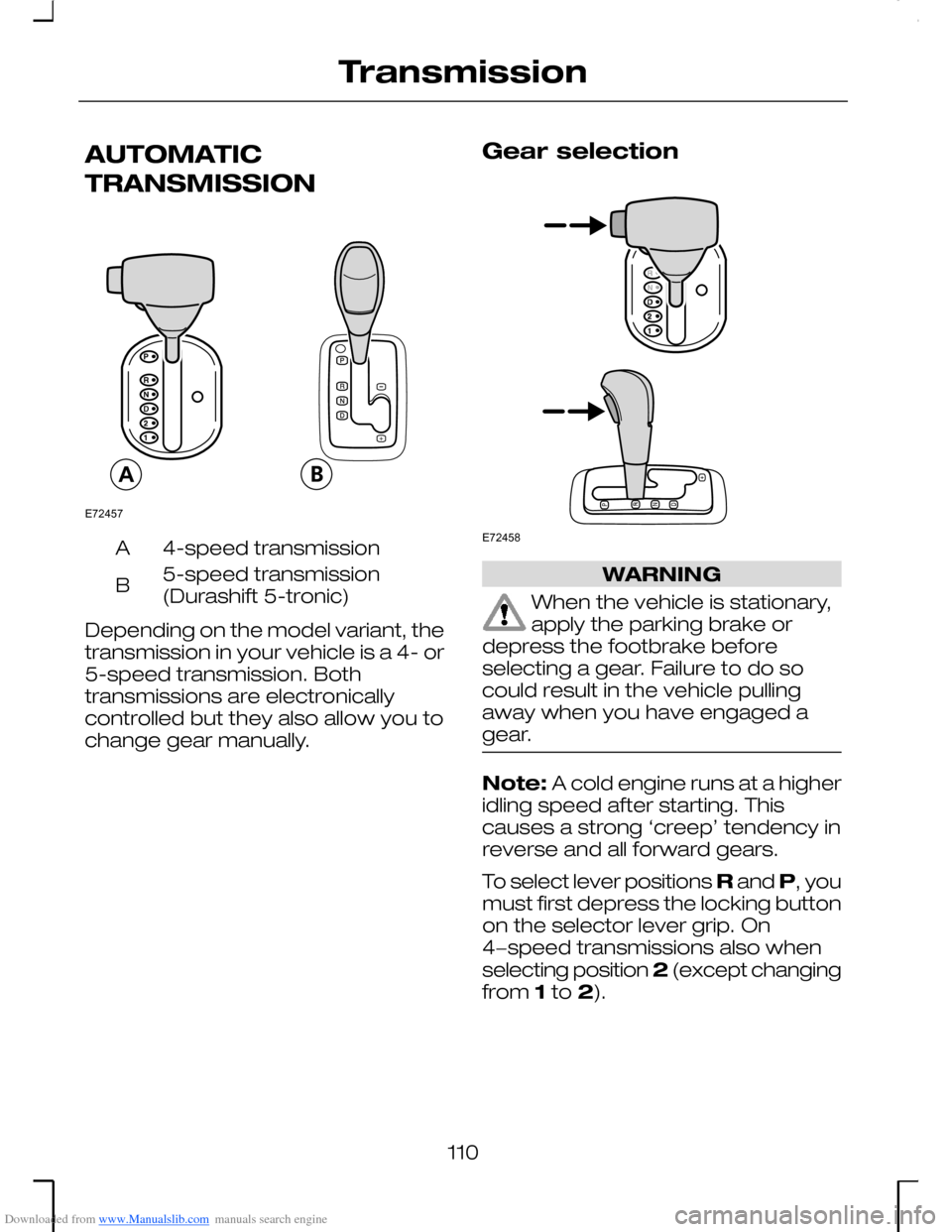

Downloaded from www.Manualslib.com manuals search engine AUTOMATIC
TRANSMISSION
4-speed transmissionA
5-speed transmission(Durashift 5-tronic)B
Depending on the model variant, thetransmission in your vehicle is a 4- or5-speed transmission. Bothtransmissions are electronicallycontrolled but they also allow you tochange gear manually.
Gear selection
WARNING
When the vehicle is stationary,apply the parking brake ordepress the footbrake beforeselecting a gear. Failure to do socould result in the vehicle pullingaway when you have engaged agear.
Note: A cold engine runs at a higheridling speed after starting. Thiscauses a strong ‘creep’ tendency inreverse and all forward gears.
To select lever positions R and P, youmust first depress the locking buttonon the selector lever grip. On4−speed transmissions also whenselecting position 2 (except changingfrom 1 to 2).
110
TransmissionE72457 E72458
