2006 FORD MONDEO fuse box

Downloaded from www.Manualslib.com manuals search engine Brakes.......................118
Principle of operation.....................118
Hints on driving with ABS..............118
Parking brake..................................119
Stability control.........120
Principle of operation....................120
Using stability control....................120
Traction control.........121
Principle of operation.....................121
Using traction control....................121
Self-levelling
suspension.............122
Principle of operation....................122
Parking aid................123
Principle of operation....................123
Using the parking aid....................123
Cruise control...........124
Principle of operation....................124
Using cruise control......................124
Load carrying...........126
General information......................126
Cargo nets......................................126
Luggage covers.............................127
Roof racks and load carriers........127
Towing......................129
Towing a trailer...............................129
Essential towing checks...............129
Detachable tow ball......................130
Driving hints..............133
Running-in......................................133
Emergency
equipment..............134
First aid kit.......................................134
Warning triangle.............................134
Status after a
collision..................135
Fuel cut-off switch.........................135
Inspecting safety systemcomponents...............................135
Fuses........................136
Fuse box locations........................136
Changing a fuse.............................137
Fuse specification chart................137
Vehicle recovery.......141
Towing points..................................141
Transporting the vehicle...............142
Towing the vehicle on fourwheels.........................................143
Maintenance.............144
General information......................144
Engine compartmentoverview......................................145
Opening and closing thebonnet.........................................149
Engine oil check.............................149
Engine coolant check....................151
Automatic transmission fluidcheck...........................................152
Brake and clutch fluid check.......152
3
Table of Contents

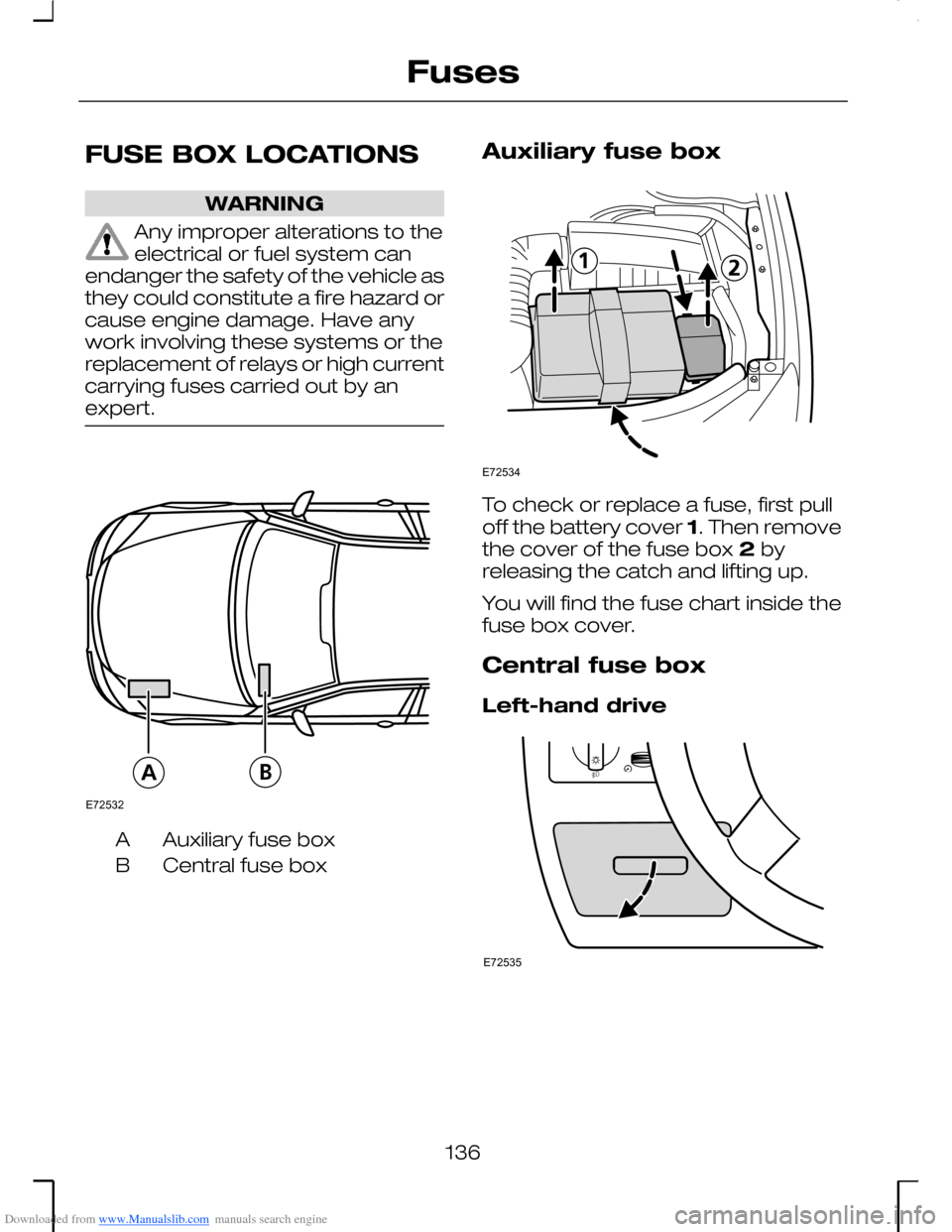

Downloaded from www.Manualslib.com manuals search engine FUSE BOX LOCATIONS
WARNING
Any improper alterations to theelectrical or fuel system canendanger the safety of the vehicle asthey could constitute a fire hazard orcause engine damage. Have anywork involving these systems or thereplacement of relays or high currentcarrying fuses carried out by anexpert.
Auxiliary fuse boxA
Central fuse boxB
Auxiliary fuse box
To check or replace a fuse, first pulloff the battery cover 1. Then removethe cover of the fuse box 2 byreleasing the catch and lifting up.
You will find the fuse chart inside thefuse box cover.
Central fuse box
Left-hand drive
136
FusesE72532 E72534 E72535

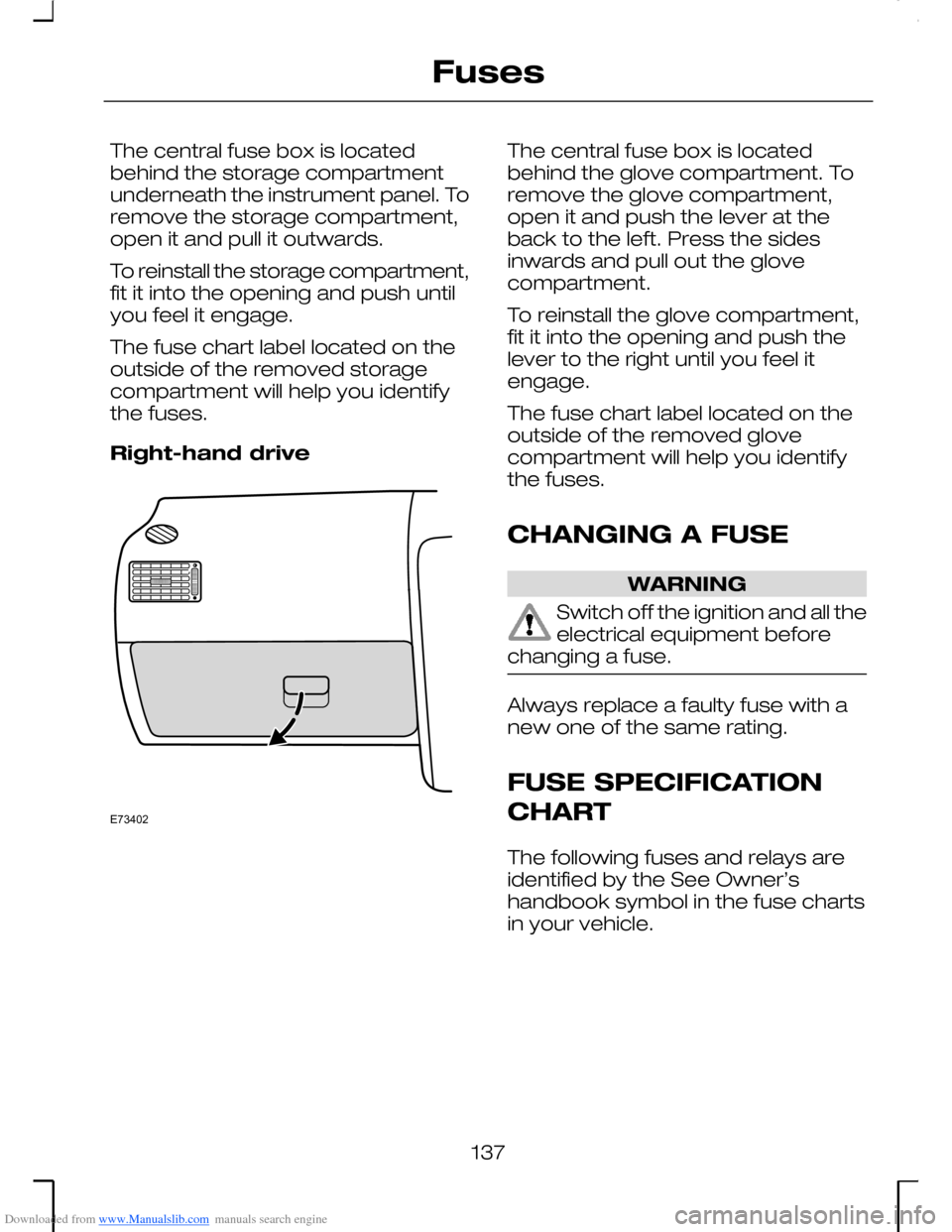

Downloaded from www.Manualslib.com manuals search engine The central fuse box is locatedbehind the storage compartmentunderneath the instrument panel. Toremove the storage compartment,open it and pull it outwards.
To reinstall the storage compartment,fit it into the opening and push untilyou feel it engage.
The fuse chart label located on theoutside of the removed storagecompartment will help you identifythe fuses.
Right-hand drive
The central fuse box is locatedbehind the glove compartment. Toremove the glove compartment,open it and push the lever at theback to the left. Press the sidesinwards and pull out the glovecompartment.
To reinstall the glove compartment,fit it into the opening and push thelever to the right until you feel itengage.
The fuse chart label located on theoutside of the removed glovecompartment will help you identifythe fuses.
CHANGING A FUSE
WARNING
Switch off the ignition and all theelectrical equipment beforechanging a fuse.
Always replace a faulty fuse with anew one of the same rating.
FUSE SPECIFICATION
CHART
The following fuses and relays areidentified by the See Owner’shandbook symbol in the fuse chartsin your vehicle.
137
FusesE73402

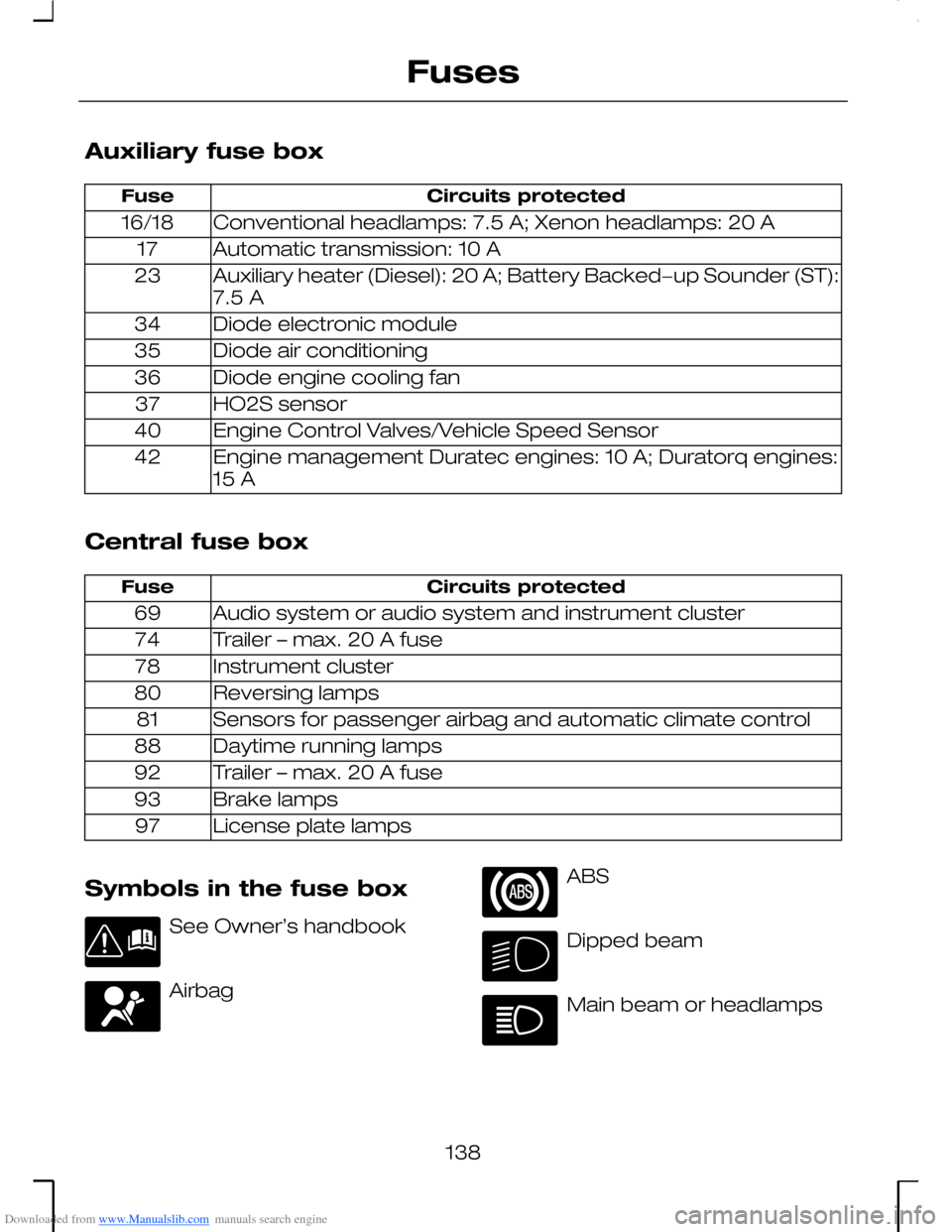

Downloaded from www.Manualslib.com manuals search engine Auxiliary fuse box
Circuits protectedFuse
Conventional headlamps: 7.5 A; Xenon headlamps: 20 A16/18
Automatic transmission: 10 A17
Auxiliary heater (Diesel): 20 A; Battery Backed−up Sounder (ST):7.5 A23
Diode electronic module34
Diode air conditioning35
Diode engine cooling fan36
HO2S sensor37
Engine Control Valves/Vehicle Speed Sensor40
Engine management Duratec engines: 10 A; Duratorq engines:15 A42
Central fuse box
Circuits protectedFuse
Audio system or audio system and instrument cluster69
Trailer – max. 20 A fuse74
Instrument cluster78
Reversing lamps80
Sensors for passenger airbag and automatic climate control81
Daytime running lamps88
Trailer – max. 20 A fuse92
Brake lamps93
License plate lamps97
Symbols in the fuse box
See Owner’s handbook
Airbag
ABS
Dipped beam
Main beam or headlamps
138
Fuses

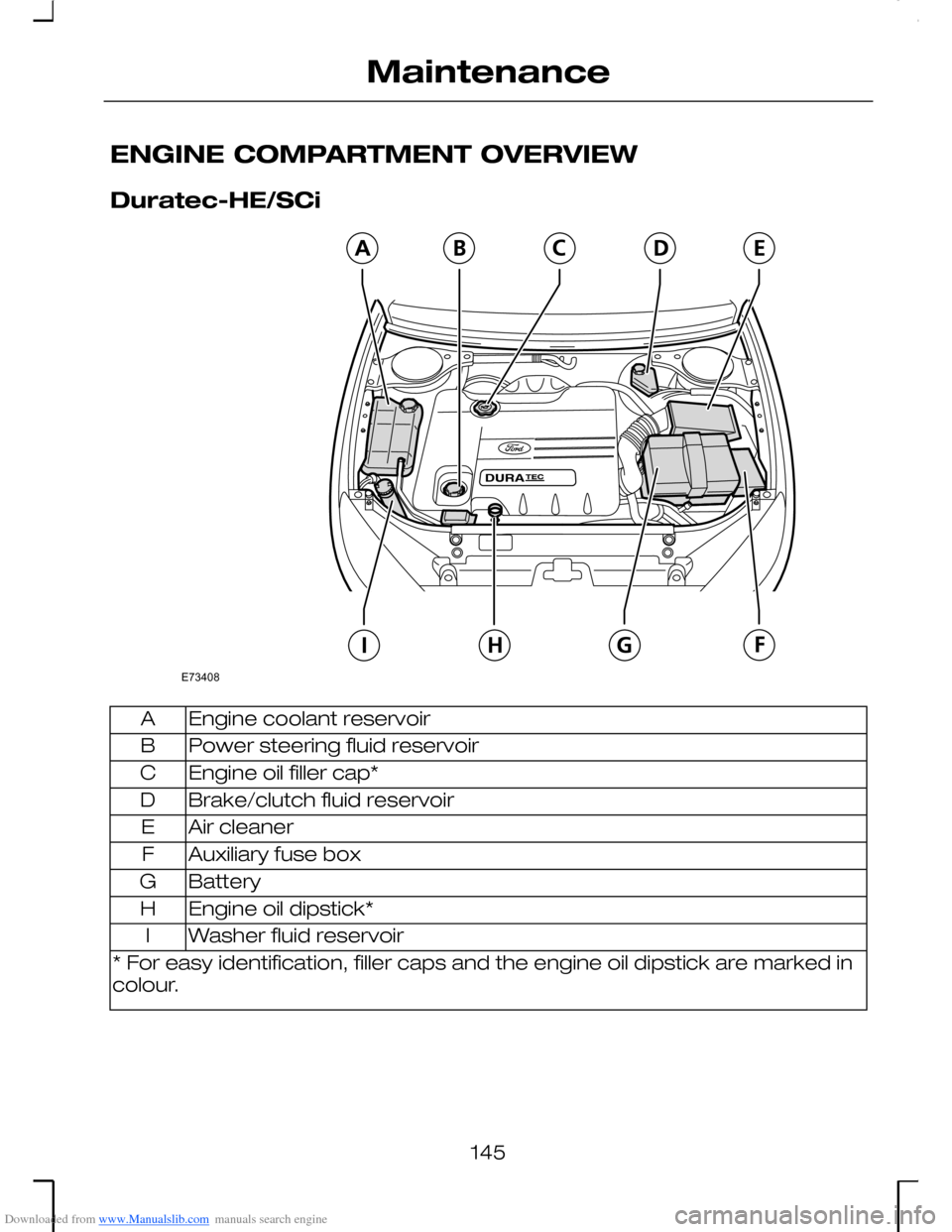

Downloaded from www.Manualslib.com manuals search engine ENGINE COMPARTMENT OVERVIEW
Duratec-HE/SCi
Engine coolant reservoirA
Power steering fluid reservoirB
Engine oil filler cap*C
Brake/clutch fluid reservoirD
Air cleanerE
Auxiliary fuse boxF
BatteryG
Engine oil dipstick*H
Washer fluid reservoirI
* For easy identification, filler caps and the engine oil dipstick are marked incolour.
145
MaintenanceE73408

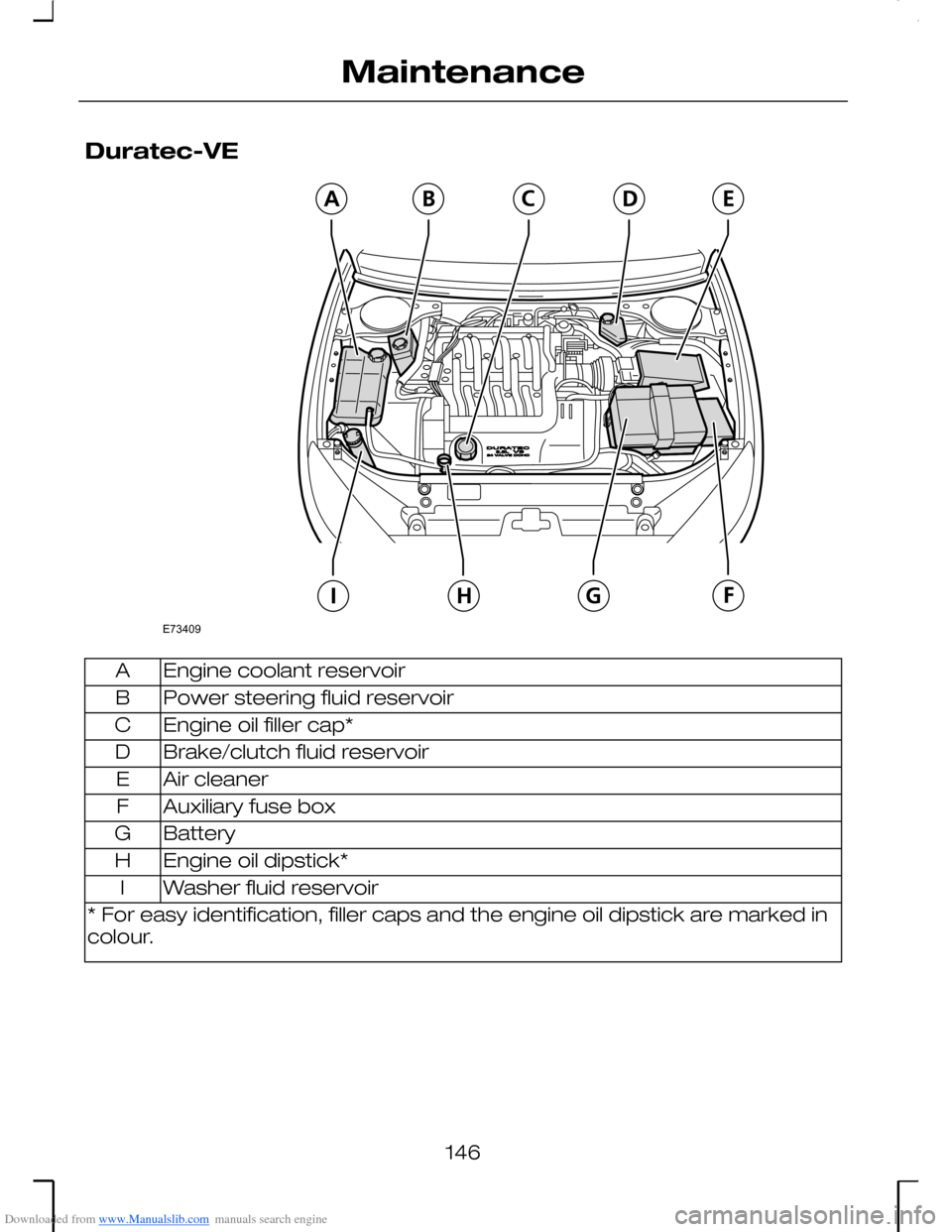

Downloaded from www.Manualslib.com manuals search engine Duratec-VE
Engine coolant reservoirA
Power steering fluid reservoirB
Engine oil filler cap*C
Brake/clutch fluid reservoirD
Air cleanerE
Auxiliary fuse boxF
BatteryG
Engine oil dipstick*H
Washer fluid reservoirI
* For easy identification, filler caps and the engine oil dipstick are marked incolour.
146
MaintenanceE73409

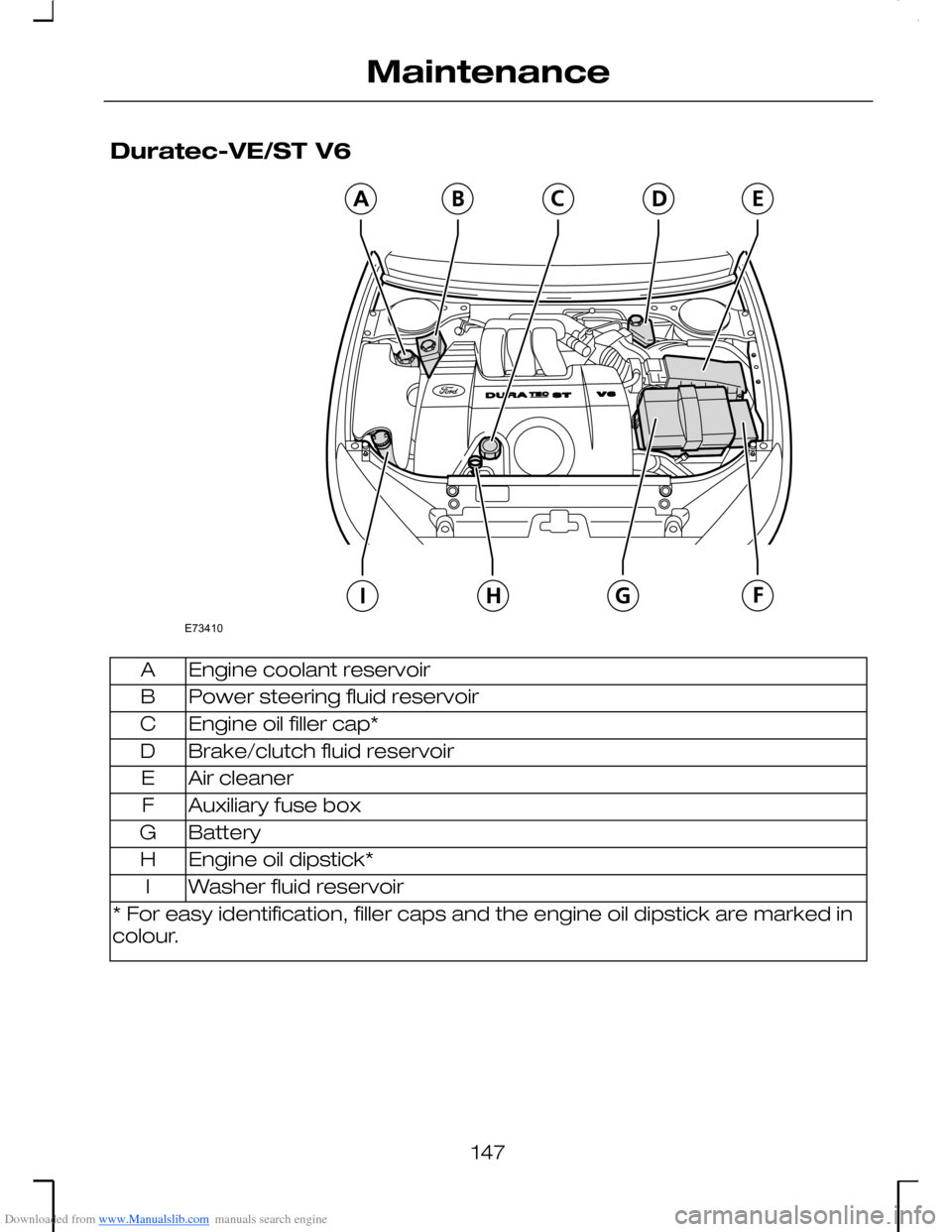

Downloaded from www.Manualslib.com manuals search engine Duratec-VE/ST V6
Engine coolant reservoirA
Power steering fluid reservoirB
Engine oil filler cap*C
Brake/clutch fluid reservoirD
Air cleanerE
Auxiliary fuse boxF
BatteryG
Engine oil dipstick*H
Washer fluid reservoirI
* For easy identification, filler caps and the engine oil dipstick are marked incolour.
147
MaintenanceE73410

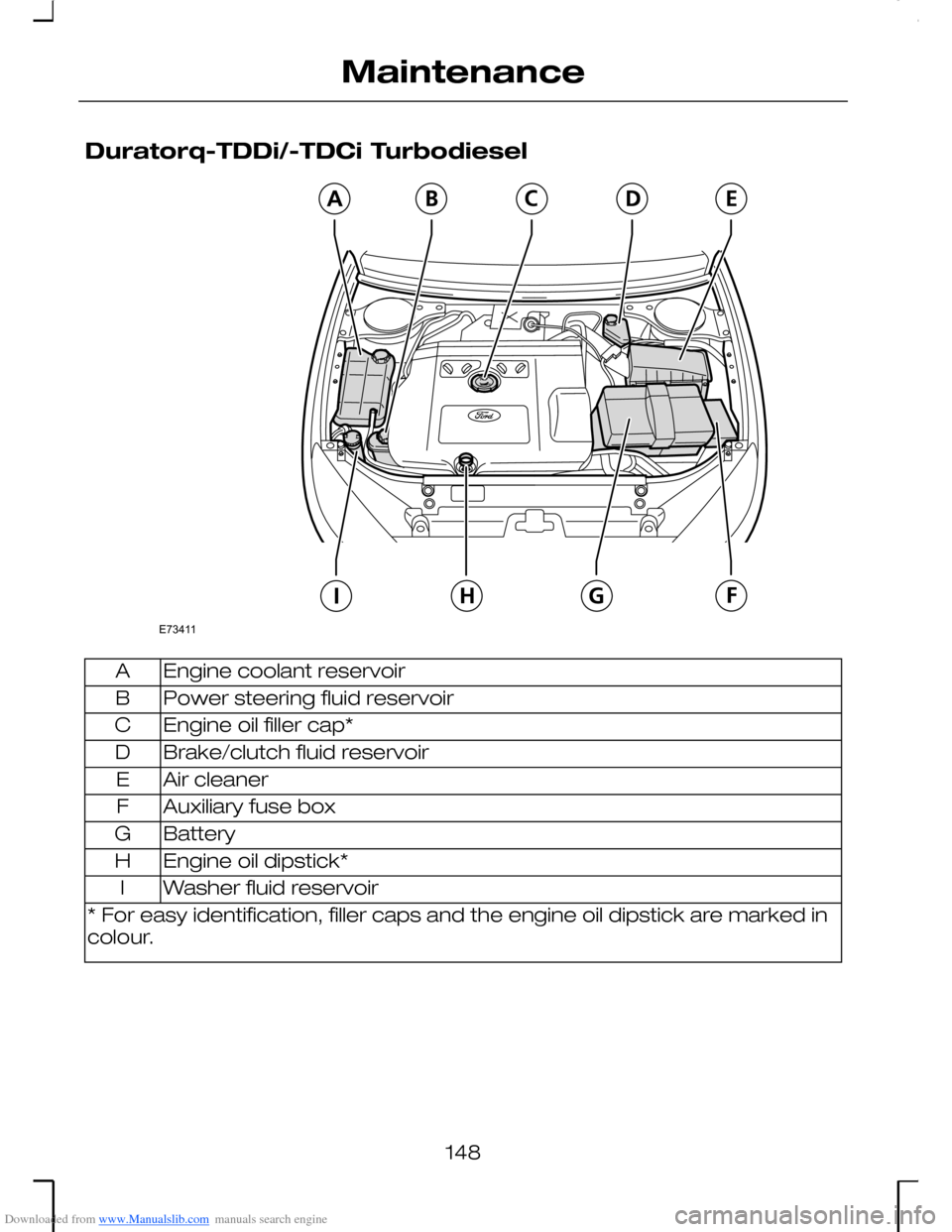

Downloaded from www.Manualslib.com manuals search engine Duratorq-TDDi/-TDCi Turbodiesel
Engine coolant reservoirA
Power steering fluid reservoirB
Engine oil filler cap*C
Brake/clutch fluid reservoirD
Air cleanerE
Auxiliary fuse boxF
BatteryG
Engine oil dipstick*H
Washer fluid reservoirI
* For easy identification, filler caps and the engine oil dipstick are marked incolour.
148
MaintenanceE73411
