2005 TOYOTA AVENSIS sensor

I35973
43 21
± DIAGNOSTICSCOMBINATION METER
05±1523
AVENSIS REPAIR MANUAL (RM1018E)

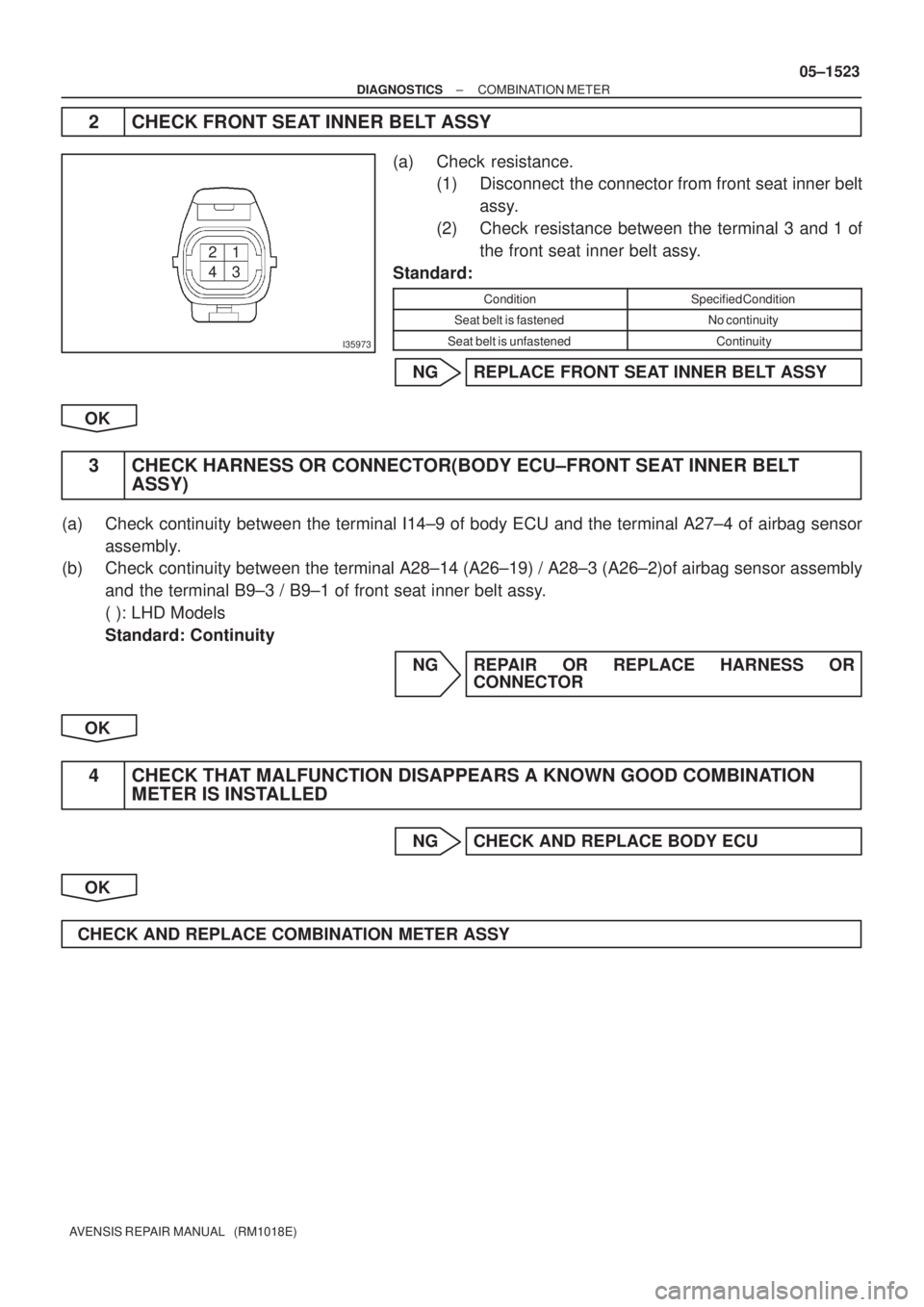

2 CHECK FRONT SEAT INNER BELT ASSY
(a) Check resistance.
(1) Disconnect the connector from front seat inner belt
assy.
(2) Check resistance between the terminal 3 and 1 of
the front seat inner belt assy.
Standard:
ConditionSpecified Condition
Seat belt is fastenedNo continuity
Seat belt is unfastenedContinuity
NG REPLACE FRONT SEAT INNER BELT ASSY
OK
3 CHECK HARNESS OR CONNECTOR(BODY ECU±FRONT SEAT INNER BELT
ASSY)
(a) Check continuity between the terminal I14±9 of body ECU and the terminal A27±4 of airbag sensor
assembly.
(b) Check continuity between the terminal A28±14 (A26±19) / A28±3 (A26±2)of airbag sensor assembly
and the terminal B9±3 / B9±1 of front seat inner belt assy.
( ): LHD Models
Standard: Continuity
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
4 CHECK THAT MALFUNCTION DISAPPEARS A KNOWN GOOD COMBINATION
METER IS INSTALLED
NG CHECK AND REPLACE BODY ECU
OK
CHECK AND REPLACE COMBINATION METER ASSY

I35754
Combination Meter Assy ECM
13
C10
P 20
E9 18
E1023
(*1) MPX1
(*2) (*3) E9
*1: 1AZ±FE
*2: 1AZ±FE, 1ZZ±FE, 3ZZ±FE
*3: 1CD±FTV
± DIAGNOSTICSCOMBINATION METER
05±1515
AVENSIS REPAIR MANUAL (RM1018E)
MALFUNCTION IN WATER TEMPERATURE RECEIVER GAUGE
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:
The ECM sends information on the water temperature sensor to the meter through the Bean. If there is on
open or short circuit in the water temperature sensor circuit, the ECM outputs DTCs. Perform troubleshooting
with the ºEngine systemº.
1 READ VALUE OF HAND±HELD TESTER
(a) Operate the hand±held tester according to the steps on the display and select ºDATA LISTº.
ALL(ECM):
ItemMeasurement Item/
Range (Display)Normal ConditionDiagnostic Note
COOLANT TEMPCoolant Temperature / Min.:
±40
C, Max.: 140
CAfter warming up: 80 ± 95C (176
± 203
If the value is º±40
Cº or º140

Cº, sensor circuit is open or
shorted.
NG GO TO ENGINE CONTROL SYSTEM
OK
2 CHECK THAT MALFUNCTION DISAPPEARS A KNOWN GOOD COMBINATION
METER IS INSTALLED
NG CHECK AND REPLACE ECM
OK
05C4J±01

± DIAGNOSTICSENGINE IMMOBILISER SYSTEM
05±1603
AVENSIS REPAIR MANUAL (RM1018E)
3. CHECK DIAGNOSIS
(a) Using the hand±held tester, check for DTCs.
NOTICE:
Hand±held tester only:
When the diagnosis system is switched from normal mode to check mode, all the DTCs and freeze
frame data recorded in normal mode are erased. So before switching modes, always check the DTCs
and freeze frame data, and make a note of them.
(1) Prepare the hand±held tester.
(2) Connect the hand±held tester to the DLC3 under the instrument panel lower pad.
(3) Turn the ignition switch ON and push the hand±held tester switch ON.
(4) Use the hand±held tester to check for DTCs and freeze frame data, and make a note of them
(For operating instructions, see the hand±held tester instruction book).
(5) Confirm the details of the DTCs.
(b) Either of the following procedures will erase the DTCs and freeze frame data.
(1) Operating the hand±held tester to erase the codes (See the hand±held tester instruction book
for operating instructions).
(2) Disconnecting the battery terminals or ECU±B fuse.
4. DATA LIST
HINT:
Using the DATA LIST displayed on the hand±held tester, you can read the value of the switch, sensor, actua-
tor, etc. without parts removal. Reading the DATA LIST as the first step of troubleshooting is one way to short-
en the labor time.
(a) Connect the hand±held tester to the DLC3.
(b) Turn the ignition switch ON.
(c) Read the DATA LIST, according to the display on the tester.
Transponder key ECU:
ItemMeasurement Item/
Display (Range)Normal Condition
KEY SWUn±lock warning switch signal/
ON or OFFOFF: Key is in Ignition key cylinder
ON: No key is in Ignition key cylinder
IG SWIgnition switch signal/ ON or OFFOFF: Ignition switch is ON or START position
ON: Ignition switch is OFF or ON position
IMMOBILISERImmobiliser system status/
SET or UNSETUNSET: Without key
SET: Ignition switch ON
RESPONSETransponder chip data/
NG or OKNG: Data error
OK: Data OK
FRAMETransponder chip data/
NG or OKNG: Data error
OK: Data OK
SERIAL NUMBERTransponder chip data/
NG or OKNG: Data error
OK: Data OK
ENCRYPT CODETransponder chip data/
NG or OKNG: Data error
OK: Data OK
STATUSTransponder chip data/
NG or OKNG: Data error
OK: Data OK
BCCTransponder chip signal/
NG or OKNG: Incorrect data sending
OK: Correct data sending
SUB KEYSub key code signal/
NOMATCH or MATCHNOMATCH: Nomatch sub±key code is sent
MATCH: Sub key code is sent
MASTER KEYMaster key code signal/
NOMATCH or MATCHNOMATCH: Nomatch Master key code is sent
MATCH: Master key code is sent
REGIST SUB CODENumber of registered sub±key/ min. 0, max. 15Number of registered sub±key
REGIST MAS CODENumber of registered master key/ min. 0, max. 15Number of registered master key

05AF0±02
± DIAGNOSTICSKEY REMINDER WARNING SYSTEM
05±1589
AVENSIS REPAIR MANUAL (RM1018E)

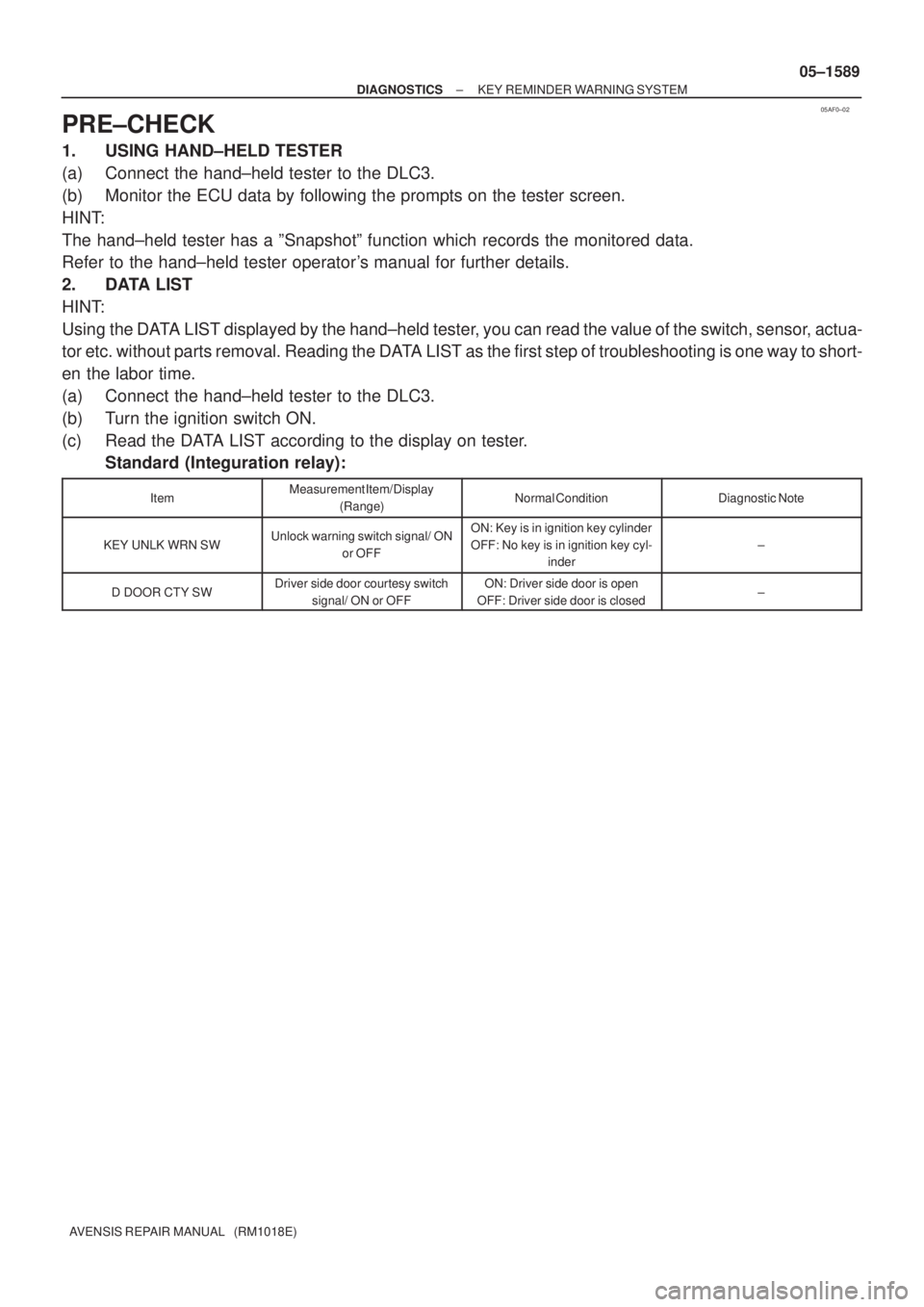

PRE±CHECK
1. USING HAND±HELD TESTER
(a) Connect the hand±held tester to the DLC3.
(b) Monitor the ECU data by following the prompts on the tester screen.
HINT:
The hand±held tester has a ºSnapshotº function which records the monitored data.
Refer to the hand±held tester operator's manual for further details.
2. DATA LIST
HINT:
Using the DATA LIST displayed by the hand±held tester, you can read the value of the switch, sensor, actua-
tor etc. without parts removal. Reading the DATA LIST as the first step of troubleshooting is one way to short-
en the labor time.
(a) Connect the hand±held tester to the DLC3.
(b) Turn the ignition switch ON.
(c) Read the DATA LIST according to the display on tester.
Standard (Integuration relay):
ItemMeasurement Item/Display
(Range)Normal ConditionDiagnostic Note
KEY UNLK WRN SWUnlock warning switch signal/ ON
or OFFON: Key is in ignition key cylinder
OFF: No key is in ignition key cyl-
inder
±
D DOOR CTY SWDriver side door courtesy switch
signal/ ON or OFFON: Driver side door is open
OFF: Driver side door is closed±

05BAA±01
05±1634
±
DIAGNOSTICS THEFT DETERRENT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
PROBLEM SYMPTOMS TABLE
Proceed to the reference page shown in the table below for each malfunction sym\
ptom and troubleshoot
each circuit.
HINT:
Troubleshooting of the theft deterrent system is based on the premise that the door loc\
k control system and
the wireless door lock control system are operating normally. Accordingly, before troubleshooting the theft
deterrent system, first make certain that the door lock control system and the wireless door lock control sys-
tem are operating normally.
SymptomSuspected AreaSee Page
Theft deterrent system cannot be set
1. Security indicator circuit
2. ECU power source circuit
3. Unlock warning switch circuit
4. Door key lock and unlock switch
5. Luggage compartment door key lock and unlock switch (Sedan)
6. Back door key lock and unlock switch (Liftback, Wagon)
7. Door courtesy switch circuit
8. Luggage compartment door courtesy switch circuit (Sedan)
9. Back door courtesy switch circuit (Liftback, Wagon)
10.Engine hood courtesy switch circuit05±1635
05±1637
05±1594 73±3
73±3
73±3
05±1631
05±1631
05±1631
05±1642
Security indicator does not blink when theft deterrent system is
set1. Security indicator circuit05±1635
Alarm sounding state is not canceled when ignition switch is
turned ON±OFF 10 times within 15 seconds1. Ignition switch circuit
2. Unlock warning switch circuit05±1639
05±1594
Theft deterrent system can be set even when any door is open
1. Door courtesy switch circuit
2. Luggage compartment door courtesy switch circuit (Sedan)
3. Back door courtesy switch circuit (Liftback, Wagon)05±1631
05±1631
05±1631
Horns (low pitched, high pitched) do not sound while theft deter-
rent system is in warning operation1. Horn (low pitched, high pitched) circuit05±1644
Hazard warning lamps do not flash while theft deterrent system is
in warning operation1. Hazard warning circuit65±5
Room lamp does not flash while theft deterrent system is in warn-
ing operation1. Room lamp circuit65±5
Theft warning siren sounds even when theft deterrent system is
not set1. Theft warning siren circuit05±1647
Hazard warning lamps flash even when theft deterrent system is
not set1. Hazard warning switch circuit65±5
Room lamp flashes even when theft deterrent system is not set1. Room lamp circuit65±5
Theft warning siren sounds even when theft deterrent system is
not set1. Theft warning siren circuit05±1647
Intrusion (theft warning) sensor does not detect any moving object
while theft deterrent system is set1. Instrution sensor circuit05±1650
Intrusion (theft warning) sensor sets off alarm while theft deterrent
system is not set or there is nothing moving inside vehicle with
theft deterrent system set
1. Intrusion sensor circuit05±1650
Intrusion (theft warning) sensor OFF switch does not operate1. Intrusion sensor circuit05±1650
Intrusion (theft warning) sensor OFF switch continues operating1. Intrusion sensor circuit05±1650

05BA9±01
B50657
T6
± DIAGNOSTICSTHEFT DETERRENT SYSTEM
05±1631
AVENSIS REPAIR MANUAL (RM1018E)
TERMINALS OF ECU
1. CHECK THEFT WARNING ECU ASSY
(a) Disconnect the T6 ECU connector.
(b) Check the voltage or resistance of each terminal of the wire harness side connector.
Standard:
Symbols (Terminal No.)Wiring ColorConditionSpecified Condition
+B1 (T6±2) ± E (T6±29)W±R ± W±BConstant10 to 14 V
E (T6±29) ± Body groundW±B ± Body groundConstantBelow 1

IG (T6±10) ±
Body groundR±W ± Body groundIgnition switch OFF
ON0 V
10 to 14 V
DSWH (T6±34) ±
Body groundL±R ± Body groundEngine hood CLOSED
OPEN10 k
or higher

Below 1

If the result is not as specified, there may be a malfunction on the wire harness side.
(c) Reconnect the T6 ECU connector.
(d) Check the voltage between each terminal of the connector and the body ground.
Standard:
Symbols (Terminal No.)Wiring ColorConditionSpecified Condition
IND (T6±25) ±
Body groundV ± Body ground
Security indicator light lights up
(It lights up only for 30 sec. in alarm sounding state
It flashes when imobiliser system is operating)
3 to 6 V
HORN (T6±5) ±
Body groundG ± Body groundArmed state
Alarm sounding state0 V
10 to 14 V
CTLS (T6±27) ±
Body groundL±R ± Body groundSelf±power siren is souding
(Theft deterrent system is in alarm sounding state)5 V
S+B (T6±24) ± L W Body groundArming preparation state or armed state10 to 14 VS+B (T6 24)
Body groundL±W ± Body groundDisarmed stateBelow 1 V
IOUT (T6 26)No moving object detected by sensor10 to 14 VIOUT (T6±26) ±
Body groundL±B ± Body groundMoving object detected by sensor during arming preparation
state or armed statePulse generation
If the result is not as specified, the ECU may have a malfunction.

B67698
Front Map Lamp

Theft Warning Radar Sensor
Hazard Warning LightHazard Warning Light
Hazard Warning Light
Hazard Warning LightHazard Warning Light
Hazard Warning Light
LiftbackSedanFront Courtesy
Lamp Switch Front Door w/ Motor
Lock Assy RH
Front Door w/ Motor
Lock Assy LH
Front Courtesy
Lamp Switch
w/ Motor Back Door Lock Assy
(Back Door Lock Assy)Theft Warning
Siren Assy
w/ Motor Luggage Compartment Door
Lock Assy (Back Door Lock Assy)
Rear Courtesy
Lamp Switch Rear Door w/ Motor
Lock Assy LHRear Theft Warning Radar
Sensor (Wagon only)
Rear Theft Warning Radar
Sensor (Wagon only)
Rear Door w/ Motor
Lock Assy RH
Rear Courtesy
Lamp Switch
w/ Motor Back Door Lock Assy
(Back Door Lock Assy) 05±1630
± DIAGNOSTICSTHEFT DETERRENT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

05BA7±01
THEFT DETERRENT SYSTEM Check SheetInspector 's name:
Customer 's Name
Date VehicleVIN
Production Date
Licence No.
Odometer Reading / /km
miles
Weather Conditions
When Problem
Occurred Frequency Problem OccursWeather
Outdoor
Temperature
/ /

Constant
Sometimes ( Times per day, month)

Once only Brought in


Security indicator light does not flash when theft deterrent system is set.
(It stays ON or does not light up at all)
Theft deterrent system
does not operate.When door is opened.
Theft deterrent system
cannot be canceled once
set.

Theft deterrent system
cannot be canceled during
warning operation.When key is inserted into ignition key cylinder and ignition switch is turned
ON±OFF 10 times within 15 seconds.
Warning operation does not start when theft deterrent system is set and door is opened with key.


Date Problem First Occurred

Fine
Cloudy
Rainy
Snowy

Various/Others

Hot
Warm
Cool

Cold (Approx.
C (
F))
Problem Symptom










Malfunction

Horns only

Door lock operation only

Hazard warning light only

Room lamp only

Theft warning siren only

Intrusion sensor only


When door is unlocked using wireless door lock control system. When engine hood is
opened.
When door is unlocked using wireless door lock control system.
Others
Theft deterrent system cannot be set. 05±1628
± DIAGNOSTICSTHEFT DETERRENT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
CUSTOMER PROBLEM ANALYSIS CHECK
