ENGINE MECHANICAL PARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE)
14±33
AVENSIS REPAIR MANUAL (RM1018E)
60. REMOVE FRONT SUSPENSION CROSSMEMBER
W/CENTER MEMBER
(a) Remove the through bolt and nut, detach the engine
mounting insulator FR from the engine mounting bracket.
(b) Remove the through bolt, detach the engine mounting in- sulator RR from the suspension crossmember.
(c) Separate the engine and the transaxle assembly from the suspension crossmember and the engine mounting
member.
61.REMOVE STARTER ASSY(See page 19±3)
62.REMOVE MANUAL TRANSAXLE ASSY (M/T TRANSAXLE) (See page 41±15)
63.REMOVE AUTOMATIC TRANSAXLE ASSY (A/T TRANSAXLE) (See page 40±11)
64.REMOVE CLUTCH COVER ASSY (M/T TRANSAXLE) (See page 42±26)
65.REMOVE CLUTCH DISC ASSY (M/T TRANSAXLE)(See page 42±26) 66. REMOVE FLYWHEEL SUB±ASSY (M/T TRANSAXLE)
(a) Hold the crankshaft with SST, remove the 8 bolts and theflywheel.
SST 09960±10010 (09962±01000, 09963±01000)
67. REMOVE DRIVE PLATE & RING GEAR SUB±ASSY (A/T TRANSAXLE)
(a) Hold the crankshaft with SST, remove the 8 bolts and the
drive plate & ring gear.
SST 09960±10010 (09962±01000, 09963±01000)
68. REMOVE IGNITION COIL ASSY
(a) Disconnect the 4 ignition coil connectors.
Page 2058 of 5135

A62204
1
5
3
82
6
4
7
A76719
A76718
A76717
14±42
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
(b) Clean the bolt and bolt hole.
(c) Apply adhesive to the bolts. Adhesive:
Part No. 09330±00070, THREE BOND or equivalent.
(d) Using several steps, install and tighten the 8 bolts uni- formly in the sequence shown in the illustration.
Torque: 88 N m (897 kgf cm, 65 ft lbf)
115.INSTALL CLUTCH DISC ASSY (M/T TRANSAXLE)(See page 42±26) SST 09301±00210
116.INSTALL CLUTCH COVER ASSY (M/T TRANSAXLE)(See page 42±26) SST 09301±00210
117.INSTALL MANUAL TRANSAXLE ASSY (M/T TRANSAXLE)(See page 41±15)
118.INSTALL AUTOMATIC TRANSAXLE ASSY (A/T TRANSAXLE) (See page 40±11)
119.INSTALL STARTER ASSY(See page 19±3)
120. INS TALL FRO NT SUSPENSION CROSSMEMBER
W/CENTER MEMBER
(a) Attach the engine and transaxle assembly to the suspen- sion crossmember and the engine mounting member.
(b) Install the bolt which is used to secure the rear engine
mounting bracket to the mounting insulator.
Torque: 87 N m (887 kgf cm, 64 ft lbf)
(c) Install the bolt which is used to secure the front engine mounting bracket to the mounting insulator.
Torque: 52 N m (530 kgf cm, 38 ft lbf)
121. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
SST 09670±00010
(a) Set the engine assembly with transaxle on the engine lift- er.
(b) Temporarily install the suspension crossmember with the 2 bolts and 2 nuts.
(c) Install the engine mounting insulator LH.
Torque: 80 N m (816 kgf cm, 59 ft lbf)
(d) Install the engine mounting insulator RH. Torque: 52 N m (530 kgf cm, 38 ft lbf)
Page 2059 of 5135

A76717
A
B
A
B
A76716
AA
BBBBBB
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE)
14±43
AVENSIS REPAIR MANUAL (RM1018E)
(e) Tighten the 2 bolts and 2 nuts.
Torque:
45 Nm (459 kgf cm, 33 ft lbf) for Bolt A
133 N m (1,356 kgf cm, 98 ft lbf) for Nut B
(f) Install the front suspension member brace LH and RH with the 8 bolts.
Torque:
133 N m (1,356 kgf cm, 98 ft lbf) for Bolt A
80 N m (816 kgf cm, 59 ft lbf) for Bolt B
NOTICE:
When installing the crossmember, check that the position-
ing holes on the crossmember and on the vehicle are
aligned with each other.
122.INSTALL FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 LH (See page 30±6)
123. INSTALL FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 RH
HINT:
Perform the same procedure as above on the opposite side.
124.INSTALL FRONT STABILIZER LINK ASSY LH (See page 30±6)
125. INSTALL FRONT STABILIZER LINK ASSY RH
HINT:
Perform the same procedure as above on the opposite side.
126.INSTALL TIE ROD END SUB±ASSY LH (See page 30±6)
127. INSTALL TIE ROD END SUB±ASSY RH
HINT:
Perform the same procedure as above on the opposite side.
128.INSTALL FRONT AXLE HUB LH NUT (See page 30±6)
129. INSTALL FRONT AXLE HUB RH NUT
HINT:
Perform the same procedure as above on the opposite side.
130.INSTALL EXHAUST PIPE ASSY FRONT (See page 15±2)
131. INSTALL FLOOR PANEL BRACE FRONT Torque: 30 N m (306 kgf cm, 22 ft lbf)
132.INSTALL STEERING INTERMEDIATE SHAFT (See page 50±9)
133.INSTALL GENERATOR ASSY (See page 19±7)
134. INSTALL COMPRESSOR AND MAGNETIC CLUTCH (W/ AIR CONDITIONING)
HINT:
1ZZ±FE (See page 55±74)
3ZZ±FE (See page 55±70)
135. INSTALL CLUTCH RELEASE CYLINDER ASSY (M/T TRANSAXLE) (See page 41±15)
136. INSTALL FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT (A/T TRANSAXLE) (See page 40±11)
Page 2064 of 5135
A76704
Grove Compartment Door Assy Cowl Side Trim Board RH
Front Door Scuff Plate RH
Clip
Clip
Column Hole Cover Silencer Sheet
Steering Intermediate Shaft
Cotter Pin
Tie Rod End Sub±assy LH
Front Suspension Arm
Sub±assy Lower No. 1 LH
Front Drive Shaft Assy LH
Front Stabilizer Link Assy LH
Exhaust Pipe Assy Front
Floor Panel Brace FrontCompression
Spring
Compression Spring Gasket
Gasket
89 (908, 66)
216 (2,203, 160)
49 (500, 36)
74 (755, 55)
35 (357, 26)
89 (908, 66) Front Axle Hub LH Nut
Non±reusable part
N´m (kgf´cm, ft´lbf) : Specified torque
43 (440, 32)
30 (306, 22)
43 (440, 32)
Front Floor Footrest (RHD)
Instrument Panel Under
Cover Sub±assy No. 2
14±22
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
Page 2065 of 5135
A76705N´m (kgf´cm, ft´lbf) : Specified torque Engine Mounting
Insulator RH
Engine Assembly with Transaxle
Front Suspension
Crossmember
W/ Center Member
80 (816, 59)
133 (1,356, 98)45 (459, 33)
52 (530, 38)
52 (530, 38)
87 (887, 64)
52 (530, 38)
Front Suspension
Member Brace RH
133 (1,356, 98)
80 (816, 59)
Front Suspension
Member Brace RH
133 (1,356, 98)
80 (816, 59)
X3
X3
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE)
14±23
AVENSIS REPAIR MANUAL (RM1018E)
Page 2072 of 5135

A77298
LHD Steering Position typeRHD Steering Position type
14±124
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
40.REMOVE FRONT AXLE HUB RH NUT SST09330±00030
HINT:
Perform the same procedure as above on the opposite side.
41.SEPARATE TIE ROD END SUB±ASSY LH (See page 51±36)
42.SEPARATE TIE ROD END SUB±ASSY RH
HINT:
Perform the same procedure as above on the opposite side.
43.SEPARATE FRONT STABILIZER LINK ASSY LH (See page 26±26)
44.SEPARATE FRONT STABILIZER LINK ASSY RH
HINT:
Perform the same procedure as above on the opposite side.
45.SEPARATE FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 LH (M/T TRANSAXLE)
(See page 26±21)
46.SEPARATE FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 LH (A/T TRANSAXLE) (See page 26±16)
47.SEPARATE FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 RH (M/T TRANSAXLE)
HINT:
Perform the same procedure as above on the opposite side.
48.SEPARATE FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 RH (A/T TRANSAXLE)
HINT:
Perform the same procedure as above on the opposite side.
49.SEPARATE FRONT AXLE ASSY LH (See page 30±6)
50.SEPARATE FRONT AXLE ASSY RH (See page 30±6)
HINT:
Perform the same procedure as above on the opposite side. 51.SEPARATE CLUTCH RELEASE CYLINDER ASSY (M/TTRANSAXLE)
(a)Remove 7 bolts as shown in the illustration.
52.SEPARATE TRANSMISSION CONTROL CABLE ASSY (M/T TRANSAXLE) (See page 41±24)
53.SEPARATE TRANSMISSION CONTROL CABLE ASSY (A/T TRANSAXLE) (See page 40±25)
54. SEPARATE ACCELERATOR CONTROL CABLE ASSY
Page 2074 of 5135
A77401
A77305
A77304
A59793
A63273
14±126
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

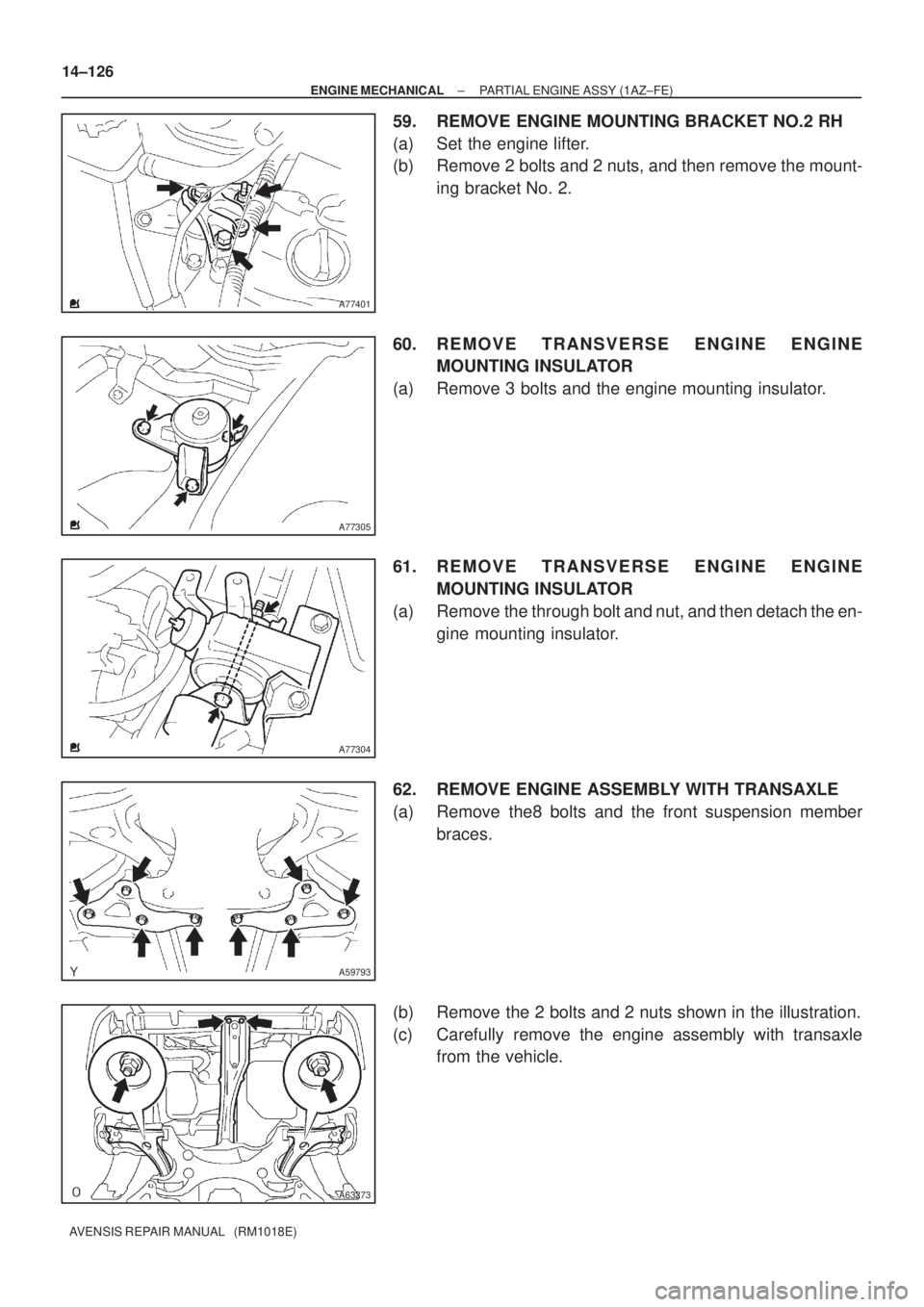

59. REMOVE ENGINE MOUNTING BRACKET NO.2 RH
(a) Set the engine lifter.
(b) Remove 2 bolts and 2 nuts, and then remove the mount-
ing bracket No. 2.
60. REMOVE TRANSVERSE ENGINE ENGINE
MOUNTING INSULATOR
(a) Remove 3 bolts and the engine mounting insulator.
61. REMOVE TRANSVERSE ENGINE ENGINE
MOUNTING INSULATOR
(a) Remove the through bolt and nut, and then detach the en-
gine mounting insulator.
62. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
(a) Remove the8 bolts and the front suspension member
braces.
(b) Remove the 2 bolts and 2 nuts shown in the illustration.
(c) Carefully remove the engine assembly with transaxle
from the vehicle.
Page 2075 of 5135

A77402SST
A56446
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1AZ±FE)
14±127
AVENSIS REPAIR MANUAL (RM1018E)
63.SEPARATE VANE PUMP ASSY
(a)Disconnect the PS oil pressure switch connector.
(b)Remove the 2 bolts and separate the vane pump from the engine.
64.REMOVE STARTER ASSY (See page 19±12)
65.REMOVE FRONT SUSPENSION CROSSMEMBER W/CENTER MEMBER
(a)Remove the through bolt and nut from the engine mounting insulator FR.
(b)Remove the through bolt and nut from the engine mounting insulator RR.
66.REMOVE FRONT DRIVE SHAFT ASSY LH (See page 30±6)
67.REMOVE FRONT DRIVE SHAFT ASSY RH (See page 30±6)
68.REMOVE MANUAL TRANSAXLE ASSY (M/T TRANSAXLE) (See page 41±24)
69.REMOVE AUTOMATIC TRANSAXLE ASSY (A/T TRANSAXLE) (See page 40±25)
70.REMOVE CLUTCH COVER ASSY (M/T TRANSAXLE) (See page 42±26)
71.REMOVE CLUTCH DISC ASSY (M/T TRANSAXLE) (See page 42±26)
72. REMOVE DRIVE PLATE AND RING GEAR ORFLYWHEEL
(a) Using SST, fix the crankshaft pulley and remove the drive plate and ring gear or flywheel.
SST 09213±54015 (91651±60855), 09330±00021
73. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSY (W/ VVT±i)
(a) Remove a bolt, O±ring and the camshaft timing oil control valve. 74. REMOVE INTAKE MANIFOLD
(a) Remove the 5 bolts and 2 nuts, and then remove the in-take manifold.
75. REMOVE VENTILATION HOSE
76. REMOVE VENTILATION HOSE NO.2
77. REMOVE ENGINE WIRE
78. REMOVE INTAKE MANIFOLD INSULATOR NO.1
79. REMOVE OIL LEVEL GAGE SUB±ASSY
80. REMOVE OIL LEVEL GAGE GUIDE
81. REMOVE MANIFOLD CONVERTER INSULATOR NO.1
(a) Remove the 4 bolts and the manifold converter insulator No. 1.
