ENGINE MECHANICAL PARTIAL ENGINE ASSY(1AZ±FE)
14±131
AVENSIS REPAIR MANUAL (RM1018E)
(b)Install the drive plate. (A/T)
(1)Clean the bolt and bolt hole.
(2)Apply adhesive to the bolts.
(3)Using several steps, install and tighten the 8 boltsuniformly in the sequence shown in the illustration.
Torque: 98 N
m (1,000 kgf
cm, 72 ft
lbf)
(c)Install the flywheel. (M/T)
(1)Clean the bolt hole.
(2)Using several steps, install and tighten the 8 boltsuniformly in the sequence shown in the illustration.
Torque: 130 N
m (1,327 kgf
cm, 96 ft
lbf)
NOTICE:
Do not reuse the flywheel bolt.
110.INSTALL CLUTCH DISC ASSY (M/T TRANSAXLE) (See page 42±26)
111.INSTALL CLUTCH COVER ASSY (M/T TRANSAXLE) (See page 42±26)
112.INSTALL MANUAL TRANSAXLE ASSY (M/T TRANSAXLE) (See page 41±24)
113.INSTALL AUTOMATIC TRANSAXLE ASSY (A/T TRANSAXLE) (See page 40±25)
114.INSTALL FRONT DRIVE SHAFT ASSY LH (See page 30±6)
115.INSTALL FRONT DRIVE SHAFT ASSY RH (See page 30±6)
116.INSTALL FRONT SUSPENSION CROSSMEMBER W/CENTER MEMBER
(a)Install the engine mounting insulator FR with the through bolt and nut. Torque: 87 N
m (887 kgf
cm,64 ft
lbf)
(b)Install the engine mounting insulator RR with the through bolt and nut. Torque: 87 N
m (887 kgf
cm,64 ft
lbf)
117.INSTALL STARTER ASSY (See page 19±12)
118. INSTALL VANE PUMP ASSY
Torque: 37 N
m (370 kgf
cm, 27 ft
lbf)
119. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
(a) Install the 2 bolts and 2 nuts as shown in the illustration. Torque:
Bolt 45 N
m (459 kgf
cm, 33 ft
lbf)
Nut 133 N
m (1,356 kgf
cm, 98 ft
lbf)
(b) Install the front suspension member braces with the 8 bolts.
Torque:
Bolt A 133 N
m (1,356 kgf
cm, 98 ft
lbf)
Bolt B 80 N
m (816 kgf
cm, 59 ft
lbf)

±

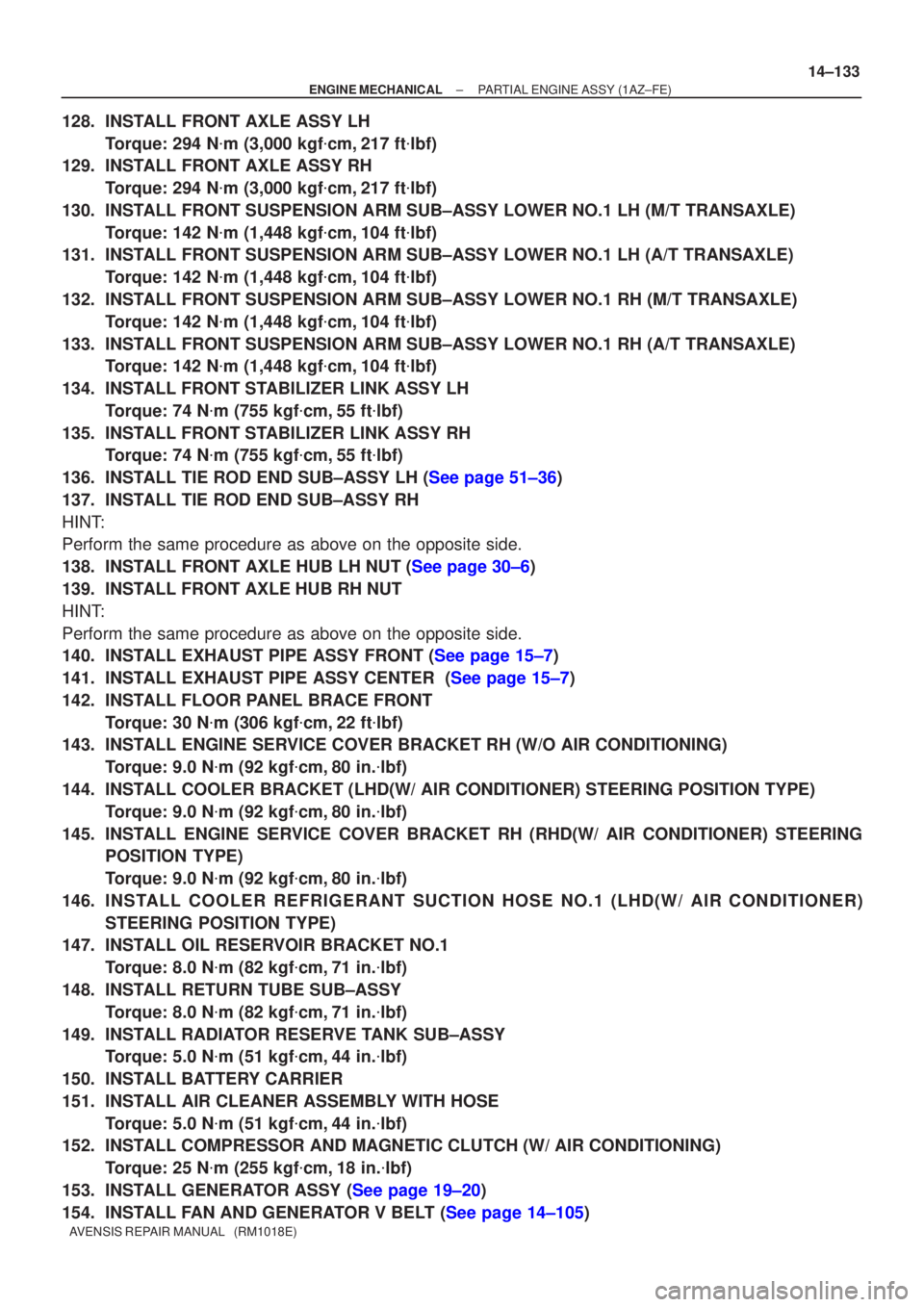

ENGINE MECHANICAL PARTIAL ENGINE ASSY(1AZ±FE)
14±133
AVENSIS REPAIR MANUAL (RM1018E)
128.INSTALL FRONT AXLE ASSY LH
Torque: 294 N
m (3,000 kgf
cm,217 ft
lbf)
129.INSTALL FRONT AXLE ASSY RH
Torque: 294 N
m (3,000 kgf
cm,217 ft
lbf)
130.INSTALL FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 LH (M/T TRANSAXLE) Torque: 142 N
m (1,448 kgf
cm,104 ft
lbf)
131.INSTALL FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 LH (A/T TRANSAXLE)
Torque: 142 N
m (1,448 kgf
cm,104 ft
lbf)
132.INSTALL FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 RH (M/T TRANSAXLE) Torque: 142 N
m (1,448 kgf
cm,104 ft
lbf)
133.INSTALL FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 RH (A/T TRANSAXLE) Torque: 142 N
m (1,448 kgf
cm,104 ft
lbf)
134.INSTALL FRONT STABILIZER LINK ASSY LH Torque: 74 N
m (755 kgf
cm,55 ft
lbf)
135.INSTALL FRONT STABILIZER LINK ASSY RH Torque: 74 N
m (755 kgf
cm,55 ft
lbf)
136.INSTALL TIE ROD END SUB±ASSY LH (See page 51±36)
137.INSTALL TIE ROD END SUB±ASSY RH
HINT:
Perform the same procedure as above on the opposite side.
138.INSTALL FRONT AXLE HUB LH NUT (See page 30±6)
139.INSTALL FRONT AXLE HUB RH NUT
HINT:
Perform the same procedure as above on the opposite side.
140.INSTALL EXHAUST PIPE ASSY FRONT (See page 15±7)
141.INSTALL EXHAUST PIPE ASSY CENTER (See page 15±7)
142.INSTALL FLOOR PANEL BRACE FRONT Torque: 30 N
m (306 kgf
cm,22 ft
lbf)
143.INSTALL ENGINE SERVICE COVER BRACKET RH (W/O AIR CONDITIONING)
Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
144.INSTALL COOLER BRACKET (LHD(W/ AIR CONDITIONER) STEERING POSITION TYPE) Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
145.INSTALL ENGINE SERVICE COVER BRACKET RH (RHD(W/ AIR CONDITIONER) STEERING POSITION TYPE)
Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
146.INSTALL COOLER REFRIGE RANT SUCTION HOSE NO.1 (LHD(W/ AIR CONDITION ER)
STEERING POSITION TYPE)
147.INSTALL OIL RESERVOIR BRACKET NO.1
Torque: 8.0 N
m (82 kgf
cm,71 in.
lbf)
148.INSTALL RETURN TUBE SUB±ASSY Torque: 8.0 N
m (82 kgf
cm,71 in.
lbf)
149.INSTALL RADIATOR RESERVE TANK SUB±ASSY Torque: 5.0 N
m (51 kgf
cm,44 in.
lbf)
150.INSTALL BATTERY CARRIER
151.INSTALL AIR CLEANER ASSEMBLY WITH HOSE Torque: 5.0 N
m (51 kgf
cm,44 in.
lbf)
152.INSTALL COMPRESSOR AND MAGNETIC CLUTCH (W/ AIR CONDITIONING)
Torque: 25 N
m (255 kgf
cm,18 in.
lbf)
153.INSTALL GENERATOR ASSY (See page 19±20)
154.INSTALL FAN AND GENERATOR V BELT (See page 14±105)

A77313

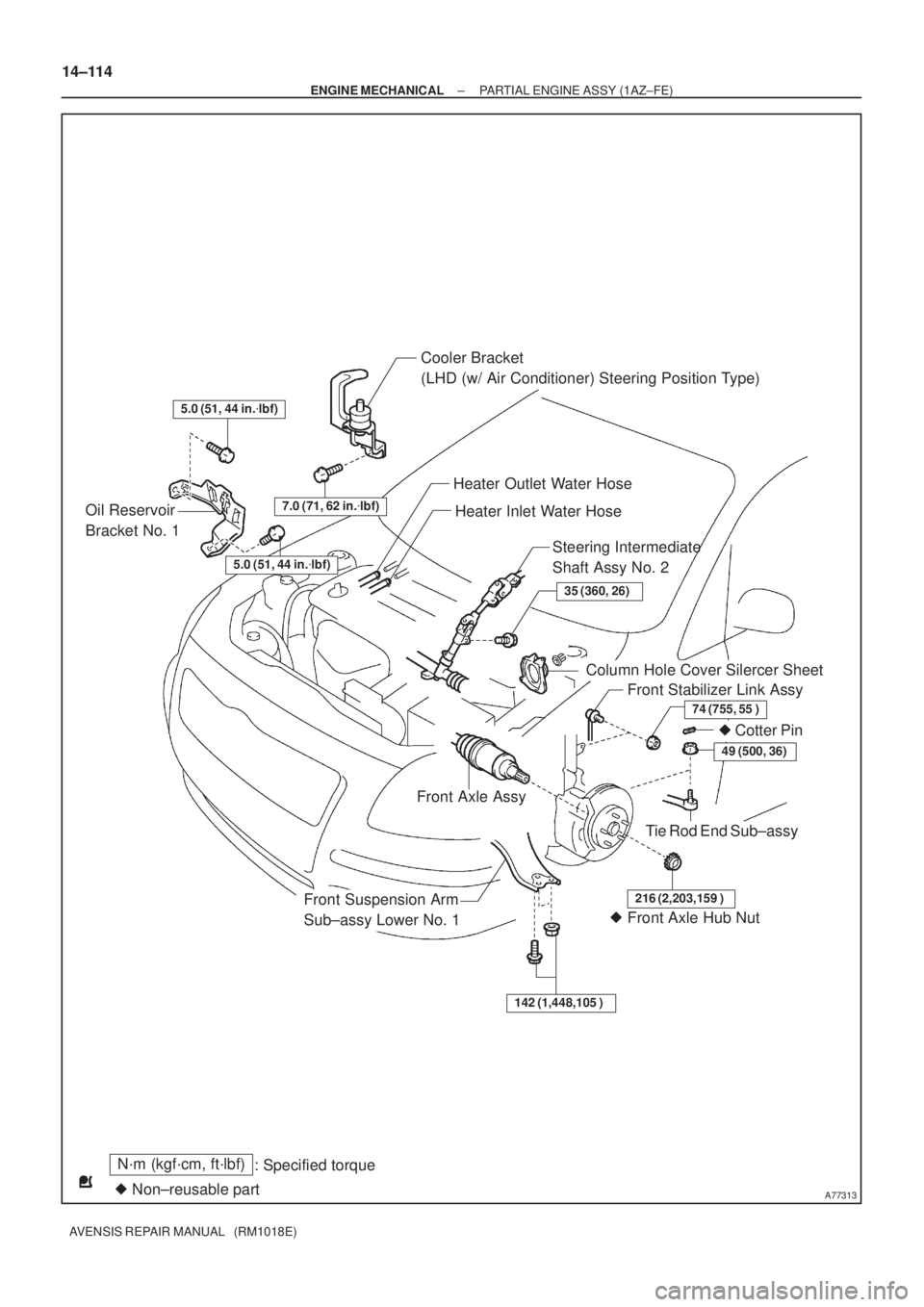

Cooler Bracket
(LHD (w/ Air Conditioner) Steering Position Type)
Oil Reservoir
Bracket No. 1Heater Outlet Water Hose
Heater Inlet Water Hose
Steering Intermediate
Shaft Assy No. 2
Column Hole Cover Silercer Sheet
Front Stabilizer Link Assy
Front Axle Assy
35 (360, 26)
7.0 (71, 62 in.
lbf)
74 (755, 55 )
216 (2,203,159 )
142 (1,448,105 )
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
Front Axle Hub Nut
Tie Rod End Sub±assy
5.0 (51, 44 in.
lbf)
5.0 (51, 44 in.
lbf)

Cotter Pin
49 (500, 36)
Front Suspension Arm
Sub±assy Lower No. 1
14±114
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

A77315
87 (887, 64)
37 (377, 27)
52 (530, 38)
87 (887, 64)52 (530, 38)
52 (530, 38)
52 (530, 38)52 (530, 38)
52 (530, 38)
133 (1,356, 83)
80 (816, 59)
80 (816, 59)
133 (1,356, 83)
45 (459, 33)
133 (1,356, 83)

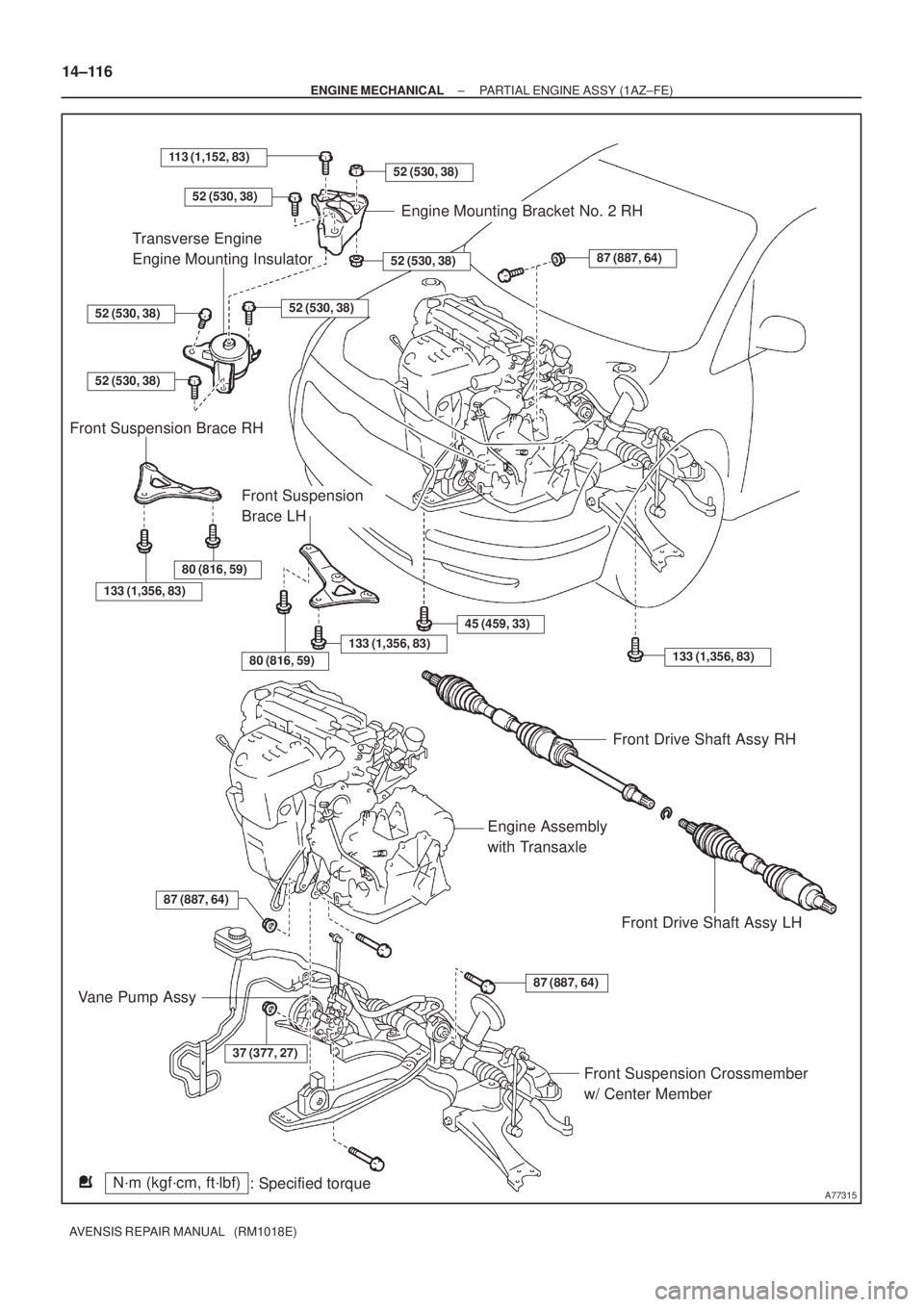

Engine Mounting Bracket No. 2 RH
Transverse Engine
Engine Mounting Insulator
Front Suspension Brace RH
Front Suspension
Brace LH
Front Drive Shaft Assy RH
Front Drive Shaft Assy LH Engine Assembly
with Transaxle
Front Suspension Crossmember
w/ Center Member
N´m (kgf´cm, ft´lbf)
: Specified torque
Vane Pump Assy
113 (1,152, 83)
87 (887, 64)
14±116
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

A77298
LHD Steering Position typeRHD Steering Position type
±

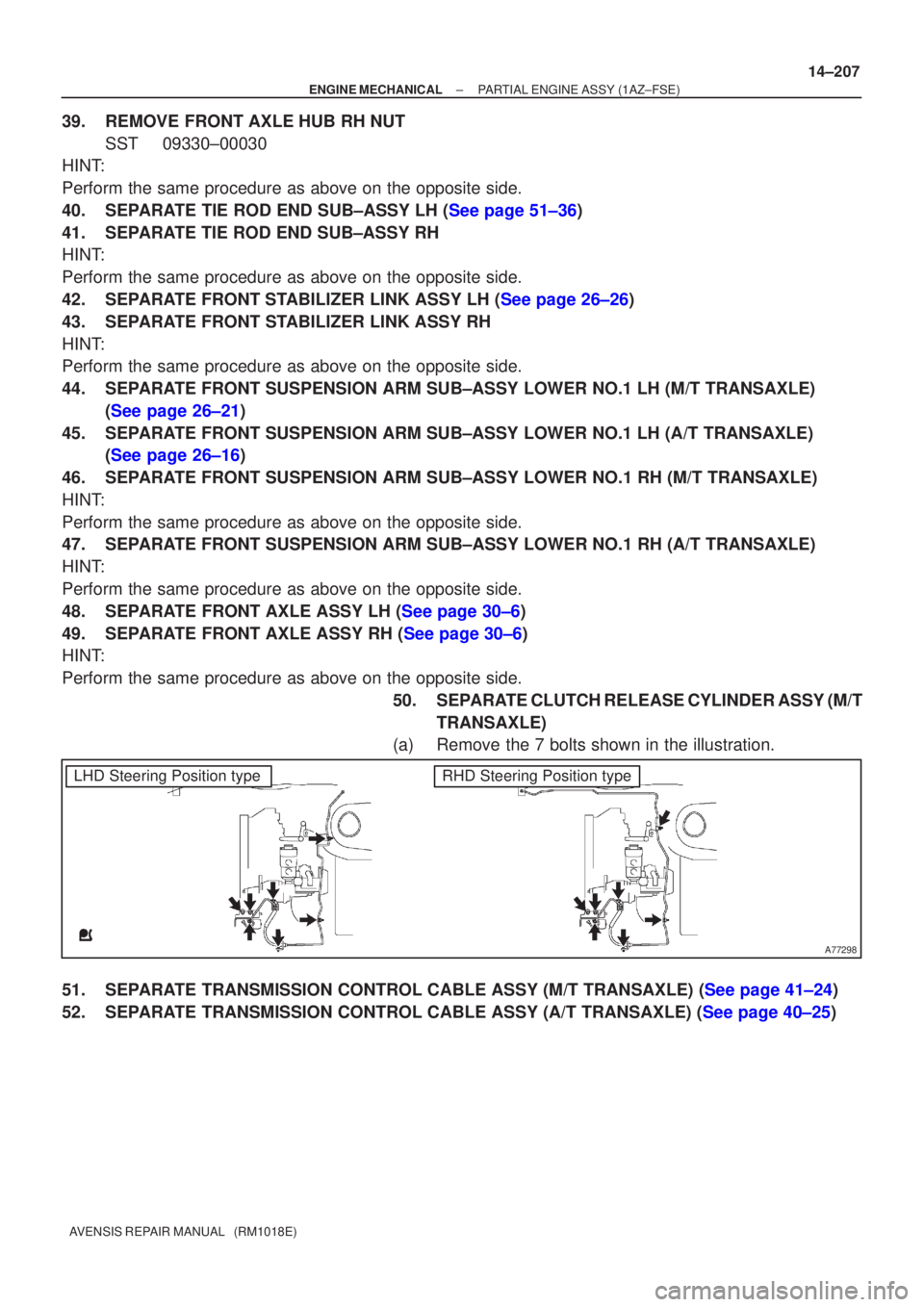

ENGINE MECHANICAL PARTIAL ENGINE ASSY(1AZ±FSE)
14±207
AVENSIS REPAIR MANUAL (RM1018E)
39.REMOVE FRONT AXLE HUB RH NUT
SST09330±00030
HINT:
Perform the same procedure as above on the opposite side.
40.SEPARATE TIE ROD END SUB±ASSY LH (See page 51±36)
41.SEPARATE TIE ROD END SUB±ASSY RH
HINT:
Perform the same procedure as above on the opposite side.
42.SEPARATE FRONT STABILIZER LINK ASSY LH (See page 26±26)
43.SEPARATE FRONT STABILIZER LINK ASSY RH
HINT:
Perform the same procedure as above on the opposite side.
44.SEPARATE FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 LH (M/T TRANSAXLE)
(See page 26±21)
45.SEPARATE FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 LH (A/T TRANSAXLE) (See page 26±16)
46.SEPARATE FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 RH (M/T TRANSAXLE)
HINT:
Perform the same procedure as above on the opposite side.
47.SEPARATE FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 RH (A/T TRANSAXLE)
HINT:
Perform the same procedure as above on the opposite side.
48.SEPARATE FRONT AXLE ASSY LH (See page 30±6)
49.SEPARATE FRONT AXLE ASSY RH (See page 30±6)
HINT:
Perform the same procedure as above on the opposite side. 50.SEPARATE CLUTCH RELEASE CYLINDER ASSY (M/TTRANSAXLE)
(a)Remove the 7 bolts shown in the illustration.
51.SEPARATE TRANSMISSION CONTROL CABLE ASSY (M/T TRANSAXLE) (See page 41±24)
52.SEPARATE TRANSMISSION CONTROL CABLE ASSY (A/T TRANSAXLE) (See page 40±25)

A66202
A77305
A77304
A59793
A63273
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1AZ±FSE)
14±209
AVENSIS REPAIR MANUAL (RM1018E)

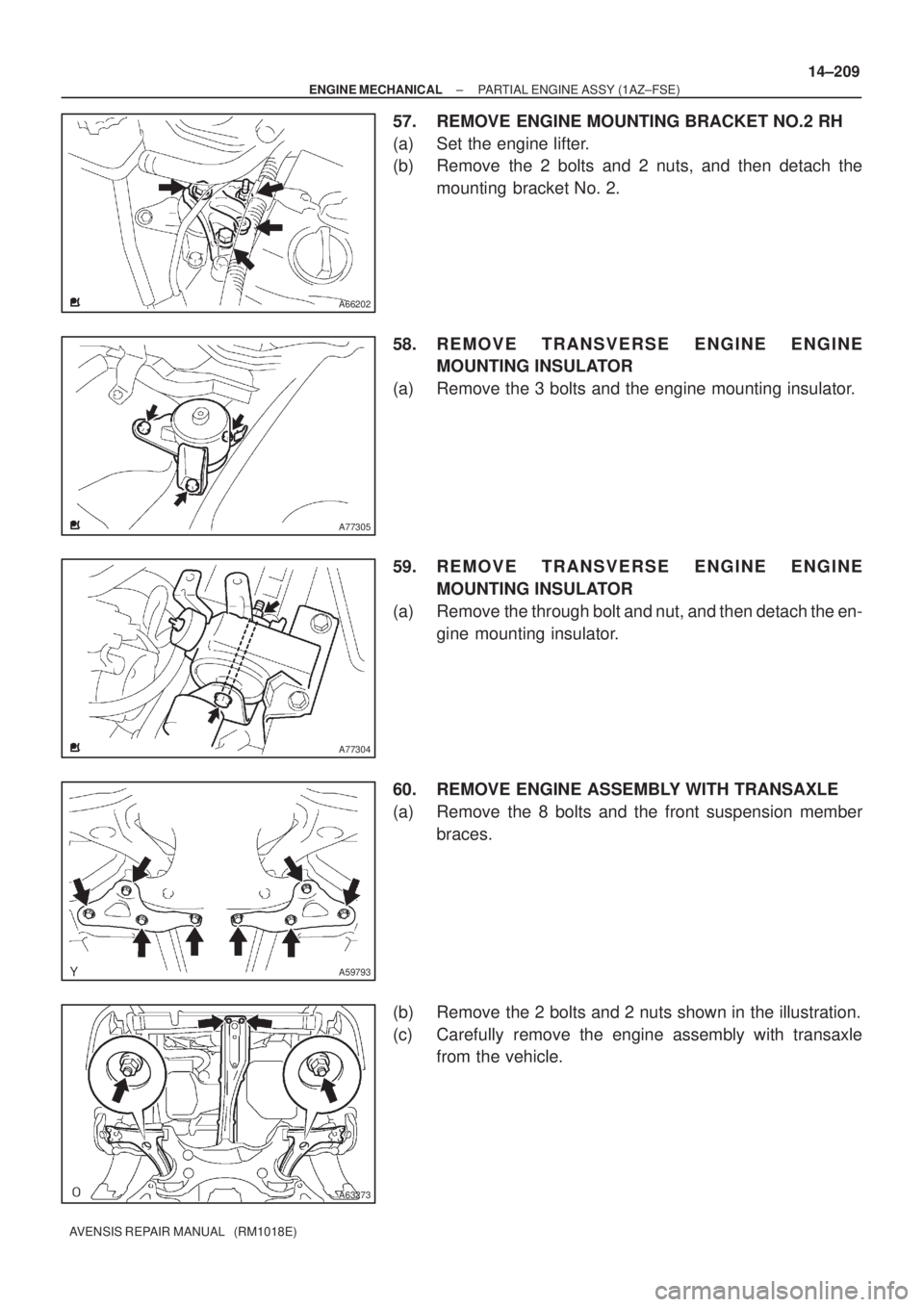

57. REMOVE ENGINE MOUNTING BRACKET NO.2 RH
(a) Set the engine lifter.
(b) Remove the 2 bolts and 2 nuts, and then detach the
mounting bracket No. 2.
58. REMOVE TRANSVERSE ENGINE ENGINE
MOUNTING INSULATOR
(a) Remove the 3 bolts and the engine mounting insulator.
59. REMOVE TRANSVERSE ENGINE ENGINE
MOUNTING INSULATOR
(a) Remove the through bolt and nut, and then detach the en-
gine mounting insulator.
60. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
(a) Remove the 8 bolts and the front suspension member
braces.
(b) Remove the 2 bolts and 2 nuts shown in the illustration.
(c) Carefully remove the engine assembly with transaxle
from the vehicle.

A77331
SST
A77353

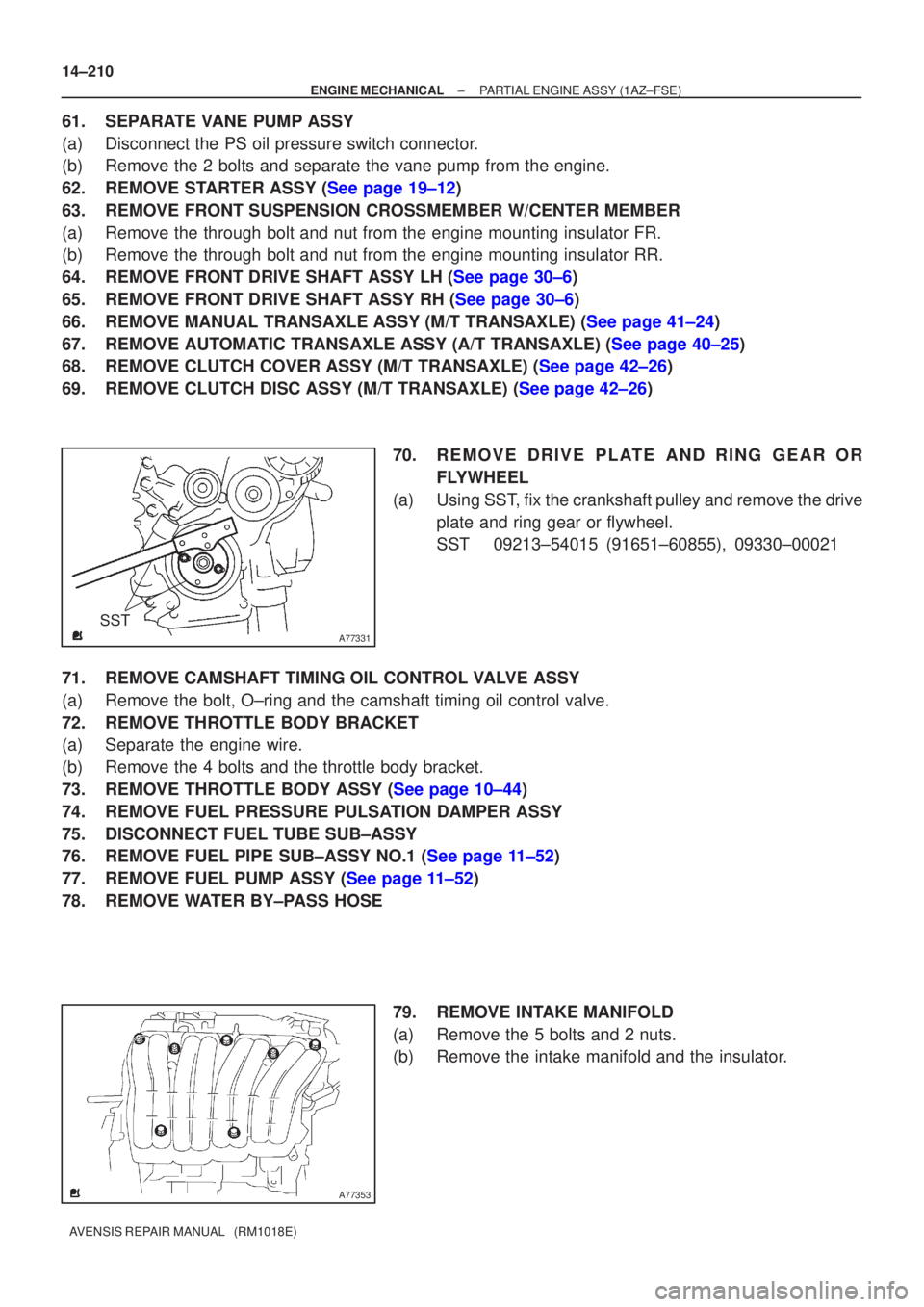

14±210
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
61.SEPARATE VANE PUMP ASSY
(a)Disconnect the PS oil pressure switch connector.
(b)Remove the 2 bolts and separate the vane pump from the engine.
62.REMOVE STARTER ASSY (See page 19±12)
63. REMOVE FRONT SUSPENSION CROSSMEMBER W/CENTER MEMBER
(a) Remove the through bolt and nut from the engine mounting insulator FR.
(b) Remove the through bolt and nut from the engine mounting insulator RR.
64.REMOVE FRONT DRIVE SHAFT ASSY LH (See page 30±6)
65.REMOVE FRONT DRIVE SHAFT ASSY RH (See page 30±6)
66.REMOVE MANUAL TRANSAXLE ASSY (M/T TRANSAXLE) (See page 41±24)
67.REMOVE AUTOMATIC TRANSAXLE ASSY (A/T TRANSAXLE) (See page 40±25)
68.REMOVE CLUTCH COVER ASSY (M/T TRANSAXLE) (See page 42±26)
69.REMOVE CLUTCH DISC ASSY (M/T TRANSAXLE) (See page 42±26) 70. REMOVE DRIVE PLATE AND RING GEAR ORFLYWHEEL
(a) Using SST, fix the crankshaft pulley and remove the drive plate and ring gear or flywheel.
SST 09213±54015 (91651±60855), 09330±00021
71. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSY
(a) Remove the bolt, O±ring and the camshaft timing oil control valve.
72. REMOVE THROTTLE BODY BRACKET
(a) Separate the engine wire.
(b) Remove the 4 bolts and the throttle body bracket.
73.REMOVE THROTTLE BODY ASSY (See page 10±44)
74. REMOVE FUEL PRESSURE PULSATION DAMPER ASSY
75. DISCONNECT FUEL TUBE SUB±ASSY
76.REMOVE FUEL PIPE SUB±ASSY NO.1 (See page 11±52)
77.REMOVE FUEL PUMP ASSY (See page 11±52)
78. REMOVE WATER BY±PASS HOSE 79. REMOVE INTAKE MANIFOLD
(a) Remove the 5 bolts and 2 nuts.
(b) Remove the intake manifold and the insulator.

A77333SST
A77403
15
3
7
2
6
4 8
A63273
14±214
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)

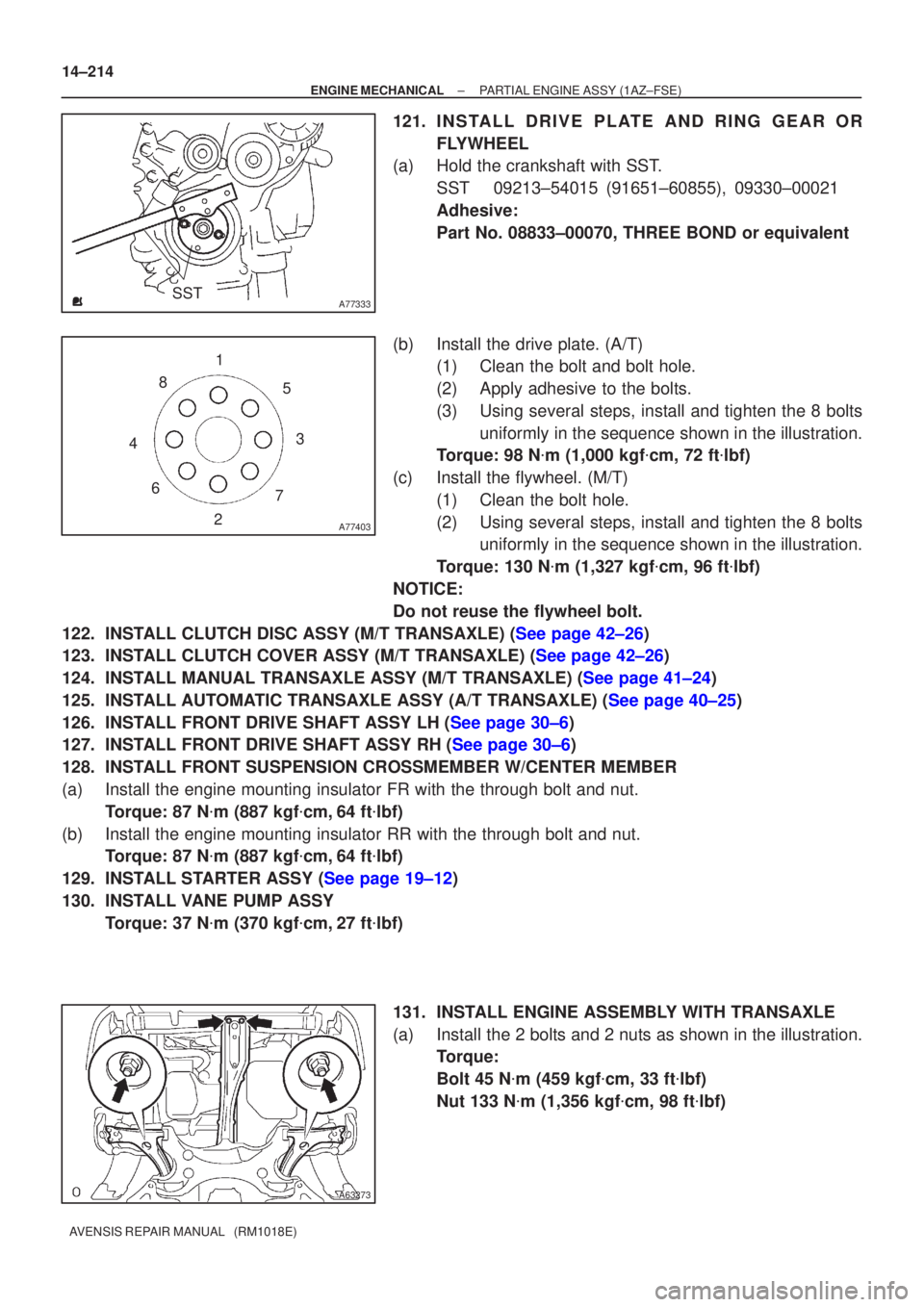

121.INSTALL DRIVE PLATE AND RING GEAR OR FLYWHEEL
(a)Hold the crankshaft with SST.
SST09213±54015 (91651±60855), 09330±00021
Adhesive:
Part No. 08833±00070, THREE BOND or equivalent
(b)Install the drive plate. (A/T) (1)Clean the bolt and bolt hole.
(2)Apply adhesive to the bolts.
(3)Using several steps, install and tighten the 8 bolts
uniformly in the sequence shown in the illustration.
Torque: 98 N
m (1,000 kgf
cm, 72 ft
lbf)
(c)Install the flywheel. (M/T) (1)Clean the bolt hole.
(2)Using several steps, install and tighten the 8 boltsuniformly in the sequence shown in the illustration.
Torque: 130 N
m (1,327 kgf
cm, 96 ft
lbf)
NOTICE:
Do not reuse the flywheel bolt.
122.INSTALL CLUTCH DISC ASSY (M/T TRANSAXLE) (See page 42±26)
123.INSTALL CLUTCH COVER ASSY (M/T TRANSAXLE) (See page 42±26)
124.INSTALL MANUAL TRANSAXLE ASSY (M/T TRANSAXLE) (See page 41±24)
125.INSTALL AUTOMATIC TRANSAXLE ASSY (A/T TRANSAXLE) (See page 40±25)
126.INSTALL FRONT DRIVE SHAFT ASSY LH (See page 30±6)
127.INSTALL FRONT DRIVE SHAFT ASSY RH (See page 30±6)
128.INSTALL FRONT SUSPENSION CROSSMEMBER W/CENTER MEMBER
(a)Install the engine mounting insulator FR with the through bolt and nut. Torque: 87 N
m (887 kgf
cm,64 ft
lbf)
(b)Install the engine mounting insulator RR with the through bolt and nut. Torque: 87 N
m (887 kgf
cm,64 ft
lbf)
129.INSTALL STARTER ASSY (See page 19±12)
130. INSTALL VANE PUMP ASSY Torque: 37 N
m (370 kgf
cm, 27 ft
lbf)
131. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
(a) Install the 2 bolts and 2 nuts as shown in the illustration. Torque:
Bolt 45 N
m (459 kgf
cm, 33 ft
lbf)
Nut 133 N
m (1,356 kgf
cm, 98 ft
lbf)
