2005 TOYOTA AVENSIS code







H42146
P Squib
(2nd step)Airbag
Sensor
Assy
Center
DTC B1185/57
TC
CG
DLC3 C
D
05±1364
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

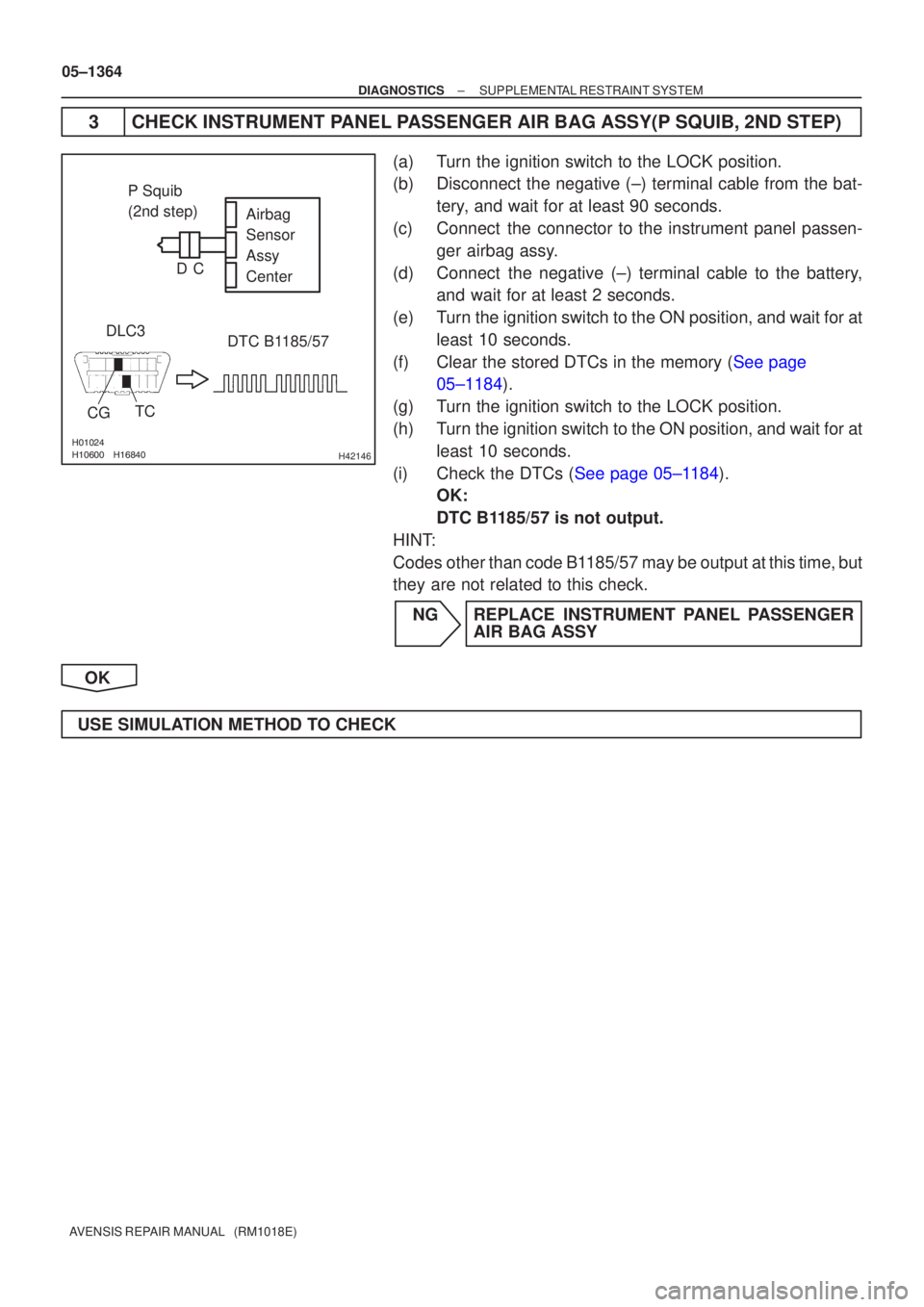

3CHECK INSTRUMENT PANEL PASSENGER AIR BAG ASSY(P SQUIB, 2ND STEP)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c)Connect the connector to the instrument panel passen- ger airbag assy.
(d)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B1185/57 is not output.
HINT:
Codes other than code B1185/57 may be output at this time, but
they are not related to this check.
NG REPLACE INSTRUMENT PANEL PASSENGER AIR BAG ASSY
OK
USE SIMULATION METHOD TO CHECK






\b




H42143
Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
Color: Black
DTC B1183/22
CG TC
DLC3
Service Wire
D2+D2±
D Squib
(2nd step)
C
D
E
F
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1359
AVENSIS REPAIR MANUAL (RM1018E)

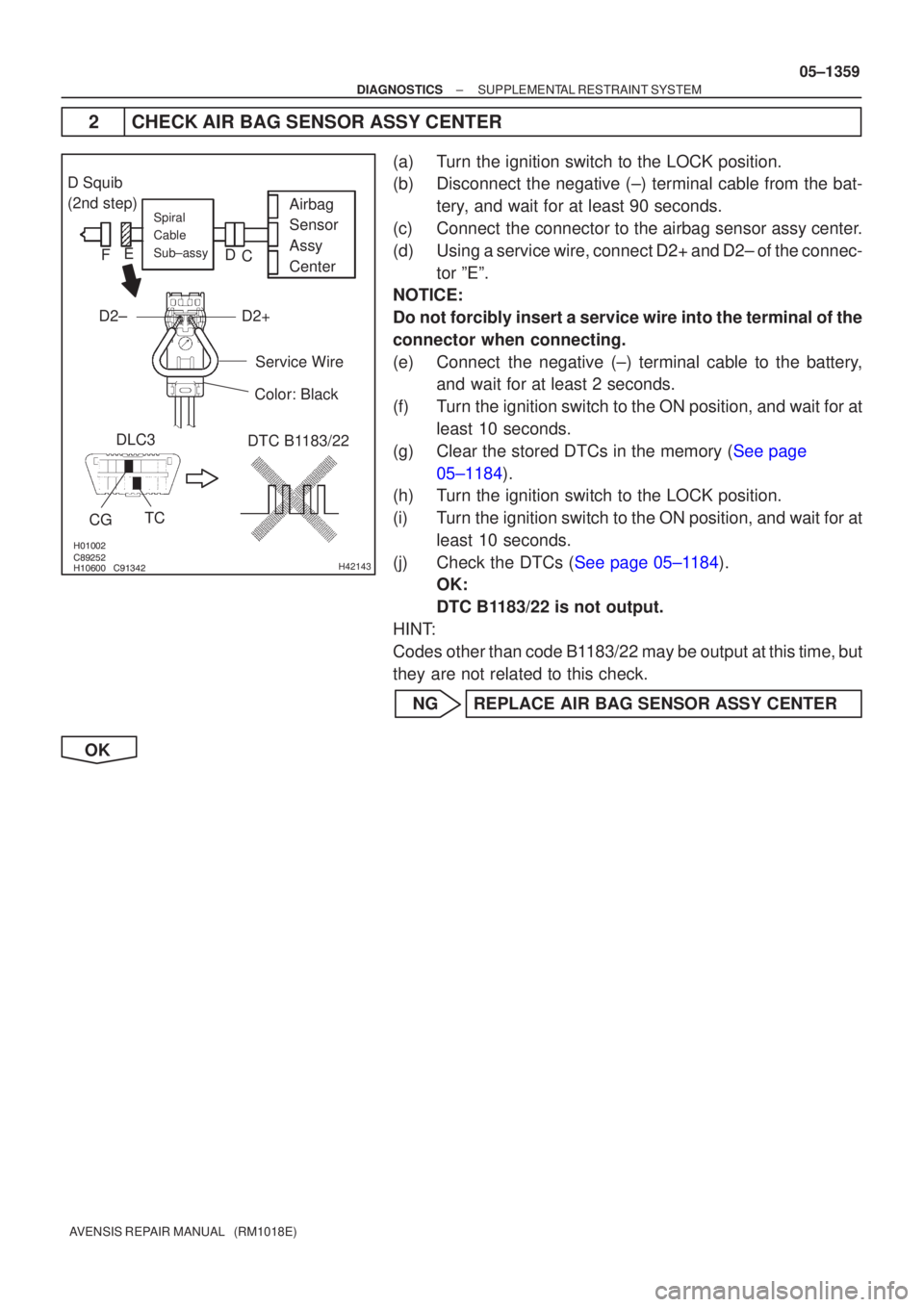

2CHECK AIR BAG SENSOR ASSY CENTER
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Connect the connector to the airbag sensor assy center.
(d)Using a service wire, connect D2+ and D2± of the connec- tor ºEº.
NOTICE:
Do not forcibly insert a service wire into the terminal of the
connector when connecting.
(e)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(f)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(g)Clear the stored DTCs in the memory (See page 05±1184).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(j)Check the DTCs (See page 05±1184). OK:
DTC B1183/22 is not output.
HINT:
Codes other than code B1183/22 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK






\bH42144
Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
DLC3
CG TC DTC B1183/22
D Squib
(2nd step)
C
D
E
F
05±1360
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

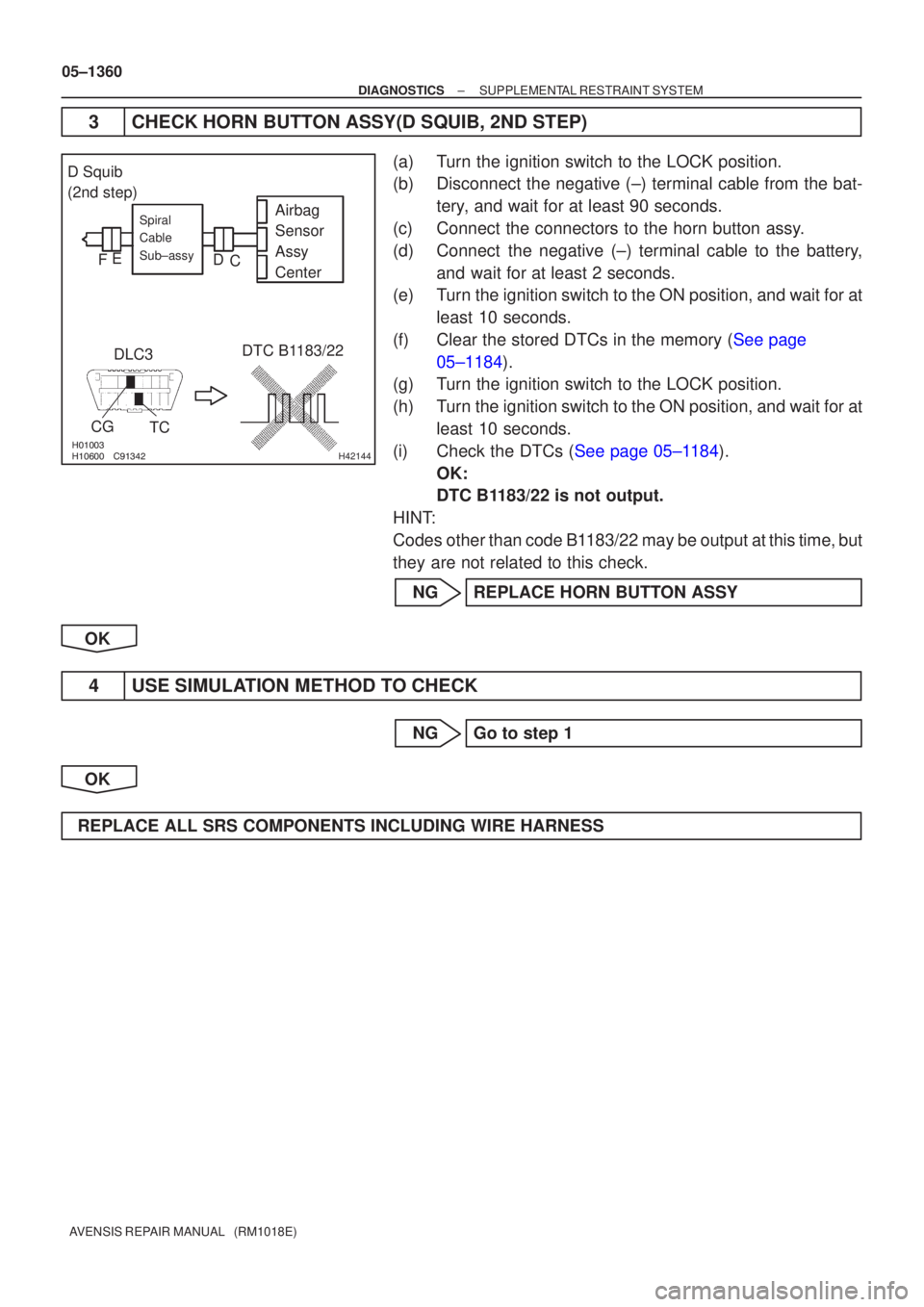

3CHECK HORN BUTTON ASSY(D SQUIB, 2ND STEP)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c)Connect the connectors to the horn button assy.
(d)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e)Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g)Turn the ignition switch to the LOCK position.
(h)Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B1183/22 is not output.
HINT:
Codes other than code B1183/22 may be output at this time, but
they are not related to this check.
NG REPLACE HORN BUTTON ASSY
OK
4 USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING WIRE HARNESS




\b




\bH42141
Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
Color: Black
DLC3
CGTC DTC B1182/19
Service Wire
D2+
D2±
D Squib
(2nd step)
C
D
E
F
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1355
AVENSIS REPAIR MANUAL (RM1018E)

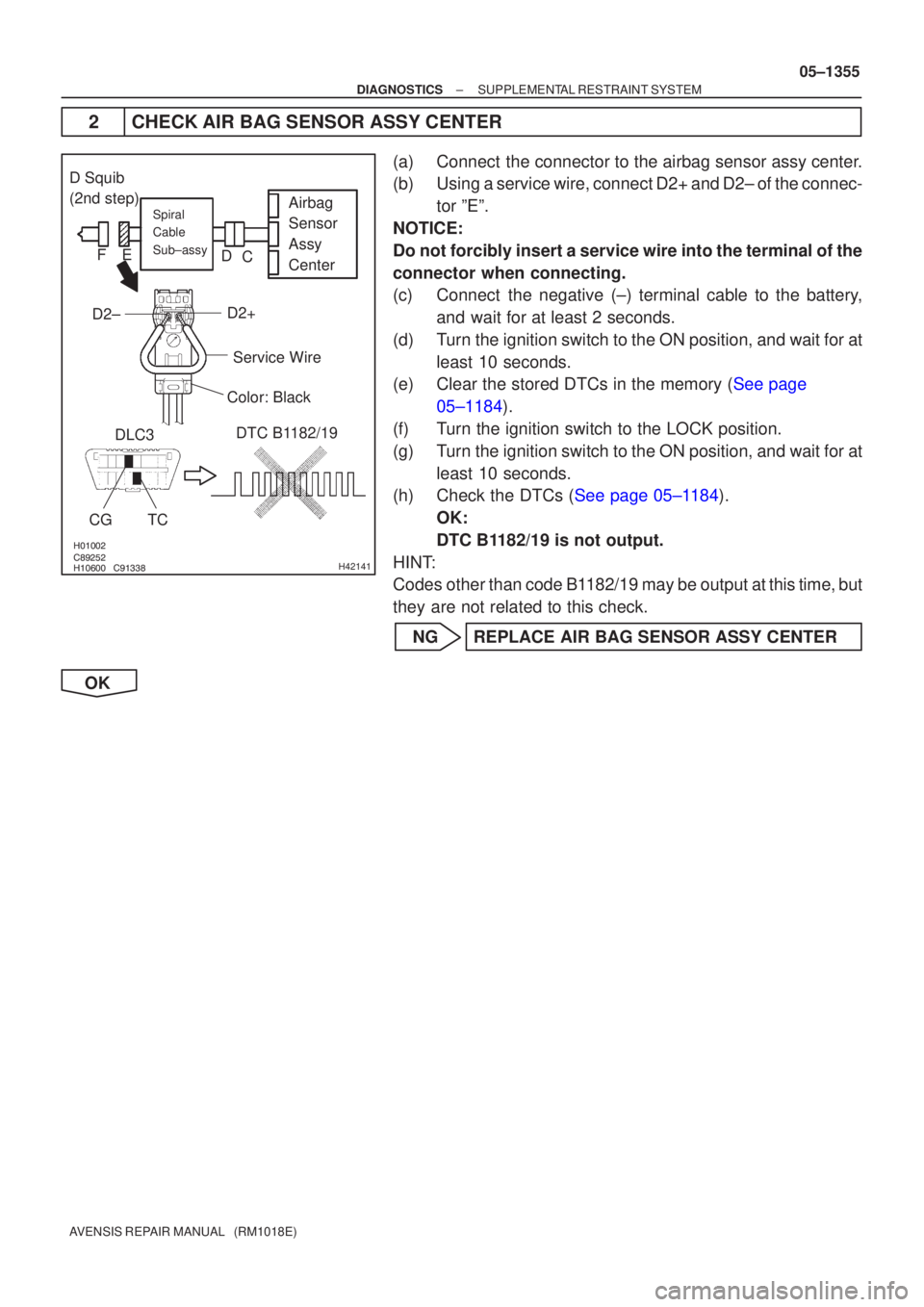

2CHECK AIR BAG SENSOR ASSY CENTER
(a)Connect the connector to the airbag sensor assy center.
(b)Using a service wire, connect D2+ and D2± of the connec-
tor ºEº.
NOTICE:
Do not forcibly insert a service wire into the terminal of the
connector when connecting.
(c)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(d)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page
05±1184).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(h)Check the DTCs (See page 05±1184).
OK:
DTC B1182/19 is not output.
HINT:
Codes other than code B1182/19 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK







\bH42142
Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
DLC3
CG TC DTC B1182/19
D Squib
(2nd step)
C
D
E
F
05±1356
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

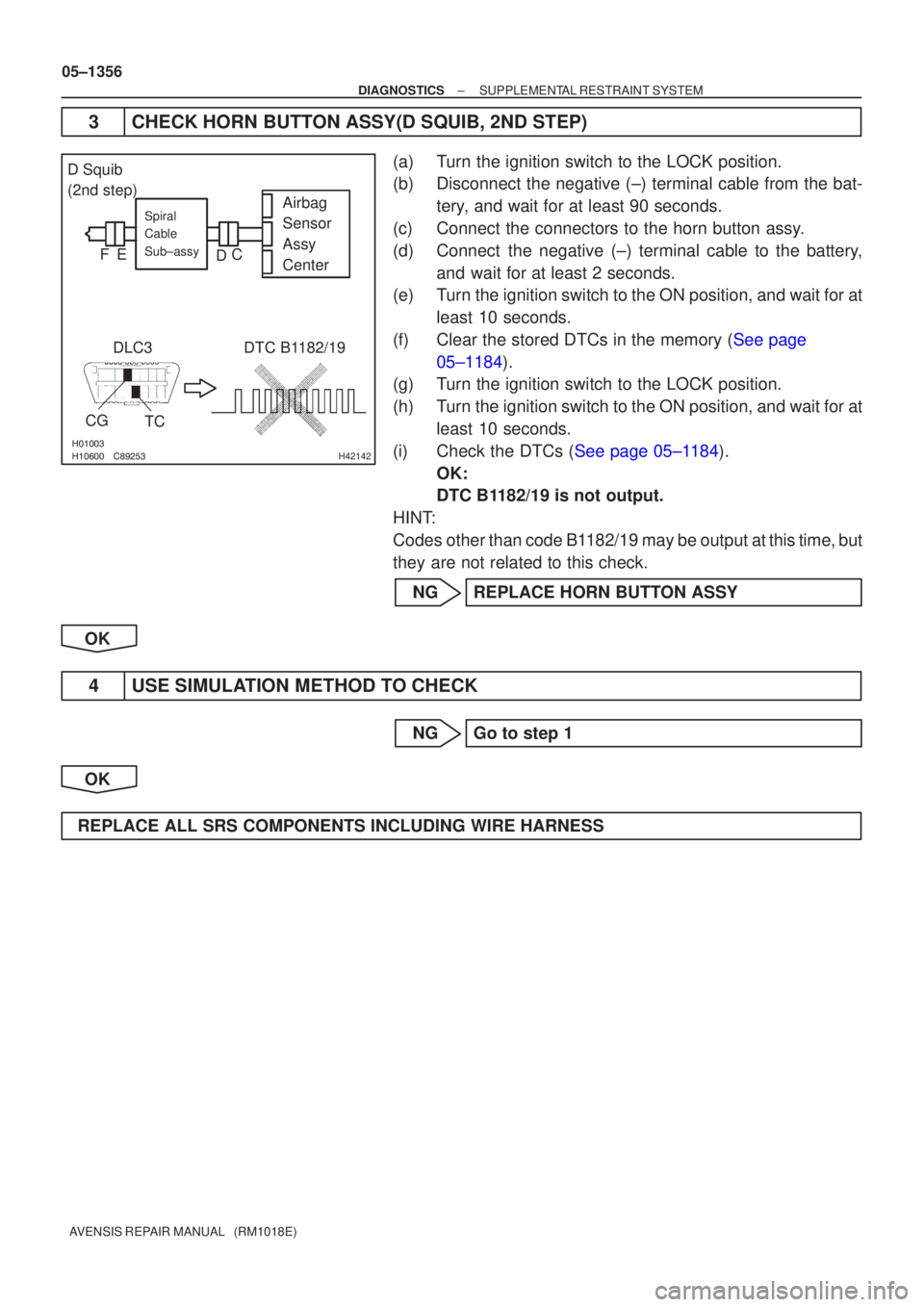

3CHECK HORN BUTTON ASSY(D SQUIB, 2ND STEP)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c)Connect the connectors to the horn button assy.
(d)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e)Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B1182/19 is not output.
HINT:
Codes other than code B1182/19 may be output at this time, but
they are not related to this check.
NG REPLACE HORN BUTTON ASSY
OK
4 USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING WIRE HARNESS








\b \bH42139
Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
Color: Black
DLC3
CG TC DTC B1181/18
Service Wire
D2+D2±
D Squib
(2nd step)
C
D
E
F
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1351
AVENSIS REPAIR MANUAL (RM1018E)

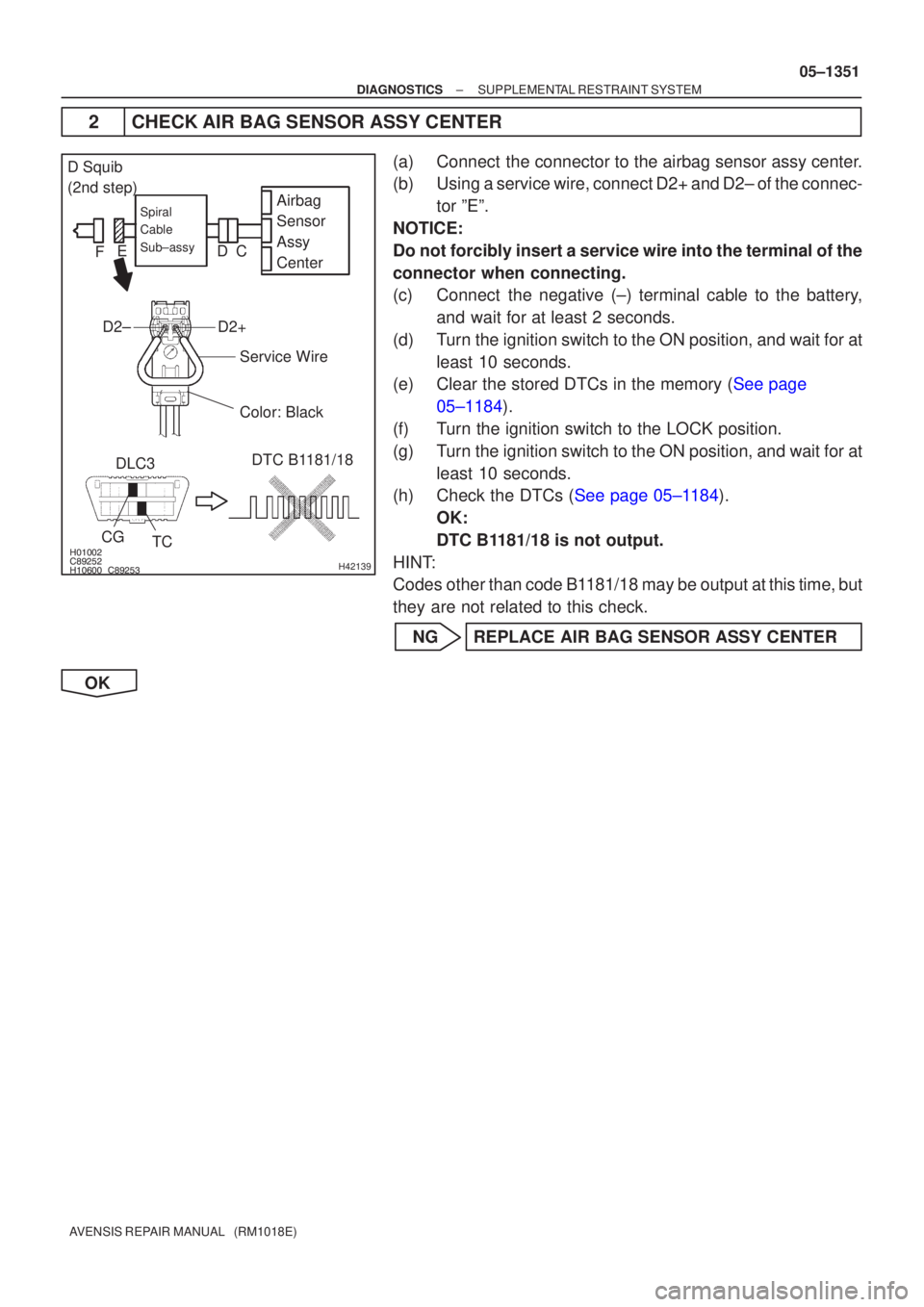

2CHECK AIR BAG SENSOR ASSY CENTER
(a)Connect the connector to the airbag sensor assy center.
(b)Using a service wire, connect D2+ and D2± of the connec-
tor ºEº.
NOTICE:
Do not forcibly insert a service wire into the terminal of the
connector when connecting.
(c)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(d)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page
05±1184).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(h)Check the DTCs (See page 05±1184).
OK:
DTC B1181/18 is not output.
HINT:
Codes other than code B1181/18 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK








\b H42140
Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
DLC3
CG TC DTC B1181/18
D Squib
(2nd step)
C
D
E
F







H41478
Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
Instrument Panel Wire
D Squib
(2nd step) C
D
E
FB A
05±1352
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
3CHECK HORN BUTTON ASSY(D SQUIB, 2ND STEP)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c)Connect the connectors to the horn button assy.
(d)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e)Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B1181/18 is not output.
HINT:
Codes other than code B1181/18 may be output at this time, but
they are not related to this check.
NG REPLACE HORN BUTTON ASSY
OK
USE SIMULATION METHOD TO CHECK

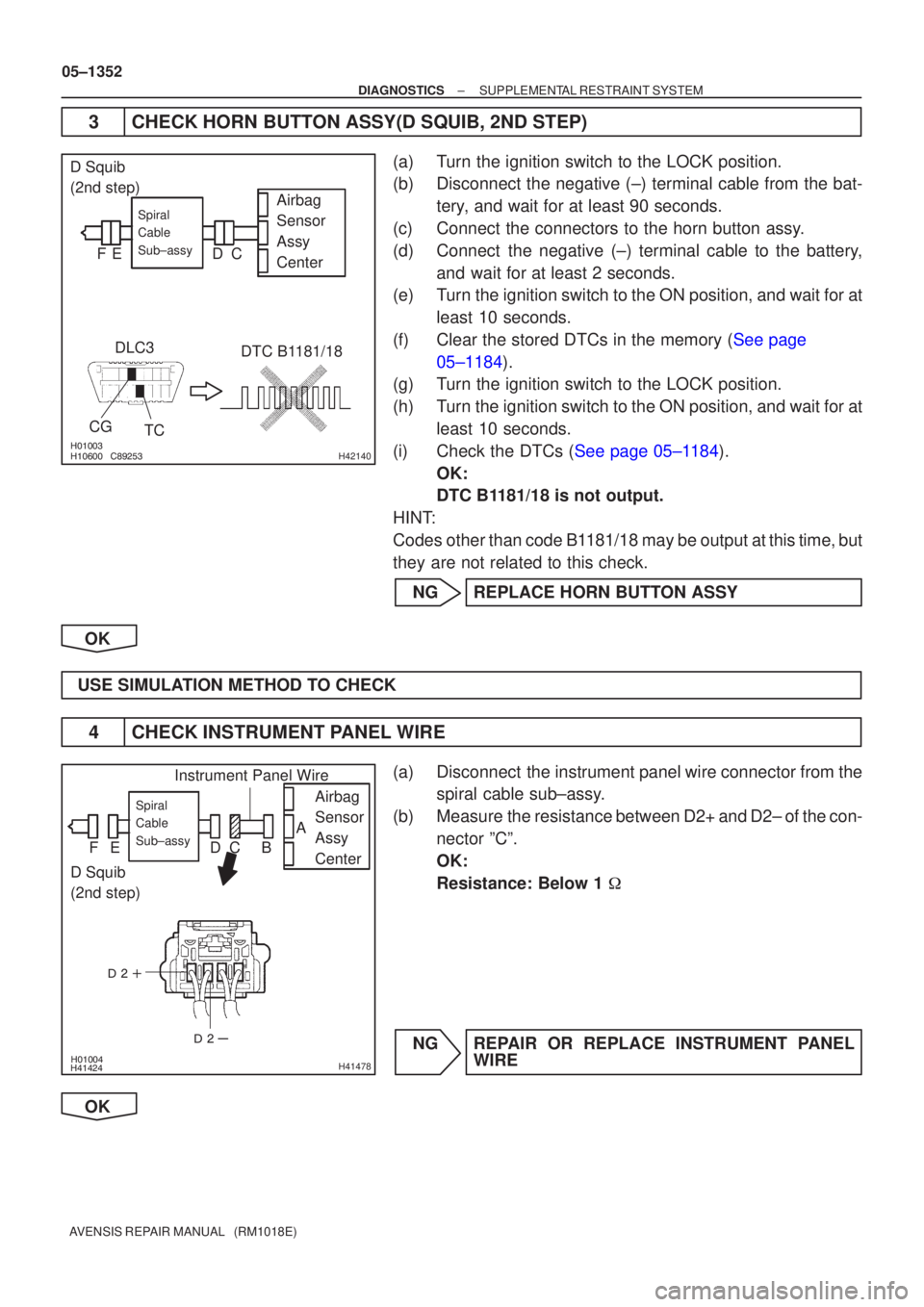

4 CHECK INSTRUMENT PANEL WIRE
(a) Disconnect the instrument panel wire connector from the spiral cable sub±assy.
(b) Measure the resistance between D2+ and D2± of the con- nector ºCº.
OK:
Resistance: Below 1

NG REPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK







\bH42137
Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
DLC3
CG TC DTC B1180/17
D Squib
(2nd step)
C
D
E
F








\bH42138
Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
DLC3
CG TC DTC B1180/17
D Squib
(2nd step)
C
D
E
F
05±1348
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

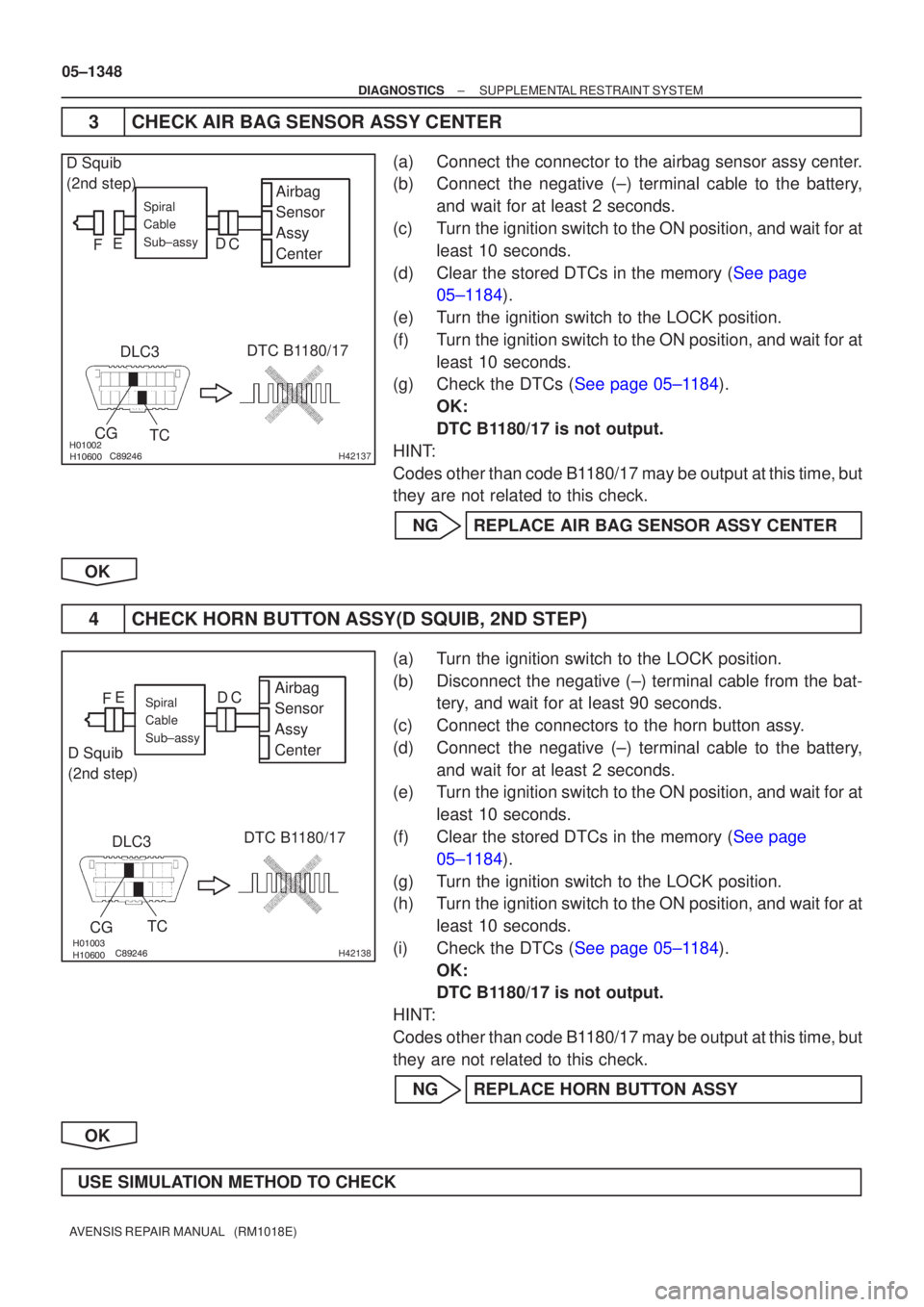

3CHECK AIR BAG SENSOR ASSY CENTER
(a)Connect the connector to the airbag sensor assy center.
(b)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(c)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(d)Clear the stored DTCs in the memory (See page 05±1184).
(e)Turn the ignition switch to the LOCK position.
(f)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(g)Check the DTCs (See page 05±1184).
OK:
DTC B1180/17 is not output.
HINT:
Codes other than code B1180/17 may be output at this time, but
they are not related to this check.
NGREPLACE AIR BAG SENSOR ASSY CENTER
OK
4CHECK HORN BUTTON ASSY(D SQUIB, 2ND STEP)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c)Connect the connectors to the horn button assy.
(d)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e)Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B1180/17 is not output.
HINT:
Codes other than code B1180/17 may be output at this time, but
they are not related to this check.
NG REPLACE HORN BUTTON ASSY
OK
USE SIMULATION METHOD TO CHECK
