Page 1368 of 5135

H40441
Disconnection Detection Pin
H41086
DLC3DTC B1100/31
CG TC
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1283
AVENSIS REPAIR MANUAL (RM1018E)

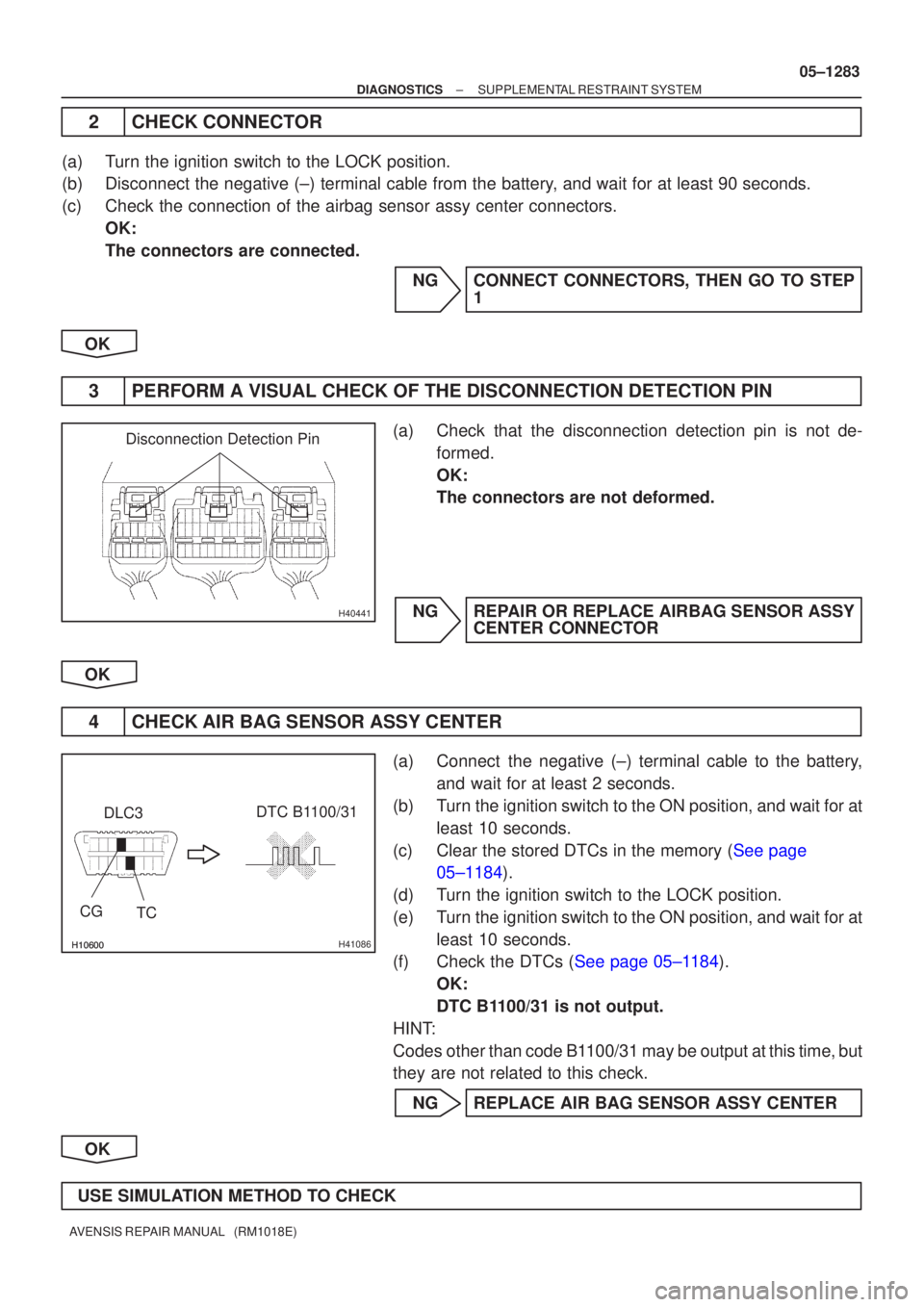

2CHECK CONNECTOR
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the battery, and wait for at least 90 seconds.
(c)Check the connection of the airbag sensor assy center connectors.
OK:
The connectors are connected.
NGCONNECT CONNECTORS, THEN GO TO STEP1
OK
3PERFORM A VISUAL CHECK OF THE DISCONNECTION DETECTION PIN
(a)Check that the disconnection detection pin is not de- formed.
OK:
The connectors are not deformed.
NGREPAIR OR REPLACE AIRBAG SENSOR ASSY CENTER CONNECTOR
OK
4CHECK AIR BAG SENSOR ASSY CENTER
(a)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(b)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(c)Clear the stored DTCs in the memory (See page 05±1184).
(d) Turn the ignition switch to the LOCK position.
(e) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Check the DTCs (See page 05±1184).
OK:
DTC B1100/31 is not output.
HINT:
Codes other than code B1100/31 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
USE SIMULATION METHOD TO CHECK
Page 1370 of 5135

\b
H40957
P/T Squib LHDLC3 TC
CG
DTC B0138/72
Airbag
Sensor
Assy
Center
PL±
PL+
Floor Wire
Service Wire
C
D
05±1280
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90seconds.
(c) Connect the connector to the airbag sensor assy center.
(d) Using a service wire, connect PL+ and PL± of the connec- tor ºCº.
NOTICE:
Do not forcibly insert a service wire into the terminal of the
connector when connecting.
(e) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(g)Clear the stored DTCs in the memory (See page 05±1184).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(j)Check the DTCs (See page 05±1184). OK:
DTC B0138/72 is not output.
HINT:
Codes other than code B0138/72 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
Page 1371 of 5135

H40064
P/T Squib LHDLC3
DTC B0138/72
CG TC Airbag
Sensor
Assy
Center
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1281
AVENSIS REPAIR MANUAL (RM1018E)
3 CHECK FRONT SEAT OUTER BELT ASSY LH(P/T SQUIB LH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Connect the connector to the front seat outer belt assy LH.
(d) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B0138/72 is not output.
HINT:
Codes other than code B0138/72 may be output at this time, but
they are not related to this check.
NG REPLACE FRONT SEAT OUTER BELT ASSY LH
OK
4 USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING WIRE HARNESS
Page 1373 of 5135
\bH42251
Airbag
Sensor
Assy
Center
P2+
P2±
DLC3 DTC B1187/55
TC
CGP Squib
(2nd step)Instrument Panel Wire
SST
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1369
AVENSIS REPAIR MANUAL (RM1018E)
2CHECK AIR BAG SENSOR ASSY CENTER
(a)Connect the connector to the airbag sensor assy center.
(b)Using SST, connect P2+ and P2± of the connector ºCº.
SST09843±18040
(c)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(d)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page 05±1184).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(h)Check the DTCs (See page 05±1184). OK:
DTC B1187/55 is not output.
HINT:
Codes other than code B1187/55 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
Page 1374 of 5135

\b\b\bH42150
DTC B1187/55
DLC3 Airbag
Sensor
Assy
Center
TC
P Squib
(2nd step)
CG C
D
05±1370
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
3CHECK INSTRUMENT PANEL PASSENGER AIR BAG ASSY(P SQUIB, 2ND STEP)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c)Connect the connector to the instrument panel passen- ger airbag assy.
(d)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B1187/55 is not output.
HINT:
Codes other than code B1187/55 may be output at this time, but
they are not related to this check.
NG REPLACE INSTRUMENT PANEL PASSENGER AIR BAG ASSY
OK
4 USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING WIRE HARNESS
Page 1376 of 5135
\bH42250
Airbag
Sensor
Assy
Center
P2+
P2±
DTC B1186/58
DLC3
TC
CGP Squib
(2nd step)
Instrument Panel Wire
SST
C
D
05±1366
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
2CHECK AIR BAG SENSOR ASSY CENTER
(a)Connect the connector to the airbag sensor assy center.
(b)Using SST, connect P2+ and P2± of the connector ºCº. SST09843±18040
(c)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(d)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page 05±1184).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(h)Check the DTCs (See page 05±1184). OK:
DTC B1186/58 is not output.
HINT:
Codes other than code B1186/58 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
Page 1377 of 5135

H42148
DLC3 Airbag
Sensor
Assy
Center
TC
CGDTC B1186/58
P Squib
(2nd step)
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1367
AVENSIS REPAIR MANUAL (RM1018E)

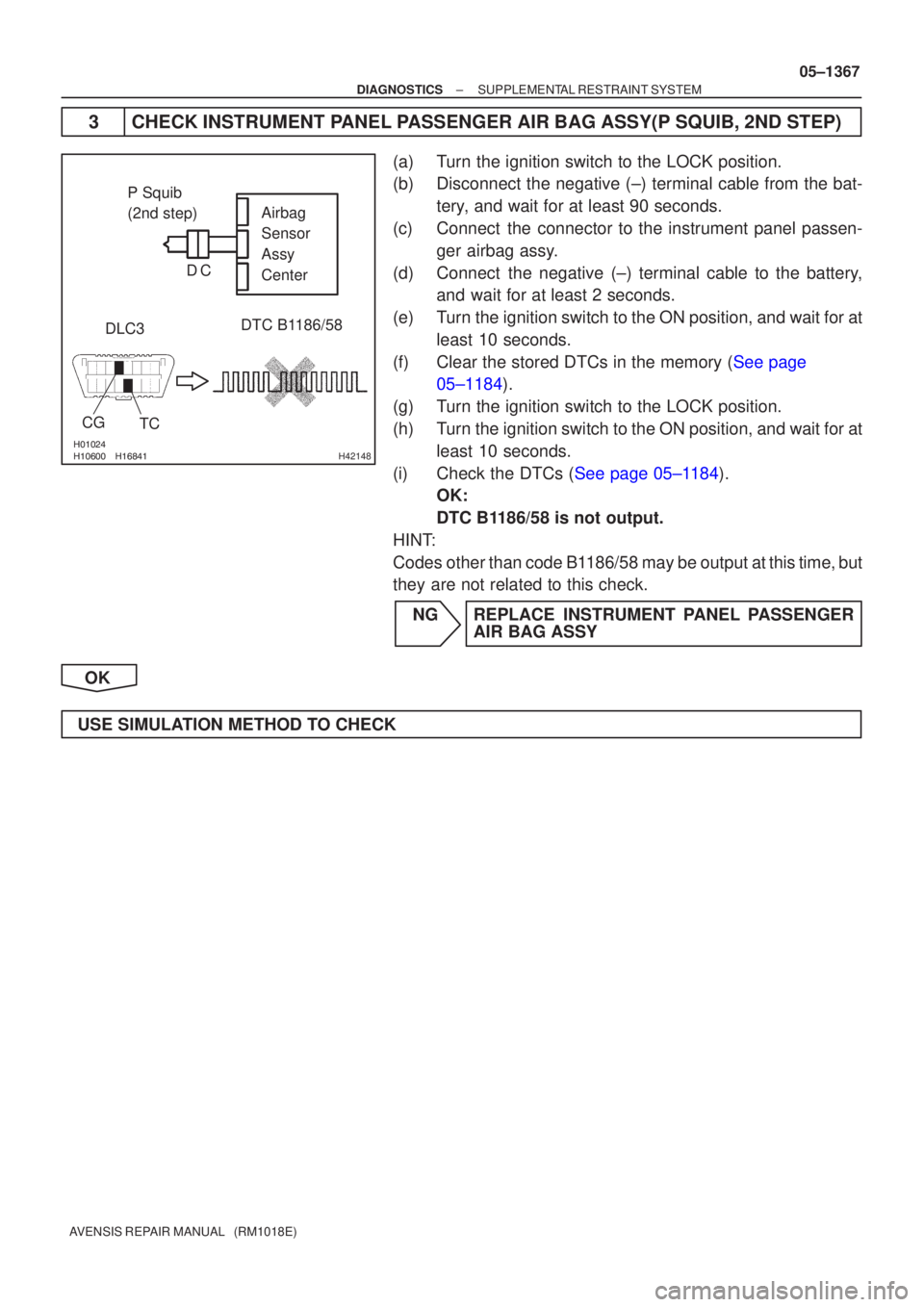

3 CHECK INSTRUMENT PANEL PASSENGER AIR BAG ASSY(P SQUIB, 2ND STEP)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Connect the connector to the instrument panel passen- ger airbag assy.
(d) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B1186/58 is not output.
HINT:
Codes other than code B1186/58 may be output at this time, but
they are not related to this check.
NG REPLACE INSTRUMENT PANEL PASSENGER AIR BAG ASSY
OK
USE SIMULATION METHOD TO CHECK
Page 1379 of 5135

\b H40583
P Squib
(2nd step)Airbag
Sensor
Assy
Center
P2+
P2±
Instrument Panel Wire
A
B
C
D
\bH42145
P Squib
(2nd step) Airbag
Sensor
Assy
Center
DLC3
CGTC DTC B1185/57
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1363
AVENSIS REPAIR MANUAL (RM1018E)

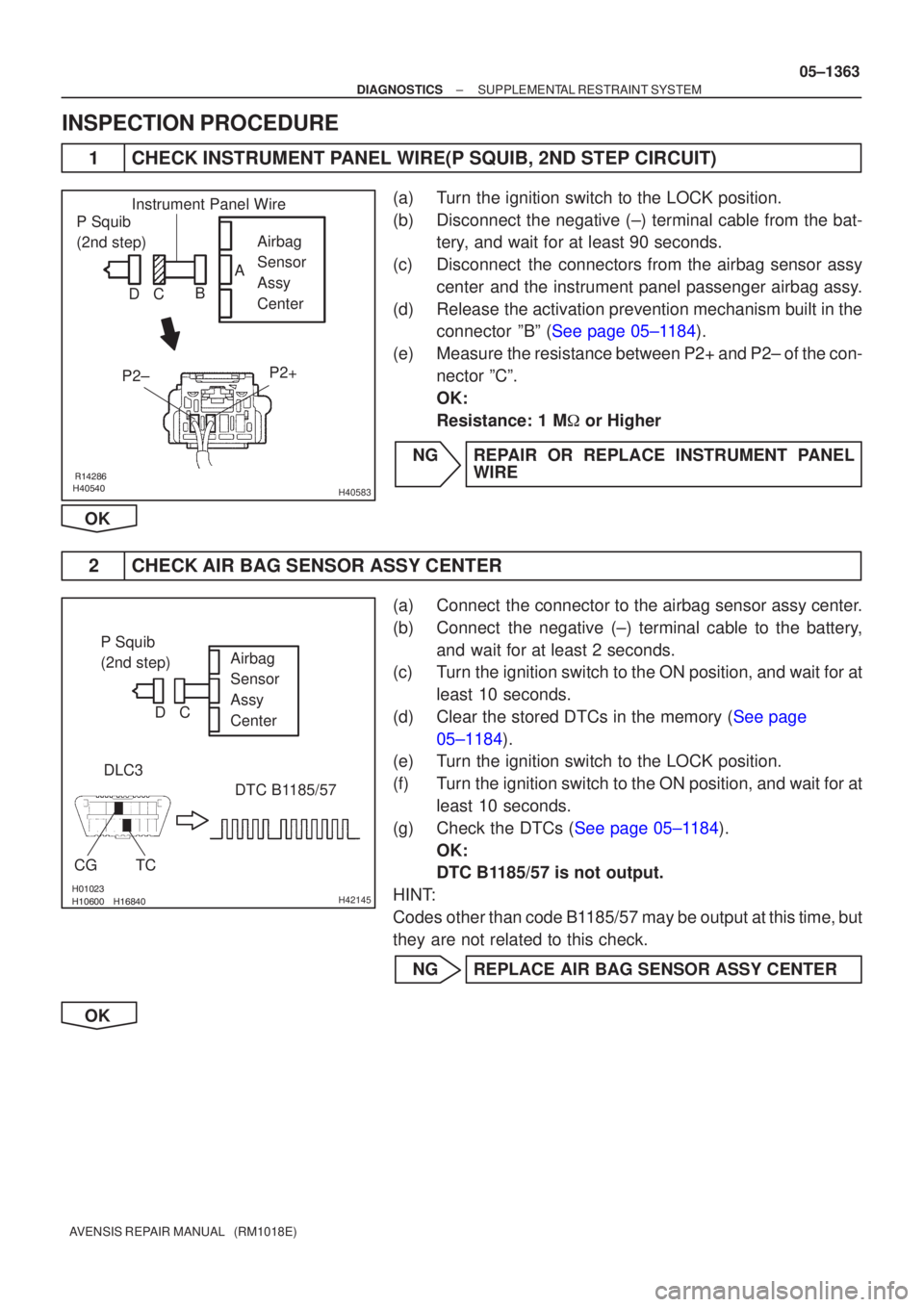

INSPECTION PROCEDURE
1CHECK INSTRUMENT PANEL WIRE(P SQUIB, 2ND STEP CIRCUIT)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Disconnect the connectors from the airbag sensor assy center and the instrument panel passenger airbag assy.
(d)Release the activation prevention mechanism built in the connector ºBº (See page 05±1184).
(e)Measure the resistance between P2+ and P2± of the con- nector ºCº.
OK:
Resistance: 1 M or Higher
NGREPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK
2CHECK AIR BAG SENSOR ASSY CENTER
(a)Connect the connector to the airbag sensor assy center.
(b)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(c)Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(d)Clear the stored DTCs in the memory (See page 05±1184).
(e)Turn the ignition switch to the LOCK position.
(f)Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(g)Check the DTCs (See page 05±1184). OK:
DTC B1185/57 is not output.
HINT:
Codes other than code B1185/57 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
