2005 TOYOTA AVENSIS code







H40939
Airbag
Sensor
Assy
Center
Curtain Shield
Squib RH
DLC3
TC
CG
DTC B1163/82
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1333
AVENSIS REPAIR MANUAL (RM1018E)
3 CHECK CURTAIN SHIELD AIR BAG ASSY RH(CURTAIN SHIELD SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Connect the connector to the curtain shield airbag assy RH.
(d) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B1163/82 is not output.
HINT:
Codes other than code B1163/82 may be output at this time, but
they are not related to this check.
NG REPLACE CURTAIN SHIELD AIR BAG ASSY RH
OK
4 USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING WIRE HARNESS




\b





H42130
Curtain Shield
Squib RH Airbag
Sensor
Assy
Center
DLC3
CG TC DTC B1162/81
Floor Wire No.2
Service Wire
ICR+
ICR±
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1329
AVENSIS REPAIR MANUAL (RM1018E)

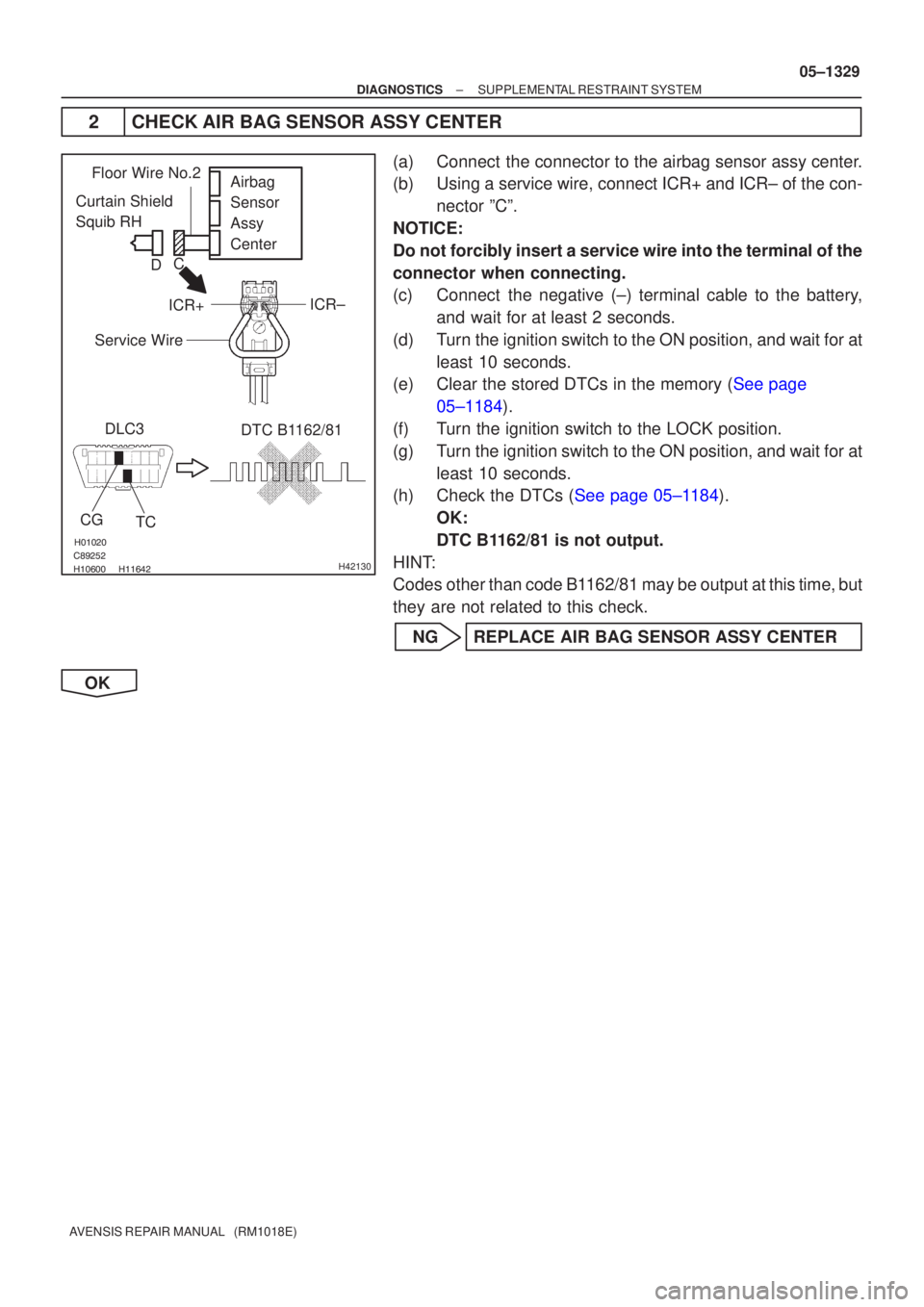

2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Using a service wire, connect ICR+ and ICR± of the con-
nector ºCº.
NOTICE:
Do not forcibly insert a service wire into the terminal of the
connector when connecting.
(c) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page
05±1184).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(h)Check the DTCs (See page 05±1184).
OK:
DTC B1162/81 is not output.
HINT:
Codes other than code B1162/81 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK







H40938
Airbag
Sensor
Assy
Center
Curtain Shield
Squib RH
DLC3
TC
CG
DTC B1162/81
C
D
05±1330
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

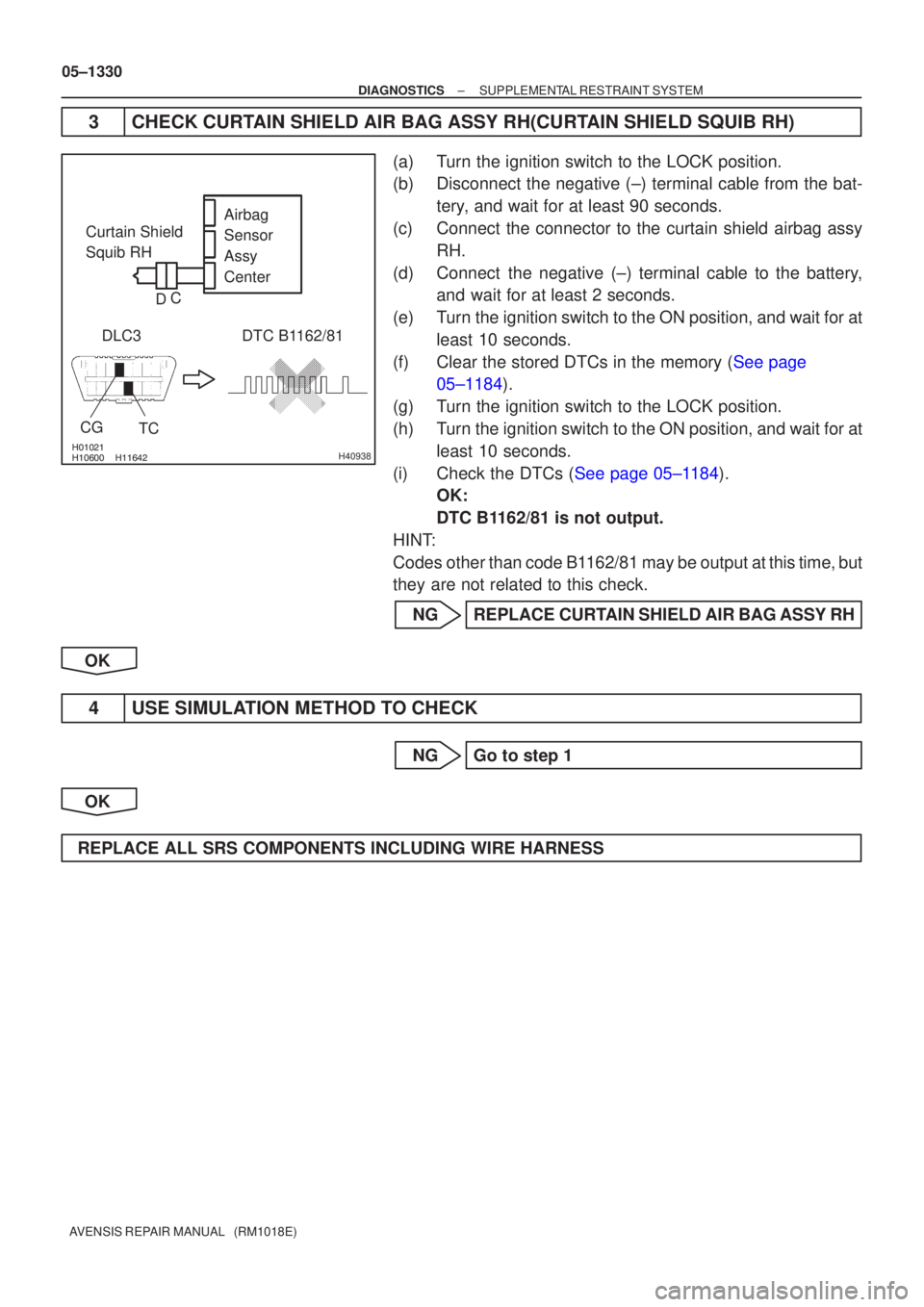

3 CHECK CURTAIN SHIELD AIR BAG ASSY RH(CURTAIN SHIELD SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c) Connect the connector to the curtain shield airbag assy RH.
(d) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B1162/81 is not output.
HINT:
Codes other than code B1162/81 may be output at this time, but
they are not related to this check.
NG REPLACE CURTAIN SHIELD AIR BAG ASSY RH
OK
4 USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING WIRE HARNESS

0549J±12
± DIAGNOSTICSAUDIO SYSTEM
05±1405
AVENSIS REPAIR MANUAL (RM1018E)

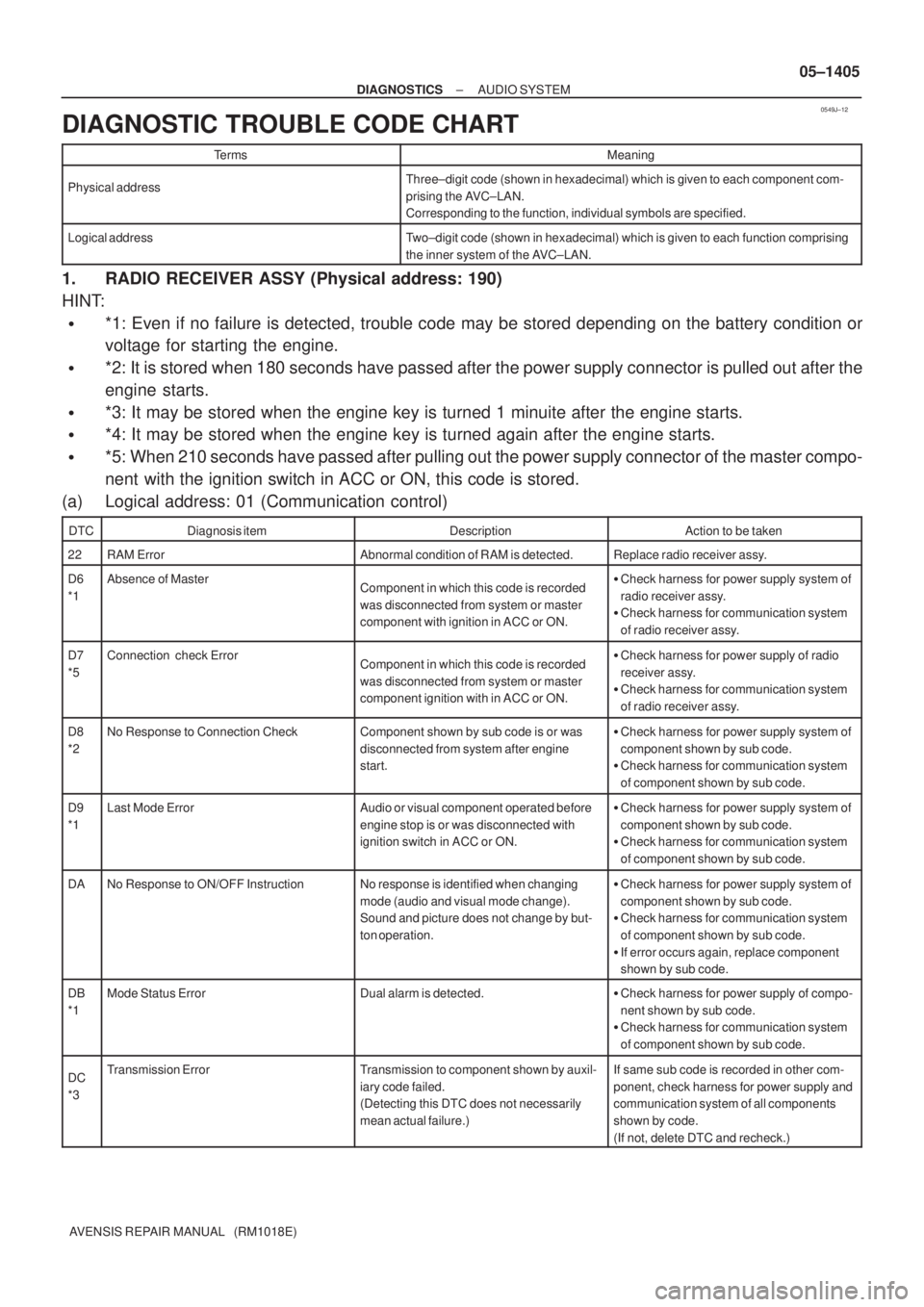

DIAGNOSTIC TROUBLE CODE CHART
TermsMeaning
Physical addressThree±digit code (shown in hexadecimal) which is given to each component com-
prising the AVC±LAN.
Corresponding to the function, individual symbols are specified.
Logical addressTwo±digit code (shown in hexadecimal) which is given to each function comprising
the inner system of the AVC±LAN.
1. RADIO RECEIVER ASSY (Physical address: 190)
HINT:

*1: Even if no failure is detected, trouble code may be stored depending on the battery condition or
voltage for starting the engine.

*2: It is stored when 180 seconds have passed after the power supply connector is pulled out after the
engine starts.

*3: It may be stored when the engine key is turned 1 minuite after the engine starts.

*4: It may be stored when the engine key is turned again after the engine starts.

*5: When 210 seconds have passed after pulling out the power supply connector of the master compo-
nent with the ignition switch in ACC or ON, this code is stored.
(a) Logical address: 01 (Communication control)
DTCDiagnosis itemDescriptionAction to be taken
22RAM ErrorAbnormal condition of RAM is detected.Replace radio receiver assy.
D6
*1Absence of MasterComponent in which this code is recorded
was disconnected from system or master
component with ignition in ACC or ON.
Check harness for power supply system of
radio receiver assy.

Check harness for communication system
of radio receiver assy.
D7
*5Connection check ErrorComponent in which this code is recorded
was disconnected from system or master
component ignition with in ACC or ON.
Check harness for power supply of radio
receiver assy.

Check harness for communication system
of radio receiver assy.
D8
*2No Response to Connection CheckComponent shown by sub code is or was
disconnected from system after engine
start.
Check harness for power supply system of
component shown by sub code.

Check harness for communication system
of component shown by sub code.
D9
*1Last Mode ErrorAudio or visual component operated before
engine stop is or was disconnected with
ignition switch in ACC or ON.
Check harness for power supply system of
component shown by sub code.

Check harness for communication system
of component shown by sub code.
DANo Response to ON/OFF InstructionNo response is identified when changing
mode (audio and visual mode change).
Sound and picture does not change by but-
ton operation.
Check harness for power supply system of
component shown by sub code.

Check harness for communication system
of component shown by sub code.

If error occurs again, replace component
shown by sub code.
DB
*1Mode Status ErrorDual alarm is detected.
Check harness for power supply of compo-
nent shown by sub code.

Check harness for communication system
of component shown by sub code.
DC
*3Transmission ErrorTransmission to component shown by auxil-
iary code failed.
(Detecting this DTC does not necessarily
mean actual failure.)If same sub code is recorded in other com-
ponent, check harness for power supply and
communication system of all components
shown by code.
(If not, delete DTC and recheck.)

05±1406
± DIAGNOSTICSAUDIO SYSTEM

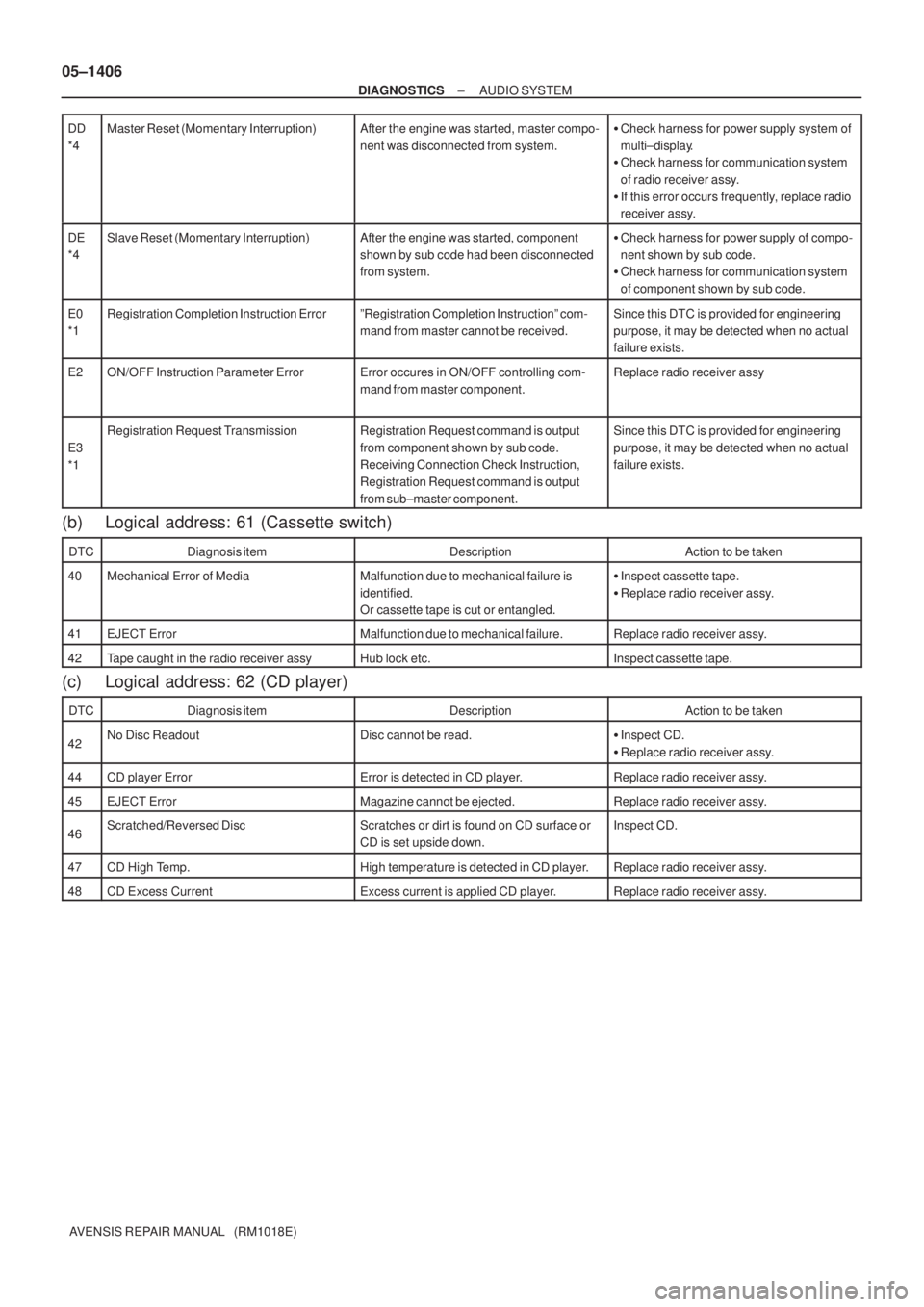

AVENSIS REPAIR MANUAL (RM1018E) DD
*4
Master Reset (Momentary Interruption)After the engine was started, master compo-
nent was disconnected from system.
Check harness for power supply system of
multi±display.

Check harness for communication system
of radio receiver assy.

If this error occurs frequently, replace radio
receiver assy.
DE
*4Slave Reset (Momentary Interruption)After the engine was started, component
shown by sub code had been disconnected
from system.
Check harness for power supply of compo-
nent shown by sub code.

Check harness for communication system
of component shown by sub code.
E0
*1Registration Completion Instruction ErrorºRegistration Completion Instructionº com-
mand from master cannot be received.Since this DTC is provided for engineering
purpose, it may be detected when no actual
failure exists.
E2ON/OFF Instruction Parameter ErrorError occures in ON/OFF controlling com-
mand from master component.Replace radio receiver assy
E3
*1
Registration Request TransmissionRegistration Request command is output
from component shown by sub code.
Receiving Connection Check Instruction,
Registration Request command is output
from sub±master component.Since this DTC is provided for engineering
purpose, it may be detected when no actual
failure exists.
(b) Logical address: 61 (Cassette switch)
DTCDiagnosis itemDescriptionAction to be taken
40Mechanical Error of Media Malfunction due to mechanical failure is
identified.
Or cassette tape is cut or entangled.
Inspect cassette tape.

Replace radio receiver assy.
41EJECT ErrorMalfunction due to mechanical failure.Replace radio receiver assy.
42Tape caught in the radio receiver assyHub lock etc.Inspect cassette tape.
(c) Logical address: 62 (CD player)
DTCDiagnosis itemDescriptionAction to be taken
42No Disc ReadoutDisc cannot be read.
Inspect CD.

Replace radio receiver assy.
44CD player ErrorError is detected in CD player.Replace radio receiver assy.
45EJECT ErrorMagazine cannot be ejected.Replace radio receiver assy.
46Scratched/Reversed DiscScratches or dirt is found on CD surface or
CD is set upside down.Inspect CD.
47CD High Temp.High temperature is detected in CD player.Replace radio receiver assy.
48CD Excess CurrentExcess current is applied CD player.Replace radio receiver assy.

0549I±12
I35610
1
6
DISC
SEEK UPSEEK DOWN
± DIAGNOSTICSAUDIO SYSTEM
05±1399
AVENSIS REPAIR MANUAL (RM1018E)

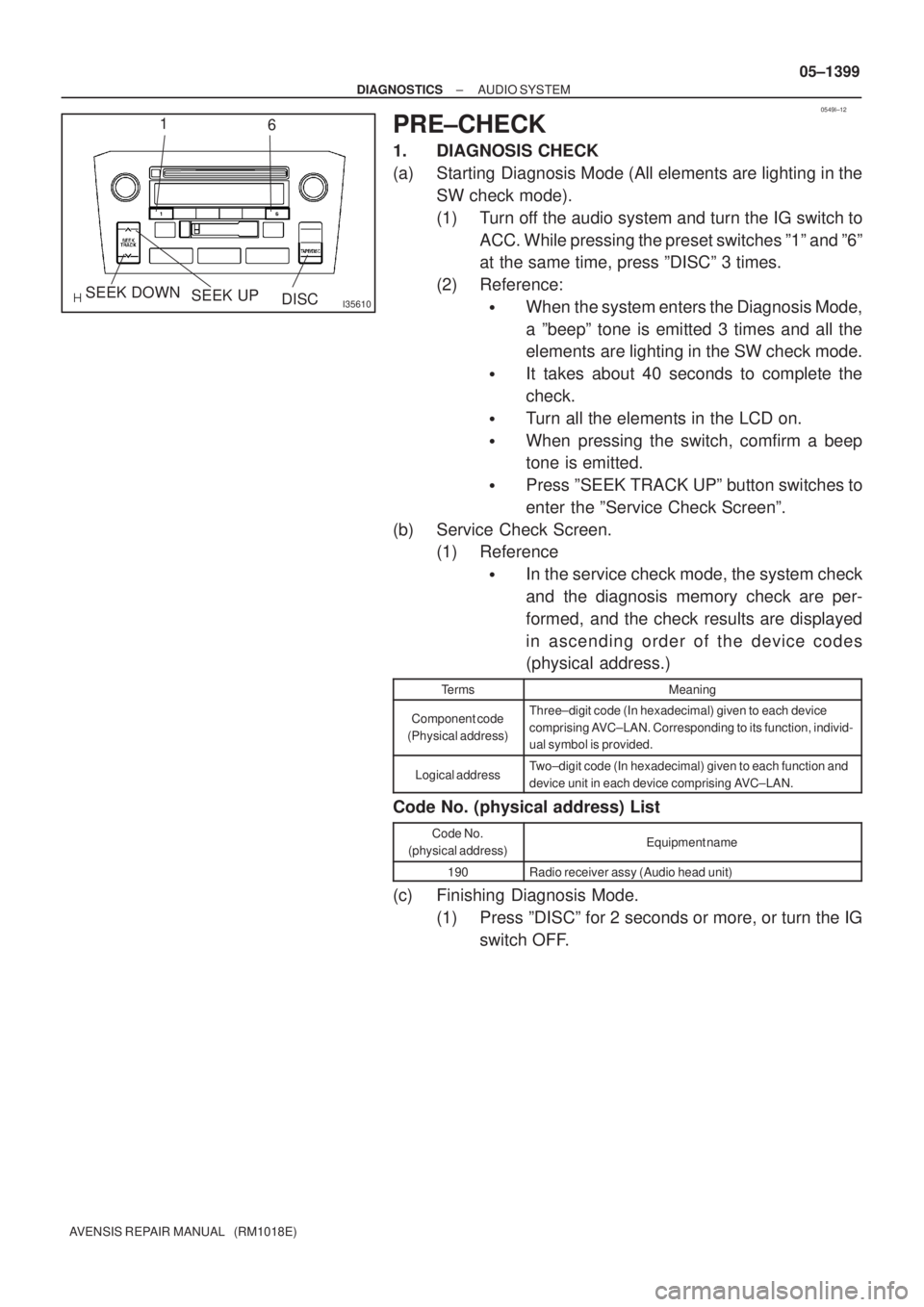

PRE±CHECK
1. DIAGNOSIS CHECK
(a) Starting Diagnosis Mode (All elements are lighting in the
SW check mode).
(1) Turn off the audio system and turn the IG switch to
ACC. While pressing the preset switches º1º and º6º
at the same time, press ºDISCº 3 times.
(2) Reference:

When the system enters the Diagnosis Mode,
a ºbeepº tone is emitted 3 times and all the
elements are lighting in the SW check mode.

It takes about 40 seconds to complete the
check.

Turn all the elements in the LCD on.

When pressing the switch, comfirm a beep
tone is emitted.

Press ºSEEK TRACK UPº button switches to
enter the ºService Check Screenº.
(b) Service Check Screen.
(1) Reference

In the service check mode, the system check
and the diagnosis memory check are per-
formed, and the check results are displayed
in ascending order of the device codes
(physical address.)
TermsMeaning
Component code
(Physical address)Three±digit code (In hexadecimal) given to each device
comprising AVC±LAN. Corresponding to its function, individ-
ual symbol is provided.
Logical addressTwo±digit code (In hexadecimal) given to each function and
device unit in each device comprising AVC±LAN.
Code No. (physical address) List
Code No.
(physical address)Equipment name
190Radio receiver assy (Audio head unit)
(c) Finishing Diagnosis Mode.
(1) Press ºDISCº for 2 seconds or more, or turn the IG
switch OFF.

05±1400
± DIAGNOSTICSAUDIO SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

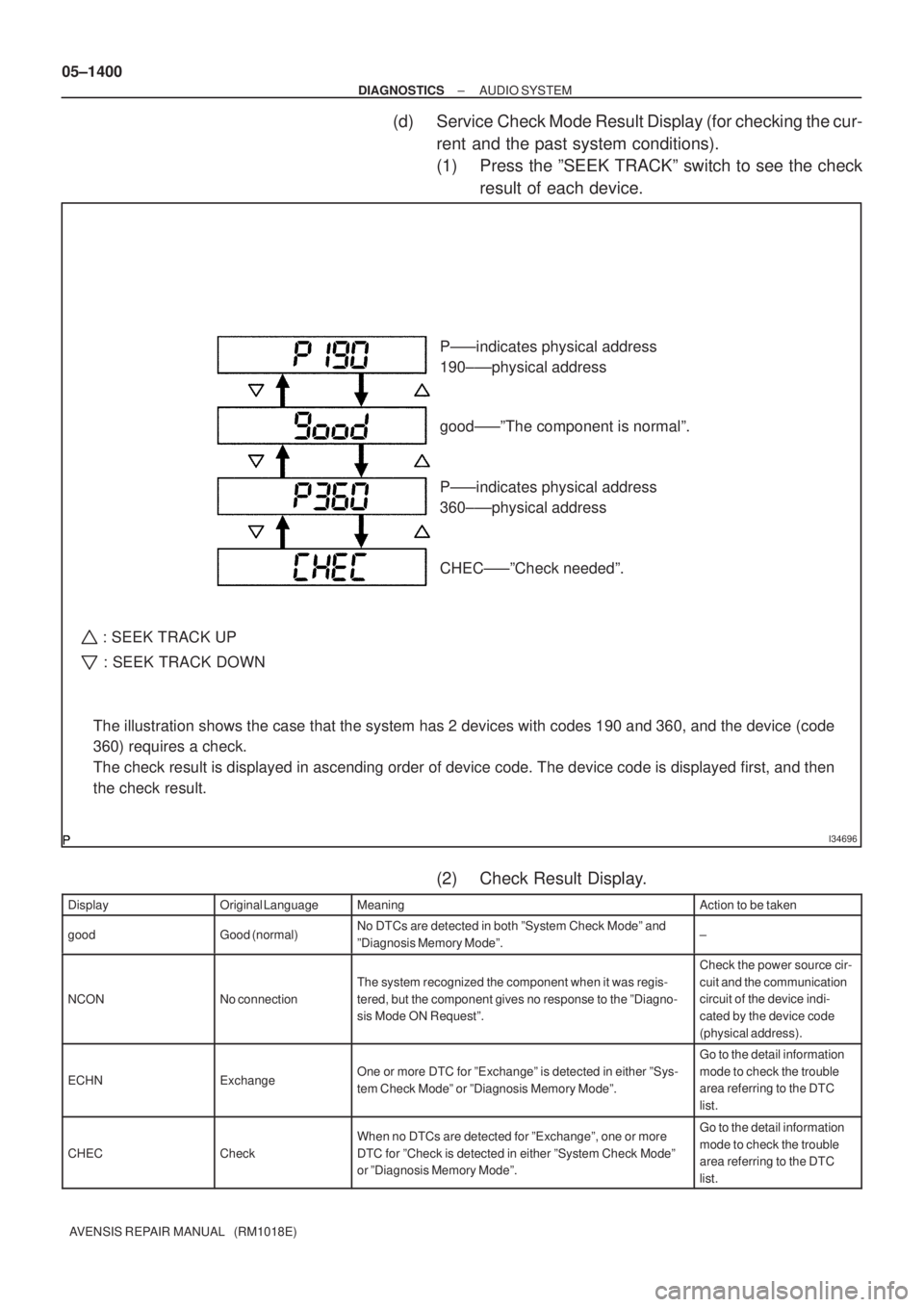

(d) Service Check Mode Result Display (for checking the cur-
rent and the past system conditions).
(1) Press the ºSEEK TRACKº switch to see the check
result of each device.
(2) Check Result Display.
DisplayOriginal LanguageMeaningAction to be taken
goodGood (normal)No DTCs are detected in both ºSystem Check Modeº and
ºDiagnosis Memory Modeº.±
NCONNo connection
The system recognized the component when it was regis-
tered, but the component gives no response to the ºDiagno-
sis Mode ON Requestº.
Check the power source cir-
cuit and the communication
circuit of the device indi-
cated by the device code
(physical address).
ECHNExchangeOne or more DTC for ºExchangeº is detected in either ºSys-
tem Check Modeº or ºDiagnosis Memory Modeº.
Go to the detail information
mode to check the trouble
area referring to the DTC
list.
CHECCheck
When no DTCs are detected for ºExchangeº, one or more
DTC for ºCheck is detected in either ºSystem Check Modeº
or ºDiagnosis Memory Modeº.Go to the detail information
mode to check the trouble
area referring to the DTC
list.
I34696
The illustration shows the case that the system has 2 devices with codes 190 and 360, and the device (code
360) requires a check.
The check result is displayed in ascending order of device code. The device code is displayed first, and then
the check result.P±±±indicates physical address
190±±±physical address
good±±±ºThe component is normalº.
P±±±indicates physical address
360±±±physical address
CHEC±±±ºCheck neededº.
: SEEK TRACK UP
: SEEK TRACK DOWN

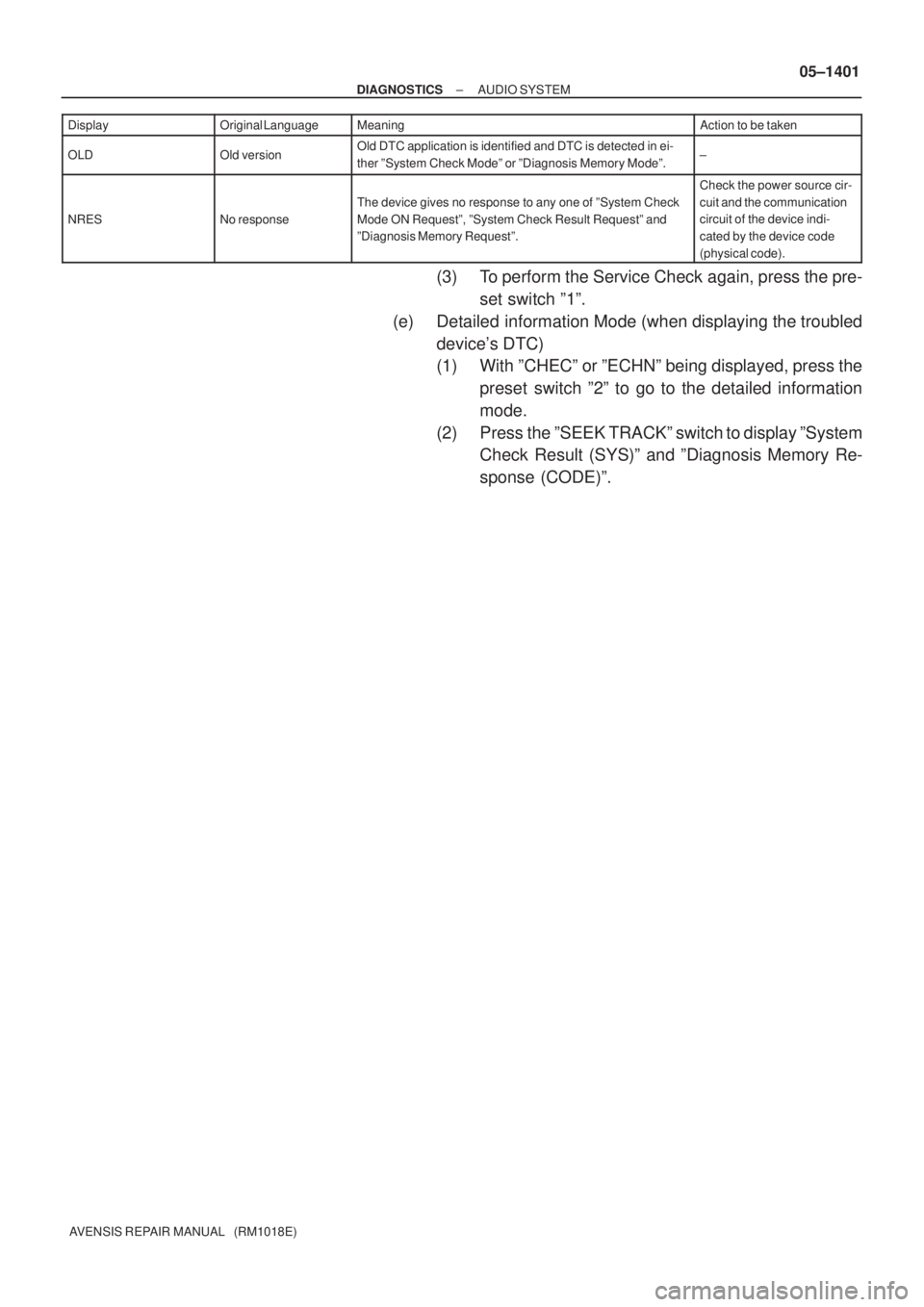

± DIAGNOSTICSAUDIO SYSTEM
05±1401
AVENSIS REPAIR MANUAL (RM1018E) DisplayAction to be taken Meaning Original Language
OLDOld versionOld DTC application is identified and DTC is detected in ei-
ther ºSystem Check Modeº or ºDiagnosis Memory Modeº.±
NRESNo response
The device gives no response to any one of ºSystem Check
Mode ON Requestº, ºSystem Check Result Requestº and
ºDiagnosis Memory Requestº.
Check the power source cir-
cuit and the communication
circuit of the device indi-
cated by the device code
(physical code).
(3) To perform the Service Check again, press the pre-
set switch º1º.
(e) Detailed information Mode (when displaying the troubled
device's DTC)
(1) With ºCHECº or ºECHNº being displayed, press the
preset switch º2º to go to the detailed information
mode.
(2) Press the ºSEEK TRACKº switch to display ºSystem
Check Result (SYS)º and ºDiagnosis Memory Re-
sponse (CODE)º.
