2005 TOYOTA AVENSIS code







\bH42248
Airbag
Sensor
Assy
Center
P2+
P2±
DTC B1188/56
DLC3
TC
CG
P Squib
(2nd step)Instrument Panel Wire
SST
C
D
05±1372
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

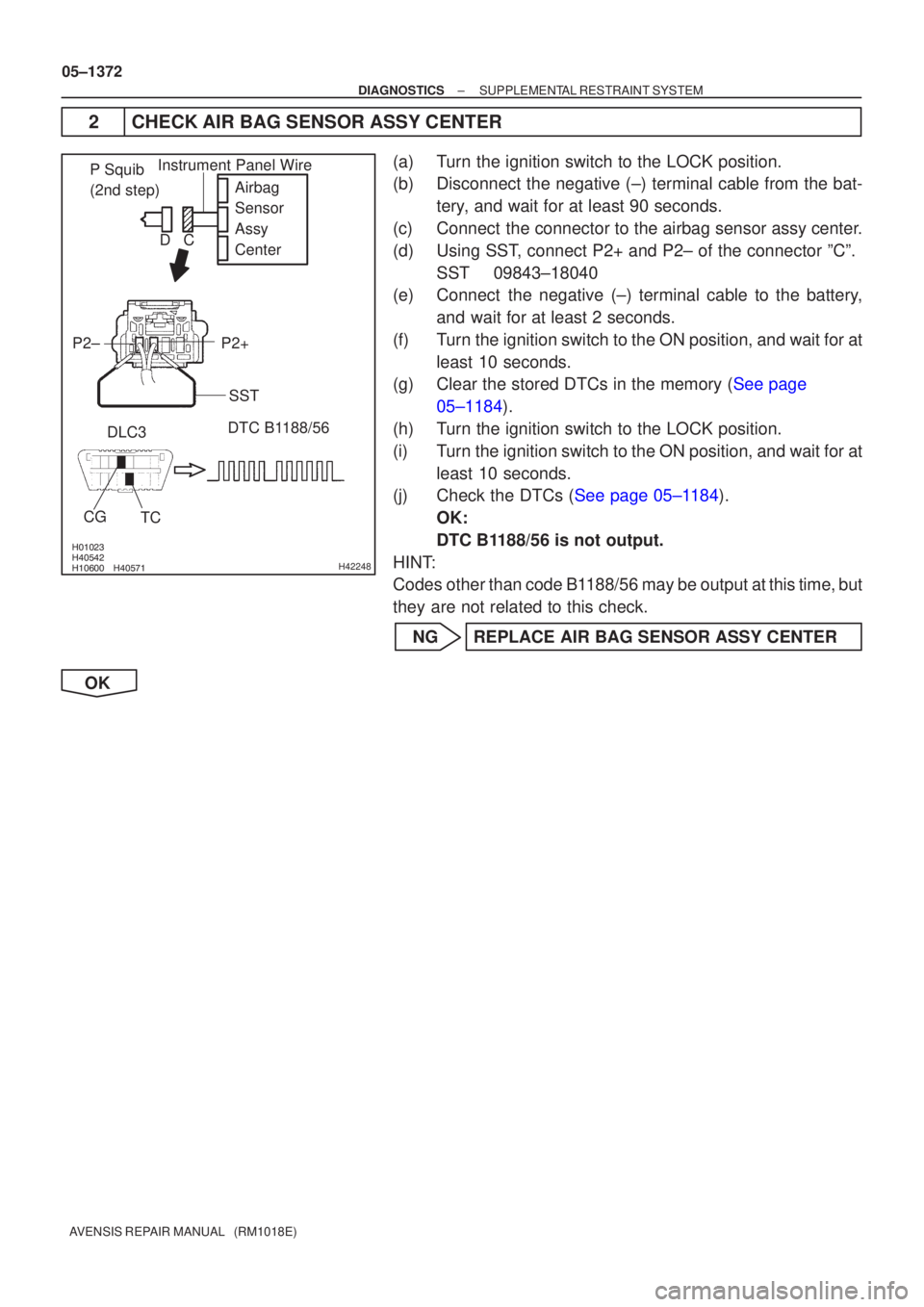

2CHECK AIR BAG SENSOR ASSY CENTER
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c)Connect the connector to the airbag sensor assy center.
(d)Using SST, connect P2+ and P2± of the connector ºCº. SST09843±18040
(e)Connect the negative (±) terminal cable to the battery,
and wait for at least 2 seconds.
(f)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(g)Clear the stored DTCs in the memory (See page
05±1184).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(j)Check the DTCs (See page 05±1184).
OK:
DTC B1188/56 is not output.
HINT:
Codes other than code B1188/56 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK






 \bH42152
DTC B1188/56
DLC3 Airbag
Sensor
Assy
Center
TC
CG
P Squib
(2nd step)
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1373
AVENSIS REPAIR MANUAL (RM1018E)

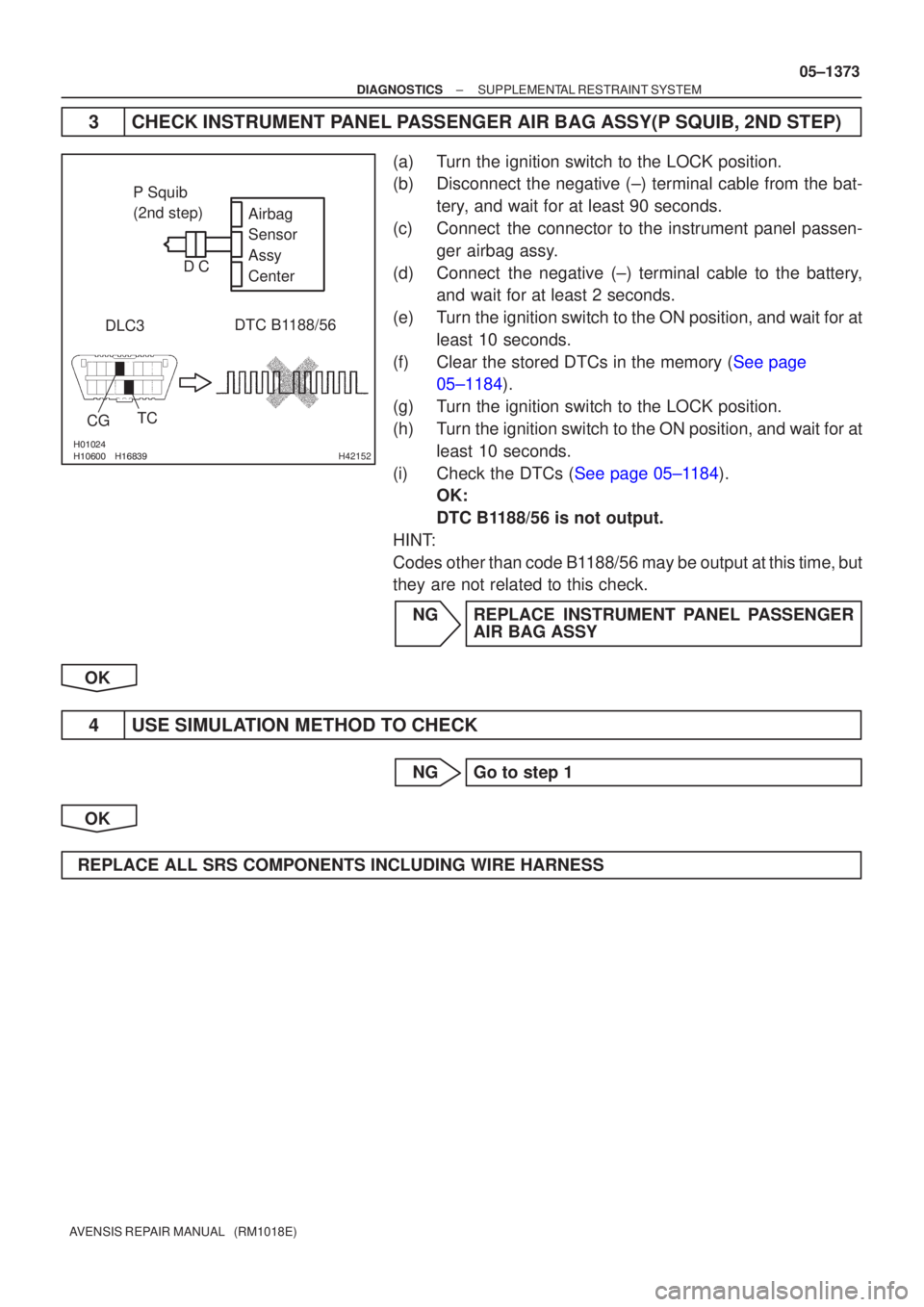

3CHECK INSTRUMENT PANEL PASSENGER AIR BAG ASSY(P SQUIB, 2ND STEP)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Connect the connector to the instrument panel passen- ger airbag assy.
(d)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B1188/56 is not output.
HINT:
Codes other than code B1188/56 may be output at this time, but
they are not related to this check.
NG REPLACE INSTRUMENT PANEL PASSENGER AIR BAG ASSY
OK
4 USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING WIRE HARNESS

05C3C±01
NAVIGATION SYSTEM Check SheetInspector 's name:
Customer 's Name
Date of VehicleVIN
Production Date
Licence No.
Odometer Reading / /km
Mile
Frequency Problem Occurs
/ /

Always
Intermittent ( Times a day) Brought in

Cursor movement is defective.
Date Problem First Occurred
Problem Symptom

Cursor does not move.

GPS mark does not appear.

Map is not displayed.

Screen is dark.

Screen is white.

Color is not uniform.

Screen is out of order.

Cannot operate with navigation controller assy
Others ( )

Others ( )

Others ( ) Navigation
malfunction
Display
malfunction
Control
Switch
malfunction
Navigation ECU
Radio Receiver Assy
DTC Check
Parts name 1st time malfunction code. 2nd time malfunction code.
Multi±display (CRT display) Display
Body ECU
± DIAGNOSTICSNAVIGATION SYSTEM
05±1437
AVENSIS REPAIR MANUAL (RM1018E)
CUSTOMER PROBLEM ANALYSIS CHECK

05C3B±01
±
DIAGNOSTICS NAVIGATION SYSTEM
05±1435
AVENSIS REPAIR MANUAL (RM1018E)
NAVIGATION SYSTEM
HOW TO PROCEED WITH TROUBLESHOOTING
1Vehicle Brought to Workshop
2Customer Problem Analysis (See page 05±1437)
3 Problem Symptom Confirmation
Symptom does not occur (Go to step 4)
Symptom occurs (Go to step 5)
4Symptom Simulation (See page 01±32)
5DTC Check (See page 05±1438)
Normal code (Go to step 7)
Malfunction code (Go to step 6)
6DTC Chart (See page 05±1453)
Go to step 8
7Problem Symptoms Table (See page 05±1464)
8 Circuit Inspection and Part Inspection
9 Indemnification of Problem

05C3E±01
± DIAGNOSTICSNAVIGATION SYSTEM
05±1453
AVENSIS REPAIR MANUAL (RM1018E)
DIAGNOSTIC TROUBLE CODE CHART
TermsMeaning
Physical addressThree±digit code (shown in hexadecimal) which is given to each component com-
prising the AVC±LAN.
Corresponding to the function, individual symbols are specified.
Logical addressTwo±digit code (shown in hexadecimal) which is given to each function comprising
the inner system of the AVC±LAN.
1. RADIO RECEIVER ASSY (Physical address: 190)
HINT:

*1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage
for starting an engine.

*2: This code is stored in 180 sec. after the power supply connector is pulled out after engine start.

*3: This code may be stored when the ignition switch is turned again after engine start.

*4: This code may be stored when the ignition switch is turned again in 1 min. after engine start.
(a) Logical address: 01 (Communication control)
DTCDiagnosis itemConditionCountermeasure and inspected parts
D5
*1Registered component disconnectedComponent shown by sub±code is or was
disconnected from system with ignition
switch ACC or ON.
Communication with component shown by
sub±code is not ensured when engine is
started.
Check harness for power supply of compo-
nent shown by sub±code.

Check harness for communication system
of component shown by sub±code.
D6
*1Absence of MasterComponent in which this code is recorded
has been disconnected from system with
ignition switch ACC or ON. Or, when this
code was recorded, multi±display (CRT dis-
play) display was disconnected.
Check harness for power supply system of
multi±display (CRT display) display.

Check harness for communication system
of multi±display (CRT display) display.
D8
*2No response to connection checkComponent shown by sub±code is or was
disconnected from system after engine is
started.
Check harness for power supply of compo-
nent shown by sub±code.

Check harness for communication system
of component shown by sub±code.
D9
*1Last Mode ErrorComponent operated (sound and/or image
was provided) before engine stop is or was
disconnected with ignition switch ACC or
ON.
Check harness for power supply of compo-
nent shown by sub±code.

Check harness for communication system
of component shown by sub±code.
DANo Response to ON/OFF InstructionNo response is identified when changing
mode (audio and visual mode change).
Detected when sound and picture does not
change by button operation
Check harness for power supply system of
component shown by sub±code.

Check harness for communication system
of component shown by sub±code.

If error occurs again, replace component
shown by auxiliary code
DB
*1Mode Status ErrorDual alarm is detected.
Check harness for power supply system of
component shown by sub±code.

Check harness for communication system
of component shown by sub±code.
DC
*4Transmission ErrorTransmission to component shown by sub±
code has been failed.
(This code does not necessarily mean actu-
al failure.)If same sub±code is recorded in other com-
ponent(s), check harness for power supply
and communication system of all compo-
nents shown by code.
DD
*4Master Reset (Momentary Interruption)After engine is started, multi±display (CRT
display) display was disconnected from sys-
tem.
Check harness for power supply system of
multi±display (CRT display) display.

Check harness for communication system
of multi±display (CRT display) display.

If this error occurs frequently, replace mul-
ti±display (CRT display) display.

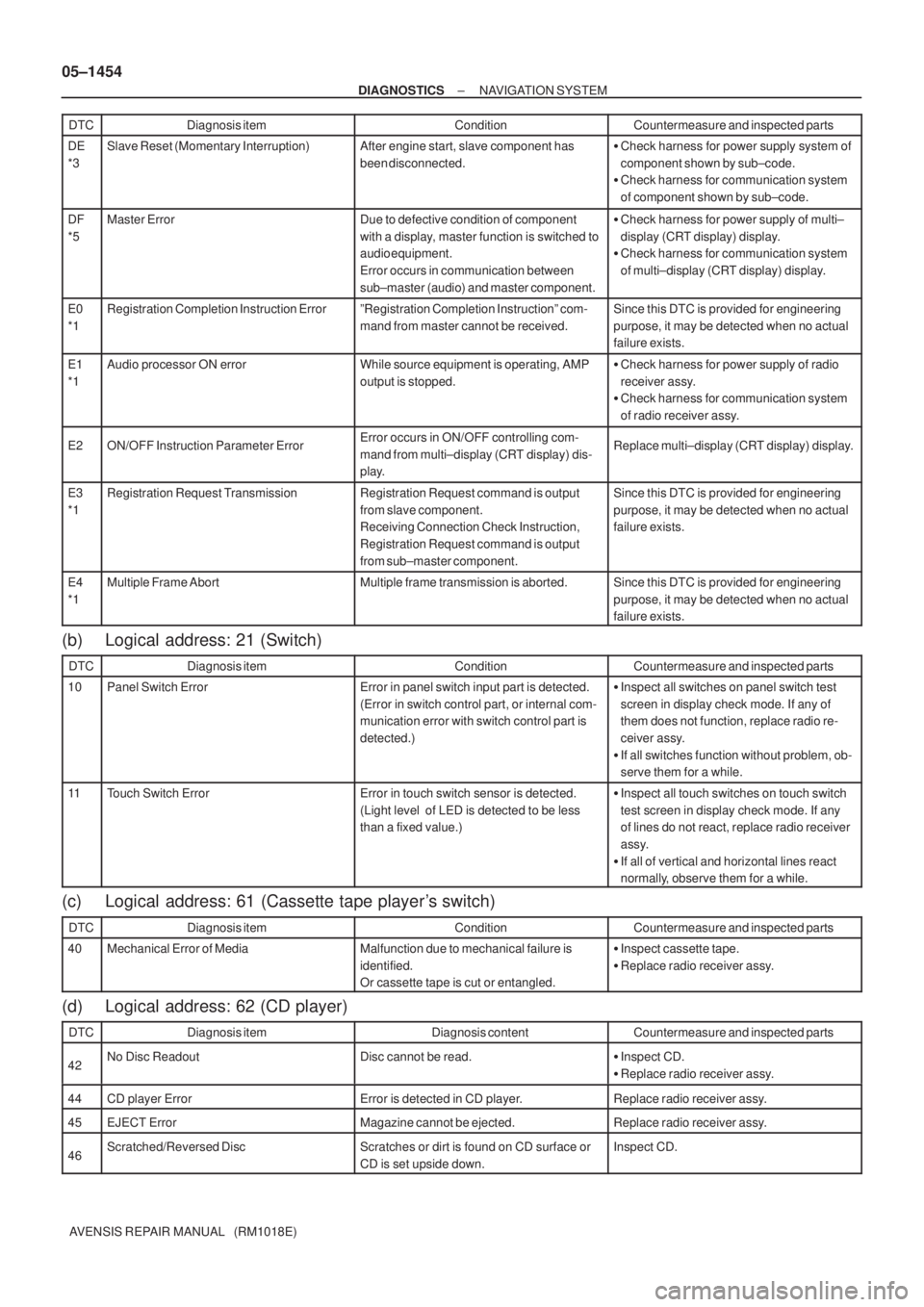

05±1454
± DIAGNOSTICSNAVIGATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E) DTCCountermeasure and inspected parts Condition Diagnosis item
DE
*3Slave Reset (Momentary Interruption)After engine start, slave component has
been disconnected.
Check harness for power supply system of
component shown by sub±code.

Check harness for communication system
of component shown by sub±code.
DF
*5Master ErrorDue to defective condition of component
with a display, master function is switched to
audio equipment.
Error occurs in communication between
sub±master (audio) and master component.
Check harness for power supply of multi±
display (CRT display) display.

Check harness for communication system
of multi±display (CRT display) display.
E0
*1Registration Completion Instruction ErrorºRegistration Completion Instructionº com-
mand from master cannot be received.Since this DTC is provided for engineering
purpose, it may be detected when no actual
failure exists.
E1
*1Audio processor ON errorWhile source equipment is operating, AMP
output is stopped.
Check harness for power supply of radio
receiver assy.

Check harness for communication system
of radio receiver assy.
E2ON/OFF Instruction Parameter ErrorError occurs in ON/OFF controlling com-
mand from multi±display (CRT display) dis-
play.Replace multi±display (CRT display) display.
E3
*1Registration Request TransmissionRegistration Request command is output
from slave component.
Receiving Connection Check Instruction,
Registration Request command is output
from sub±master component.Since this DTC is provided for engineering
purpose, it may be detected when no actual
failure exists.
E4
*1Multiple Frame AbortMultiple frame transmission is aborted.Since this DTC is provided for engineering
purpose, it may be detected when no actual
failure exists.
(b) Logical address: 21 (Switch)
DTCDiagnosis itemConditionCountermeasure and inspected parts
10Panel Switch ErrorError in panel switch input part is detected.
(Error in switch control part, or internal com-
munication error with switch control part is
detected.)
Inspect all switches on panel switch test
screen in display check mode. If any of
them does not function, replace radio re-
ceiver assy.

If all switches function without problem, ob-
serve them for a while.
11Touch Switch ErrorError in touch switch sensor is detected.
(Light level of LED is detected to be less
than a fixed value.)
Inspect all touch switches on touch switch
test screen in display check mode. If any
of lines do not react, replace radio receiver
assy.

If all of vertical and horizontal lines react
normally, observe them for a while.
(c) Logical address: 61 (Cassette tape player's switch)
DTCDiagnosis itemConditionCountermeasure and inspected parts
40Mechanical Error of MediaMalfunction due to mechanical failure is
identified.
Or cassette tape is cut or entangled.
Inspect cassette tape.

Replace radio receiver assy.
(d) Logical address: 62 (CD player)
DTCDiagnosis itemDiagnosis contentCountermeasure and inspected parts
42No Disc ReadoutDisc cannot be read.
Inspect CD.

Replace radio receiver assy.
44CD player ErrorError is detected in CD player.Replace radio receiver assy.
45EJECT ErrorMagazine cannot be ejected.Replace radio receiver assy.
46Scratched/Reversed DiscScratches or dirt is found on CD surface or
CD is set upside down.Inspect CD.

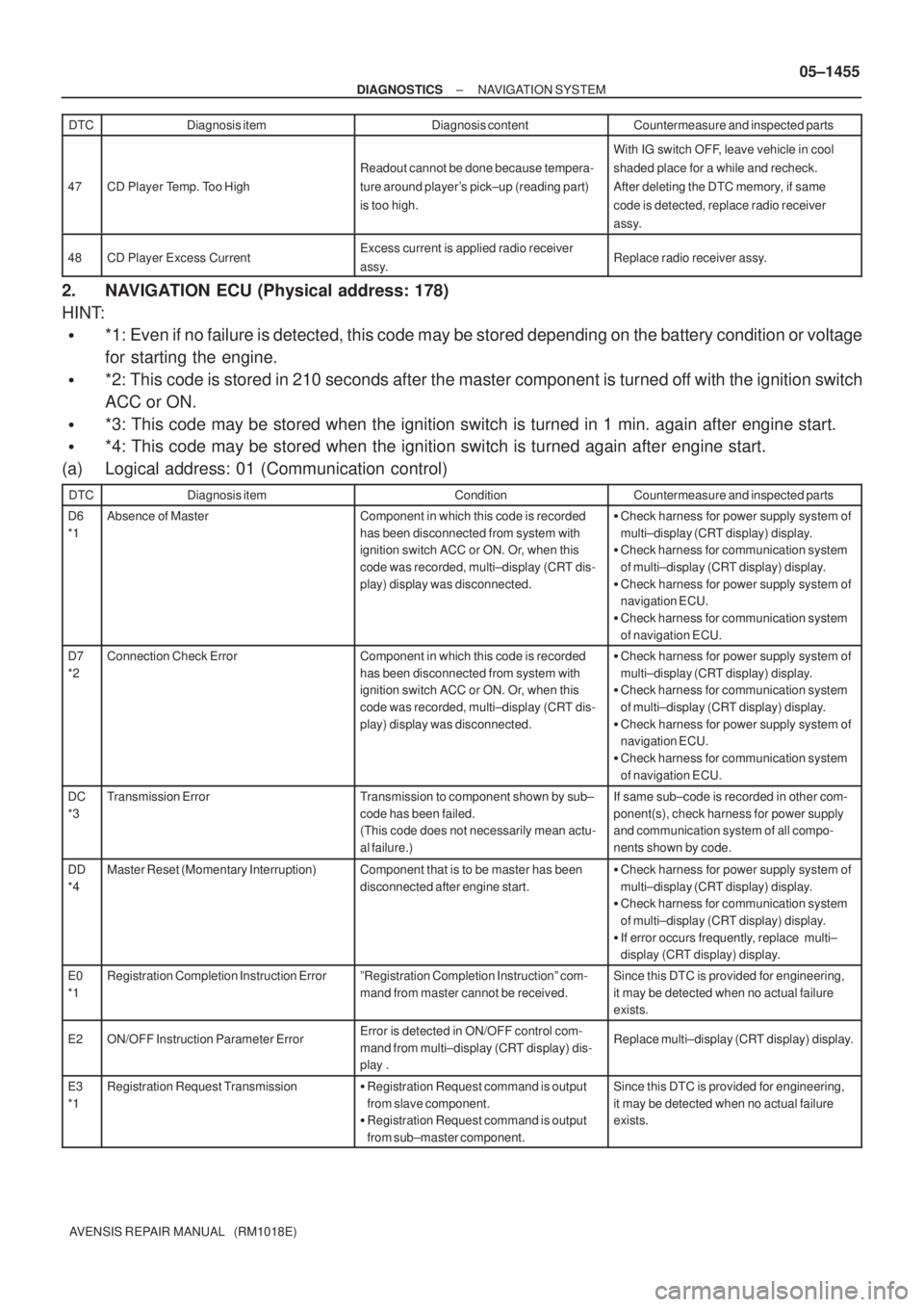

± DIAGNOSTICSNAVIGATION SYSTEM
05±1455
AVENSIS REPAIR MANUAL (RM1018E) DTCCountermeasure and inspected parts Diagnosis content Diagnosis item
47CD Player Temp. Too High
Readout cannot be done because tempera-
ture around player's pick±up (reading part)
is too high.
With IG switch OFF, leave vehicle in cool
shaded place for a while and recheck.
After deleting the DTC memory, if same
code is detected, replace radio receiver
assy.
48CD Player Excess CurrentExcess current is applied radio receiver
assy.Replace radio receiver assy.
2. NAVIGATION ECU (Physical address: 178)
HINT:

*1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage
for starting the engine.

*2: This code is stored in 210 seconds after the master component is turned off with the ignition switch
ACC or ON.

*3: This code may be stored when the ignition switch is turned in 1 min. again after engine start.

*4: This code may be stored when the ignition switch is turned again after engine start.
(a) Logical address: 01 (Communication control)
DTCDiagnosis itemConditionCountermeasure and inspected parts
D6
*1Absence of MasterComponent in which this code is recorded
has been disconnected from system with
ignition switch ACC or ON. Or, when this
code was recorded, multi±display (CRT dis-
play) display was disconnected.
Check harness for power supply system of
multi±display (CRT display) display.

Check harness for communication system
of multi±display (CRT display) display.

Check harness for power supply system of
navigation ECU.

Check harness for communication system
of navigation ECU.
D7
*2Connection Check ErrorComponent in which this code is recorded
has been disconnected from system with
ignition switch ACC or ON. Or, when this
code was recorded, multi±display (CRT dis-
play) display was disconnected.
Check harness for power supply system of
multi±display (CRT display) display.

Check harness for communication system
of multi±display (CRT display) display.

Check harness for power supply system of
navigation ECU.

Check harness for communication system
of navigation ECU.
DC
*3Transmission ErrorTransmission to component shown by sub±
code has been failed.
(This code does not necessarily mean actu-
al failure.)If same sub±code is recorded in other com-
ponent(s), check harness for power supply
and communication system of all compo-
nents shown by code.
DD
*4Master Reset (Momentary Interruption)Component that is to be master has been
disconnected after engine start.
Check harness for power supply system of
multi±display (CRT display) display.

Check harness for communication system
of multi±display (CRT display) display.

If error occurs frequently, replace multi±
display (CRT display) display.
E0
*1Registration Completion Instruction ErrorºRegistration Completion Instructionº com-
mand from master cannot be received.Since this DTC is provided for engineering,
it may be detected when no actual failure
exists.
E2ON/OFF Instruction Parameter ErrorError is detected in ON/OFF control com-
mand from multi±display (CRT display) dis-
play .Replace multi±display (CRT display) display.
E3
*1Registration Request Transmission
Registration Request command is output
from slave component.

Registration Request command is output
from sub±master component.Since this DTC is provided for engineering,
it may be detected when no actual failure
exists.

05±1456
± DIAGNOSTICSNAVIGATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E) DTCCountermeasure and inspected parts Condition Diagnosis item
DF
*4Master ErrorDue to defective condition of component
with a display, master function is switched to
audio equipment.
Error occurs in communication between
sub±master (audio) and master component.
Check harness for power supply of radio
receiver assy.

Check harness for communication system
of radio receiver assy.
E4
*1Multiple Frame AbortMultiple frame transmission is aborted.Since this DTC is provided for engineering
purpose, it may be detected when no actual
failure exists.
(b) Logical address: 58 (Navigation ECU)
DTCDiagnosis itemConditionCountermeasure and inspected parts
10Gyro ErrorError in gyro sensor is detected.
(Abnormal value in voltage output from sen-
sor is detected for more than specified time.)Replace navigation ECU.
42Map Disc ErrorData cannot be read for a certain time due
to scratches or dirt on disc surface or inser-
tion of wrong disc.Inspect disc and replace as necessary.
(Visually check disc surface and wipe it with
a soft cloth.)
43Vehicle Signal ErrorInput error of vehicle signal is detected.
(When no vehicle signal has been input for a
certain time.)
Inspect wire harness.

If wire harness is normal, replace naviga-
tion ECU.
(c) Logical address: 58 (GPS receiver)
DTCDiagnosis itemConditionCountermeasure and inspected parts
11GPS Receiver ErrorOperation error of GPS receiver is detected.At an outdoor site with a clear view, operate
the system to display GPS data. If GPS
mark is not properly displayed after 15 min.
or more, replace navigation ECU.
40GPS Antenna ErrorOpen condition of GPS antenna is detected.
(Open circuit, connection failure of connec-
tors, etc.)Inspect antenna and replace as necessary.
41Power Supply Error of GPS AntennaAbnormal voltage of GPS antenna cable or
short circuit is detected.
Inspect GPS antenna and replace as nec-
essary. (When no continuity is identified
between connector's core and sealed part,
GPS antenna is normal.)

If GPS antenna is normal, replace naviga-
tion ECU.
3. MULTI±DISPLAY (CRT DISPLAY) DISPLAY (Physical address: 110)
HINT:

*1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for
starting an engine.

*2: It is stored in 180 sec. after the power supply connector is pulled out after engine start.

*3: It may be stored when the ignition switch is turned again after engine start.

*4: It may be stored when the ignition switch is turned in 1 min. again after engine start.
(a) Logical address: 01 (Communication control)
DTCDiagnosis itemDiagnosis contentCountermeasure and inspected parts
21ROM ErrorAbnormal condition of ROM is detected.Replace multi±display (CRT display) display.
22RAM ErrorAbnormal condition of RAM is detected.Replace multi±display (CRT display) display.
D5
*1Registered component disconnectedComponent shown by auxiliary code is or
was disconnected from system with ignition
switch ACC or ON.
Communication with component shown by
auxiliary code is not ensured when engine is
started.
Check harness for power supply of compo-
nent shown by auxiliary code.

Check harness for communication system
of component shown by auxiliary code.
D8
*2No response to connection checkComponent shown by auxiliary code is or
was disconnected from system after engine
start.
Check harness for power supply of compo-
nent shown by sub± code.

Check harness for communication system
of component shown by auxiliary code.
