\b H42468
DLC3
CGTC
Airbag
Sensor
Assy
Center
Seat
Position
Airbag
Sensor
DTC B1153/25
05±1308
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

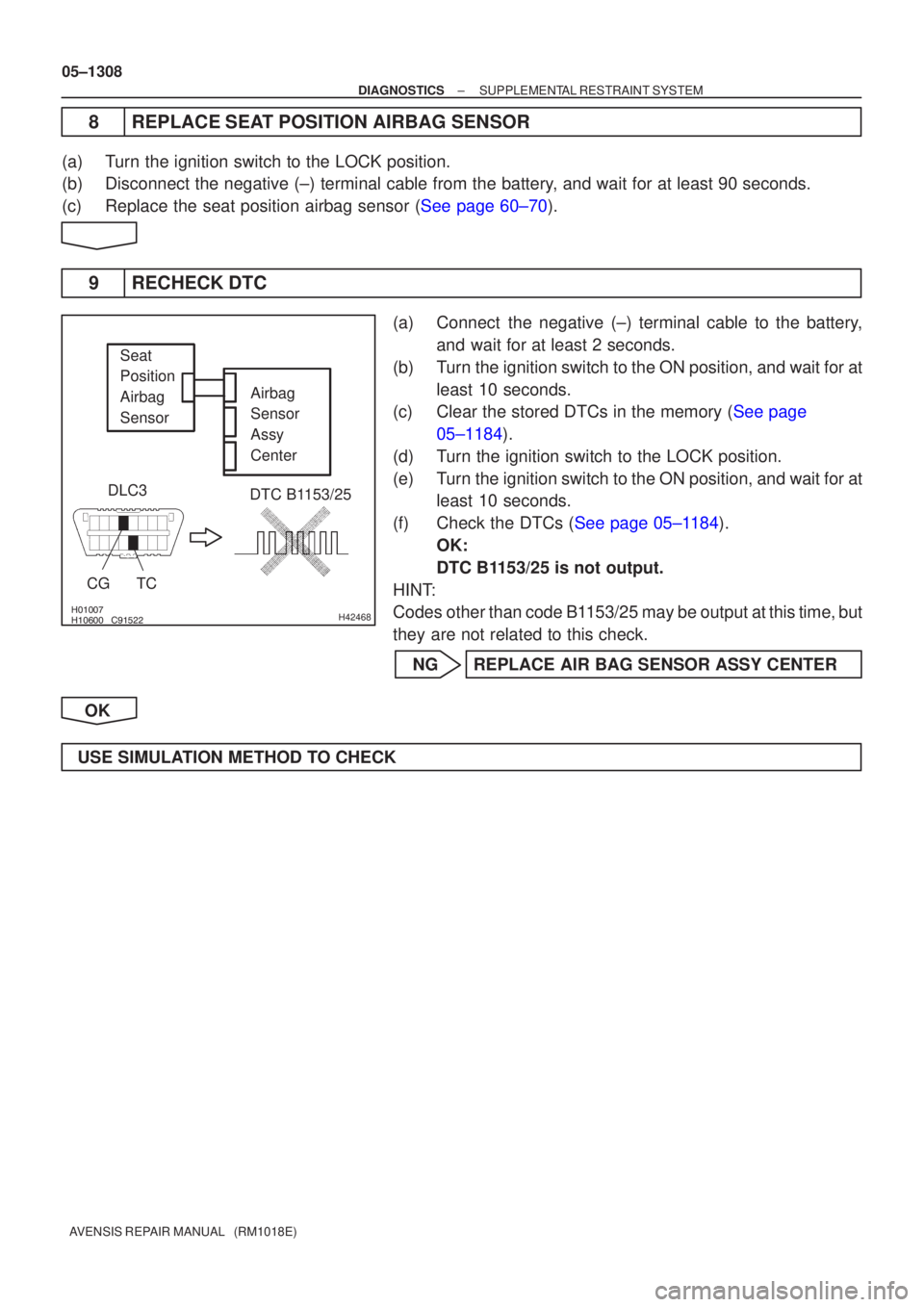

8REPLACE SEAT POSITION AIRBAG SENSOR
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the battery, and wait for at least 90 seconds.
(c)Replace the seat position airbag sensor (See page 60±70).
9RECHECK DTC
(a)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(b)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(c)Clear the stored DTCs in the memory (See page
05±1184).
(d) Turn the ignition switch to the LOCK position.
(e) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Check the DTCs (See page 05±1184). OK:
DTC B1153/25 is not output.
HINT:
Codes other than code B1153/25 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
USE SIMULATION METHOD TO CHECK
Page 1345 of 5135

H41028
Airbag
Sensor
Assy
Center
Seat Position
Airbag Sensor RSP±
RSP+Floor Wire No. 2
A
B
C
D
H42477
DLC3
CGTC DTC B1153/25
Airbag
Sensor
Assy
Center
Seat
Position
Airbag
Sensor
05±1310
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

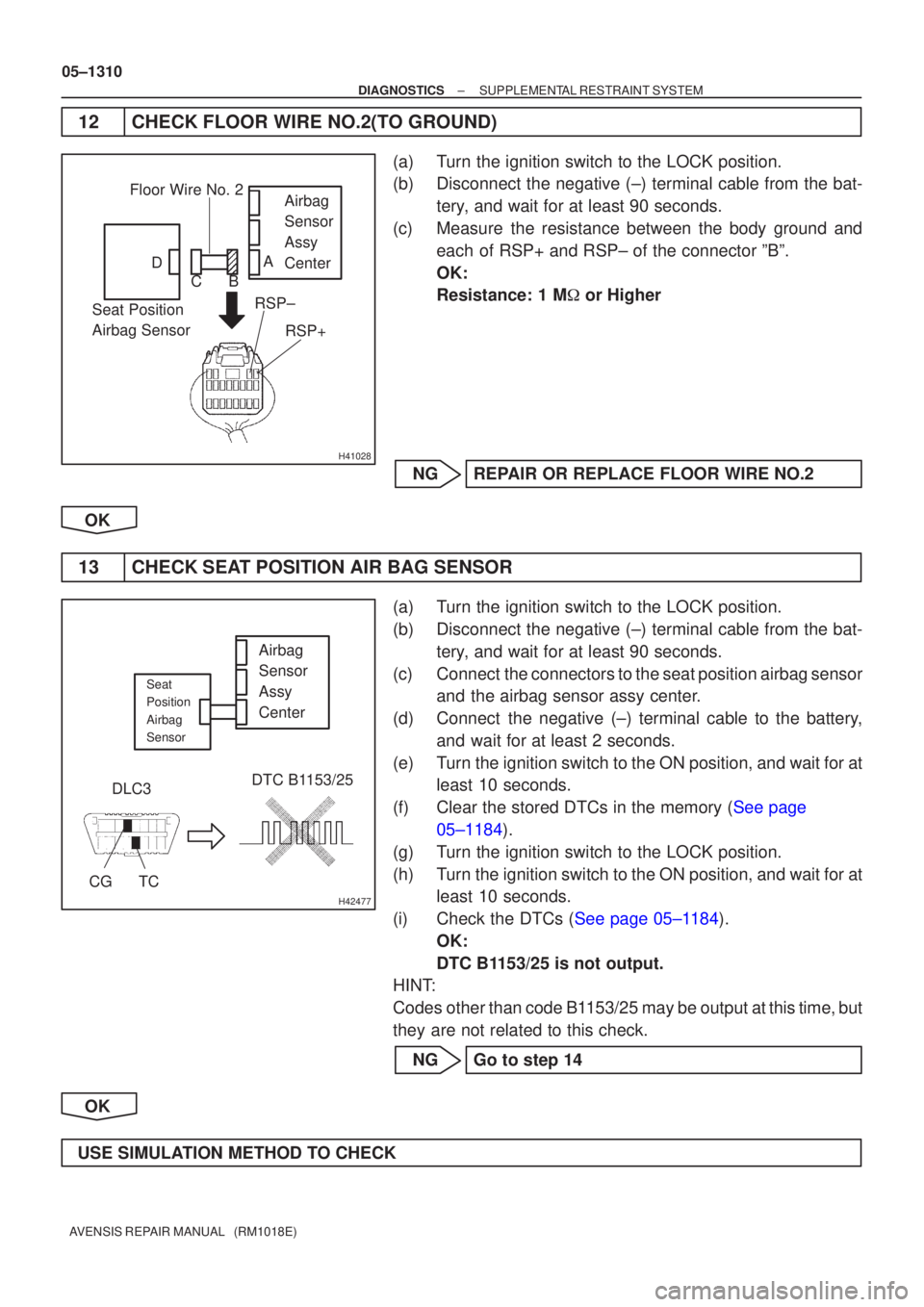

12CHECK FLOOR WIRE NO.2(TO GROUND)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c)Measure the resistance between the body ground and each of RSP+ and RSP± of the connector ºBº.
OK:
Resistance: 1 M or Higher
NGREPAIR OR REPLACE FLOOR WIRE NO.2
OK
13CHECK SEAT POSITION AIR BAG SENSOR
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c)Connect the connectors to the seat position airbag sensor and the airbag sensor assy center.
(d)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B1153/25 is not output.
HINT:
Codes other than code B1153/25 may be output at this time, but
they are not related to this check.
NG Go to step 14
OK
USE SIMULATION METHOD TO CHECK
Page 1346 of 5135

H42477
DLC3
CGTC DTC B1153/25
Airbag
Sensor
Assy
Center
Seat
Position
Airbag
Sensor
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1311
AVENSIS REPAIR MANUAL (RM1018E)

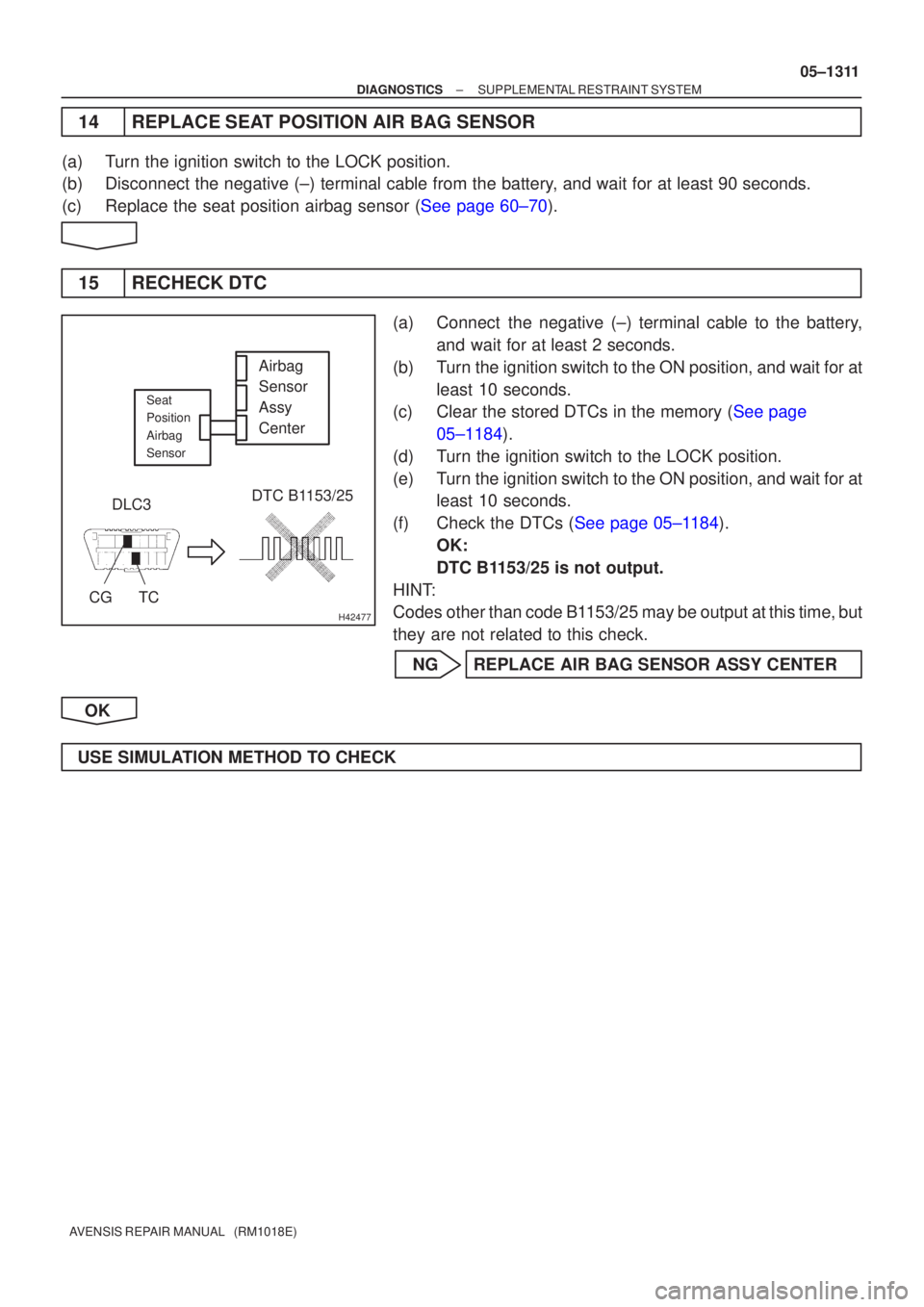

14REPLACE SEAT POSITION AIR BAG SENSOR
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the battery, and wait for at least 90 seconds.
(c)Replace the seat position airbag sensor (See page 60±70).
15 RECHECK DTC
(a) Connect the negative (±) terminal cable to the battery,
and wait for at least 2 seconds.
(b) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(c)Clear the stored DTCs in the memory (See page
05±1184).
(d) Turn the ignition switch to the LOCK position.
(e) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Check the DTCs (See page 05±1184). OK:
DTC B1153/25 is not output.
HINT:
Codes other than code B1153/25 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
USE SIMULATION METHOD TO CHECK
Page 1348 of 5135

\b
\bH42119
Airbag
Sensor
Front LH Airbag
Sensor
Assy
Center
DLC3
CG TC DTC B1149/37
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1299
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
1CHECK DTC
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Connect the negative (±) terminal cable to the battery,
and wait for at least 2 seconds.
(d)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page
05±1184).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(h)Check the DTCs (See page 05±1184).
OK:
DTC B1149/37 is not output.
HINT:
Codes other than code B1149/37 may be output at this time, but
they are not related to this check.
NG Go to step 2
OK
USE SIMULATION METHOD TO CHECK
2 CHECK CONNECTION OF CONNECTORS
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the battery, and wait for at least 90 seconds.
(c) Check that the connectors are properly connected to the airbag sensor assy center and the airbag sensor front LH.
OK:
The connectors are connected.
NG CONNECT CONNECTORS
OK
Page 1354 of 5135

\b\b
\b\b
H42117
Airbag
Front
RH
SensorAirbag
Sensor
Assy
Center
DLC3
CG TC DTC B1148/36
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1293
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE

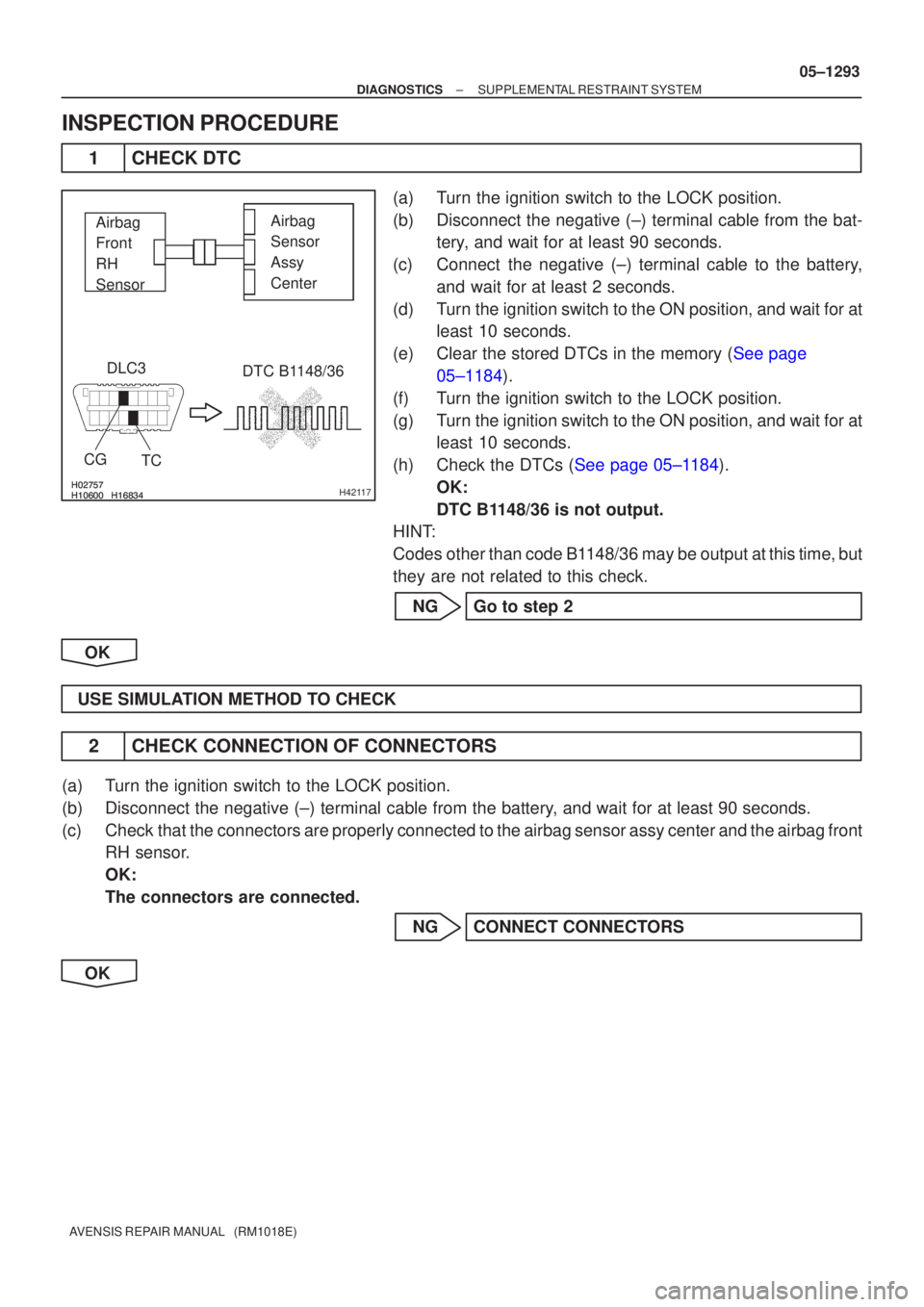

1CHECK DTC
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(d)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page 05±1184).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(h)Check the DTCs (See page 05±1184). OK:
DTC B1148/36 is not output.
HINT:
Codes other than code B1148/36 may be output at this time, but
they are not related to this check.
NG Go to step 2
OK
USE SIMULATION METHOD TO CHECK
2 CHECK CONNECTION OF CONNECTORS
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the battery, and wait for at least 90 seconds.
(c) Check that the connectors are properly connected to the airbag sensor assy center and t\
he airbag front RH sensor.
OK:
The connectors are connected.
NG CONNECT CONNECTORS
OK
Page 1360 of 5135

H40445
Side
Airbag
Sensor
Assy LHAirbag
Sensor
Assy
Center
DLC3
CG TC
DTC B1141/33
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1289
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE

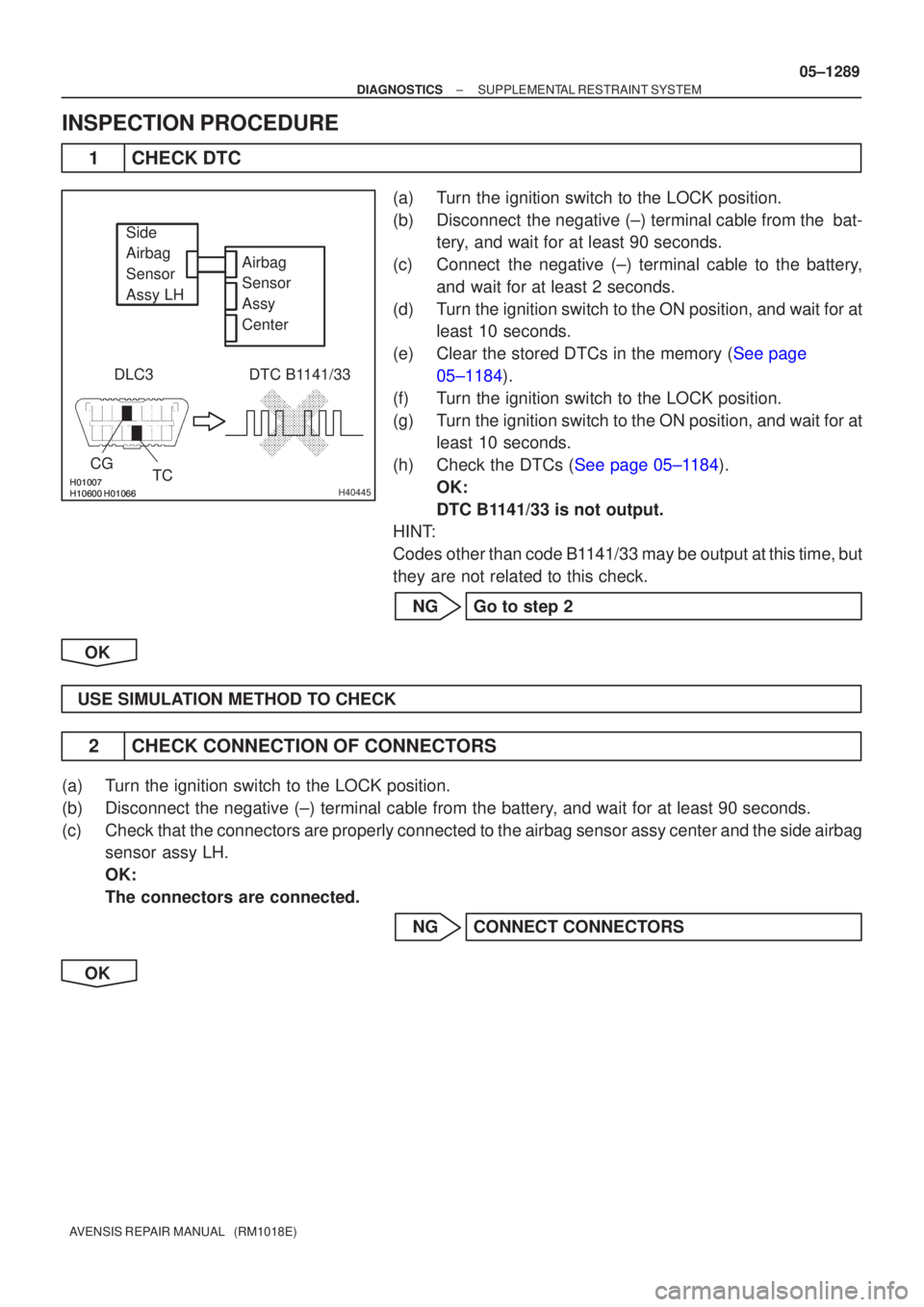

1CHECK DTC
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(d)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page 05±1184).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(h)Check the DTCs (See page 05±1184). OK:
DTC B1141/33 is not output.
HINT:
Codes other than code B1141/33 may be output at this time, but
they are not related to this check.
NG Go to step 2
OK
USE SIMULATION METHOD TO CHECK
2 CHECK CONNECTION OF CONNECTORS
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the battery, and wait for at least 90 seconds.
(c) Check that the connectors are properly connected to the airbag sensor assy ce\
nter and the side airbag sensor assy LH.
OK:
The connectors are connected.
NG CONNECT CONNECTORS
OK
Page 1364 of 5135

H40442
Side
Airbag
Sensor
Assy RH Airbag
Sensor
Assy
Center
DLC3
CGTC
DTC B1140/32
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1285
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE

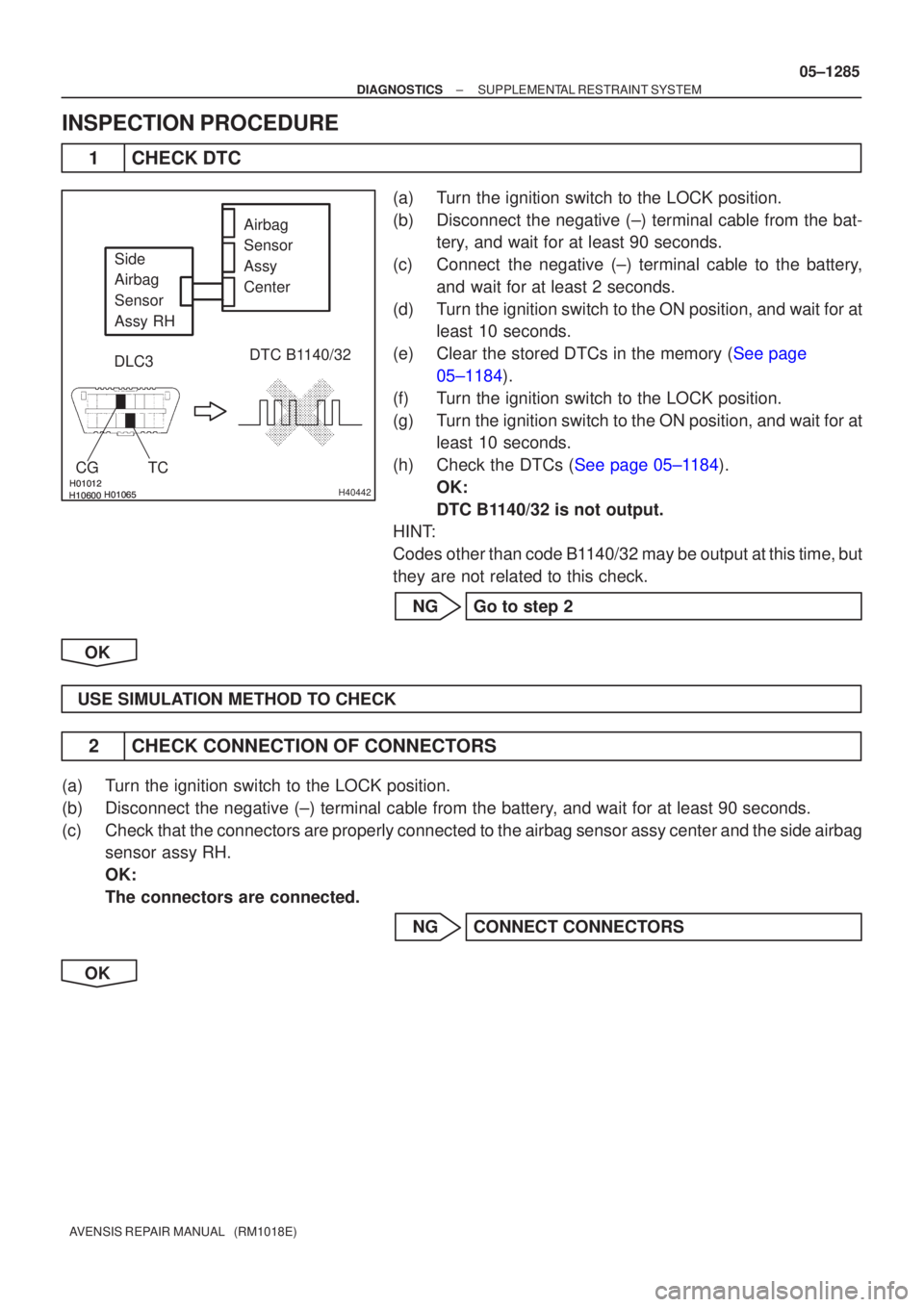

1CHECK DTC
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(d)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page 05±1184).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(h)Check the DTCs (See page 05±1184). OK:
DTC B1140/32 is not output.
HINT:
Codes other than code B1140/32 may be output at this time, but
they are not related to this check.
NG Go to step 2
OK
USE SIMULATION METHOD TO CHECK
2 CHECK CONNECTION OF CONNECTORS
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the battery, and wait for at least 90 seconds.
(c) Check that the connectors are properly connected to the airbag sensor assy ce\
nter and the side airbag sensor assy RH.
OK:
The connectors are connected.
NG CONNECT CONNECTORS
OK
Page 1367 of 5135

H41086
DLC3
CG TC DTC B1100/31
05±1282
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

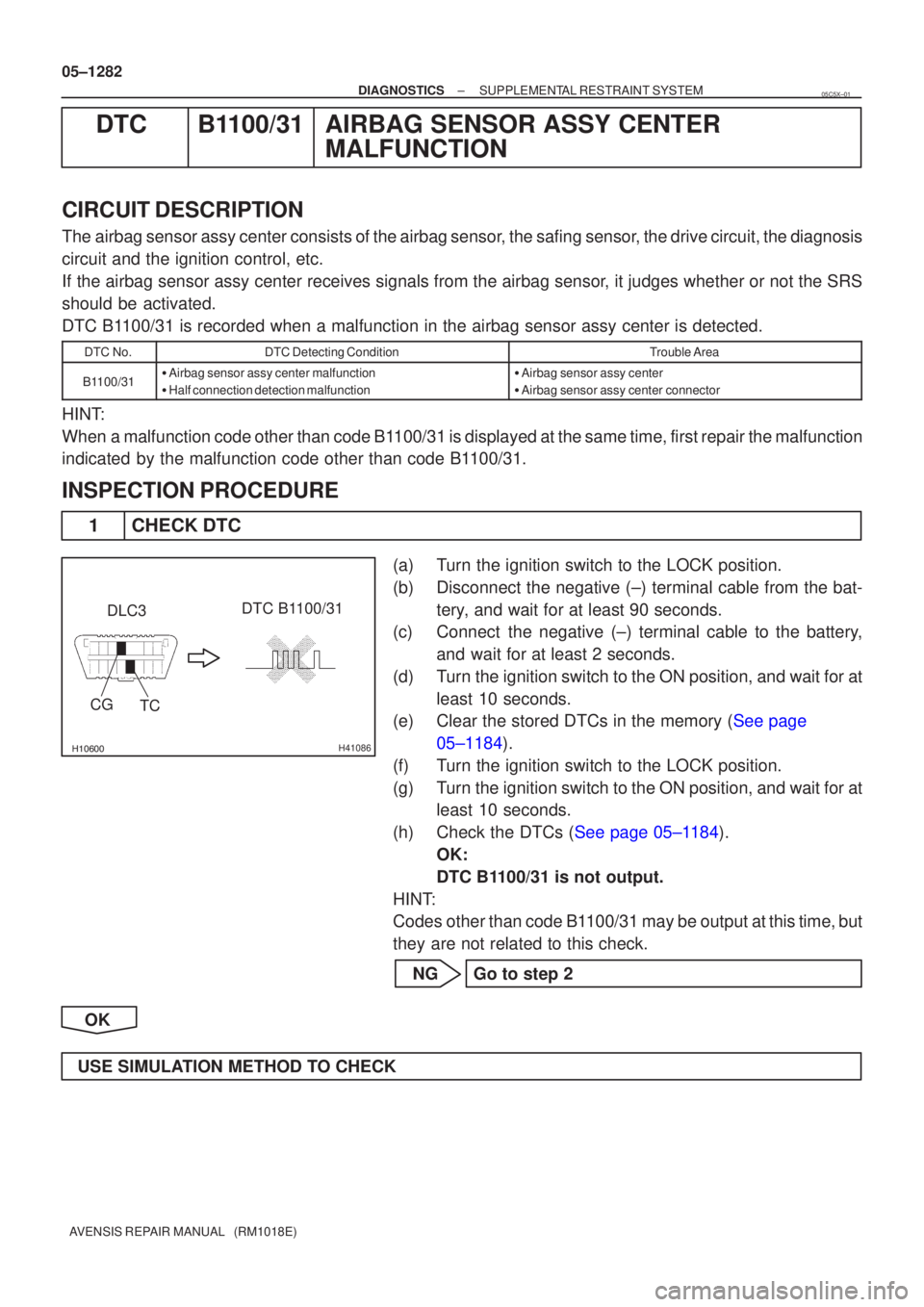

DTCB1100/31AIRBAG SENSOR ASSY CENTER MALFUNCTION
CIRCUIT DESCRIPTION
The airbag sensor assy center consists of the airbag sensor, the safing sensor, the drive circuit, the diagnosis
circuit and the ignition control, etc.
If the airbag sensor assy center receives signals from the airbag sensor, it judges whether or not the SRS
should be activated.
DTC B1100/31 is recorded when a malfunction in the airbag sensor assy center i\
s detected.
DTC No.DTC Detecting ConditionTrouble Area
B1100/31Airbag sensor assy center malfunction
Half connection detection malfunctionAirbag sensor assy center
Airbag sensor assy center connector
HINT:
When a malfunction code other than code B1100/31 is displayed at the same time, first repair the malfunction
indicated by the malfunction code other than code B1100/31.
INSPECTION PROCEDURE
1CHECK DTC
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Connect the negative (±) terminal cable to the battery,
and wait for at least 2 seconds.
(d)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page
05±1184).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(h)Check the DTCs (See page 05±1184). OK:
DTC B1100/31 is not output.
HINT:
Codes other than code B1100/31 may be output at this time, but
they are not related to this check.
NG Go to step 2
OK
USE SIMULATION METHOD TO CHECK
05C5X±01
