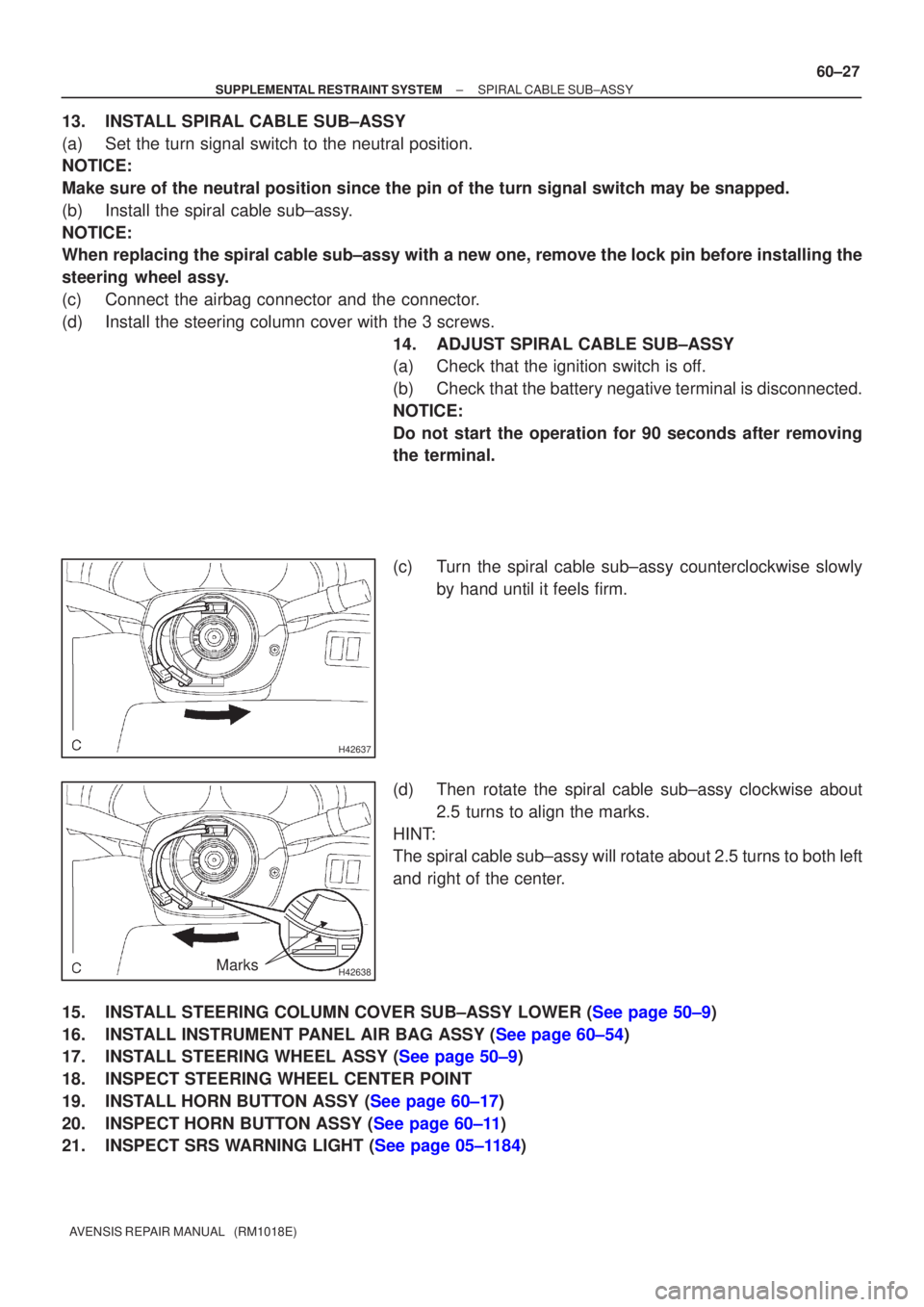

SUPPLEMENTAL RESTRAINT SYSTEM SPIRAL CABLE SUB±ASSY
60±27
AVENSIS REPAIR MANUAL (RM1018E)
13. INSTALL SPIRAL CABLE SUB±ASSY
(a) Set the turn signal switch to the neutral position.
NOTICE:
Make sure of the neutral position since the pin of the turn signal switc\
h may be snapped.
(b) Install the spiral cable sub±assy.
NOTICE:
When replacing the spiral cable sub±assy with a new one, remove the l\
ock pin before installing the
steering wheel assy.
(c) Connect the airbag connector and the connector.
(d) Install the steering column cover with the 3 screws.
14. ADJUST SPIRAL CABLE SUB±ASSY
(a) Check that the ignition switch is off.
(b) Check that the battery negative terminal is disconnected.
NOTICE:
Do not start the operation for 90 seconds after removing
the terminal.
(c) Turn the spiral cable sub±assy counterclockwise slowlyby hand until it feels firm.
(d) Then rotate the spiral cable sub±assy clockwise about 2.5 turns to align the marks.
HINT:
The spiral cable sub±assy will rotate about 2.5 turns to both left
and right of the center.
15.INSTALL STEERING COLUMN COVER SUB±ASSY LOWER (See page 50±9)
16.INSTALL INSTRUMENT PANEL AIR BAG ASSY (See page 60±54)
17.INSTALL STEERING WHEEL ASSY (See page 50±9)
18. INSPECT STEERING WHEEL CENTER POINT
19.INSTALL HORN BUTTON ASSY (See page 60±17)
20.INSPECT HORN BUTTON ASSY (See page 60±11)
21.INSPECT SRS WARNING LIGHT (See page 05±1184)

H43003
H42615
60±18
±
SUPPLEMENTAL RESTRAINT SYSTEM HORN BUTTON ASSY
AVENSIS REPAIR MANUAL (RM1018E)
4. INSTALL HORN BUTTON ASSY
(a) Support the horn button assy with the hand as shown in the illustration.
(b) Connect the airbag connectors.
(c) Connect the horn connector.
(d) Confirm that the circumference groove of the torx screw fits in the screw case, and place the horn button assy onto
the steering wheel assy.
(e) Using a torx socket wrench (T 30), install the 2 screws. Torque: 8.8 N
m (90 kgf
cm, 78 in.
lbf)
5.INSPECT HORN BUTTON ASSY (See page 60±11)
(a) Do a visual check which includes the following items with the horn button assy installed in the vehicle:
Cuts, minute cracks or marked discoloration on the horn
button assy top surface and in the grooved portion.
6.INSPECT SRS WARNING LIGHT (See page 05±1184)

600JU±01
±
SUPPLEMENTAL RESTRAINT SYSTEM SUPPLEMENTAL RESTRAINT SYSTEM
60±1
AVENSIS REPAIR MANUAL (RM1018E)
SUPPLEMENTAL RESTRAINT SYSTEM
PRECAUTION
CAUTION:

AVENSIS is equipped with SRS, which comprises of a driver airbag, front passeng\
er airbag,
side airbag, curtain shield airbag and driver knee airbag. Failure to carry \
out service operations
in the correct sequence could cause the SRS to unexpectedly deploy during \
servicing, possibly
leading to serious accident. Further, if a mistake is made in servicing the SRS, it is possible that
the SRS may fail to operate when required. Before performing servicing (in\
cluding removal or
installation of parts, inspection or replacement), be sure to read the \
following items carefully,
then follow the correct procedures indicated in the repair manual.

Work must be started 90 seconds after the ignition switch is turned to the º\
LOCKº position and
the negative (±) terminal cable is disconnected from the battery.
(The SRS is equipped with a back±up power source so that if work is started wi\
thin 90 seconds
after disconnecting the negative (±) terminal cable of the battery, the SRS may be deployed.)

Do not expose the horn button assy, instrument panel passenger airbag assy, instrument panel
airbag assy, airbag sensor assy center, airbag front sensor, front seat airbag assy, side airbag
sensor assy, curtain shield airbag assy, airbag sensor rear or seat position airbag sensor di-
rectly to hot air or flames.
NOTICE:

Malfunction symptoms of the SRS are difficult to confirm, so DTCs are th\
e most important in-
formation source of information when troubleshooting. When troubleshooting the SRS, always
inspect DTCs before disconnecting the battery.

Even in the case of a minor collision when the SRS does not deploy, the horn button assy, instru-
ment panel passenger airbag assy, instrument panel airbag assy, airbag sensor assy center,
airbag front sensor, front seat airbag assy, side airbag sensor assy, curtain shield airbag assy,
airbag sensor rear and seat position sensor must be inspected (See page 60±11).

Before repairs work, remove the airbag sensor if any kind of shock is likely to occur to the sen-
sor during operation.

Never use SRS parts from another vehicle. When replacing the parts, repl\
ace them with new
ones.

Never disassemble nor repair the horn button assy, instrument panel passenger airbag assy,
instrument panel airbag assy, airbag sensor assy center, airbag front sensor, front seat airbag
assy, side airbag sensor assy, curtain shield airbag assy, airbag sensor rear or seat position
airbag sensor in order to reuse it.

If the horn button assy, instrument panel passenger airbag assy, instrument panel airbag assy,
airbag sensor assy center, airbag front sensor, front seat airbag assy, side airbag sensor assy,
curtain shield airbag assy, airbag sensor rear or seat position airbag sensor has been dropped,
or if there are any cracks, dents or other defects in the case, bracket \
or connector, replace it
with a new one.

Use a volt/ohmmeter with high impedance (10 k
/V minimum) for troubleshooting the electrical
circuits circuits.

Information labels are attached to the periphery of the SRS components. Follow the instruc-
tions the notice.

After work on the SRS is completed, perform the SRS warning light check \
(See page 05±1184).

600K8±01
H42769
60±68
±
SUPPLEMENTAL RESTRAINT SYSTEM AIR BAG SENSOR REAR LH
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
Replacement procedure of the RH side is the same as that for the LH side.
1.PRECAUTION (See page 60±1)
2.DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60±1)
3.REMOVE REAR DOOR SCUFF PLATE LH (See page 76±36)
4.REMOVE REAR SEAT CUSHION ASSEMBLY (SEDAN MODELS) (See page 76±36)
5.REMOVE REAR SIDE SEAT BACK ASSY LH (See page 76±36) 6. REMOVE AIR BAG SENSOR REAR LH
(a) Disconnect the connector of the airbag sensor rear LH.
(b) Remove the 2 bolts and the airbag sensor rear LH.
7.INSTALL AIR BAG SENSOR REAR LH (See page 60±11)
(a) Check that the ignition switch is off.
(b) Check that the battery negative (±) terminal is disconnected.
NOTICE:
Do not start the operation for 90 seconds after removing the terminal.
(c) Install the airbag sensor rear LH with the 2 bolts. Torque: 8.0 N
m (82 kgf
cm, 70 ft
lbf)
NOTICE:

If the airbag sensor rear LH has been dropped, or there are any cracks, \
dents or other defects
in the case, bracket or connector, replace the airbag sensor rear LH with a new one.

When installing the airbag sensor rear LH, take care that the SRS wiring does not interfere \
with
other parts and is not pinched between other parts.
(d) Connect the connector of the airbag sensor rear LH.
(e) Check that no play is identified.
8.INSPECT SRS WARNING LIGHT (See page 05±1184)

600A7±03
H42767
60±66
±
SUPPLEMENTAL RESTRAINT SYSTEM SIDE AIR BAG SENSOR ASSY LH
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
Replacement procedure of the RH side is the same as that for with LH side.
1.PRECAUTION (See page 60±1)
2.DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60±1)
3.REMOVE FRONT DOOR SCUFF PLATE LH (See page 76±36)
4.REMOVE REAR DOOR SCUFF PLATE LH (See page 76±36)
5.REMOVE FRONT DOOR WEATHERSTRIP LH (See page 76±36)
6.REMOVE REAR DOOR WEATHERSTRIP LH (See page 76±36)
7.REMOVE CENTER PILLAR GARNISH LOWER LH (See page 76±36)
8.REMOVE FRONT SEAT OUTER BELT ASSY LH (See page 61±7) 9. REMOVE SIDE AIR BAG SENSOR ASSY LH
(a) Remove the bolt and the side airbag sensor assy LH.
(b) Disconnect the connector from the side airbag sensorassy LH.
10. INSTALL SIDE AIR BAG SENSOR ASSY LH
(a) Check that the ignition switch is off.
(b) Check that the battery negative (±) terminal is disconnected.
NOTICE:
Do not start the operation for 90 seconds after removing the terminal.
(c) Install the side airbag sensor assy LH with the nut. Torque: 8.0 N
m (82 kgf
cm, 70 in.
lbf)
NOTICE:

If the side airbag sensor assy LH has been dropped, or there are any cra\
cks, dents or other de-
fects in the case, bracket or connector, replace the side airbag sensor assy LH with a new one.

When installing the side airbag sensor assy LH, take care that the SRS wiring\
does not interfere
with other parts and is not pinched between other parts.
(d) Connect the connector of the side airbag sensor assy LH.
(e) Check that no play is identified.
11.INSTALL FRONT SEAT OUTER BELT ASSY LH (See page 61±7)
12.INSPECT SRS WARNING LIGHT (See page 05±1184)

600K6±01
H42699
60±64
±
SUPPLEMENTAL RESTRAINT SYSTEM AIR BAG SENSOR FRONT LH
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
Replacement procedure of the RH side is the same as that for with LH side.
1.PRECAUTION (See page 60±1)
2.DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60±1) 3. REMOVE AIR BAG SENSOR FRONT LH
(a) Remove the 2 bolts and airbag sensor front LH.
(b) Disconnect the connector from the airbag sensor frontLH.
4. INSTALL AIR BAG SENSOR FRONT LH
(a) Check that the ignition switch is off.
(b) Check that the battery negative (±) is terminal is disconnected.
NOTICE:
Do not start the operation for 90 seconds after removing the terminal.
(c) Install the airbag sensor front LH with the 2 bolts. Torque: 8.0 N
m (82 kgf
cm, 71 in.
lbf)
NOTICE:

If the airbag sensor front LH has been dropped, or there are any cracks,\
dents or other defects
in the case, bracket or connector, replace the airbag sensor front LH with a new one.

When installing the airbag sensor front LH, take care that the SRS wiring does not interfere\
with
other parts and is not pinched between other parts.
(d) Connect the connector to the airbag sensor front LH.
(e) Check that no play is identified.
5.INSPECT SRS WARNING LIGHT (See page 05±1184)

600A1±04
H42701
60±62
±
SUPPLEMENTAL RESTRAINT SYSTEM AIR BAG SENSOR ASSY CENTER
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.PRECAUTION (See page 60±1)
2.DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60±1)
3.REMOVE SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) (See page 71±11)
4.REMOVE CONSOLE PANEL SUB±ASSY UPPER (See page 71±11)
5.REMOVE CONSOLE PANEL SUB±ASSY LOWER (See page 71±11)
6.REMOVE CONSOLE BOX ASSY RR (See page 71±11)
7.REMOVE AIR DUCT REAR NO.3 (See page 71±11)
8.REMOVE AIR DUCT REAR NO.4 (See page 71±11) 9. REMOVE AIR BAG SENSOR ASSY CENTER
(a) Disconnect the 3 connectors from the airbag sensor assycenter.
(b) Remove the 3 bolts and airbag sensor assy center.
10. INSTALL AIR BAG SENSOR ASSY CENTER
(a) Check that the ignition switch is off.
(b) Check that the battery negative (±) terminal is disconnected.
NOTICE:
Do not start the operation for 90 seconds after removing the terminal.
(c) Temporarily install the airbag sensor assy center with the 3 bolts.
NOTICE:

If the airbag sensor assy center has been dropped, or there are any crac\
ks, dents or other de-
fects in the case, bracket or connector, replace the airbag sensor assy center with a new one.

When installing the airbag sensor assy center, take care that the SRS wiring does not interfere
with other parts and is not pinched between other parts.
(d) Tighten the 3 bolts to the specified torque. Torque: 17.5 N
m (178 kgf
cm, 13 ft
lbf)
(e) Connect the connectors to the airbag sensor assy center.
(f) Check that no play is identified.
(g) Check that the water±proof sheet is properly set.
11.INSPECT SRS WARNING LIGHT (See page 05±1184)

600K4±01
H42660
H42661
H42665
60±54
±
SUPPLEMENTAL RESTRAINT SYSTEM INSTRUMENT PANEL AIR BAG ASSY
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.PRECAUTION (See page 60±1)
2.DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60±1)
3. REMOVE INSTRUMENT PANEL HOLE COVER
(a) Using a screwdriver, remove the 2 instrument panel hole cover. 4. REMOVE INSTRUMENT PANEL AIR BAG ASSY
(a) Using a screwdriver disconnect the airbag connector.
(b) Remove the 4 bolts, 2 nuts and the instrument panel air-bag assy.
5. INSTALL INSTRUMENT PANEL AIR BAG ASSY
(a) Install the instrument panel airbag assy.
(b) Connect the airbag connector.
(c) Install the 4 bolts and the 2 nuts. Torque: 18.0 N
m (184 kgf
cm, 13 ft
lbf)
(d) Install the instrument panel hole cover.
6.INSPECT INSTRUMENT PANEL AIR BAG ASSY (See page 60±11)
7.INSPECT SRS WARNING LIGHT (See page 05±1184)
