± AUTOMATIC TRANSMISSION / TRANSSPEED SENSOR (U341E)
40±39
AVENSIS REPAIR MANUAL (RM1018E)
SPEED SENSOR (U341E)
REPLACEMENT
1. REMOVE BATTERY
2. REMOVE BATTERY CARRIER
3. REMOVE AIR CLEANER ASSY
4. REMOVE AIR CLEANER HOSE NO.1
5. REMOVE SPEED SENSOR
(a) Disconnect the speed sensor connector.
(b) Remove the bolt and speed sensor.
6. INSTALL SPEED SENSOR
(a) Coat an O±ring with ATF.
(b) Install the speed sensor with the bolt.
Torque: 5.4 N
m (55 kgf
cm, 48 ft
lbf)
(c) Connect the speed sensor connector.
7. INSTALL AIR CLEANER HOSE NO.1
8. INSTALL AIR CLEANER ASSY
Torque: 5.0 N
m (51 kgf
cm, 44 in.
lbf)
9. INSTALL BATTERY CARRIER
Torque: 13 N
m (131 kgf
cm, 9 ft
lbf)
10. INSTALL BATTERY

D30342
D30343
D30346
D30344
40±26
±
AUTOMATIC TRANSMISSION / TRANS AUTOMATIC TRANSAXLE ASSY (U241E)
AVENSIS REPAIR MANUAL (RM1018E)
11. SEPARATE CONNECTOR
(a) Separate the 2 wire harnesse clamps from the oil filler tube.
(b) Separate the transmission wire connector.
(c) Separate the park/neutral position switch connector.
(d) Separate the 2 speed sensor connectors.
12. REMOVE TRANSMISSION CONTROL CABLE CLAMP
(a) Remove the bolt and transmission control cable clamp from the automatic transaxle.
13. REMOVE TRANSMISSION OIL FILLER TUBE SUB±ASSY
(a) Remove the ATF level gauge.
(b) Remove the bolt and oil filler tube.
(c) Remove the O±ring from the oil filler tube.
14. REMOVE TRANSMISSION CONTROL CABLE BRACKET NO.1
(a) Remove the 3 bolts and control cable bracket No.1.
15. REMOVE FRONT WHEELS
16. REMOVE ENGINE UNDER COVER RH
17. REMOVE ENGINE UNDER COVER LH
18. DRAIN AUTOMATIC TRANSAXLE FLUID
(a) Remove the drain plug gasket and drain ATF.
(b) Install a new gasket and drain plug. Torque: 49 N
m (500 kgf
cm, 36 ft
lbf)
19. DRAIN COOLANT
(a)1AZ±FE (See pege 16±19)
(b)1AZ±FSE (See pege 16±31)

D30342
D30341
BA
A
C81535
±
AUTOMATIC TRANSMISSION / TRANS AUTOMATIC TRANSAXLE ASSY (U241E)
40±35
AVENSIS REPAIR MANUAL (RM1018E)
59. CONNECT CONNECTOR
(a) Connect the 2 clamps to the oil filler tube.
(b) Connect the transmission wire connector.
(c) Connect the park/neutral position switch connector.
(d) Connect the 2 speed sensor connectors.
60. INSTALL WIRE HARNESS
(a) Install the 2 wire harnesses and wire harness bracket with
the 3 bolts.
Torque:
Bolt A: 5.0 N
m (51 kgf
cm, 44 in.
lbf)
Bolt B: 8.4 N
m (86 kgf
cm, 74 in.
lbf)
61. INSTALL TRANSMISSION CONTROL CABLE ASSY
(a) Temporarily install the control cable to the control shaft le- ver with nuts.
(b) Install the control cable and clip to the bracket.
62. INSTALL AIR CLEANER ASSY Torque: 5.0 N
m (50 kgf
cm, 44 in.
lbf)
63. INSTALL BATTERY CARRIER Torque: 13 N
m (132 kgf
cm, 10 ft
lbf)
64. INSTALL BATTERY
65. INSTALL ENGINE COVER SUB±ASSY NO.1 Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
66. INSTALL HOOD SUB±ASSY
Torque: 13 N
m (132 kgf
cm, 10 ft
lbf)
67.INSPECT HOOD SUB±ASSY (See page 75±2)
68.ADJUST HOOD SUB±ASSY (See page 75±2)
69. ADD COOLANT
(a)1AZ±FE (See pege 16±13)
(b)1AZ±FSE (See pege 16±25)
70. ADD AUTOMATIC TRANSAXLE FLUID
71.INSPECT AUTOMATIC TRANSAXLE FLUID (See page 40±2)
72.ADJUST SHIFT LEVER POSITION (See page 40±69)
73.INSPECT SHIFT LEVER POSITION (See page 40±69)
74.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See page 26±6)
75. CHECK ABS SPEED SENSOR SIGNAL

C91880
C80991
C91884
40±12
±
AUTOMATIC TRANSMISSION / TRANS AUTOMATIC TRANSAXLE ASSY (U341E)
AVENSIS REPAIR MANUAL (RM1018E)

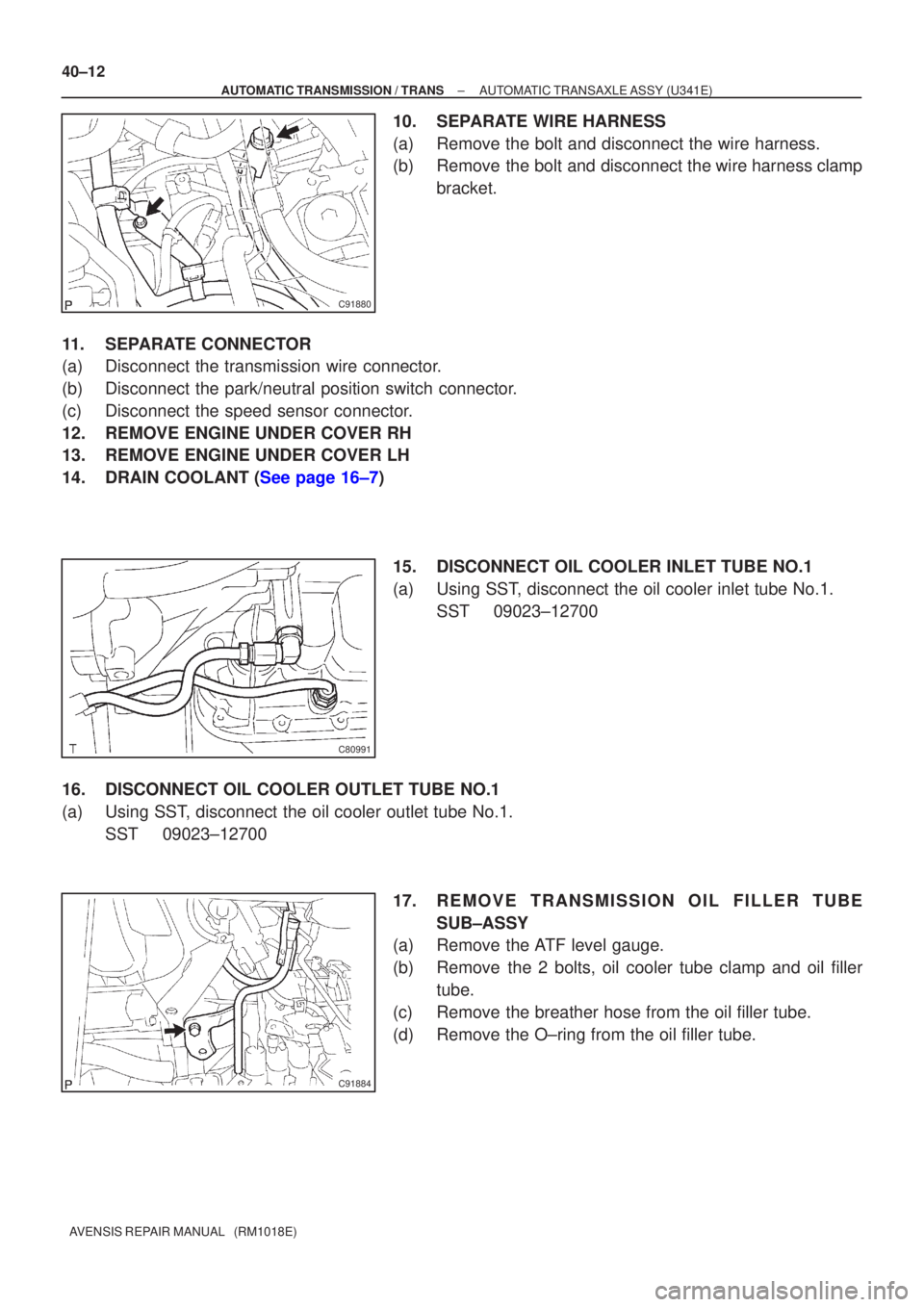

10. SEPARATE WIRE HARNESS
(a) Remove the bolt and disconnect the wire harness.
(b) Remove the bolt and disconnect the wire harness clamp bracket.
11. SEPARATE CONNECTOR
(a) Disconnect the transmission wire connector.
(b) Disconnect the park/neutral position switch connector.
(c) Disconnect the speed sensor connector.
12. REMOVE ENGINE UNDER COVER RH
13. REMOVE ENGINE UNDER COVER LH
14.DRAIN COOLANT (See page 16±7) 15. DISCONNECT OIL COOLER INLET TUBE NO.1
(a) Using SST, disconnect the oil cooler inlet tube No.1.SST 09023±12700
16. DISCONNECT OIL COOLER OUTLET TUBE NO.1
(a) Using SST, disconnect the oil cooler outlet tube No.1. SST 09023±12700
17. REMOVE TRANSMISSION OIL FILLER TUBESUB±ASSY
(a) Remove the ATF level gauge.
(b) Remove the 2 bolts, oil cooler tube clamp and oil filler
tube.
(c) Remove the breather hose from the oil filler tube.
(d) Remove the O±ring from the oil filler tube.

40±22
±
AUTOMATIC TRANSMISSION / TRANS AUTOMATIC TRANSAXLE ASSY (U341E)
AVENSIS REPAIR MANUAL (RM1018E)

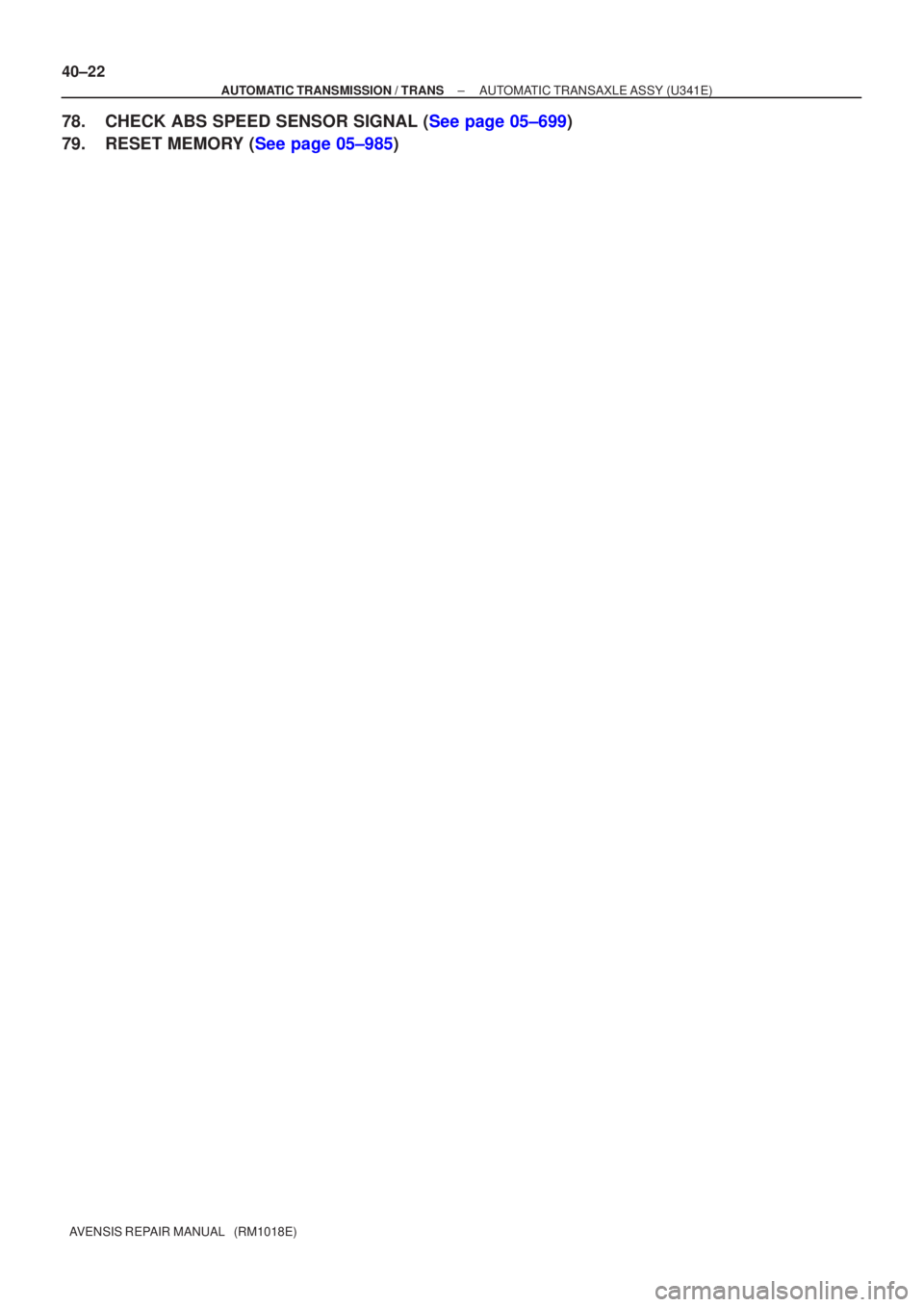

78.CHECK ABS SPEED SENSOR SIGNAL (See page 05±699)
79.RESET MEMORY (See page 05±985)

D26133
SST(s)
D25304
0 to 5 mm
(0 to 0.20 in.)
41±6
±
MANUAL TRANSMISSION/TRANSAXLE FRONT DIFFERENTIAL OIL SEAL (E354/E357)
AVENSIS REPAIR MANUAL (RM1018E)
10. INSTALL TRANSMISSION CASE OIL SEAL
(a) Coat a new oil seal lip with MP grease.
(b) Using SST(s) and a hammer, install the oil seal. SST 09608±32010, 09950±70010 (09951±07200)
Drive in depth: 3.5
0.5 mm (0.138
0.020 in.)
NOTICE:
Be careful not to damage the oil seal lip.
11.INSTALL FRONT DRIVE SHAFT ASSY LH (See page 30±6)
12.INSTALL FRONT DRIVE SHAFT ASSY RH (See page 30±6)
13. INSTALL FRONT WHEELS Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
14. ADD MANUAL TRANSAXLE OIL Oil grade: API GL±4 or GL±5
Viscosity: SAE 75 W±90
Capacity: 2.5 liters (2.6 US qts, 2.2 lmp. qts)
Torque: 49 N
m (500 kgf
cm, 36 ft
lbf)
15.INSPECT MANUAL TRANSAXLE OIL (See page 41±2)
16.INSPECT FRONT WHEEL ALIGNMENT (See page 26±6)
17. CHECK ABS SPEED SENSOR SIGNAL
(a)w/ VSC (See page 05±756)
(b)w/o VSC (See page 05±699)

D26133
SST(s)
D25304
0 to 5 mm
(0 to 0.20 in.)
41±4
±
MANUAL TRANSMISSION/TRANSAXLE FRONT DIFFERENTIAL OIL SEAL (C50/C250)
AVENSIS REPAIR MANUAL (RM1018E)
10. INSTALL TRANSMISSION CASE OIL SEAL
(a) Coat a new oil seal lip with MP grease.
(b) Using SST(s) and a hammer, install the oil seal. SST 09554±14010, 09950±70010 (09951±07200)
Drive in depth: 9.9
0.3 mm (0.390
0.012 in.)
NOTICE:
Be careful not to damage the oil seal lip.
11.INSTALL FRONT DRIVE SHAFT ASSY LH (See page 30±6)
12.INSTALL FRONT DRIVE SHAFT ASSY RH (See page 30±6)
13. INSTALL FRONT WHEELS Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
14. ADD MANUAL TRANSAXLE OIL Oil grade: API GL±4 or GL±5
Viscosity: SAE 75 W±90
Capacity: 1.9 liters (2.0 US qts, 1.7 lmp. qts)
Torque: 39 N
m (400 kgf
cm, 29 ft
lbf)
15.INSPECT MANUAL TRANSAXLE OIL (See page 41±2)
16.INSPECT FRONT WHEEL ALIGNMENT (See page 26±6)
17. CHECK ABS SPEED SENSOR SIGNAL
(a)w/ VSC (See page 05±756)
(b)w/o VSC (See page 05±699)


D31075
SST
0
0.5mm
40±58
±
AUTOMATIC TRANSMISSION / TRANS FRONT DIFFERENTIAL OIL SEAL (U241E)
AVENSIS REPAIR MANUAL (RM1018E)
10. INSTALL TRANSAXLE HOUSING OIL SEAL
(a) Using SST and a hammer, drive in a new oil seal. SST 09649±17010, 09950±70010 (09951±07150)
Oil seal drive in depth:
0
0.5 mm (0
0.020 in.)
(b) Coat the lip of the oil seal with MP grease.
11.INSTALL FRONT DRIVE SHAFT ASSY LH (See page 30±6)
12.INSTALL FRONT DRIVE SHAFT ASSY RH (See page 30±6)
13. INSTALL FRONT WHEELS Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
14. ADD AUTOMATIC TRANSAXLE FLUID
15.INSPECT AUTOMATIC TRANSAXLE FLUID (See page 40±2)
16. CHECK ABS SPEED SENSOR SIGNAL
(a)ABS WITH EBD SYSTEM (See pege 05±699)
(b)ABS WITH EBD & BA &TRAC & VSC SYSTEM (See pege 05±756)
