AUTOMATIC TRANSMISSION / TRANS FRONT DIFFERENTIAL OIL SEAL (U341E)
AVENSIS REPAIR MANUAL (RM1018E)
11. INSTALL FRONT TRANSAXLE CASE OIL SEAL
(a) Using SST and a hammer, drive in a new oil seal. SST 09554±14010, 09950±70010 (09951±07200)
Oil seal drive in depth:
0
0.5 mm (0
0.020 in.)
(b) Coat the lip of the oil seal with MP grease.
12.INSTALL FRONT DRIVE SHAFT ASSY LH (See page 30±6)
13.INSTALL FRONT DRIVE SHAFT ASSY RH (See page 30±6)
14. INSTALL FRONT WHEELS
15. ADD AUTOMATIC TRANSAXLE FLUID
16.INSPECT AUTOMATIC TRANSAXLE FLUID (See page 40±2)
17.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See Page 26±6)
18.CHECK ABS SPEED SENSOR SIGNAL (See page 05±699)

D30815
D26905
G24412
G24413
41±34
±
MANUAL TRANSMISSION/TRANSAXLE MANUAL TRANSAXLE ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

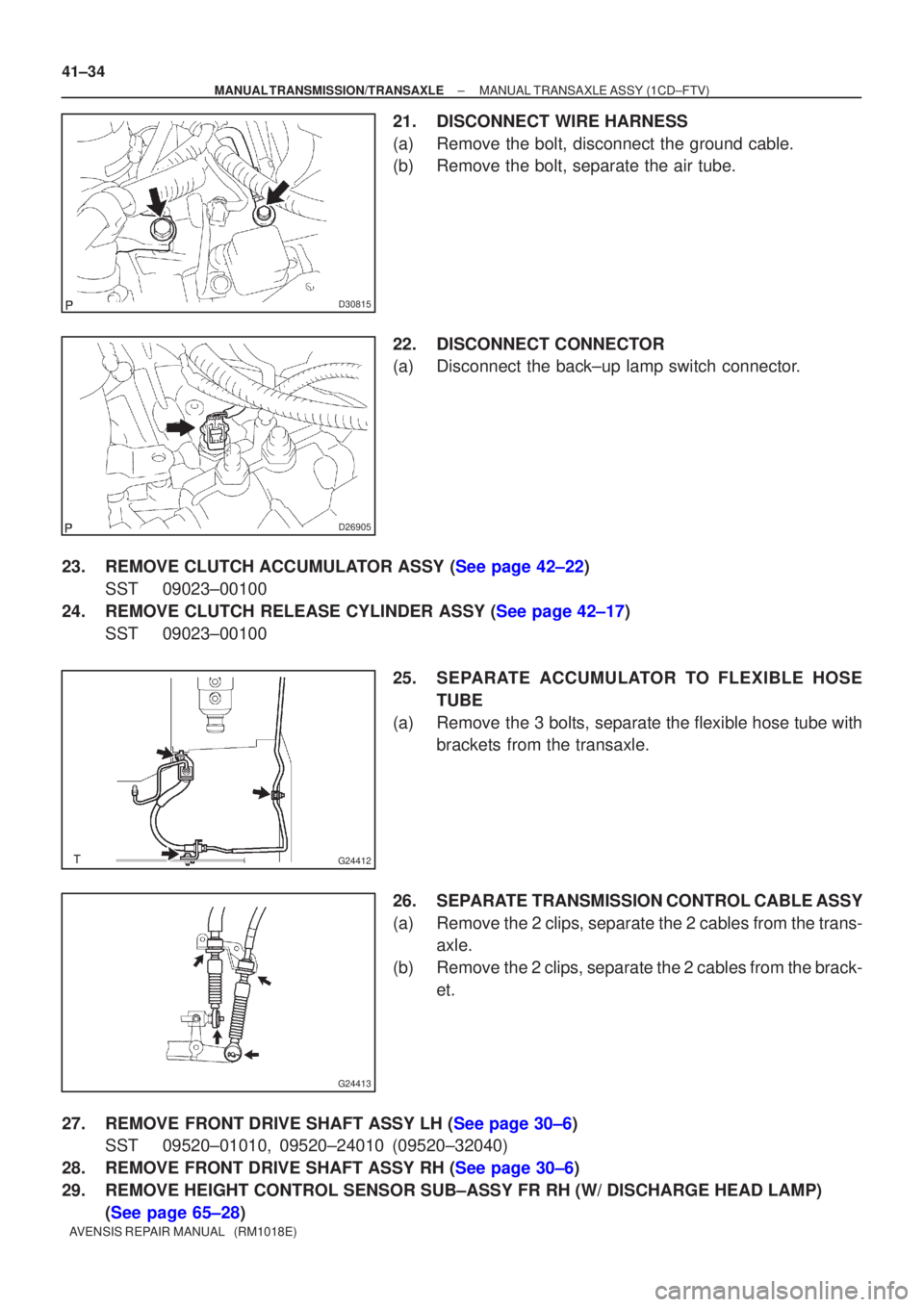

21. DISCONNECT WIRE HARNESS
(a) Remove the bolt, disconnect the ground cable.
(b) Remove the bolt, separate the air tube.
22. DISCONNECT CONNECTOR
(a) Disconnect the back±up lamp switch connector.
23.REMOVE CLUTCH ACCUMULATOR ASSY (See page 42±22) SST 09023±00100
24.REMOVE CLUTCH RELEASE CYLINDER ASSY (See page 42±17) SST 09023±00100
25. SEPARATE ACCUMULATOR TO FLEXIBLE HOSETUBE
(a) Remove the 3 bolts, separate the flexible hose tube with brackets from the transaxle.
26. SEPARATE TRANSMISSION CONTROL CABLE ASSY
(a) Remove the 2 clips, separate the 2 cables from the trans- axle.
(b) Remove the 2 clips, separate the 2 cables from the brack- et.
27.REMOVE FRONT DRIVE SHAFT ASSY LH (See page 30±6) SST 09520±01010, 09520±24010 (09520±32040)
28.REMOVE FRONT DRIVE SHAFT ASSY RH (See page 30±6)
29. REMOVE HEIGHT CONTROL SENSOR SUB±ASSY FR RH (W/ DISCHARGE HEAD LAMP)\
(See page 65±28)

G24413
G24412
AB
D26905
41±38
±
MANUAL TRANSMISSION/TRANSAXLE MANUAL TRANSAXLE ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

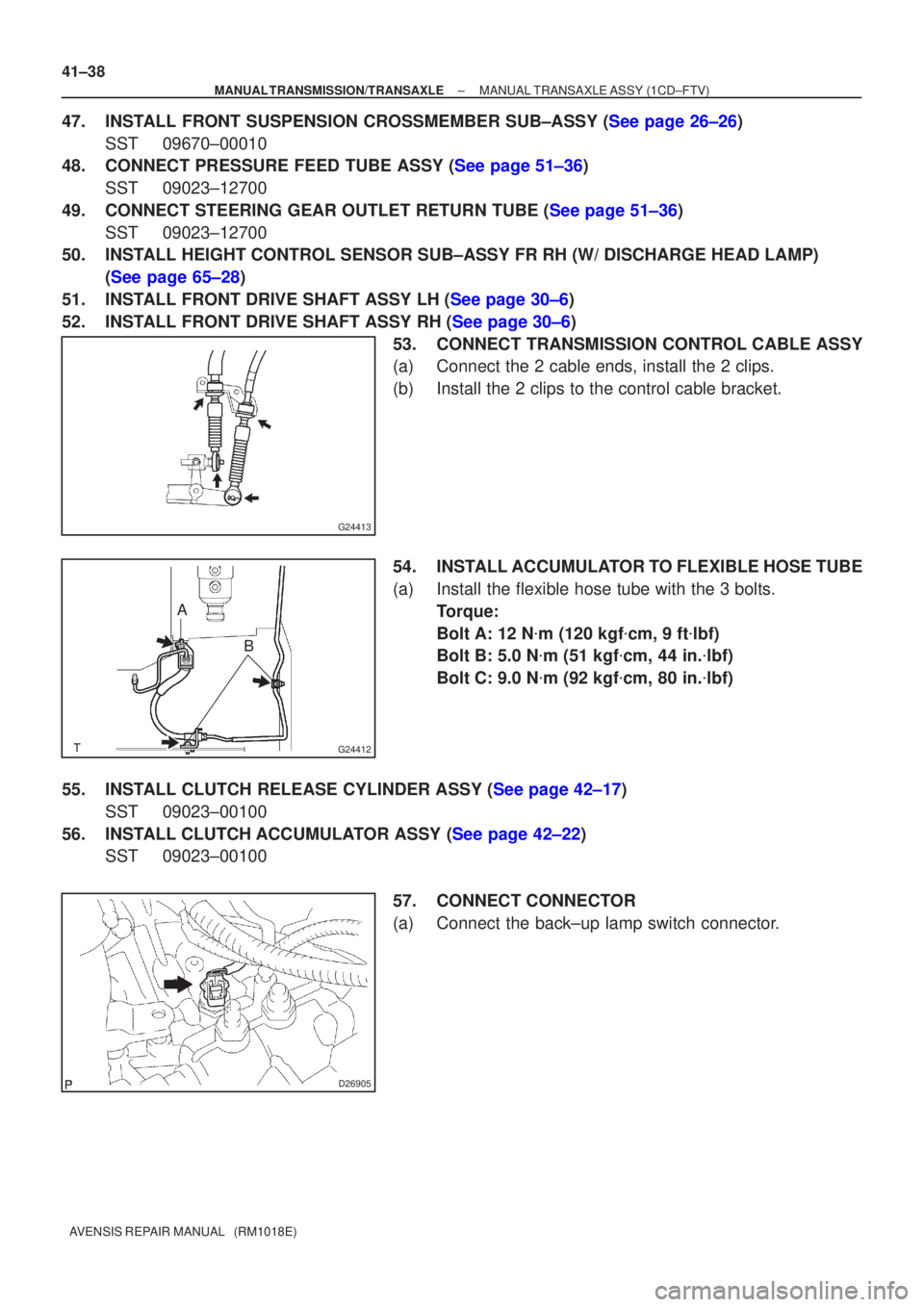

47.INSTALL FRONT SUSPENSION CROSSMEMBER SUB±ASSY (See page 26±26) SST 09670±00010
48.CONNECT PRESSURE FEED TUBE ASSY (See page 51±36)
SST 09023±12700
49.CONNECT STEERING GEAR OUTLET RETURN TUBE (See page 51±36) SST 09023±12700
50. INSTALL HEIGHT CONTROL SENSOR SUB±ASSY FR RH (W/ DISCHARGE HEAD LAMP)
(See page 65±28)
51.INSTALL FRONT DRIVE SHAFT ASSY LH (See page 30±6)
52.INSTALL FRONT DRIVE SHAFT ASSY RH (See page 30±6) 53. CONNECT TRANSMISSION CONTROL CABLE ASSY
(a) Connect the 2 cable ends, install the 2 clips.
(b) Install the 2 clips to the control cable bracket.
54. INSTALL ACCUMULATOR TO FLEXIBLE HOSE TUBE
(a) Install the flexible hose tube with the 3 bolts.Torque:
Bolt A: 12 N
m (120 kgf
cm, 9 ft
lbf)
Bolt B: 5.0 N
m (51 kgf
cm, 44 in.
lbf)
Bolt C: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
55.INSTALL CLUTCH RELEASE CYLINDER ASSY (See page 42±17) SST 09023±00100
56.INSTALL CLUTCH ACCUMULATOR ASSY (See page 42±22) SST 09023±00100
57. CONNECT CONNECTOR
(a) Connect the back±up lamp switch connector.

41±40
±
MANUAL TRANSMISSION/TRANSAXLE MANUAL TRANSAXLE ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

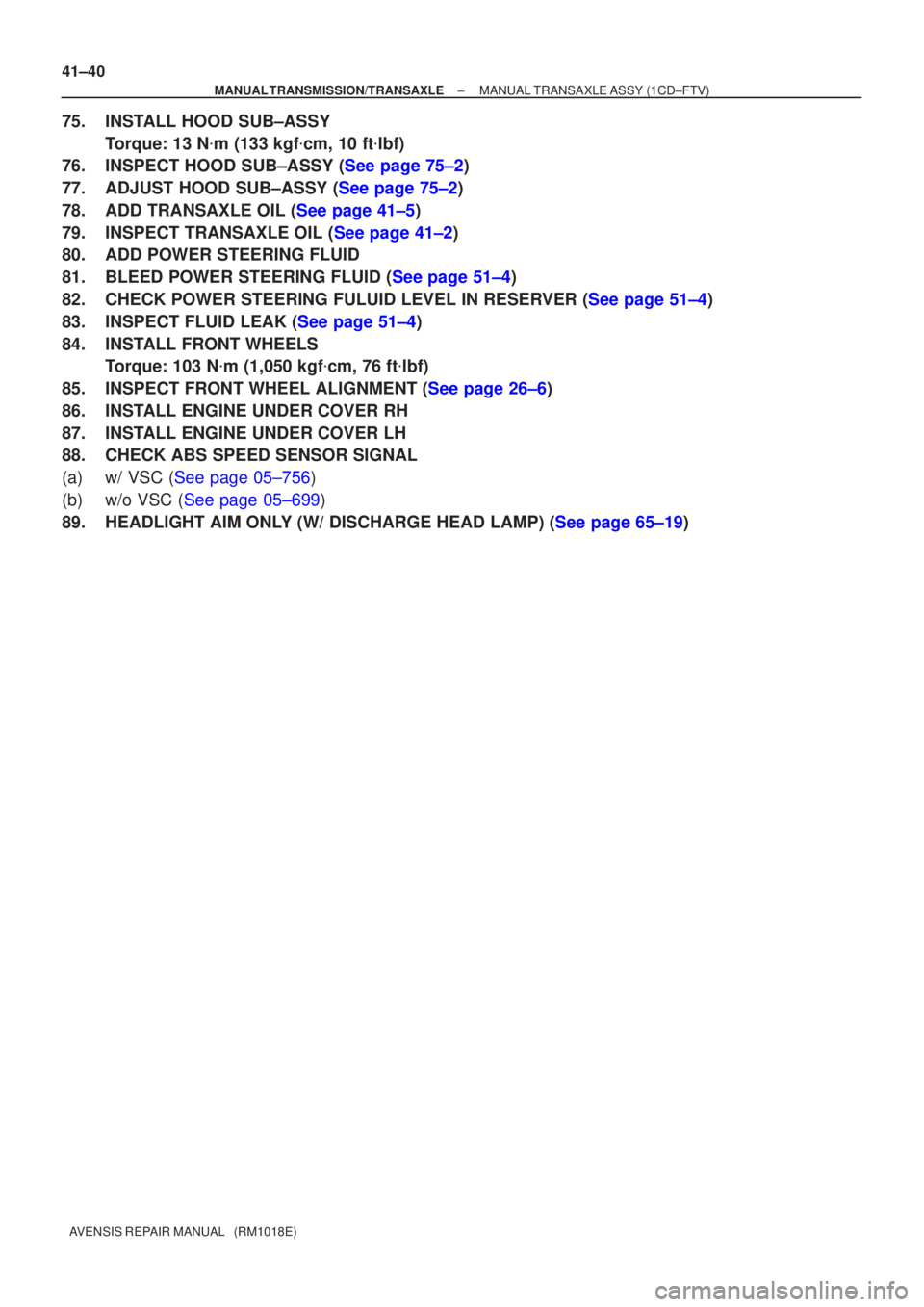

75. INSTALL HOOD SUB±ASSY Torque: 13 N
m (133 kgf
cm, 10 ft
lbf)
76.INSPECT HOOD SUB±ASSY (See page 75±2)
77.ADJUST HOOD SUB±ASSY (See page 75±2)
78.ADD TRANSAXLE OIL (See page 41±5)
79.INSPECT TRANSAXLE OIL (See page 41±2)
80. ADD POWER STEERING FLUID
81.BLEED POWER STEERING FLUID (See page 51±4)
82.CHECK POWER STEERING FULUID LEVEL IN RESERVER (See page 51±4)
83.INSPECT FLUID LEAK (See page 51±4)
84. INSTALL FRONT WHEELS Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
85.INSPECT FRONT WHEEL ALIGNMENT (See page 26±6)
86. INSTALL ENGINE UNDER COVER RH
87. INSTALL ENGINE UNDER COVER LH
88. CHECK ABS SPEED SENSOR SIGNAL
(a)w/ VSC (See page 05±756)
(b)w/o VSC (See page 05±699)
89.HEADLIGHT AIM ONLY (W/ DISCHARGE HEAD LAMP) (See page 65±19)

D30066
D30064
G24413
±
MANUAL TRANSMISSION/TRANSAXLE MANUAL TRANSAXLE ASSY (1AZ±FE/1AZ±FSE)
41±25
AVENSIS REPAIR MANUAL (RM1018E)

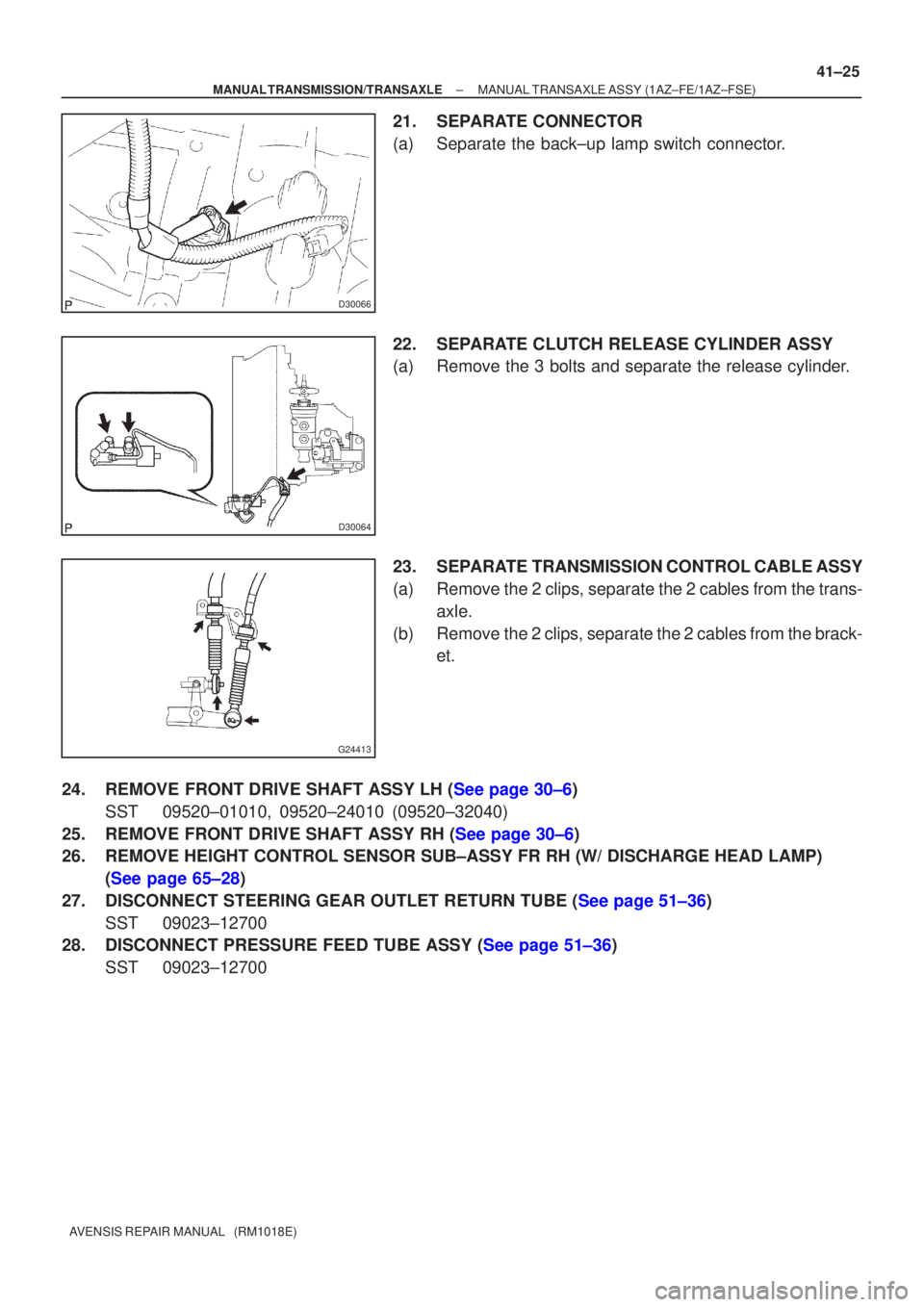

21. SEPARATE CONNECTOR
(a) Separate the back±up lamp switch connector.
22. SEPARATE CLUTCH RELEASE CYLINDER ASSY
(a) Remove the 3 bolts and separate the release cylinder.
23. SEPARATE TRANSMISSION CONTROL CABLE ASSY
(a) Remove the 2 clips, separate the 2 cables from the trans-
axle.
(b) Remove the 2 clips, separate the 2 cables from the brack- et.
24.REMOVE FRONT DRIVE SHAFT ASSY LH (See page 30±6) SST 09520±01010, 09520±24010 (09520±32040)
25.REMOVE FRONT DRIVE SHAFT ASSY RH (See page 30±6)
26. REMOVE HEIGHT CONTROL SENSOR SUB±ASSY FR RH (W/ DISCHARGE HEAD LAMP)\
(See page 65±28)
27.DISCONNECT STEERING GEAR OUTLET RETURN TUBE (See page 51±36) SST 09023±12700
28.DISCONNECT PRESSURE FEED TUBE ASSY (See page 51±36)
SST 09023±12700

D30076
D25747
AB
C
BA
D30077
D30067
A
A
A
A
B
41±28
±
MANUAL TRANSMISSION/TRANSAXLE MANUAL TRANSAXLE ASSY (1AZ±FE/1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)

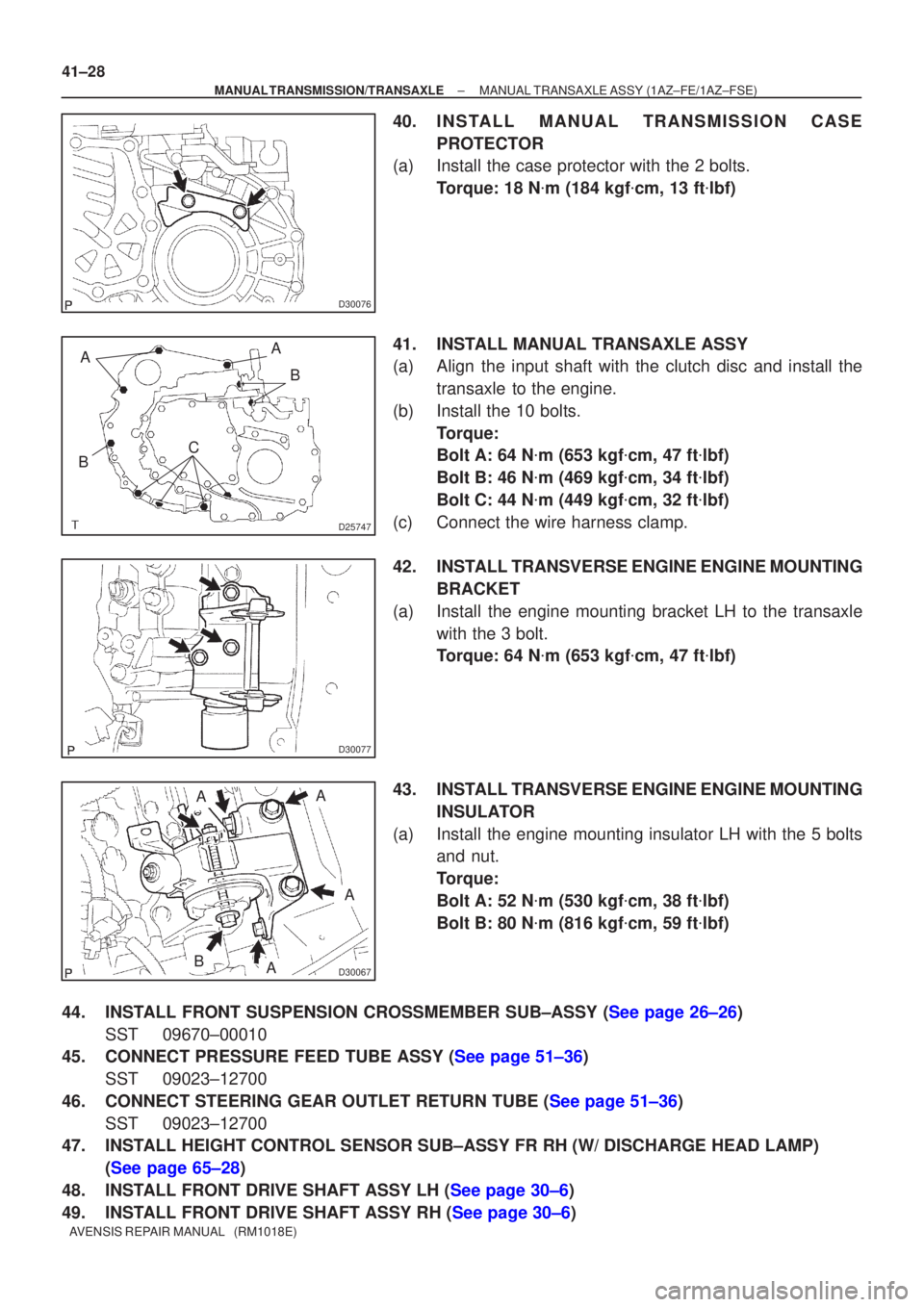

40. INSTALL MANUAL TRANSMISSION CASE PROTECTOR
(a) Install the case protector with the 2 bolts.
Torque: 18 N
m (184 kgf
cm, 13 ft
lbf)
41. INSTALL MANUAL TRANSAXLE ASSY
(a) Align the input shaft with the clutch disc and install the transaxle to the engine.
(b) Install the 10 bolts. Torque:
Bolt A: 64 N
m (653 kgf
cm, 47 ft
lbf)
Bolt B: 46 N
m (469 kgf
cm, 34 ft
lbf)
Bolt C: 44 N
m (449 kgf
cm, 32 ft
lbf)
(c) Connect the wire harness clamp.
42. INSTALL TRANSVERSE ENGINE ENGINE MOUNTING BRACKET
(a) Install the engine mounting bracket LH to the transaxle with the 3 bolt.
Torque: 64 N
m (653 kgf
cm, 47 ft
lbf)
43. INSTALL TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR
(a) Install the engine mounting insulator LH with the 5 bolts and nut.
Torque:
Bolt A: 52 N
m (530 kgf
cm, 38 ft
lbf)
Bolt B: 80 N
m (816 kgf
cm, 59 ft
lbf)
44.INSTALL FRONT SUSPENSION CROSSMEMBER SUB±ASSY (See page 26±26) SST 09670±00010
45.CONNECT PRESSURE FEED TUBE ASSY (See page 51±36)
SST 09023±12700
46.CONNECT STEERING GEAR OUTLET RETURN TUBE (See page 51±36) SST 09023±12700
47. INSTALL HEIGHT CONTROL SENSOR SUB±ASSY FR RH (W/ DISCHARGE HEAD LAMP)
(See page 65±28)
48.INSTALL FRONT DRIVE SHAFT ASSY LH (See page 30±6)
49.INSTALL FRONT DRIVE SHAFT ASSY RH (See page 30±6)

D30080
41±30
±
MANUAL TRANSMISSION/TRANSAXLE MANUAL TRANSAXLE ASSY (1AZ±FE/1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
55. INSTALL BATTERY CARRIER
(a) Install the battery carrier and 4 bolts. Torque: 13 N
m (131 kgf
cm, 9 ft
lbf)
56. INSTALL BATTERY TRAY
57. INSTALL BATTERY
58. INSTALL BATTERY CLAMP SUB±ASSY Torque:
Bolt: 5.0 N
m (51 kgf
cm, 44 in.
lbf)
Nut: 3.5 N
m (36 kgf
cm, 31 in.
lbf)
59. INSTALL AIR CLEANER ASSY Torque: 5.0 N
m (51 kgf
cm, 44 in.
lbf)
60. INSTALL ENGINE COVER SUB±ASSY NO.1 Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
61. INSTALL ENGINE ROOM COVER SIDE
62. INSTALL RADIATOR SUPPORT OPENING COVER
63. INSTALL HOOD SUB±ASSY Torque: 13 N
m (132 kgf
cm, 10 ft
lbf)
64.INSPECT HOOD SUB±ASSY (See page 75±2)
65.ADJUST HOOD SUB±ASSY (See page 75±2)
66.ADD TRANSAXLE OIL (See page 41±5)
67.INSPECT TRANSAXLE OIL (See page 41±2)
68. INSTALL FRONT WHEELS
Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
69.INSTALL STEERING INTERMEDIATE SHAFT (See page 50±9)
70.INSTALL STEERING COLUMN HOLE COVER SUB±ASSY NO.1 (See page)See page 50±9)
71.INSTALL STEERING INTERMEDIATE SHAFT ASSY NO.2 (See page 50±9)
72.INSTALL COLUMN HOLE COVER SILENCER SHEET (See page 50±9)
73. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
74. STEERING WHEEL CENTER POINT
75. ADD POWER STEERING FLUID
76.BLEED POWER STEERING FLUID (See page 51±4)
77.CHECK POWER STEERING FULUID LEVEL IN RESERVER (See page 51±4)
78.INSPECT FLUID LEAK (See page 51±4)
79.INSPECT FRONT WHEEL ALIGNMENT (See page 26±6)
80. INSTALL ENGINE UNDER COVER LH
81. INSTALL ENGINE UNDER COVER RH
82. CHECK ABS SPEED SENSOR SIGNAL
(a)w/ VSC (See page 05±756)
(b)w/o VSC (See page 05±699)
83.HEADLIGHT AIM ONLY (W/ DISCHARGE HEAD LAMP) (See page 65±19)

D25320
No.2 Engine Hanger
No.1 Engine Hanger
Front: Rear:
D30483
D30484
C70065
±
MANUAL TRANSMISSION/TRANSAXLE MANUAL TRANSAXLE ASSY (1ZZ±FE/3ZZ±FE)
41±17
AVENSIS REPAIR MANUAL (RM1018E)
27. SUSPEND ENGINE ASSY
(a) Remove the 2 PCV hoses.
(b) Install the 2 hangers in the correct direction.
No.1 engine hanger: 12281±22021
No.2 engine hanger: 12281±15040
Bolt: 91512±B1016
Torque: 38 N
m (387 kgf
cm, 28 ft
lbf)
(c) Attach the engine chain hoist to the hangers.
CAUTION:
Do not attempt to hang the engine by hooking the chain to
any other part.
28. REMOVE HEIGHT CONTROL SENSOR SUB±ASSY FR RH (W/ DISCHARGE HEAD LAMP)\
(See page 65±28)
29.REMOVE FRONT SUSPENSION CROSSMEMBER SUB±ASSY(See page 26±26)
30. SUPPORT MANUAL TRANSAXLE ASSY
(a) Support the transaxle with a transmission jack.
31. REMOVE TRANSVERSE ENGINE ENGINEMOUNTING INSULATOR
(a) Remove the 5 bolts, nut and engine mounting insulator LH from the body.
32. REMOVE TRANSVERSE ENGINE ENGINE MOUNTING BRACKET
(a) Remove the 3 bolts and engine mounting bracket LH from the transaxle.
33. REMOVE MANUAL TRANSAXLE ASSY
(a) Remove the 6 bolts and transaxle from the engine.
