2005 SUBARU LEGACY Owners Manual

12-8
Specifications
!
Fuse panel located in the engine com- partment
A) FWD socket (AT vehicles – except Turbo models and 3.0-liter models)
B) Main fuse
327.5" Headlight left side relay
337.5"ABS/Vehicle dynamics control unit
Fuse panelFuse ratingCircuit
12
B
3 45
67
8
910
11 12
13 14 1516
A
UBC500BB

12-9
Specifications
– CONTINUED –
Fuse panelFuse ratingCircuit
130"ABS unit
" Vehicle dynamics con- trol unit
225"Main fan
325"Sub fan (Except 3.0-li- ter models)
425"Main fan (3.0-liter mod- els)
520
615"Headlight (right side)
715"Headlight (left side)
820"Backup light
915"Horn
1025"Rear window defogger
1115"Fuel pump
1215"Automatic transmis- sion control unit
137.5"Engine control unit
1415"Turn and hazard warn-
ing flasher
1520"Parking switch
167.5"Alternator
Fuse panelFuse ratingCircuit

12-10
Specifications
Bulb chart
Description Wattage Bulb No.
Headlight
Low beam 12V-55W H7
High beam 12V-60W 9005 (HB3)
Fog light
Except OUTBACK 12V-55W H3
OUTBACK 12V-51W 9006 (HB4)
Front turn signal/parking
and front side marker 12V-27/8W 3157A
Rear combination light Rear turn signal light
(Sedan) 12V-21W (W21W)
Brake/tail and rear
side marker (Sedan) 12V-21/5W (W21/5W)
Brake/tail (Station
wagon) 12V-21/5W (W21/5W)
Rear side marker
(Station wagon) 12V-5W 168
Rear turn signal light
(Station wagon) 12V-21W (W21W )
Backup light 12V-16W 921
High mount stop light
(Sedan) 12V-21W (W21W) License plate light 12V-5W 168
Trunk room light 12V-5W W5W
Cargo area light 12V-13W –
Front ashtray light 12V-1.4W –
Dome light 12V-8W –
Map light 12V-8W –
Door step light 12V-3.5W –
Description Wattage Bulb No.

12-11
Specifications
– CONTINUED –

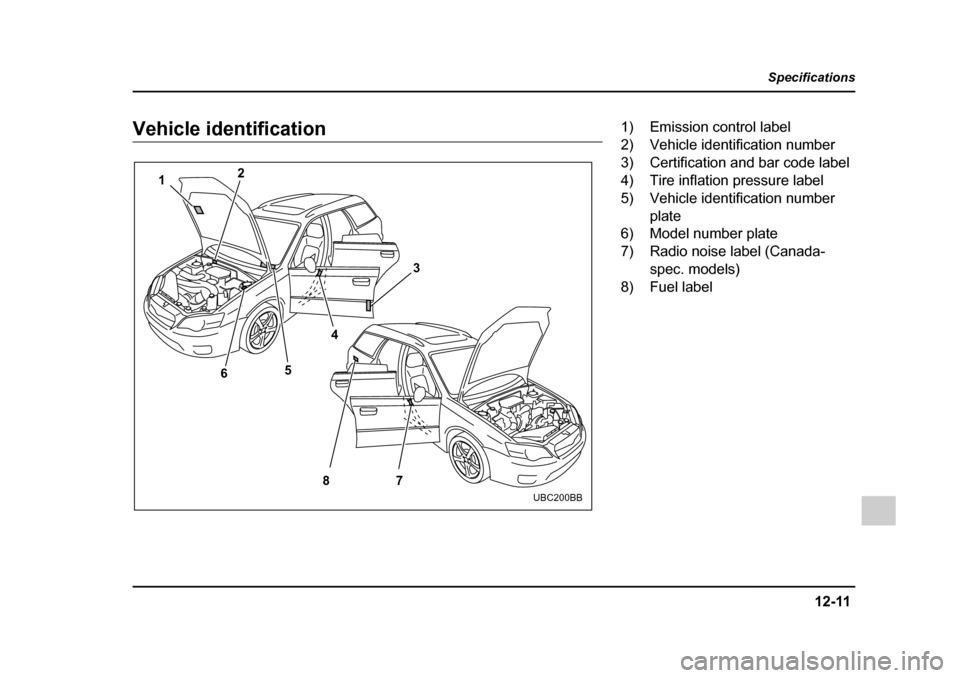

Vehicle identification
1 2
8
6
54 3
7
UBC200BB
1) Emission control label
2) Vehicle identification number
3) Certification and bar code label
4) Tire inflation pressure label
5) Vehicle identification number plate
6) Model number plate
7) Radio noise label (Canada- spec. models)
8) Fuel label

13-1
13
Consumer information and Reporting safety defectsTire information ............................................. 13-2Tire labeling ....................................................... 13-2
Recommended tire inflation pressure ............ 13-6
Glossary of tire terminology ............................ 13-8
Tire care – maintenance and safety practices ......................................................... 13-9
Vehicle load limit – how to determine ............. 13-10
Determining compatibility of tire and vehicle
load capacities ............................................... 13-14
Adverse safety consequences of overloading
on handling and stopping and on tires ........ 13-15
Steps for Determining Correct Load Limit ..... 13-15
Uniform tire quality grading standards ....... 13-16 Treadwear .......................................................... 13-16
Traction AA, A, B, C .......................................... 13-16
Temperature A, B, C ......................................... 13-17
Reporting safety defects (USA) ................... 13-18

13-2
Consumer information and Reporting safety defects
Consumer information and Reporting safety defectsFor U.S.A.
The following information has been compiled accord-
ing to Code of Federal Regulations “Title 49, Part
575”.
Tire information !
Tire labeling
Many markings (e.g. Tire size, Tire Identification
Number or TIN) are placed on the sidewall of a
tire by tire manufacturers. These marking can
provide you with useful information on the tire. ! Tire size
Your vehicle comes equipped with P-Metric tire
size. It is important to understand the sizing sys-
tem in selecting the proper tire for your vehicles.
Here is a brief review of the tire sizing system
with a breakdown of its individual elements. " P Metric
With the P-Metric system, Section Width is mea-
sured in millimeters. To convert millimeters into
inches, divide by 25.4. The Aspect Ratio (Sec-
tion Height divided by Section Width) helps pro- vide more dimensional information about the tire
size. Example:
(1) P = Certain tire type used on light duty vehi-
cles such as passenger cars
(2) Section Width in millimeters
(3) Aspect Ratio (= section height
÷ section
width).
(4) R = Radial Construction
(5) Rim diameter in inches
(6) ZR = Speed category above 149 mph (240
km/h) " Load and Speed Rating Descriptions
The load and speed rating descriptions will ap-
pear following the size designation.
They provide two important facts about the tire.P 225 / 60 R 16
(1) (2) (3) (4) (5)
215 / 45 ZR 17
(2) (3) (6) (5)

13-3
Consumer information and Reporting safety defects
– CONTINUED –
First, the number designation is its load index.
Second, the letter designation indicates the tire’s
speed rating.
Example:
(7) Load Index: A numerical code which speci-
fies the maximum load a tire can carry at the
speed indicated by its speed symbol, at maxi-
mum inflation pressure.
For example, “97” means 1,609 lbs (730 kg), “90”
means 1,323 lbs (600 kg), “89” means 1,278 lbs (580 kg)
Load indices apply only to the tire, not to
the vehicle. Putting a load rated tire on any
vehicle does not mean the vehicle can be
loaded up to the tire’s rated load.
(8) Speed Rating: An alphabetical system de- scribing a tire’s capability to travel at established
and predetermined speeds.
For example, “H” means 130 mph (210 km/h)
"
Speed ratings apply only to the tire, not
to the vehicle. Putting a speed rated tire on
any vehicle does not mean the vehicle can
be operated at the tire’s rated speed. " The speed rating is void if the tires are
worn out, damaged, repaired, retreaded, or
otherwise altered from their original condi-
tion. If tires are repaired, retreaded, or oth-
erwise altered, they may not be suitable for
original equipment tire designed loads and
speeds.
! Tire Identification Number (TIN)
Tire Identification Number (TIN) is marked on the
intended outboard sidewall. The TIN is com-
posed of four groups. Here is a brief review of the
TIN with a breakdown of its individual elements.
P 225 / 60 R 16 97 H Size designation (6) (7)
