The sun shade can be slid forward or backward by
hand while the moonroof is closed.
If the moonroof is opened, the sun shade also moves
back. !
Moonroof (Station wagon)
The front moonroof has a tilting function and the rear
moonroof has a sliding function.
Both moonroofs operate only when the ignition switch
is in the “ON” position. ! Tilting moonroof
A) Open
B) Close To tilt up the front moonroof, open the sun shade and
pull the switch to the “OPEN” side.
To tilt down the front moonroof, push the switch to the
“CLOSE” side, then quickly release it. If you wish to
stop the tilting-down motion of the front moonroof part-
way, either pull the switch to the “OPEN” side or push
it to the “CLOSE” side. !
Sliding moonroof
A) Open
B) Close
To fully open the rear moonroof, tilt up the front moon-
roof then pull the switch to the “OPEN” side and quick-
ly release it. The rear moonroof will stop at a position
PASSENGER
A
B
UB2203BB
PASSENGER
A
B
UB2203BB

2-45
Keys and doors
– CONTINUED –
approximately 6.7 in (17 cm) from its fully closed posi- tion.
After confirming safety, pull the switch to the “OPEN”
side again and quickly release it. The rear moonroof
will open to its fully open position. To stop the rear
moonroof at some selected mid-way point while it is
moving toward its fully open position, momentarily
push the switch to the “CLOSE” or “OPEN” side.
To fully close the rear moonroof, push the switch to the
“CLOSE” side then quickly release it.
The rear moonroof will stop at a position approximate-
ly 5.9 in (15 cm) before its fully closed position. After
confirming safety, pull the switch to the “CLOSE” side
again and quickly release it. The rear moonroof will ful-
ly close. The front moonroof can then be fully closed. !Anti-entrapment function
When the moonroof senses an object trapped be-
tween its glass and during closure, it automatically
moves back by 5.9 in (15 cm) from that point and then
stops. The anti-entrapment function may also be acti-
vated by a strong shock on the moonroof even when
there is nothing trapped.
NOTE " For the sake of safety, it is recommended that
you avoid driving with the moonroof fully opened. " Driving with the moonroof fully open can cause an annoying sound to generate at high speeds. If
such a condition has been encountered, use the
moonroof at the initial stop position of 6.7 in (17 cm). "
If the moonroof cannot be closed through
switch operation because of system failure, it can
be closed manually using a hex-head wrench. For
the procedure, refer to “Moonroof – if the moon-
roof cannot be closed” in Chapter 9. ! Sun shades
The sun shade can be slid forward or backward by
hand while the moonroof is closed.
If the moonroof is opened, the sun shade also movesUB2509BA

2-46
Keys and doors
back.

3-1
3
Instruments and controls
Ignition switch .............................................. 3-3 LOCK .................................................................. 3-4
ACC .................................................................... 3-4
ON ....................................................................... 3-4
START ................................................................ 3-5
Key reminder chime .......................................... 3-6
Ignition switch light .......................................... 3-6
Hazard warning flasher ................................ 3-7
Meters and gauges (Turbo models) ............ 3-7 Combination meter illumination ...................... 3-7
Canceling the function for meter/gauge needle movement and combination meter
sequential illumination upon turning on the
ignition switch ................................................ 3-8
Speedometer ..................................................... 3-9
Odometer ........................................................... 3-9
Double trip meter .............................................. 3-10
Tachometer ........................................................ 3-11
Fuel gauge ......................................................... 3-11
Temperature gauge ........................................... 3-13
Meters and gauges (Non-turbo models) ..... 3-14 Combination meter illumination ...................... 3-14
Canceling the function for meter/gauge needle movement upon turning on the
ignition switch ................................................ 3-15
Speedometer ..................................................... 3-15
Odometer ........................................................... 3-16
Double trip meter .............................................. 3-16
Tachometer ........................................................ 3-17
Fuel gauge ......................................................... 3-18
Temperature gauge ........................................... 3-19 Warning and indicator lights ....................... 3-20
Seatbelt warning light and chime .................... 3-21
SRS airbag system warning light .................... 3-24
Front passenger’s frontal airbag ON and OFF indicators ........................................................ 3-24
CHECK ENGINE warning light/Malfunction indicator lamp ................................................. 3-25
Charge warning light ........................................ 3-26
Oil pressure warning light ............................... 3-26
AT OIL TEMPerature warning light (AT vehicles) ................................................... 3-27
Low tire pressure warning light (if equipped) .................................................... 3-27
ABS warning light ............................................. 3-28
Brake system warning light ............................. 3-29
Low fuel warning light ...................................... 3-30
Door open warning light .................................. 3-31
All-wheel drive warning light (AT vehicles) .... 3-31
Vehicle Dynamics Control operation indicator light (if equipped) ........................................... 3-31
Vehicle Dynamics Control warning light (if equipped)/Vehicle Dynamics Control OFF
indicator light (if equipped) ........................... 3-32
Security indicator light ..................................... 3-33
SPORT mode indicator light (AT vehicles) ..... 3-34
Selector lever position indicator (AT vehicles) ................................................... 3-34
Gear position indicator (AT vehicles) ............. 3-34
Turn signal indicator lights .............................. 3-34
High beam indicator light ................................. 3-35
Cruise control indicator light ........................... 3-35
Cruise control set indicator light .................... 3-35

3-2
Instruments and controls
Headlight indicator light .................................. 3-35
Front fog light indicator light .......................... 3-35
Clock ............................................................. 3-36
Information display (if equipped) ................ 3-37 Outside temperature indicator ........................ 3-37
Current fuel consumption ................................ 3-39
Average fuel consumption .............................. 3-40
Driving range on remaining fuel ..................... 3-41
Journey time ..................................................... 3-43
Light control switch ..................................... 3-44 Headlights ......................................................... 3-45
High/low beam change (dimmer) .................... 3-45
Headlight flasher .............................................. 3-46
Daytime running light system ......................... 3-46
Turn signal lever ........................................... 3-47
Illumination brightness control ................... 3-47
Bright switch (Night illumination dimness cancellation) .............................................. 3-48
Parking light switch ..................................... 3-49
Fog light switch (if equipped) ..................... 3-50
Wiper and washer ......................................... 3-51 Windshield wiper and washer switches ......... 3-52
Rear window wiper and washer switch (Station wagon) .............................................. 3-55
Windshield wiper deicer (if equipped) ........ 3-56
Rear window defogger button ..................... 3-57
Mirrors ........................................................... 3-59 Inside mirror ...................................................... 3-59
Auto-dimming mirror/compass (if equipped) ................................................... 3-59
Outside mirrors ................................................. 3-61 Tilt steering wheel ........................................ 3-63
Horn ............................................................... 3-64

3-3
Instruments and controls
– CONTINUED –

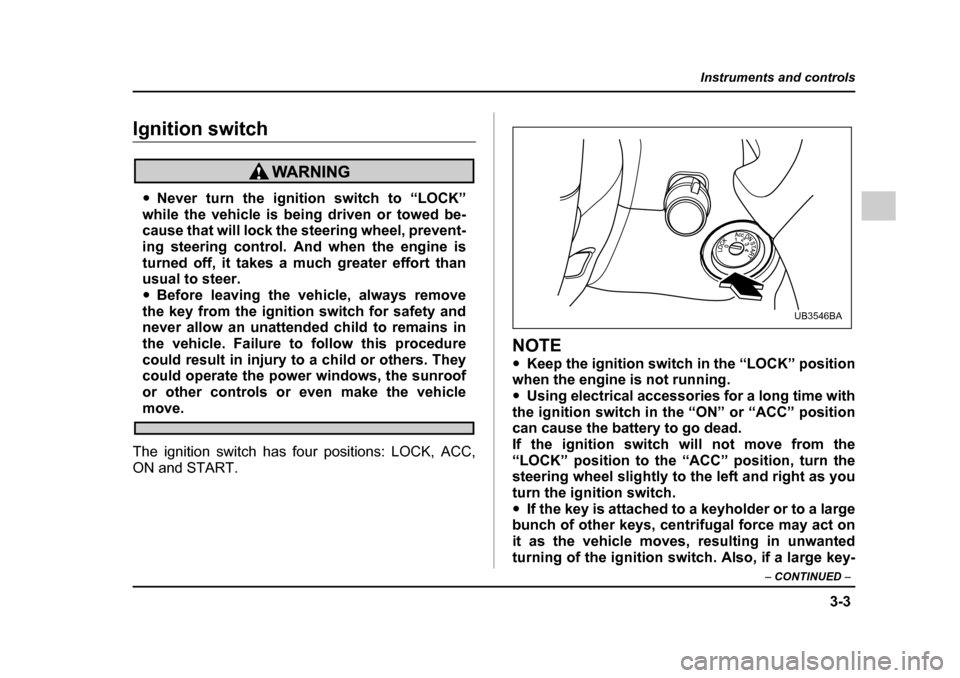

Instruments and controlsIgnition switch
