Wiper intermittent time control (if equipped)
When the wiper switch is in the “ ” position, turn
the dial to adjust the operating interval of the wiper.
The operating interval can be adjusted continuously
from the shortest interval to the longest.
Two click stop positions of the dial may help you to aim
at your desired interval.
The operating interval can be adjusted in nine steps. !
Washer
To wash the windshield, push the washer button at the
end of the wiper control lever. The washer fluid sprays
until you release the washer button. The wipers oper-
ate while you push the button.
UB3558CAUB3559BA

3-55
Instruments and controls
– CONTINUED –
!Rear window wiper and washer switch
(Station wagon)
: Washer (accompanied by wiper operation)
ON: Continuous
INT: Intermittent
OFF: Park : Washer
! Rear wiper
To turn the rear wiper on, turn the knob on the end of
the wiper control lever upward to the “INT” or “ON” po- sition.
To turn the wiper off, return the knob on the end of the
lever to the “OFF” position. With the switch turned to the “INT” position, the rear
wiper will operate intermittently at intervals corre-
sponding to the vehicle speed (shorter when the vehi-
cle speed is low; longer when the vehicle speed is
high).
When you subsequently move the selector lever of the
automatic transmission to the “R” position, the rear
wiper will switch to continuous operation. When you
move the selector lever from the “R” position to some
other position, the rear wiper will return to intermittent
operation. !
Washer
To wash the rear window while the rear wiper is oper-
ating, turn the knob on the end of the wiper control le-
ver upward to the “ ” position. The washer fluid
sprays until you release the knob.
To wash the rear window when the rear wiper is not in
use, turn the knob on the end of the wiper control lever
downward to the “ ” position. The washer fluid
sprays and the wiper operates until you release the
knob.
UB3558EA

3-56
Instruments and controls
Windshield wiper deicer (if equipped)
The windshield wiper deicer operates only when the
ignition switch is in the “ON” position.
Before turning on the windshield wiper deicer, remove
any snow from the windshield. To turn on the wind-
shield wiper deicer, push the button. The indicator light
located on the button lights up while the windshield
wiper deicer is operating.
The windshield wiper deicer will automatically shut off
after about 15 minutes. If the windshield wiper blades
have been deiced completely before that time, push
the button to turn it off. It also turns off when the igni-
tion switch is turned to the “ACC” or “LOCK” position.
If deicing is not complete, you have to push the button
to turn the deicer on again.
Your SUBARU dealer can set your windshield wiper
deicer for continuous operation. Contact your SUBA-
RU dealer for details.
Once the windshield wiper deicer has been set for
continuous operation, pressing the button results in
continuous operation. The windshield wiper deicer au-
tomatically stops operating if any one of the following
conditions occurs during continuous operation."
The outside temperature becomes 41 °F (5 °C) or
higher." The vehicle speed remains at 9 mph (15 km/h) or
lower for 15 minutes. " The battery voltage decreases below the permissi-
ble level.
UB3213BA

3-57
Instruments and controls
– CONTINUED –
Rear window defogger button
Vehicle with manual climate control system Vehicle with automatic climate control system
The rear window defogger operates only when the ig-
nition switch is in the “ON” position.
The rear window defogger button is located on the cli-
mate control panel.
The defogger will automatically shut off after about 15
minutes. If the window clears before that time, push
the button to turn it off. It also turns off when the igni-
tion switch is turned to the “ACC” or “LOCK” position.
If defrosting or defogging is desired when you restart
your vehicle, you have to push the button to turn it on
again.

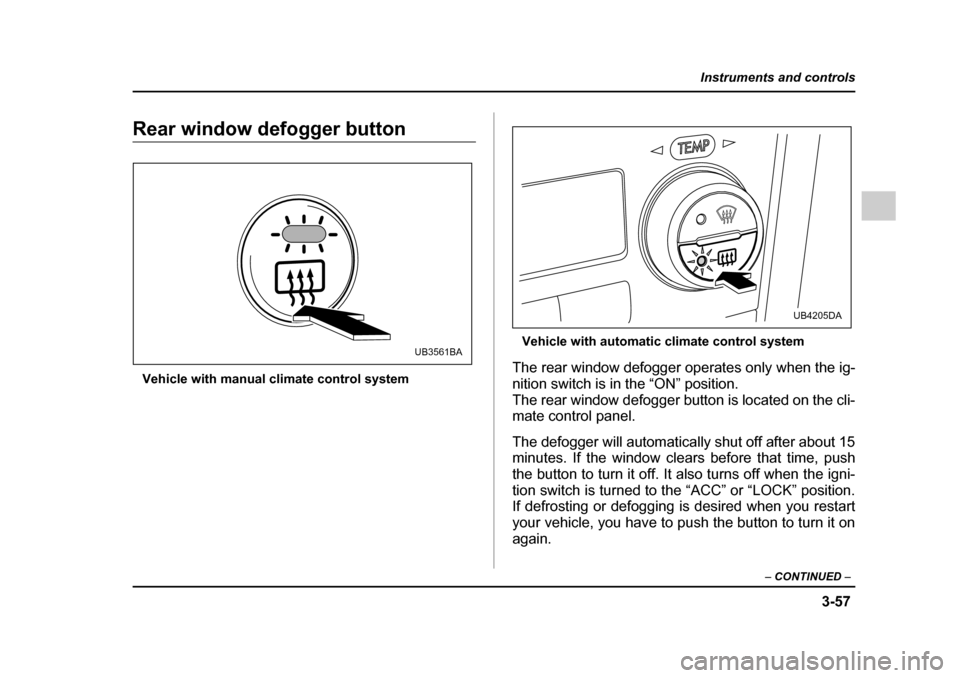

UB3561BA
UB4205DA

3-58
Instruments and controls
To turn on the defogger, push the button. To turn it off,
push the button again.
The indicator light located on the button lights up while
the rear window defogger is operating.
Your SUBARU dealer can set your rear window defog-
ger for continuous operation. Contact your SUBARU
dealer for details.
Once the rear window defogger has been set for con-
tinuous operation, the rear window defogger repeated-
ly operates for 15 minutes, stops for two minutes, and
again operates for 15 minutes. If the battery voltage
drops below the permissible level, continuous opera-
tion is canceled and operation stops as described be-
low."
If the battery voltage drops below the permissible
level within 15 minutes of depression of the button,
continuous operation is canceled and the rear window
defogger stops operating 15 minutes later. " If the battery voltage drops below the permissible
level after the rear window defogger has, following de-
pression of the button, operated for 15 minutes,
stopped operating for two minutes, and started operat-
ing again, the rear window defogger immediately
stops operating.
" Do not use sharp instruments or window
cleaner containing abrasives to clean the inner
surface of the rear window. They may damage
the conductors printed on the window." To prevent the battery from being dis-
charged, do not operate the defogger continu-
ously for any longer than necessary.
NOTE
If your vehicle is equipped with the outside mirror
defogger, the outside mirror defogger operates
while the rear window defogger is operating.

3-59
Instruments and controls
– CONTINUED –
Mirrors
Always check that the inside and outside mirrors are
properly adjusted before you start driving. !Inside mirror
The inside mirror has a day and night position. Pull the
tab at the bottom of the mirror toward you for the night
position. Push it away for the day position. The night
position reduces glare from headlights. !
Auto-dimming mirror/compass (if
equipped)
A) Left button
B) Auto dimming indicator
C) Photosensor
D) Right button
The auto-dimming mirror/compass has an anti-glare
feature which automatically reduces glare coming
from headlights of vehicles behind you. It also con-
tains a built-in compass. " By pressing and releasing the left button, the auto-
matic dimming function is toggled on or off. When the
automatic dimming function is on, the auto dimming in-
UB3517BA
A
BC D
HS3037BC

3-60
Instruments and controls
dicator light (green) located to the right of the button
will illuminate."
By pressing and releasing the right button, the com-
pass display is toggled on or off. When the compass is
on, an illuminated compass reading will appear in the
lower part of the mirror.
Even with the mirror in anti-glare mode, the mirror sur-
face turns bright if the transmission is shifted into re-
verse. This is to ensure good rearward visibility during reversing. ! Photosensors
The mirror has a photosensor attached on both the
front and back sides. If the glare from the headlights of vehicles behind you strikes the mirror, these sensors
detect it and make the reflection surface of the mirror
dimmer to help prevent you from being blinded. For
this reason, use care not to cover the sensors with
stickers, or other similar items. Periodically wipe the
sensors clean using a piece of dry soft cotton cloth or
an applicator. !
Compass calibration
1. For optimum calibration, switch off all nonessential
electrical accessories (rear window defogger, heater/
air conditioning system, spotlight, etc.) and ensure all
doors are shut.
2. Drive to an open, level area away from large metal-
lic objects or structures and make certain the ignition
switch is in the “ON” position.
3. Press and hold the left button for 3 seconds then re-
lease, and the compass will enter the calibration
mode. “CAL” and direction will be displayed.
4. Drive slowly in a circle until “CAL” disappears from
the display (about two or three circles). The compass
is now calibrated.
5. Further calibration may be necessary should out-
side influences cause the mirror to read inaccurately.
You will know that this has occurred if your compass
begins to read in only limited directions. Should you
encounter this situation, return to step one of the
above procedure and recalibrate the mirror.
HS3038BA

3-61
Instruments and controls
– CONTINUED –
!Compass zone adjustment
1. The zone setting is factory preset to Zone 8. Refer
to the “Compass calibration zone” map attached to the
end of this manual to verify that the compass zone set-
ting is correct for your geographical location.
2. Press and hold the right button for 3 seconds then
release, and the word “ZONE” will briefly appear and
then the zone number will be displayed.
3. Press the right hand button repeatedly to cycle the
display through all possible zone settings. Stop cycling
when the correct zone setting for your location is dis-
played.
4. Releasing the button for 3 seconds will exit the
zone setting mode. ! Outside mirrors
! Convex mirror (Passenger side)
Objects look smaller in a convex mirror and far-
ther away than when viewed in a flat mirror. Do
not use the convex mirror to judge the distance
of vehicles behind you when changing lanes.
Use the inside mirror (or glance backwards) to
determine the actual size and distance of ob-
jects that you view in convex mirror.
! Remote control mirror switch
The remote control mirrors operate only when the ig-
nition switch is in the “ON” or “ACC” position.
1. Turn the knob to the “L” side to adjust the left hand
mirror or to the “R” side to adjust the right hand mirror.
2. Move the knob in the direction you want to move
the mirror.
3. Return the knob to the neutral position to prevent
unintentional operation.
The mirrors can also be adjusted manually.
