TROUBLE DIAGNOSIS
SRS-21
C
D
E
F
G
I
J
K
L
MA
B
SRS

10. After repairing the malfunction, touch “SELF-DIAG [CURRENT]”
to check that “No DTC IS DETECTED” is displayed.

After checking the display, touch “ERASE”.

If any malfunction is displayed on “SELF-DIAG [CURRENT]”,
repair or replace the malfunctioning again.
11. Touch “BACK” key of CONSULT-II to “SELECT SYSTEM”
screen. Touch “SELF-DIAG [PAST]”.
12. Check that no malfunction is detected on “SELF-DIAG [PAST]”.

If any malfunction is deployed, Touch “ERASE” in the “SELF-
DIAG [CURRENT]” screen, and check the display.
13. Turn ignition switch OFF, then turn off and disconnect CONSULT-II.
14. Turn ignition switch ON, and check the system with the SRS air bag warning lamp (User mode).
15. Check that no malfunction is detected. Now the diagnosis is complete.
DIAGNOSTIC PROCEDURE 3
Inspecting SRS Malfunctioning Record
If any malfunction is detected in “SRS Operation Check”, but no malfunction is detected in “SELF-DIAG [CUR-
RENT]” on CONSULT-II, carry out the following steps.
1. CHECK BATTERY VOLTAGE
Disconnect both battery cables and check that the battery voltage is 9 V or more.
OK or NG
OK >> GO TO 2.
NG >> Charge the battery.
2. CONSIDER POSSIBILITY OF NOT ERASING SELF-DIAGNOSTIC RESULT AFTER REPAIRING.
Is it the first time for maintenance of SRS?
YES or NO
YES >> GO TO 3.
NO >> Erase the self-diagnostic results, and Check the “SRS Operation Check”. Refer to SRS-17, "
SRS
Operation Check" .
3. CHECK “SELF-DIAG [PAST]” BY CONSULT-II
Store the memory in “SELF-DIAG [PAST]”.
YES or NO
YES >> Repair the part of “SELF-DIAG[PAST]”.
NO >> Check the “TROUBLE DIAG RECORD”, and then repair it. Refer to SRS-22, "
Diagnostic Code
Chart" .
SRS701
SRS702

BL-1
BODY, LOCK & SECURITY SYSTEM
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION BL
A
B
BL

BODY, LOCK & SECURITY SYSTEM
PRECAUTIONS .......................................................... 4
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 4
Precautions for Work ................................................ 4
Wiring Diagnosis and Trouble Diagnosis ................. 4
PREPARATION ........................................................... 5
Commercial Service Tools ........................................ 5
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 6
Work Flow ................................................................ 6
CUSTOMER INTERVIEW ..................................... 6
DUPLICATE THE NOISE AND TEST DRIVE ....... 7
CHECK RELATED SERVICE BULLETINS ........... 7
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ...................................................... 7
REPAIR THE CAUSE ........................................... 7
CONFIRM THE REPAIR ....................................... 8
Generic Squeak and Rattle Troubleshooting ........... 8
INSTRUMENT PANEL .......................................... 8
CENTER CONSOLE ............................................. 8
DOORS ................................................................. 8
TRUNK .................................................................. 9
SUNROOF/HEADLINING ..................................... 9
SEATS ................................................................... 9
UNDERHOOD ....................................................... 9
Diagnostic Worksheet ............................................ 10
HOOD ....................................................................... 12
Fitting Adjustment .................................................. 12
LONGITUDINAL AND LATERAL CLEARANCE
ADJUSTMENT .................................................... 12
FRONT END HEIGHT ADJUSTMENT ............... 12
SURFACE HEIGHT ADJUSTMENT ................... 14
Removal and Installation of Hood Assembly .......... 15
REMOVAL ........................................................... 15
INSTALLATION ................................................... 15
Removal and Installation of Hood Lock Control ..... 16
REMOVAL ........................................................... 16
INSTALLATION ................................................... 16
Hood Lock Control Inspection ................................ 17
DOOR ....................................................................... 18Fitting Adjustment ................................................... 18
FRONT DOOR .................................................... 18
REAR DOOR ....................................................... 18
STRIKER ADJUSTMENT .................................... 18
Removal and Installation of Front Door .................. 19
REMOVAL ........................................................... 19
INSTALLATION ................................................... 19
Removal and Installation of Rear Door ................... 19
REMOVAL ........................................................... 20
INSTALLATION ................................................... 20
Door Weatherstrip .................................................. 21
REMOVAL ........................................................... 21
INSTALLATION ................................................... 21
POWER DOOR LOCK SYSTEM .............................. 22
System Description ................................................. 22
OPERATION ........................................................ 22
Component Parts and Harness Connector Location ... 22
Schematic ............................................................... 23
Wiring Diagram — D/LOCK — ............................... 24
Terminal and Reference Value for Time Control Unit ... 28
Symptom Chart ....................................................... 29
Power Supply and Ground Circuit Check ............... 29
Door Lock/Unlock Switch Check ............................ 30
Door Key Cylinder Switch Check ............................ 32
Front Door Lock Actuator (Driver Side) Check ....... 34
Front Door Lock Actuator (Passenger Side) Check ... 35
Rear Door Lock Actuator LH Check ....................... 36
Rear Door Lock Actuator RH Check ....................... 37
Back Door Lock Actuator Check ............................. 38
Door Switch Check ................................................. 39
Door Unlock Sensor Check .................................... 40
Key Switch Check ................................................... 41
POWER DOOR LOCK — SUPER LOCK — ............ 42
System Description ................................................. 42
OUTLINE ............................................................. 42
OPERATION ........................................................ 42
Schematic ............................................................... 44
Wiring Diagram — S/LOCK — ............................... 45
Terminal and Reference Value for Time Control Unit ... 51
Trouble Diagnoses ................................................. 53

BL-2 PRELIMINARY CHECK ....................................... 53
SYMPTOM CHART ............................................. 54
Power Supply and Ground Circuit Check ............... 55
Door Lock/Unlock Switch Check ............................ 56

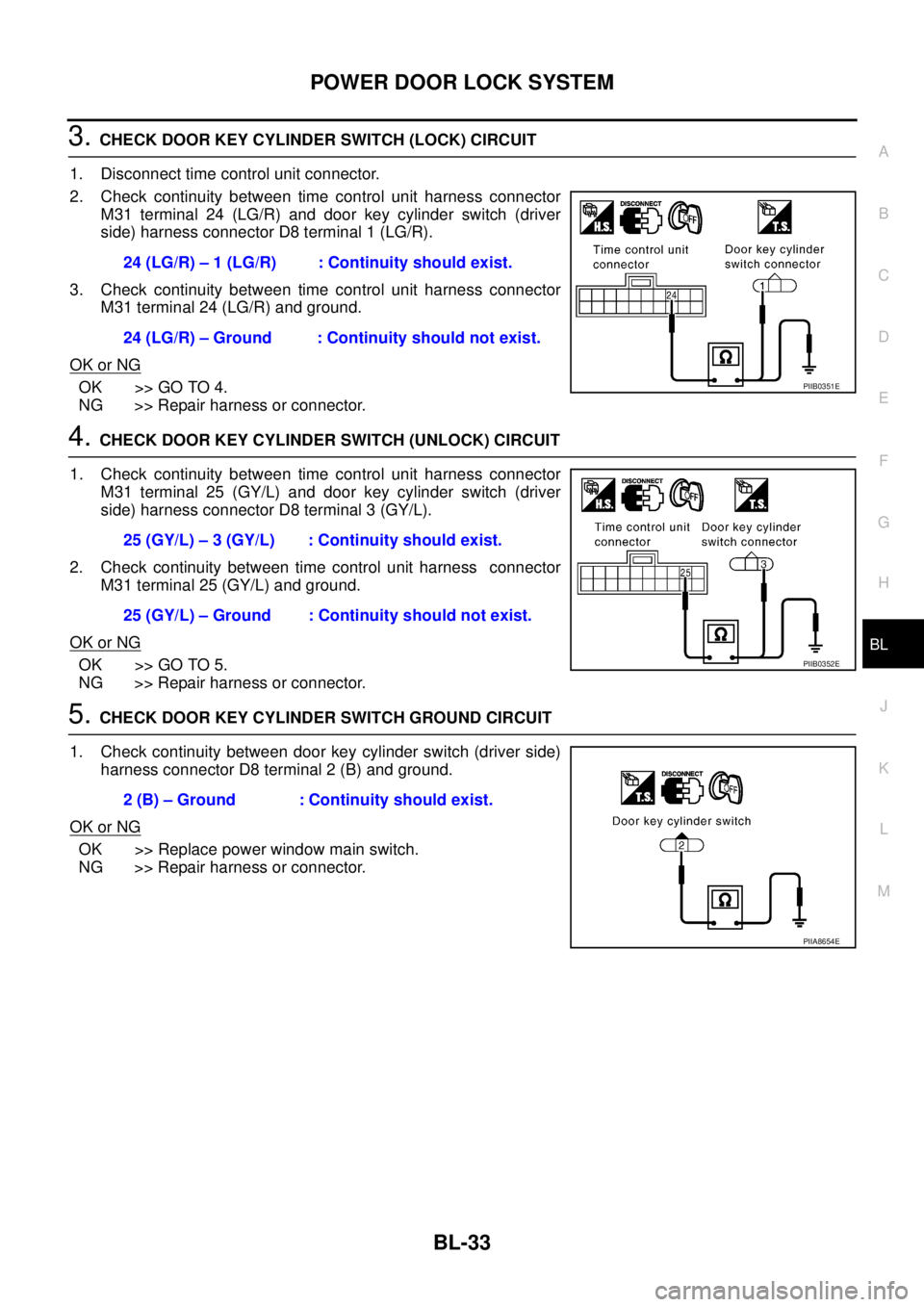

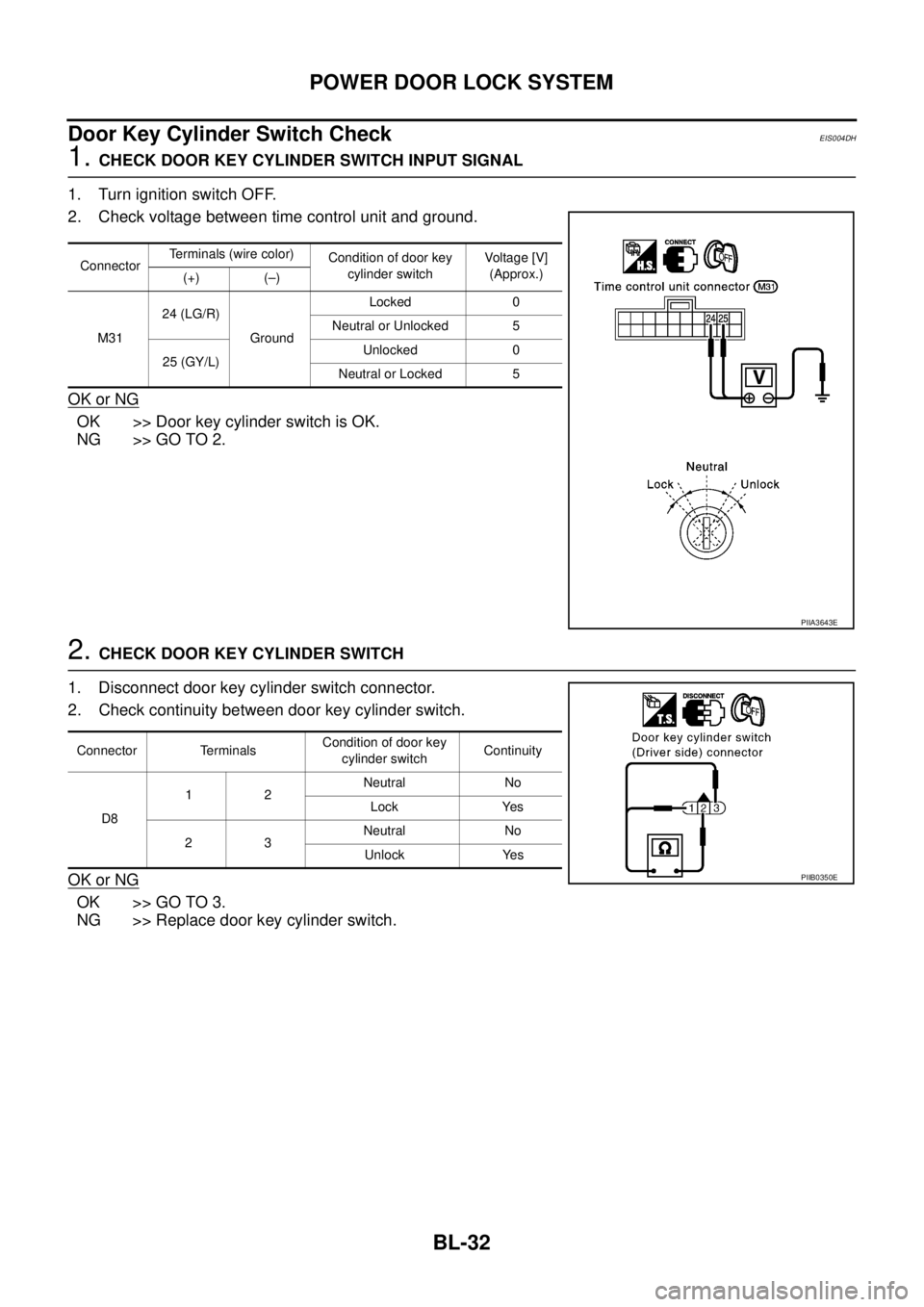

Door Key Cylinder Switch Check ............................ 58
Front Door Lock Actuator (Driver Side) Check ....... 60
Front Door Lock Actuator (Passenger Side) Check ... 61
Rear Door Lock Actuator LH Check ....................... 62
Rear Door Lock Actuator RH Check ....................... 63
Back Door Lock Actuator Check ............................. 64
Door Switch Check ................................................. 65
Door Unlock Sensor Check .................................... 66
Key Switch Check ................................................... 67
Super Lock Actuator (Driver Side) Check ............... 68
Super Lock Actuator (Passenger Side) Check ....... 69
Super Lock Actuator Check / Rear LH ................... 70
Super Lock Actuator Check / Rear RH ................... 71
NATS Release Signal Check .................................. 72
Ignition Switch “ON” Circuit Check ......................... 73
MULTI-REMOTE CONTROL SYSTEM ..................... 74
Component Parts and Harness Connector Location ... 74
System Description ................................................. 75
FUNCTION .......................................................... 75
LOCK OPERATION ............................................. 75
UNLOCK OPERATION ........................................ 75
HAZARD REMINDER .......................................... 75
MULTI-REMOTE CONTROLLER ID CODE
ENTRY ................................................................ 75
Schematic ............................................................... 76
Wiring Diagram — MULTI — .................................. 77
Terminal and Reference Value for Multi-remote
Control Unit ............................................................. 80
Terminal and Reference Value for Time Control Unit ... 80
Symptom Chart ....................................................... 81
Remote Controller Battery Check ........................... 82
Power Supply and Ground Circuit Check for Time
Control Unit ............................................................. 82
Power Supply and Ground Circuit Check for Multi-
Remote Control Unit ............................................... 83
Time Control Unit Lock Signal Circuit Check .......... 84
Time Control Unit Unlock Signal Circuit Check ...... 85
Hazard Reminder Check ........................................ 86
ID Code Entry Procedure ....................................... 89
Remote Controller Battery Replacement ................ 90
FRONT DOOR LOCK ............................................... 91
Component Parts Location ..................................... 91
Component Parts Location (Super Lock) ................ 91
Inspection and Adjustment ..................................... 91
OUT SIDE HANDLE ROD ADJUSTMENT .......... 92
Removal and Installation ........................................ 92
REMOVAL ........................................................... 92
INSTALLATION .................................................... 93
Disassembly and Assembly .................................... 93
DISASSEMBLY ................................................... 93
ASSEMBLY ......................................................... 93
Disassembly and Assembly .................................... 93
DISASSEMBLY (SUPER LOCK) ......................... 93
ASSEMBLY ......................................................... 94
REAR DOOR LOCK .................................................. 95Component Parts Location ..................................... 95
Component Parts Location (Super Lock) ................ 95
Inspection and Adjustment ...................................... 95
OUT SIDE HANDLE ROD ADJUSTMENT .......... 96
Removal and Installation ......................................... 96
REMOVAL ............................................................ 96
INSTALLATION .................................................... 97
Disassembly and Assembly .................................... 98
DISASSEMBLY .................................................... 98
ASSEMBLY .......................................................... 98
Disassembly and Assembly .................................... 98
DISASSEMBLY (SUPER LOCK) ......................... 98
ASSEMBLY .......................................................... 98
BACK DOOR ............................................................. 99
Fitting Adjustment ................................................... 99
VERTICAL/LATERAL CLEARANCE ADJUST-
MENT ................................................................... 99
Back Door Assembly .............................................100
REMOVAL AND INSTALLATION .......................100
INSPECTION .....................................................100
Removal and Installation of Back Door Handle ....100
REMOVAL ..........................................................100
INSTALLATION ..................................................101
Removal and Installation of Back Door Lock and
Actuator .................................................................101
REMOVAL ..........................................................101
INSTALLATION ..................................................101
Removal and Installation of Back Door Weatherstrip .102
REMOVAL ..........................................................102
INSTALLATION ..................................................102
FUEL FILLER LID OPENER ...................................103
Component Parts Location ...................................103
THEFT WARNING SYSTEM ...................................104
Wiring Diagram — THEFT —/PRI-WIRE ..............104
LHD MODELS ....................................................104
RHD MODELS ...................................................106
NATS (NISSAN ANTI-THEFT SYSTEM) .................108
Component Parts and Harness Connector Location .108
System Description ...............................................109
System Composition .............................................110
ECM Re-communicating Function ........................110
Wiring Diagram — NATS — .................................. 111
LHD MODELS .................................................... 111
RHD MODELS ...................................................113
CONSULT-II ..........................................................115
CONSULT-II INSPECTION PROCEDURE ........115
CONSULT-II DIAGNOSTIC TEST MODE FUNC-
TION ..................................................................116
HOW TO READ SELF-DIAGNOSTIC RESULTS .116
NATS SELF-DIAGNOSTIC RESULTS ITEM
CHART ...............................................................117
Work Flow .............................................................118
Trouble Diagnoses ................................................119
SYMPTOM MATRIX CHART 1 ..........................119
SYMPTOM MATRIX CHART 2 ..........................121
DIAGNOSTIC SYSTEM DIAGRAM ...................121
Diagnostic Procedure 1 .........................................121
Diagnostic Procedure 2 .........................................122
Diagnostic Procedure 3 .........................................125

BL-22
POWER DOOR LOCK SYSTEM

POWER DOOR LOCK SYSTEMPFP:24814
System DescriptionEIS001SE
OPERATION
Power door lock/unlock operation by door key cylinder

With the key inserted into driver's door key cylinder, turning it to LOCK will lock all doors.

With the key inserted into driver's door key cylinder, turning it to UNLOCK will unlock all doors.
Power door lock/unlock operation by lock/unlock switch

With lock/unlock switch setting to LOCK will lock all doors.

With lock/unlock switch setting to UNLOCK will unlock all doors.
Key reminder system

If the ignition key is in the ignition key cylinder and driver door is open, setting lock/unlock switch, lock
knob, key or multi-remote controller to “LOCK” locks the door once but then immediately unlocks all doors.
(signal from door unlock sensor driver side)
Component Parts and Harness Connector LocationEIS004DC
PIIA0584E

BL-28
POWER DOOR LOCK SYSTEM

Terminal and Reference Value for Time Control UnitEIS000KP
Te r -
minalWire
ColorItem ConditionVoltage [V]
(Approximate values)
1 L Power source (Fuse) — Battery voltage
4G/RPassenger and rear door lock
actuator unlockDoor lock/unlock switchFree 0
Unlock
10 W Power source (C/B) — Battery voltage
11 S BDriver door lock actuator
unlockDoor lock/unlock switchFree 0
Lock
14 R/B All door lock actuator lockDoor lock/unlock switch
Unlock operationFree 0
Lock
16 B/R Ground — 0
17 G Ignition switch (ON) — Battery voltage
18 W/L Key switchKey inserted (ON) → key removed from ignition
key cylinder (OFF)Battery voltage → 0
20 GYDoor lock/unlock switch lock
signalLock operation (ON) 0
Other than above (OFF) 5
23 PUDoor lock/unlock switch
unlock signalUnlock operation (ON) 0
Other than above (OFF) 5
24 LG/R Door key cylinder lock switch OFF (Neutral) → ON (Locked) 5 → 0
25 GY/LDoor key cylinder unlock
switchOFF (Neutral) → ON (Unlocked) 5 → 0
28 Y/GDoor unlock sensor
(driver side)Driver door: Locked → Unlocked 10 → 0
30 SBFront door switch
(driver side)Door open (ON) → close (OFF) 0 →5
SKIA9232E
SKIA9232E
SKIA9232E

POWER DOOR LOCK SYSTEM
BL-29
C
D
E
F
G
H
J
K
L
MA
B
BL

Symptom ChartEIS001R5
*:Make sure the power door lock system operates properly.
Power Supply and Ground Circuit CheckEIS004DF
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect time control unit connector.
3. Check voltage between time control unit connector and ground.
OK or NG
OK >> GO TO 2.
NG >> Check the following.

10A fuse [No.5, located in fuse block (J/B)]

40A fusible link (letter B , located in fuse and fusible link box.)

Harness for open or short between time control unit and fuse

Harness for open or short between time control unit circuit breaker
Symptom Malfunctioning systemReference
page
Power door lock does not operate using any switchPower supply and ground circuit checkBL-29
Front door lock actuator check (Driver side)BL-34
Front door lock actuator check (Passenger side)BL-35
Rear door lock actuator check LH BL-36
Rear door lock actuator check RHBL-37
Back door lock actuator checkBL-38
If above systems are OK, replace time control unit. —
Power door lock does not operate with lock/unlock
switch.Door lock/unlock switch checkBL-30
If above system is OK, replace time control unit. —
Power door lock does not operate with door key cylinder
switch.Door key cylinder switch checkBL-32
If above system is OK, replace time control unit. —
Specific door lock actuator does not operate.Front door lock actuator check (Driver side)BL-34
Front door lock actuator check (Passenger side)BL-35
Rear door lock actuator LHBL-36
Rear door lock actuator RHBL-37
Back door lock actuatorBL-38
If above system is OK, replace time control unit. —
*Key reminder system does not operate.Door switch checkBL-39
Door unlock sensor checkBL-40
Key switch checkBL-41
If above system is OK, replace time control unit. —
ConnectorTerminal (wire
color)Ignition switch position
(+) (–) OFF ACC ON
M301 (L)
GroundBattery
voltageBattery
voltageBattery
voltage
10 (W)Battery
voltageBattery
voltageBattery
voltage
PIIA8640E

BL-32
POWER DOOR LOCK SYSTEM

Door Key Cylinder Switch CheckEIS004DH
1. CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL
1. Turn ignition switch OFF.
2. Check voltage between time control unit and ground.
OK or NG
OK >> Door key cylinder switch is OK.
NG >> GO TO 2.
2. CHECK DOOR KEY CYLINDER SWITCH
1. Disconnect door key cylinder switch connector.
2. Check continuity between door key cylinder switch.
OK or NG
OK >> GO TO 3.
NG >> Replace door key cylinder switch.
ConnectorTerminals (wire color)
Condition of door key
cylinder switchVoltage [V]
(Approx.)
(+) (–)
M3124 (LG/R)
GroundLocked 0
Neutral or Unlocked 5
25 (GY/L)Unlocked 0
Neutral or Locked 5
PIIA3643E
Connector TerminalsCondition of door key
cylinder switchContinuity
D812Neutral No
Lock Yes
23Neutral No
Unlock Yes
PIIB0350E

POWER DOOR LOCK SYSTEM
BL-33
C
D
E
F
G
H
J
K
L
MA
B
BL

3. CHECK DOOR KEY CYLINDER SWITCH (LOCK) CIRCUIT
1. Disconnect time control unit connector.
2. Check continuity between time control unit harness connector
M31 terminal 24 (LG/R) and door key cylinder switch (driver
side) harness connector D8 terminal 1 (LG/R).
3. Check continuity between time control unit harness connector
M31 terminal 24 (LG/R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK DOOR KEY CYLINDER SWITCH (UNLOCK) CIRCUIT
1. Check continuity between time control unit harness connector
M31 terminal 25 (GY/L) and door key cylinder switch (driver
side) harness connector D8 terminal 3 (GY/L).
2. Check continuity between time control unit harness connector
M31 terminal 25 (GY/L) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK DOOR KEY CYLINDER SWITCH GROUND CIRCUIT
1. Check continuity between door key cylinder switch (driver side)
harness connector D8 terminal 2 (B) and ground.
OK or NG
OK >> Replace power window main switch.
NG >> Repair harness or connector.24 (LG/R) – 1 (LG/R) : Continuity should exist.
24 (LG/R) – Ground : Continuity should not exist.
PIIB0351E
25 (GY/L) – 3 (GY/L) : Continuity should exist.
25 (GY/L) – Ground : Continuity should not exist.
PIIB0352E
2 (B) – Ground : Continuity should exist.
PIIA8654E
