2005 NISSAN X-TRAIL key

POWER DOOR LOCK SYSTEM
BL-41
C
D
E
F
G
H
J
K
L
MA
B
BL

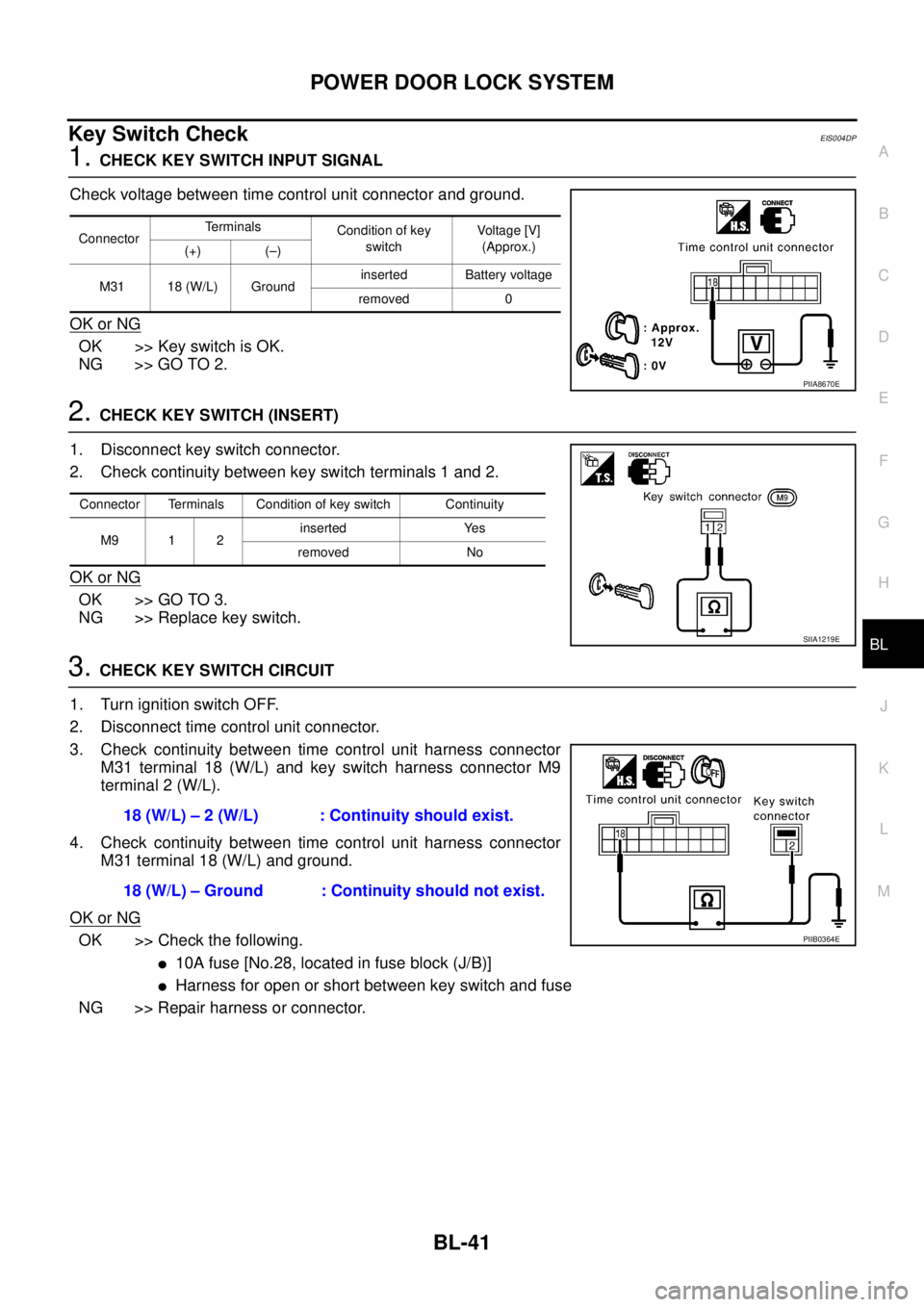

Key Switch CheckEIS004DP
1. CHECK KEY SWITCH INPUT SIGNAL
Check voltage between time control unit connector and ground.
OK or NG
OK >> Key switch is OK.
NG >> GO TO 2.
2. CHECK KEY SWITCH (INSERT)
1. Disconnect key switch connector.
2. Check continuity between key switch terminals 1 and 2.
OK or NG
OK >> GO TO 3.
NG >> Replace key switch.
3. CHECK KEY SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect time control unit connector.
3. Check continuity between time control unit harness connector
M31 terminal 18 (W/L) and key switch harness connector M9
terminal 2 (W/L).
4. Check continuity between time control unit harness connector
M31 terminal 18 (W/L) and ground.
OK or NG
OK >> Check the following.

10A fuse [No.28, located in fuse block (J/B)]

Harness for open or short between key switch and fuse
NG >> Repair harness or connector.
ConnectorTe r m i n a l s
Condition of key
switchVoltage [V]
(Approx.)
(+) (–)
M31 18 (W/L) Groundinserted Battery voltage
removed 0
PIIA8670E
Connector Terminals Condition of key switch Continuity
M9 1 2inserted Yes
removed No
SIIA1219E
18 (W/L) – 2 (W/L) : Continuity should exist.
18 (W/L) – Ground : Continuity should not exist.
PIIB0364E

BL-42
POWER DOOR LOCK — SUPER LOCK —

POWER DOOR LOCK — SUPER LOCK —PFP:24814
System DescriptionEIS001R6
OUTLINE
Power door lock system with super lock and key reminder is controlled by time control unit. Super lock has a
higher anti-theft performance than conventional power door lock systems.
When super lock is in released condition, lock knob operation locks or unlocks door.
When super lock is in set condition, lock knob operation cannot lock nor unlock door.
OPERATION
Power door lock/unlock and super lock set/release operation by door key cylinder

With the key inserted into driver door key cylinder, turning it to LOCK will lock all doors and set super lock.
(Super lock will not be set while key is inserted in the ignition key cylinder.)

With the key inserted into driver door key cylinder, turning it to UNLOCK will unlock all doors and release
super lock.
Power door lock/unlock and super lock set/release operation by multi-remote controller (If
equipped)

Pressing multi-remote controller LOCK button will lock all doors and set super lock. (Super lock will not be
set while key is inserted in the ignition key cylinder.)

Pressing multi-remote controller UNLOCK button once will unlock driver door and release super lock.
Then, if an unlock signal is sent from the remote controller again within 5 seconds, all other doors will be
unlocked.
Power door lock and super lock release operation (by NATS IMMU signal)

When the super lock is set, turning the ignition key switch to ON will release the super lock. All doors will
unlock once, but then immediately lock again.
Power door lock/unlock operation by lock/unlock switch

With lock/unlock switch on driver door trim setting to LOCK will lock all doors.

With lock/unlock switch on driver door trim setting to UNLOCK will unlock all doors.
Lock/unlock switch operation cannot control super lock
SEL831U

POWER DOOR LOCK — SUPER LOCK —
BL-43
C
D
E
F
G
H
J
K
L
MA
B
BL

Key reminder system

If the ignition key is in the ignition key cylinder and driver door is open, setting lock/unlock switch, lock
knob, key or multi-remote controller to “LOCK” locks the door once but then immediately unlocks all doors.
(signal from door unlock sensor driver side)
System initialization

System initialization is required when battery cables are reconnected. Conduct the following to release
super lock once;
– insert the key into the ignition key cylinder and turn it to ON.
– LOCK/UNLOCK operation using door key cylinder or multi-remote controller.

POWER DOOR LOCK — SUPER LOCK —
BL-51
C
D
E
F
G
H
J
K
L
MA
B
BL

Terminal and Reference Value for Time Control UnitEIS001SR
Te r -
minalWire
ColorItem ConditionVoltage [V]
(Approx.)
1 L Power source (Fuse) — Battery voltage
3 L/Y Super lock actuator release Door key cylinder switchFree 0
Released
4G/RPassenger door and rear door
(LH/RH) lock actuator unlockDoor lock/unlock switchFree 0
Unlocked
6 Y/R Super lock actuator set Door key cylinder switchFree 0
Set
10 W Power source (C/B) — Battery voltage
11 S BFront door lock actuator
(driver side)Door lock/unlock switchFree 0
Locked
14 R/B All door lock actuator lock Door lock/unlock switchFree 0
Locked
16 B/R Ground — 0
17 G Ignition switch (ON) Ignition switch is in ON position Battery voltage
18 W/L Key switchKey inserted (ON) → key removed from
Ignition key cylinder (OFF)Battery voltage → 0
20 GY Power door lock switch lock signal OFF (Neutral) → ON (Locked) 5 → 0
23 PUPower door lock switch unlock
signalOFF (Neutral) → ON (Unlocked) 5 → 0
24 LG/R Door key cylinder lock switch OFF (Neutral) → ON (Locked) 5 → 0
SKIA9232E
SKIA9232E
SKIA9232E
SKIA9232E
SKIA9232E

BL-52
POWER DOOR LOCK — SUPER LOCK —

25 OR/L Door key cylinder unlock switch OFF (Neutral) → ON (Unlocked) 5 → 0
28 Y/G Door unlock sensor (driver side) Driver door: Locked → Unlocked 10 → 0
29 Y/LDoor unlock sensor
(passenger side)Passenger door: Locked → Unlocked 5 → 0
30 SB Front door switch (driver side) Door open (ON) → close (OFF) 0 →5
32 OR Key less lock signalRemote controller button
Lock pressed
(Ignition switch is not at “ON” position.)0 → 5 (For 0.5 seconds)
33 P/L Key less unlock signalRemote controller button
Unlock pressed
(Ignition switch is not at “ON” position.)0 → 5 (For 0.5 seconds)
34 B/Y NATS release signal — 0 → 5 Te r -
minalWire
ColorItem ConditionVoltage [V]
(Approx.)

BL-54
POWER DOOR LOCK — SUPER LOCK —

SYMPTOM CHART
NOTE:
Before starting trouble diagnoses below, perform preliminary check.
Symptom numbers in the symptom chart correspond with those of Preliminary check.
Symptom Malfunctioning systemReference
page
SYMPTOM 1
Power door lock does not operate using any switchPower supply and ground circuit checkBL-55
Front door lock actuator check (Driver side)BL-60
Front door lock actuator check (Passenger side)BL-61
Rear door lock actuator check LH BL-62
Rear door lock actuator check RHBL-63
Back door lock actuator checkBL-64
If above systems are OK, replace time control unit. —
SYMPTOM 2
Power door lock does not operate with lock/unlock
switch.Door lock/unlock switch checkBL-56
If above system is OK, replace time control unit. —
SYMPTOM 3
Power door lock does not operate with door key cylinder
switch.Door key cylinder switch checkBL-58
If above system is OK, replace time control unit. —
SYMPTOM 4
Specific door lock actuator does not operate.Front door lock actuator check (Driver side)BL-60
Front door lock actuator check (Passenger side)BL-61
Rear door lock actuator check LH BL-62
Rear door lock actuator check RHBL-63
Back door lock actuator checkBL-64
If above system is OK, replace time control unit. —
SYMPTOM 5
Super lock cannot be set by door key cylinder.Door key cylinder switch checkBL-58
Super lock actuator check (Driver side)BL-68
Super lock actuator check (Passenger side)BL-69
Super lock actuator check rear LHBL-70
Super lock actuator check rear RHBL-71
Key switch checkBL-67
Ignition switch “ON” circuit checkBL-73
If above systems are OK, replace time control unit. —
SYMPTOM 6
*Super lock cannot be released by door key cylinder.Door key cylinder switch checkBL-58
Super lock actuator check (Driver side)BL-68
Super lock actuator check (Passenger side)BL-69
Super lock actuator check rear LHBL-70
Super lock actuator check rear RHBL-71
If above systems are OK, replace time control unit. —
SYMPTOM 7
*Super lock cannot be released by ignition key switch.
(Signal from NATS IMMU)Super lock actuator check (Driver side)BL-68
Super lock actuator check (Passenger side)BL-69
Super lock actuator check rear LHBL-70
Super lock actuator check rear RHBL-71
NATS release signal checkBL-72
Ignition switch “ON” circuit checkBL-73
If above systems are “OK”, replace time control unit. —

POWER DOOR LOCK — SUPER LOCK —
BL-55
C
D
E
F
G
H
J
K
L
MA
B
BL

*:Make sure the power door lock system operates properly.
Power Supply and Ground Circuit CheckEIS008EF
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect time control unit connector.
3. Check voltage between time control unit and ground.
OK or NG
OK >> GO TO 2.
NG >> Check the following.

10A fuse [No.5, located in fuse block (J/B)]

40A fusible link (letter B , located in fuse and fusible link box.)

Harness for open or short between time control unit and fuse

Harness for open or short between time control unit circuit breaker
2. CHECK GROUND CIRCUIT
Check continuity between time control unit harness connector M30
terminal 16 (B/R) and ground.
OK or NG
OK >> Power supply and ground circuit is OK.
NG >> Replace harness or connector.
SYMPTOM 8
Specific super lock actuator does not operate.Super lock actuator check (Driver side)BL-68
Super lock actuator check (Passenger side)BL-69
Super lock actuator check rear LHBL-70
Super lock actuator check rear RHBL-71
If above system is OK, replace time control unit. —
SYMPTOM 9
*Key reminder system does not operate.Door switch checkBL-65
Door unlock sensor checkBL-66
Key switch checkBL-67
If above system is OK, replace time control unit. — Symptom Malfunctioning systemReference
page
ConnectorTerminal (wire color) Ignition switch position
(+) (–) OFF ACC ON
M311 (L)
GroundBattery
voltageBattery
voltageBattery
voltage
10 (W)Battery
voltageBattery
voltageBattery
voltage
PIIA8640E
16 (B/R) – Ground : Continuity should exist.
PIIA8641E

BL-58
POWER DOOR LOCK — SUPER LOCK —

Door Key Cylinder Switch CheckEIS008EH
1. CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL
Check voltage between time control unit and ground.
OK or NG
OK >> Door key cylinder switch is OK.
NG >> GO TO 2.
2. CHECK DOOR KEY CYLINDER SWITCH
1. Turn ignition switch OFF.
2. Disconnect door key cylinder switch connector.
3. Check continuity between door key cylinder switch.
OK or NG
OK >> GO TO 3.
NG >> Replace door key cylinder switch.
ConnectorTerminals (wire color)
Condition of door key
cylinder switchVoltage [V]
(Approx.)
(+) (–)
M3124 (LG/R)
GroundLocked 0
Neutral or Unlocked 5
25 (GY/L)Unlocked 0
Neutral or Locked 5
PIIA3643E
Connector TerminalsCondition of door key
cylinder switchContinuity
D812Neutral No
Lock Yes
23Neutral No
Unlock Yes
PIIB0350E
