2005 NISSAN X-TRAIL key

DTC P0606 ECM
EC-1569
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureEBS0122B
1. INSPECTION START
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4. Perform EC-1568, "
DTC Confirmation Procedure" , again.
5. Is 1st trip DTC P0606 displayed again?
Without CONSULT-II
1. Turn ignition switch ON.
2. Erase the Diagnostic Test Mode II (Self-diagnostic results) memory. Refer to EC-1375
.
3. Perform EC-1568, "
DTC Confirmation Procedure" , again.
4. Is DTC 0606 displayed again?
Ye s o r N o
Ye s > > G O T O 2 .
No >>INSPECTION END
2. REPLACE ECM
1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to EC-1373,
"NATS (Nissan Anti-theft System)" .
3. Perform “Fuel Pump Learning Value Clearing”. Refer to EC-1370, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END

EC-1642
[YD (WITHOUT EURO-OBD)]
DTC P2228, P2229 BARO SENSOR

Diagnostic ProcedureEBS0125G
1. INSPECTION START
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4. Perform EC-1641, "
DTC Confirmation Procedure" , again.
5. Is 1st trip DTC P2228 or P2229 displayed again?
Without CONSULT-II
1. Turn ignition switch ON.
2. Erase the Diagnostic Test Mode II (Self-diagnostic results) memory. Refer to EC-1375
.
3. Perform EC-1641, "
DTC Confirmation Procedure" , again.
4. Is DTC 2228 or 2229 displayed again?
Ye s o r N o
Yes >> GO TO 2.
No >>INSPECTION END
2. REPLACE ECM
1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to EC-1373,
"NATS (Nissan Anti-theft System)" .
3. Perform Fuel Pump Learning Valve Clearing. Refer to EC-1370, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END

AT-4 Wiring Diagram — AT — TPS ..............................347
Diagnostic Procedure ...........................................348
SHIFT SOLENOID VALVE A ..................................350
Description ............................................................350
CONSULT-II Reference Value ..............................350
On Board Diagnosis Logic ....................................350
Possible Cause .....................................................350
DTC Confirmation Procedure ...............................350
Wiring Diagram — AT — SSV/A ...........................352
Diagnostic Procedure ...........................................353
Component Inspection ..........................................355
SHIFT SOLENOID VALVE B ..................................356
Description ............................................................356
CONSULT-II Reference Value ..............................356
On Board Diagnosis Logic ....................................356
DTC Confirmation Procedure ...............................356
Wiring Diagram — AT — SSV/B ...........................358
Diagnostic Procedure ...........................................359
Component Inspection ..........................................361
OVERRUN CLUTCH SOLENOID VALVE ...............362
Description ............................................................362
CONSULT-II Reference Value ..............................362
On Board Diagnosis Logic ....................................362
Possible Cause .....................................................362
DTC Confirmation Procedure ...............................362
Wiring Diagram — AT — OVRCSV ......................364
Diagnostic Procedure ...........................................365
Component Inspection ..........................................367
TORQUE CONVERTER CLUTCH SOLENOID
VALVE .....................................................................368
Description ............................................................368
CONSULT-II Reference Value ..............................368
On Board Diagnosis Logic ....................................368
Possible Cause .....................................................368
DTC Confirmation Procedure ...............................368
Wiring Diagram — AT — TCV ..............................370
Diagnostic Procedure ...........................................371
Component Inspection ..........................................373
BATT/FLUID TEMP SEN (A/T FLUID TEMP SEN-
SOR CIRCUIT AND TCM POWER SOURCE) ........374
Description ............................................................374
CONSULT-II Reference Value ..............................374
On Board Diagnosis Logic ....................................374
Possible Cause .....................................................374
DTC Confirmation Procedure ...............................375
Wiring Diagram — AT — BA/FTS .........................376
Diagnostic Procedure ...........................................377
Component Inspection ..........................................381
ENGINE SPEED SIGNAL .......................................382
Description ............................................................382
CONSULT-II Reference Value ..............................382
On Board Diagnosis Logic ....................................382
DTC Confirmation Procedure ...............................382
Wiring Diagram — AT — ENGSS .........................383
Diagnostic Procedure ...........................................384
LINE PRESSURE SOLENOID VALVE ...................387
Description ............................................................387
CONSULT-II Reference Value ..............................387
On Board Diagnosis Logic ....................................387Possible Cause .....................................................387
DTC Confirmation Procedure ................................387
Wiring Diagram — AT — LPSV ............................389
Diagnostic Procedure ............................................390
Component Inspection ..........................................393
MAIN POWER SUPPLY AND GROUND CIRCUIT .394
Description ............................................................394
On Board Diagnosis Logic ....................................394
Possible Cause .....................................................394
DTC Confirmation Procedure ................................394
Wiring Diagram — AT — MAIN .............................395
Diagnostic Procedure ............................................396
A/T SHIFT LOCK SYSTEM .....................................398
Description ............................................................398
Shift Lock System Electrical Parts Location ..........398
Wiring Diagram — SHIFT .....................................399
Diagnostic Procedure ............................................400
KEY INTERLOCK CABLE ......................................402
Components ..........................................................402
Removal ................................................................402
Installation .............................................................403
ON-VEHICLE SERVICE ..........................................404
Control Valve Assembly and Accumulators ..........404
Park/Neutral Position (PNP) Switch ......................408
Differential Side Oil Seal Replacement .................410
Revolution Sensor Replacement ..........................412
REMOVAL AND INSTALLATION ............................413
Removal ................................................................413
Installation .............................................................415
OVERHAUL .............................................................416
Components ..........................................................416
Oil Channel ...........................................................422
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings ..........................423
DISASSEMBLY .......................................................424
Disassembly ..........................................................424
REPAIR FOR COMPONENT PARTS ......................440
Manual Shaft .........................................................440
Oil Pump ...............................................................443
Control Valve Assembly ........................................448
Control Valve Upper Body .....................................457
Control Valve Lower Body .....................................461
Reverse Clutch .....................................................464
High Clutch ...........................................................469
Forward and Overrun Clutches .............................475
Low & Reverse Brake ...........................................483
Rear Internal Gear, Forward Clutch Hub and Over-
run Clutch Hub ......................................................487
Output Shaft, Idler Gear, Reduction Pinion Gear and
Bearing Retainer ...................................................491
Band Servo Piston Assembly ................................497
Final Drive .............................................................503
ASSEMBLY .............................................................507
Assembly (1) .........................................................507
Adjustment (1) .......................................................508
Assembly (2) .........................................................513
Adjustment (2) .......................................................520
Assembly (3) .........................................................523

AT-58
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION

DIAGNOSTIC WORKSHEET
Information from Customer
KEY POINTS

WHAT..... Vehicle & A/T model

WHEN..... Date, Frequencies

WHERE..... Road conditions

HOW..... Operating conditions, Symptoms
Customer name MR/MS Model & Year VIN
Trans. model Engine Mileage
Incident Date Manuf. Date In Service Date
Frequency❏ Continuous❏ Intermittent ( times a day)
Symptoms❏ Vehicle does not move. (❏ Any position❏ Particular position)
❏ No up-shift (❏ 1st → 2nd❏ 2nd → 3rd❏ 3rd → O/D)
❏ No down-shift (❏ O/D → 3rd❏ 3rd → 2nd❏ 2nd → 1st)
❏ Lockup malfunction
❏ Shift point too high or too low.
❏ Shift shock or slip (❏ N → D❏ Lockup❏ Any drive position)
❏ Noise or vibration
❏ No kick down
❏ No pattern select
❏ Others
()
O/D OFF indicator lamp❏ Continuously lit❏ Not lit
Malfunction indicator (MI)❏ Continuously lit❏ Not lit

AT-252
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION

DIAGNOSTIC WORKSHEET
Information from Customer
KEY POINTS

WHAT..... Vehicle & A/T model

WHEN..... Date, Frequencies

WHERE..... Road conditions

HOW..... Operating conditions, Symptoms
Customer name MR/MS Model & Year VIN
Trans. model Engine Mileage
Incident Date Manuf. Date In Service Date
Frequency❏ Continuous❏ Intermittent ( times a day)
Symptoms❏ Vehicle does not move. (❏ Any position❏ Particular position)
❏ No up-shift (❏ 1st → 2nd❏ 2nd → 3rd❏ 3rd → O/D)
❏ No down-shift (❏ O/D → 3rd❏ 3rd → 2nd❏ 2nd → 1st)
❏ Lockup malfunction
❏ Shift point too high or too low.
❏ Shift shock or slip (❏ N → D❏ Lockup❏ Any drive position)
❏ Noise or vibration
❏ No kick down
❏ No pattern select
❏ Others
()
O/D OFF indicator lamp ❏ Continuously lit❏ Not lit

AT-398
[ALL]
A/T SHIFT LOCK SYSTEM

A/T SHIFT LOCK SYSTEMPFP:34950
DescriptionECS00405

The mechanical key interlock mechanism also operates as a shift lock:
With the ignition switch turned to ON, the selector lever cannot be shifted from “P” (parking) to any other
position unless the brake pedal is depressed.
With the key removed, the selector lever cannot be shifted from “P” to any other position.
The key cannot be removed unless the selector lever is placed in “P”.

The shift lock and key interlock mechanisms are controlled by the ON-OFF operation of the shift lock sole-
noid and by the operation of the rotator and slider located inside the key cylinder.
Shift Lock System Electrical Parts LocationECS00406
SCIA4597E

AT-400
[ALL]
A/T SHIFT LOCK SYSTEM

Diagnostic ProcedureECS00408
SYMPTOM 1:

Selector lever cannot be moved from “P” position with key in ON position and brake pedal
applied.

Selector lever can be moved from “P” position with key in ON position and brake pedal released.

Selector lever can be moved from “P” position when key is removed from key cylinder.
SYMPTOM 2:

Ignition key cannot be removed when selector lever is set to “P” position.

Ignition key can be removed when selector lever is set to any position except “P”.
1. CHECK KEY INTERLOCK CABLE
Check key interlock cable for damage.
OK or NG
OK >> GO TO 2.
NG >> Repair key interlock cable. Refer to AT- 4 0 2 , "
KEY INTERLOCK CABLE" .
2. CHECK SELECTOR LEVER POSITION
Check selector lever position for damage.
OK or NG
OK >> GO TO 3.
NG >> Check selector lever. Refer to AT- 4 0 9 , "
PARK/NEUTRAL POSITION (PNP) SWITCH ADJUST-
MENT" .
3. CHECK SHIFT LOCK SOLENOID AND PARK POSITION SWITCH
1. Turn ignition switch to ON. (Do not start engine.)
2. Selector lever is set in P position.
3. Check operation sound.
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
4. CHECK POWER SOURCE
1. Turn ignition switch to ON. (Do not start engine.)
2. Check voltage between A/T device harness connector M58 ter-
minal 5 (P) and ground.
OK or NG
OK >> GO TO 7.
NG >> GO TO 5.
Condition Brake pedal Operation sound
When ignition switch is turned to
“ON” position and selector lever
is set in “P” position.Depressed Yes
Released No
Voltage:
Brake pedal depressed:
Battery voltage
Brake pedal released:
0V
SCIA5337E

AT-402
[ALL]
KEY INTERLOCK CABLE

KEY INTERLOCK CABLEPFP:34908

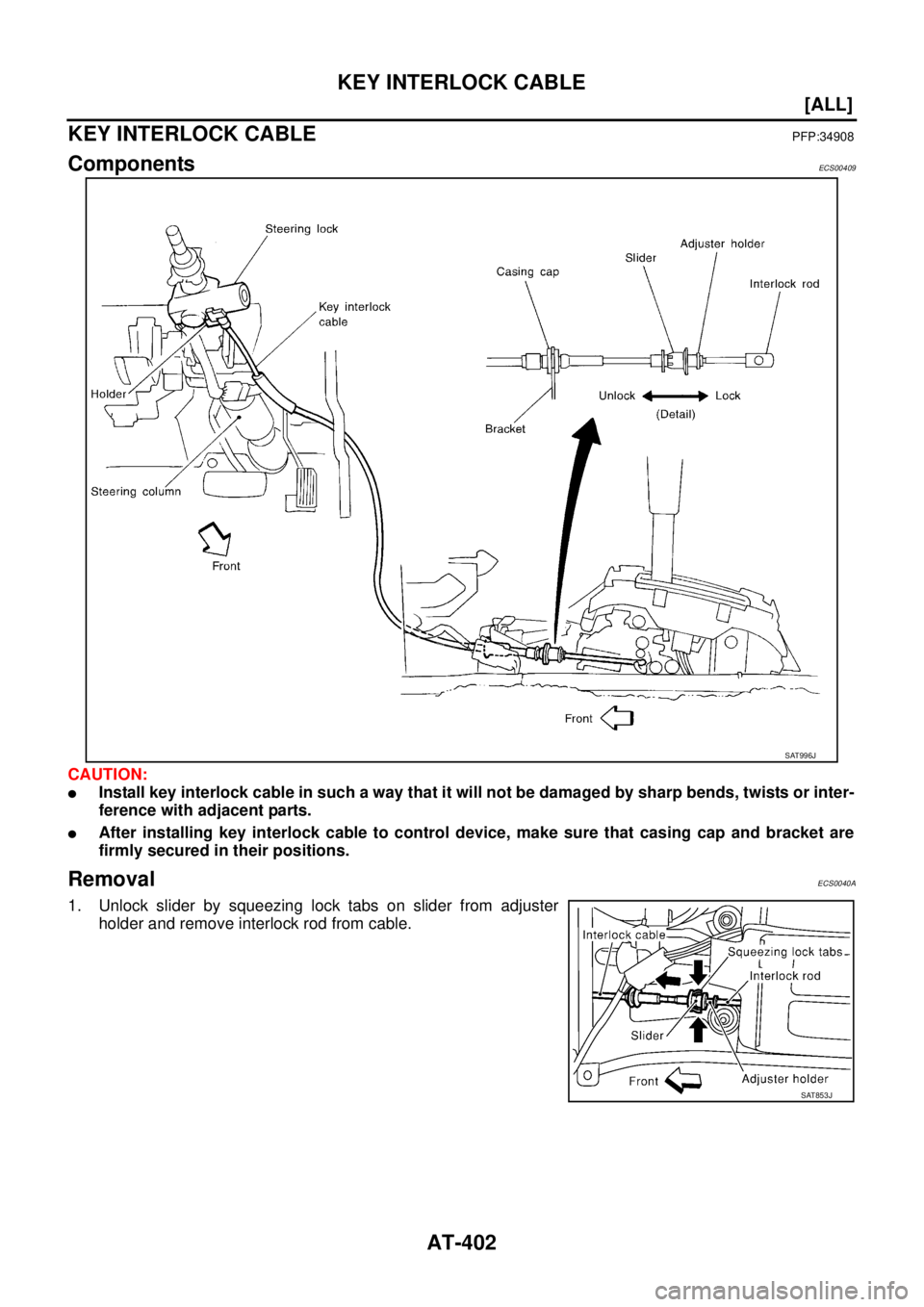

ComponentsECS00409
CAUTION:

Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or inter-
ference with adjacent parts.

After installing key interlock cable to control device, make sure that casing cap and bracket are
firmly secured in their positions.
RemovalECS0040A
1. Unlock slider by squeezing lock tabs on slider from adjuster
holder and remove interlock rod from cable.
SAT996J
SAT853J
