CONSULT-II CHECKING SYSTEM

Checking Equipment EAS000GB
When ordering the following equipment, contact your NISSAN/INFINITI distributor.
CAUTION:

Previous CONSULT-II “I” and “Y” DLC-I and DLC-II cables should NOT be used anymore because
their DDL connector pins can be damaged during cable swapping.

If CONSULT-ll is used with no connection of CONSULT-ll CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.

If CONSULT-II CONVERTER is not connected with CONSULT-ll, vehicle occur the "FAIL SAFE
MODE" which is "LIGHT UP the HEAD LIGHT" and/or "COOLING FAN ROTATING" when CONSULT-
ll is started.
NOTE:

The CONSULT-II must be used in conjunction with a program card.
CONSULT-II does not require loading (Initialization) procedure.

Be sure the CONSULT-II is turned off before installing or removing a program card.
CONSULT-II Start ProcedureEAS0017Y
NOTE:
Turning ignition switch off when performing CAN diagnosis could cause CAN memory to be erased.
1. Connect CONSULT-II and CONSULT-II CONVERTER to the
data link connector.
2. If necessary, turn on the ignition switch.
3. Touch “START (NISSAN BASED VHCL)” or “System Shortcut
key” (eg : ENGINE) on the screen.
Tool nameDescription
NISSAN CONSULT-II
1. CONSULT-II unit (Tester internal soft: Resident
version 3.3.0) and accessories
2. Program card AED04E and AEN04A-1 (For
NATS)
3. CONSULT-II CONVERTER
SAIA0362E
PAIA0070E
SAIA0450E

TOW TRUCK TOWING
GI-39
C
D
E
F
G
H
I
J
K
L
MB
GI

TOW TRUCK TOWINGPFP:00000
Tow Truck TowingEAS001JB
CAUTION:

All applicable state or Provincial (in Canada) laws and local laws regarding the towing operation
must be obeyed.

It is necessary to use proper towing equipment to avoid possible damage to the vehicle during
towing operation. Towing is in accordance with Towing Procedure Manual at dealer.

Always attach safety chains before towing.

When towing, make sure that the transmission, steering system and power train are in good order.
If any unit is damaged, dollies must be used.

Never tow an automatic transmission model from the rear (that is backward) with four wheels on
the ground. This may cause serious and expensive damage to the transmission.
2WD MODELS
NISSAN recommends that vehicle be towed with the driving (front) wheels off the ground or that a dolly be
used as illustrated.
CAUTION:

Never tow automatic transmission models with the front wheels on the ground or four wheels on
the ground (forward or backward) as this may cause serious and expensive damage to the trans-
mission.
If it is necessary to tow the vehicle with the rear wheels raised, always use towing dollies under
the front wheels.

When towing automatic transmission models with the front wheels on towing dollies:
–Turn the ignition key to the OFF position, and secure the steering wheel in a straight ahead posi-
tion with a rope or similar device.
Never secure the steering wheel by turning the ignition key to the LOCK position. This may dam-
age the steering lock mechanism.
–Move the selector lever to the N (Neutral) position.
PAIA0276E

TIMING CHAIN
EM-51
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

INSTALLATION
NOTE:
The figure shows the relationship between the mating mark on each
timing chain and that on the corresponding sprocket, with the com-
ponents installed.
1. Make sure that crankshaft key points straight up.
2. Tighten mounting bolts in numerical order as shown in figure
with the following procedure, and install balancer unit.
CAUTION:
If mounting bolts are re-used, check their outer diameter
before installation. Refer to EM-50, "
INSPECTION AFTER
REMOVAL" .
a. Apply new engine oil to threads and seat surfaces of mounting
bolts.
b. Tighten all bolts.
c. Turn all bolts 90 degrees clockwise (angle tightening).
d. Completely loosen.
CAUTION:
In this step, loosen bolts in reverse order as shown in the
figure.
e. Tighten all bolts.
f. Turn them another 90 degrees clockwise (angle tightening).
CAUTION:
Check tightening angle with an angle wrench (special service tool) or a protractor. Do not make
judgment by visual check alone.
PBIC2182E
: 48.1 N·m (4.9 kg-m, 35 ft-lb)KBIA0122E
: 0 N·m (0 kg-m, 0 ft-lb)
: 48.1 N·m (4.9 kg-m, 35 ft-lb)
KBIA0080E

EM-54
[QR]
TIMING CHAIN

d. Apply a continuous bead of liquid gasket with a tube presser
(special service tool: WS39930000) to intake valve timing con-
trol cover as shown in the figure.
Use Genuine Liquid Gasket or equivalent.
e. Tighten mounting bolts in numerical order as shown in the fig-
ure.
10. Insert crankshaft pulley by aligning with crankshaft key.

When inserting crankshaft pulley with a plastic hammer, tap on its center portion (not circumference).
CAUTION:
Install protecting front oil seal lip section from any damage.
11. Tighten crankshaft pulley bolt.

Secure crankshaft pulley with a pulley holder (commercial service tool), and tighten crankshaft pulley
bolt.

Perform angle tightening with the following procedure:
a. Apply new engine oil to thread and seat surfaces of crankshaft pulley bolt.
b. Tighten crankshaft pulley bolt.
c. Put a paint mark on crankshaft pulley, mating with any one of six
easy to recognize angle marks on bolt flange.
d. Turn another 60 degrees clockwise (angle tightening).

Check the tightening angle with movement of one angle mark.
12. Install all removed parts in the reverse order of removal.
SBIA0260E
KBIA0085E
: 42.1 N·m (4.3 kg-m, 31 ft-lb)
SEM751G

CYLINDER BLOCK
EM-89
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

CYLINDER BLOCKPFP:11010
Disassembly and AssemblyEBS00KNU
1. Cylinder block 2. O-ring 3. Crankshaft position sensor (POS)
4. Knock sensor 5. Water drain plug 6. Lower cylinder block
7. Lower cylinder block mounting bolt 8. Snap ring 9. Connecting rod
10. Connecting rod bearing 11. Connecting rod bearing cap 12. Connecting rod bolt
13. Piston 14. Oil ring 15. Second ring
16. Top ring 17. Piston pin 18. Thrust bearing
19. Main bearing upper 20. Crankshaft 21. Crankshaft key
22. Main bearing lower 23. Rear oil seal 24. Pilot converter (A/T models)
25. Signal plate 26. Drive plate (A/T models) 27. Reinforce plate (A/T models)
28. Flywheel (M/T models)
PBIC3599E

FUEL PUMP
EM-171
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

FUEL PUMPPFP:17042
Removal and InstallationEBS00LRP
CAUTION:

Before removing and installing fuel pump, be sure to remove sprocket. Do not loosen or remove
installation nut in the center of fuel pump. If loosened or removed, replace fuel pump.

After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike
piston heads.

When installing camshafts, chain tensioners, oil seals, or other sliding parts, lubricate contacting
surfaces with new engine oil.
REMOVAL
1. Remove engine coolant reservoir tank. Refer to CO-35, "RADIATOR" .
2. Remove charge air cooler. Refer to EM-144, "
Removal and Installation" .
3. Remove RH engine mounting insulator and bracket. Refer to EM-222, "
ENGINE ASSEMBLY" .
4. Pull power steering reservoir tank out of brackets to move power steering piping. Refer to PS-37,
"HYDRAULIC LINE" .
CAUTION:
To avoid removing power steering reservoir tank out of brackets, move it with power steering pip-
ing aside.
5. Remove RH front wheel.

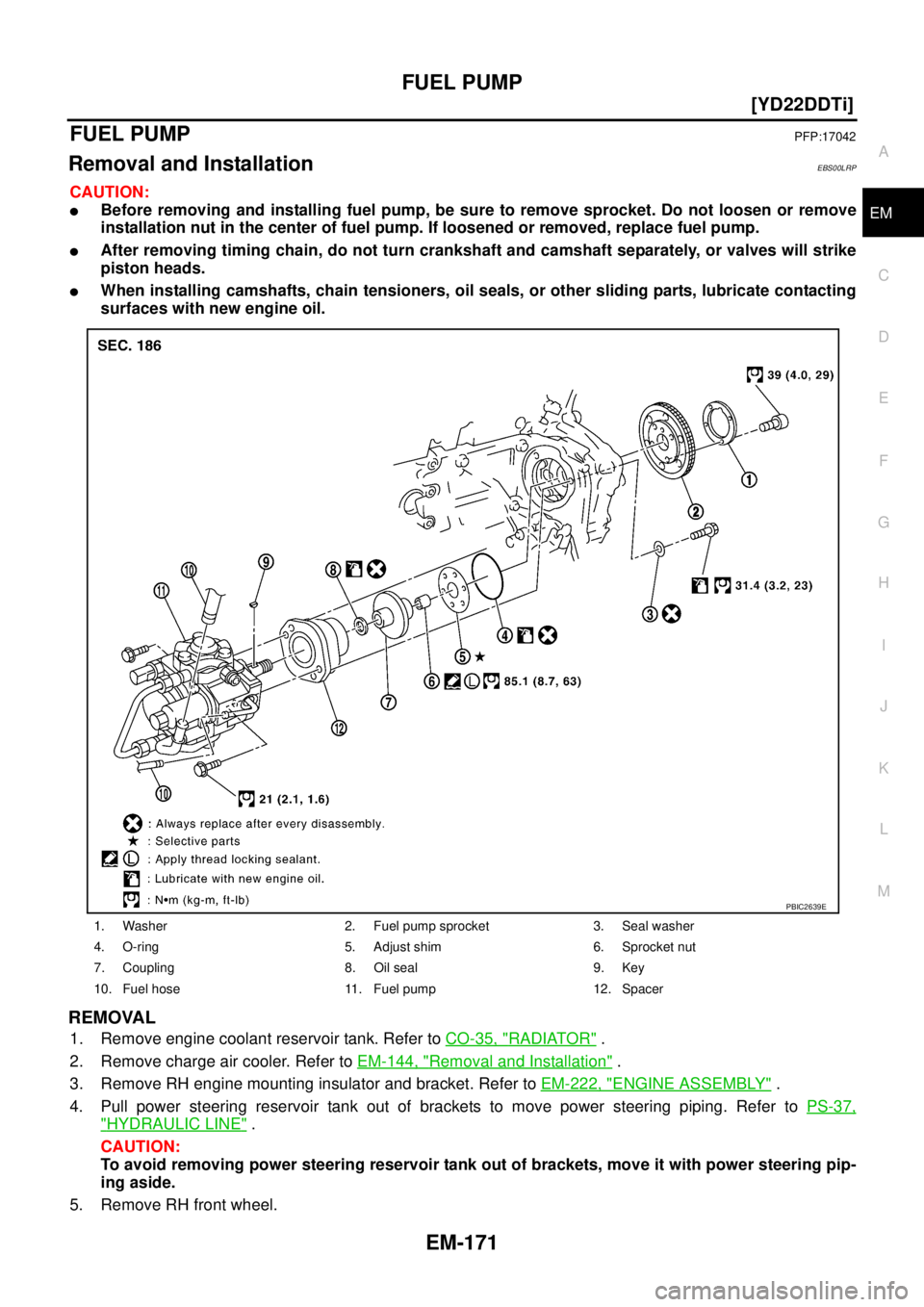

1. Washer 2. Fuel pump sprocket 3. Seal washer
4. O-ring 5. Adjust shim 6. Sprocket nut
7. Coupling 8. Oil seal 9. Key
10. Fuel hose 11. Fuel pump 12. Spacer
PBIC2639E

EM-200
[YD22DDTi]
PRIMARY TIMING CHAIN

REMOVAL
1. Remove engine coolant reservoir tank. Refer to CO-35, "RADIATOR" .
2. Remove charge air cooler. Refer to EM-144, "
Removal and Installation" .
3. Remove air cleaner and air duct. Refer to EM-142, "
Removal and Installation" .
4. Remove rocker cover. Refer to EM-178, "
Removal and Installation" .
5. Remove RH engine mounting insulator and bracket. Refer to EM-222, "
ENGINE ASSEMBLY" .
6. Pull power steering reservoir tank out of brackets to move power steering piping. Refer to PS-37,
"HYDRAULIC LINE" .
CAUTION:
To avoid removing power steering reservoir tank out of brackets move it with power steering pip-
ing aside.
7. Remove oil pan (upper and lower). Refer to EM-157, "
Removal and Installation" .
8. Remove oil filter bracket. Refer to LU-26, "
OIL FILTER BRACKET" .
9. Remove fuel injector. Refer to EM-167, "
Removal and Installation" .
10. Remove secondary timing chain and associated parts. Refer to EM-193, "
Removal and Installation" .
11. When removing rear chain case, remove camshaft sprockets. Refer to EM-180, "
Removal and Installa-
tion" .
12. Remove crankshaft pulley as follows:
a. Hold crankshaft pulley with the pulley holder (special service
tool).
b. Loosen crankshaft pulley fixing bolt and pull out the bolt approx-
imately 10 mm (0.39 in).
c. Using the pulley puller (special service tool), remove crankshaft
pulley.

Use two M6 bolts with approx. 60 mm (2.36 in) shank length
for securing crankshaft pulley.
13. Remove oil pump housing.
10. O-ring 11. Chain guide 12. Tension guide
13. Spacer 14. Gasket 15. Front chain case
16. Rubber washer 17. Crankshaft pulley 18. Front oil seal
19. Power steering oil pump cover 20. Oil pump housing 21. Primary timing chain
22. Oil pump drive spacer 23. Crankshaft sprocket 24. Secondary timing chain
25. Rear chain case 26. Power steering oil pump 27. Key
JEM131G
JEM132G

PRIMARY TIMING CHAIN
EM-205
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

d. Tighten bolts in numerical order shown in the figure.

Install the following four types of bolts, referring to the figure.

The shank length under the bolt neck above is the length of
threaded part (pilot portion not included).
e. After tightening all the bolts, re-tighten in the same order.
2. Install power steering oil pump.
3. Install fuel pump. Refer to EM-171, "
FUEL PUMP" .

Before installing, make sure that spacer and the hole 6 mm
(0.24 in) in diameter on coupling are aligned.
4. Install chain guide and tension guides.
5. Install crankshaft sprocket, aligning it with crankshaft key on the
far side.
6. Install primary timing chain with fuel pump sprocket.

When installing, match the alignment marks on sprockets with
color coded alignment marks (colored links) on primary timing
chain.

Install fuel pump sprocket washer with the surface marked “F”
(front mark) facing the front of the engine.
7. Install timing chain onto power steering oil pump sprocket and
through chain guide.
8. Use the positioning stopper pin (special service tool) to hold the
fuel pump sprocket and install the bolt.

Using the TORX wrench (special service tool), turn the fuel
pump shaft little by little to adjust the position of the fuel pump
sprocket. Insert positioning stopper pin into the hole 6 mm
(0.24 in) in diameter on fuel pump sprocket so that the stop-
per pin goes through the fuel pump body. While the stopper
pin is in place, install the bolt.16 mm (0.63 in) : Bolt No. 1, 2, 16, 17, 18, 19, 20, 21, 22
20 mm (0.79 in) : Bolt No. 3, 4, 6, 9, 10, 11, 13, 14
25 mm (0.98 in) : Bolt No. 12, 15
35 mm (1.38 in) : Bolt No. 5, 7, 8
SBIA0211E
PBIC2498E
MBIA0079E
MBIA0049E
