CYLINDER BLOCK
EM-231
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

DISASSEMBLY
1. Remove engine, transaxle and transfer assembly from the vehicle, then separate engine and transaxle
and transfer assembly. Refer to EM-222, "
ENGINE ASSEMBLY" .
2. Remove clutch cover and disk. Refer to CL-16, "
CLUTCH DISC, CLUTCH COVER AND FLYWHEEL" .
3. Install engine to engine stand as follows:
a. Remove flywheel.
b. Secure ring gear with the ring gear stopper (special service
tool), then loosen mounting bolts with TORX socket (size: T55,
Commercial Service Tools) and remove them. As an alternative
method hold crankshaft pulley with the pulley holder (special
service tool: KV10109300) to remove flywheel.
CAUTION:

Do not disassemble flywheel.

Do not place flywheel with signal plate facing down.

When handling signal plate, take care not to damage or
scratch it.

Handle signal plate in a manner that prevents it from
becoming magnetized.
c. Install the engine sub-attachment (special service tool) to the
rear side of cylinder block.

Align knock pins on cylinder block with pin holes on attach-
ment to install.
NOTE:
Installation bolts are part of engine sub-attachment.
d. Install the engine stand shaft (special service tool).
NOTE:
Use commercially available M12 (0.47 in) mounting bolts and
nuts (4 sets) with strength grade of 9T (minimum).
1. Rear oil seal retainer 2. Cylinder block 3. Oil pressure switch
4. Fuel pump bracket 5. Oil level gauge guide 6. Top ring
7. Second ring 8. Oil ring 9. Oil jet
10. Piston pin 11. Snap ring 12. Piston
13. Main bearing upper 14. Thrust bearing 15. Connecting rod
16. Key 17. Connecting rod bearing 18. Connecting rod cap
19. Connecting rod nut 20. Main bearing lower 21. Crankshaft
22. Main bearing cap bolt 23. Main bearing cap 24. Pilot bushing
25. Flywheel 26. Washer 27. Oil jet relief valve
28. Drain plug 29. Rear oil seal
PBIC2406E
JEM192G

EC-64
[QR (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

2. Perform AT- 4 3 , "HOW TO ERASE DTC (WITH GST)" . (The DTC in the TCM will be erased.)
3. Select Service $04 with GST (Generic Scan Tool).
No Tools
NOTE:
If the DTC is not for A/T related items (see EC-19, "
INDEX FOR DTC" ), skip step 2.
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once.
Wait at least 10 seconds and then turn it ON (engine stopped) again.
2. Perform AT- 4 3 , "
HOW TO ERASE DTC (NO TOOLS)" . (The DTC in TCM will be erased.)
3. Change the diagnostic test mode from Mode II to Mode I by depressing the accelerator pedal. Refer to
EC-66, "
HOW TO SWITCH DIAGNOSTIC TEST MODE" .

If the battery is disconnected, the emission-related diagnostic information will be lost within 24
hours.

The following data are cleared when the ECM memory is erased.
–Diagnostic trouble codes
–1st trip diagnostic trouble codes
–Freeze frame data
–1st trip freeze frame data
–System readiness test (SRT) codes
–Test values
Actual work procedures are explained using a DTC as an example. Be careful so that not only the DTC, but all
of the data listed above, are cleared from the ECM memory during work procedures.
NATS (Nissan Anti-theft System)EBS010LM

If the security indicator lights up with the ignition switch in
the ON position or “NATS MALFUNCTION” is displayed on
“SELF-DIAG RESULTS” screen, perform self-diagnostic
results mode with CONSULT-II using NATS program card.
Refer to BL-108, "
NATS (NISSAN ANTI-THEFT SYSTEM)" .

Confirm no self-diagnostic results of NATS is displayed
before touching “ERASE” in “SELF-DIAG RESULTS” mode
with CONSULT-II.

When replacing ECM, initialization of NATS system and reg-
istration of all NATS ignition key IDs must be carried out
with CONSULT-II using NATS program card.
Therefore, be sure to receive all keys from vehicle owner.
Regarding the procedures of NATS initialization and all NATS ignition key ID registration, refer to
CONSULT-II Operation Manual, NATS.
Malfunction Indicator (MI)EBS010LN
DESCRIPTION
The MI is located on the instrument panel.
1. The MI will light up when the ignition switch is turned ON without
the engine running. This is a bulb check.
If the MI does not light up, refer to DI-35, "
WARNING LAMPS"
or see EC-518, "MI & DATA LINK CONNECTORS" .
2. When the engine is started, the MI should go off.
If the MI remains on, the on board diagnostic system has
detected an engine system malfunction.
ON BOARD DIAGNOSTIC SYSTEM FUNCTION
The on board diagnostic system has the following four functions.
SEF515Y
SAT652J

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-65
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

When there is an open circuit on MI circuit, the ECM can not warn the driver by lighting up MI when there is
trouble on engine control system.
Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously detected as
NG for 5 trips, ECM warns the driver that engine control system has trouble and MI circuit is open by means of
operating fail-safe function.
The fail-safe function also operates when above diagnoses except MI circuit are detected and demands the
driver to repair the trouble.
MI Flashing without DTC
If the ECM is in Diagnostic Test Mode II, MI may flash when engine is running. In this case, check ECM diag-
nostic test mode. EC-66, "
HOW TO SWITCH DIAGNOSTIC TEST MODE" .
How to switch the diagnostic test (function) modes, and details of the above functions are described later, EC-
66, "HOW TO SWITCH DIAGNOSTIC TEST MODE" .
The following emission-related diagnostic information is cleared when the ECM memory is erased.

Diagnostic trouble codes

1st trip diagnostic trouble codes

Freeze frame data

1st trip freeze frame data

System readiness test (SRT) codes

Test values
Diagnostic Test
ModeKEY and ENG.
StatusFunction Explanation of Function
Mode I Ignition switch in
ON position
Engine stoppedBULB CHECK This function checks the MI bulb for damage (blown, open
circuit, etc.).
If the MI does not come on, check MI circuit.
Engine running MALFUNCTION
WARNINGThis is a usual driving condition. When a malfunction is
detected twice in two consecutive driving cycles (two trip
detection logic), the MI will light up to inform the driver that
a malfunction has been detected.
The following malfunctions will light up or blink the MI in
the 1st trip.

Misfire (Possible three way catalyst damage)

One trip detection diagnoses
Mode II Ignition switch in
ON position
Engine stoppedSELF-DIAGNOSTIC
RESULTSThis function allows DTCs and 1st trip DTCs to be read.
Engine running HEATED OXYGEN SENSOR 1
MONITORThis function allows the fuel mixture condition (lean or
rich), monitored by heated oxygen sensor 1, to be read.
Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut

TROUBLE DIAGNOSIS
EC-81
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

6. PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-47, "
Idle Air Volume Learning" .
Is Idle Air Volume Learning carried out successfully?
Ye s o r N o
Ye s > > G O T O 7 .
No >> 1. Follow the instruction of Idle Air Volume Learning.
2. GO TO 4.
7. CHECK TARGET IDLE SPEED AGAIN
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Read idle speed in “DATA MONITOR” mode with CONSULT-II.
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.
OK or NG
OK >> GO TO 10.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the Following.

Check camshaft position sensor (PHASE) and circuit. Refer to EC-257, "DTC P0340 CMP SENSOR
(PHASE)" .

Check crankshaft position sensor (POS) and circuit. Refer to EC-250, "DTC P0335 CKP SENSOR (POS)"
.
OK or NG
OK >> GO TO 9.
NG >> 1. Repair or replace.
2. GO TO 4.
9. CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is a rare case.)
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to BL-108,
"NATS (NISSAN ANTI-THEFT SYSTEM)" .
>> GO TO 4. QR20DE with M/T models
: 650 ± 50 rpm (in Neutral position)
Except above
: 700 ± 50 rpm [in P or N (A/T), Neutral (M/T) position]
QR20DE with M/T models
: 650 ± 50 rpm (in Neutral position)
Except above
: 700 ± 50 rpm [in P or N (A/T), Neutral (M/T) position]
SEF058Y

EC-84
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

17. DETECT MALFUNCTIONING PART
Check the following.

Check camshaft position sensor (PHASE) and circuit. Refer to EC-257, "DTC P0340 CMP SENSOR
(PHASE)" .

Check crankshaft position sensor (POS) and circuit. Refer to EC-250, "DTC P0335 CKP SENSOR (POS)"
.
OK or NG
OK >> GO TO 18.
NG >> 1. Repair or replace.
2. GO TO 4.
18. CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is a rare case.)
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to BL-108,
"NATS (NISSAN ANTI-THEFT SYSTEM)" .
>> GO TO 4.
Symptom Matrix ChartEBS010LT
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 11232 22 3 2EC-466
Fuel pressure regulator system334444444 4EC-49
Injector circuit 11232 22 2EC-451
Evaporative emission system 334444444 4EC-522
Air Positive crankcase ventilation sys-
tem334444444 41EC-527
Incorrect idle speed adjustment 33 1111 1EC-79
Electric throttle control actuator 112332222 2 2EC-294
,
EC-296
,
EC-306
,
EC-314
IgnitionIncorrect ignition timing adjustment33111 11 1EC-79
Ignition circuit 11222 22 2EC-440
Main power supply and ground circuit 22333 33 23EC-125

DTC P0605 ECM
EC-285
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

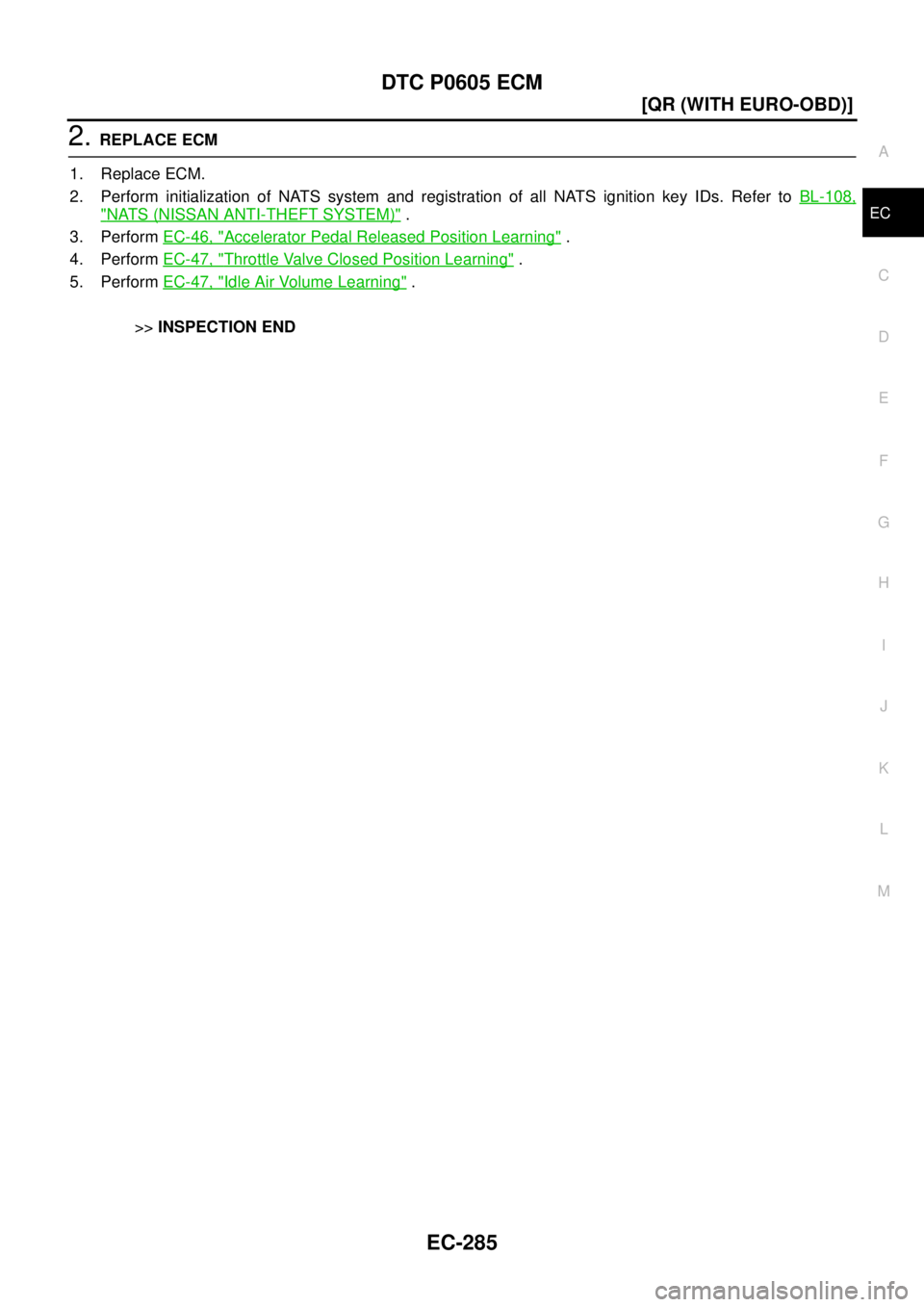

2. REPLACE ECM
1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to BL-108,
"NATS (NISSAN ANTI-THEFT SYSTEM)" .
3. Perform EC-46, "
Accelerator Pedal Released Position Learning" .
4. Perform EC-47, "
Throttle Valve Closed Position Learning" .
5. Perform EC-47, "
Idle Air Volume Learning" .
>>INSPECTION END

DTC P1065 ECM POWER SUPPLY
EC-289
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

4. PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4.Perform DTC Confirmation Procedure.
See EC-286, "
DTC Confirmation Procedure" .
5. Is the 1st trip DTC P1065 displayed again?
With GST
1. Turn ignition switch ON.
2. Select Service $04 with GST.
3. Touch “ERASE”.
4.Perform DTC Confirmation Procedure.
See EC-286, "
DTC Confirmation Procedure" .
5. Is the 1st trip DTC P1065 displayed again?
Ye s o r N o
Ye s > > G O T O 5 .
No >>INSPECTION END
5. REPLACE ECM
1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to BL-108,
"NATS (NISSAN ANTI-THEFT SYSTEM)" .
3. Perform EC-46, "
Accelerator Pedal Released Position Learning" .
4. Perform EC-47, "
Throttle Valve Closed Position Learning" .
5. Perform EC-47, "
Idle Air Volume Learning" .
>>INSPECTION END

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-567
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

4. Touch “ERASE”. (The DTC in the ECM will be erased.)
Without CONSULT-II
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once.
2. Wait at least 10 seconds and then turn it ON (engine stopped) again.
3. Change the diagnostic test mode from Mode II to Mode I by depressing the accelerator pedal. Refer to
EC-569, "
HOW TO SWITCH DIAGNOSTIC TEST MODE" .

If the battery is disconnected, the emission-related diagnostic information will be lost within 24
hours.

The following data are cleared when the ECM memory is erased.
–Diagnostic trouble codes
–1st trip diagnostic trouble codes
–Freeze frame data
–1st trip freeze frame data
Actual work procedures are explained using a DTC as an example. Be careful so that not only the DTC, but all
of the data listed above, are cleared from the ECM memory during work procedures.
NATS (Nissan Anti-theft System)EBS010X2

If the security indicator lights up with the ignition switch in
the ON position or “NATS MALFUNCTION” is displayed on
“SELF-DIAG RESULTS” screen, perform self-diagnostic
results mode with CONSULT-II using NATS program card.
Refer to BL-108, "
NATS (NISSAN ANTI-THEFT SYSTEM)" .

Confirm no self-diagnostic results of NATS is displayed
before touching “ERASE” in “SELF-DIAG RESULTS” mode
with CONSULT-II.

When replacing ECM, initialization of NATS system and reg-
istration of all NATS ignition key IDs must be carried out
with CONSULT-II using NATS program card.
Therefore, be sure to receive all keys from vehicle owner.
Regarding the procedures of NATS initialization and all NATS ignition key ID registration, refer to
CONSULT-II Operation Manual, NATS.
PBIB2454E
SEF515Y
