FRONT DOOR LOCK
BL-91
C
D
E
F
G
H
J
K
L
MA
B
BL

FRONT DOOR LOCKPFP:80502

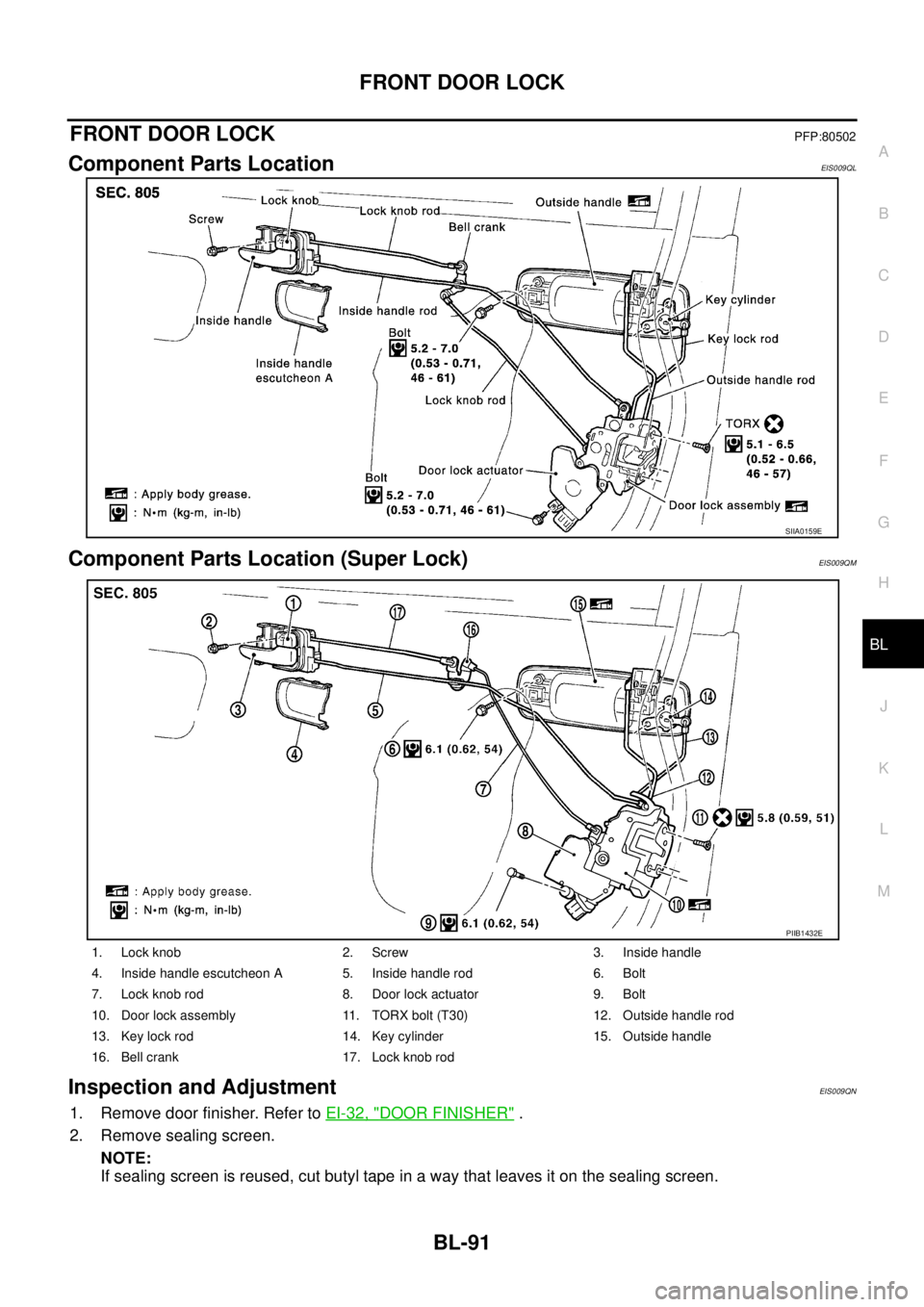

Component Parts LocationEIS009QL
Component Parts Location (Super Lock)EIS009QM
Inspection and AdjustmentEIS009QN
1. Remove door finisher. Refer to EI-32, "DOOR FINISHER" .
2. Remove sealing screen.
NOTE:
If sealing screen is reused, cut butyl tape in a way that leaves it on the sealing screen.
SIIA0159E
1. Lock knob 2. Screw 3. Inside handle
4. Inside handle escutcheon A 5. Inside handle rod 6. Bolt
7. Lock knob rod 8. Door lock actuator 9. Bolt
10. Door lock assembly 11. TORX bolt (T30) 12. Outside handle rod
13. Key lock rod 14. Key cylinder 15. Outside handle
16. Bell crank 17. Lock knob rod
PIIB1432E

BL-92
FRONT DOOR LOCK

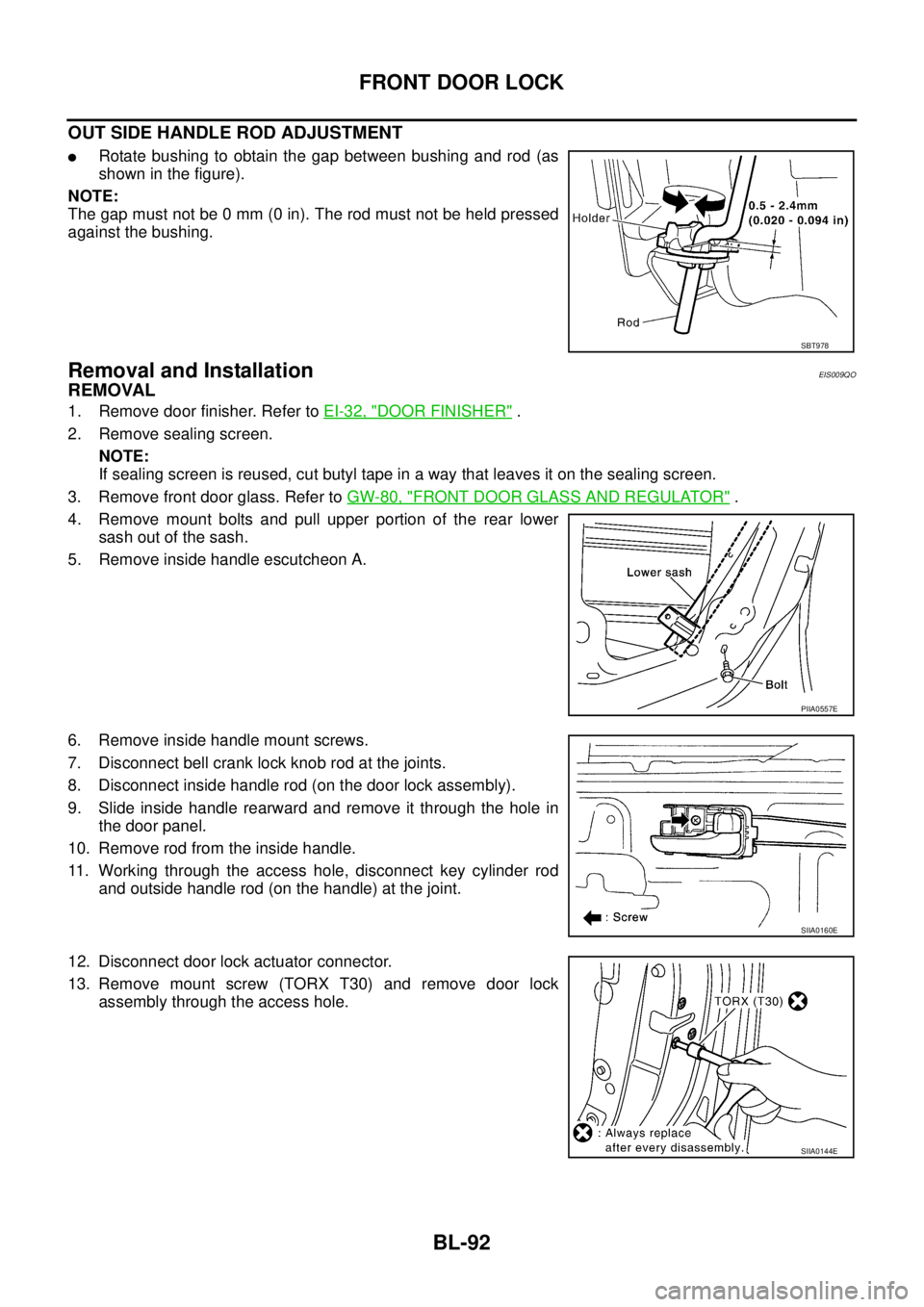

OUT SIDE HANDLE ROD ADJUSTMENT

Rotate bushing to obtain the gap between bushing and rod (as
shown in the figure).
NOTE:
The gap must not be 0 mm (0 in). The rod must not be held pressed
against the bushing.
Removal and InstallationEIS009QO
REMOVAL
1. Remove door finisher. Refer to EI-32, "DOOR FINISHER" .
2. Remove sealing screen.
NOTE:
If sealing screen is reused, cut butyl tape in a way that leaves it on the sealing screen.
3. Remove front door glass. Refer to GW-80, "
FRONT DOOR GLASS AND REGULATOR" .
4. Remove mount bolts and pull upper portion of the rear lower
sash out of the sash.
5. Remove inside handle escutcheon A.
6. Remove inside handle mount screws.
7. Disconnect bell crank lock knob rod at the joints.
8. Disconnect inside handle rod (on the door lock assembly).
9. Slide inside handle rearward and remove it through the hole in
the door panel.
10. Remove rod from the inside handle.
11. Working through the access hole, disconnect key cylinder rod
and outside handle rod (on the handle) at the joint.
12. Disconnect door lock actuator connector.
13. Remove mount screw (TORX T30) and remove door lock
assembly through the access hole.
SBT978
PIIA0557E
SIIA0160E
SIIA0144E

NATS (NISSAN ANTI-THEFT SYSTEM)
BL-109
C
D
E
F
G
H
J
K
L
MA
B
BL

System DescriptionEIS001RR
NATS (Nissan Anti-Theft System) has the following immobilizer functions:

Since only NATS ignition keys, whose ID Nos. have been registered into the ECM and IMMU of NATS,
allow the engine to run, a vehicle operation without registered key in NATS is prevented by NATS.
That is to say, NATS will immobilize the engine if someone tries to start it without the registered key of
NATS.

This version of NATS has dongle unit to improve its anti-theft performance (RHD models). Dongle unit has
its own ID which is registered into NATS IMMU. So if dongle unit is replaced, initialization must be carried
out.

When malfunction of dongle unit is detected:
The security indicator lamp illuminates for about 15 minutes after ignition switch is turned to ON.
–When dongle unit has a malfunction and the indicator lamp is illuminated, engine can not be started. How-
ever engine can be started only one time when security indicator lamp turns off in about 15 minutes after
ignition switch is turned to ON.

All of the originally supplied ignition key IDs have been registered in NATS.
If requested by the vehicle owner, a maximum of five key IDs can be registered into the NATS compo-
nents.

The security indicator blinks when the ignition switch is in “OFF” or “ACC” position. Therefore, NATS
warns outsiders that the vehicle is equipped with the anti-theft system.

When NATS detects trouble, the security indicator lamp lights up as follows.

NATS trouble diagnoses, system initialization and additional registration of other NATS ignition key IDs
must be carried out using CONSULT-II hardware and CONSULT-II NATS software.
When NATS initialization has been completed, the ID of the inserted ignition key is auto matically regis-
tered in NATS. Then, if necessary, additional registration of other NATS ignition key IDs can be carried
out.
Regarding the procedures of NATS initialization and NATS ignition key ID registration, refer to CONSULT-
II operation manual, NATS.

When servicing a malfunction of the NATS (indicated by lighting up of Security Indicator Lamp) or
registering another NATS ignition key ID No., it may be necessary to re-register original key identi-
fication. Therefore, be sure to receive ALL KEYS from vehicle owner.
Condition IGN ON andWith dongle Without dongle
Security indicator Security indicator
NATS malfunction (except dongle unit) is
detected1. 6 times blinking
2. Staying ON after ignition switch is turned
ONStaying ON
Only malfunction of dongle unit is
detected.Staying ON for about 15 minutes after igni-
tion switch is turned ON—
Malfunction of NATS and engine related
parts are detected.1. 6 times blinking
2. Staying ON after ignition switch is turned
ONStaying ON
Only engine related part malfunction is
detected.——
Just after initialization of NATS 6 times blinking —

BL-110
NATS (NISSAN ANTI-THEFT SYSTEM)

System CompositionEIS001RS
The immobilizer function of the NATS consists of the following:

NATS ignition key

NATS immobilizer control unit (IMMU) located in the ignition key cylinder

Engine control module (ECM)

Dongle unit (RHD models)

Security indicator
ECM Re-communicating FunctionEIS008F1
Performing following procedure can automatically perform re-communication of ECM and NATS IMMU, but
only when the ECM has been replaced with a new one (*1).
*1: New one means a virgin ECM which has never been energized on-board.
(In this step, initialization procedure by CONSULT-II is not necessary)
NOTE:

When registering new Key IDs or replacing the ECM other than brand new, refer to CONSULT-II
Operation Manual, NATS.

If multiple keys are attached to the key holder, separate them before work.

Distinguish keys with unregistered key ID from those with registered ID.
1. Install ECM.
2. Using a registered key (*2), turn ignition switch to “ON”.
*2: To perform this step, use the key (except for card plate key) that has been used before performing
ECM replacement.
3. Maintain ignition switch in “ON” position for at least 5 seconds.
4. Turn ignition switch to “OFF”.
5. Start engine.
If engine can be started, procedure is completed.
If engine cannot be started, refer to CONSULT-II Operation Manual NATS and initialize control unit.
SIIA1246E

BL-116
NATS (NISSAN ANTI-THEFT SYSTEM)

8. Perform each diagnostic test mode according to each service
procedure.
For further information, see the CONSULT-II Operation Manual,
NATS.
CONSULT-II DIAGNOSTIC TEST MODE FUNCTION
NOTE:

When any initialization is performed, all ID previously registered will be erased and all NATS igni-
tion keys must be registered again.

The engine cannot be started with an unregistered key. In this case, the system may show “DIFFERENCE
OF KEY” or “LOCK MODE” as a self-diagnostic result on the CONSULT-II screen.

When initialization is performed for RHD models, security indicator will flash six times to demonstrate rec-
ognition of the dongle unit ID.

In rare case, “CHAIN OF ECM-IMMU” might be stored as a self-diagnostic result during key registration
procedure, even if the system is not malfunctioning.
HOW TO READ SELF-DIAGNOSTIC RESULTS
SEL150X
CONSULT-II DIAGNOSTIC TEST
MODEDescription
C/U INITIALIZATIONWhen replacing any of the following components, C/U initialization and re-registration of all
NATS ignition keys are necessary.
[NATS ignition key/IMMU/ECM/Dongle unit]
SELF-DIAG RESULTSDetected items (screen terms) are as shown in the chart.
BL-117, "
NATS SELF-DIAGNOSTIC RESULTS ITEM CHART"
SEL151X

NATS (NISSAN ANTI-THEFT SYSTEM)
BL-117
C
D
E
F
G
H
J
K
L
MA
B
BL

NATS SELF-DIAGNOSTIC RESULTS ITEM CHART
Detected items
(NATS program card screen terms)P No. Code
(Self-diagnostic
result of
“ENGINE”Malfunction is detected when.....Reference
page
ECM INT CIRC-IMMUNATS MAL-
FUNCTION
P1613The malfunction of ECM internal circuit of IMMU commu-
nication line is detected.BL-121
CHAIN OF ECM-IMMUNATS MAL-
FUNCTION
P1612Communication impossible between ECM and IMMU
(In rare case, “CHAIN OF ECM-IMMU” might be stored
during key registration procedure, even if the system is
not malfunctioning.)BL-122
DIFFERENCE OF KEYNATS MAL-
FUNCTION
P1615IMMU can receive the key ID signal but the result of ID
verification between key ID and IMMU is NG.BL-125
CHAIN OF IMMU-KEYNATS MAL-
FUNCTION
P1614IMMU cannot receive the key ID signal.BL-126
ID DISCORD, IMM-ECMNATS MAL-
FUNCTION
P1611The result of ID verification between IMMU and ECM is
NG. System initialization is required.BL-127
LOCK MODENATS MAL-
FUNCTION
P1610When the starting operation is carried out five or more
times consecutively under the following conditions, NATS
will shift the mode to one which prevents the engine from
being started.

Unregistered ignition key is used.

IMMU or ECM's malfunctioning.BL-129
DON'T ERASE BEFORE CHECK-
ING ENG DIAG—All engine trouble codes except NATS trouble code has
been detected in ECM.BL-118

NATS (NISSAN ANTI-THEFT SYSTEM)
BL-119
C
D
E
F
G
H
J
K
L
MA
B
BL

Trouble DiagnosesEIS008F5
SYMPTOM MATRIX CHART 1
Self-diagnosis related item
SYMPTOMDisplayed “SELF-DIAG
RESULTS” on CON-
SULT-II screen.DIAGNOSTIC PROCE-
DURE
(Reference page)SYSTEM
(Malfunctioning part or
mode)REFERENCE PART NO.
OF ILLUSTRATION ON
SYSTEM DIAGRAM

Security indicator
lighting up*

Engine cannot be
startedECM INT CIRC-IMMUPROCEDURE 1
(BL-121
)ECM B
CHAIN OF ECM-IMMUPROCEDURE 2
(BL-122
)In rare case, “CHAIN OF
ECM-IMMU” might be
stored during key regis-
tration procedure, even if
the system is not mal-
functioning.—
Open circuit in battery
voltage line of IMMU cir-
cuitC1
Open circuit in ignition
line of IMMU circuitC2
Open circuit in ground
line of IMMU circuitC3
Open circuit in communi-
cation line between
IMMU and ECMC4
Short circuit between
IMMU and ECM commu-
nication line and battery
voltage lineC4
Short circuit between
IMMU and ECM commu-
nication line and ground
lineC4
ECM B
IMMU A
DIFFERENCE OF KEYPROCEDURE 3
(BL-125
)Unregistered key D
IMMU A
CHAIN OF IMMU-KEYPROCEDURE 4
(BL-126
)Malfunction of key ID
chipE
IMMU A
Open circuit in ground
line of dongle unit circuitC6
Open or short circuit in
line between IMMU and
dongle unitC5
Dongle unit G
ID DISCORD, IMM-ECMPROCEDURE 5
(BL-127
)System initialization has
not yet been completed.F
ECM B

BL-120
NATS (NISSAN ANTI-THEFT SYSTEM)

*: When NATS detects trouble, the security indicator lights up while ignition key is in the “ON” position.
*: When the vehicle is equipped with a dongle unit (RHD models), the security indicator blinks 6 times just after the ignition switch is
turned to ON. Then the security indicator lights up while the ignition key is in the “ON” position.

Security indicator
lighting up*

Engine cannot be
startedLOCK MODEPROCEDURE 7
(BL-129 )LOCK MODEWhen the starting opera-
tion is carried out five or
more times consecu-
tively under the follow-
ing conditions, NATS will
shift the mode to one
which prevents the
engine from being
started.

Unregistered ignition
key is used.

IMMU or ECM's mal-
functioning.

MIL staying ON

Security indicator
lighting up*DON'T ERASE
BEFORE CHECKING
ENG DIAGWORK FLOW
(BL-118 )Engine trouble data and
NATS trouble data have
been detected in ECM— SYMPTOMDisplayed “SELF-DIAG
RESULTS” on CON-
SULT-II screen.DIAGNOSTIC PROCE-
DURE
(Reference page)SYSTEM
(Malfunctioning part or
mode)REFERENCE PART NO.
OF ILLUSTRATION ON
SYSTEM DIAGRAM
