2005 NISSAN X-TRAIL steering

EC-1408
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

DATA MONITOR MODE
MONITOR ITEMECM
INPUT
SIGNALMAIN
SIG-
NALSCONDITION SPECIFICATION
CKPS·RPM (TDC) [rpm]××

The engine speed computed from the
crankshaft position sensor signal is dis-
played.
COOLAN TEMP/S
[°C] or [°F]××

The engine coolant temperature (deter-
mined by the signal voltage of the engine
coolant temperature sensor) is displayed.When the engine coolant temper-
ature circuit is open or short, ECM
enters fail-safe mode. The engine
coolant temperature determined
by the ECM is displayed.
VHCL SPEED SE
[km/h] or [mph]××

The vehicle speed computed form the
vehicle speed sensor signal is displayed.
FUEL TEMP SEN
[°C] or [°F]××

The fuel temperature (determined by the
signal voltage of the fuel pump tempera-
ture sensor) is displayed.
ACCEL POS SEN [V]××

The accelerator pedal position sensor 1
signal voltage is displayed.These signals are converted by
ECM internally. Thus, they differ
from ECM terminals voltage.
ACCEL SEN 2 [V]××

The accelerator pedal position sensor 2
signal voltage is displayed.
ACT CR PRESS [MPa]××

The Fuel rail pressure (determined by the
signal voltage of the fuel rail pressure
sensor) is displayed.
BATTERY VOLT [V]××

The power supply voltage of ECM is dis-
played.
P/N POSI SW [ON/OFF]××

Indicates [ON/OFF] condition from the
park/neutral position switch signal.
START SIGNAL [ON/OFF]××

indicates [ON/OFF] condition from the
starter signal.
PW/ST SIGNAL [ON/OFF]×

indicates [ON/OFF] condition from the
power steering pressure switch signal.
BRAKE SW [ON/OFF]××

indicates [ON/OFF] condition from the
stop lamp switch signal.
BRAKE SW2 [ON/OFF]××

indicates [ON/OFF] condition from the
ASCD brake switch and ASCD clutch
switch signal.
IGN SW [ON/OFF]××

Indicates [ON/OFF] condition from igni-
tion switch signal.
MAS AIR/FL SE [V]××

The signal voltage of the mass air flow
sensor is displayed.
MAIN INJ WID [msec]×

Indicates the actual fuel injection pulse
width compensated by ECM according to
the input signals.
PUMP CURRENT [mA]×

Indicates the fuel pump power supply
current from the ECM.
GLOW RLY [ON/OFF]×

The glow relay control condition (deter-
mined by ECM according to the input sig-
nal) is displayed.
COOLING FAN
[LOW/HI/OFF]×

Indicates the control condition of the
cooling fans (determined by ECM
according to the input signal).
LOW ... Operates at low speed.
HI ... Operates at high speed.
OFF ... Stopped

EC-1412
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
*: These signals are converted by ECM internally. Thus, these differ from ECM terminals voltage.P/N POSI SW

Ignition switch: ONShift lever: Neutral position ON
Except above OFF
START SIGNAL

Ignition switch: ON → START → ON OFF → ON → OFF
PW/ST SIGNAL

Engine: After warming up, idle
the engineSteering wheel is in neutral posi-
tion. (Forward direction)OFF
Steering wheel is turned. ON
BRAKE SW

Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
IGN SW

Ignition switch: ON → OFF ON → OFF
ACT CR PRESS

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 20 - 30 MPa
2,000 rpm 45 - 55 MPa
MAIN INJ WID

Engine: After warming up

Shift lever: Neutral position

Idle speedNo-load 0.68 - 0.78 msec
Blower fan switch: ON
Rear window defogger switch: ON0.78 - 0.88 msec
GLOW RLY Refer to EC-1643, "
GLOW CONTROL SYSTEM" .
PUMP CURRENT

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 1,700 - 1,900 mA
2,000 rpm 1,600 - 1,800 mA
COOLING FAN

When cooling fan is stopped. OFF

When cooling fans operate at low speed. LOW

When cooling fans operate at high speed. HI
EGR VOL CON/V

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadAfter 1 minute at idle More than 10 steps
Revving engine from idle to 3,600
rpm0 step
INT/A VOLUME

Engine: After warming up, idle the engine 150 - 450 mg/st
INT/M PRES SE [kPa]

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle Approx. 100 kPa
2,800 rpm Approx. 126 kPa
4,000 rpm Approx. 106 kPa
BARO SEN

Ignition switch: ONAltitude
Approx. 0m: Approx. 100.62 kPa
(1.0062 bar, 1.026 kg/cm
2 , 14.59
psi)
Approx. 1,000 m: Approx. 88.95
kPa (0.8895 bar, 0.907 kg/cm
2 ,
12.90 psi)
Approx. 1,500 m: Approx. 83.16
kPa (0.8316 bar, 0.848 kg/cm
2 ,
12.06 psi)
Approx. 2,000 m: Approx. 78.36
kPa (0.7836 bar, 0.799 kg/cm
2 ,
11.36 psi)
CYL COUNT

Engine is running 1 → 3 → 4 → 2 MONITOR ITEM CONDITION SPECIFICATION

DTC P0580, P0581 ASCD STEERING SWITCH
EC-1557
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P0580, P0581 ASCD STEERING SWITCHPFP:25551
Component DescriptionEBS01FDT
ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation
of switch, and determines which button is operated.
Refer to EC-1690, "
AUTOMATIC SPEED CONTROL DEVICE (ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeEBS01FDU
Specification data are reference values.

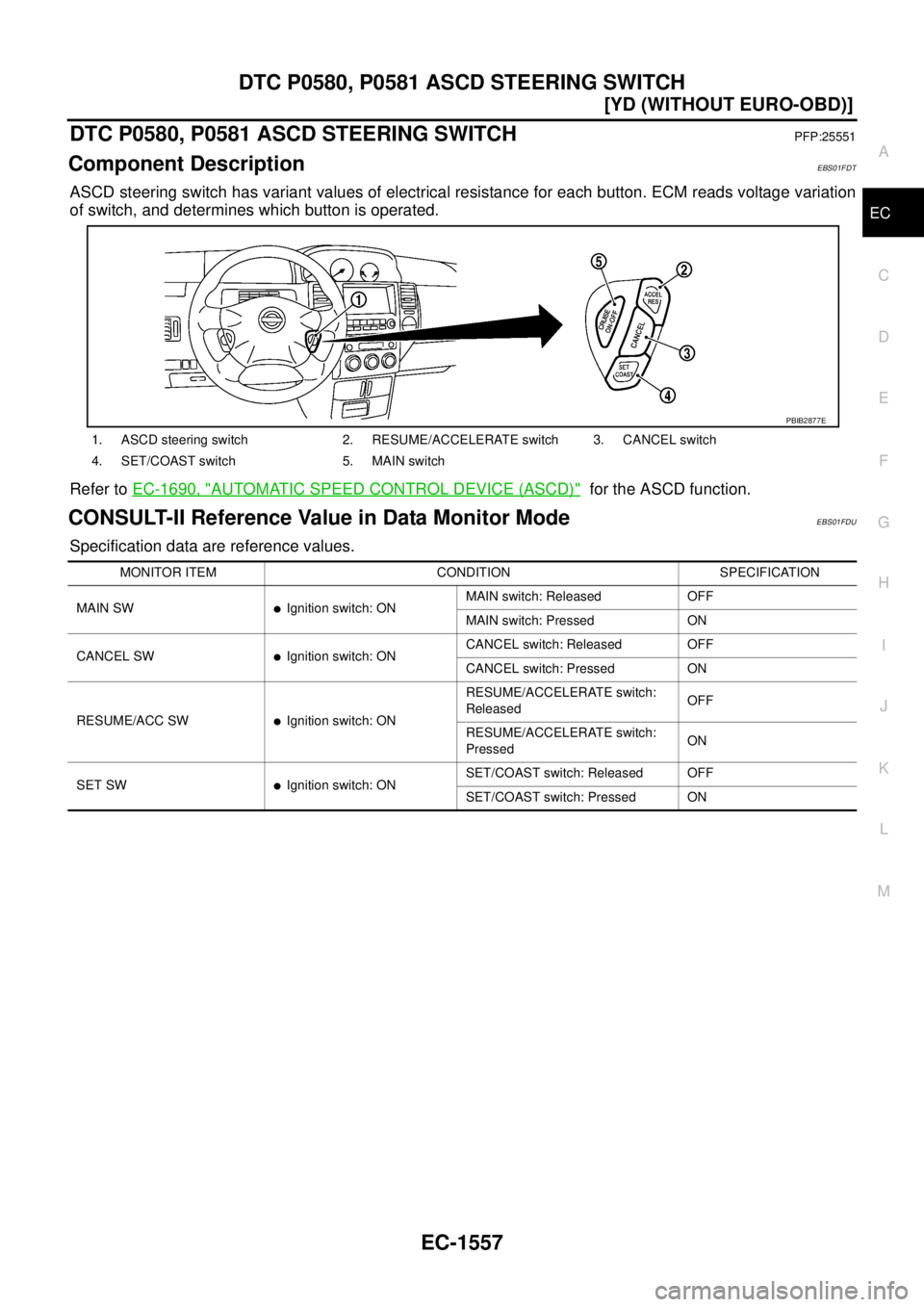

1. ASCD steering switch 2. RESUME/ACCELERATE switch 3. CANCEL switch
4. SET/COAST switch 5. MAIN switch
PBIB2877E
MONITOR ITEM CONDITION SPECIFICATION
MAIN SW

Ignition switch: ONMAIN switch: Released OFF
MAIN switch: Pressed ON
CANCEL SW

Ignition switch: ONCANCEL switch: Released OFF
CANCEL switch: Pressed ON
RESUME/ACC SW

Ignition switch: ONRESUME/ACCELERATE switch:
ReleasedOFF
RESUME/ACCELERATE switch:
PressedON
SET SW

Ignition switch: ONSET/COAST switch: Released OFF
SET/COAST switch: Pressed ON

EC-1558
[YD (WITHOUT EURO-OBD)]
DTC P0580, P0581 ASCD STEERING SWITCH

On Board Diagnosis LogicEBS01FDV
MI will not light up for these diagnoses.
NOTE:
If DTC P0580 or P0581 is displayed with DTC P0606, first perform the trouble diagnosis for DTC P0606.
Refer to EC-1566, "
DTC P0605 ECM".
DTC Confirmation ProcedureEBS01FDW
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 10 seconds.
4. Press MAIN switch for at least 10 seconds, then release it and wait at least 10 seconds.
5. Press RESUME/ACCELERATE switch for at least 10 seconds, then release it and wait at least 10 sec-
onds.
6. Press SET COAST switch for at least 10 seconds, then release it and wait at least 10 seconds.
7. Press CANCEL switch for at least 10 seconds, then release it and wait at least 10 seconds.
8. If DTC is detected, go to EC-1562, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Turn ignition switch ON and wait at least 10 seconds.
2. Press CRUISE switch for at least 10 seconds, then release it and wait at least 10 seconds.
3. Press RESUME/ACCELERATE switch for at least 10 seconds, then release it and wait at least 10 sec-
onds.
4. Press SET/COAST switch for at least 10 seconds, then release it and wait at least 10 seconds.
5. Press CANCEL switch for at least 10 seconds, then release it and wait at least 10 seconds.
6. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
7. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
8. If DTC is detected, go to EC-1562, "
Diagnostic Procedure" .
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P0580
0580ASCD steering
switch circuit low
input

ECM detects that the ASCD steering switch is
stuck ON.
Harness or connectors
(The switch circuit is open or shorted.)

ASCD steering switch

ECM P0581
0581ASCD steering
switch circuit high
input
An excessively high voltage signal from the ASCD
steering switch is sent to ECM.

DTC P0580, P0581 ASCD STEERING SWITCH
EC-1559
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

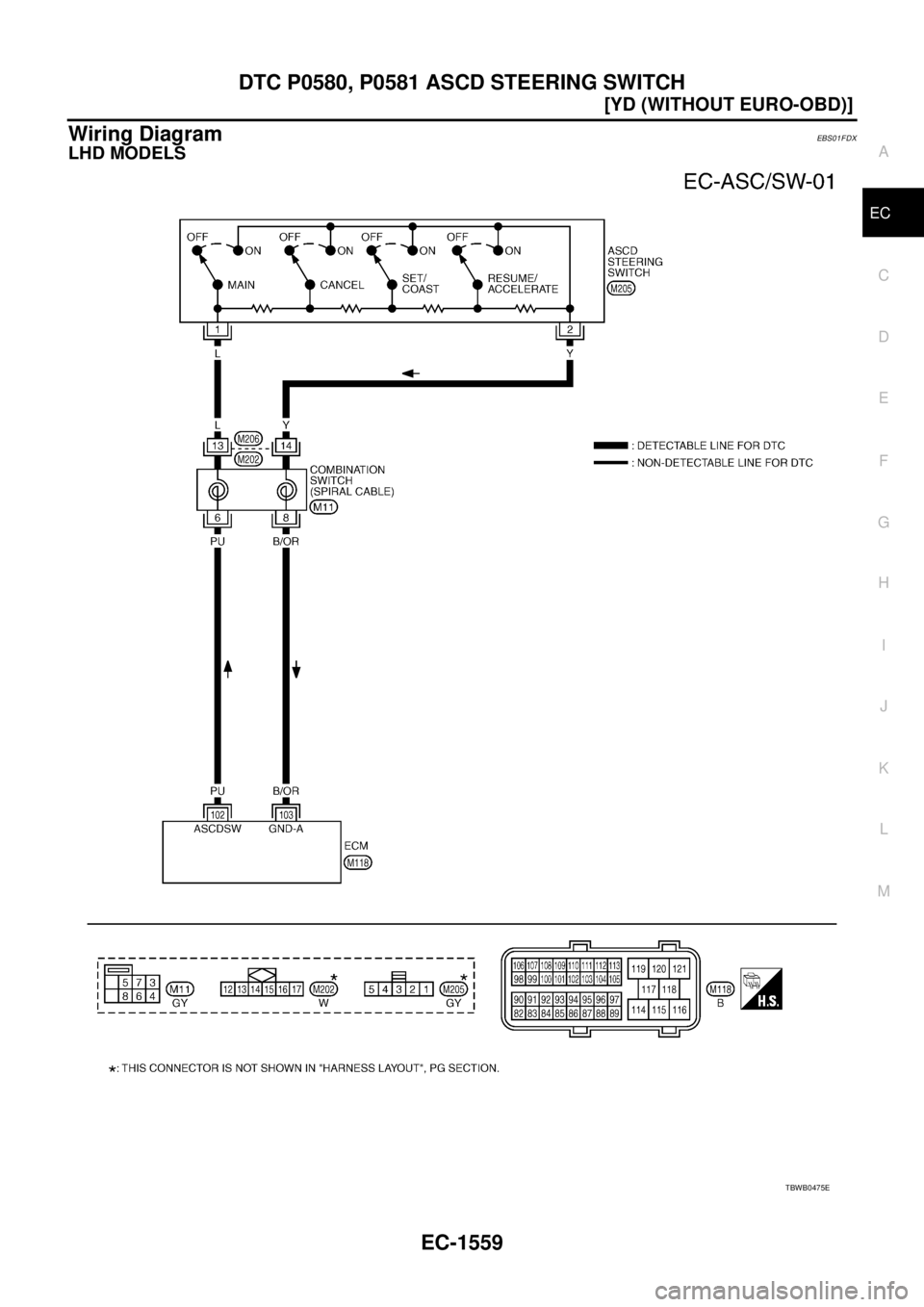

Wiring DiagramEBS01FDX
LHD MODELS
TBWB0475E

EC-1560
[YD (WITHOUT EURO-OBD)]
DTC P0580, P0581 ASCD STEERING SWITCH

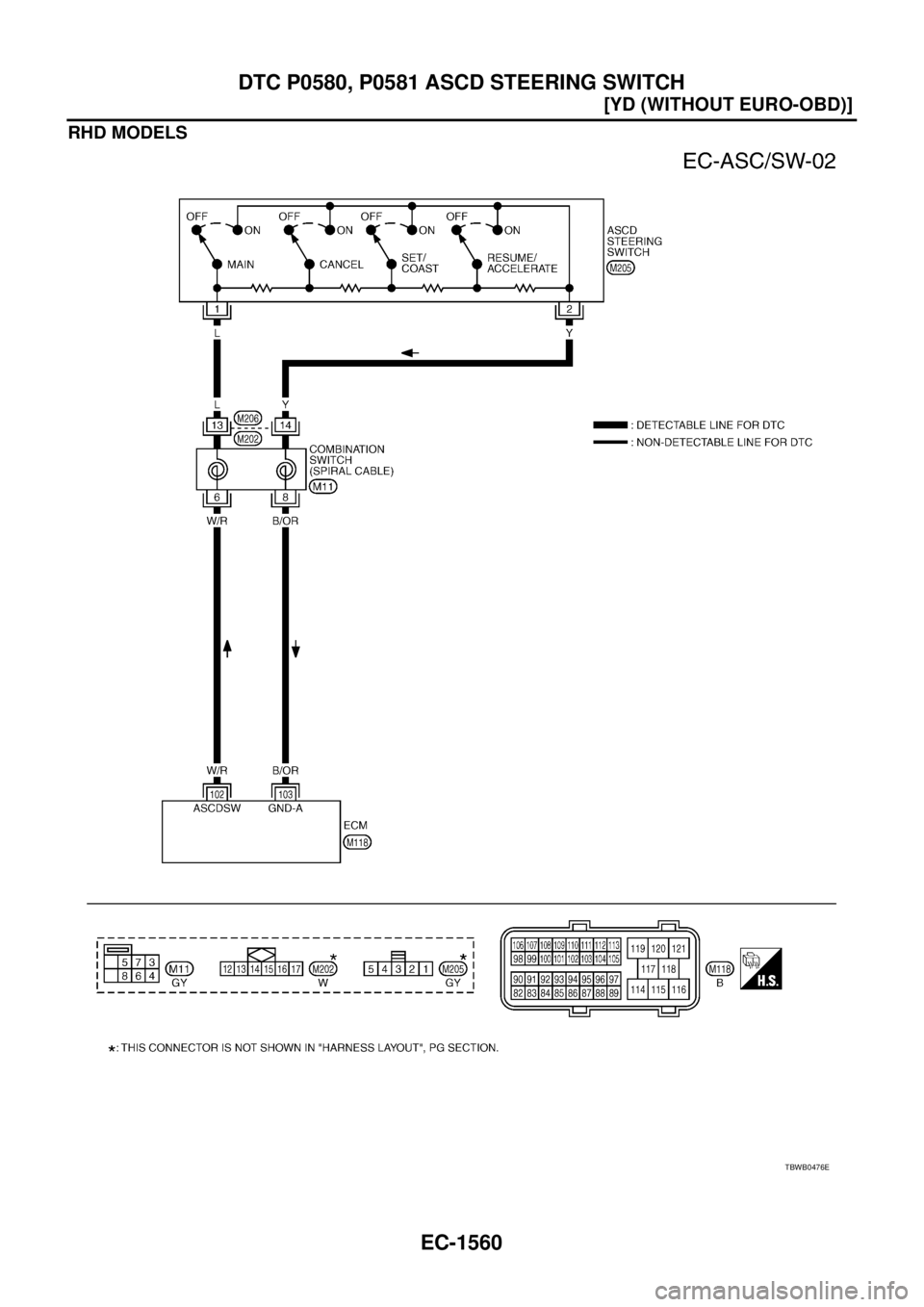

RHD MODELS
TBWB0476E

DTC P0580, P0581 ASCD STEERING SWITCH
EC-1561
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
*1: LHD models
*2: RHD modelsTERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage)
102PU*
1
W/R*2ASCD steering switch[Ignition switch ON]

ASCD steering switch: OFFApproximately 4.3V
[Ignition switch ON]

MAIN switch: PressedApproximately 0.3V
[Ignition switch ON]

CANCEL switch: PressedApproximately 1.3V
[Ignition switch ON]

RESUME/ACCELERATE switch: PressedApproximately 3.3V
[Ignition switch ON]

SET/COAST switch: PressedApproximately 2.3V
103 B/ORASCD steering switch
ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V

EC-1562
[YD (WITHOUT EURO-OBD)]
DTC P0580, P0581 ASCD STEERING SWITCH

Diagnostic ProcedureEBS01FDZ
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-1424, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2020E
