2005 NISSAN X-TRAIL steering

EC-1366
[YD (WITHOUT EURO-OBD)]
ENGINE CONTROL SYSTEM

×: Applicable
4WD Models Without ESP
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
T: Transmit R: Receive Steering angle sensor××
4WD control unit××
Combination meter×××× Body typeWagon
Axle 4WD 2WD
EngineYD22DDTi
TransmissionM/T
Brake control ABS ESP ABS ESP
PKIA6458E
Signals ECMABS actuator and
electric unit
(control unit)4WD control unit Combination meter
4WD mode indicator lamp signal T R
4WD warning lamp signalTR
A/C compressor feedback signal T R
ABS warning lamp signal T R
Accelerator pedal position signal T R
Engine coolant temperature signal T R
Engine speed signal T R R
MI signal T R
Parking brake switch signalRT
Stop lamp switch signal T R
Vehicle speed signalTRR
RT
ASCD SET lamp signal T R
ASCD CRUISE lamp signal T R
Stop lamp switch signal T R

ENGINE CONTROL SYSTEM
EC-1367
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

4WD Models With ESP
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
T: Transmit R: Receive Glow indicator lamp signal T R
A/C switch signal R TSignals ECMABS actuator and
electric unit
(control unit)4WD control unit Combination meter
Signals ECMESP/TCS/ABS
control unitSteering angle
sensor4WD control
unitCombination
meter
4WD mode indicator lamp signalTR
4WD warning lamp signalTR
A/C switch signal RT
ABS warning lamp signal T R
Accelerator pedal position signal T R R
Brake warning lamp signal T R
Engine coolant temperature signal TR
Engine speed signal T R R R
ESP OFF indicator lamp signal T R
Glow indicator lamp signal TR
MI signal TR
Stop lamp switch signal T R
Vehicle speed signalTRR
RT
SLIP indicator lamp signal T R
Parking brake switch signalRT
Steering angle sensor signal R T
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR
PKIA9634E

ENGINE CONTROL SYSTEM
EC-1369
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2WD Models With ESP
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
T: Transmit R: Receive
PKIC0343E
Signals ECM ESP/TCS/ABS control unit Steering angle sensor Combination meter
A/C switch signal RT
ABS warning lamp signal T R
Accelerator pedal position signal T R
Brake warning lamp signal T R
Engine coolant temperature signal TR
Engine speed signal T R R
ESP OFF indicator lamp signal T R
Glow indicator lamp signal TR
MI signal TR
Vehicle speed signalTR
RT
SLIP indicator lamp signal T R
Steering angle sensor signal R T
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR

EC-1382
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

Basic InspectionEBS011XF
Precaution:
Perform Basic Inspection without electrical or mechanical loads applied;

Headlamp switch is OFF.

On vehicles equipped with daytime light systems, set lighting switch to the 1st position to light
only small lamps.

Air conditioner switch is OFF.

Rear defogger switch is OFF.

Steering wheel is in the straight-ahead position, etc.
Priority Detected items (DTC)
1

U1000 CAN communication line

P0016 Crankshaft position - camshaft position correlation

P0102 P0103 Mass air flow sensor

P0112 P0113 Intake air temperature sensor

P0117 P0118 Engine coolant temperature sensor

P0122 P0123 P0222 P0223 P2135 Accelerator pedal position sensor

P0182 P0183 Fuel pump temperature sensor

P0192 P0193 Fuel rail pressure sensor

P0237 P0238 Turbocharger boost sensor

P0335 P0336 Crankshaft position sensor

P0340 P0341 Camshaft position sensor

P0563 Battery voltage

P0605 P0606 ECM

P0642 P0643 P0652 P0653 Sensor power supply

P1260 - P1267 Fuel injector adjustment resistor

P1610 - P1617 NATS

P2228 P2229 Barometric pressure sensor
2

P0089 P0628 P0629 P1272 - P1275 Fuel pump

P0200 - P0204 P1268 - P1271 P2146 - P2149 Fuel injector

P0686 ECM relay

P1212 TCS communication line
3

P0088 P0093 Fuel system

P0217 Engine over temperature (OVERHEAT)

P0234 Turbocharger system

P0501 P0502 P0503 ASCD vehicle speed sensor

P0504 ASCD brake switch

P0580 P0581 ASCD steering switch

P1211 TCS control unit

TROUBLE DIAGNOSIS
EC-1395
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

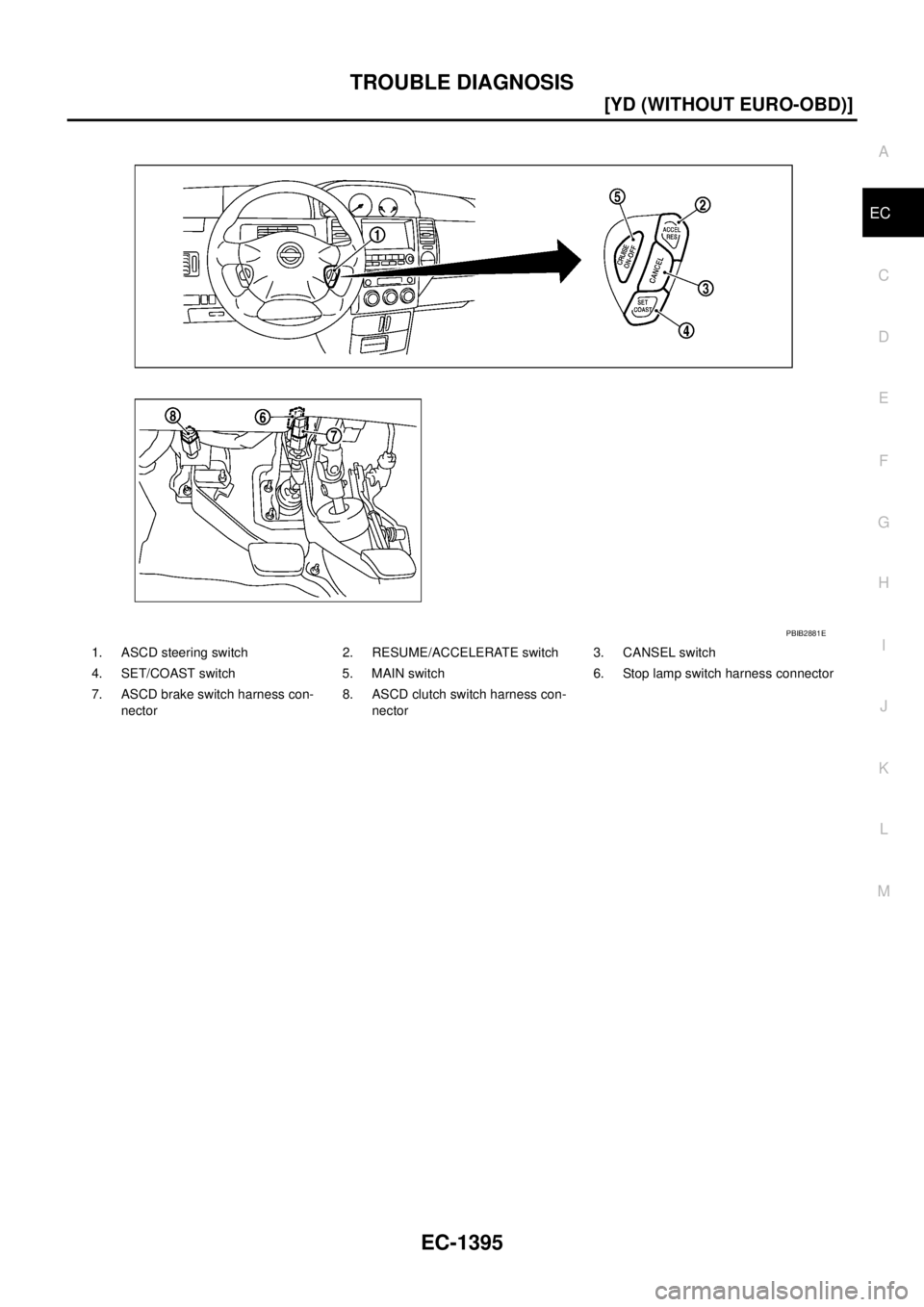

1. ASCD steering switch 2. RESUME/ACCELERATE switch 3. CANSEL switch
4. SET/COAST switch 5. MAIN switch 6. Stop lamp switch harness connector
7. ASCD brake switch harness con-
nector8. ASCD clutch switch harness con-
nector
PBIB2881E

EC-1404
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

85 —Sensor ground
(Accelerator pedal posi-
tion sensor shield circuit)[Engine is running]
Warm-up condition

Idle speedApproximately 0.3V
87 GY/R CAN communication line[Ignition switch ON]Approximately 2.0 - 2.6V
Output voltage varies with the
communication status.
89 LG Data link connector[Ignition switch ON]

CONSULT-II is disconnected.Approximately 0V - Battery volt-
age (11 - 14V)
90 LAccelerator pedal position
sensor 2 power supply[Ignition switch ON]Approximately 5.3V
91 GAccelerator pedal position
sensor 2[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully released0.4 - 0.7V
[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully depressed2.2 - 2.7V
92 YAccelerator pedal position
sensor 2 ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
95 G/R CAN communication line[Ignition switch ON]Approximately 2.6 - 3.2V
Output voltage varies with the
communication status.
99 B/Y Start signal[Ignition switch ON]Approximately 0.3V
[Ignition switch START]BATTERY VOLTAGE
(11 - 14V)
100 P Stop lamp switch[Ignition switch OFF]

Brake pedal: Fully releasedApproximately 0V
[Ignition switch OFF]

Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
101 GY/L ASCD brake switch[Ignition switch ON]

Brake pedal and clutch pedal: Fully releasedBATTERY VOLTAGE
(11 - 14V)
[Ignition switch ON]

Brake pedal and/or clutch pedal: Slightly
depressedApproximately 0V
102PU*
1
W/R*2ASCD steering switch[Ignition switch ON]

ASCD steering switch: OFFApproximately 4.3V
[Ignition switch ON]

MAIN switch: PressedApproximately 0.3V
[Ignition switch ON]

CANCEL switch: PressedApproximately 1.3V
[Ignition switch ON]

RESUME/ACCELERATE switch: PressedApproximately 3.3V
[Ignition switch ON]

SET/COAST switch: PressedApproximately 2.3V
103 B/ORASCD steering switch
ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)

TROUBLE DIAGNOSIS
EC-1405
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
*1: LHD models
*2: RHD models
CONSULT-II Function (ENGINE)EBS011XL
FUNCTION
*: The following emission-related diagnostic information is cleared when the ECM memory is erased.

Diagnostic trouble codes

Freeze frame data105 G ECM relay (self-shutoff)[Ignition switch ON]
[Ignition switch OFF]

For a few seconds after turning ignition
switch OFFApproximately 1.2V
[Ignition switch OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
107
108W/R
W/RIgnition switch [Ignition switch ON]BATTERY VOLTAGE
(11 - 14V)
110 G/ORPark/Neutral position
switch[Ignition switch ON]

Gear position is Neutral Approximately 0V
[Ignition switch ON]

Except the above gear positionBATTERY VOLTAGE
(11 - 14V)
111 P / BPower steering pressure
switch[Engine is running]

Steering wheel is being turnedApproximately 0V
[Engine is running]

Steering wheel is not being turnedBATTERY VOLTAGE
(11 - 14V)
113 G ECM relay (self-shutoff)[Ignition switch ON]
[Ignition switch OFF]

For a few seconds after turning ignition
switch OFFApproximately 1.2V
[Ignition switch OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
114 B ECM ground[Engine is running]

Warm-up condition

Idle speedApproximately 0V
11 9
120Y
RPower supply for ECM[Ignition switch ON]BATTERY VOLTAGE
(11 - 14V)
121 W/LPower supply for ECM
(Back-up)[Ignition switch OFF]BATTERY VOLTAGE
(11 - 14V) TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
Diagnostic test mode Function
Self-diagnostic results Self-diagnostic results such as DTCs and freeze frame data can be read and erased quickly.*
Data monitor Input/Output data in the ECM can be read.
CAN diagnostic support
monitorThe results of transmit/receive diagnosis of CAN communication can be read.
Active testDiagnostic Test Mode in which CONSULT-II drives some actuators apart from the ECMs and also
shifts some parameters in a specified range.
Function test This mode is used to inform customers when their vehicle condition requires periodic maintenance.
ECM part number ECM part number can be read.

TROUBLE DIAGNOSIS
EC-1407
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
X: Applicable
SELF-DIAGNOSTIC MODE
Self Diagnostic Item
Regarding items detected in “SELF-DIAG RESULTS” mode, refer to EC-1351, "INDEX FOR DTC" .
Freeze Frame Data
ItemDIAGNOSTIC TEST MODE
SELF-DIAG RESULTS
DATA MON-
ITORACTIVE
TEST
DTCFREEZE
FRAME
DATA
ENGINE CONTROL COMPONENT PARTS
INPUTCrankshaft position sensor×××
Camshaft position sensor×
Engine coolant temperature sensor××××
Vehicle speed sensor×××
Fuel pump temperature sensor××
Accelerator pedal position sensor 1××
Accelerator pedal position sensor 2××
Fuel rail pressure sensor××
Mass air flow sensor××
Intake air temperature sensor×
Turbocharger boost sensor×××
Battery voltage××
Park/neutral position (PNP) switch×
Power steering pressure switch×
Stop lamp switch×
Barometric pressure sensor (built-into ECM)××
Fuel injector adjustment resistor×
ASCD steering switch××
ASCD brake switch××
ASCD clutch switch××
OUTPUTFuel pump×××
Fuel injector×××
Glow relay××
Cooling fan relay×××
EGR volume control valve××
Freeze frame data item Description
DIAG TROUBLE CODE
[PXXXX]

The engine control component part/control system has a trouble code, it is displayed as “PXXXX”.
(Refer to EC-1351, "
INDEX FOR DTC" .)
CAL/LD VALUE [%]

The calculated load value at the moment a malfunction is detected is displayed.
COOLANT TEMP [°C] or
[°F]

The engine coolant temperature at the moment a malfunction is detected is displayed.
ENGINE SPEED [rpm]

The engine speed at the moment a malfunction is detected is displayed.
VEHICL SPEED [km/h] or
[mph]

The vehicle speed at the moment a malfunction is detected is displayed.
INT MANI PRES [kPa]

The intake manifold pressure at the moment a malfunction is detected is displayed.
