CYLINDER BLOCK
EM-233
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

6. Drain engine coolant by removing drain plug from inside of
engine.
7. Remove the following parts and related parts. (Only major parts are listed.)

Intake manifold (Refer to EM-146, "INTAKE MANIFOLD" .)

Exhaust manifold and turbocharger (Refer to EM-151, "Removal and Installation" .)

Rocker cover (Refer to EM-178, "ROCKER COVER" .)

Fuel injector (Refer to EM-167, "Removal and Installation" .)

Oil pan and oil strainer (Refer to EM-157, "OIL PAN AND OIL STRAINER" .)

Water pump (Refer to CO-43, "WATER PUMP" .)

Thermostat and water piping (Refer to CO-45, "THERMOSTAT AND WATER PIPING" .)

Vacuum pump (Refer to EM-163, "VACUUM PUMP" .)

Secondary timing chain (Refer to EM-193, "Removal and Installation" .)

Primary timing chain (Refer to EM-198, "PRIMARY TIMING CHAIN" .)

Fuel pump (Refer toEM-171, "FUEL PUMP" .)

Camshaft (Refer to EM-180, "Removal and Installation" .)

Cylinder head (Refer to EM-210, "Removal and Installation" .)

Oil cooler (Refer to LU-28, "OIL COOLER" .)

Accessory, accessory bracket and mount brackets
8. Remove fuel pump bracket.
9. Remove rear oil seal retainer.

Insert a flat-bladed screwdriver between main bearing cap and rear oil seal retainer to remove retainer.
10. Remove rear oil seal from rear oil seal retainer.

Punch out with a flat-bladed screwdriver.
CAUTION:
Be careful not to damage rear oil seal retainer.
11. Remove piston and connecting rod assembly as follows:

Before removing piston and connecting rod assembly, check connecting rod side clearance. Refer to
EM-246, "
CONNECTING ROD SIDE CLEARANCE" .
a. Move crankshaft pin to be removed to approximately BDC.
b. Remove connecting rod caps.
c. Using the grip of a hammer, press the piston and connecting rod
assembly out to cylinder head side.
PBIC2439E
JEM195G

CYLINDER BLOCK
EM-235
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

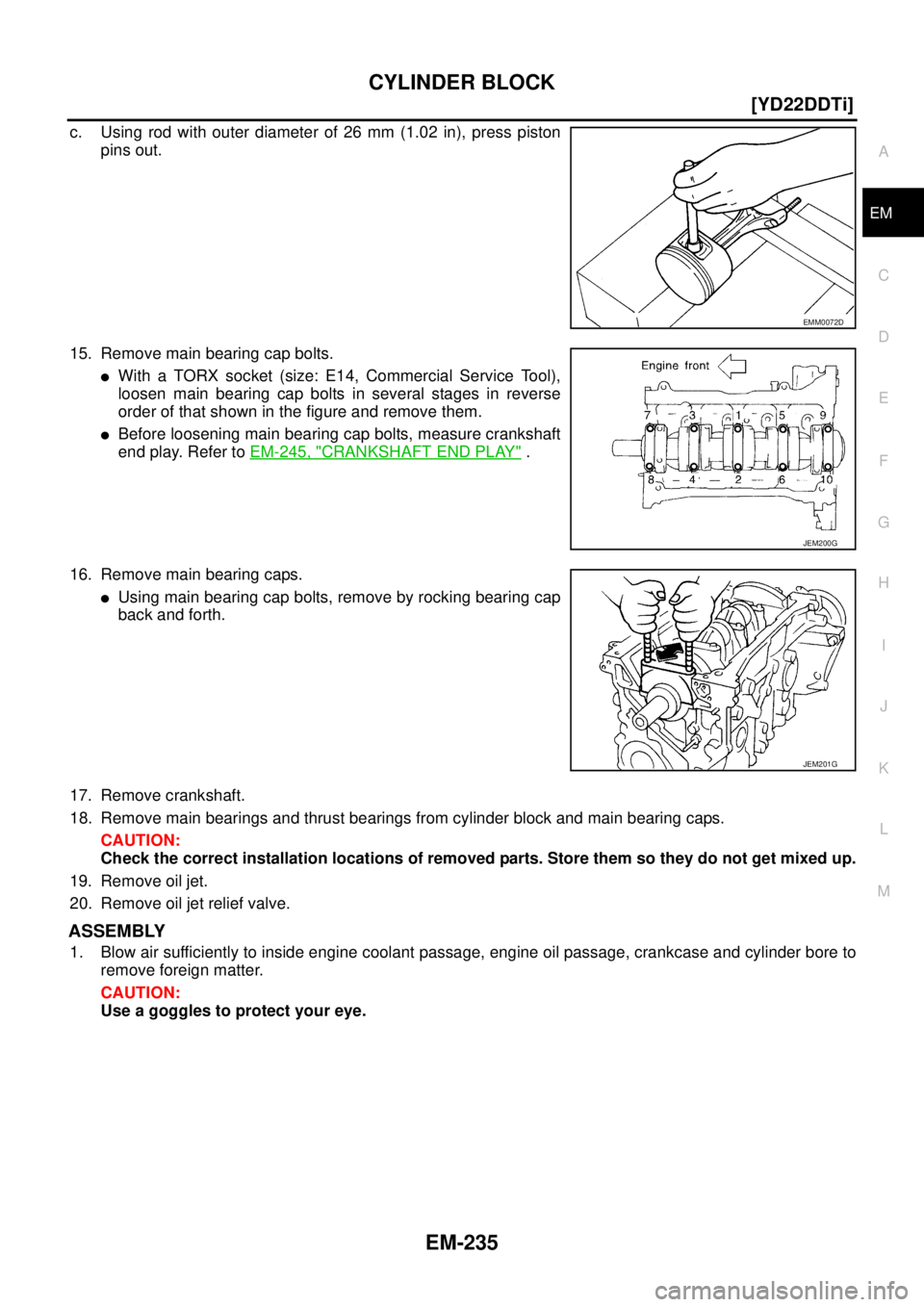

c. Using rod with outer diameter of 26 mm (1.02 in), press piston
pins out.
15. Remove main bearing cap bolts.

With a TORX socket (size: E14, Commercial Service Tool),
loosen main bearing cap bolts in several stages in reverse
order of that shown in the figure and remove them.

Before loosening main bearing cap bolts, measure crankshaft
end play. Refer to EM-245, "
CRANKSHAFT END PLAY" .
16. Remove main bearing caps.

Using main bearing cap bolts, remove by rocking bearing cap
back and forth.
17. Remove crankshaft.
18. Remove main bearings and thrust bearings from cylinder block and main bearing caps.
CAUTION:
Check the correct installation locations of removed parts. Store them so they do not get mixed up.
19. Remove oil jet.
20. Remove oil jet relief valve.
ASSEMBLY
1. Blow air sufficiently to inside engine coolant passage, engine oil passage, crankcase and cylinder bore to
remove foreign matter.
CAUTION:
Use a goggles to protect your eye.
EMM0072D
JEM200G
JEM201G

CYLINDER BLOCK
EM-237
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

7. Install main bearing caps.

Identify main bearing caps by the punched mark. Install cor-
rectly matching the journal No. on the bearing cap and the
journal with the front mark facing forward.

Main bearing caps are commonly processed with the cylinder
block. Therefore, caps and cylinder block should be replaced
as a set.
8. Check the main bearing cap bolts for deformation. Refer to EM-254, "
MAIN BEARING CAP BOLT
DEFORMATION" .
9. With the TORX socket (size: E14, commercial service tool),
tighten the main bearing cap bolts according to the following
procedure:
a. Apply engine oil to the threaded part and seat surface of each
bolt.
b. Tighten all bolts in numerical order shown in the figure.
c. Put alignment marks (with paint) on each bolt and the main
bearing cap, all in the same direction. (When using a protractor)
d. Then, tighten 90 degrees. (angle tightening)
CAUTION:
Always use either the angle wrench (special service tool) or
protractor during angle tightening. Avoid tightening based
on visual checks alone.

After tightening bolts to specified torque, make sure that
crankshaft rotates smoothly.

Check crankshaft end play. Refer to EM-245, "CRANKSHAFT
END PLAY" .
10. Check the outer diameter of connecting rod bolts. Refer to EM-
254, "CONNECTING ROD BOLT DEFORMATION" .
11. Install piston to connecting rod.
a. Using the snap ring pliers, install snap rings to groove on piston rear side.

Fit snap ring correctly into grooves.
b. Install pistons to connecting rods.

Using the industrial use dryer, heat pistons up to approx. 60 to
70°C (140 to 158°F) until piston pin can be pressed down by
finger touch. Then insert piston pin into piston and connecting
rod from front side of piston toward rear.
JEM225G
: 27 N·m (2.8 kg-m, 20 ft-lb)
JEM200G
JEM226G
PBIC0089E

EM-238
[YD22DDTi]
CYLINDER BLOCK


Assemble piston and connecting rod with front mark of piston
head and cylinder No. stamped on connecting rod being posi-
tioned as shown in the figure.
c. Install snap ring to front side of piston.

Refer to above step a for precaution on snap ring installation.

After installation, check connecting rods for smooth move-
ment.
12. Use the piston ring expander (commercial service tool) to install piston rings.
CAUTION:
When installing, prevent piston from being damaged.

Install top ring and second ring with punched mark surfaces
facing upward.

Install rings so that three closed gap position 120 degrees
apart one another.

Closed gaps do not need to face in a specific directions, as
long as each are positioned 120 degrees apart.
13. Install connecting rod bearing to connecting rod and cap.

While installing connecting rod bearing, apply engine oil to
bearing surfaces (inside). Do not apply engine oil to rear sur-
faces, but clean them completely.

Align protrusions on connecting rod bearings with connecting
rod cut-outs to install connecting rod bearings.
14. Install piston and connecting rod assembly to crankshaft.

Move crankshaft pin to be assembled to BDC.

Align cylinder position with cylinder No. on connecting rod to
install piston and connecting rod assembly.

Apply engine oil sufficiently to the cylinder bore, piston and
crankshaft pin.

Using the piston ring compressor (special service tool) or suit-
able tool, install piston and connecting rod assembly with front
mark on piston head facing toward the front side of engine.
CAUTION:

When removing piston and connecting rod assembly,
prevent the big end of connecting rod from interfering with oil jet.

Be careful not to damage the cylinder wall and crankshaft pin, resulting from an interference
of the connecting rod big end.
MBIA0024E
Punched mark:
Top ring : RTop
Second ring : R2nd
JEM228G
JEM229G
PBIC1619E

CYLINDER BLOCK
EM-239
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

15. Install connecting rod caps and mounting nuts.

Align cylinder No. stamped on connecting rod with that on cap
to install connecting rod cap.

Make sure that the front mark on connecting rod cap faces
towards the front of the engine.
16. Tighten connecting rod nuts according to the following procedure:
a. Apply engine oil on bolt threads and seat surface of nuts.
b. Tighten bolts.
c. Loosen completely.
d. Tighten bolts.
e. Tighten 120 degrees. (angle tightening)

Always use either the angle wrench (special service tool)
or protractor during angle tightening. Avoid tightening
based on visual checks alone.

After tightening nuts, make sure that crankshaft rotates
smoothly.

Check connecting rod side clearance. Refer to EM-246,
"CONNECTING ROD SIDE CLEARANCE" .
17. Press fit rear oil seal into rear oil seal retainer.

Using the drift [105 mm (4.13 in) dia.], press fit so that the
dimension is as specified in the figure.

Avoid inclined fitting. Force fit perpendicularly.
MBIA0024E
: 29.4 N·m (3.0 kg-m, 22 ft-lb)
: 0 N·m (0 kg-m, 0 in-lb)
: 19.6 N·m (2.0 kg-m, 14 ft-lb)
JEM231G
JEM232G

CYLINDER BLOCK
EM-247
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

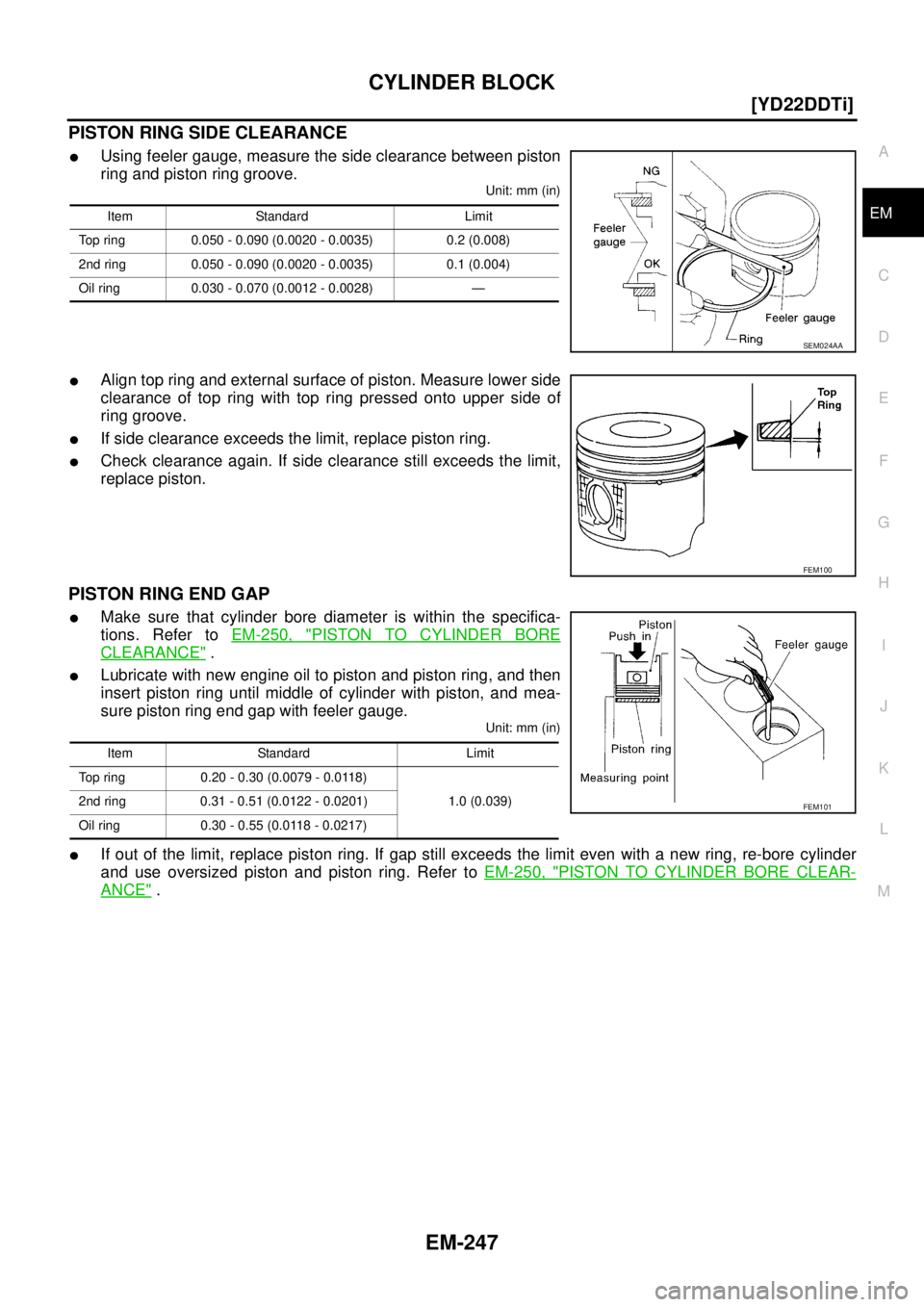

PISTON RING SIDE CLEARANCE

Using feeler gauge, measure the side clearance between piston
ring and piston ring groove.
Unit: mm (in)

Align top ring and external surface of piston. Measure lower side
clearance of top ring with top ring pressed onto upper side of
ring groove.

If side clearance exceeds the limit, replace piston ring.

Check clearance again. If side clearance still exceeds the limit,
replace piston.
PISTON RING END GAP

Make sure that cylinder bore diameter is within the specifica-
tions. Refer to EM-250, "
PISTON TO CYLINDER BORE
CLEARANCE" .

Lubricate with new engine oil to piston and piston ring, and then
insert piston ring until middle of cylinder with piston, and mea-
sure piston ring end gap with feeler gauge.
Unit: mm (in)

If out of the limit, replace piston ring. If gap still exceeds the limit even with a new ring, re-bore cylinder
and use oversized piston and piston ring. Refer to EM-250, "
PISTON TO CYLINDER BORE CLEAR-
ANCE" .
Item Standard Limit
Top ring 0.050 - 0.090 (0.0020 - 0.0035) 0.2 (0.008)
2nd ring 0.050 - 0.090 (0.0020 - 0.0035) 0.1 (0.004)
Oil ring 0.030 - 0.070 (0.0012 - 0.0028) —
SEM024AA
FEM100
Item Standard Limit
Top ring 0.20 - 0.30 (0.0079 - 0.0118)
1.0 (0.039) 2nd ring 0.31 - 0.51 (0.0122 - 0.0201)
Oil ring 0.30 - 0.55 (0.0118 - 0.0217)
FEM101

EM-248
[YD22DDTi]
CYLINDER BLOCK

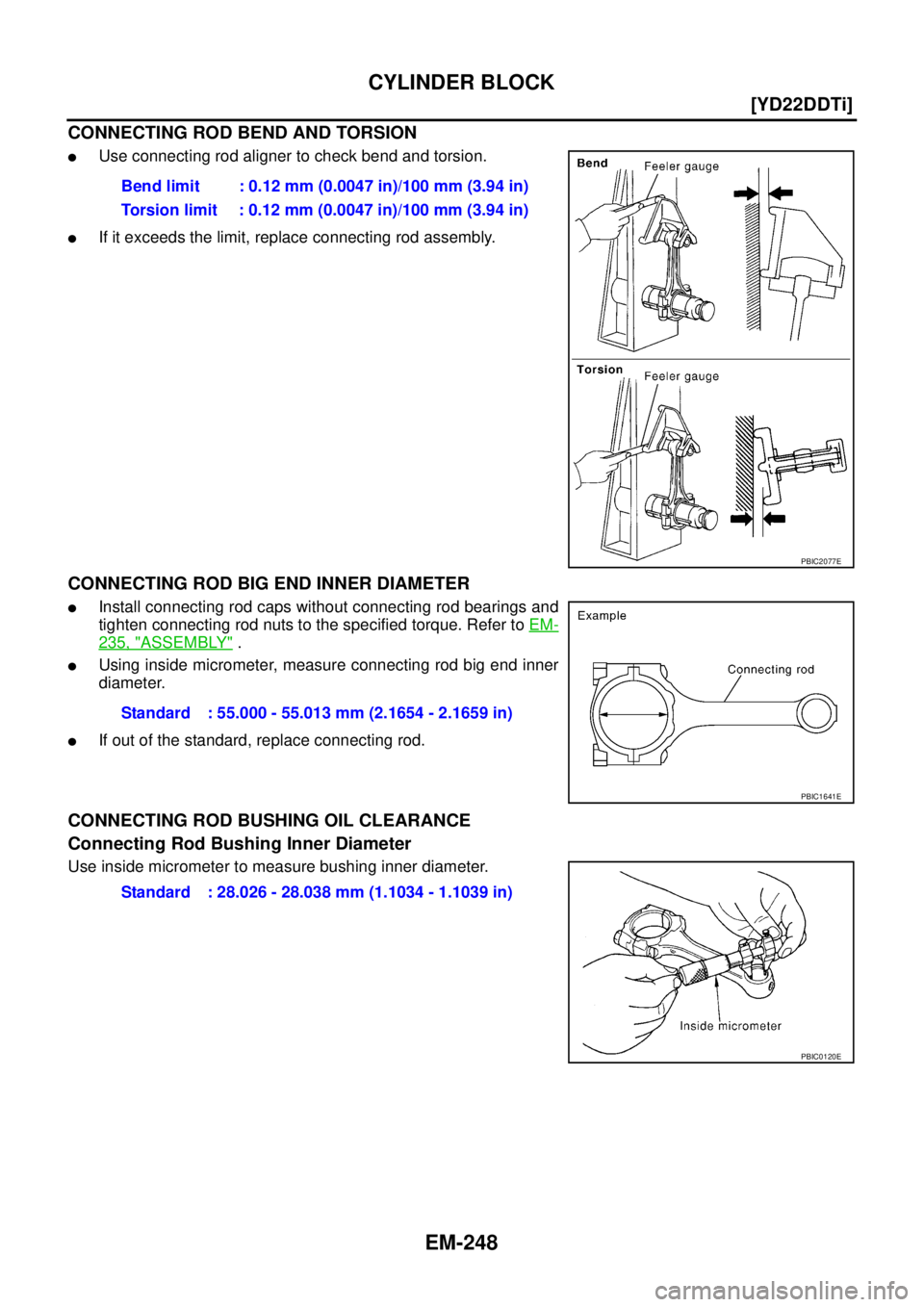

CONNECTING ROD BEND AND TORSION

Use connecting rod aligner to check bend and torsion.

If it exceeds the limit, replace connecting rod assembly.
CONNECTING ROD BIG END INNER DIAMETER

Install connecting rod caps without connecting rod bearings and
tighten connecting rod nuts to the specified torque. Refer to EM-
235, "ASSEMBLY" .

Using inside micrometer, measure connecting rod big end inner
diameter.

If out of the standard, replace connecting rod.
CONNECTING ROD BUSHING OIL CLEARANCE
Connecting Rod Bushing Inner Diameter
Use inside micrometer to measure bushing inner diameter.Bend limit : 0.12 mm (0.0047 in)/100 mm (3.94 in)
Torsion limit : 0.12 mm (0.0047 in)/100 mm (3.94 in)
PBIC2077E
Standard : 55.000 - 55.013 mm (2.1654 - 2.1659 in)
PBIC1641E
Standard : 28.026 - 28.038 mm (1.1034 - 1.1039 in)
PBIC0120E

CYLINDER BLOCK
EM-249
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

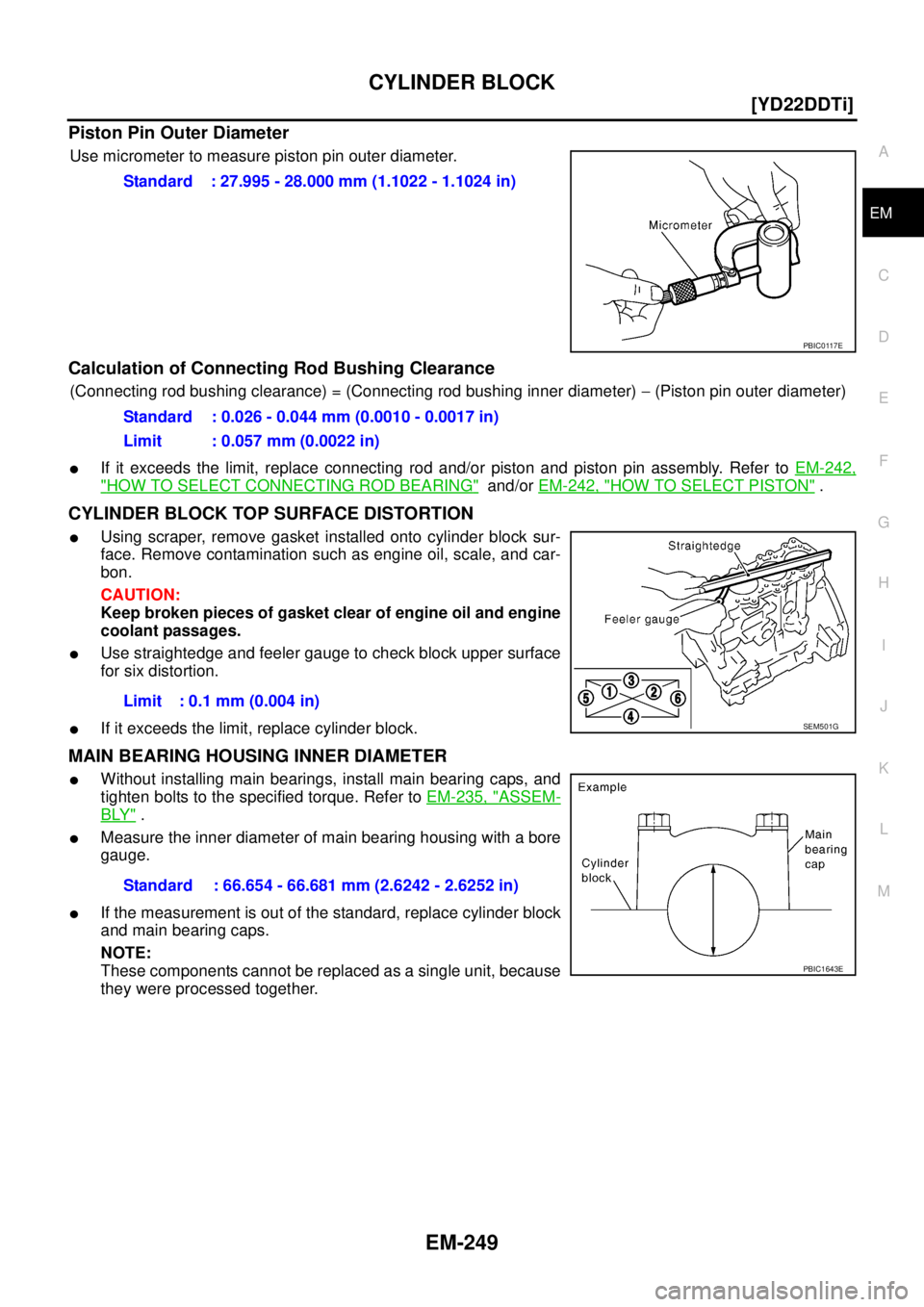

Piston Pin Outer Diameter
Use micrometer to measure piston pin outer diameter.
Calculation of Connecting Rod Bushing Clearance
(Connecting rod bushing clearance) = (Connecting rod bushing inner diameter) − (Piston pin outer diameter)

If it exceeds the limit, replace connecting rod and/or piston and piston pin assembly. Refer to EM-242,
"HOW TO SELECT CONNECTING ROD BEARING" and/or EM-242, "HOW TO SELECT PISTON" .
CYLINDER BLOCK TOP SURFACE DISTORTION

Using scraper, remove gasket installed onto cylinder block sur-
face. Remove contamination such as engine oil, scale, and car-
bon.
CAUTION:
Keep broken pieces of gasket clear of engine oil and engine
coolant passages.

Use straightedge and feeler gauge to check block upper surface
for six distortion.

If it exceeds the limit, replace cylinder block.
MAIN BEARING HOUSING INNER DIAMETER

Without installing main bearings, install main bearing caps, and
tighten bolts to the specified torque. Refer to EM-235, "
ASSEM-
BLY" .

Measure the inner diameter of main bearing housing with a bore
gauge.

If the measurement is out of the standard, replace cylinder block
and main bearing caps.
NOTE:
These components cannot be replaced as a single unit, because
they were processed together.Standard : 27.995 - 28.000 mm (1.1022 - 1.1024 in)
PBIC0117E
Standard : 0.026 - 0.044 mm (0.0010 - 0.0017 in)
Limit : 0.057 mm (0.0022 in)
Limit : 0.1 mm (0.004 in)
SEM501G
Standard : 66.654 - 66.681 mm (2.6242 - 2.6252 in)
PBIC1643E
