2005 NISSAN 350Z Navigation Manual

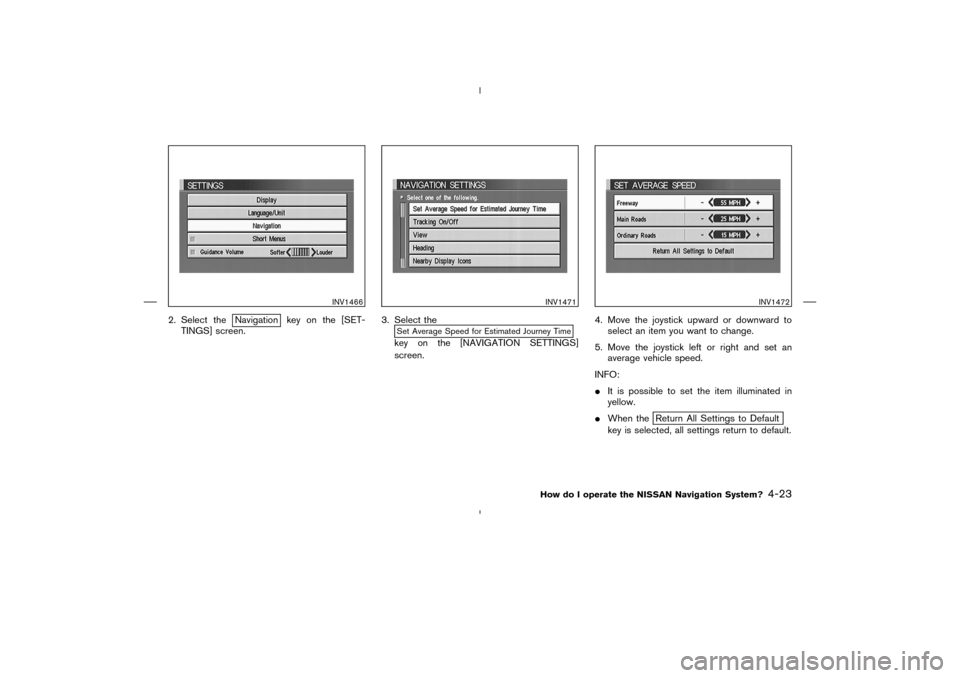

2. Select the
Navigation key on the [SET-
TINGS] screen.3. Select the
Set Average Speed for Estimated Journey Timekey on the [NAVIGATION SETTINGS]
screen.4. Move the joystick upward or downward to
select an item you want to change.
5. Move the joystick left or right and set an
average vehicle speed.
INFO:

It is possible to set the item illuminated in
yellow.

When the
Return All Settings to Default
key is selected, all settings return to default.
INV1466
INV1471
INV1472
How do I operate the NISSAN Navigation System?
4-23


04.7.6/Z33-N


The NISSAN Navigation System may not
calculate a route if the current vehicle loca-
tion is too far away from the destination. In
this case, please divide your trip by selecting
one or two intermediate destinations.
NOTE:
There may be cases that carpool lanes are
included on a suggested road when the
automatic rerouting function is activated
and even if the “Use Time Restricted
Roads” is turned off. Refer to “Setting the
priorities for route calculation” on page
5-34 for details.

The navigation system does not provide route
guidance for dark green roads. Therefore, if
the destination is set on a dark green road,
the enlarged map display will return to the
ordinary map screen at a point on a sug-
gested road that is near the destination, and
the distance and direction to the end point of
the suggested road will be displayed on
upper right corner of the screen.
Also, at this time, the voice will say, “En route
to your destination, some roads contain in-
complete map data. Turn guidance will not be
provided in this area.”When approaching the end point of the sug-
gested road, the voice will say, “Entering the
road with incomplete map data. Please use the
direction arrow and distance information to pro-
ceed to your destination.”
To reach your destination, refer to the map
screen, always follow actual roads and regula-
tions and drive safely.
NOTES ON ROUTE GUIDANCE
The route selected by the system may not be
the shortest, nor are other circumstances
such as traffic jams considered.

Because of the inevitable difference in roadconditions and circumstances between the
time you use this system and the time the
information was produced for the DVD, there
may be discrepancies in roads and regula-
tions. In such cases, follow the actual infor-
mation available.

During route calculation, the map will not
scroll, however the vehicle icon will move with
the actual vehicle’s movement.

During route calculation, buttons such as
MAP , DEST , ZOOM OUT and
ZOOM IN and the joystick will be disabled.

In some cases, after the calculation is com-
plete, it may take some time to get the
calculated route on the display.

Waypoints that have been passed will not be
covered by the rerouting calculation.

If you scroll the map while the suggested
route is being drawn, it may take more time to
finish drawing.

If waypoints are set, the system is calculating
multiple routes between waypoints simulta-
neously, and the following may result.
— If one section (or more) of the routes between
the waypoints is not found, none of the route
will be displayed.
INV2311
ABOUT ROUTE GUIDANCE4-24
How do I operate the NISSAN Navigation System?


04.7.6/Z33-N


— The route may not connect completely at
some waypoints.
— The route may require a U-turn close to some
waypoints.

Route calculation may not be completed in
the following cases.
— If there is no main road within a range of 1.5
miles (2.5 km) from the vehicle, a message
saying so will appear on the screen. Try
requesting route calculation when the vehicle
is closer to the main road.
— If there is no main road within a range of 1.5
miles (2.5 km) from the destination or way-
point, a message saying so will appear on the
screen. Try setting the location closer to the
main road.
— If the vehicle is too close to the destination or
if there are no branches of the roads to the
destination. A message saying so will appear
on the screen.
— If it is deemed impossible to reach the des-
tination or waypoints because of traffic regu-
lations, etc.
— If the only route to reach the destination or
waypoints is extremely complicated.
— If the destination, current vehicle position or
waypoint is within the avoid area.— If the setting of avoid areas covers the routes
to the destination, route calculation may not
be possible.

The following may occur when the route is
being displayed.
— If you are requesting a calculation from the
main road, the origin of the route may not
exactly match the current vehicle position.
— If you are requesting a calculation to a des-
tination on the main road, the end of the route
may not exactly match the destination.
— If you are requesting a calculation from the
main road, the system may show a route from
another main road. This may be because the
icon to show the current vehicle position
(vehicle icon) is not set accurately. In that
case, park the car in a safe place and reset
the vehicle icon, or continue driving to see if
the vehicle icon appears on the main road
before requesting route calculation again.
— There are cases in which the system shows a
detoured route to reach the destination or
waypoints, if you set them from memory or
facility information. In order to correct this,
you will have to be careful about the traffic
direction, especially when the lanes with dif-
ferent travel directions are shown separately.Such places are interchanges and service
areas.
— This system makes no distinction between
limited traffic control and total control (block-
age). It may show a detoured route even if the
road is usable.
— Even if the freeway preference is set to OFF,
the route may be set on them. To avoid this,
set a waypoint on another road type and
request calculation.
— Even if the preference is set to OFF for a ferry
line, the route may be set on it. To avoid this,
set a waypoint on a road and request calcu-
lation.
— Ferry lines, except those which accept only
pedestrians, bicycles and motorcycles, are
stored in this system. When using them, take
into consideration the travel time required
and operational condition to decide whether
to use them or not.
ABOUT THE DISPLAY ERRORThe following cases may affect the display ac-
curacy of the vehicle’s position or travel direc-
tion. The accuracy will return to normal if the
driving conditions return to normal.
— When there is a similar road nearby.
— When the vehicle is traveling on a long
How do I operate the NISSAN Navigation System?
4-25


04.7.6/Z33-N


stretch of straight road or series of curves
with a large radius.
— When the vehicle is traveling in an area with
a grid road system.
— When the vehicle is making consecutive S
curves.
— When the vehicle is at a large Y-shaped
junction.
— When the vehicle is on a loop bridge.
— When the vehicle is on a snow-covered or
unpaved road.
— When the vehicle has made several consecu-
tive turns or zigzags.
— When the vehicle is rotated on a parking lot
turntable while the ignition switch is OFF.
— Immediately after the vehicle is driven out of a
parking garage or underground parking lot.
— When the vehicle has different sizes of tires
or tire chains.
— When the vehicle is moved immediately after
the engine is started.
4-26
How do I operate the NISSAN Navigation System?


04.7.6/Z33-N


MEMO
How do I operate the NISSAN Navigation System?
4-27


04.7.6/Z33-N


MEMO4-28
How do I operate the NISSAN Navigation System?


04.7.6/Z33-N


5 How do I program a destination?Various ways to set the destination (or waypoint) ........ 5-2
Expert mode categories ................................................. 5-2
Easy mode categories ................................................... 5-3
Setting with the
Address Book key ....................... 5-3
Setting with thePrevious Dest. key ........................ 5-5
Setting with theStreet Address key ........................ 5-7
Setting with theIntersection key............................. 5-14
Setting with thePoint of Interest (POI) key ......... 5-21
Setting with theCity key ........................................... 5-21
Setting with thePhone Number key ...................... 5-25
Setting with theMap key ......................................... 5-28Setting with the
Country key ................................... 5-29
Setting with theHome key (in easy mode) .......... 5-30
Having the system guide you to the destinations....... 5-31
Making the system guide the route with detailed
options .............................................................................. 5-32
Adjusting and deleting the preset destination
(waypoints) ............................................................................ 5-39
To delete a destination ................................................ 5-41
All clear .................................................................................. 5-42
Quick stop............................................................................. 5-43
Quick stop customer setting ...................................... 5-44
Where am I ? ....................................................................... 5-46

04.7.6/Z33-N

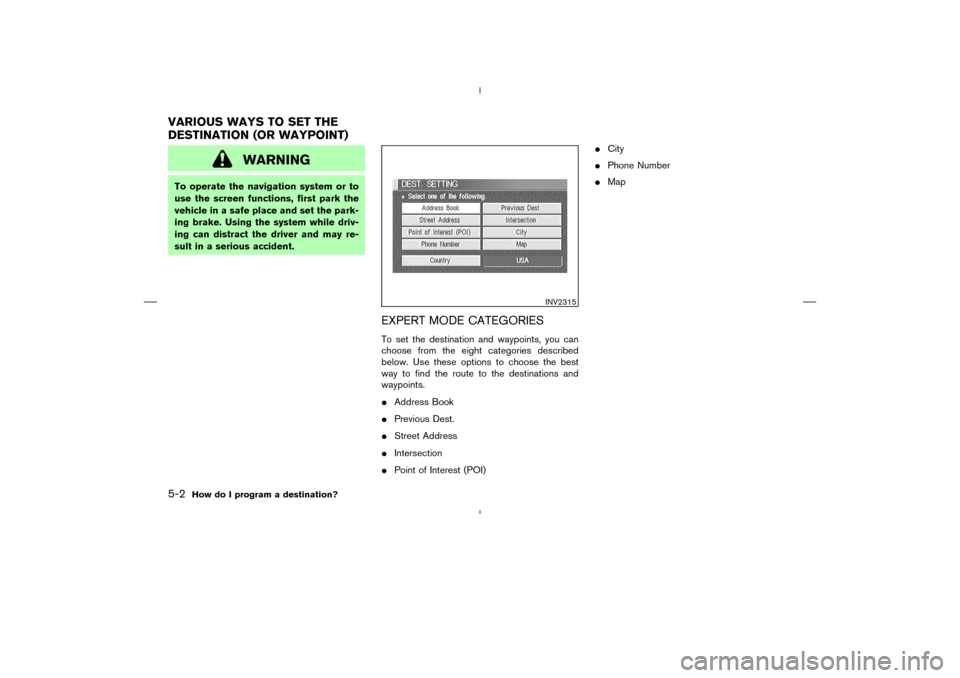

WARNING
To operate the navigation system or to
use the screen functions, first park the
vehicle in a safe place and set the park-
ing brake. Using the system while driv-
ing can distract the driver and may re-
sult in a serious accident.
EXPERT MODE CATEGORIESTo set the destination and waypoints, you can
choose from the eight categories described
below. Use these options to choose the best
way to find the route to the destinations and
waypoints.

Address Book

Previous Dest.

Street Address

Intersection

Point of Interest (POI)
City

Phone Number

Map
INV2315
VARIOUS WAYS TO SET THE
DESTINATION (OR WAYPOINT)5-2
How do I program a destination?


04.7.6/Z33-N
