2005 MAZDA MODEL RX 8 Owners Manual (in English)

Black plate (233,1)
4. Hook the tying rope to the tiedown
eyelet.
Front
Rear
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down the
vehicle. Make sure that the tiedown
eyelet is securely tightened to the
bumper.
Recreational Towing
An example of“recreational towing”is
towing your vehicle behind a motorhome.
The transmission is not designed for
towing this vehicle on all 4 wheels.
When doing recreational towing refer to
“Towing Description”(page 7-25) and
“Tiedown Hooks”(page 7-26) and
carefully follow the instructions.
In Case of an Emergency
Emergency Towing
7-27
RX-8_8T69-EA-04G_Edition1 Page233
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (234,1)
7-28
RX-8_8T69-EA-04G_Edition1 Page234
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (235,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3
Scheduled Maintenance ............................................................ 8-3
Owner Maintenance ..................................................................... 8-8
Owner Maintenance Schedule .................................................. 8-8
Owner Maintenance Precautions ............................................... 8-9
Engine Compartment Overview .............................................. 8-11
Engine Oil ............................................................................... 8-12
Engine Coolant ....................................................................... 8-15
Brake/Clutch Fluid .................................................................. 8-18
Automatic Transmission Fluid (ATF) ..................................... 8-19
Washer Fluid ........................................................................... 8-21
Body Lubrication .................................................................... 8-22
Air Filter .................................................................................. 8-22
Wiper Blades ........................................................................... 8-23
Battery ..................................................................................... 8-26
Tires ........................................................................................ 8-28
Light Bulbs ............................................................................. 8-33
Fuses ....................................................................................... 8-40
Appearance Care ........................................................................ 8-45
How to Minimize Environmental Paint Damage .................... 8-45
Exterior Care ........................................................................... 8-47
Interior Care ............................................................................ 8-50
8-1
RX-8_8T69-EA-04G_Edition1 Page235
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G

Black plate (236,1)

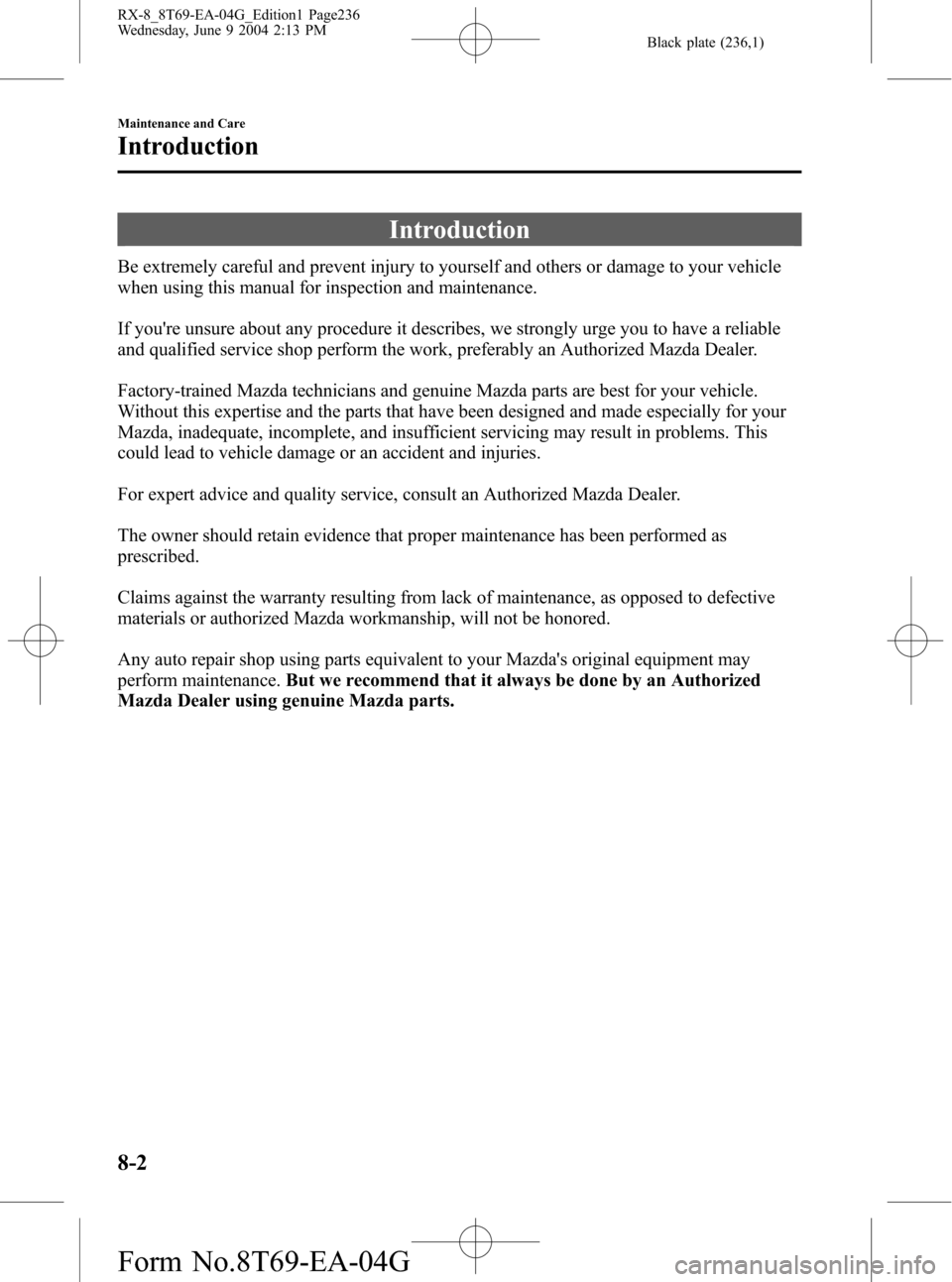

Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you're unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
The owner should retain evidence that proper maintenance has been performed as
prescribed.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda's original equipment may
perform maintenance.But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
8-2
Maintenance and Care
Introduction
RX-8_8T69-EA-04G_Edition1 Page236
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G

Black plate (237,1)
Scheduled Maintenance
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
apply.
If any do apply, follow Schedule 2 (Canada and Puerto Rico residents follow Schedule 2).
lRepeated short-distance driving
lDriving in dusty conditions
lDriving with extended use of brakes
lDriving in areas where salt or other corrosive materials are being used
lDriving on rough or muddy roads
lExtended periods of idling or low-speed operation
lDriving for long periods in cold temperatures or extremely humid climates
NOTE
After the prescribed period, continue to follow the described maintenance at the
recommended intervals.
Maintenance and Care
Scheduled Maintenance
8-3
RX-8_8T69-EA-04G_Edition1 Page237
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G

Black plate (238,1)
qSchedule 1
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
ENGINE
Engine oil R R R R R R R R
Engine oil filter R R R R R R R R
Drive belt I I
AIR FILTER
Air filter C C R C
IGNITION SYSTEM
Spark plugs R
FUEL SYSTEM
Fuel filter Replace every 160,000 km (100,000 miles)
Fuel lines, hoses and connections
*1II
COOLING SYSTEM
Cooling system I I
Engine coolantReplace at first 96,000 km (60,000 miles) or 48 months;
after that, every 24 months
CHASSIS and BODY
Brake line, hoses and connection I I
Disk brakes I I I I
Tire (Rotation) Rotate every 12,000 km (7,500 miles)
Steering operation and linkages I I
Front and rear suspension and ball joints I I
Manual transmission oilR
Rear differential oilR
Driveshaft dust boots I I
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 60 months
All locks and hinges L L L L L L L L
Flat tire repair kit
*2Inspect every year
8-4
Maintenance and Care
Scheduled Maintenance
RX-8_8T69-EA-04G_Edition1 Page238
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G

Black plate (239,1)
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
AIR CONDITIONER SYSTEM
Cabin air filter (If installed) Replace every 40,000 km (25,000 miles) or 24 months
Chart symbols
I:Inspect and repair, clean, adjust, or replace if necessary.
R:Replace
L:Lubricate
C:Clean
Remarks
*1 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
*2 Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
Maintenance and Care
Scheduled Maintenance
8-5
RX-8_8T69-EA-04G_Edition1 Page239
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G

Black plate (240,1)
qSchedule 2
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Engine oilPuerto Rico Replace every 5,000 km (3,000 miles) or 3 months
Others R R R R R R RRRRRR
Engine oil filter R R R R R R RRRRRR
Drive belt I I
AIR FILTER
Air filter C C R C
IGNITION SYSTEM
Spark plugs R
FUEL SYSTEM
Fuel filter Replace every 160,000 km (100,000 miles)
Fuel lines, hoses and connections
*1II
COOLING SYSTEM
Cooling system I I
Engine coolantReplace at first 96,000 km (60,000 miles) or 48 months;
after that, every 24 months
Engine coolant level I I I I I I IIIIII
ELECTRICAL SYSTEM
Function of all lights I I I I I I IIIIII
CHASSIS and BODY
Brake line, hoses and connection I I
Brake and clutch fluid level I I I I I IIIII
Brake fluid R R
Disk brakesIIII
Tire (Rotation) Rotate every 8,000 km (5,000 miles)
Tire inflation pressure and tire wear I I I I I I IIIIII
Steering operation and linkages I I
Front and rear suspension and ball joints I I
Manual transmission oil R R
Rear differential oil R R
Driveshaft dust boots I I
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 60 months
All locks and hinges L L L L L LLLLLLL
Washer fluid level I I I I I I IIIIII
Flat tire repair kit
*2Inspect every year
8-6
Maintenance and Care
Scheduled Maintenance
RX-8_8T69-EA-04G_Edition1 Page240
Wednesday, June 9 2004 2:13 PM
Form No.8T69-EA-04G
