2005 MAZDA MODEL RX 8 Owners Manual (in English)

Black plate (17,1)
Front Seats (Electrically
Operated Seats)
WARNING
Modification of the Front Seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Damaged Front Seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag components.
If there was a subsequent collision, the
air bag may not deploy which could
lead to injuries. Always have an
Authorized Mazda Dealer inspect the
front seats, front seat belt
pretensioners and air bags after a
collision.
CAUTION
lThe seat-bottom power adjustment is
operated by motors. Avoid extended
operation because excessive use can
damage the motors.
lTo prevent the battery from running
down, avoid using the power
adjustment when the engine is
stopped. The adjuster uses a large
amount of electric power.
lDon't use the switch to make more
than one adjustment at a time.
qSeat Slide (Driver's Seat)
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
Essential Safety Equipment
Seats
2-5
RX-8_8T69-EA-04G_Edition1 Page17
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (18,1)

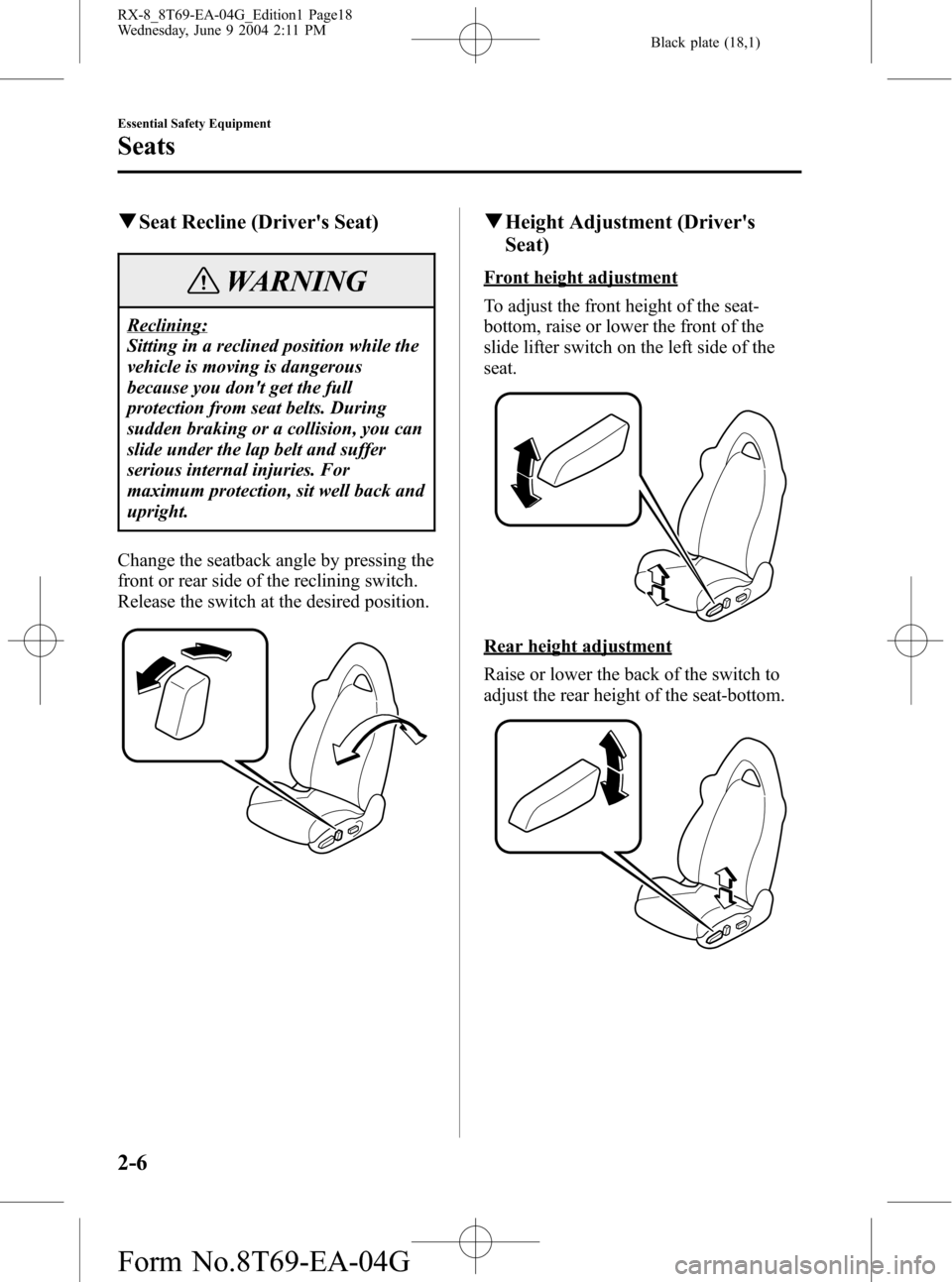

qSeat Recline (Driver's Seat)
WARNING
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you can
slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back and
upright.
Change the seatback angle by pressing the
front or rear side of the reclining switch.
Release the switch at the desired position.
qHeight Adjustment (Driver's
Seat)
Front height adjustment
To adjust the front height of the seat-
bottom, raise or lower the front of the
slide lifter switch on the left side of the
seat.
Rear height adjustment
Raise or lower the back of the switch to
adjust the rear height of the seat-bottom.
2-6
Essential Safety Equipment
Seats
RX-8_8T69-EA-04G_Edition1 Page18
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (19,1)
qLumbar Support Adjustment
(Driver's Seat)
The amount of lumbar support can be
adjusted by pressing the switch.
To increase the seat firmness, press and
hold the front part of the switch to the
desired position, then release it.
Press the rear part of the switch to
increase softness.
qFolding the Passenger's Seat
WARNING
Unlocked Seatback:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.To fold the seatback, pull the strap and
lower the seatback forward.
To return it to the upright position, lift the
seatback and push it into place. Rock the
seatback to make sure it is locked.
qSeat Warmer
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
Essential Safety Equipment
Seats
2-7
RX-8_8T69-EA-04G_Edition1 Page19
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (20,1)

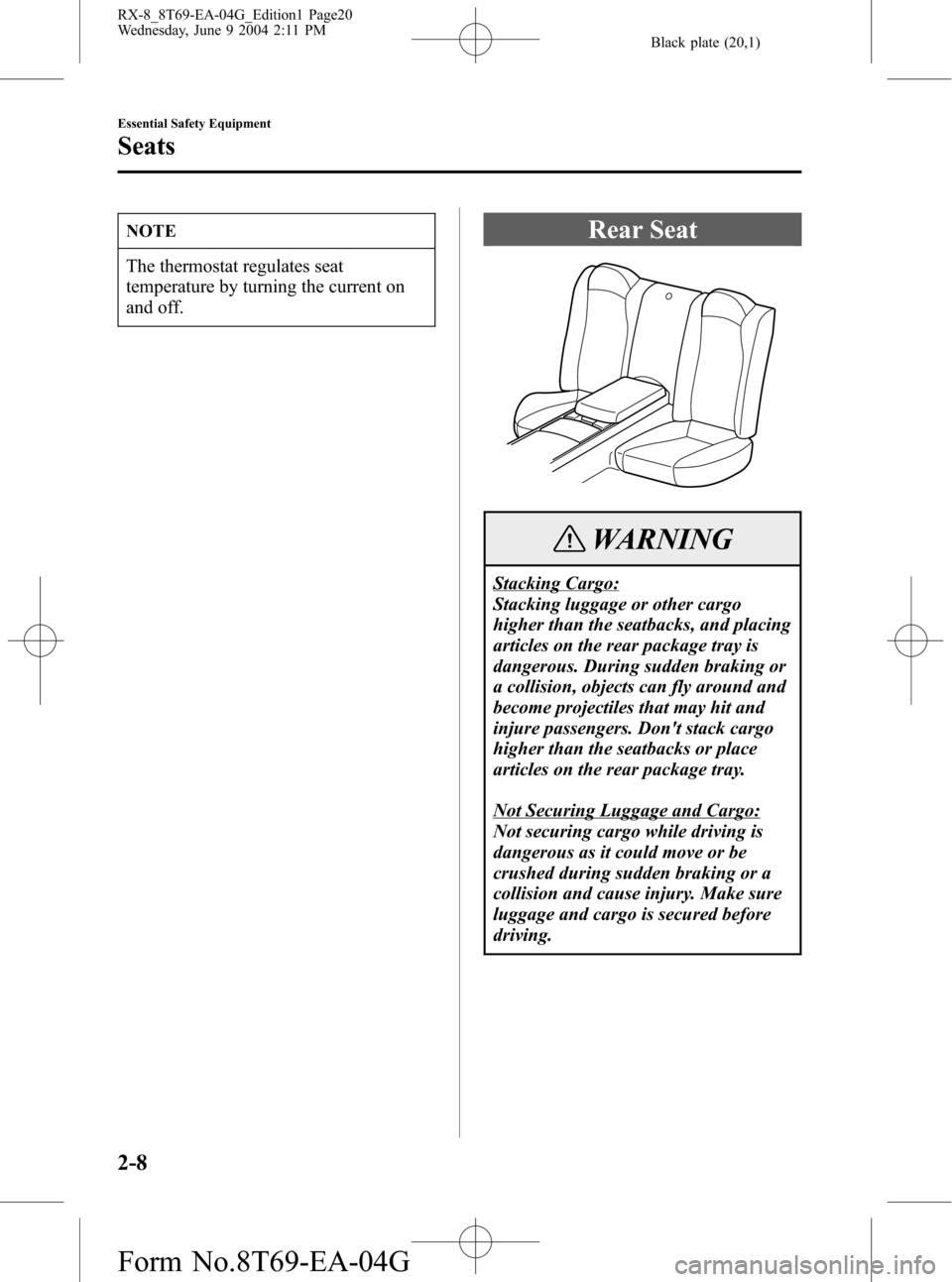

NOTE
The thermostat regulates seat
temperature by turning the current on
and off.
Rear Seat
WARNING
Stacking Cargo:
Stacking luggage or other cargo
higher than the seatbacks, and placing
articles on the rear package tray is
dangerous. During sudden braking or
a collision, objects can fly around and
become projectiles that may hit and
injure passengers. Don't stack cargo
higher than the seatbacks or place
articles on the rear package tray.
Not Securing Luggage and Cargo:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury. Make sure
luggage and cargo is secured before
driving.
2-8
Essential Safety Equipment
Seats
RX-8_8T69-EA-04G_Edition1 Page20
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (21,1)
WARNING
Do Not Sit on the Rear Center
Console:
Allowing someone to sit on the rear
center console between the rear seats
is dangerous. The rear center console
is not designed for occupant seating.
During a collision, occupants not
wearing a seat belt could be thrown
from the vehicle and seriously injured
or even killed. Do not allow anyone to
sit on the center console between the
rear seats.
Essential Safety Equipment
Seats
2-9
RX-8_8T69-EA-04G_Edition1 Page21
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (22,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure the child-restraint system is secured properly.
WARNING
Not Wearing Seat Belts:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown out
of the vehicle. They could be seriously injured or even killed. In the same collision,
occupants wearing seat belts would be much safer. Always wear your seat belt and
make sure all occupants are properly restrained.
Seat Belt Damaged During an Accident:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. Whether a front seat was occupied or not, if the front air bags deployed the
seat belt pretensioners also deployed and both front seat belts must be replaced. Have
an Authorized Mazda Dealer inspect all seat belt systems in use during an accident
before they are used again.
Twisted Seat Belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt isn't available
to absorb the impact. This puts more force on the bones beneath the belt, which could
cause serious injury or death. Don't wear twisted seat belts.
2-10
Essential Safety Equipment
Seat Belt Systems
RX-8_8T69-EA-04G_Edition1 Page22
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (23,1)
WARNING
One Belt, One Passenger:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way can't spread the impact forces properly and the two passengers could be
crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time.
Seat Belt Caught or Pinched in the Door:
Wearing a seat belt that is caught or pinched in the door is dangerous. The seat belt
could become loose and not provide adequate protection in a sudden stop or collision.
Always make sure the seat belt is not caught or pinched in the door.
Seat Belt with Seat Belt Slide Bar:
Placing your foot or other objects such as an umbrella on the seat belt slide bar is
dangerous. The front seat belt is built in the rear door and the lower part of the seat
belt slides forward or backward along the seat belt slide bar as the rear door opens or
closes. If the seat belt slider is blocked, the seat belt could be improperly positioned
and would provide little or no protection in a collision. Always make sure nothing is
placed on the seat belt slide bar.
CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep them
clean.
Ring
Essential Safety Equipment
Seat Belt Systems
2-11
RX-8_8T69-EA-04G_Edition1 Page23
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (24,1)
qPregnant Women and Persons with Serious Medical Conditions
Pregnant women should wear seat belts. Ask your doctor for specific recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
If the belt has fully retracted, it will always be in the emergency locking mode until you
move it into automatic locking mode by pulling the belt all the way out to its full length. In
the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision.
If the belt feels tight and hinders comfortable movement while the vehicle is stopped or in
motion, you may be in the automatic locking mode because you have pulled the belt too far
out. To return to the more comfortable emergency locking mode, wait until you can stop
the vehicle in a safe level area, retract the belt fully to convert it back to emergency locking
mode and then again extend it around you.
qAutomatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To get the seat belt into the automatic
locking mode, pull it all the way out and connect it as instructed on the child-restraint
system. It will retract down to the child-restraint system and stay locked on it. See the
section on child restraint (page 2-20).
2-12
Essential Safety Equipment
Seat Belt Systems
RX-8_8T69-EA-04G_Edition1 Page24
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G
