2005 MAZDA MODEL RX 8 Owners Manual (in English)

Black plate (25,1)
Location of Seat Belt
For rear seat
For front seat
Essential Safety Equipment
Seat Belt Systems
2-13
RX-8_8T69-EA-04G_Edition1 Page25
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (26,1)

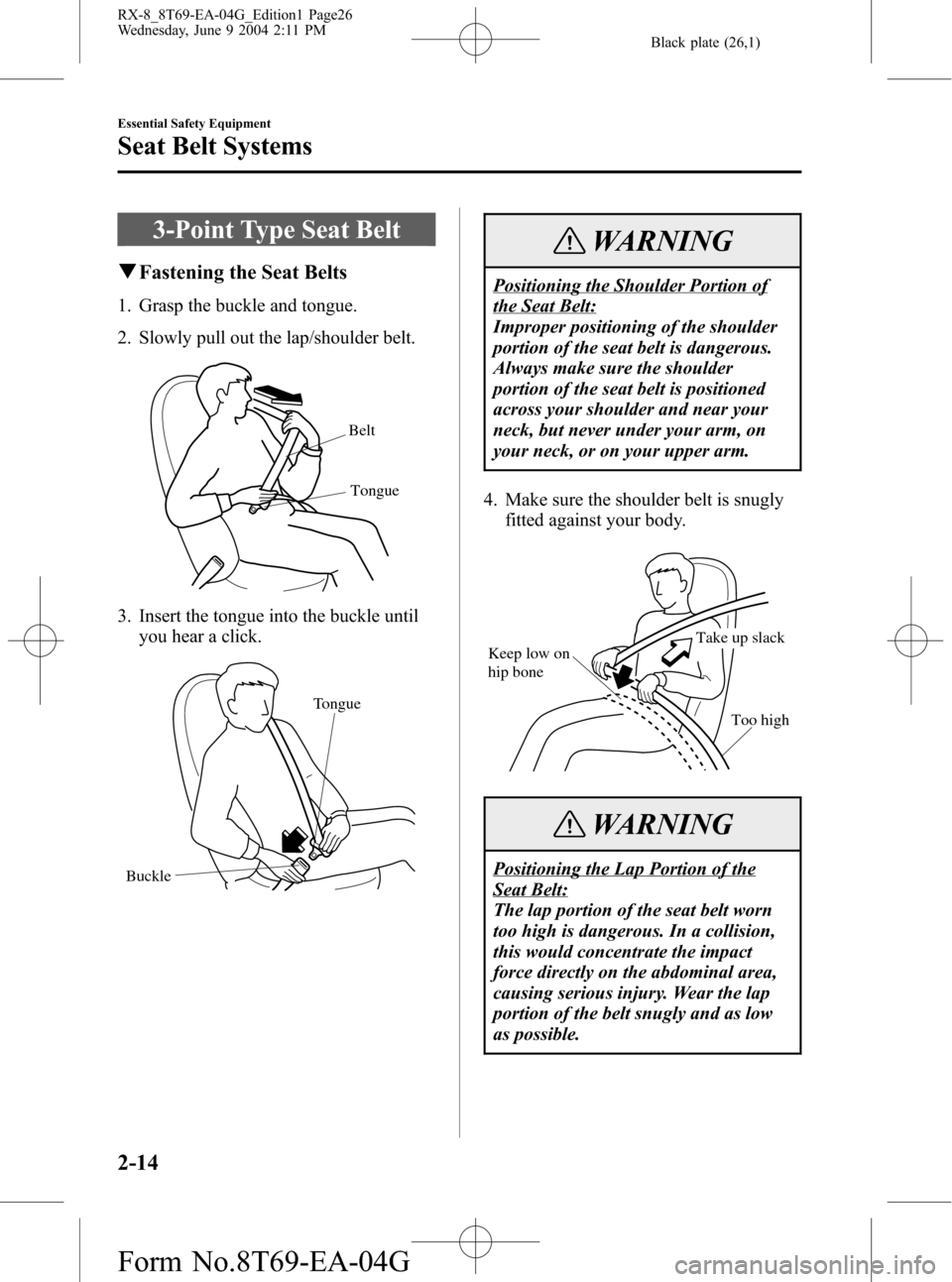

3-Point Type Seat Belt
qFastening the Seat Belts
1. Grasp the buckle and tongue.
2. Slowly pull out the lap/shoulder belt.
Belt
Tongue
3. Insert the tongue into the buckle until
you hear a click.
Tongue
Buckle
WARNING
Positioning the Shoulder Portion of
the Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
4. Make sure the shoulder belt is snugly
fitted against your body.
Too high Take up slack
Keep low on
hip bone
WARNING
Positioning the Lap Portion of the
Seat Belt:
The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
2-14
Essential Safety Equipment
Seat Belt Systems
RX-8_8T69-EA-04G_Edition1 Page26
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (27,1)

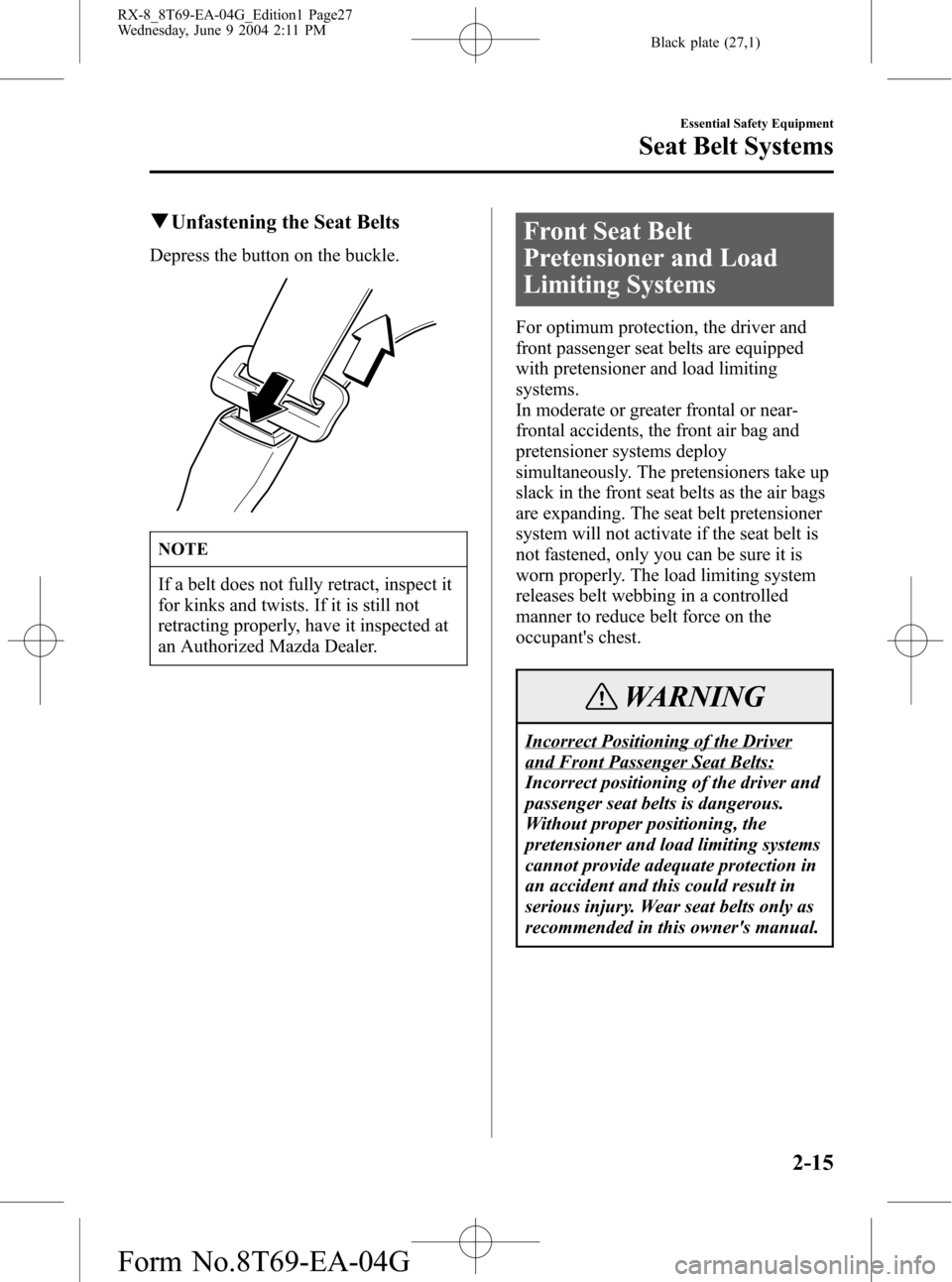

qUnfastening the Seat Belts
Depress the button on the buckle.
NOTE
If a belt does not fully retract, inspect it
for kinks and twists. If it is still not
retracting properly, have it inspected at
an Authorized Mazda Dealer.
Front Seat Belt
Pretensioner and Load
Limiting Systems
For optimum protection, the driver and
front passenger seat belts are equipped
with pretensioner and load limiting
systems.
In moderate or greater frontal or near-
frontal accidents, the front air bag and
pretensioner systems deploy
simultaneously. The pretensioners take up
slack in the front seat belts as the air bags
are expanding. The seat belt pretensioner
system will not activate if the seat belt is
not fastened, only you can be sure it is
worn properly. The load limiting system
releases belt webbing in a controlled
manner to reduce belt force on the
occupant's chest.
WARNING
Incorrect Positioning of the Driver
and Front Passenger Seat Belts:
Incorrect positioning of the driver and
passenger seat belts is dangerous.
Without proper positioning, the
pretensioner and load limiting systems
cannot provide adequate protection in
an accident and this could result in
serious injury. Wear seat belts only as
recommended in this owner's manual.
Essential Safety Equipment
Seat Belt Systems
2-15
RX-8_8T69-EA-04G_Edition1 Page27
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (28,1)
WARNING
Expended Seat Belt Pretensioners:
Use of front seat belts with the
pretensioner system expended is
dangerous.
The seat belt pretensioners will only
function once. After they are
expended, they will not work again
and must be replaced immediately.
If the seat belt pretensioners are not
replaced, the risk of injury in a
collision will increase.
Always have an Authorized Mazda
Dealer inspect the seat belt
pretensioners and air bags after any
collision. The seat belt pretensioners
and air bags must be replaced after
any collision, which causes them to
deploy.
Modification or Testing of the
Pretensioner System:
Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable which
would prevent it from activating in an
accident. The occupants or repairers
could be seriously injured. Never
modify the components or wiring, or
use electronic testing devices on the
pretensioner system.
WARNING
Pretensioner System Disposal:
Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap a
pretensioner-equipped vehicle.
NOTE
lThe pretensioner system will only
activate in a moderate or greater
frontal or near-frontal collision. It
will not activate in most rollovers,
side or rear impacts.
lSome smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not
indicate a fire. This gas normally has
no effect on occupants, however,
those with sensitive skin may
experience light skin irritation. If
residue from the deployment of the
air bags or the front pretensioner
system gets on the skin or in the
eyes, wash it off as soon as possible.
2-16
Essential Safety Equipment
Seat Belt Systems
RX-8_8T69-EA-04G_Edition1 Page28
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (29,1)
qAir Bag/Front Seat Belt
Pretensioner System Warning
Light
If the air bag/front seat belt pretensioner
system is normal, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds
it goes out.
A system malfunction is indicated when
the warning light constantly flashes,
illuminates or doesn't illuminate at all
when the ignition switch is turned to the
ON position. If any of these occur, consult
an Authorized Mazda Dealer as soon as
possible. The system may not work in an
accident.
WARNING
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
performs all servicing and repairs.
Seat Belt Extender
If your seat belt is not long enough, even
when fully extended, a seat belt extender
may be available to you at no charge from
your Authorized Mazda Dealer.
This extender will be only for you and for
the particular vehicle and seat. Even if it
plugs into other seat belts, it may not hold
in the critical moment of a crash.
When ordering an extender, only order
one that provides the necessary additional
length to fasten the seat belt properly.
Please contact your Authorized Mazda
Dealer for more information.
WARNING
Unnecessary Use of an Extender:
Using a seat belt extender when not
necessary is dangerous. The seat belt
will be too long and not fit properly. In
an accident, the seat belt will not
provide adequate protection and you
could be seriously injured. Only use
the extender when it is required to
fasten the seat belt properly.
Using an Improper Extender:
Using a seat belt extender that is for
another person or a different vehicle
or seat is dangerous. The seat belt will
not provide adequate protection and
the user could be seriously injured in
an accident. Only use the extender
provided for you and for the particular
vehicle and seat. NEVER use the
extender in a different vehicle or seat.
Essential Safety Equipment
Seat Belt Systems
2-17
RX-8_8T69-EA-04G_Edition1 Page29
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (30,1)
WARNING
Using an Extender That is Too Long:
Using an extender that is too long is
dangerous. The seat belt will not fit
properly. In an accident, the seat belt
will not provide adequate protection
and you could be seriously injured.
Don't use the extender or choose one
shorter in length if the distance
between the extender's buckle and the
center of the user's body is less than
15cm (6 in).
NOTE
When not in use, remove the seat belt
extender and store it in the vehicle. If
the seat belt extender is left connected,
the rear door cannot be opened because
the seat belt does not fully retract and
the seat belt warning light will not
illuminate and function properly.
Seat Belt Warning Light
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, the seat belt warning light
will remain on until the belt is fastened.
If the system does not operate correctly,
consult an Authorized Mazda Dealer.
2-18
Essential Safety Equipment
Seat Belt Systems
RX-8_8T69-EA-04G_Edition1 Page30
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (31,1)
Seat Belt Warning Beep
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep sound will be heard
for about 6 seconds.
Essential Safety Equipment
Seat Belt Systems
2-19
RX-8_8T69-EA-04G_Edition1 Page31
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (32,1)
Child Restraint Precautions
Mazda strongly urges the use of child-restraint systems for children small enough to use
them.
You are required by law to use a child-restraint system for children in the U.S. and Canada.
Check your local and state or provincial laws for specific requirements regarding the safety
of children riding in your vehicle.
Whatever child-restraint system you consider, please pick the appropriate one for the age
and size of the child, obey the law and follow the instructions that come with the individual
child-restraint system.
A child who has outgrown child-restraint systems should sit in the rear and use seat belts,
both lap and shoulder. If the shoulder belt crosses the neck or face, move the child closer to
the center of the vehicle.
Statistics confirm that the rear seat is the best place for all children up to 12 years of age,
and more so with a supplemental restraint system (air bags).
A rear-facing child-restraint system shouldNEVERbe used on the front seat with the air
bag system activated. The front passenger's seat is also the least preferred seat for other
child-restraint systems.
WARNING
Proper Size of Child-Restraint System:
For effective protection in vehicle accidents and sudden stops, a child must be
properly restrained using a seat belt or child-restraint system depending on age and
size. If not, the child could be seriously injured or even killed in an accident.
Follow the Manufacturer's Instructions and Always Keep the Child-Restraint System
Buckled Down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it
could move causing serious injury or death to the child or other occupants. Make sure
the child-restraint system is properly secured in place according to the child-restraint
system manufacturer's instructions. When not in use, remove it from the vehicle or
fasten it with a seat belt, or latch it down to BOTH LATCH lower anchors for LATCH
child-restraint systems.
2-20
Essential Safety Equipment
Child Restraint
RX-8_8T69-EA-04G_Edition1 Page32
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G
