Black plate (185,1)
Press the scan button (,) during
play to start scan play operation (the track
number will flash).
Press the scan button (
,) once again
to cancel scan play.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button (
) during play.
The current selection will be repeated
(“RPT”will be displayed).
Press the repeat button (
) once again
to cancel repeat play.
Random play
This feature allows the MD player to
randomly select the order of the songs.
Press the random button (
) during
play. The next selection will be randomly
selected (“RDM”will be displayed).
Press the random button (
) once
again to cancel random play.
Changing the display
To change the display during MD play,
press the display button (
) to advance
through each of the following displays:
Track number/
Elapsed play
back timeDisc title Song title
NOTE
If there is no song or disc title recorded
on the MD,“NO TITLE”will be
displayed.
Long disc or song titles
When long disc or song titles cannot be
completely displayed, rotate the display
feed dial (
) to the right.
The remainder of the title will proceed
and appear on the display to the end of the
title.
Interior Comfort
Audio System
6-29
RX-8_8T69-EA-04G_Edition1 Page185
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (186,1)
qOperating the Compact Disc (CD) Playerí
Scan button Display button
Reverse button
Random button Repeat button CD slotCD play button CD eject button
Load button
Fast-forward
button Track up
button
Track down
button
Illustration is of a representative audio unit.
Inserting the CD
Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play. There will be a short
lapse before play begins while the player
reads the digital signals on the CD.
Playing
Press the CD play button (
) to start
play when a CD is in the unit.
If there isn't a CD in the unit when the CD
play button (
) is pressed,“NO DISC”
will flash on and off.
NOTE
When the load button () is pressed,
the CD will load and play even if the
CD eject button (
) had been
previously pressed.
Ejecting the CD
Press the CD eject button (
) to eject the
CD.
Fast-forward/Reverse
Press and hold the fast-forward button
(
) to advance through a track at high
speed.
Press and hold the reverse button (
)
to reverse through a track at high speed.
Track search
Press the track up button (
) once to
skip forward to the beginning of the next
track.
Press the track down button (
) once to
skip back to the beginning of the current
track.
6-30
Interior Comfort
íSome models.
Audio System
RX-8_8T69-EA-04G_Edition1 Page186
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (187,1)
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button (
,) during
play to start scan play operation (the track
number will flash).
Press the scan button (
,) once again
to cancel scan play.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button (
) during play.
The current selection will be repeated
(“RPT”will be displayed).
Press the repeat button (
) once again
to cancel repeat play.
Random play
This feature allows the CD player to
randomly select the order of the songs.
Press the random button (
) during
play. The next selection will be randomly
selected (“RDM”will be displayed).
Press the random button (
) once
again to cancel random play.
Interior Comfort
Audio System
6-31
RX-8_8T69-EA-04G_Edition1 Page187
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (188,1)
qOperating the In-Dash CD Changerí
Scan button Display button
Reverse button
Random button Repeat button CD slot CD play button CD eject button
Load button
Disc down button
Disc up buttonChannel preset buttons
Track up
button
Track down
buttonFast-forward
button
Illustration is of a representative audio unit.
Inserting the CD
The CD must be label-side up when
inserting. The auto-loading mechanism
will set the CD and begin play. There will
be a short lapse before play begins while
the player reads the digital signals on the
CD.
The disc number and the track number
will be displayed.
NOTE
A CD cannot be inserted while the
display reads“WAIT”. A beeping
sound can be heard during this waiting
time. Simultaneously pressing the
power/volume dial and the load button
(
) for about 2 seconds will turn
this beeping sound ON or OFF.Normal insertion
1. Press the load button (
).
2. When“IN”is displayed, insert the CD.
Inserting CDs into desired tray number
1. Press and hold the load button (
)
for about 2 seconds until a beep is
heard.
2. Press the channel preset button for the
desired tray number within 3 seconds
after the beep is heard.
3. When“IN”is displayed, insert the CD.
NOTE
The CD cannot be inserted to the
desired tray number if the number is
already occupied.
6-32
Interior Comfort
íSome models.
Audio System
RX-8_8T69-EA-04G_Edition1 Page188
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

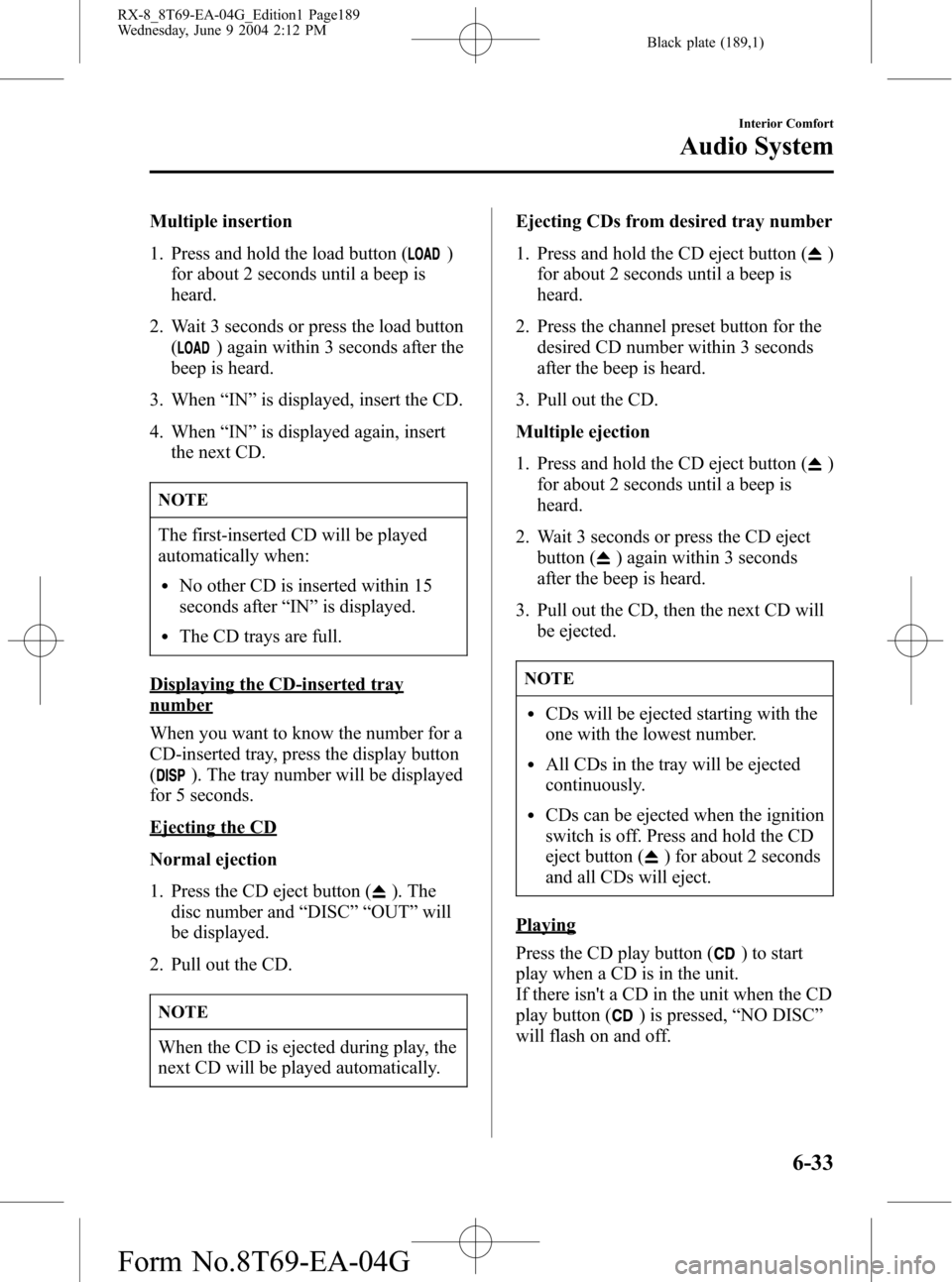

Black plate (189,1)
Multiple insertion
1. Press and hold the load button (
)
for about 2 seconds until a beep is
heard.
2. Wait 3 seconds or press the load button
(
) again within 3 seconds after the
beep is heard.
3. When“IN”is displayed, insert the CD.
4. When“IN”is displayed again, insert
the next CD.
NOTE
The first-inserted CD will be played
automatically when:
lNo other CD is inserted within 15
seconds after“IN”is displayed.
lThe CD trays are full.
Displaying the CD-inserted tray
number
When you want to know the number for a
CD-inserted tray, press the display button
(
). The tray number will be displayed
for 5 seconds.
Ejecting the CD
Normal ejection
1. Press the CD eject button (
). The
disc number and“DISC”“OUT”will
be displayed.
2. Pull out the CD.
NOTE
When the CD is ejected during play, the
next CD will be played automatically.Ejecting CDs from desired tray number
1. Press and hold the CD eject button (
)
for about 2 seconds until a beep is
heard.
2. Press the channel preset button for the
desired CD number within 3 seconds
after the beep is heard.
3. Pull out the CD.
Multiple ejection
1. Press and hold the CD eject button (
)
for about 2 seconds until a beep is
heard.
2. Wait 3 seconds or press the CD eject
button (
) again within 3 seconds
after the beep is heard.
3. Pull out the CD, then the next CD will
be ejected.
NOTE
lCDs will be ejected starting with the
one with the lowest number.
lAll CDs in the tray will be ejected
continuously.
lCDs can be ejected when the ignition
switch is off. Press and hold the CD
eject button (
) for about 2 seconds
and all CDs will eject.
Playing
Press the CD play button (
) to start
play when a CD is in the unit.
If there isn't a CD in the unit when the CD
play button (
) is pressed,“NO DISC”
will flash on and off.
Interior Comfort
Audio System
6-33
RX-8_8T69-EA-04G_Edition1 Page189
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (190,1)
Fast-forward/Reverse
Press and hold the fast-forward button
(
) to advance through a track at high
speed.
Press and hold the reverse button (
)
to reverse through a track at high speed.
Track search
Press the track up button (
) once to
skip forward to the beginning of the next
track.
Press the track down button (
) once to
skip back to the beginning of the current
track.
Disc search
Press the disc up button (
) to skip
forward to the beginning of the next CD.
Press the disc down button (
)to
skip back to the beginning of the previous
CD.
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button (
,) during
play to start scan play operation (the track
number will flash).
Press the scan button (
,) once again
to cancel scan play.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.Press the repeat button (
) during play.
The current selection will be repeated
(“RPT”will be displayed).
Press the repeat button (
) once again
to cancel repeat play.
Random play
This feature allows the CD player to
randomly select the order of the songs.
Press the random button (
) during
play. The next selection will be randomly
selected (“RDM”will be displayed).
Press the random button (
) once
again to cancel random play.
6-34
Interior Comfort
Audio System
RX-8_8T69-EA-04G_Edition1 Page190
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (191,1)
qError Indications
If you see an error indication on the display, find the cause in the chart. If you cannot clear
the error indication, take the vehicle to an Authorized Mazda Dealer.
Indication Cause Solution
CHECK MDMD is inserted upside downInsert the MD properly. If the error indication does not
disappear, consult an Authorized Mazda Dealer.
MD is defectiveInsert another MD properly. If the error indication does not
disappear, consult an Authorized Mazda Dealer.
CHECK CDCD is inserted upside downInsert the CD properly. If the error indication does not disappear,
consult an Authorized Mazda Dealer.
CD is defectiveInsert another CD properly. If the error indication does not
disappear, consult an Authorized Mazda Dealer.
Interior Comfort
Audio System
6-35
RX-8_8T69-EA-04G_Edition1 Page191
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (192,1)
Audio Control Switch
Operation
NOTE
Mazda installed this system to help you
avoid being too distracted using audio
controls on the dashboard. Always
make safe driving your first priority.
qAdjusting the Volume
To increase the volume, press volume
button (
).
To decrease the volume, press volume
button (
).
qChanging the Source
Press the mode switch () to change
the audio source (FM1 radio>FM2
radio>AM radio>CD player or CD
changer>Cassette tape player or MD
player>cyclical).
NOTE
Cassette tape, MD, CD and CD changer
modes cannot be selected in the
following cases:
lA cassette deck, MD, CD, or CD
changer is not equipped on the audio
system.
lA cassette tape, MD or CD has not
been inserted.
