Spare Tire and Tool Storage
Tools are stored in the locations illustrated in the diagram.
Lug wrench
Tiedown eyelet Jack handle
JackInstant Mobility System (IMS) Emergency Flat Tire Repair Kit
Tool box
In Case of an Emergency
Flat Tire
7-3
RX-8_8T69-EA-04G_Edition1 Page209
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (210,1)

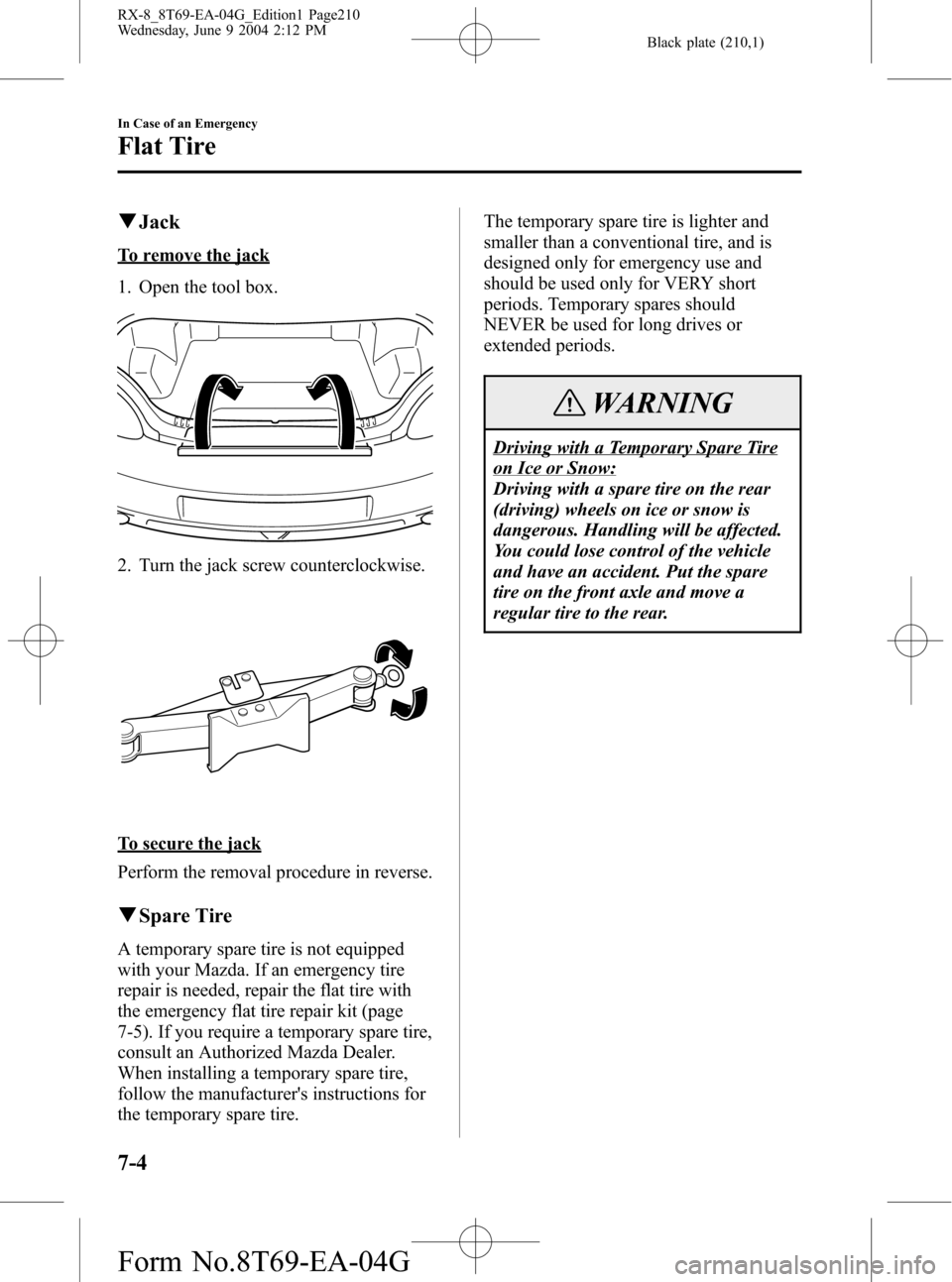

qJack
To remove the jack
1. Open the tool box.
2. Turn the jack screw counterclockwise.
To secure the jack
Perform the removal procedure in reverse.
qSpare Tire
A temporary spare tire is not equipped
with your Mazda. If an emergency tire
repair is needed, repair the flat tire with
the emergency flat tire repair kit (page
7-5). If you require a temporary spare tire,
consult an Authorized Mazda Dealer.
When installing a temporary spare tire,
follow the manufacturer's instructions for
the temporary spare tire.The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spares should
NEVER be used for long drives or
extended periods.
WARNING
Driving with a Temporary Spare Tire
on Ice or Snow:
Driving with a spare tire on the rear
(driving) wheels on ice or snow is
dangerous. Handling will be affected.
You could lose control of the vehicle
and have an accident. Put the spare
tire on the front axle and move a
regular tire to the rear.
7-4
In Case of an Emergency
Flat Tire
RX-8_8T69-EA-04G_Edition1 Page210
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (211,1)
CAUTION
To avoid damage to the temporary
spare or to the vehicle, observe the
following precautions:
lDon't exceed 80 km/h (50 mph).
lAvoid driving over obstacles.
Also, don't drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire's, so the ground
clearance is reduced about 25 mm (1
in).
lDon't use a tire chain on this tire
because it won't fit properly.
lDon't use your temporary spare on
any other vehicle; it has been
designed only for your Mazda.
lUse only one temporary spare tire on
your vehicle at the same time.
(With limited slip differential)
When using the temporary spare tire on
the rear axle, replace it with a standard
tire as soon as possible. The size
difference between the spare and the
standard tire will cause the limited slip
differential to malfunction.
NOTE
(With Tire Pressure Monitoring
System)
A tire pressure sensor is not installed to
the temporary spare tire. The warning
light will flash continuously while the
temporary spare tire is being used (page
5-26).
Instant Mobility System
(IMS) Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
included with your Mazda is for a
temporary repair of a slightly damaged
flat tire resulting from running over nails
or similar sharp objects on the road
surface.
NOTE
Your vehicle is not equipped with a
spare tire. In the event of a flat tire, use
the emergency flat tire repair kit to
repair the tire temporarily. When doing
the repair, refer to the instructions
included in the emergency flat tire
repair kit. After temporarily repairing a
tire with the emergency flat tire repair
kit, take your vehicle to an Authorized
Mazda Dealer to have the tire replaced.
In Case of an Emergency
Flat Tire
7-5
RX-8_8T69-EA-04G_Edition1 Page211
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (212,1)
qAbout the IMS Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
includes the following items.
Tire sealant
Injection hoseCompressor
CaseInstruction
Repaired tire
stickerValve core
tool Spare valve
core
Speed restriction
sticker
WARNING
Ingestion of Tire Sealant:
Ingestion of tire sealant is dangerous.
In the event tire sealant is accidentally
swallowed, drink large amounts of
water immediately and seek medical
assistance. Do not allow children to
touch the tire sealant.
Tire Sealant Contacting Eyes and
Skin:
Tire sealant that comes into contact
with the eyes and skin is dangerous. If
tire sealant enters the eyes or contacts
the skin, flush immediately with large
amounts of water and seek medical
assistance. Do not allow children to
touch the tire sealant.
7-6
In Case of an Emergency
Flat Tire
RX-8_8T69-EA-04G_Edition1 Page212
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (213,1)
NOTE
lThe tire sealant cannot be reused.
Purchase new tire sealant at an
Authorized Mazda Dealer.
lThe emergency flat tire repair kit
cannot be used in the following
cases.
Consult an Authorized Mazda
Dealer.
lThe period of effective use for the
tire sealant has expired. (The
period of effectiveness is
indicated on the bottle label.)
lThe tear or puncture exceeds
about 4 mm (0.16 in).
lThe damage has occurred to an
area of the tire other than the
tread.
lThe vehicle has been driven with
nearly no air remaining in the tire.
lThe tire has come off the wheel
rim.
lDamage to the wheel rim has
occurred.
lThe tire has two or more
punctures.
qUsing the IMS Emergency Flat
Tire Repair Kit
1. Park on a level surface off the right-of-
way and set the parking brake.
2. Put a vehicle with an automatic
transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher.4. Unload passengers and luggage, and
remove the emergency flat tire repair
kit.
5. Shake the tire sealant well.
CAUTION
If the bottle is shaken after the injection
hose is screwed on, tire sealant could
spray out from the injection hose. Tire
sealant contacting clothing or other
objects may be impossible to remove.
Shake the bottle before screwing on the
injection hose.
In Case of an Emergency
Flat Tire
7-7
RX-8_8T69-EA-04G_Edition1 Page213
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (214,1)
NOTE
The tire sealant can be used at outside
temperatures down to–30°C.
In extremely cold temperatures (0°C
(32°F) or below), the tire sealant
hardens easily and injection of the
sealant will be difficult. Warm the
sealant inside the vehicle before doing
the injection work.
6. Remove the cap from the bottle. Screw
on the injection hose with the bottle's
inner cap left on to break the inner cap.
Injection hose
Bottle
7. Remove the valve cap from the flat
tire. Press the back of a valve core tool
to the core of the tire valve and bleed
all the remaining air.
Valve core tool Valve
Valve cap
CAUTION
If there is air remaining in the tire when
the valve core is removed, the valve
core could fly out. Remove the valve
core carefully.
8. Turn the valve core counterclockwise
with the valve core tool and remove the
valve core.
Valve
Valve core
NOTE
Store the valve core in a place where it
won't get dirty.
9. Remove the plug from the injection
hose and insert the injection hose into
the valve.
Injection hose Plug
7-8
In Case of an Emergency
Flat Tire
RX-8_8T69-EA-04G_Edition1 Page214
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (215,1)
10. Hold the bottom of the bottle upright,
squeeze the bottle with your hands,
and inject the entire amount of tire
sealant into the tire.
Valve
NOTE
The tire sealant cannot be reused.
Purchase new tire sealant at an
Authorized Mazda Dealer.
11. Pull out the injection hose from the
valve. Reinsert the valve core into the
valve and turn it clockwise to install
it.
12. Attach the sticker that indicates
completion of the tire repair on a flat
outer surface of the repaired tire.
NOTE
Do not throw away the empty tire
sealant bottle as the sealant in the bottle
can be replenished when replacing the
tire. Take the bottle to an Authorized
Mazda Dealer.
13. Attach the vehicle speed restriction
sticker in a place where the driver can
easily see it.
WARNING
Attaching Sticker to the Steering
Wheel Pad:
Attaching the vehicle speed restriction
sticker to the steering wheel pad is
dangerous. The sticker could interfere
with air bag inflation and cause
serious injury. Also, do not attach the
sticker to the meter panel, as it would
obstruct vision of areas such as
warning light indicators or the
speedometer.
In Case of an Emergency
Flat Tire
7-9
RX-8_8T69-EA-04G_Edition1 Page215
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (216,1)
14. Install the compressor hose to the tire
valve.
Valve
Compressor hose
15. Insert the compressor plug into the
interior accessory socket and turn the
ignition switch to the ACC position
(page 6-50).
Compressor
Center console Compressor
plug
CAUTION
lBefore pulling out the compressor
plug from the electrical socket, make
sure the compressor power switch is
off.
lThe compressor turns on and off
with the push-button switch.16. Turn the compressor switch on and
inflate the tire carefully to the correct
