2005 MAZDA MODEL RX 8 Owners Manual (in English)

Black plate (177,1)
Interior Comfort
Audio System
6-21
RX-8_8T69-EA-04G_Edition1 Page177
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (178,1)
qOperating the Radio
Channel preset buttons
Scan button Band selector button
Seek tuning
buttonSatellite button*
*For reception of optional Sirius digital satellite radio.
Used on vehicles equipped with the separately sold Sirius digital satellite radio unit.
For information on use, read the manual accompanying the Sirius unit.
Subscription of Sirius digital satellite radio service is available in the U.S. (Except Alaska and Hawaii).Manual tuning dial
Auto memory button
Electric serial number button* Type A
Manual tuning dial/Auto memory buttonChannel preset buttons
Scan button Band selector buttons
Seek tuning
buttonType B
6-22
Interior Comfort
Audio System
RX-8_8T69-EA-04G_Edition1 Page178
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (179,1)
Radio ON
(Type A)
Press a band selector button (
)to
turn the radio on.
(Type B)
Press a band selector button (
,)
to turn the radio on.
Band selection
(Type A)
Successively pressing the band selector
button (
) switches the bands as
follows: FM1→FM2→AM.
(Type B)
Choose AM by pressing the AM button
(
) and FM by pressing the FM1/2
button (
).
The selected mode will be indicated. If
FM stereo is being received,“ST”will be
displayed.
NOTE
If the FM broadcast signal becomes
weak, reception automatically changes
from STEREO to MONO for reduced
noise, and the“ST”indicator will go
out.
Tuning
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
Manual tuning
Turning the manual tuning dial will
change the frequency higher or lower.
Seek tuning
Pressing the seek tuning button (
,)
will cause the tuner to seek a higher or
lower frequency automatically.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.
Scan tuning
Press the scan button (
,)to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, press the scan
button (
,) again during this interval.
Preset channel tuning
The 6 preset channels can be used to store
6 AM and 12 FM stations.
1. To set a channel first select AM, FM1,
or FM2. Tune to the desired station.
2. Depress a channel preset button for
about 2 seconds until a beep is heard.
The preset channel number and station
frequency will be displayed. The
station is now held in the memory.
Interior Comfort
Audio System
6-23
RX-8_8T69-EA-04G_Edition1 Page179
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

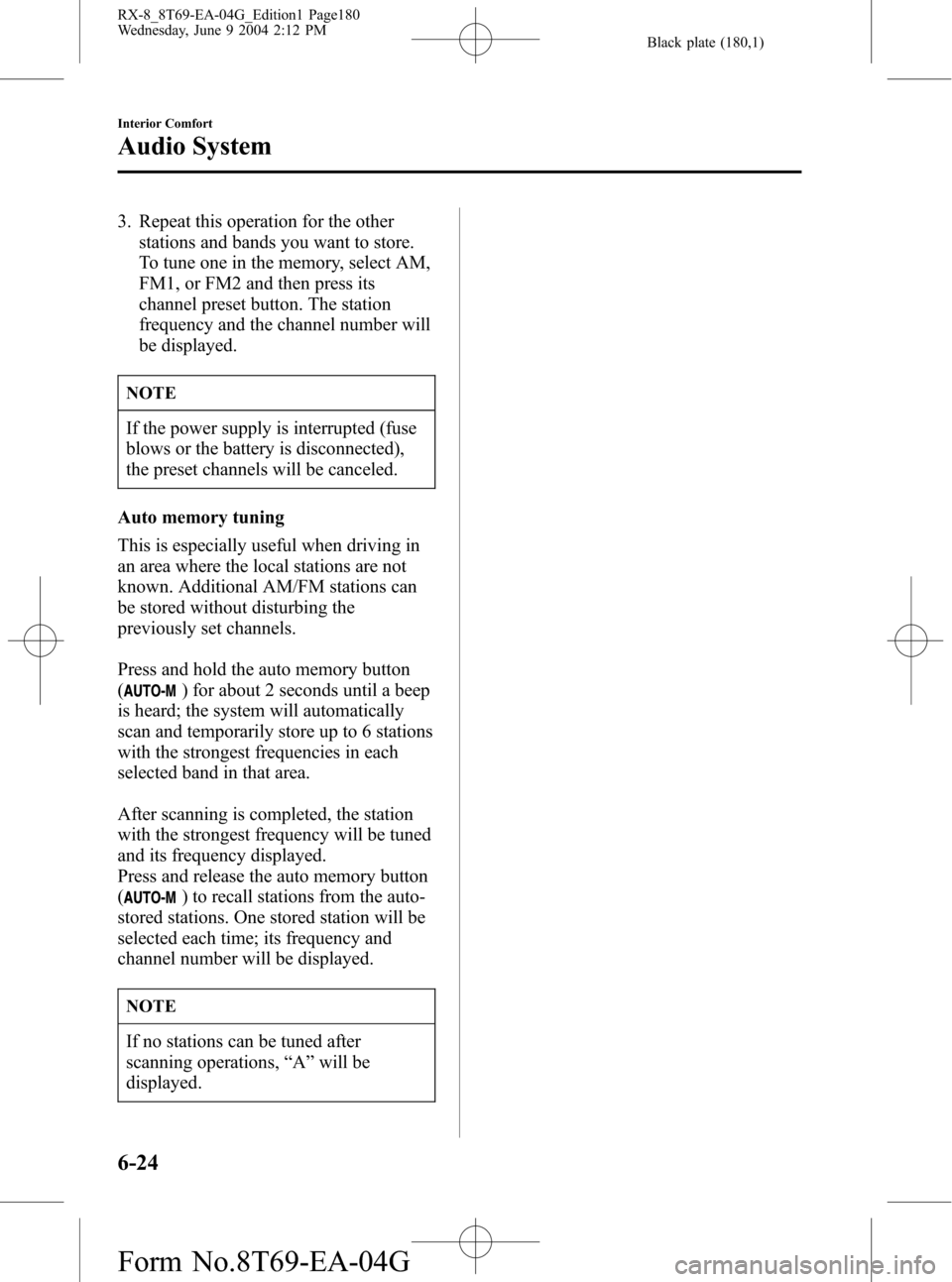

Black plate (180,1)
3. Repeat this operation for the other
stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
Auto memory tuning
This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels.
Press and hold the auto memory button
(
) for about 2 seconds until a beep
is heard; the system will automatically
scan and temporarily store up to 6 stations
with the strongest frequencies in each
selected band in that area.
After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
(
) to recall stations from the auto-
stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.
NOTE
If no stations can be tuned after
scanning operations,“A”will be
displayed.
6-24
Interior Comfort
Audio System
RX-8_8T69-EA-04G_Edition1 Page180
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (181,1)
Interior Comfort
Audio System
6-25
RX-8_8T69-EA-04G_Edition1 Page181
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (182,1)
qOperating the Cassette Tape Playerí
Fast-forward button
Cassette tape eject button
Program button Dolby NR buttonRepeat buttonCassette tape play button
APC button:
(next program)
(one being
played)
Rewind
button
Illustration is of a representative audio unit.
Cassette tape insert
Insert the cassette tape into the slot, open
edge to the right and cassette tape will
begin play, and“TAPE PLAY”will be
displayed. At the end of the cassette tape,
the unit automatically reverses cassette
tape play. When
is lit, the cassette
tape's top side is playing. When
is lit,
the bottom side is on.
Playing
Press the cassette tape play button
(
) to start play when a cassette
tape is in the unit. If there isn't a cassette
tape in the unit when the cassette tape
play button (
) is pressed,
“NO TAPE”will flash on and off.
Dolby noise reduction
When using a tape with Dolby NR*, push
the Dolby NR button (
). The
symbol will be displayed. To play a tape
without Dolby NR, push the button once
again.
* Noise reduction system manufactured
under license from Dolby Laboratories
Licensing Corporation.
Dolby and the double-D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
Ejecting the cassette tape
Press the cassette tape eject button (
)to
eject the cassette tape.
6-26
Interior Comfort
íSome models.
Audio System
RX-8_8T69-EA-04G_Edition1 Page182
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (183,1)
NOTE
The cassette tape can be ejected when
the ignition switch is in the OFF
position.
Fast-forward/Rewind
Press the fast-forward button (
)to
fast-forward.
Press the rewind button (
) to rewind.
To stop this operation and play the
cassette tape, press the button again.
NOTE
When the cassette tape ends during fast-
forward or rewind, it automatically
stops and starts playing.
Reversing
Press the program button (
)to
change cassette tape-play direction.
NOTE
When the cassette tape ends, the unit
automatically reverses play.
Automatic program control (APC)
APC is used to find the beginning of
either the next program or the one being
played.
Press the APC button (
) to the
beginning of the next selection.
Press the APC button (
) to the
beginning of the one being played. To
stop this operation and play the cassette
tape, press the button again.
NOTE
APC may not operate properly if:
lA tape was recorded at a low level.
lA tape has long, silent intervals.
lA tape is a live recording.
lA tape has very short intervals of
less than 3 seconds.
Repeat play
This operation makes it possible to listen
to a selection repeatedly.
Press the repeat button (
) during play.
The current selection playing will be
repeated (“RPT”will be displayed).
Press the repeat button (
) once again
to cancel repeat play.
NOTE
RPT may not operate properly if:
lA tape was recorded at a low level.
lA tape has long, silent intervals.
lA tape is a live recording.
lA tape has very short intervals of
less than 3 seconds.
Interior Comfort
Audio System
6-27
RX-8_8T69-EA-04G_Edition1 Page183
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G

Black plate (184,1)
qOperating the Mini Disc (MD) Playerí
MD play button
MD slotDisplay button
Reverse button
MD eject button
Random button Repeat buttonScan button
Fast-forward
button
Display feed
dial Track up
button
Track down
button
Illustration is of a representative audio unit.
Inserting the MD
Insert the MD, label-side up with the
arrow pointed to the slot. The auto-
loading mechanism will set the MD and
begin play. There will be a short lapse
before play begins while the player reads
the digital signals on the MD.
Playing
Press the MD play button (
)to
start play when a MD is in the unit.
If there isn't a MD in the unit when the
MD play button (
) is pressed,
“NO DISC”will flash on and off.
Ejecting the MD
Press the MD eject button (
) to eject the
MD.
Fast-forward/Reverse
Press and hold the fast-forward button
(
) to advance through a track at high
speed.
Press and hold the reverse button (
)
to reverse through a track at high speed.
Track search
Press the track up button (
) once to
skip forward to the beginning of the next
track.
Press the track down button (
) once to
skip back to the beginning of the current
track.
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
6-28
Interior Comfort
íSome models.
Audio System
RX-8_8T69-EA-04G_Edition1 Page184
Wednesday, June 9 2004 2:12 PM
Form No.8T69-EA-04G
