2005 MAZDA MODEL RX 8 Owners Manual (in English)

Black plate (57,1)
Lock button
To lock the doors, press the lock button
and the hazard warning lights will flash
once.
To confirm that all the doors have been
locked, press the lock button again within
5 seconds. If they are closed and locked,
the horn will sound and the hazard
warning lights will flash once.
NOTE
lAll doors cannot be locked when any
door is open and the key is in the
ignition switch.
lConfirm that all the doors are locked
visually or audibly by use of the
double click.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
To unlock all the doors, press the unlock
button again within 5 seconds and the
hazard warning lights will flash twice.
NOTE
After unlocking with the transmitter, all
doors will automatically lock if one of
the doors is not opened within about 30
seconds.
Trunk button
To open the trunk, press the trunk button.
NOTE
The trunk button is disabled when the
glove box-mounted trunk lid release
lock-out button is in the OFF position.
Refer to Remote Trunk Lid Release
Lock-Out on page 3-14.
Panic button
You can use the panic button to turn on
the alarm, which allows you to signal for
attention in an emergency.
NOTE
The alarm will work whether any door
is open or closed.
Turning on the alarm
Pressing the panic button for about a
second will trigger the alarm for about 2
minutes and 30 seconds, and do the
following:
lThe horn sounds intermittently.
lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter or
insert the key into the ignition switch.
Knowing Your Mazda
Doors and Locks
3-5
RX-8_8T69-EA-04G_Edition1 Page57
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (58,1)
qTransmitter Maintenance
CAUTION
lMake sure the battery is installed
with the correct pole facing upward.
Battery leakage could occur if it is
not installed correctly.
lWhen replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also be
careful not to get dirt in the
transmitter as it could damage it.
lDanger of battery explosion if it is
incorrectly replaced.
lReplace only with the same type
battery (CR1620 or equivalent).
lDispose of used batteries according
to the following instructions.
lInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
lNever disassemble.lNever throw the battery into fire
and/or water.
lNever deform or crush.
Replacing the transmitter battery
1. Insert a small screwdriver into the slot
and push the tab to remove the key
from the transmitter.
Ta b
2. Insert a small screwdriver into the slot
and gently pry open the transmitter.
3-6
Knowing Your Mazda
Doors and Locks
RX-8_8T69-EA-04G_Edition1 Page58
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (59,1)
3. Press the portion of the battery
indicated by A and remove the battery.
A
4. Put in the new battery (CR1620 or
equivalent) with the positive pole (
)
facing down.
5. Align the front and back covers and
snap the transmitter shut.
6. Install the key to the transmitter.
qService
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
CAUTION
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
Knowing Your Mazda
Doors and Locks
3-7
RX-8_8T69-EA-04G_Edition1 Page59
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (60,1)
Door Locks
WARNING
Unattended Children and Pets:
Leaving a child or an animal
unattended in a parked vehicle is
dangerous. In hot weather,
temperatures inside a vehicle can
become high enough to cause brain
damage or even death. Always take all
children and animals with you or
leave a responsible person with them.
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don't leave the
keys in your vehicle with children and
keep them in a place where your
children will not find or play with
them.
Unlocked Doors:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall out
if a door is accidentally opened and
can more easily be thrown out in an
accident. So keep all doors locked
when driving.
NOTE
Always remove the key from the
ignition switch, close all windows, and
lock all doors and the trunk lid when
leaving your vehicle unattended. This
discourages intruders and thieves.
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Lock Unlock
qLocking, Unlocking with
Transmitter
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to keyless entry system
(page 3-3).
qLocking, Unlocking with Door-
Lock Knob
To lock either front door from the inside,
push the door-lock knob.
To unlock, pull it out.
Lock
Unlock Door-lock knob
3-8
Knowing Your Mazda
Doors and Locks
RX-8_8T69-EA-04G_Edition1 Page60
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (61,1)

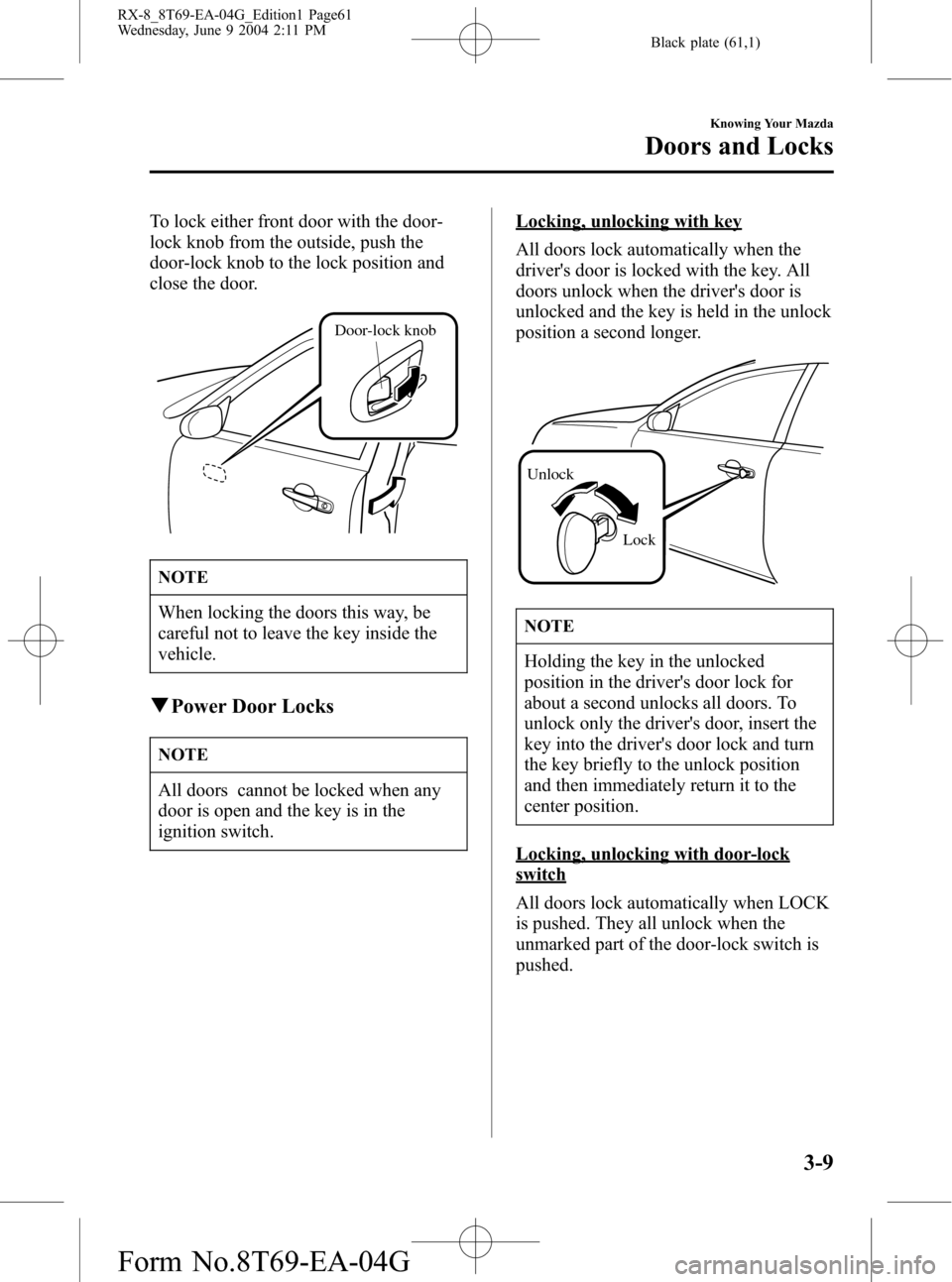

To lock either front door with the door-
lock knob from the outside, push the
door-lock knob to the lock position and
close the door.
Door-lock knob
NOTE
When locking the doors this way, be
careful not to leave the key inside the
vehicle.
qPower Door Locks
NOTE
All doors cannot be locked when any
door is open and the key is in the
ignition switch.
Locking, unlocking with key
All doors lock automatically when the
driver's door is locked with the key. All
doors unlock when the driver's door is
unlocked and the key is held in the unlock
position a second longer.
Lock Unlock
NOTE
Holding the key in the unlocked
position in the driver's door lock for
about a second unlocks all doors. To
unlock only the driver's door, insert the
key into the driver's door lock and turn
the key briefly to the unlock position
and then immediately return it to the
center position.
Locking, unlocking with door-lock
switch
All doors lock automatically when LOCK
is pushed. They all unlock when the
unmarked part of the door-lock switch is
pushed.
Knowing Your Mazda
Doors and Locks
3-9
RX-8_8T69-EA-04G_Edition1 Page61
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (62,1)
Driver's door
Unlock
Lock
Passenger's door
Unlock
Lock
qFreestyle Doors
The pillarless freestyle doors are front and
rear-hinged for ease of ingress and egress
to the rear seat.
Opening the freestyle doors
1. Open the front door first.
Front door
2. Pull the rear door handle and open the
rear door.
Rear door handle
3-10
Knowing Your Mazda
Doors and Locks
RX-8_8T69-EA-04G_Edition1 Page62
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (63,1)
CAUTION
Before closing a front door make sure
other passengers are not operating a
rear door and a rear passenger's head or
hands are away from the rear door. If
the front door is closed while a
passenger is operating the rear door
handle, a hand or fingers could be
injured if the handle is forced back.
Also, a rear passenger could hit their
head against the door during access to
the rear seat.
NOTE
lThe rear door cannot be opened
while the front door is closed.
lMake sure the front seatbelt is
unfastened before the rear door is
opened. The rear door can't be
opened with the front seatbelt
fastened because the front seatbelt
may lock.
lIf any door is left open for more than
about an hour, the front seatbelt will
lock, and the rear door cannot be
opened. If this happens, close all
doors and open the rear door again.
lThis vehicle is not equipped with
child safety locks due to the design
of the front and rear doors. The rear
doors must be closed before the front
doors, and the rear doors cannot be
opened until the front doors are
opened.
Closing the freestyle doors
1. Close the rear door first, and then close
the front door.
Front door
Rear door
CAUTION
Before closing a front door make sure
other passengers are not operating a
rear door and a rear passenger's head or
hands are away from the rear door. If
the front door is closed while a
passenger is operating the rear door
handle, a hand or fingers could be
injured if the handle is forced back.
Also, a rear passenger could hit their
head against the door during access to
the rear seat.
NOTE
The front door cannot latch or lock
while the rear door is opened.
2. Make sure the freestyle doors are
securely closed.
Knowing Your Mazda
Doors and Locks
3-11
RX-8_8T69-EA-04G_Edition1 Page63
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (64,1)
WARNING
Driving with Doors Not Secured:
Driving with the doors not securely
closed is dangerous. If the rear door is
not completely closed, the front door
will not be securely closed. This could
cause the front door to open
unexpectedly while driving and may
result in an accident. Make sure the
rear door is closed securely before
closing the front door.
Trunk Lid
WARNING
Open Trunk and Exhaust Gas:
Exhaust gas in the cabin of a vehicle
is dangerous. This gas contains CO
(carbon monoxide), which is colorless,
odorless, and highly poisonous. If
inhaled, it can cause loss of
consciousness and death. Because
exhaust gas can get into the cabin
through an open trunk, keep the trunk
closed when driving.
3-12
Knowing Your Mazda
Doors and Locks
RX-8_8T69-EA-04G_Edition1 Page64
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G
