2005 MAZDA MODEL RX 8 Owners Manual (in English)

Black plate (65,1)
qOpening and Closing the Trunk
WARNING
Open Trunk Lid and Children:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure. Close the trunk lid and do
not allow children to play inside the
vehicle.
Unattended Children and Pets:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
kids who lock themselves in cars or
trunks can die very quickly from heat
prostration. Don't leave your children
or pets alone in a car at any time.
Don't leave the car or the trunk
unlocked. Always keep the car from
being a tempting place to play by
locking doors and the trunk, and
keeping the keys where children won't
play with them.
Opening the trunk lid with the key
Insert the master key into the slot and turn
it clockwise.
The valet key will not operate this lock
(page 3-2).
Open
Opening the trunk lid with the
transmitter
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-3).
Opening the trunk lid with the remote
release button
Push the release button.
Knowing Your Mazda
Doors and Locks
3-13
RX-8_8T69-EA-04G_Edition1 Page65
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (66,1)

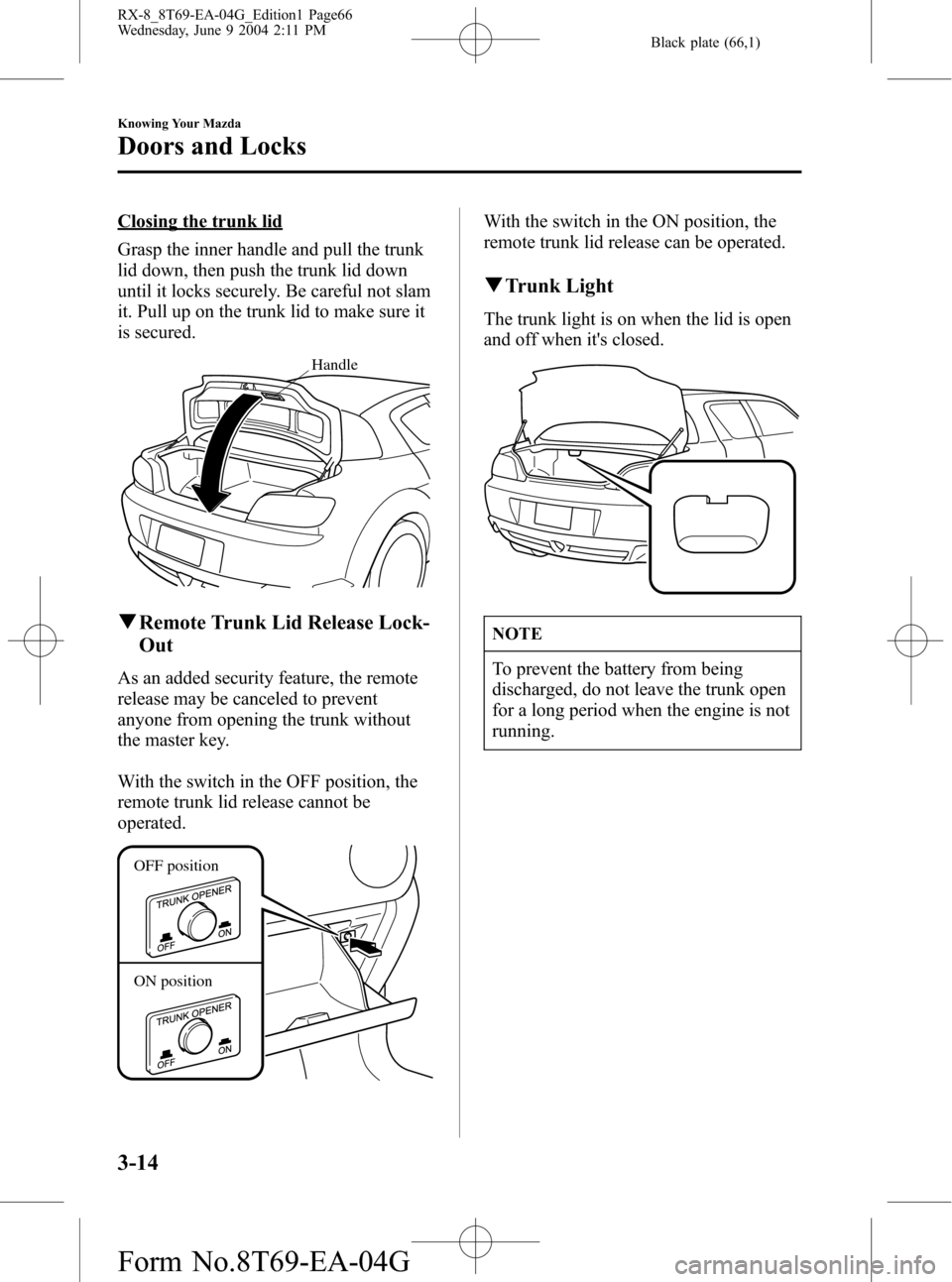

Closing the trunk lid
Grasp the inner handle and pull the trunk
lid down, then push the trunk lid down
until it locks securely. Be careful not slam
it. Pull up on the trunk lid to make sure it
is secured.
Handle
qRemote Trunk Lid Release Lock-
Out
As an added security feature, the remote
release may be canceled to prevent
anyone from opening the trunk without
the master key.
With the switch in the OFF position, the
remote trunk lid release cannot be
operated.
OFF position
ON position
With the switch in the ON position, the
remote trunk lid release can be operated.
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is not
running.
3-14
Knowing Your Mazda
Doors and Locks
RX-8_8T69-EA-04G_Edition1 Page66
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (67,1)
Inside Trunk Release Slide
Lever
Your vehicle is equipped with an inside
trunk release slide lever that provides a
means of escape for children and adults in
the event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release slide
lever so that all children can be told about
it in an appropriate way, keeping in mind
that most vehicles don't have such levers.
WARNING
Open Trunk Lid and Children:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure. Close the trunk lid and do
not allow children to play inside the
vehicle.
Unattended Children and Pets:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
kids who lock themselves in cars or
trunks can die very quickly from heat
prostration. Don't leave your children
or pets alone in a car at any time.
Don't leave the car or the trunk
unlocked. Always keep the car from
being a tempting place to play by
locking doors and the trunk, and
keeping the keys where children won't
play with them.
Knowing Your Mazda
Doors and Locks
3-15
RX-8_8T69-EA-04G_Edition1 Page67
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (68,1)
qOpening the Trunk Lid from the
Inside
Slide the illuminated inside trunk release
slide lever in the direction of the arrow.
The lever is made of material that will
glow for hours in the darkness of the
trunk following a brief exposure to
ambient light.
The inside trunk release slide lever is
located on the inside of the trunk end trim.
Power Windows
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Closing Power Windows:
Closing power windows are
dangerous. A person's hands, head, or
even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children. Make sure the opening is
clear before closing a window.
Children and Power Windows:
Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would allow
children to operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window. Always lock all passenger
power windows with the power
window lock switch on the driver's
side while children are in the vehicle,
and never allow children to play with
power window switches.
3-16
Knowing Your Mazda
Doors and Locks
RX-8_8T69-EA-04G_Edition1 Page68
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (69,1)

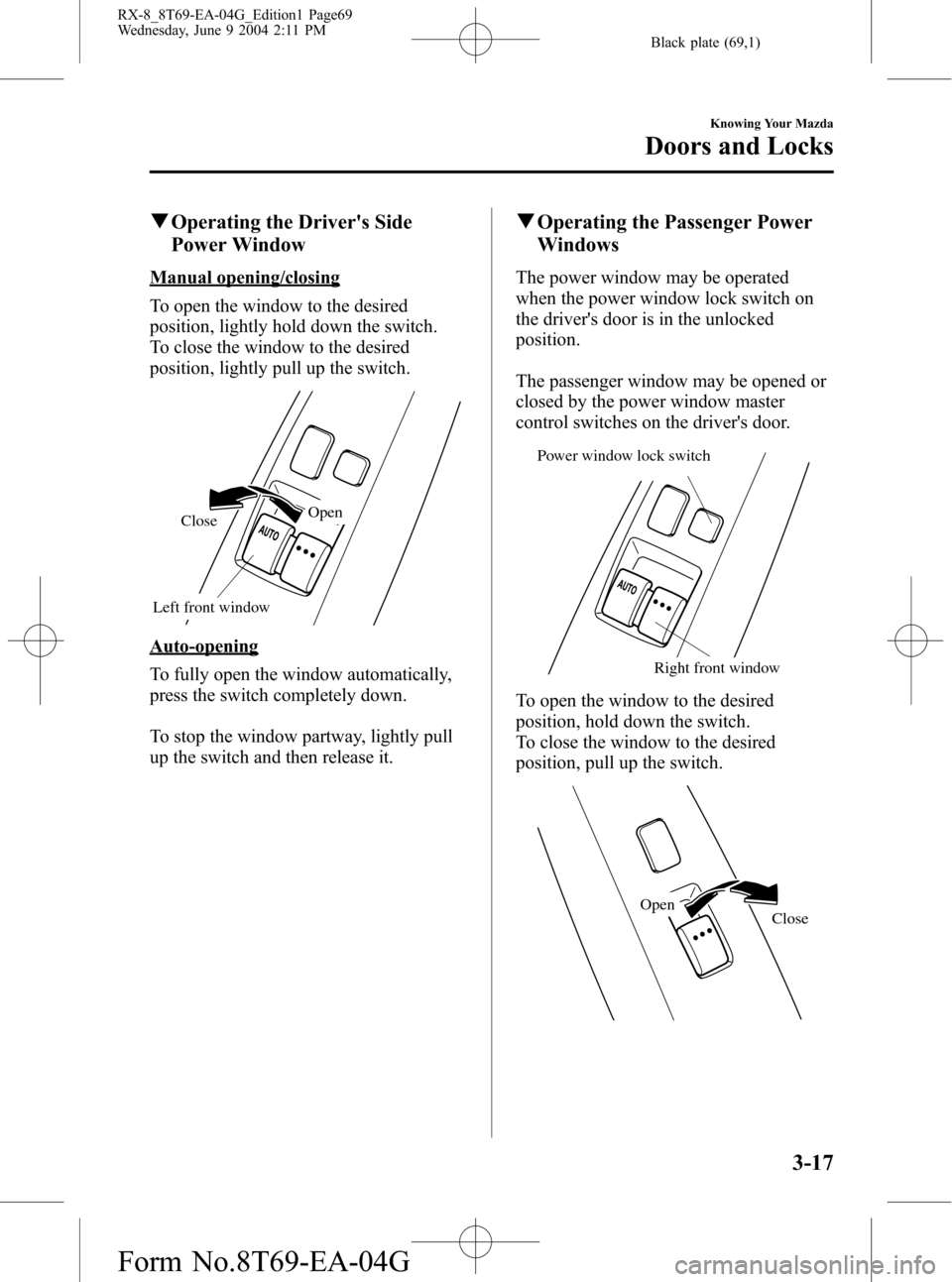

qOperating the Driver's Side
Power Window
Manual opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Open
Close
Left front window
Auto-opening
To fully open the window automatically,
press the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
qOperating the Passenger Power
Windows
The power window may be operated
when the power window lock switch on
the driver's door is in the unlocked
position.
The passenger window may be opened or
closed by the power window master
control switches on the driver's door.
Right front window
Power window lock switch
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.
Open
Close
Knowing Your Mazda
Doors and Locks
3-17
RX-8_8T69-EA-04G_Edition1 Page69
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (70,1)
qPower Window Lock Switch
With the lock switch in the unlocked
position, all power windows on each door
can be operated.
With the lock switch in the locked
position, only the driver's side power
window can be operated.
Locked position
Unlocked position
WARNING
Unintentional Window Operation:
Unintentional window operation is
dangerous. A person's hands, head, or
neck could be caught by the window
and result in serious injury. Unless a
passenger needs to operate a window,
keep the power window lock switch in
the locked position.
Rear Quarter Windows
Open or close a swing-out rear quarter
window by releasing the latch and moving
the window.
NOTE
When parked in public areas, it is best
to keep the rear quarter windows closed
for security.
qOpening a Window
Pull the latch inward and then push the
window outward.
3-18
Knowing Your Mazda
Doors and Locks
RX-8_8T69-EA-04G_Edition1 Page70
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (71,1)
qClosing a Window
Pull the latch inward and then push it
backward until it snaps shut. Make sure
the window is securely closed.
Fuel-Filler Lid and Cap
WARNING
Fuel Spray:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness if
ingested. Fuel spray is released when
there is pressure in the fuel tank and
the fuel cap is removed too quickly.
When removing the fuel cap, loosen
the cap slightly and wait for any
hissing to stop. Then remove it.
Fuel Vapor:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries. Before
refueling, stop the engine, and always
keep sparks and flames away from the
filler neck. Additionally, use of the
incorrect fuel filler cap or not using a
fuel filler cap may result in fuel leak,
which could result in serious burns or
death in an accident.
CAUTION
Always use only a genuine Mazda fuel
cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
Knowing Your Mazda
Doors and Locks
3-19
RX-8_8T69-EA-04G_Edition1 Page71
Wednesday, June 9 2004 2:11 PM
Form No.8T69-EA-04G

Black plate (72,1)
qFuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until it clicks.
Close Open
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate on when the cap
isn't tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven, and
restarted the engine several times), it
may indicate a different problem.
Contact an Authorized Mazda Dealer as
soon as possible.
