Setup
1
31
Open the [Map]
screen
Map
How to exitColor (daytime)
Map Direction

North Up : Geographic north is always up on the map.
Head Up : The direction you are going is always up on the
map.
Vehicle Position

Center : The current vehicle position indicator is displayed
in the center of the screen.

Off Ctr : The current vehicle position indicator is displayed
at the bottom of the screen.
POI Icon

On : POI icons appear in their marked positions.
Off : POI icons do not appear in their marked positions.
Trace Mark

On : The traced route is marked.
Off : The traced route is not marked.
Color (nighttime)
User setting
: Default
select3
select
2
MENUENTER
ENTER
ENTER
ENTERENTER
ENTER
ENTER
ENTER
)
32)
33)
oftware
t to the
formed.
s.
tion by 11.25°.
se direction
nt viewing the
ill
he system.
of your
e vehicle
DdrDh

Open th
[System
screen
: D
How to
Setu
1
2
ME
ENTE
EN
32
Open the [Route]
screenDetour (mile/km)
The detouring distance is specified.
1 : 1 mile/km
2 : 2 mile/km
5 : 5 mile/km

10 : 10 mile/km
20 : 20 mile/km
Estimated Travel Time

On : The estimated travel time is announced by
voice guidance, and displayed on the current

Off : No announce
Auto Re-route

On : Searching for another route is activated to go back
to the original route when you drive away from it.

Off : No search takes place.
Usually, this function should be set to [ON].
SetupRoute
How to exit
: Default
Zoom

On : The intersection zoom map appears automatically
when approaching an intersection.

Off : The zoom function is not activated when approaching
an intersection.
System Mode

Map : The map mode
Guide : The guide mode map
User setting
1
2
vehicle map.
select3
selectMENUENTER
ENTERENTERENTER
ENTER
ENTER
ENTER

33

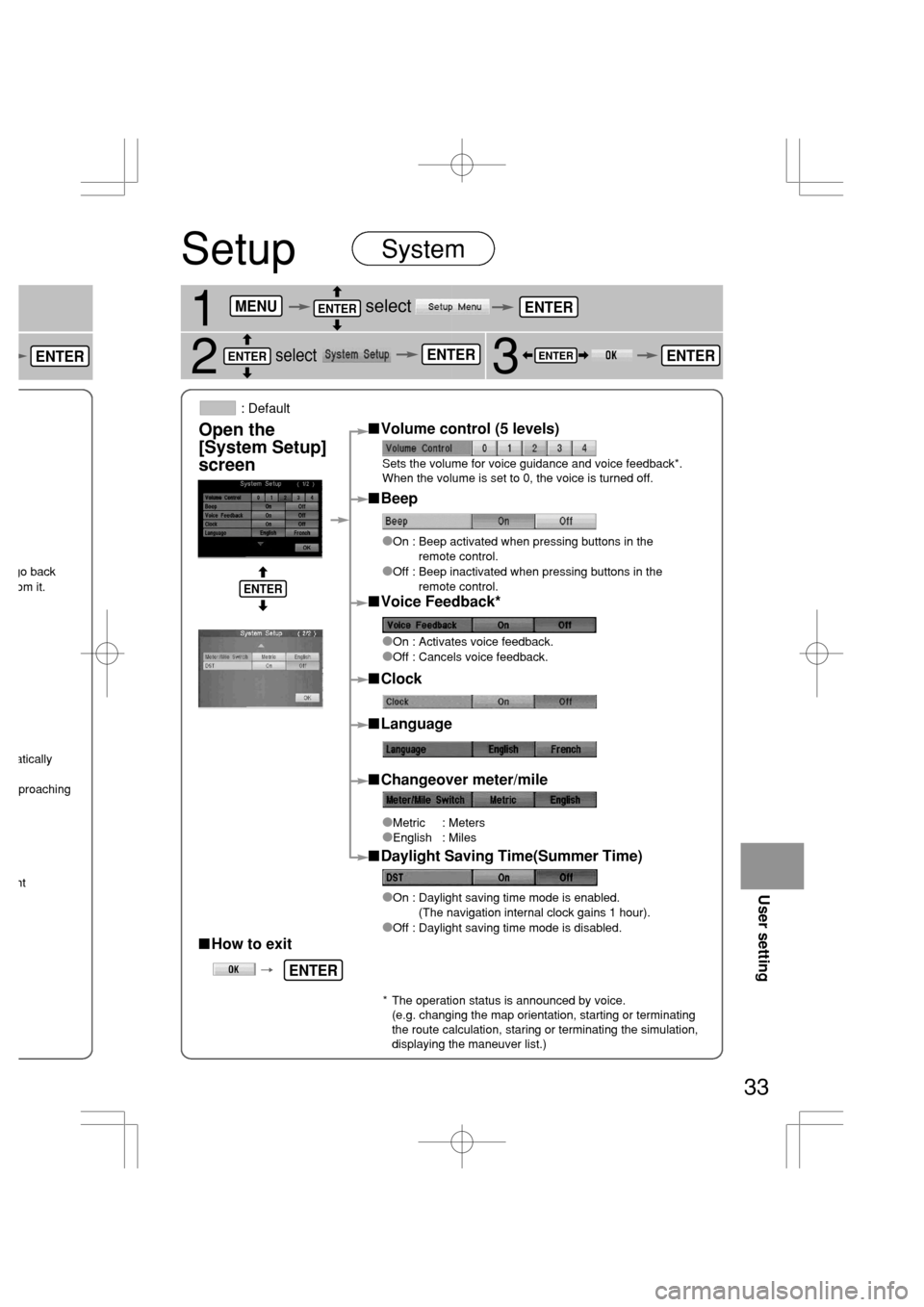

Open the
[System Setup]
screenVolume control (5 levels)
Beep

On : Beep activated when pressing buttons in the
remote control.

Off : Beep inactivated when pressing buttons in the
remote control.

On : Activates voice feedback.
Off : Cancels voice feedback.
Language
Changeover meter/mile

Metric : Meters
English : Miles
Voice Feedback*
Clock
: Default
How to exit
Daylight Saving Time(Summer Time)

On : Daylight saving time mode is enabled.
(The navigation internal clock gains 1 hour).

Off : Daylight saving time mode is disabled.
SetupSystem
User setting
1
2select3
selectMENUENTER
ENTER
ENTER
ENTERENTER
ENTER
ENTER
ENTER
Sets the volume for voice guidance and voice feedback*.
When the volume is set to 0, the voice is turned off.
* The operation status is announced by voice.
(e.g. changing the map orientation, starting or terminating
the route calculation, staring or terminating the simulation,
displaying the maneuver list.)
nt go back
om it.
atically
proaching
ENTER

If you are u
takes about
position.

The GPS sa
lower positi

There may
turning on t
GPS sign
In tunnels
This functio
disc, applies
and displays

Intelligent m
in vehicle p

Using a spa

Any differen
on the map
34
Precautions/System Performance
Second branching pointFirst branching point150m
100m
Route
In 700m left turn.Left turn ahead,
then right turn.
Voice guidance has the following functions:
When two intersections are close together,
the voice guidance may be late.
Roundabout.
Take the second
exit.
GRrfsoMesTePfNOmePo sOTrsASe rsoe/roRrTU
oRrsQeIArs/PINOfArs.eTsoRrs rAefNsVOWsmrsSOorZ

The system voice announces the distance to an upcoming turn and the turning direction.aThis guidance function is automatic. Therefore, you do not have to set it, and it cannot
be disabled.
Intersection guidance
Voice Guidance

The navigation system is just a support system for the driver. The driver should always
pay attention to the traffic situation to safely make decisions. You may be unable at
times to arrive at your destination due to out-of-date information on a map disc. You
should be especially careful when selecting an urgent destination such as a hospital or
a police station.

Your route may sometimes include roads that are not open to vehicles or are closed
due to traffic regulations. Please comply with the local traffic regulations.

Do not change the settings and destination locations while driving. Minimize the time
spent viewing the monitor screen and listening to the voice guidance while driving.
Operating the system will distract the driver from looking ahead of the vehicle and may
cause an accident. Always stop the vehicle in a safe location and use the parking brake
before operating the system.
Warnings

The system vocally announces the distance to an upcoming highway
branching point or junction.
aThis guidance function can be set in the [Setup menu]. For details, see page 32.

The mobile navigation system calculates and indicates the vehicle position on the map by
multiplying the speed pulse emitted by the vehicle with a correction coefficient.
The speed pulse emitted varies with the type of vehicle and with differences in tire
pressure and wear.
A different correction coefficient might even be required for the same type of vehicle.

Using a spare tire in place of the regular one may cause vehicle position deviations.
Automatic Distance Correction
As necessary

35

If you are using the system for the first time, or if you have not used it for some time, it
takes about 5 minutes (or about 2 minutes in open areas) to calculate your vehicle's
position.

The GPS satellites are controlled by the U.S. Defense Department, which may intentionally
lower positioning accuracy. In such cases, there may be vehicle position deviations.

There may be vehicle position deviations for some time until GPS signals are received after
turning on the ignition.
GPS signal reception is poor in the following places
In tunnelsAmong high-rise buildingsUnder elevated roads In wooded areas
GPS
Map Matching
This function compares your vehicle's tracking data with the road data on the map
disc, applies dead reckoning to determine the road you are driving on,
and displays your vehicle on that road on the map.

Intelligent map matching addresses the following problems to achieve high accuracy
in vehicle positioning.
Position Correction for Elevated RoadsPosition accuracy is improved by detecting if
the vehicle is running on or under an elevated road.

Using a spare tire in place of the regular one may cause vehicle position deviations.

Any difference between the direction which your vehicle actually travels and that shown
on the map is automatically eliminated by azimuth correction.
GPS is a position detecting system utilizing the signals from
GPS satellites deployed by the U.S. Department of Defense.
The Mobile Navigation System uses input from three or more
satellites and calculates the vehicle position based on the
principle of triangulation.
The positioning accuracy of the system corresponds to the
error display of the GPS which is from about 30 to 200 meters.
Position Correction for Parking GaragesPosition accuracy is improved by detecting if the vehicle
is driving in an elevated or underground parking garage.
High-precision GyrosensorA gyro detects turns with an accuracy of 0.05˚ per second.
Combined with a speed sensor, it enables the system to display
the current vehicle position even where GPS signals may be
blocked.
