2005 DODGE SPRINTER Owners Manual

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 65
3
To install:
1. With the rear bench seat facing in the direction of travel, insert the legs of the rear bench seat in the
respective seat mounting cups on the floor.
2. Slide the rear bench seat forwards with some force as far as it will go, until the release levers are heard
to engage and all release levers are parallel to the
vehicle floor.
Retrofitting Seat Mounting Cups
WARNING!
Additional rear bench seats can be added if seat
mounting cups are properly installed.
For reasons of safety, only have seat mounting
cups retrofitted by an authorized Sprinter Dealer.
Never exceed the maximum permissible number
of rear bench seats for the specific vehicle.
For more information contact your authorized
Sprinter Dealer.

66 UNDERSTANDING THE FEATURES OF YOUR VEHICLEHOOD
To open:
1. Pull the release lever (1). The hood then opens slightly and is restrained by
the safety catch.
WARNING!
When the hood is open, there is a risk of injury due
to very hot engine components.When the engine is running or the key is in
position 2 in the ignition lock, there is a risk of
injury due to moving engine components and the
electrical system.The engine is equipped with a transistorized
ignition system. Because of the high voltage it is
dangerous to touch any components (ignition coils,
spark plug sockets, diagnostic socket) of the
ignition system with the engine running, while
starting or if the ignition is on and the engine is
turned manually.To help prevent severe personal injuries and death,
stay clear of moving parts when the hood is open
and the engine is running. If you see flames or smoke coming from the engine
compartment, or if the coolant emperature gauge
indicates that the engine is overheated, do not open
the hood. Move away from vehicle and do not open
the hood until the engine has cooled. If necessary,
call the fire department.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 67
3

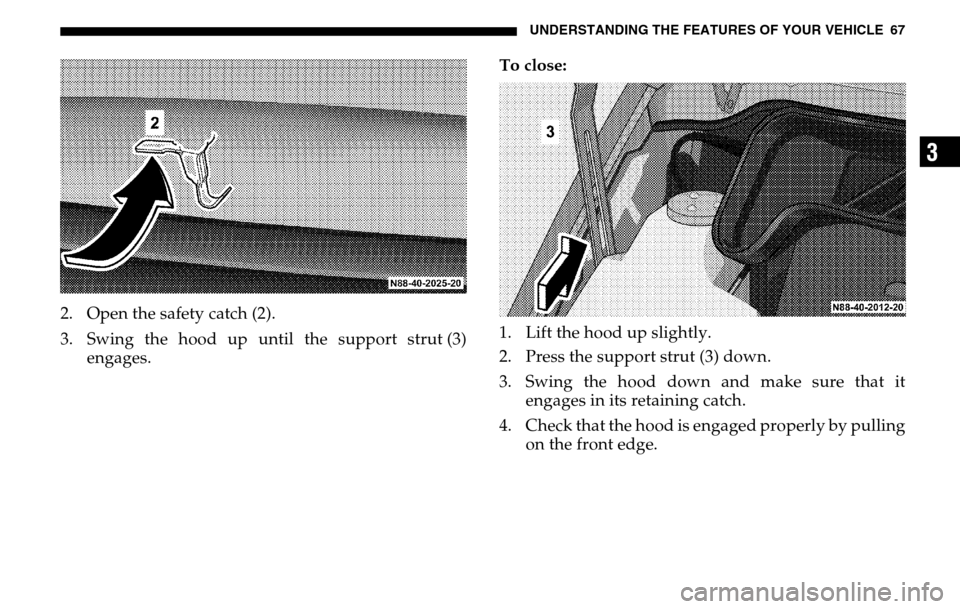

2. Open the safety catch (2).
3. Swing the hood up until the support strut (3) engages. To close:
1. Lift the hood up slightly.
2. Press the support strut (3) down.
3. Swing the hood down and make sure that it
engages in its retaining catch.
4. Check that the hood is engaged properly by pulling on the front edge.

68 UNDERSTANDING THE FEATURES OF YOUR VEHICLEHEADLAMP RANGE CONTROLSee Section 4, Understanding Your Instrument Panel,
for switch locations. The range of the headlamps can be
adjusted to the load in the vehicle.
Turn the thumbwheel down to
headlamp beam down.
Turn the thumbwheel up to
headlamp beam up.
When the vehicle is not loaded (driver only), the
thumbwheel must be in position 0. Where necessary, adjust the headlamp range with the
thumbwheel to 82 yards (75 m).
Always keep the headlamp range less than 110 yards
(100 m), so that oncoming traffic is not blinded.
FOG LAMP SWITCH (OPTIONAL)See Section 4, Understanding Your Instrument Panel,
for switch locations.
Lamp switch position õ
To switch on:
Press the upper section of the switch.
To switch off:
Press the lower section.
WARNING!
Be sure the hood is properly closed before driving.
If the hood is not fully latched, it could fly up
when the vehicle is moving and block your for-
ward vision. Be sure all hood latches are latched
fully before driving.
When closing the hood, use extreme caution not to
catch hands or fingers.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 69
3
INTERIOR LIGHTING
Interior Lamps in the Driver and Rear-Seat
Passenger Area/Cargo Area1. Permanently on
2. Off
3. Interior lamps are switched on/off by the door contact switches
Interior Lamps with Interior Sensor Protection
(Optional)Interior lamp switch (1)
Reading lamp switch (2)

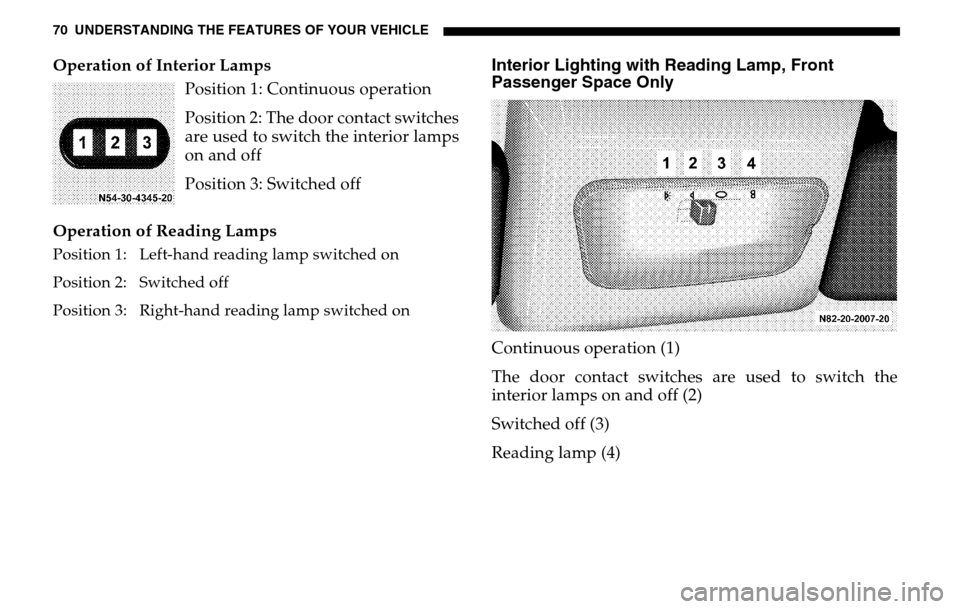

70 UNDERSTANDING THE FEATURES OF YOUR VEHICLEOperation of Interior Lamps Position 1: Continuous operation
Position 2: The door contact switches
are used to switch the interior lamps
on and off
Position 3: Switched off
Operation of Reading LampsPosition 1: Left-hand reading lamp switched on
Position 2: Switched off
Position 3: Right-hand reading lamp switched on
Interior Lighting with Reading Lamp, Front
Passenger Space OnlyContinuous operation (1)
The door contact switches are used to switch the
interior lamps on and off (2)
Switched off (3)
Reading lamp (4)

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 71
3
Interior Cargo Area Lighting (Optional)
The switch is located on the center
section of the dashboard.
To switch on:
Press top of switch:
The indicator lamp in the switch will
illuminate.
To switch off:
Press bottom of switch.
The switch (1) is located on the right side of the cargo
area at the entrance for the sliding door.
To switch on:
Press top of switch – the indicator lamp in the switch
will illuminate.
To switch off:
Press bottom of switch.

72 UNDERSTANDING THE FEATURES OF YOUR VEHICLEThe switch (2) is located in the right rear of the cargo
area.
To switch on:
Press top of switch, the indicator lamp in the switch
will illuminate.
To switch off:
Press bottom of switch.
NOTE: The interior cargo area lighting will shut off
automatically after 15 min.
MULTIFUNCTION SWITCHTurn signal indicator lamp, right (1)
Turn signal indicator lamp, left (2)
Short turn signal, press combination switch to pressure
point.
Continuous turn signal, engage combination switch.
If a turn signal on the vehicle fails, the indicator lamp
in the instrument cluster flashes at twice the normal
rate.
