2005 DODGE SPRINTER Owners Manual

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81
3
Mechanical Sun Roof OperationThe sun roof does not open or close:
Check electrical fuse. Electric al fuses refer to “Electrical
Fuses“.
If the fuse works correctly, the sun roof can also be
closed or opened manually.
Remove cover (1) at the front frame of the sun roof.
Remove tool (2) from the cover (1) and insert.
Open manually:
Press in tool (2) and turn counterclockwise (3).
Close manually:
Press in tool (2) and turn clockwise (4).
Have malfunctions rectified by an authorized Sprinter
Dealer.

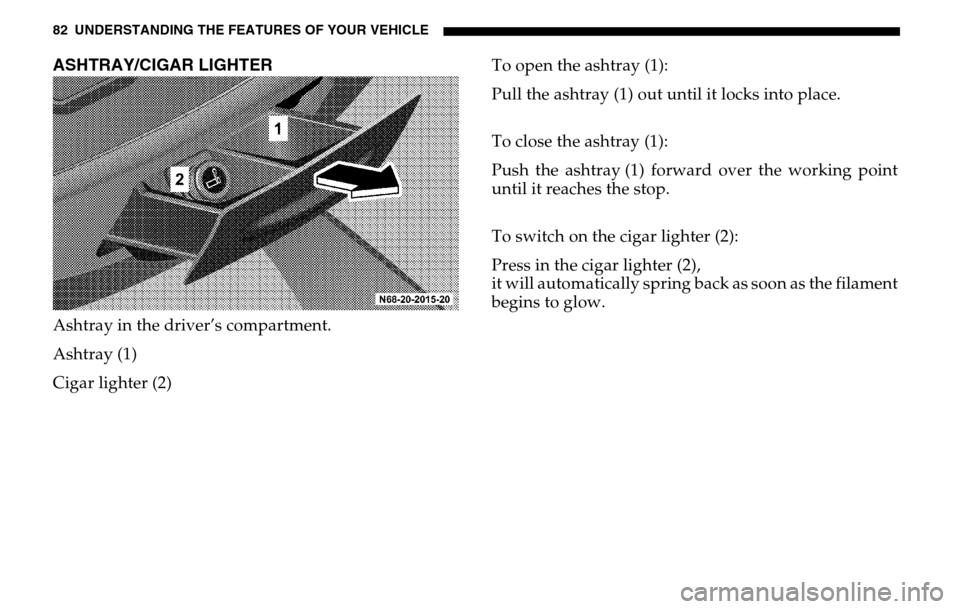

82 UNDERSTANDING THE FEATURES OF YOUR VEHICLEASHTRAY/CIGAR LIGHTERAshtray in the driver’s compartment.
Ashtray (1)
Cigar lighter (2) To open the ashtray (1):
Pull the ashtray (1) out until it locks into place.
To close the ashtray (1):
Push the ashtray (1) forward over the working point
until it reaches the stop.
To switch on the cigar lighter (2):
Press in the cigar lighter (2),
it will automatically spring back as soon as the filament
begins to glow.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83
3
Ashtray in the rear passenger compartment.
The ashtrays are located in the side linings in the
passenger compartment.
ELECTRICAL OUTLETThe electrical outlet is located on the
lower right in the center of the
dashboard.
NOTE: Maximum capacity: 180 VACAUTION!
 Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not
in use (i.e. cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery
will discharge sufficiently to degrade battery life
and/or prevent engine starting.
 Accessories that draw higher power (i.e., coolers, vacuum cleaners, lights, etc.), will degrade the
battery even more quickly. Only use these
intermittently and with greater caution. After the use of high power draw accessories, or long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
alternator to recharge the vehicle’s battery.

84 UNDERSTANDING THE FEATURES OF YOUR VEHICLECONTROL AND OPERATION OF RADIO
TRANSMITTERS
Radio, Telephone and Two Way Radio MOBILE TELEPHONE AND TWO WAY RADIO AND
FAX MACHINES
Radio transmitters, such as a mobile telephone or a
citizens band unit should only be used inside the
vehicle they are connected to an antenna that is
installed on the outside of the vehicle.
Refer to the radio transmitter operation instructions
regarding use of an external antenna.
WARNING!
Please do not forget that your primary responsi-
bility is to drive the vehicle. Only operate the ra-
dio, telephone, navigation system, two-way radio
or fax when road and traffic conditions permit.
Otherwise you could be distracted from the traffic
and cause an accident. Always obey local laws and
regulations.
Remember that at a speed of just 30 mph (about 50
km/h), your vehicle is covering a distance of 50
feet (about 14 m) every second.
WARNING!
Never operate radio transmitters equipped with a
built-in or attached antenna (i.e., without being
connected to an external antenna) from inside the
vehicle while the engine is running. Doing so
could lead to a malfunction of the vehicle’s elec-
tronic system, possibly resulting in severe person-
al injuries and death.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85
3

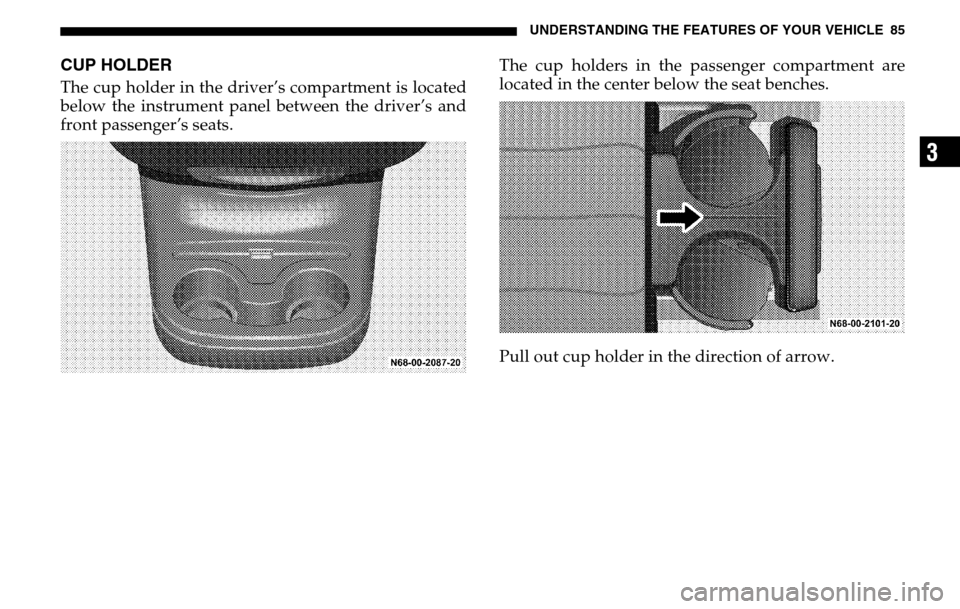

CUP HOLDERThe cup holder in the driver’s compartment is located
below the instrument panel between the driver’s and
front passenger’s seats. The cup holders in the passenger compartment are
located in the center below the seat benches.
Pull out cup holder in the direction of arrow.

86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
GLOVE COMPARTMENTTo open glove compartment:
Pull handle (1)COMPARTMENTS IN FRONT DOORSLocked (1)
Unlocked (2)
WARNING!
Your primary responsibility is to drive the vehicle.Do not use cup holder while the vehicle is in
motion. Otherwise you could be distracted from
traffic and cause an accident or liquid could spill
from the containers due to for example breaking
or other vehicle movement.Place only containers that fit into the cup holder toprevent spills.
Do not fill containers to a height where the
contents could spill, especially hot liquids.
Otherwise you may scald yourself.

UNDERSTANDING YOUR INSTRUMENT PANEL
4
CONTENTS

Instruments and Controls . . . . . . . . . . . . . . . . . . . . 89


Instrument Cluster and Indicator Lamps . . . . . . . 91
Indicator Lamp Symbols . . . . . . . . . . . . . . . . . . . 93
Multi-Function Indicator . . . . . . . . . . . . . . . . . . . 94
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Odometer and Trip Meter . . . . . . . . . . . . . . . . . . 97
Instrument and Display Lighting . . . . . . . . . . . 97
Outside Temperature Display . . . . . . . . . . . . . . 98
Reversing Aid Distance Display (Optional) . . . 99
Tachometer (Engine rpm) . . . . . . . . . . . . . . . . . 101
Coolant Temperature Gauge . . . . . . . . . . . . . . 101
Fuel Gauge with Reserve Fuel Indicator
Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Battery Charge Indicator Lamp . . . . . . . . . . . . 104
Water in Fuel Indicator Lamp . . . . . . . . . . . . . 104
Engine Oil Level Indicator Lamp . . . . . . . . . . . 105
Coolant Level Indicator Lamp . . . . . . . . . . . . . 106
Engine Control Unit Indicator Lamp . . . . . . . 107


Switch Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . 108


ASSYST Maintenance Computer (Optional). . . . 110
Engine Oil Level – Display in Instrument
Cluster (Vehicles with ASSYST Maintenance
Computer only) . . . . . . . . . . . . . . . . . . . . . . . . . 112
Displaying Engine Oil Level with
Engine Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113


Engine Oil Level Indicator in Instrument
Cluster (Vehicles without ASSYST Maintenance
Computer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115


Heating, Ventilation . . . . . . . . . . . . . . . . . . . . . . . . 116
Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Air Recirculation . . . . . . . . . . . . . . . . . . . . . . . . . 117
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
De-Fogging and De-Icing The Front
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Side Air Vents and Center Air Vents . . . . . . . . 120

88 UNDERSTANDING YOUR INSTRUMENT PANEL

Upper Air Vents . . . . . . . . . . . . . . . . . . . . . . . . . 120
Heated Rear Window (Optional) . . . . . . . . . . . 121
Windshield Heater (Optional) . . . . . . . . . . . . . 121
Residual Engine Heat Utilization (REST) . . . . 122


Air Conditioning, Regulated (Optional) . . . . . . 122
Climate Control (on Vehicles with Air
Conditioning) . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Dehumidification
(on Vehicles with Air Conditioning) . . . . . . . . 124
Air Conditioner for the Rear Passenger
Compartment (Optional) . . . . . . . . . . . . . . . . . 125
Air Recirculation . . . . . . . . . . . . . . . . . . . . . . . . 126
Air Strainer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127


Electric Blower (Optional) . . . . . . . . . . . . . . . . . . . 128


Heater Booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129


Auxiliary Heater – Water or Air Heater
(Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Auxiliary Heater Switch . . . . . . . . . . . . . . . . . . 132
Timer Auxiliary Heater . . . . . . . . . . . . . . . . . . . 132
Settings with the Auxiliary Heater
switched on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136


Auxiliary Heat Exchanger in Load
Compartment, only with Auxiliary Heater
(Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137


Auxiliary Heater – Tips for Coping with
Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
