2005 DODGE SPRINTER Owners Manual

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
2
1. Place the key in position 0 or 1 in the ignition lock.
2. Press the switch up (1) to switch off the towing protection.
The indicator lamp (2) is briefly illuminated.
If passenger compartment protection will be switched
off as well, wait until the indicator lamp (2) goes out,
and
3. Press switch (3) downward. The indicator lamp (2) flashes about 10 times.
To activate the setting (towing protection/passenger
compartment protection switched off):
4. Keep the key in locking position in the driver’s door lock for more than 2 seconds or
5. lock the vehicle using the remote keyless entry transmitter.
The towing protection will remain switched off until
the vehicle is locked again with the remote keyless
entry transmitter.
NOTE: The alarm will switch off immediately if the
vehicle is centrally unlocked using the remote keyless
entry transmitter.
Passenger Compartment ProtectionThe passenger compartment protection is ready for
operation 30 seconds after the security system has been
activated. The alarm is tr iggered if movement inside
the vehicle is registered while the security system is
activated.
NOTE: Close the side windows and the glass tilting
roof.
Do not leave any objects (mascots, hangers) on the
interior mirror or on the roof grab handles, as these
could trigger a false alarm.Switching off the Passenger Compartment
ProtectionIf persons or animals remain in the locked vehicle,
switch off the passenger compartment protection to
prevent a false alarm.
1. Place the key in position 0 or 1 in the ignition lock.
2. Press the switch downward (3) to switch off the passenger compartment protection. The indicator
lamp (2) flashes about 10 times.
If towing protection is to be switched off as well, wait
until the indicator lamp (2) goes out, and

26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE3. Press switch up (1).
The indicator lamp (2) is briefly illuminated.
To activate the setting (passenger compartment/
towing protection switched off):
4. Lock the vehicle using the remote keyless entry transmitter.
The passenger compartment protection will remain
switched off until the vehicle is locked again with the
remote keyless entry transmitter.
NOTE: The alarm will switch off immediately if the
vehicle is centrally unlocked using the remote keyless
entry transmitter.
Alarm Pushbutton (Vehicles with Security Systems
only)See Section 4, Understanding Your Instrument Panel,
for switch locations.
Trigger the alarm manually/lock the
vehicle.
The audible and visual alarm can be
triggered manually by using the
alarm pushbutton.
Audible Alarm
The horn sounds until the alarm is switched off.
Visual Alarm
The turn signal lamps flash until the alarm is switched
off.
Trigger the alarm manually and lock the vehicle.
Press the alarm pushbutton upward once.
The indicator lamp flashes in the towing/passenger
compartment protection switch.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
2
The vehicle will be centrally locked if all doors are
closed.
Switching Off the Alarm and Unlocking the Vehicle
Press the alarm pushbutton up one more time.
The vehicle will be centrally unlocked if it was not
centrally locked before the alarm was manually
triggered.
OPENING/CLOSING DOORSFront Doors
WARNING!
Do not leave children unsupervised in the vehicle,
even if they are secured by a child restraint sys-
tem. The children could
 injure themselves on parts of the vehicle
 release the child-proof locks by pressing the central locking button and could thereby open
the doors and
 cause injury to others as a result
 get out of the vehicle and could either injure themselves when doing so or they could be
injured by the traffic approaching from the rear
 suffer serious or fatal effects in the event of long periods of hot weather
 release the parking brake. The vehicle could then start moving of its own accord.Unsupervised use of vehicle equipment may cause
severe personal injuries, death and property damage.

28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
From the Outside
To unlock (1)
To lock (2)
To open the door:
Pull the handle to open the door.
WARNING!
Only drive with the doors properly closed. You
could lose the load, for example, and endanger ve-
hicle occupants or other road users if the doors are
open.
Only open the doors when road and traffic
conditions permit.
Do not leave children alone in the vehicle. They
could open a locked door from the inside despite
the road and traffic conditions, thereby
endangering themselves and others.
To prevent severe personal injuries, always keep
hands and fingers away from the door opening
when closing a door. Be especially careful when
small children are around.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
2
From the Inside
To unlock (1)
To lock (2)
To unlock and open
Pull handle.
To lock:
Press the handle in. All closed doors will be locked.
The door is locked when the white patch in the handle
can be seen. If an open door is detected, refer to
"Central Locking". NOTE:
The driver’s and passenger’s doors cannot be
locked when they are open (lockout protection).
In vehicles without central locking only the respective
door will be locked or unlocked.
Please note anti-theft alarm system: The anti-theft
alarm will be triggered when the doors are manually
unlocked. Cancel alarm by pressing button Œ. The
anti-theft alarm system will not be activated when the
doors are manually locked.
CAUTION!
In case of an accident, rescue from the outside may
be more difficult if the vehicle is locked.
To unlock the vehicle after the engine is started,
refer to
"Central Locking Switch
".

30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLESliding Door
From the Outside
To unlock (1)
To lock (2)
To open the door:
Pull the handle and slide the door back to the stop.
To close the door:
Slide it forwards by the handle until it latches.
WARNING!
Only drive with the doors properly closed. You
could lose the load, for example, and endanger ve-
hicle occupants or other road users if the doors are
open.
To prevent possible personal injury, always keep
hands and fingers away from the door opening
when closing a door. Be especially careful when
small children are around.
Only open the doors when road and traffic
conditions permit.
Do not leave children alone in the vehicle. They
could open a locked door from the inside despite
the road and traffic conditions, thereby
endangering themselves and others.
Do not leave doors open on uphill or downhill
grades. Doors could be released from the door
support and slam shut. If they are not closed
properly, sliding doors can open on their own.
This could result in severe injury. Be especially
careful when small children are around.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2

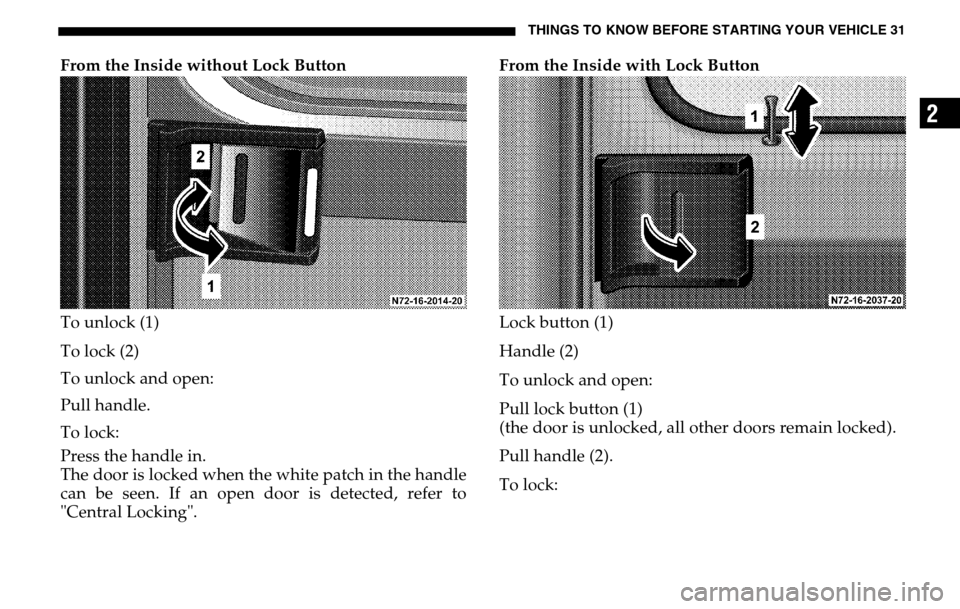

From the Inside without Lock Button
To unlock (1)
To lock (2)
To unlock and open:
Pull handle.
To lock:
Press the handle in.
The door is locked when the white patch in the handle
can be seen. If an open door is detected, refer to
"Central Locking". From the Inside with Lock Button
Lock button (1)
Handle (2)
To unlock and open:
Pull lock button (1)
(the door is unlocked, all other doors remain locked).
Pull handle (2).
To lock:

32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLEPress lock button (1)
(all doors are locked)
If the central locking automatically unlocks again after
having been locked, at least one door is closed
incorrectly.
If it then locks again within about 5 seconds, then all
closed doors are locked.
The central locking displays vehicle locking with one
or more open doors by means of a special function
sequence (locking, unlocking, locking). Once closing
has been completed, an open door will not
automatically be locked.
NOTE: If an open sliding door is locked before being
closed, then only the sliding door will be locked. In vehicles without central locking only the respective
door will be locked or unlocked.
Please note anti-theft alarm system: The anti-theft
alarm will be triggered when the doors are manually
unlocked. Cancel alarm by pressing button
Œ. The
anti-theft alarm system will not be activated when the
doors are manually locked.
CAUTION!
In case of an accident, rescue from the outside may
be more difficult if the vehicle is locked.
To unlock the vehicle after the engine is started,
refer to
"Central Locking Switch
".
