2005 DODGE SPRINTER Owners Manual

MAINTAINING YOUR VEHICLE 249
7
Side and Parking Lamps
1. Pull out the bulb holder with the bulb.
2. Replace the bulb.
3. Insert the bulb holder.
4. Secure the housing cap. High Beam Headlamp
1. Unplug the cable connector from the bulb.
2. Press the retaining spring towards the headlamps
and outwards (direction of arrow).
3. Remove the bulb.
4. Insert the new bulb so that the retaining lugs are fed into the recesses in the reflector section of the bulb holder.5. Clip in the retaining springs.
6. Press on the cable connector.
7. Secure the housing cap.

250 MAINTAINING YOUR VEHICLETaillampsCargo/Passenger Van
1. Locked
2. Unlocked
Bulbs are changed from inside the cargo area.
The rear lamp cluster bulb holder is located behind the
interior paneling. Remove the paneling. (1) Brake lamp, taillamp, standing lamp,
P21/5W – 12V 21/5W
(2) Backup lamp, P21W – 12V 21W
(3) Turn signal lamp, P21W – 12V 21W
(4) Side-marker lamp, R5W – 12V 5W 1. Unclip and remove the bulb socket.
2. To change a bulb, press the bulb into the bulb socket, turn it counterclockwise and remove.
3. Insert the new bulb.
4. Clip the bulb socket into place.

MAINTAINING YOUR VEHICLE 251
7
Chassis
(1) Retaining screws
(2) Clearance lamp, R5W - 12V 5W
(3) Turn signal lamp, P21W - 12V 21W
(4) Stop lamp, P21W - 12V 21W
(5) Taillamp, R5W - 12V 5W
(6) Backup lamp, P21W - 12V 21W
(7) License plate lamp (driver‘s side only), R5W - 12V 5W 1. Loosen retaining screw a and remove lamp
housing.
2. To change a bulb, press the bulb into the bulb socket, turn it counterclockwise and remove.
3. Insert the new bulb.
4. Install lamp housing.

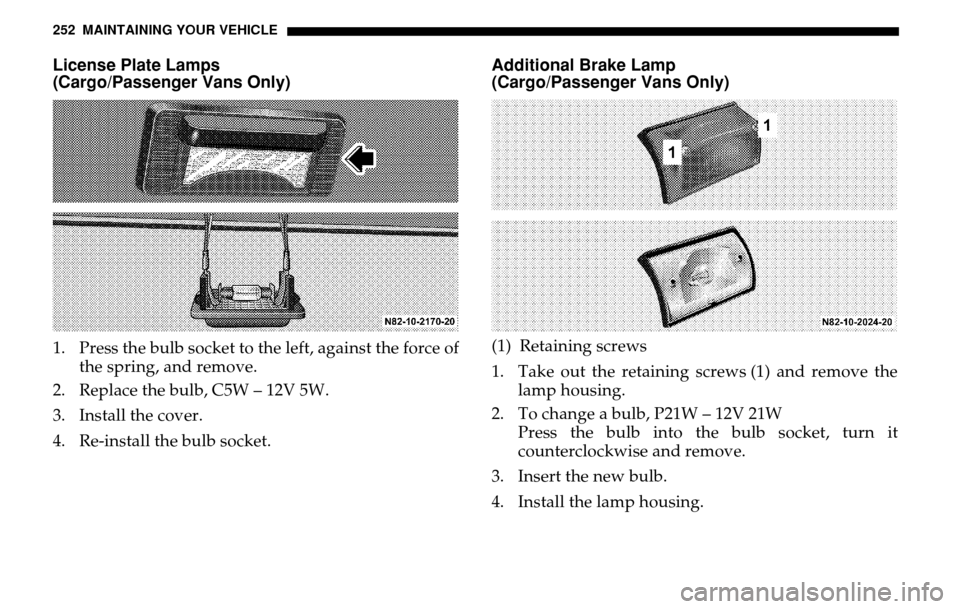

252 MAINTAINING YOUR VEHICLELicense Plate Lamps
(Cargo/Passenger Vans Only)1. Press the bulb socket to the left, against the force of the spring, and remove.
2. Replace the bulb, C5W – 12V 5W.
3. Install the cover.
4. Re-install the bulb socket.
Additional Brake Lamp
(Cargo/Passenger Vans Only)(1) Retaining screws
1. Take out the retaining screws (1) and remove the lamp housing.
2. To change a bulb, P21W – 12V 21W Press the bulb into the bulb socket, turn it
counterclockwise and remove.
3. Insert the new bulb.
4. Install the lamp housing.

MAINTAINING YOUR VEHICLE 253
7
Side-Mounted Turn Signals1. Press the lamp housing to the front, against the force of the spring, and remove.
2. Replace the bulb, W5W - 12V 5W
3. Install the bulb socket.
Side-Marker Lamps,
Standing Lamps (Optional)Retaining screws (1) Bulb socket (2)
1. Take out the retaining screws (1) and remove the lamp housing.
2. Turn the bulb socket (2) counterclockwise and remove.
3. Replace the bulb, W3W – 12V 3W.
4. Install the bulb socket (2).

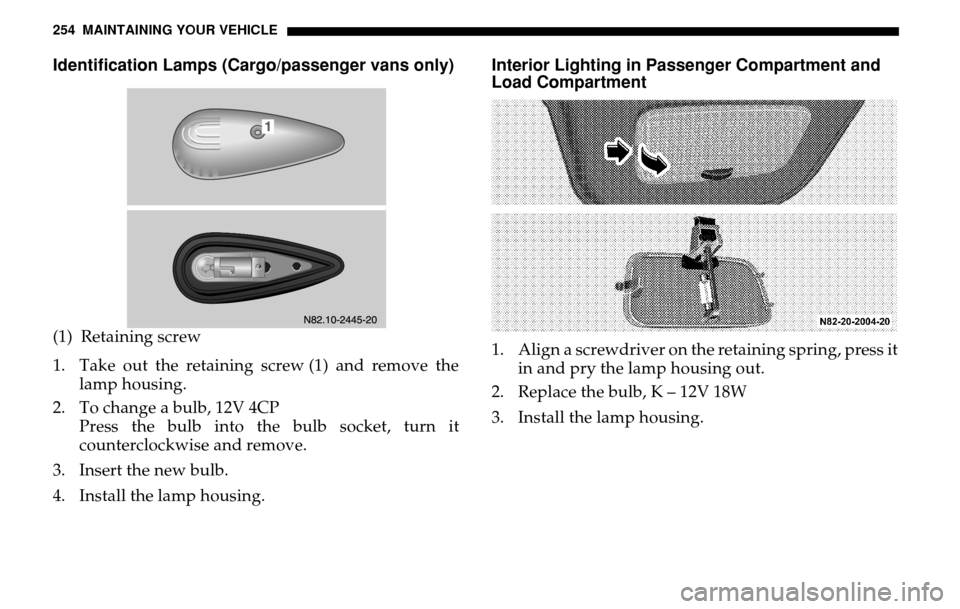

254 MAINTAINING YOUR VEHICLEIdentification Lamps (Cargo/passenger vans only)(1) Retaining screw
1. Take out the retaining screw (1) and remove the lamp housing.
2. To change a bulb, 12V 4CP Press the bulb into the bulb socket, turn it
counterclockwise and remove.
3. Insert the new bulb.
4. Install the lamp housing.
Interior Lighting in Passenger Compartment and
Load Compartment1. Align a screwdriver on the retaining spring, press it in and pry the lamp housing out.
2. Replace the bulb, K – 12V 18W
3. Install the lamp housing.

MAINTAINING YOUR VEHICLE 255
7
Interior Lighting with Reading Lamp1. Use a screwdriver on the catch spring to press in and remove the bulb housing.
2. Replace the bulb, K – 12V 10W.
3. Install the lamp housing.
Interior Lighting with Interior Sensor Protection1. Use a screwdriver on the catch spring, remove the bulb housing.
2. Turn the bulb holder with the bulb in the direction of the arrow and remove it.
3. Replace the bulb holder and bulb, K – 12V 6W
4. Install the lamp housing.

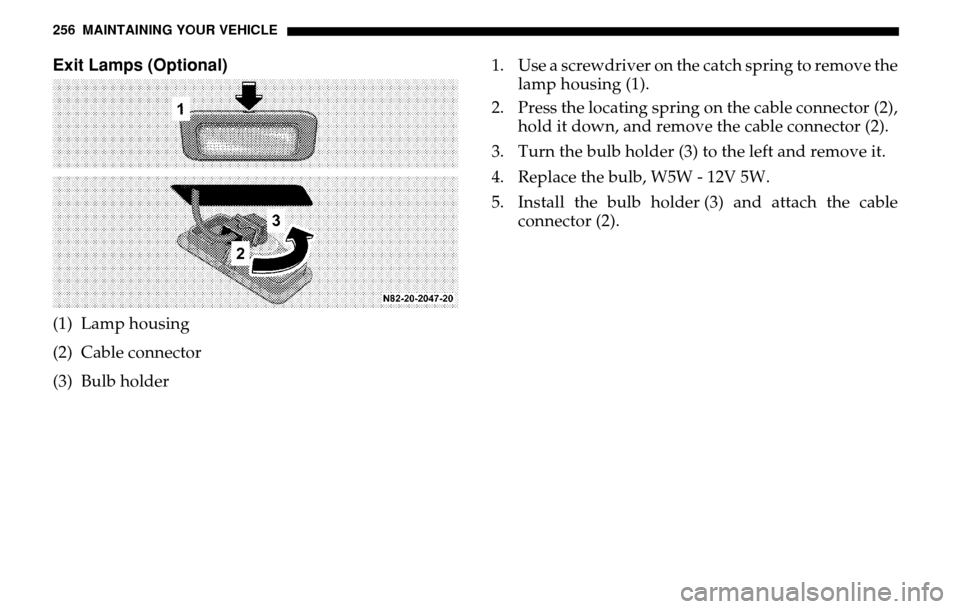

256 MAINTAINING YOUR VEHICLEExit Lamps (Optional)(1) Lamp housing
(2) Cable connector
(3) Bulb holder 1. Use a screwdriver on the catch spring to remove the
lamp housing (1).
2. Press the locating spring on the cable connector (2), hold it down, and remove the cable connector (2).
3. Turn the bulb holder (3) to the left and remove it.
4. Replace the bulb, W5W - 12V 5W.
5. Install the bulb holder (3) and attach the cable connector (2).
