2005 DODGE SPRINTER Owners Manual

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
2
Rear Cargo Doors
From the Outside
To unlock (1)
To lock (2)
To open the door:
Pull the handle to open the door.
WARNING!
Only drive with the doors properly closed. You
could lose the load, for example, and endanger ve-
hicle occupants or other road users if the doors are
open.
To prevent possible personal injury, always keep
hands and fingers away from the door opening
when closing a door. Be especially careful when
small children are around.
Only open the doors when road and traffic
conditions permit.
Do not leave children alone in the vehicle. They
could open a locked door from the inside despite
the road and traffic conditions, thereby
endangering themselves and others.
When the rear cargo doors are opened to an angle
of 90
°
° °
° (catch position), more than 50% of the rear
lamps are concealed. When the door is open in this
manner, you should warn others in accordance
with legal requirements.

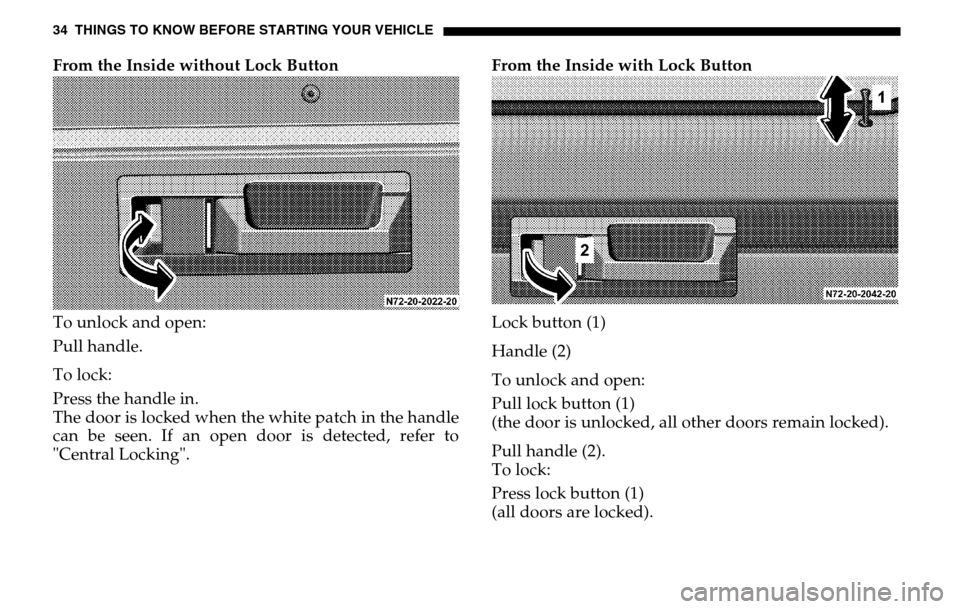

34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLEFrom the Inside without Lock Button
To unlock and open:
Pull handle.
To lock:
Press the handle in.
The door is locked when the white patch in the handle
can be seen. If an open door is detected, refer to
"Central Locking". From the Inside with Lock Button
Lock button (1)
Handle (2)
To unlock and open:
Pull lock button (1)
(the door is unlocked, all other doors remain locked).
Pull handle (2).
To lock:
Press lock button (1)
(all doors are locked).

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
2
If the central locking automatically unlocks again after
having been locked, at least one door is closed
incorrectly.
If it then locks again within about 5 seconds, then all
closed doors are locked.
The central locking displays vehicle locking with one
or more open doors by means of a special function
sequence (locking, unlocking, locking). Once closing
has been completed, an open door will not
automatically be locked.
NOTE: In vehicles without central locking only the
respective door will be locked or unlocked. Opening Left-Hand Door
To open:
Move the handle up.
To close:
Close the door until it engages.

36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLETo lock manually:
Move the handle down until it is in the vertical
position.
Automatic locking:
If the left-hand door is closed, it will be automatically
locked as soon as the right-hand door has been closed.
NOTE: If an open tailgate is locked before being
closed, then only the tailgate will be locked.
Please note anti-theft alarm system: The anti-theft
alarm system will be triggered when the doors are
manually unlocked. Cancel alarm by pressing
button Œ. The anti-theft alarm system will not be
activated when the doors are manually locked. Opening Angle 270°
To open:
Unhinge the door check strap.
Open the door 270° and press the door stay against the
outer sidewalls. The doors will be kept in this position
by retaining plates.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
2
To close:
Pull the doors away from the retaining plates on the
outer sidewalls.
Passenger/Cargo Area DoorNOTE: The maximum cargo area door height is 5 feet
7 inches (176 cm).
WARNING!
Always drive with the doors properly closed, be-
cause if the vehicle is operated with the doors
open, serious personal injury may result.
To prevent possible personal injury, always keep
hands and fingers away from the door opening
when closing a door. Be especially careful when
small children are around.

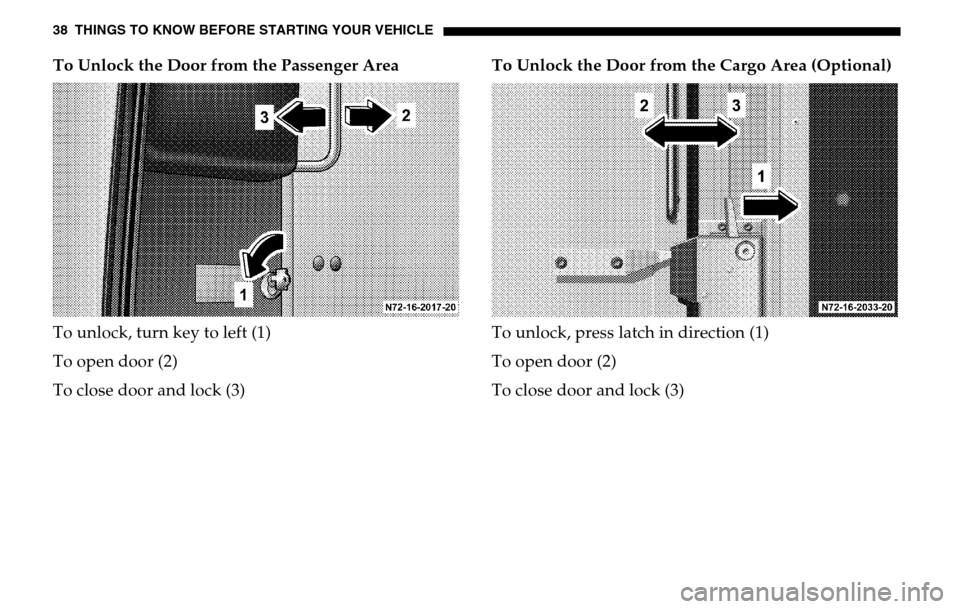

38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLETo Unlock the Door from the Passenger Area
To unlock, turn key to left (1)
To open door (2)
To close door and lock (3) To Unlock the Door from the Cargo Area (Optional)
To unlock, press latch in direction (1)
To open door (2)
To close door and lock (3)

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39
2
OCCUPANT RESTRAINTSSeat belts, belt tensioners, airbag and child restraint
systems are independent restraint systems whose
functions complement each other.
All states and provinces require use of child restraints
that comply with U.S. Federal Motor Vehicle Safety
Standard 213 and Canadian Motor Vehicle Safety
Standard 213.
All child restraint systems are designed to be secured
in vehicle seats by lap belts or the lap belt portion of a
lap-shoulder belt.
For your safety and that of your passengers, you must
use the seat belts and child restraint systems and use
them properly. We strongly recommend their use.
WARNING!
In a collision, you and your passengers can suffer
injuries, including fatalities, if you are not proper-
ly buckled up. You can strike the interior of your
vehicle or other passengers, or you can be thrown
out of the vehicle. Always be sure you and others
in your vehicle are buckled up properly.
WARNING!
Do not modify the components or electrical wir-
ing of the restraint systems. This includes the in-
stallation of additional trim material, badges etc.
over the steering wheel hub, or front door trim
panels, and installation of additional electrical/
electronic equipment on or near restraint system
components and wiring.
Any work on the restraint systems should only be
carried out by an authorized Sprinter Dealer.
Unprofessional work can lead to the restraint
systems triggering incorrectly or failing.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced and their
anchoring points must also be checked. Use only
belts installed or supplied by an authorized
Sprinter Dealer.
Do not pass belts over sharp edges.
Do not make any modification that could change
the effectiveness of the belts.

40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING!
Airbag and belt tensioners are designed to func-
tion on a one-time-only basis. An airbag or belt
tensioner that was activated must be replaced.
An airbag system component integrated in the
steering wheel gets hot after the airbag has
inflated. Do not touch.
No modifications of any kind may be made to any
components or wiring of the restraint system.
Keep area between airbag and occupants free of
objects (e.g. packages, purses, umbrellas, etc.).
In addition, through improper work there is the
risk of rendering the restraint system inoperative.
Work on the restraint system must therefore only
be performed by an authorized Sprinter Dealer.
WARNING!
When discarding of the airbag unit or emergency
tensioning retractor, you must follow our safety
instructions. These instructions are available at
your Sprinter Dealer.Given the considerable deployment speed and the
textile structure of the airbag, there is the possibility
of injuries and even death resulting from being
positioned too close to the airbag when it deploys.
Do not seat children less than 5 feet tall or 12 years
and under in the front. The back seat is the safest
place for children. If the vehicle is not equipped with
a back seat, children less than 5 feet tall or 12 years
and under must never ride in this vehicle. Never place
an infant seat on the front passenger seat.Children less than 5 feet tall or 12 years and under
require a special restraint system for protection in
the event of an accident as they may be too small
to wear seat belts properly.
