2005 DODGE SPRINTER Owners Manual

UNDERSTANDING YOUR INSTRUMENT PANEL 105
4
NOTE: Should the water in fuel indicator lamp
still not go out after the fuel filter has been drained, the
cause should be examined by an authorized Sprinter
Dealer.
If the indicator lamp does not light up for about
2 seconds with the key in the ignition lock in position 2,
there is a malfunction in the water separator system.
Have the cause rectified by an authorized Sprinter
Dealer.
Engine Oil Level Indicator LampThe engine oil level indicator lamp : lights up in
the instrument cluster when the key is turned to
position 2 in the ignition lock. It must go out when the
engine is running.

106 UNDERSTANDING YOUR INSTRUMENT PANELIf the engine oil level indicator lamp: does not go
out, or if it lights up again while the vehicle is moving,
the engine oil level has dropped to a point close to the
minimum level mark on the dipstick.
The indicator lamp : lights up only briefly at first,
becoming permanent as the oil level drops further.
Stop the engine immediately and check the engine oil
level. If no obvious leak is visible, correct the oil level.
If the engine oil level indicator lamp : lights up,
even if the engine oil level is sufficient, have the cause
traced and rectified by an authorized Sprinter Dealer.
For approved engine oils, please contact your
authorized Sprinter Dealer.
Coolant Level Indicator LampWhen the key is turned to position 2 in the ignition
lock, the coolant level indicator lamp / in the
instrument cluster lights up for about 2 seconds. It
must go out when the engine is running.
If the coolant level indicator lamp / remains on or
lights up again when the engine is running, the coolant
level is too low.
Do not drive on. Switch the engine off and add coolant.

UNDERSTANDING YOUR INSTRUMENT PANEL 107
4
If a large quantity of coolant is being lost, or if smaller
amounts are lost at regular intervals, have the engine
cooling system examined by an authorized Sprinter
Dealer.
Engine Control Unit Indicator LampWhen the key is in position 2 in the ignition lock, the
engine control unit indicator lamp ± will light up in
the instrument cluster. It must go out when the engine
is running.If the engine control unit indicator lamp
±
remains on
or lights up again while the vehicle is moving, the fuel tank
was run empty or a fault has developed in the engine
control unit. The engine’s power output may be reduced.
Refuel and bleed the fuel system or have the cause
traced and rectified by an authorized Sprinter Dealer.
CAUTION!
Never run the engine if the coolant level is too
low. This could cause the engine to overheat,
leading in turn to engine damage.
WARNING!
Driving when your engine is badly overheated
can cause some fluids which may have leaked into
the engine compartment to catch fire. You could
be seriously burned. Steam from an overheated
engine can cause serious burns and can occur just
by opening the engine hood. Stay away from the
engine if you see or hear steam coming from it.
Turn off the engine, get out of the vehicle and do
not stand near the vehicle until it cool downs.

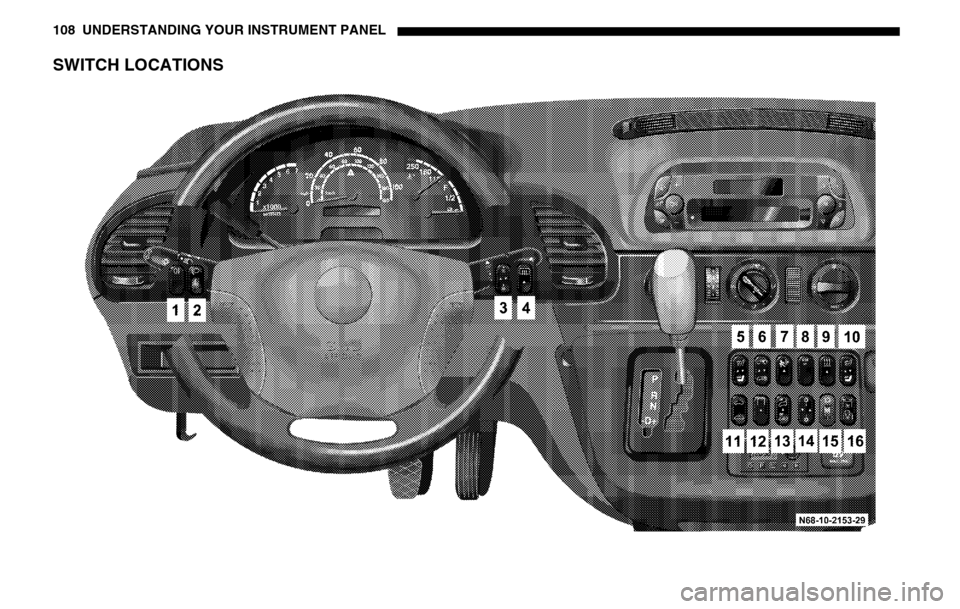

108 UNDERSTANDING YOUR INSTRUMENT PANELSWITCH LOCATIONS

UNDERSTANDING YOUR INSTRUMENT PANEL 109
4
Legend for Switch Locations
1. Fog lamp switch (Optional), refer to "Fog Lamp Switch".
2. Headlamp range control, refer to "Headlamp Range Control".
3. Auxiliary heat exchanger switch (Optional) .
4. Heated rear window (Optional) .
5. Left-hand seat heater switch (Optional) .
6. Central locking switch with load compartment lock (Optional) .
7. Alarm pushbutton .
8. Deactivate Acceleration skid control (ASR) switch . 9. Switch for auxiliary heater (Optional)
10. Right-hand seat heater switch (Optional),
11. Sun roof operation switch (Optional)
.
12. Interior cargo area lighting (Optional), refer to "Interior Cargo Area Lighting".
13. Towing/passenger compartment protection switch (Optional) .
14. Airflow switch for the air conditioner for rear passenger compartment (Optional) .
15. Temperature control (Optional) .
16. Electric blower switch (Optional) .
17. Windshield heater switch (Optional).
18. Constant RPM switch (Optional).

110 UNDERSTANDING YOUR INSTRUMENT PANELASSYST MAINTENANCE COMPUTER (OPTIONAL)Function button (‘) (1)
Approximately one month or 2,000 miles (3,000 km)
before a service is due, the maintenance symbol or
lights up when the key is turned to position 2 in the
ignition lock.If the remaining time (in days) is shown, the additional
symbol
È
also appears in the multi-function indicator.
If additional maintenance operations are due, the
maintenance indicator or
lights up when the key is turned to position 2 in the
ignition lock.
For additional maintenance operations, see Sprinter
Service Booklet.
If a service deadline is exceeded, the display will flash
with a minus sign in front when the key is turned to
position 2 in the ignition lock.
The display will be cancelled when the
button ( ‘) is pressed, or automatically after
10 seconds.
The remaining time or remaining distance can also be
called up manually.
To manually call up the remaining time/distance:
Activate the multi-function indicator, refer to "Multi-
Function Indicator".
Briefly press the button ( ‘) twice.
Symb
N00.00-2387-00
Symb
N00.00-2156-00
Symb
N00.00-2388-00
Symb
N00.00-2157-00

UNDERSTANDING YOUR INSTRUMENT PANEL 111
4
Depending on the driving style, the mileage covered
and the operating conditions, the next service due is
displayed either as a remaining distance in "mi"
(in km) or as a remaining time in "days". The length of
time between services should not exceed 2 years.
The display will be cancelled when the
button ( ‘) is pressed, or automatically after
10 seconds.
When a service has been performed, have the ASSYST
maintenance computer reset by an authorized Sprinter
Dealer.
Should your Sprinter for any reason not be serviced by
an authorized Sprinter Dealer, the ASSYST
maintenance computer can, in exceptional
circumstances, be reset as follows:
Turn the key to position 2 in the ignition lock and
immediately press the button ( ‘) twice.
Within 10 seconds, return the key to position 0 in the
ignition lock.
Press and hold the button ( ‘). Turn the key to
position 2 in the ignition lock. Keep the
button ( ‘) pressed. The maintenance indicator with the current remaining
time/distance is shown.
After about 10 seconds, an acoustic signal will sound
and the maintenance indicator is displayed with the
new remaining time/distance.
Release the button (
‘).
NOTE:
The ASSYST maintenance computer provides
information on the optimum maintenance requirements.
If maintenance intervals are not observed, resulting
damage will not be covered by Warranty.
The ASSYST maintenance computer is not an engine
oil gauge.
Engine oil level – for display in instrument cluster, see
next page.
If the engine oil level indicator lamp lights up, refer to
"Engine Oil Level Indicator Lamp".
If the battery is disconnected, the time is not recorded
by the ASSYST maintenance computer. Such periods
must be considered if maintenance intervals are
measured by time.

112 UNDERSTANDING YOUR INSTRUMENT PANELEngine Oil Level – Display in Instrument Cluster
(Vehicles with ASSYST Maintenance Computer only)If the : indicator lamp lights up briefly when the
engine is running, the engine oil level has dropped to
the minimum mark. Check the engine oil level without
delay and add oil to the upper mark on the dipstick. If no engine oil is added and the engine oil level drops
further, a warning buzzer will also sound and
will appear in the multi-function indicator. 2.0 quarts
(about 1.9 liters) of oil must be added.
NOTE:
Engine oil level display
– "qt" in USA only.
– "l" in Canada only.
CAUTION!
If the : indicator lamp lights up, the warning
symbol in the multi-function indicator appears
and the warning buzzer sounds, the operating
safety of the engine is endangered (possibility of
engine damage).
A sudden decrease or absence of oil pressure may
indicate a mechanical failure. Bring the vehicle to
a safe stop, and investigate the cause to prevent
further damage. Do not operate the engine until
the cause has been determined and corrected.
Symb
N00.00-2384-00
qt
