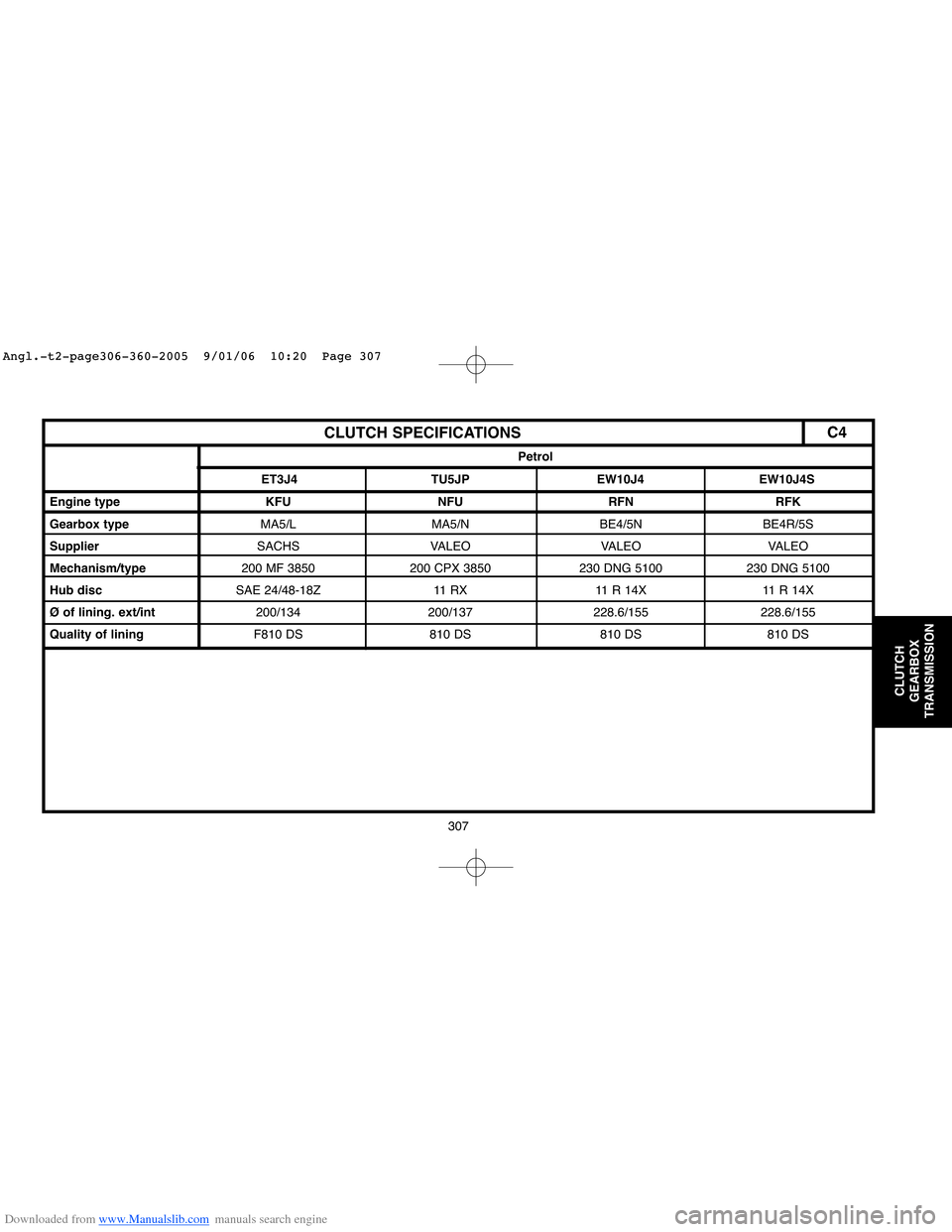

CLUTCH
GEARBOX
TRANSMISSION
CLUTCH SPECIFICATIONS
Engine type KFU NFU RFN RFK
Gearbox type MA5/L MA5/N BE4/5N BE4R/5S
SupplierSACHS VALEO VALEO VALEO
Mechanism/type200 MF 3850 200 CPX 3850 230 DNG 5100 230 DNG 5100
Hub discSAE 24/48-18Z 11 RX 11 R 14X 11 R 14X
Ø of lining. ext/int200/134 200/137 228.6/155 228.6/155
Quality of liningF810 DS 810 DS 810 DS 810 DS
ET3J4 TU5JP EW10J4 EW10J4S
Petrol
C4
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 307

Downloaded from www.Manualslib.com manuals search engine 308
CLUTCH
GEARBOX
TRANSMISSION
CLUTCH SPECIFICATIONS
Engine type 9HY (*) 9HZ (*) 9HX RHR (**)
Gearbox type BE4/5L ML6C
SupplierLUK
Mechanism/type235 P 4800 235 P 7400
Hub disc
Ø of lining. ext/int234/165 235/150
Quality of lining810 DS
NOTE: (*) DVAR: Equipped with a Double Damping Flywheel with springs in the radial position in relation to the axis of the crankshaft.
NOTE: (**) DVA: Equipped with a Double Damping Flywheel with springs arranged concentrically.
DV6TED4 DV6ATED4 DW10BTED4
Diesel
C4
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 308

Downloaded from www.Manualslib.com manuals search engine CLUTCH
GEARBOX
TRANSMISSION
309
CLUTCH SPECIFICATIONS
Engine type KFW NFU RFN
Gearbox type MA/5 MA/5 BE4/5
SupplierVALEO
Mechanism/type180CPO 3400 200 CPR 3800 230 DNG 4700
Hub disc180 XJF 73 C 200X(D95) 11A12X 230 DNG 4700
Ø of lining. ext/int180/127 200/137 228/155
Quality of liningF 408 F 808
TU3JP TU5JP4 EW10J4
XSARA
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 309

Downloaded from www.Manualslib.com manuals search engine 310
CLUTCH
GEARBOX
TRANSMISSION
CLUTCH SPECIFICATIONS
Engine type 8HX 8HZ WJY RHY RHZ
Gearbox type BE4/5
SupplierLUK
Mechanism/type200 P 4200 200 P 3700 230 P 4700 235 T 5700
Hub disc215 F (D 93) 22 BX 228 228D
Ø of lining. ext/int200/134 200/134 230/155 235/155
Quality of liningF 408 F202
DV4TD DW8B DW10TD DW10ATED
XSARA
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 310

Downloaded from www.Manualslib.com manuals search engine 311
CLUTCH
GEARBOX
TRANSMISSION
CLUTCH SPECIFICATIONS
Engine type NFV 6FZ RFN 9HY 9HZ RHY
Gearbox type BE4/5
SupplierVALEO LUK
Mechanism/type200 DNG 3800 230 DNG 4700 215 DT 5250 225 DNG 5100 230 P 4700
Hub disc200X(D95)
230 DNG 4700 215 FD 95 228
11A12X
Ø of lining. ext/int200/137 228/155 215/147 225/150 230/155
Quality of liningF410 F 808 F 810 DS F408
TU5JP+ EW7J4 EW10J4 DV6TED4 DW10TD
XSARA PICASSO
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 311

Downloaded from www.Manualslib.com manuals search engine 312
CLUTCH
GEARBOX
TRANSMISSION
MA MANUAL GEARBOX SPECIFICATIONS
Vehicle Engine Gearbox type Sequence Torque ratio Drive ratio
C4ET3J4 MA/5L 20 CQ 15 13x59 21x18
TU5JP4 MA/5N 20 CQ 16 13x61 None
TU3JP MA/5L20 CP 44 16x65
XSARA20 CP 52 14x60
21x18
TU5JP4MA/5N 20 CP 51 16x65
MA/5L 20 CP 52 14x60
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 312

Downloaded from www.Manualslib.com manuals search engine 313
CLUTCH
GEARBOX
TRANSMISSION
BE4/5 MANUAL GEARBOX SPECIFICATIONS
Vehicle Engine Gearbox type Sequence Torque ratio Drive ratio
TU5JP4
BE4/5N20 DM 81 15x74 21x18
EW10A/J420 DM 71 17x81
C4BE4R/5S 20 DM 74 19x77
EW10J4S BE4/5L 20 DM 68 17x73 None
DV6TED4 BE4R/5L 20 DM 69 19x72
DV6ATED4 MA/5L 20 DM 75 19x72
EW10J4BE4/5J 20 DM 03 19x72
BE4/5N 20 DM 04 17x77
DV4TD BE4/5L20 DM 53
19x75
20 DM 54
XSARA
DW8B BE4/5N20 DM 05 19x75 22x19
20 DM 06 17x77
DW10TD BE4/5L20 DM 07 19x70
20 DM 08 17x77
DW10ATEDBE4/5 20 DM 10
17x61
BE4/5L 20 DM 11
TU5JP+ BE4/5J 20 DM 64 17x73
XSARA EW7J4 BE4/5V 20 DL 69 19x77
22x18
PICASSO DV6TED4
BE4/5L20 DM 62 19x70
DW10TD 20 DM 56 15x64
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 313

Downloaded from www.Manualslib.com manuals search engine 314
CLUTCH
GEARBOX
TRANSMISSION
ML6/AL4 GEARBOX SPECIFICATIONS
Vehicle Engine Gearbox type Sequence Torque ratio Drive ratio
Type ML6
C4 DW10BTED4 ML6C 20 MB 01 17x67 None
Type AL4
C4TU5JP4 AL4 20 TS 12 20x73
EW10A AL4 20 TS 11 21x73
TU5JP4 AL4 20 TP 97 21x73
XSARA EW10J4 AL4 20 TP 89 23x73 None
DW10ATED AL4 20 TP 90 27x70
XSARA
PICASSOEW10J4 AL4 20 TS 02 23x73
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 314
