ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engines: KFW - NFV
Pre-tensioning the timing belt (continued).
Make sure of the timing setting by refitting the pegs [1]and [2].
Remove the valve cover.
Position the tool [5]
(respect the direction of fitting relative to the valve timing).
Adjusting the belt tension.
Place tool [4]on the tensioned part of the belt.
Slacken the nut (2).
Detension the belt, but too much.
Tension the timing belt to obtain a value of: 31 ± 2 SEEMunits.
Tighten the nut (2)to 2 m.daN.
Remove tools [1], [2], [4] and [5].
Checking the belt tension.
Rotate the crankshaft 2 turnsin the normal direction of rotation.
Check that it is still possible to peg the following components.
Flywheel.
Camshaft.
IMPERATIVE: Repeat the belt tensioning operation if the pegging is not possible.
XSARA - XSARA PICASSO
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 187

Downloaded from www.Manualslib.com manuals search engine 188
ENGINECHECKING THE VALVE TIMING
Engine: KFU
Tools.
[1] Flywheel setting peg: 4507-TA. Toolkit 4507-T
[2] Camshaft setting peg: 4533-TA.C1
[3] Camshaft setting peg: (-).0194.A
IMPERATIVE: Respect the safety and cleanliness requirements.
Checking.
Deconnect the battery.
Remove:
- The engine cover.
- The upper timing cover (1).
- The oil filter (2).
Remove the sparking plugs to facilitate rotation of the engine.
Turn the engine by means of the crankshaft screw.
IMPERATIVE: Never turn the engine backwards.
Suspend the engine.
Remove:
- The screws (3), the upper RH engine support (4)and the screws (5).
B1BP37JC
B1BP37KC
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 188

Downloaded from www.Manualslib.com manuals search engine 189
ENGINE
CHECKING THE VALVE TIMING
Engine: KFU
Checking (continued).
Position the tools [3]and [2].
Peg the flywheel, using tool [1].
NOTE:If the setting is not correct, recommence the operation.
Remove the tools.
Complete the refitting.
B1BP2ZMC
B1BP2MBC
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 189

Downloaded from www.Manualslib.com manuals search engine 190

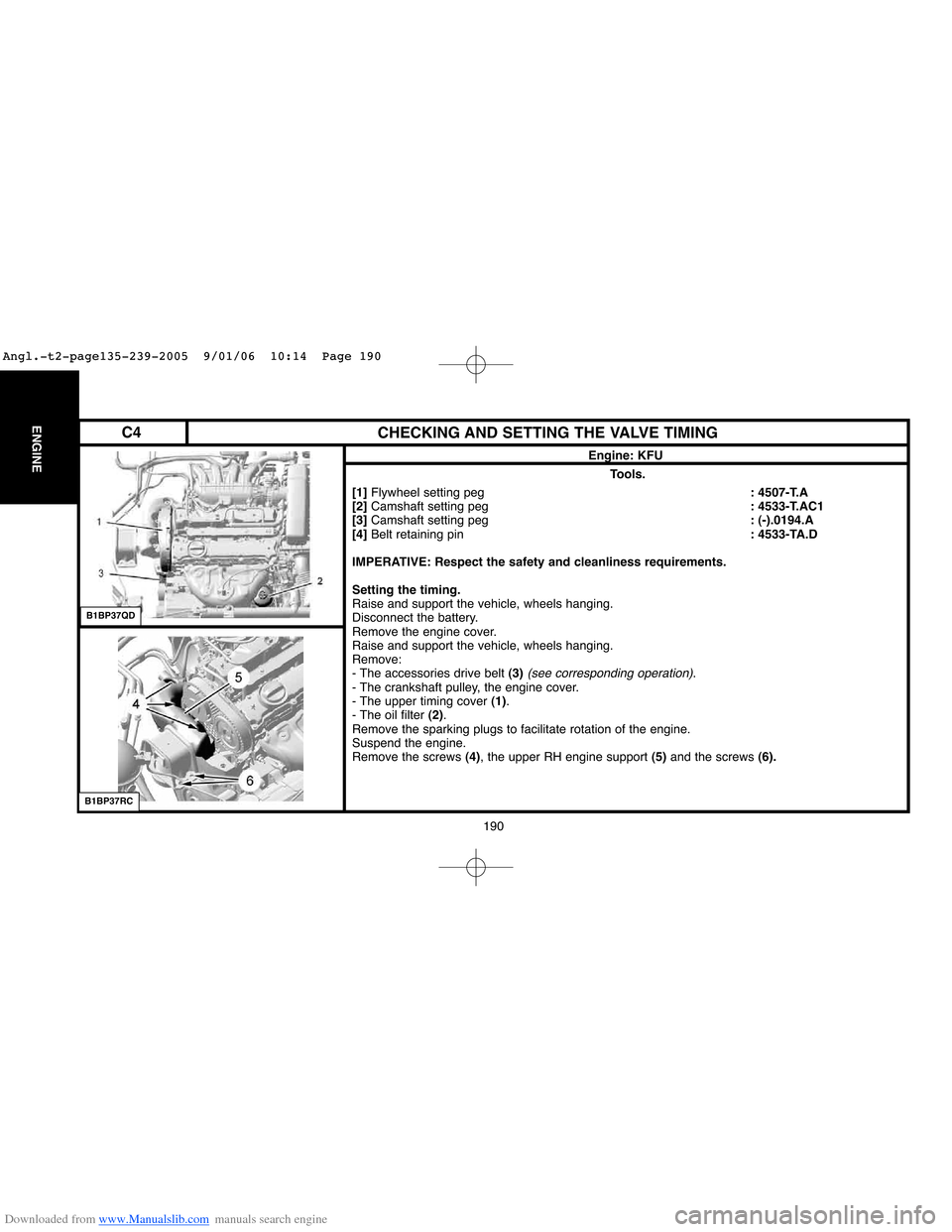

ENGINECHECKING AND SETTING THE VALVE TIMING
