CLUTCH
GEARBOX
TRANSMISSION
TIGHTENING TORQUES: AL4 AUTOMATIC GEARBOX
Engines: NFU - RFJ
B2CP3EDD
B2CP3X7D
Tightening torques (m.daN).
(1) Fixing of the electrovalve for modulation of the flow
of oil into the exchanger (EPDE): 1 ± 0,2
(2)Heat exchanger fixing: 5 ± 1
(3) Output speed sensor fixing
(4)Output speed sensor fixing: 1 ± 0,2
(5)Oil overflow and drain fixing(X = 48 mm)
: 0,9 ± 0,2
(6)Oil level plug: 3,3 ± 0,5
(7)Oil pressure sensor fixing: 0,8 ± 0,1
C4 - XSARA - XSARA PICASSO
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 347

Downloaded from www.Manualslib.com manuals search engine 348
CLUTCH
GEARBOX
TRANSMISSION
C4 - XSARA - XSARA PICASSOTIGHTENING TORQUES: AL4 AUTOMATIC GEARBOX
Engines: NFU - RFJ
B2CP3EED
B2CP3X8C
Tightening torques (m.daN).
(8) Fixing of converter on diaphragm
Pre-tightening: 1 ± 0,1
Tightening: 3 ± 0,3
(9)Plug fixing: 0,8 ± 0,2
(10)Gearbox fixing on engine: 5,2 ± 1
Hydraulic block fixing.
Centre the hydraulic block, using screws (11) and (12)
Pre-tighten
(no strict order): 0,9
Slacken: All 7 screws
Tighten
(respect the order indicated): 0,75
NOTE: The screw (11)is shouldered.
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 348

Downloaded from www.Manualslib.com manuals search engine 349
CLUTCH
GEARBOX
TRANSMISSION
Engines: NFU - RFJ
B2CP3EGC
(13)Fixing of selector lever position switch: 1,5 ± 0,2
(14)Oil filler plug: 2,4 ± 0,4
TIGHTENING TORQUES: AL4 AUTOMATIC GEARBOXC4 - XSARA - XSARA PICASSO
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 349

Downloaded from www.Manualslib.com manuals search engine 350
CLUTCH
GEARBOX
TRANSMISSION
AL4 GEARBOX CONTROLS
Engines: NFU - RFJ
B2CP3H8C
Gearbox end.
The automatic gearbox is controlled by a cable.
«c»Push-button
(1)Control lever with ball-joint
(2)Automatic adjustment
Pull out the button to adjust the control.
Push it in to lock the adjustment of the control.
(3)Sleeve stop
(4) Selection control locking clip (5)on the sleeve stop (3)
C4
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 350

Downloaded from www.Manualslib.com manuals search engine 351
CLUTCH
GEARBOX
TRANSMISSION
RECOMMENDATIONS/PRECAUTIONS: AL4 AUTOMATIC GEARBOX (SHIFT LOCK)
Engines: NFU - RFJ
C5FP0NZC
C5FP0P0C
SHIFT LOCK.
The «shift lock»is a system that locks the gear selection lever in position «P».
Unlocking the «SHIFT LOCK»
(normal operation).Switch on the ignition.
Press the brake pedal and keep it pressed.
Move the gear selection lever out of position «P».
Unlocking the «SHIFT LOCK»
(with an operating fault).
NOTE:It is impossible to unlock the «shift lock»with the «Normal operation»
method.
The fault may originate from one of the following components:
- «Shift lock».
- Gear lever position switch.
- Automatic gearbox ECU.
- Electrical harnesses.
- Battery voltage.
Remove:
- The gear lever cover (1)
(pull upwards).
- Unlock the «shift lock»by pressing at “a”with the aid of a screwdriver.
- Move the gear selection lever out of position «P».
C4
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 351

Downloaded from www.Manualslib.com manuals search engine 352
CLUTCH
GEARBOX
TRANSMISSION

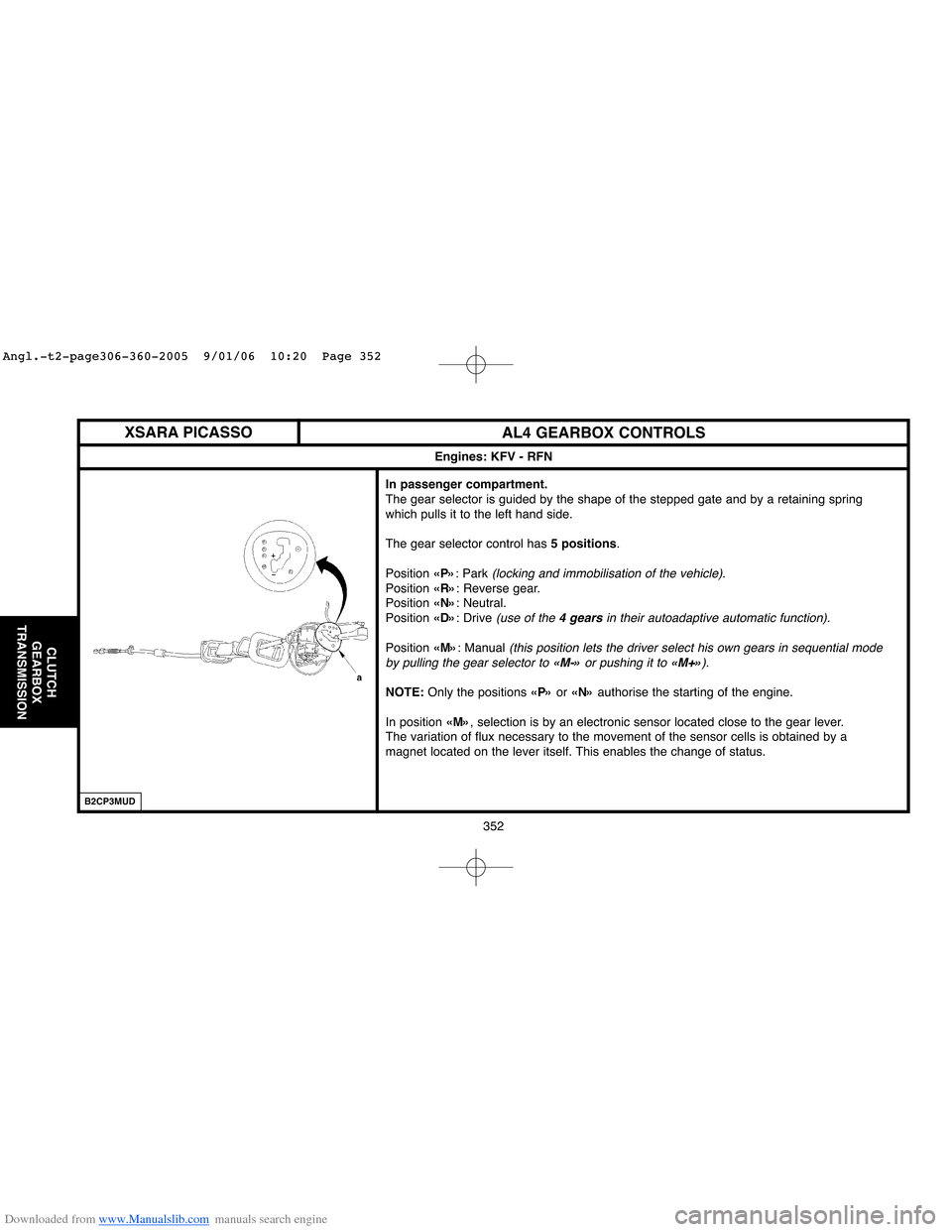

AL4 GEARBOX CONTROLS
