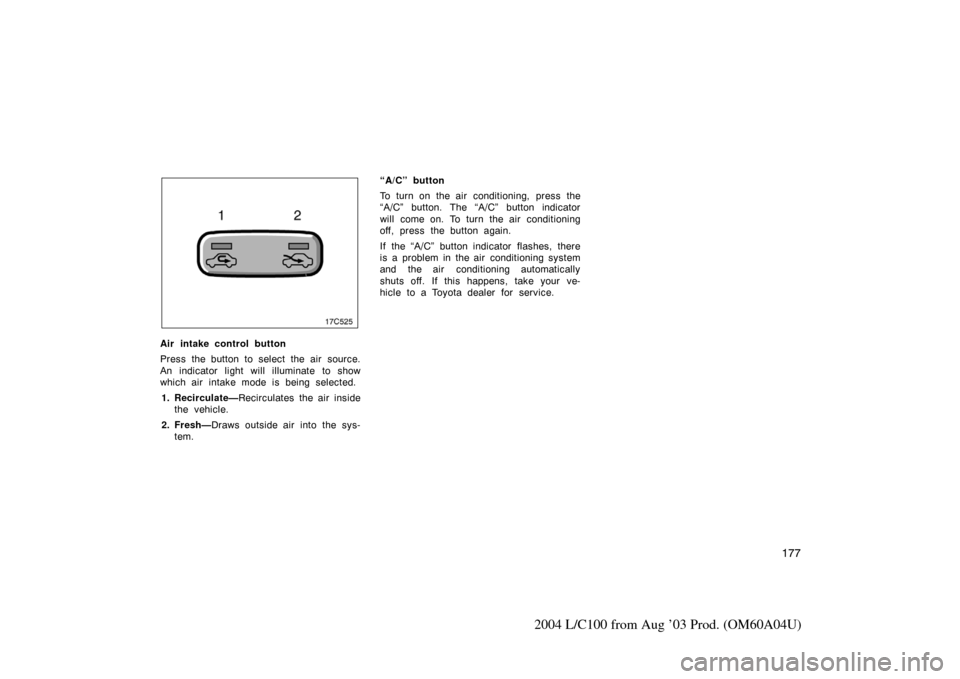

Air intake control button
Press the button to select the air source.
An indicator light will illuminate to show
which air intake mode is being selected.1. Recirculate— Recirculates the air inside
the vehicle.
2. Fresh— Draws outside air into the sys-
tem. “A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.

178
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

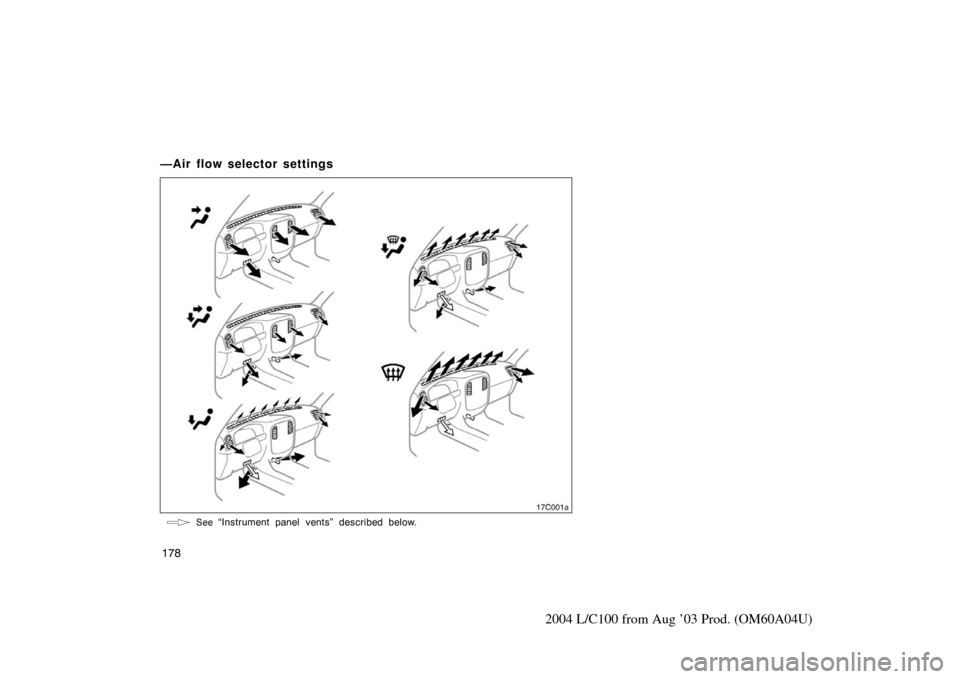

—Air flow selector settings
See “Instrument panel vents” described below.
17C001a

179
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
—Operating tips
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake control button be set
to FRESH and the fan speed control
button to any setting except “OFF”.
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake control button be temporarily
set to RECIRCULATE, which will close
off the outside passage and prevent
outside air and dust from entering the
vehicle interior.Heating
For best results, set controls to:
Fan speed— “AUTO”
Temperature— To the desired
temperature
Air intake—FRESH (outside air)
Air flow— “AUTO”
Lower vent—CLOSED
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been war-
med.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield.

180
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Air conditioning
For best results, set controls to:Fan speed— “AUTO”
Temperature— To the desired
temperature
Air intake—FRESH (outside air)
Air flow— “AUTO”
For quick cooling, select recirculated
air for a few minutes.
Ventilation
For best results, set controls to:
Fan speed— “AUTO”
Temperature— To the desired
temperature
Air intake—FRESH (outside air)
Air flow— “AUTO”
Air conditioning—OFF
Defogging
The inside of the windshield
For best results, set controls to:
Temperature— To w a r d s high
temperature to heat;
low temperature to
cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Lower vent—CLOSED
When pressing the front windshield button,
the air intake selects “Fresh” automatical-
ly. This is to clean up the front view more
quickly.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse. Defrosting
The outside of the windshield
For best results, set controls to:
Temperature— To w a r d s high
temperature
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Lower vent—CLOSED
When pressing the front windshield button,
the air intake selects “Fresh” automatical-
ly. This is to clean up the front view more
quickly.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

181
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

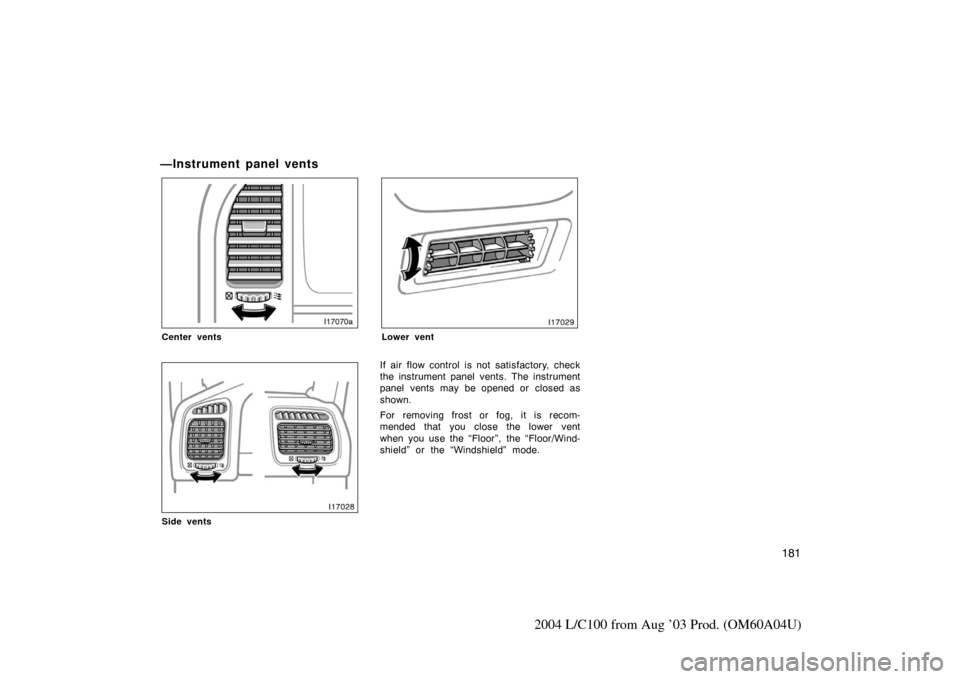

—Instrument panel vents
Center vents
Side vents
Lower vent
If air flow control is not satisfactory, check
the instrument panel vents. The instrument
panel vents may be opened or closed as
shown.
For removing frost or fog, it is recom-
mended that you close the lower vent
when you use the “Floor”, the “Floor/Wind-
shield” or the “Windshield” mode.

182
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

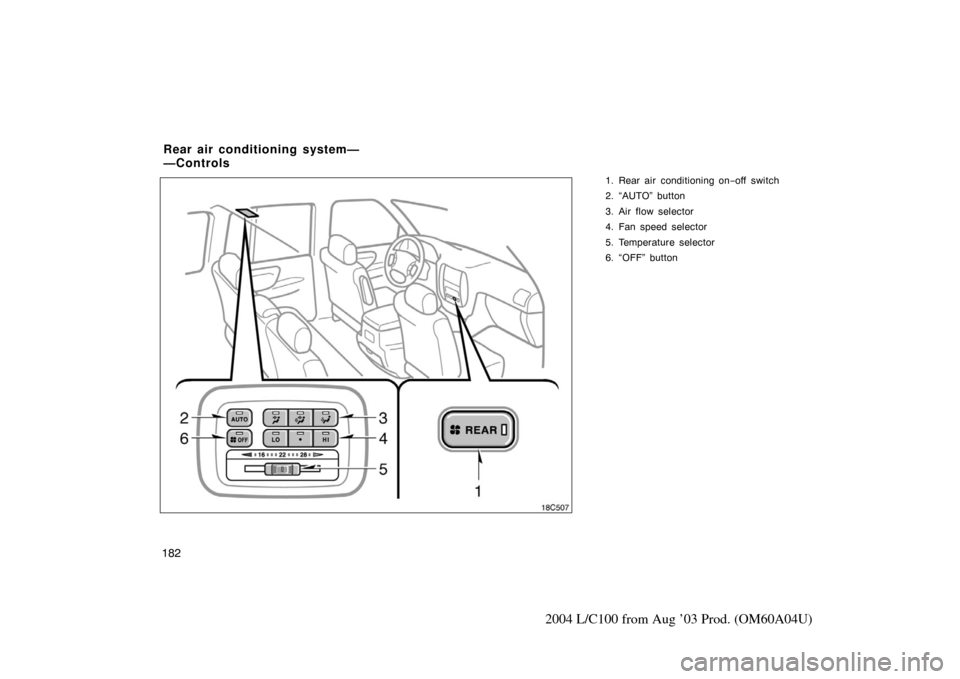

1. Rear air conditioning on−off switch
2. “AUTO” button
3. Air flow selector
4. Fan speed selector
5. Temperature selector
6. “OFF” button
Rear air conditioning system—
—Controls
18c507

183
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Rear air conditioning onoff switch
To turn the rear air conditioning on, press
the “REAR” switch. To turn the rear air
conditioning off, press the switch again.
“AUTO” button
For automatic operation of the rear air
conditioning, press the “AUTO” button. An
indicator light will illuminate to show that
the automatic operation mode has been
selected.
In the automatic operation mode, the rear
air conditioning selects the most suitable
fan speed and air flow according to the
temperature.
You may use manual controls if you want
to select your own settings.
Fan speed selector
Press the buttons to adjust the fan speed.
In automatic operation, you do not have
to adjust the fan speed unless you desire
another fan speed mode.Temperature selector
Move the lever to adjust the tempera-
ture—to the right to warm, to the left to
cool.
“OFF” button
Push the button to turn off the rear air
conditioning system.
Air flow selector
Press one of the buttons to select the
vents used for air flow. An indicator light
will illuminate to show which air flow
mode is being selected.
In automatic operation, you do not have
to select the air flow unless you desire
another air flow mode.1. Panel— Air flows mainly from the roof
vents.
2. Bilevel— Air flows from both the floor
vents and the roof vents.
3. Floor— Air flows mainly from the floor
vents.
Air at higher than room temperature does
not flow from the roof vents.

184
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Air at lower than room temperature does
not flow from the floor vents.

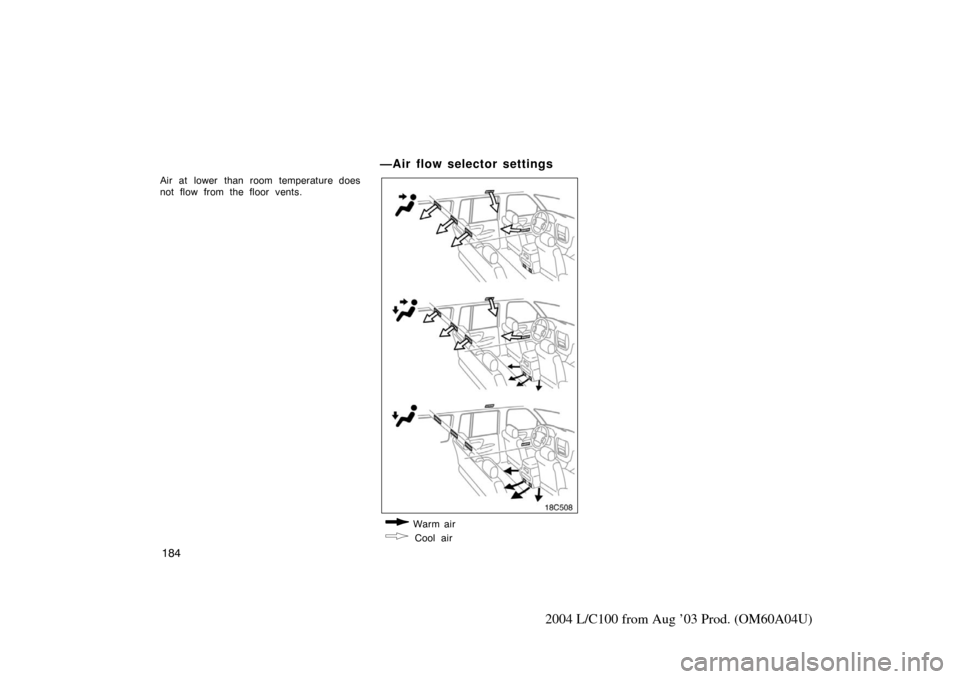

—Air flow selector settings
18c508
Warm air
Cool air
