2004 TOYOTA LAND CRUISER Owners Manual

9
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Ke y s and Doors
Keys10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Power quarter windows 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Back door 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2

10
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

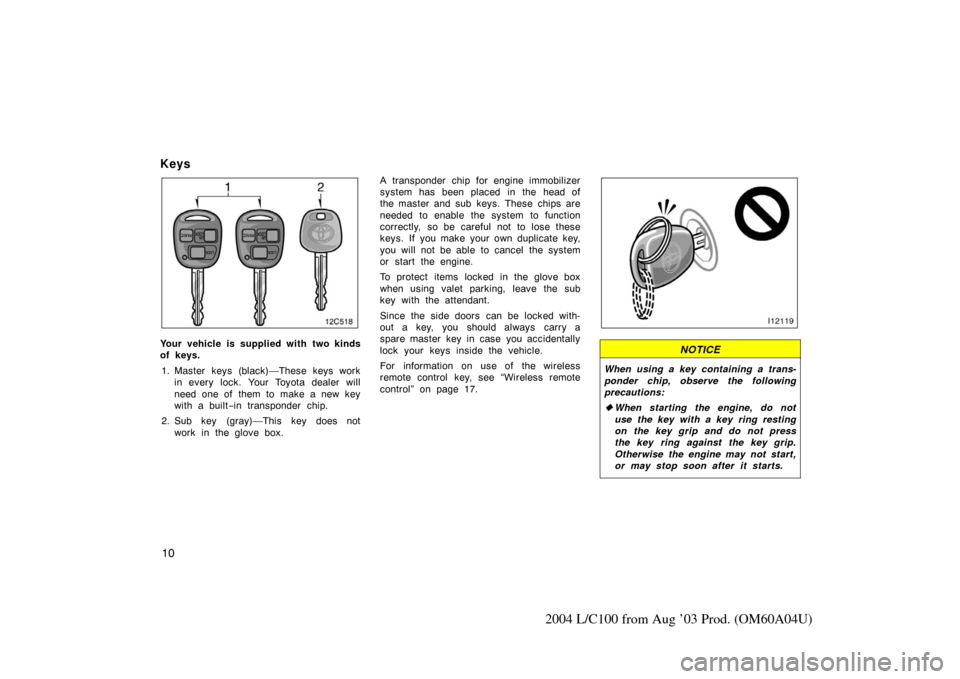

Keys
Your vehicle is supplied with two kinds
of keys.1. Master keys (black)—These keys work in every lock. Your Toyota dealer will
need one of them to make a new key
with a built −in transponder chip.
2. Sub key (gray)—This key does not work in the glove box. A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare master key in case you accidentally
lock your keys inside the vehicle.
For information on use of the wireless
remote control key, see “Wireless remote
control” on page 17.NOTICE

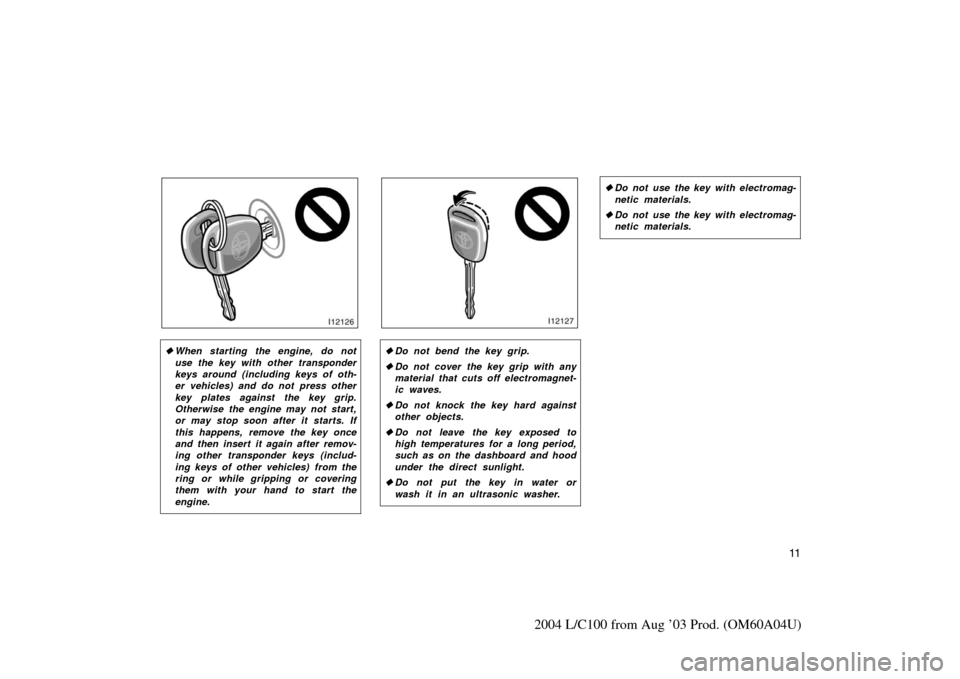

When using a key containing a trans-
ponder chip, observe the following
precautions:

When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.

11
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.Do not bend the key grip.
 Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.
 Do not use the key with electromag-
netic materials.

12
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

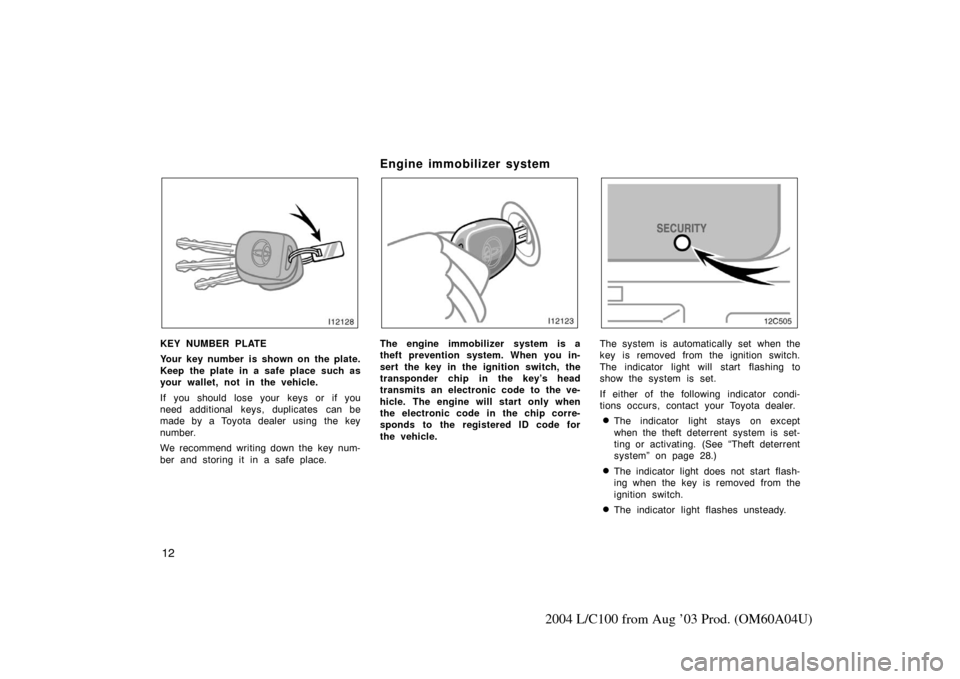

KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
Engine immobilizer system
The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If either of the following indicator condi-
tions occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 28.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.

13
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make a new key
with a built−in transponder chip, your
dealer will need your key number and
master key. However, there is a limit to
the number of additional keys your Toyota
dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
Side doors—
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the side doors and back door lock and
unlock simultaneously with either front
side door. In the driver’s door lock, turn-
ing the key once will unlock the driver’s
door and twice in succession will unlock
all the side doors and back door simulta-
neously.*
NOTE: *The 2step unlocking function can
be changed. Ask your Toyota dealer for
details.
FCC ID: MOZRI
−20BTY
MADE IN JAPAN

14
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

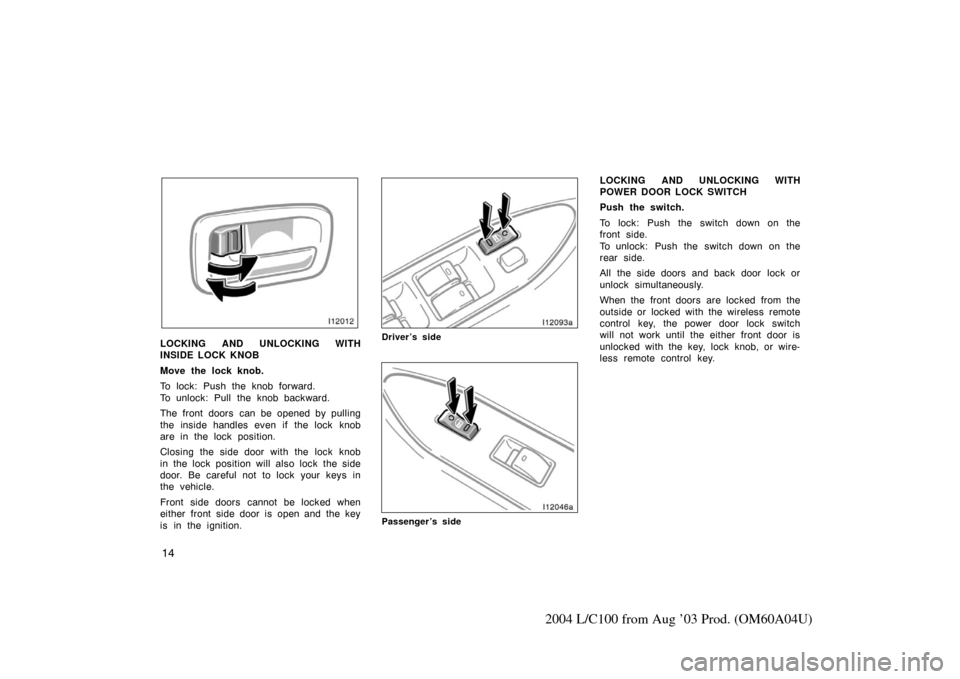

LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handles even if the lock knob
are in the lock position.
Closing the side door with the lock knob
in the lock position will also lock the side
door. Be careful not to lock your keys in
the vehicle.
Front side doors cannot be locked when
either front side door is open and the key
is in the ignition.
l12093a
Driver’s side
l12046a
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
All the side doors and back door lock or
unlock simultaneously.
When the front doors are locked from the
outside or locked with the wireless remote
control key, the power door lock switch
will not work until the either front door is
unlocked with the key, lock knob, or wire-
less remote control key.

15
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

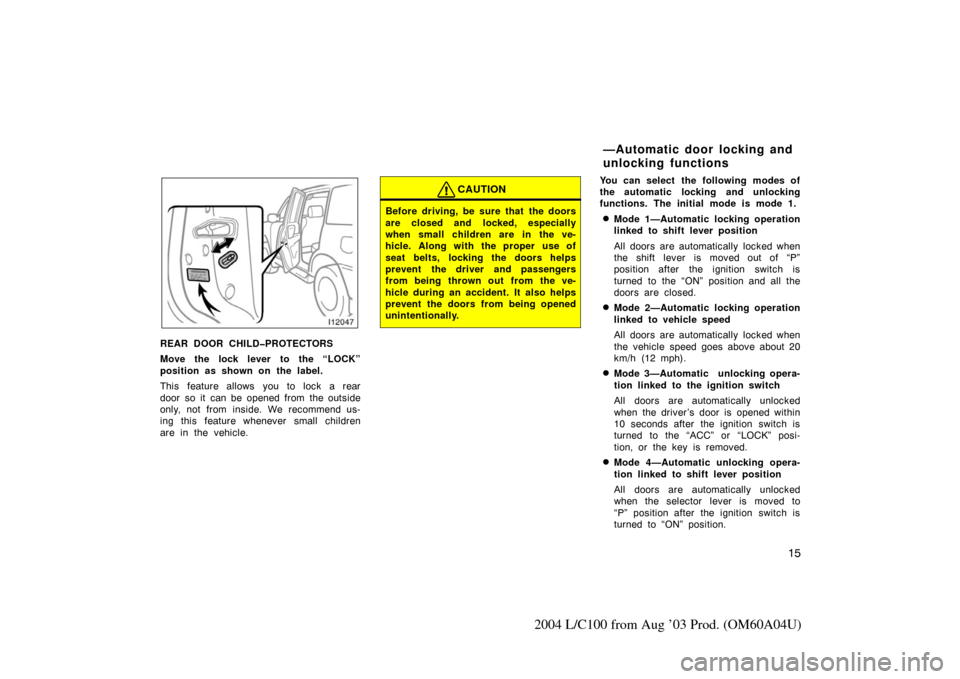

REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
You can select the following modes of
the automatic locking and unlocking
functions. The initial mode is mode 1.
Mode 1—Automatic locking operation
linked to shift lever position
All doors are automatically locked when
the shift lever is moved out of “P”
position after the ignition switch is
turned to the “ON” position and all the
doors are closed.
Mode 2—Automatic locking operation
linked to vehicle speed
All doors are automatically locked when
the vehicle speed goes above about 20
km/h (12 mph).
Mode 3—Automatic unlocking opera-
tion linked to the ignition switch
All doors are automatically unlocked
when the driver ’s door is opened within
10 seconds after the ignition switch is
turned to the “ACC” or “LOCK” posi-
tion, or the key is removed.
Mode 4—Automatic unlocking opera-
tion linked to shift lever position
All doors are automatically unlocked
when the selector lever is moved to
“P” position after the ignition switch is
turned to “ON” position.
—Automatic door locking and
unlocking functions

16
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
SETTING FUNCTIONS
You can set the following functions by
yourself.
To set the mode 1 (the automatic lock-
ing operation linked to shift lever posi-
tion):1. Set the parking brake, close all doors and turn the ignition switch to the “ON”
position.
2. Shift the selector lever into the “P” position.
3. Within 10 seconds of turning the igni- tion switch to the “ON” position, press
and hold the front of the driver’s side
power door lock switch for 5 seconds
and then release it.
4. The doors will be locked and unlocked to indicate that the function is set.
To cancel the function, do the above op-
eration again.
To set the mode 2 (the automatic lock-
ing operation linked to vehicle speed): 1. Set the parking brake, close all doors and turn the ignition switch to the “ON”
position.
2. Shift the selector lever from the “P” into the “N” position. 3. Within 10 seconds of turning the igni-
tion switch to the “ON” position, press
and hold the front of the driver’s side
power door lock switch for 5 seconds
and then release it.
4. The doors will be locked and unlocked to indicate that the function is set.
To cancel the function, do the above op-
eration again.
To set the mode 3 (the automatic un-
locking operation linked to the ignition
switch): 1. Set the parking brake, close all doors and turn the ignition switch to the “ON”
position.
2. Shift the selector lever into the “P” into the “N” position.
3. Within 10 seconds of turning the igni- tion switch to the “ON” position, press
and hold the rear of the driver’s side
power door lock switch for 5 seconds
and then release it.
4. The doors will be locked and unlocked to indicate that the function is set.
To cancel the function, do the above op-
eration again. To set the mode 4 (the automatic un-
locking operation linked to shift lever
position):
1. Set the parking brake, close all doors and turn the ignition switch to the “ON”
position.
2. Shift the selector lever into the “P” position.
3. Within 10 seconds of turning the igni- tion switch to the “ON” position, press
and hold the rear of the driver’s side
power door lock switch for 5 seconds
and then release it.
4. The doors will be locked and unlocked to indicate that the function is set.
To cancel the function, do the above op-
eration again.
CAUTION
To prevent an accident, set and can-
cel the function with the parking
brake set securely.
