2004 TOYOTA LAND CRUISER Owners Manual

265
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
CAUTION
Never use oil or grease on the
bolts or nuts. Doing so may
lead to overtightening the nuts
and damaging the bolts. The
nuts may loosen and the
wheels may fall off, which
could cause a serious acci-
dent. If there is oil or grease
on any bolt or nut, clean it.

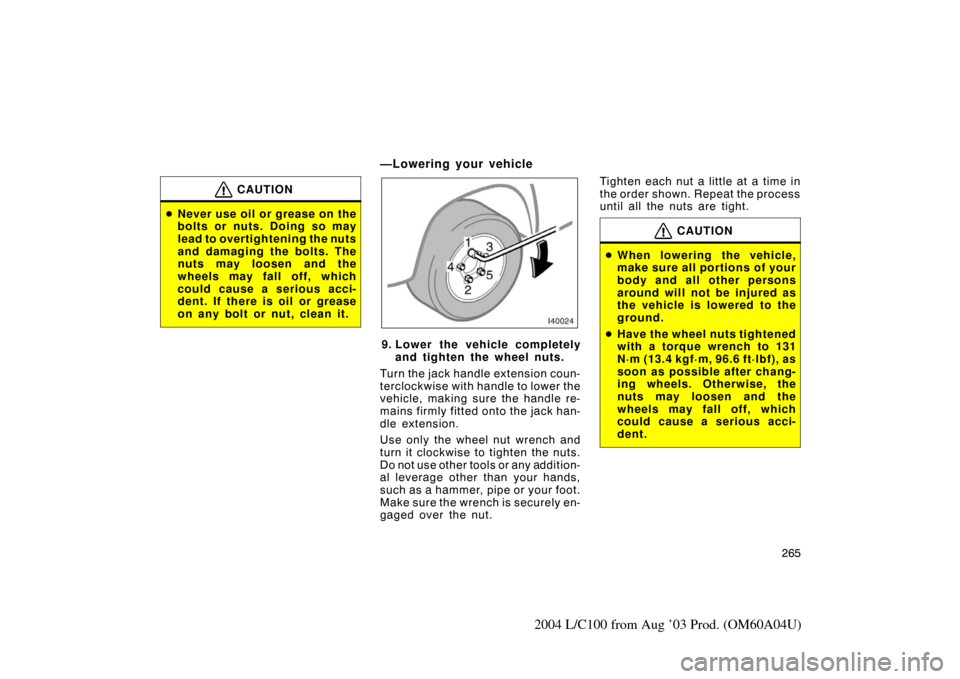

—Lowering your vehicle
9. Lower the vehicle completely
and tighten the wheel nuts.
Turn the jack handle extension coun-
terclockwise with handle to lower the
vehicle, making sure the handle re-
mains firmly fitted onto the jack han-
dle extension.
Use only the wheel nut wrench and
turn it clockwise to tighten the nuts.
Do not use other tools or any addition-
al leverage other than your hands,
such as a hammer, pipe or your foot.
Make sure the wrench is securely en-
gaged over the nut. Tighten each nut a little at a time in
the order shown. Repeat the process
until all the nuts are tight.
CAUTION

When lowering the vehicle,
make sure all portions of your
body and all other persons
around will not be injured as
the vehicle is lowered to the
ground.
 Have the wheel nuts tightened
with a torque wrench to 131
N·m (13.4 kgf·m, 96.6 ft·lbf), as
soon as possible after chang-
ing wheels. Otherwise, the
nuts may loosen and the
wheels may fall off, which
could cause a serious acci-
dent.

266
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

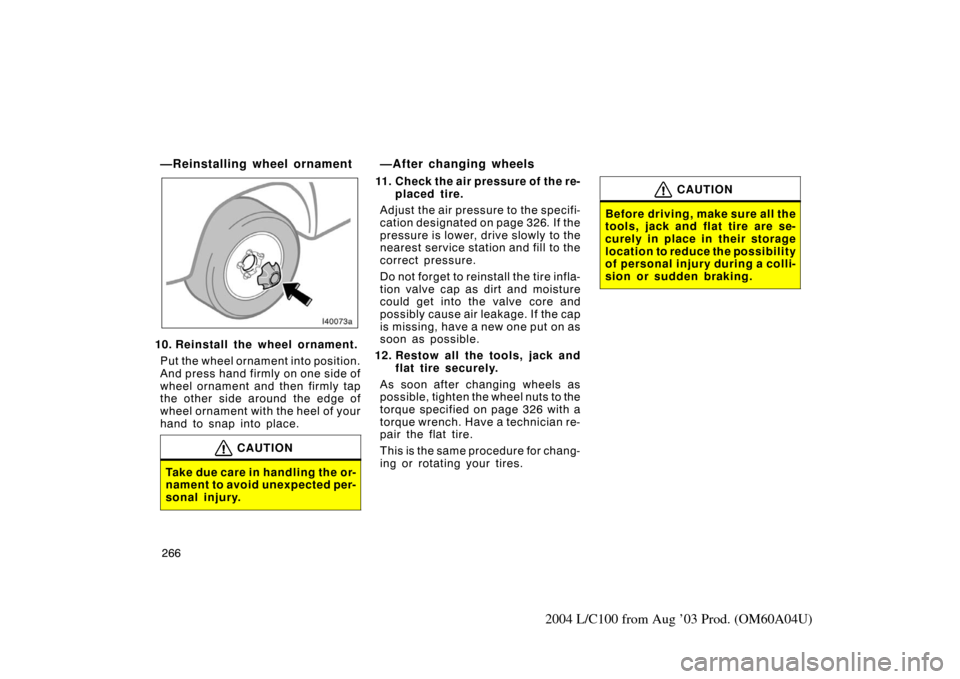

—Reinstalling wheel ornament
10. Reinstall the wheel ornament.Put the wheel ornament into position.
And press hand firmly on one side of
wheel ornament and then firmly tap
the other side around the edge of
wheel ornament with the heel of your
hand to snap into place.
CAUTION
Take due care in handling the or-
nament to avoid unexpected per-
sonal injury.
—After changing wheels
11. Check the air pressure of the re- placed tire.
Adjust the air pressu re to the specifi-
cation designated on page 326. If the
pressure is lower, dr ive slowly to the
nearest service station and fill to the
correct pressure.
Do not forget to reinstall the tire infla-
tion valve cap as dirt and moisture
could get into th e valve core and
possibly cause air leakage. If the cap
is missing, have a new one put on as
soon as possible.
12. Restow all the tools, jack and flat tire securely.
As soon after changing wheels as
possible, tighten the wheel nuts to the
torque specified on page 326 with a
torque wrench. Have a technician re-
pair the flat tire.
This is the same procedure for chang-
ing or rotating your tires.CAUTION
Before driving, make sure all the
tools, jack and flat tire are se-
curely in place in their storage
location to reduce the possibility
of personal injury during a colli-
sion or sudden braking.

267
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
If your vehicle becomes stuck in snow,
mud, sand, etc., then you may attempt to
rock the vehicle free by moving it forward
and backward.
If your vehicle is equipped with the trac-
tion control system, turn off the system to
become unstuck to allow the tires to spin
enough to remove the vehicle from the
obstruction. (For details, see “Vehicle sta-
bility control system” on page 151.)
CAUTION
Do not attempt to rock the vehicle
free by moving it forward and back-
ward if people or objects are any-
where near the vehicle. During the
rocking operation the vehicle may
suddenly move forward or backward
as it becomes unstuck, causing injury
or damage to nearby people or ob-
jects.
NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts.
Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.
 Do not race the engine and avoid
spinning the wheels.
 If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.

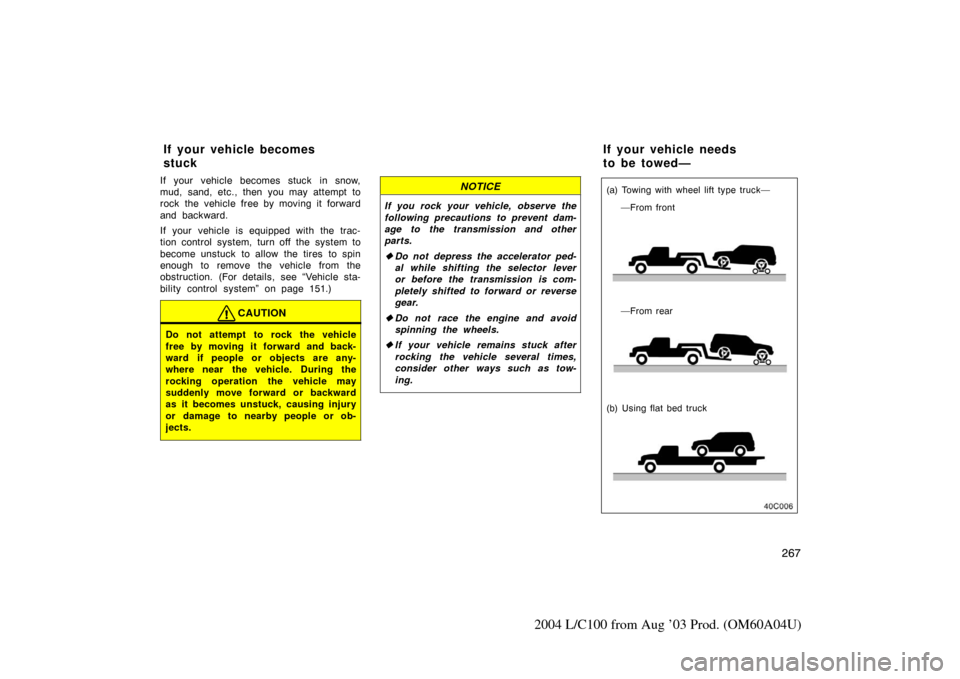

(a) Towing with wheel lift type truck—
—From rear
(b) Using flat bed truck —From front
If your vehicle becomes
stuck
If your vehicle needs
to be towed—

268
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
If towing is necessary, we recommend
you have it done by your Toyota dealer
or a commercial tow truck service. In
consultation with them, have your ve-
hicle towed using either (a) or (b).
Only when you cannot receive a towing
service from a Toyota dealer or com-
mercial tow truck service, tow your ve-
hicle carefully in accordance with the
instructions given in “—Emergency tow-
ing” in this section.
Proper equipment will help ensure that
your vehicle is not damaged while being
towed. Commercial operators are generally
aware of the state/provincial and local
laws pertaining to towing.
Your vehicle can be damaged if it is
towed incorrectly. Although most operators
know the correct procedure, it is possible
to make a mistake. To avoid damage to
your vehicle, make sure the following pre-
cautions are observed. If necessary, show
this page to the tow truck driver.
TOWING PRECAUTIONS:
Use a safety chain system for all towing,
and abide by the state/provincial and local
laws. The wheels and axle on the ground
must be in good condition. If they are
damaged, use a towing dolly.(a) Towing with wheel lift type truck
Use a towing dolly under the wheels not
lifted by the truck.

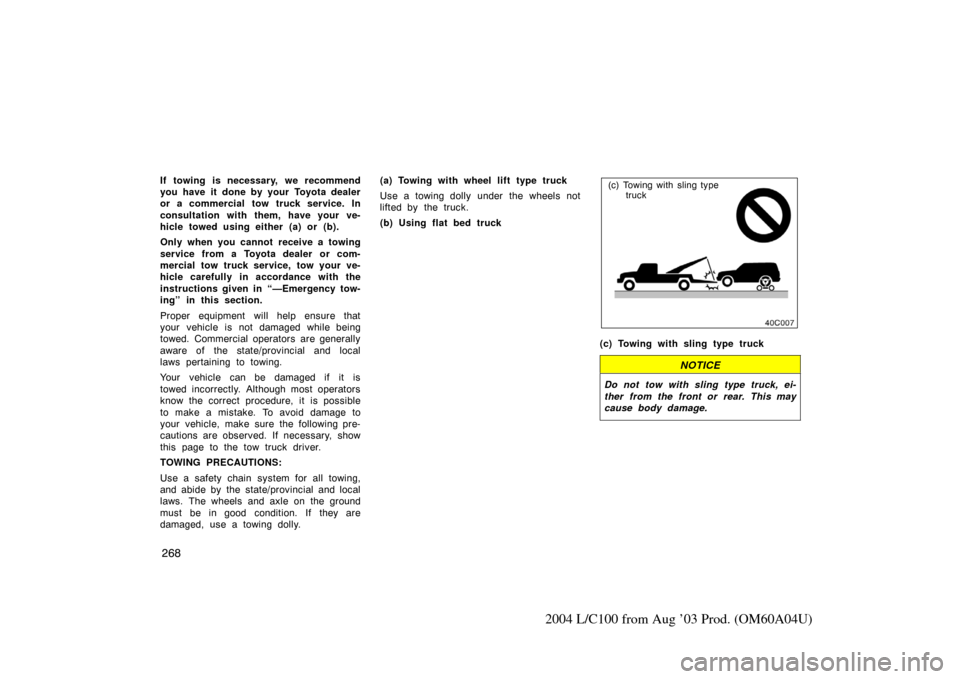

(b) Using flat bed truck(c) Towing with sling type
truck
(c) Towing with sling type truck
NOTICE
Do not tow with sling type truck, ei-
ther from the front or rear. This may
cause body damage.

269
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

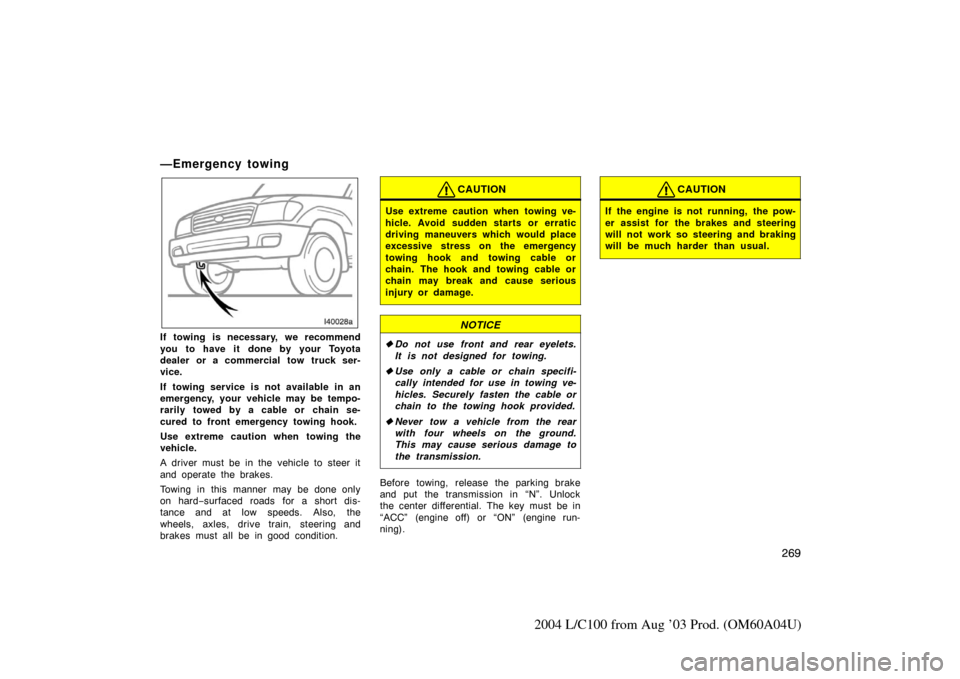

—Emergency towing
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice.
If towing service is not available in an
emergency, your vehicle may be tempo-
rarily towed by a cable or chain se-
cured to front emergency towing hook.
Use extreme caution when towing the
vehicle.
A driver must be in the vehicle to steer it
and operate the brakes.
Towing in this manner may be done only
on hard−surfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
CAUTION
Use extreme caution when towing ve-
hicle. Avoid sudden starts or erratic
driving maneuvers which would place
excessive stress on the emergency
towing hook and towing cable or
chain. The hook and towing cable or
chain may break and cause serious
injury or damage.
NOTICE
 Do not use front and rear eyelets.
It is not designed for towing.
 Use only a cable or chain specifi-
cally intended for use in towing ve-
hicles. Securely fasten the cable or
chain to the towing hook provided.
 Never tow a vehicle from the rear
with four wheels on the ground.
This may cause serious damage to
the transmission.
Before towing, release the parking brake
and put the transmission in “N”. Unlock
the center differential. The key must be in
“ACC” (engine off) or “ON” (engine run-
ning).
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.

270
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Before emergency towing, check that
the hook is not broken or damage and
that the installation bolts are not loose.
Fasten the towing cable or chain se-
curely to the hook.
Do not jerk the hook. Apply steady and
even force.
To avoid damaging the hook, do not
pull from the side or at a vertical
angle. Always pull straight ahead.

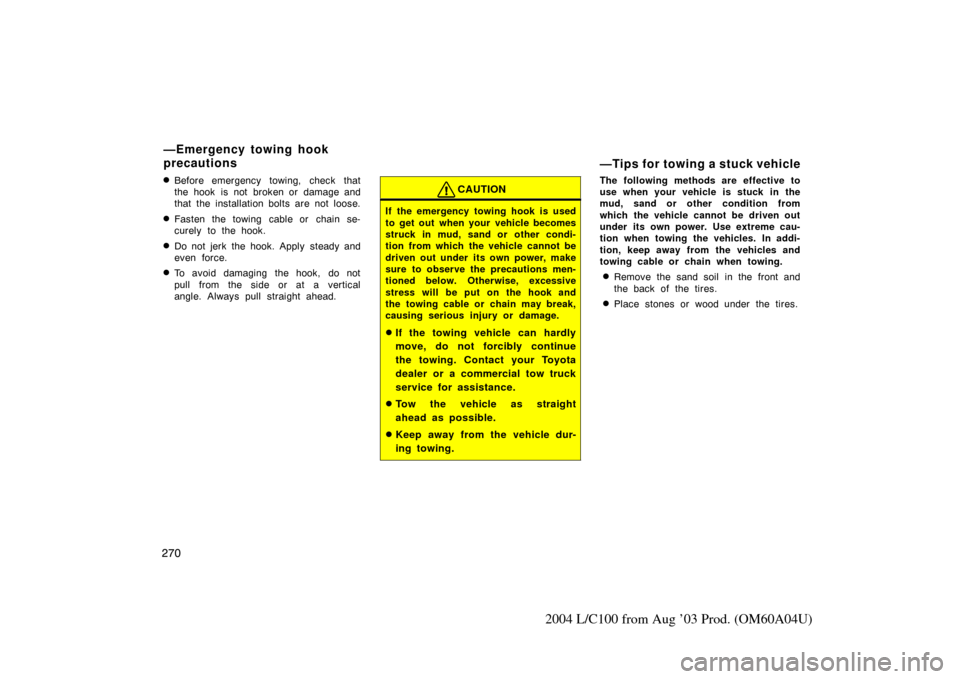

CAUTION
If the emergency towing hook is used
to get out when your vehicle becomes
struck in mud, sand or other condi-
tion from which the vehicle cannot be
driven out under its own power, make
sure to observe the precautions men-
tioned below. Otherwise, excessive
stress will be put on the hook and
the towing cable or chain may break,
causing serious injury or damage.
If the towing vehicle can hardly
move, do not forcibly continue
the towing. Contact your Toyota
dealer or a commercial tow truck
service for assistance.
Tow the vehicle as straight
ahead as possible.
Keep away from the vehicle dur-
ing towing.
—Tips for towing a stuck vehicle
The following methods are effective to
use when your vehicle is stuck in the
mud, sand or other condition from
which the vehicle cannot be driven out
under its own power. Use extreme cau-
tion when towing the vehicles. In addi-
tion, keep away from the vehicles and
towing cable or chain when towing.
Remove the sand soil in the front and
the back of the tires.
Place stones or wood under the tires.
—Emergency towing hook
precautions

271
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

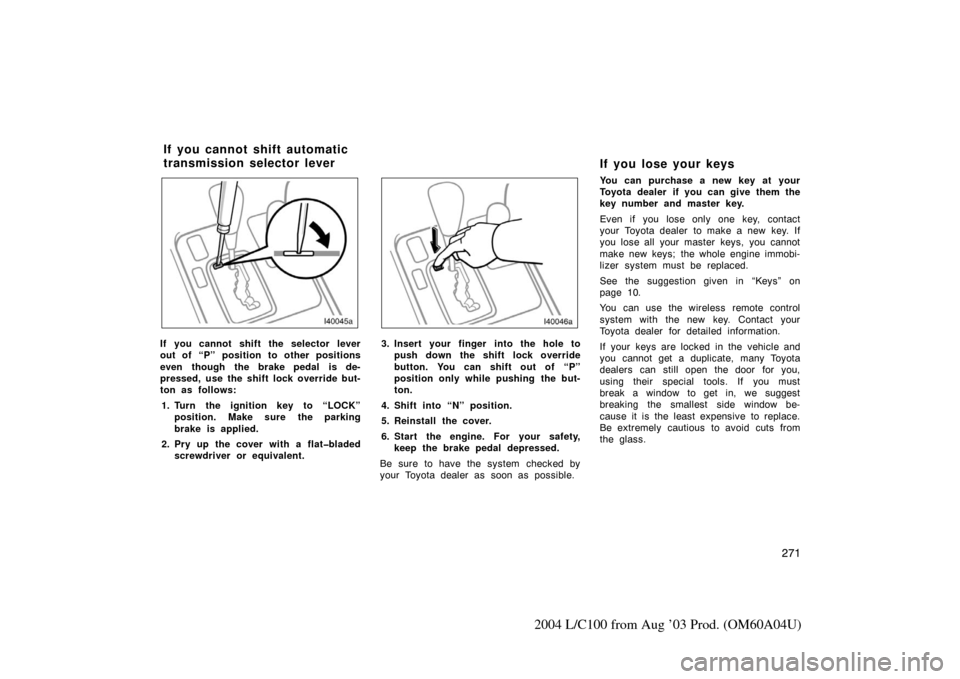

If you cannot shift the selector lever
out of “P” position to other positions
even though the brake pedal is de-
pressed, use the shift lock override but-
ton as follows:1. Turn the ignition key to “LOCK” position. Make sure the parking
brake is applied.
2. Pry up the cover with a flatbladed screwdriver or equivalent.3. Insert your finger into the hole topush down the shift lock override
button. You can shift out of “P”
position only while pushing the but-
ton.
4. Shift into “N” position.
5. Reinstall the cover.
6. Start the engine. For your safety, keep the brake pedal depressed.
Be sure to have the system checked by
your Toyota dealer as soon as possible.
If you lose your keys
You can purchase a new key at your
Toyota dealer if you can give them the
key number and master key.
Even if you lose only one key, contact
your Toyota dealer to make a new key. If
you lose all your master keys, you cannot
make new keys; the whole engine immobi-
lizer system must be replaced.
See the suggestion given in “Keys” on
page 10.
You can use the wireless remote control
system with the new key. Contact your
Toyota dealer for detailed information.
If your keys are locked in the vehicle and
you cannot get a duplicate, many Toyota
dealers can still open the door for you,
using their special tools. If you must
break a window to get in, we suggest
breaking the smallest side window be-
cause it is the least expensive to replace.
Be extremely cautious to avoid cuts from
the glass.
If you cannot shift automatic
transmission selector lever

272
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
CORROSION PREVENTION AND
APPEARANCE CARE
Corrosion prevention and appearance care
Protecting your Toyota from corrosionn273
. . . . . . . . . . . . . . . . . . . . . . .
Washing and waxing your Toyota 274
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning the interior 276
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 5
