2004 TOYOTA LAND CRUISER Owners Manual

81
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
—Child restraint system
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with either the
lap belt or the lap portion of the lap/
shoulder belt. You must carefully con-
sult the manufacturer ’s instructions
which accompany the child restraint
system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from in-
juring passengers in the event of a sud-

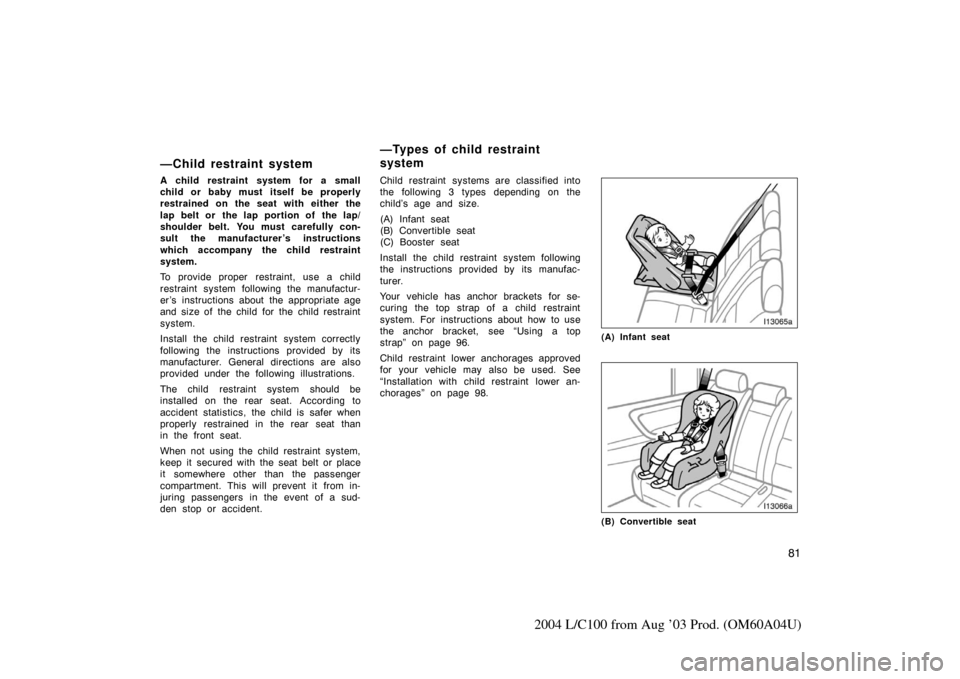

den stop or accident.Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system. For instructions a
bout how to use
the anchor bracket, see “Using a top
strap” on page 96.
Child restraint lower anchorages approved
for your vehicle may also be used. See
“Installation with child restraint lower an-
chorages” on page 98.
(A) Infant seat
(B) Convertible seat
—Types of child restraint
system

82
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

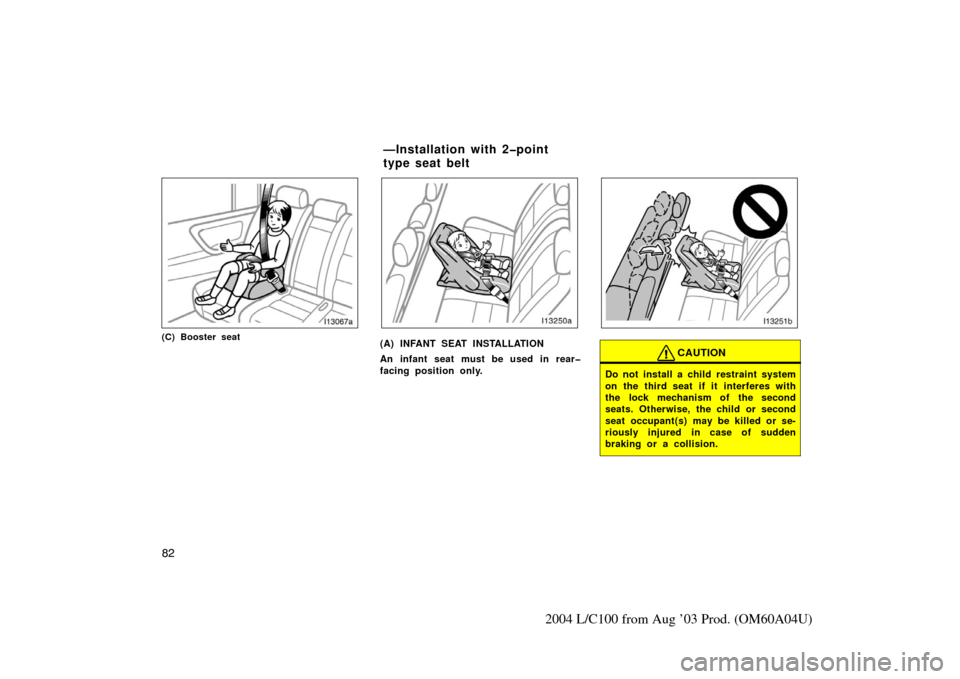

(C) Booster seat(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.CAUTION
Do not install a child restraint system
on the third seat if it interferes with
the lock mechanism of the second
seats. Otherwise, the child or second
seat occupant(s) may be killed or se-
riously injured in case of sudden
braking or a collision.
—Installation with 2point
type seat belt

83
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

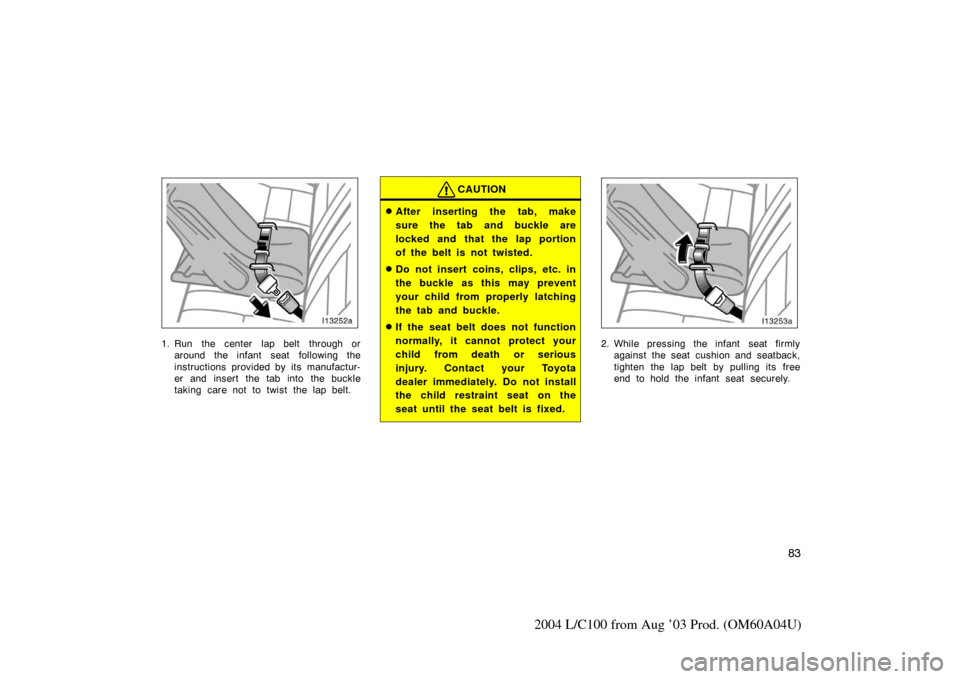

1. Run the center lap belt through oraround the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the lap belt.
CAUTION
After inserting the tab, make
sure the tab and buckle are
locked and that the lap portion
of the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent
your child from properly latching
the tab and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious
injury. Contact your Toyota
dealer immediately. Do not install
the child restraint seat on the
seat until the seat belt is fixed.

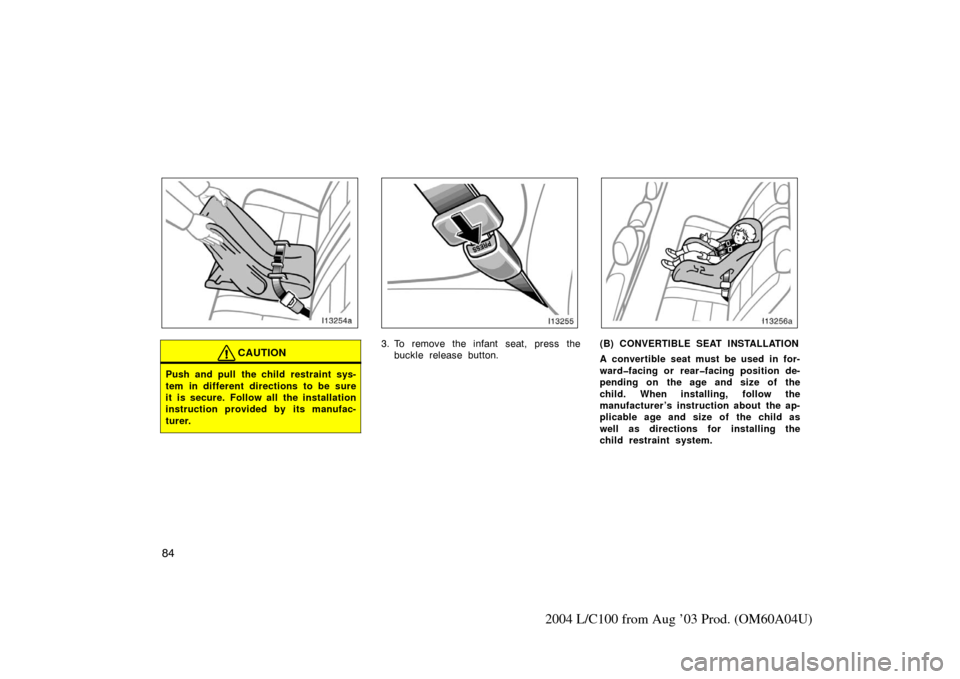

2. While pressing the infant seat firmlyagainst the seat cushion and seatback,
tighten the lap belt by pulling its free
end to hold the infant seat securely.

84
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instruction provided by its manufac-
turer.
3. To remove the infant seat, press thebuckle release button.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
wardfacing or rearfacing position de-
pending on the age and size of the
child. When installing, follow the
manufacturer ’s instruction about the ap-
plicable age and size of the child as
well as directions for installing the
child restraint system.

85
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

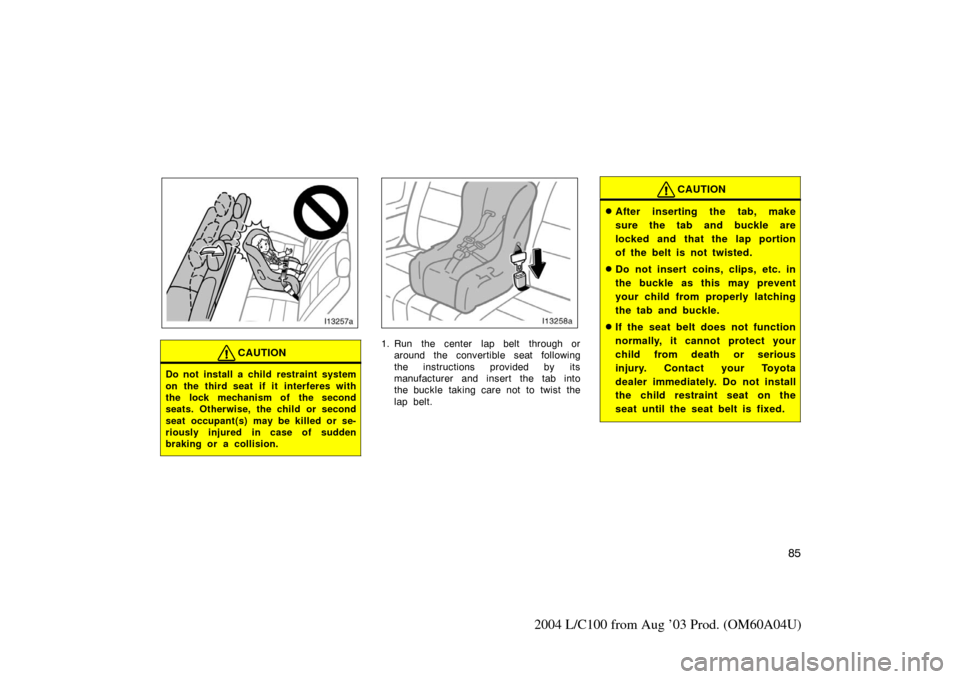

CAUTION
Do not install a child restraint system
on the third seat if it interferes with
the lock mechanism of the second
seats. Otherwise, the child or second
seat occupant(s) may be killed or se-
riously injured in case of sudden
braking or a collision.
1. Run the center lap belt through or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
lap belt.
CAUTION
After inserting the tab, make
sure the tab and buckle are
locked and that the lap portion
of the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent
your child from properly latching
the tab and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious
injury. Contact your Toyota
dealer immediately. Do not install
the child restraint seat on the
seat until the seat belt is fixed.

86
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

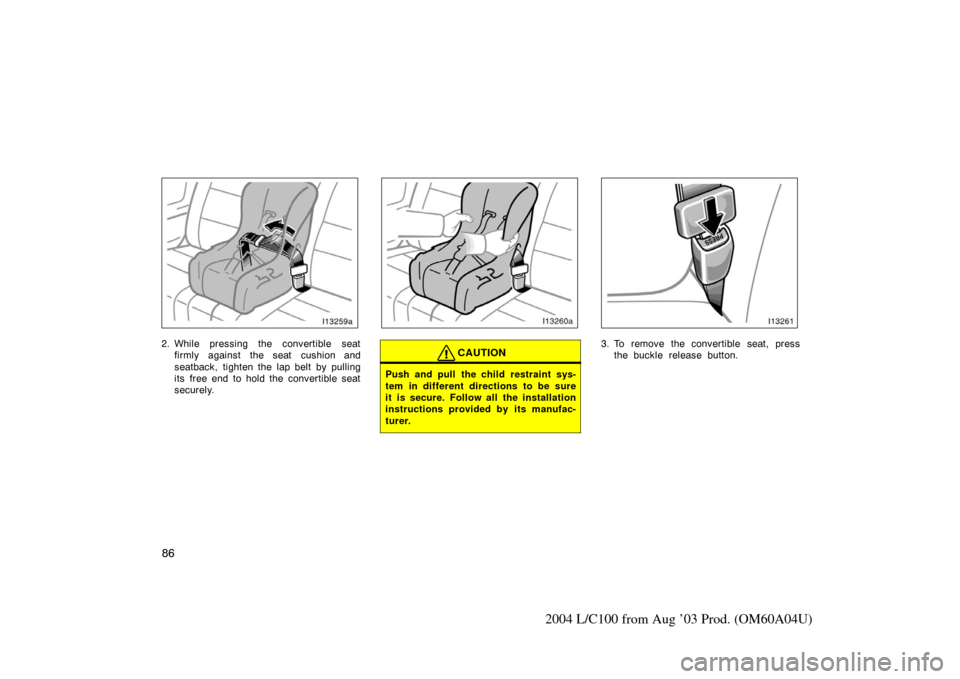

2. While pressing the convertible seatfirmly against the seat cushion and
seatback, tighten the lap belt by pulling
its free end to hold the convertible seat
securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
3. To remove the convertible seat, pressthe buckle release button.

87
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
13c564

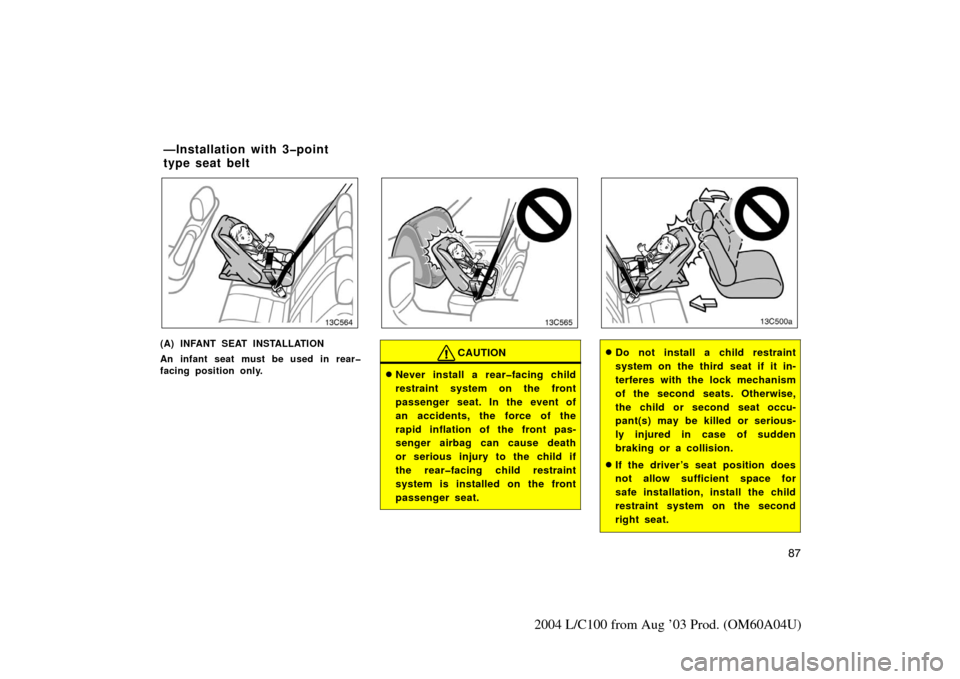

(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.
13c565
CAUTION
Never install a rearfacing child
restraint system on the front
passenger seat. In the event of
an accidents, the force of the
rapid inflation of the front pas-
senger airbag can cause death
or serious injury to the child if
the rearfacing child restraint
system is installed on the front
passenger seat.
Do not install a child restraint
system on the third seat if it in-
terferes with the lock mechanism
of the second seats. Otherwise,
the child or second seat occu-
pant(s) may be killed or serious-
ly injured in case of sudden
braking or a collision.
If the driver’s seat position does
not allow sufficient space for
safe installation, install the child
restraint system on the second
right seat.
—Installation with 3point
type seat belt

88
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

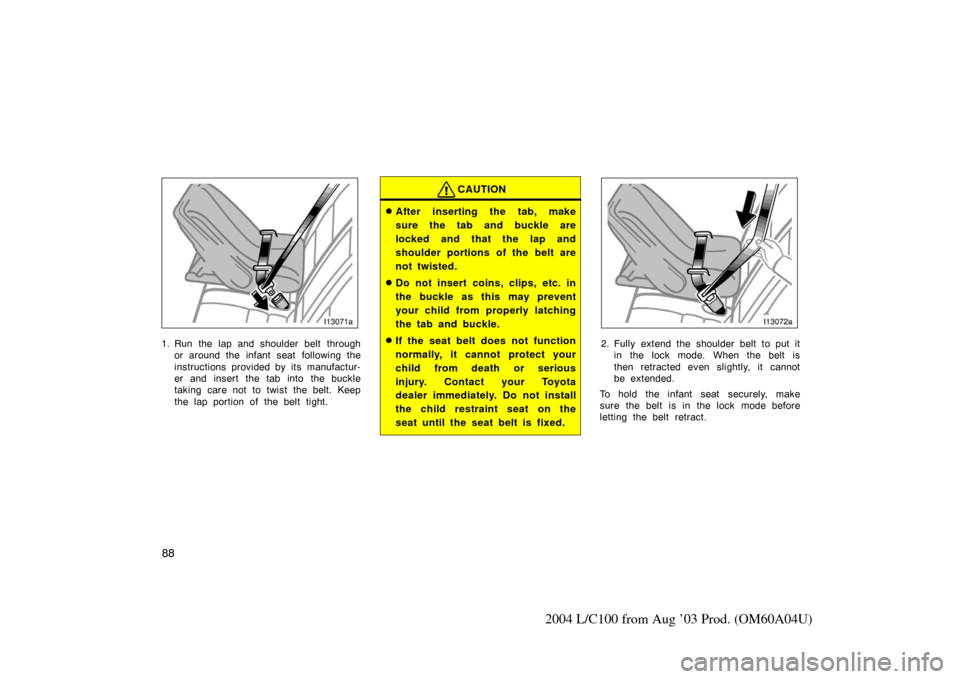

1. Run the lap and shoulder belt throughor around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
CAUTION
After inserting the tab, make
sure the tab and buckle are
locked and that the lap and
shoulder portions of the belt are
not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent
your child from properly latching
the tab and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious
injury. Contact your Toyota
dealer immediately. Do not install
the child restraint seat on the
seat until the seat belt is fixed.2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.
