2004 TOYOTA LAND CRUISER Owners Manual

41
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
—Tumbling second seat
I13378b
BEFORE TUMBLING SECOND SEAT1. Stow the second seat belt buckles as shown in the illustration.
This prevents the seat belt buckles from
falling out when you tumble the second
seat.
NOTICE
The seat belt buckles must be stowed
before you tumble the second seat.
I13340a
2. Make sure the shoulder belt passes through the hanger when folding the
second seat.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
TUMBLING SECOND SEAT 1. Lower the outer head restraint to the lowest position and pull up the cen-
ter head restraint. Unlock the seat-
back and fold it down.
Tumbling the rear seats will enlarge the
luggage compartment. See “Cargo and
luggage” on page 229 for precautions
when loading luggage.

42
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
2. Unlock the seat cushion. Swing thewhole seat up and forward.3. Hook the strap.
When returning the second seat to its
original position, put the holding strap into
the hole.4. Remove the seat hook covers from the back of the seat cushion, and
install them over the seat hooks.
CAUTION
Be sure to apply the covers on the
seat hooks, or you may get burned
when they become hot.
When returning the second seat to its
original position, remove the seat hook
covers from the floor and install them in
the back of the seat cushion.

43
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
WHEN RETURNING THE SECOND SEAT
If you cannot raise the seatback be-
cause of the locked seat belt, do not
try it hard. Release the lock of the seat
belt in the following way. Push in the
lower front edge of the seatback cush-
ion to slacken the seat belt (1) and let
the seat belt retract a little (2).
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seat is securely
locked by pushing forward and
rearward on the top of the seat-
back and by trying to pull up
the edge of the bottom cushion.
Failure to do so will prevent seat
belt from operating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
—Adjusting third seats

44
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever toward
you. Then lean back to the desired
angle and release the lever.CAUTION
To reduce the risk of sliding un-
der the lap belt during a colli-
sion, avoid reclining the seat-
back any more than needed. The
seat belts provide maximum
protection in a frontal or rear
collision when the third seat pas-
sengers are sitting up straight
and well back in the seats. If
you are reclined, the lap belt
may slide past your hips and ap-
ply restraint forces directly to
the abdomen. Therefore, in the
event of a frontal collision, the
more the seat is reclined, the
greater the risk of personal inju-
ry.
Do not adjust the seat while the
vehicle is moving.
After adjusting the seatback,
push your body back against the
seat to make sure the seat is
locked in position.
—Tumbling third seats
I13377b
BEFORE TUMBLING THIRD SEAT
1. Stow the third seat belt and buckles as shown in the illustration.
This prevents the seat belt and buckles
from falling out when you tumble the third
seat.
NOTICE
The seat belt and buckles must be
stowed before you tumble the third
seat.

45
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
I13262b
2. Make sure the shoulder belt passesthrough the hanger when folding the
third seat.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
TUMBLING THIRD SEAT 1. Lower the head restraint to the low- est position. Unlock the seatback
and fold it down.
Tumbling the third seats will enlarge the
luggage compartment. See “Cargo and
luggage” on page 229 for precautions
when loading luggage.2. Unlock the seat cushion and slide the whole seat to the rearmost
position while pulling up the handle.

46
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
13c557
3. Swing the whole seat up.
13c558
4. Hook the strap.
When returning the third seat to its origi-
nal position, put the holding strap into the
hole.
13c559
5. Remove the seat hook covers from the back of the seat cushion, and
install them over the seat hooks.
CAUTION
Be sure to apply the covers on the
seat hooks, or you may get burned
when they become hot.
When returning the third seat to its origi-
nal position, remove the seat hook covers
from the floor and install them in the back
of the seat cushion.

47
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seat is securely
locked by pushing forward and
rearward on the top of the seat-
back and by trying to pull up
the edge of the bottom cushion.
Be certain to replace head re-
straint. Failure to do so will pre-
vent seat belt from operating
properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
—Removing third seats
After tumbling the third seat, open the
cover, hold the whole seat and pull it
up while pulling the handle toward you.
Removing the third seat will enlarge the
luggage compartment. See “Cargo and
luggage” on page 229 for precautions
when loading luggage.Remove the seat hook covers from the
back of the seat cushion, and install
them over the seat hooks.
CAUTION
Be sure to apply the covers on the
seat hooks, or you may get burned
when they become hot.
When returning the third seat to its origi-
nal position, remove the seat hook covers
from the floor and install them in the back
of the seat cushion.

48
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

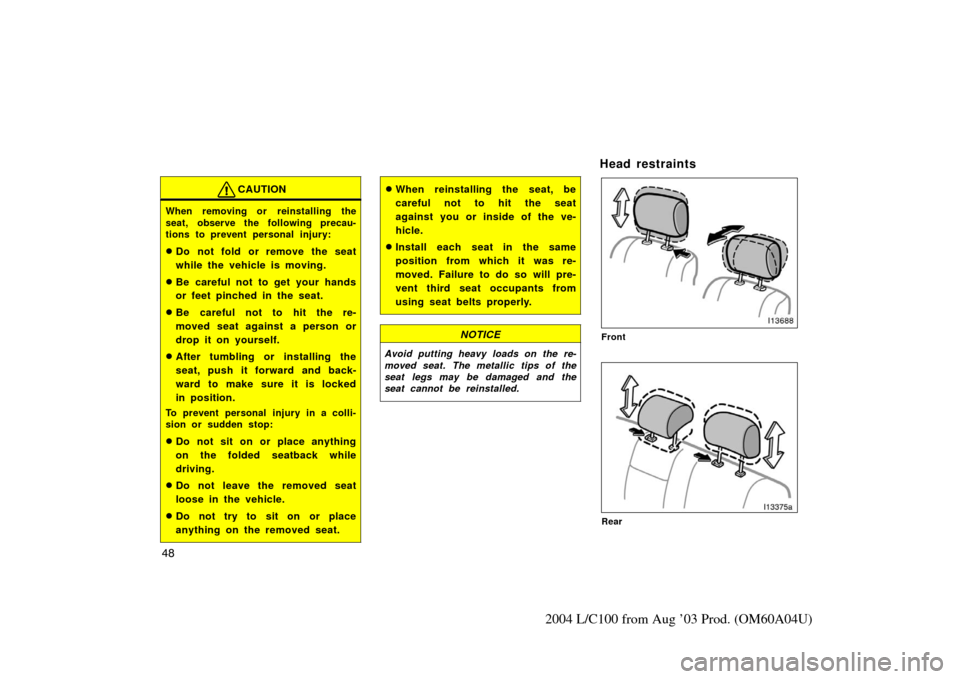

CAUTION
When removing or reinstalling the
seat, observe the following precau-
tions to prevent personal injury:
Do not fold or remove the seat
while the vehicle is moving.
Be careful not to get your hands
or feet pinched in the seat.
Be careful not to hit the re-
moved seat against a person or
drop it on yourself.
After tumbling or installing the
seat, push it forward and back-
ward to make sure it is locked
in position.
To prevent personal injury in a colli-
sion or sudden stop:
Do not sit on or place anything
on the folded seatback while
driving.
Do not leave the removed seat
loose in the vehicle.
Do not try to sit on or place
anything on the removed seat.
When reinstalling the seat, be
careful not to hit the seat
against you or inside of the ve-
hicle.
Install each seat in the same
position from which it was re-
moved. Failure to do so will pre-
vent third seat occupants from
using seat belts properly.
NOTICE
Avoid putting heavy loads on the re-
moved seat. The metallic tips of the
seat legs may be damaged and the
seat cannot be reinstalled.
Head restraints
Front
I13375a
Rear
