2004 SUBARU FORESTER relay

EN(H4DOTC 2.5)-58
ENGINE (DIAGNOSTIC)
Diagnostics for Engine Starting Failure
Step Check Yes No
1 CHECK MAIN RELAY.
1) Turn the ignition switch to OFF.
2) Remove the main relay.
3) Connect the battery to main relay terminals
No. 1 and No. 2.
4) Measure the resistance between main relay
terminals.
Te r m i n a l s
No. 3 — No. 5:
No. 4 — No. 6:Is the resistance less than 10
Ω?Go to step 2.Replace the main
relay.
2 CHECK GROUND CIRCUIT FOR ECM.
1) Disconnect the connector from ECM.
2) Measure the resistance of harness
between ECM and chassis ground.
Connector & terminal
(B134) No. 6 — Chassis ground:
(B134) No. 7 — Chassis ground:
(B134) No. 34 — Chassis ground:
(B135) No. 1 — Chassis ground:
(B135) No. 4 — Chassis ground:
(B135) No. 12 — Chassis ground:
(B137) No. 1 — Chassis ground:
(B137) No. 2 — Chassis ground:
(B137) No. 7 — Chassis ground: Is the resistance less than 5
Ω?Go to step 3.Repair open circuit
in harness
between ECM con-
nector and engine
ground terminal.
3 CHECK INPUT VOLTAGE OF ECM.
Measure the voltage between ECM connector
and chassis ground.
Connector & terminal
(B135) No. 19 (+) — Chassis ground (
−):
(B137) No. 14 (+) — Chassis ground (
−):Is the voltage more than 10 V? Go to step 4.Repair open or
ground short cir-
cuit of power sup-
ply circuit.
4 CHECK INPUT VOLTAGE OF MAIN RELAY.
Measure the voltage between main relay con-
nector and chassis ground.
Connector & terminal
(B47) No. 1 (+) — Chassis ground (
−):
(B47) No. 5 (+) — Chassis ground (
−):
(B47) No. 6 (+) — Chassis ground (
−):Is the voltage more than 10 V? Go to step 5.Repair open or
ground short circuit
in harness of power
supply circuit.
5 CHECK INPUT VOLTAGE OF ECM.
1) Connect the main relay connector.
2) Turn the ignition switch to ON.
3) Measure the voltage between ECM con-
nector and chassis ground.
Connector & terminal
(B135) No. 5 (+) — Chassis ground (
−):
(B135) No. 6 (+) — Chassis ground (
−):
(B137) No. 16 (+) — Chassis ground (
−):Is the voltage more than 10 V? Check ignition
control system.
EN(H4DOTC 2.5)-
59, IGNITION
CONTROL SYS-
TEM, Diagnostics
for Engine Start-
ing Failure.>Repair open or
ground short circuit
in harness
between ECM con-
nector and main
relay connector.

EN(H4DOTC 2.5)-62
ENGINE (DIAGNOSTIC)
Diagnostics for Engine Starting Failure

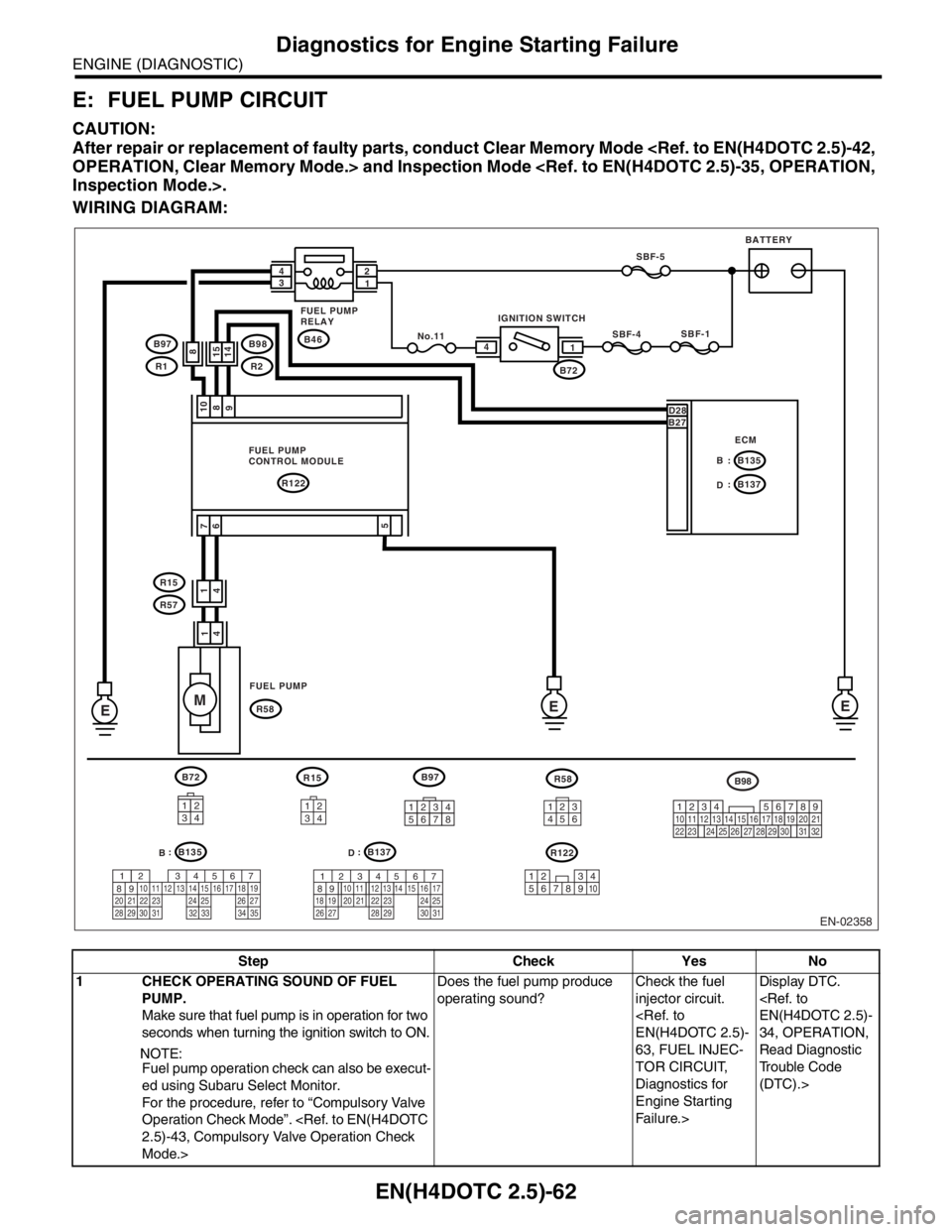

E: FUEL PUMP CIRCUIT
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
Step Check Yes No
1 CHECK OPERATING SOUND OF FUEL
PUMP.
Make sure that fuel pump is in operation for two
seconds when turning the ignition switch to ON.
NOTE:
Fuel pump operation check can also be execut-
ed using Subaru Select Monitor.
For the procedure, refer to “Compulsory Valve
Operation Check Mode”. 2.5)-43, Compulsory Valve Operation Check
Mode.>Does the fuel pump produce
operating sound?Check the fuel
injector circuit.
EN(H4DOTC 2.5)-
63, FUEL INJEC-
TOR CIRCUIT,
Diagnostics for
Engine Starting
Fa il u r e. >Display DTC.
EN(H4DOTC 2.5)-
34, OPERATION,
Read Diagnostic
Trouble Code
(DTC).>
EN-02358
R15
E
E M
R122: B135 B
: B137
D
R58
B97 B97
3412
B98 R1
R15
R57
567
82 1
94 310
24 22 23 2511 12 13 14 15
26 27
2816 17 18 19
20 21
29 30 31 32 33 34 35567
82 1
94 310
22 23 11 12 13 14 15
24 25
2616 17
18 19 20 21
27 28 29 30 31
R122
3
4 12
5891067
FUEL PUMP
CONTROL MODULE
FUEL PUMPECMBATTERY
B72SBF-1
SBF-4
D28
B27
E
98 10
7
6 1
4 1
415
14
1 4
5
IGNITION SWITCH
B46 FUEL PUMP
RELAY
2
1 4
3SBF-5
No.118B98
R2
12345678219
32
1234
5610 11 12 13 14 15716
23 3019 20
22 26 27 28 29817
24 3118
25
: B135
B: B137
D
B72
3412
R58
23
56 1
4

EN(H4DOTC 2.5)-63
ENGINE (DIAGNOSTIC)
Diagnostics for Engine Starting Failure

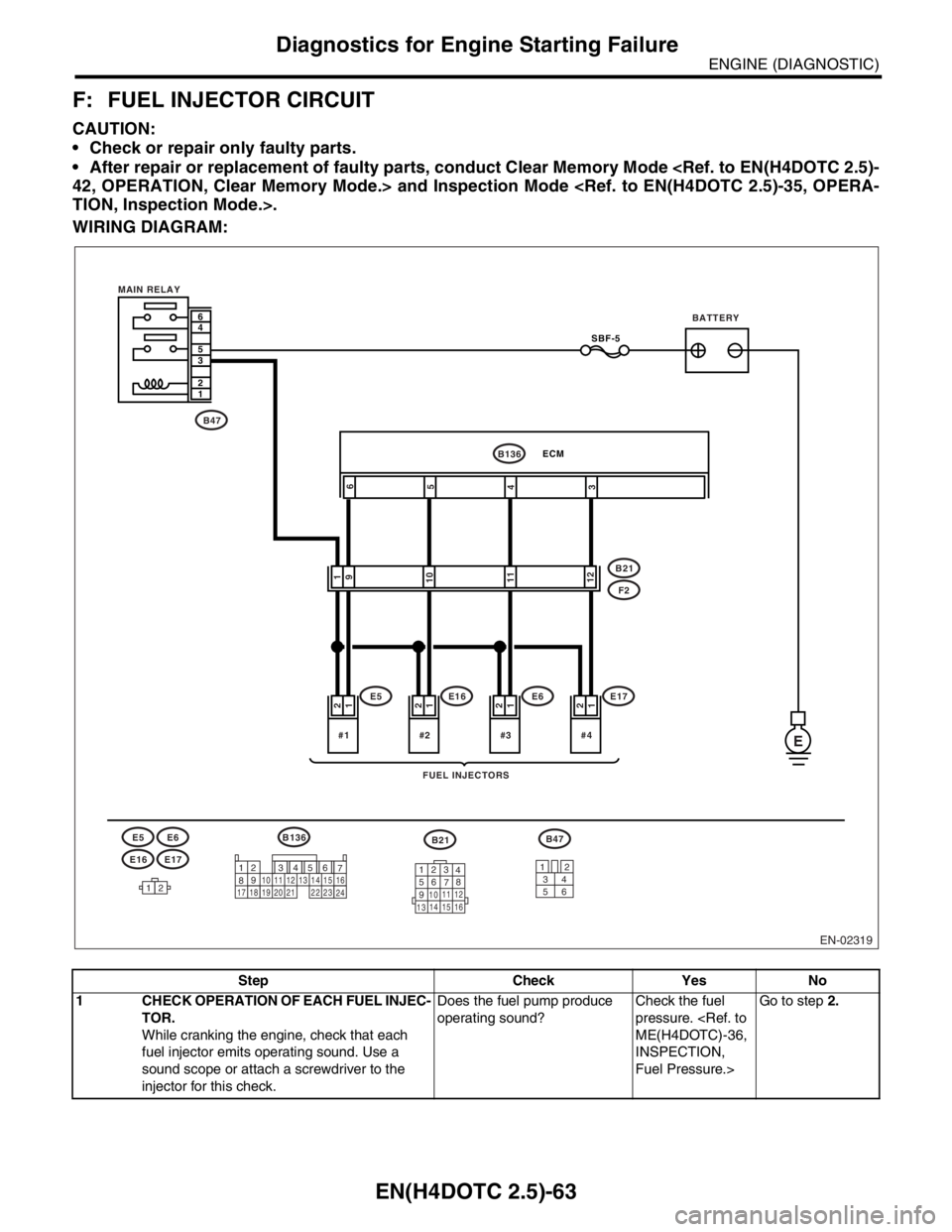

F: FUEL INJECTOR CIRCUIT
CAUTION:
 Check or repair only faulty parts.
 After repair or replacement of faulty parts, conduct Clear Memory Mode 42, OPERATION, Clear Memory Mode.> and Inspection Mode TION, Inspection Mode.>.
WIRING DIAGRAM:
Step Check Yes No
1 CHECK OPERATION OF EACH FUEL INJEC-
TOR.
While cranking the engine, check that each
fuel injector emits operating sound. Use a
sound scope or attach a screwdriver to the
injector for this check.Does the fuel pump produce
operating sound?Check the fuel
pressure. ME(H4DOTC)-36,
INSPECTION,
Fuel Pressure.>Go to step 2.
EN-02319
BATTERY
FUEL INJECTORS MAIN RELAY
E#4
1 2
SBF-5
#3
1
2
#2
1 2
#1
1
2
1
9
10
11
12
12
12
7
8956 3410 11 12
19 20 2113 14 1516
17 1822
23
24123
4
56
78
9
1011 12
1314 15 16
6
4
5
3
2
1
B21
B21B136E5
E5
F2
E6
E6
E16
E16
E17
B47
E17
6
5
4
3
B136ECM
B47
34
12
56

EN(H4DOTC 2.5)-64
ENGINE (DIAGNOSTIC)
Diagnostics for Engine Starting Failure
2 CHECK POWER SUPPLY TO EACH FUEL
INJECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from fuel injector.
3) Turn the ignition switch to ON.
4) Measure the power supply voltage between
fuel injector terminal and engine ground.
Connector & terminal
#1 (E5) No. 2 (+) — Engine ground (
−):
#2 (E16) No. 2 (+) — Engine ground (
−):
#3 (E6) No. 2 (+) — Engine ground (
−):
#4 (E17) No. 2 (+) — Engine ground (
−):Is the voltage more than 10 V? Go to step 3.Repair the har-
ness and connec-
tor.
N
OTE:
In this case repair
the following:
 Open circuit in
harness between
main relay and fuel
injector connector
 Poor contact in
main relay connec-
tor
 Poor contact in
coupling connector
 Poor contact in
fuel injector con-
nector
3 CHECK HARNESS BETWEEN ECM AND
FUEL INJECTOR CONNECTOR.
1) Disconnect the connector from ECM.
2) Measure the resistance of harness
between ECM and fuel injector connector.
Connector & terminal
(B136) No. 6 — (E5) No. 1:
(B136) No. 5 — (E16) No. 1:
(B136) No. 4 — (E6) No. 1:
(B136) No. 3 — (E17) No. 1:Is the resistance less than 1
Ω?Go to step 4.Repair the har-
ness and connec-
tor.
N
OTE:
In this case repair
the following:
 Open circuit in
harness between
ECM and fuel
injector connector
 Poor contact in
coupling connector
4 CHECK HARNESS BETWEEN ECM AND
FUEL INJECTOR CONNECTOR.
Measure the resistance of harness between
ECM and fuel injector connector.
Connector & terminal
(B136) No. 3 — Chassis ground:
(B136) No. 4 — Chassis ground:
(B136) No. 5 — Chassis ground:
(B136) No. 6 — Chassis ground:Is the resistance less than 1
Ω?Repair ground
short circuit in har-
ness between
ECM and fuel
injector connector.Go to step 5.
5 CHECK EACH FUEL INJECTOR.
1) Turn the ignition switch to OFF.
2) Measure the resistance between each fuel
injector terminals.
Te r m i n a l s
No. 1 — No. 2:Is the resistance 5 — 20 Ω? Go to step 6.Replace the faulty
fuel injector.
6 CHECK POOR CONTACT.
Check poor contact in ECM connector.Is there poor contact in ECM
connector?Repair the poor
contact in ECM
connector.Inspection using
“General Diagnos-
tic Table”. EN(H4DOTC 2.5)-
258, INSPEC-
TION, General
Diagnostic Table.> Step Check Yes No

EN(H4DOTC 2.5)-70
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
18.Diagnostic Procedure with Diagnostic Trouble Code (DTC)

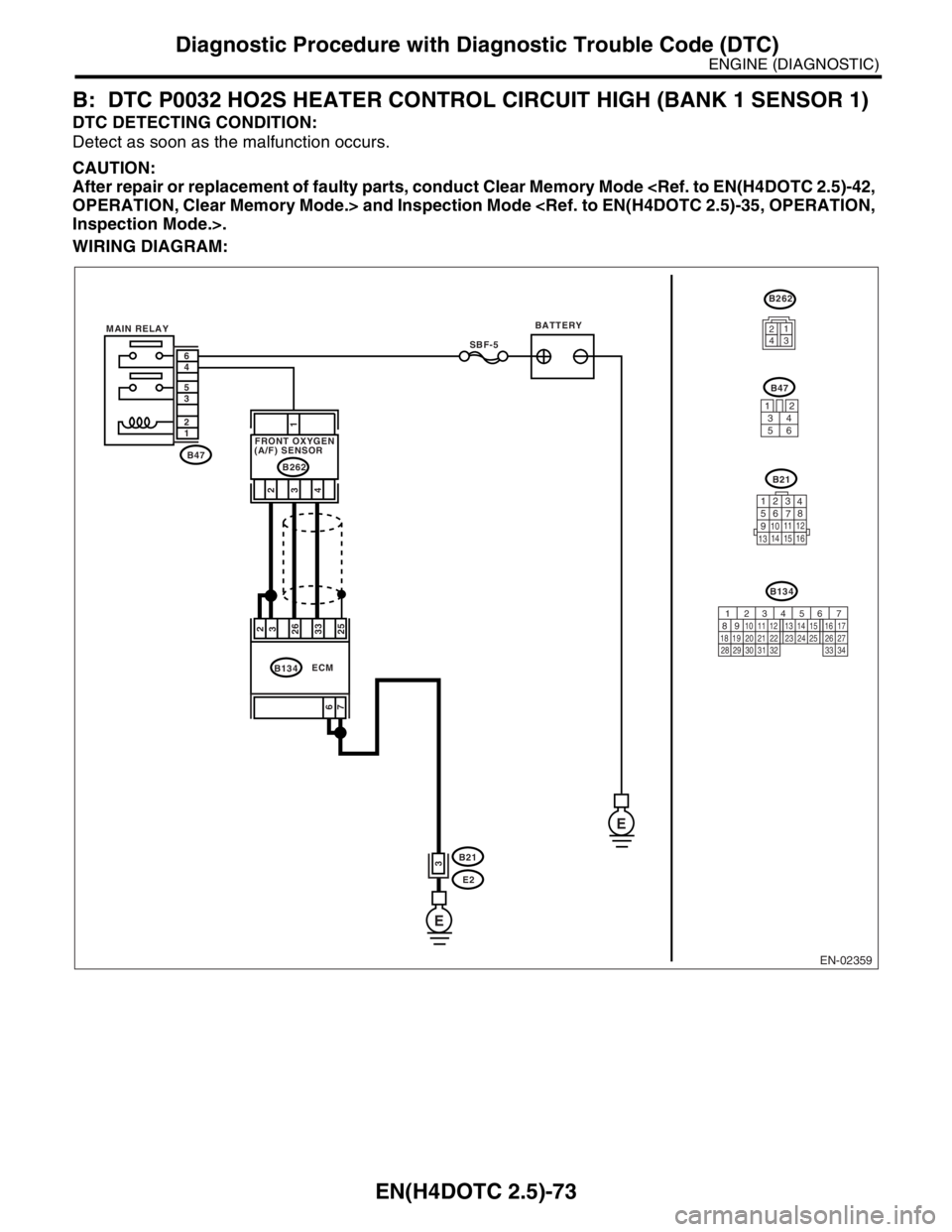

A: DTC P0031 HO2S HEATER CONTROL CIRCUIT LOW (BANK 1 SENSOR 1)
DTC DETECTING CONDITION:
Immediately at fault recognition.
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-02359
SBF-5
B47 1 2 3 5 4 6
E
E
B21
E236
72
3
26
33
25
ECM
B134
1
3 2
4
B262
34 12
56
123
4
56
78
9
1011 12
1314 15 16
B21 B47 B262
B134
56 7
82 1
94 310
24 22 23 25 11 12 13 14 15
26 27
2816 17
18 19 20 21
33 34 29
32 30 31
MAIN RELAY1234BATTERY
FRONT OXYGEN
(A/F) SENSOR

EN(H4DOTC 2.5)-71
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK POWER SUPPLY TO FRONT OXY-
GEN (A/F) SENSOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from front oxygen
(A/F) sensor.
3) Turn the ignition switch to ON.
4) Measure the voltage between front oxygen
(A/F) sensor connector and engine ground.
Connector & terminal
(B262) No. 1 (+) — Engine ground (
−):Is the voltage more than 10 V? Go to step 2.Repair the power
supply line.
N
OTE:
In this case repair
the following:
 Open circuit in
harness between
main relay and
front oxygen (A/F)
sensor connector
 Poor contact in
front oxygen (A/F)
sensor connector
 Poor contact in
main relay connec-
tor
2 CHECK GROUND CIRCUIT FOR ECM.
Measure the resistance of harness between
ECM connector and chassis ground.
Connector & terminal
(B134) No. 6 — Chassis ground:
(B134) No. 7 — Chassis ground:Is the resistance less than 5
Ω?Go to step 3.Repair the harness
and connector.
N
OTE:
In this case repair
the following:
 Open circuit in
harness between
ECM and engine
ground cable
 Poor contact in
ECM connector.
 Poor contact in
coupling connector
3 CHECK CURRENT DATA.
1) Start the engine.
2) Read the data of front oxygen (A/F) sensor
heater current using Subaru Select Monitor or
OBD-II general scan tool.
N
OTE:
 Subaru Select Monitor
For detailed operation procedure, refer to
“READ CURRENT DATA SHOWN ON DIS-
PLAY FOR ENGINE”. 2.5)-27, Subaru Select Monitor.>
 OBD-II general scan tool
For detailed operation procedures, refer to the
OBD-II General Scan Tool Operation Manual.Is the current more than 0.2 A? Repair poor con-
tact connector.
N
OTE:
In this case repair
the following:
 Poor contact in
front oxygen (A/F)
sensor connector
 Poor contact in
ECM connector.Go to step 4.
4 CHECK OUTPUT SIGNAL FROM ECM.
1) Start and idle the engine.
2) Measure the voltage between ECM con-
nector and chassis ground.
Connector & terminal
(B134) No. 2 (+) — Chassis ground (
−):
(B134) No. 3 (+) — Chassis ground (
−):Is the voltage less than 1 V? Go to step 6.Go to step 5.
5 CHECK OUTPUT SIGNAL FROM ECM.
Measure the voltage between ECM connector
and chassis ground.
Connector & terminal
(B134) No. 2 (+) — Chassis ground (
−):
(B134) No. 3 (+) — Chassis ground (
−):Does the voltage change by
shaking the harness and con-
nector of ECM while monitor-
ing the value with voltage
meter?Repair the poor
contact in ECM
connector.Go to step 6.

EN(H4DOTC 2.5)-73
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
B: DTC P0032 HO2S HEATER CONTROL CIRCUIT HIGH (BANK 1 SENSOR 1)
DTC DETECTING CONDITION:
Detect as soon as the malfunction occurs.
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-02359
SBF-5
B47 1 2 3 5 4 6
E
E
B21
E236
72
3
26
33
25
ECM
B134
1
3 2
4
B262
34 12
56
123
4
56
78
9
1011 12
1314 15 16
B21 B47 B262
B134
56 7
82 1
94 310
24 22 23 25 11 12 13 14 15
26 27
2816 17
18 19 20 21
33 34 29
32 30 31
MAIN RELAY1234BATTERY
FRONT OXYGEN
(A/F) SENSOR

EN(H4DOTC 2.5)-75
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
C: DTC P0037 HO2S HEATER CONTROL CIRCUIT LOW (BANK 1 SENSOR 2)
DTC DETECTING CONDITION:
Immediately at fault recognition
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.

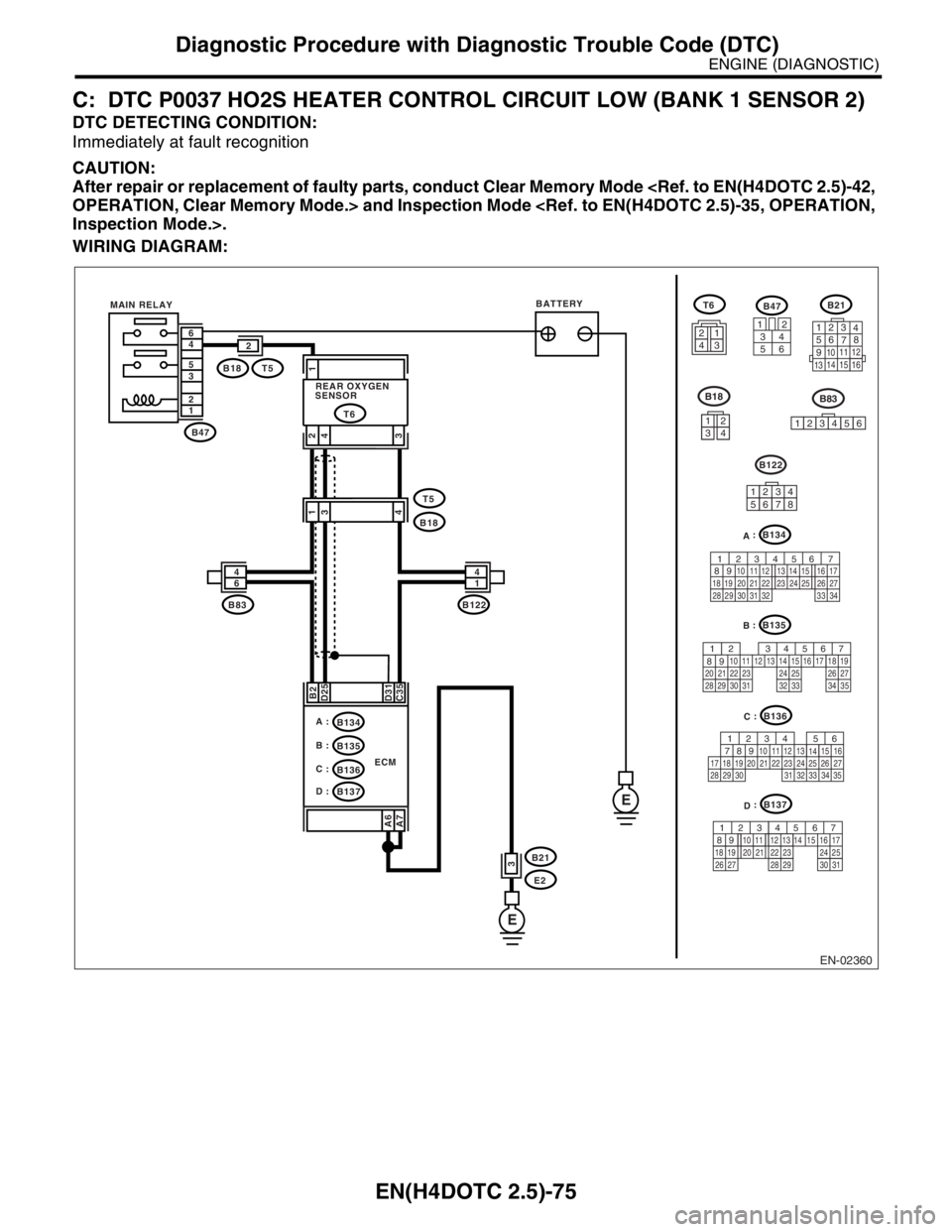

WIRING DIAGRAM:
EN-02360
B122 B47 1 2 3 5 4 6
E
E
B21
E23
4
1
B122
34 12
56123
4
56
78
9
1011 12
1314 15 16
: B134
: B135B21
B47 T6
: B136 T6
A6
A7B2
D25
D31
C35
C : B :
D :
4
6
B83A
B
C
B136
B137 B135 B134 A :
: B137
D
56 7
82 1
94 310
24 22 23 25 11 12 13 14 15
26 27
2816 17
18 19 20 21
33 34 29
32 30 31
56
782 1
94 310
24 22 23 2511 12 13
1415
26 27
2816
17 18 19 20 21
33 34 29
32 30
31 35
567
82 1
94 310
24 22 23 2511 12 13 14 15
26 27
2816 17 18 19
20 21
29 30 31 32 33 34 35
567
82 1
94 310
22 23 11 12 13 14 15
24 25
2616 17
18 19 20 21
27 28 29 30 31
ECM MAIN RELAYBATTERY
REAR OXYGEN
SENSOR
12345678
B18 T52
B18
T5
B18
1234
B83
1
23456
1234
3 1
4
1
2
4
3
